Pump, Positive Displacement, Waukesha Cherry-Burrell Model 220U2, 30 HP, 4" #5991944
Pump, Positive Displacement, Waukesha Cherry-Burrell Model 220U2, 30 HP, 4" #5991944
Location:San Dimas, CA
Available quantity:1
Description

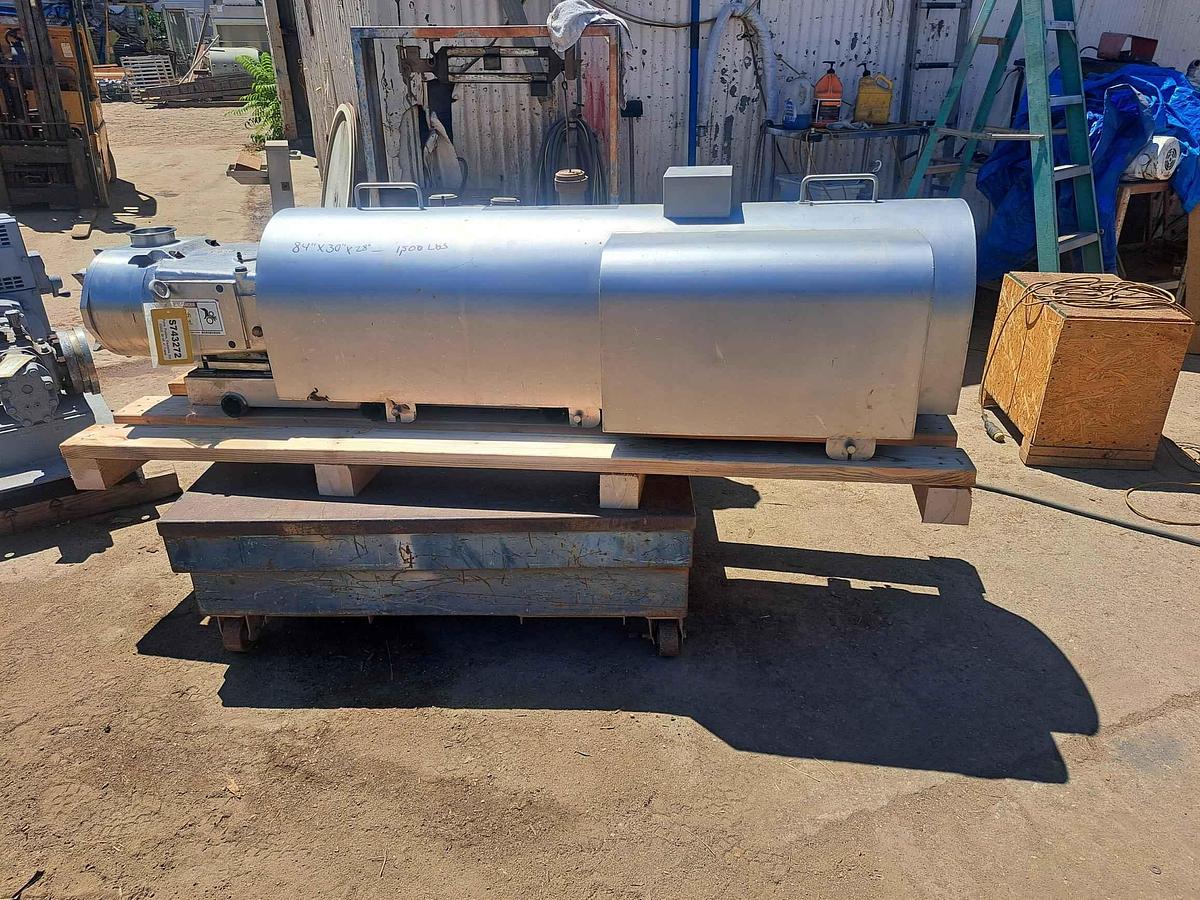

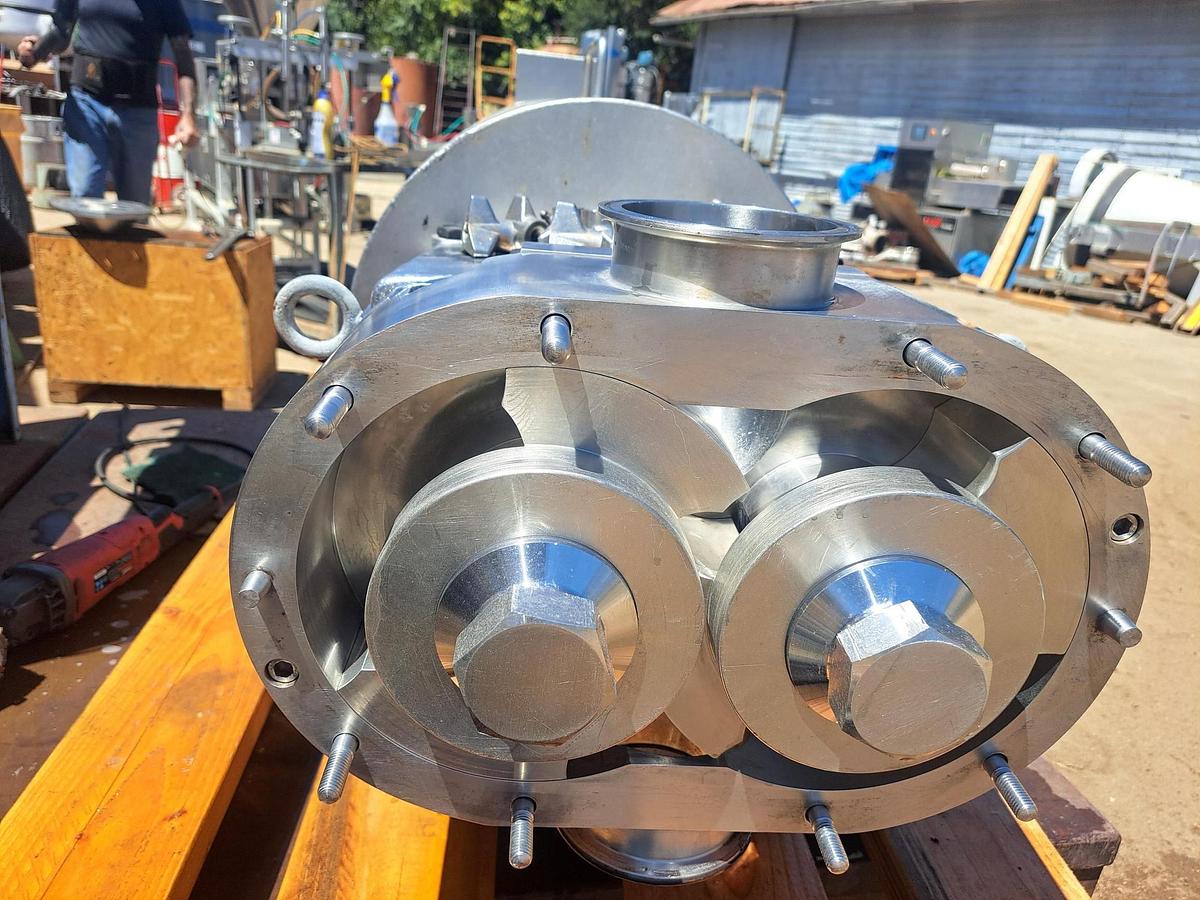

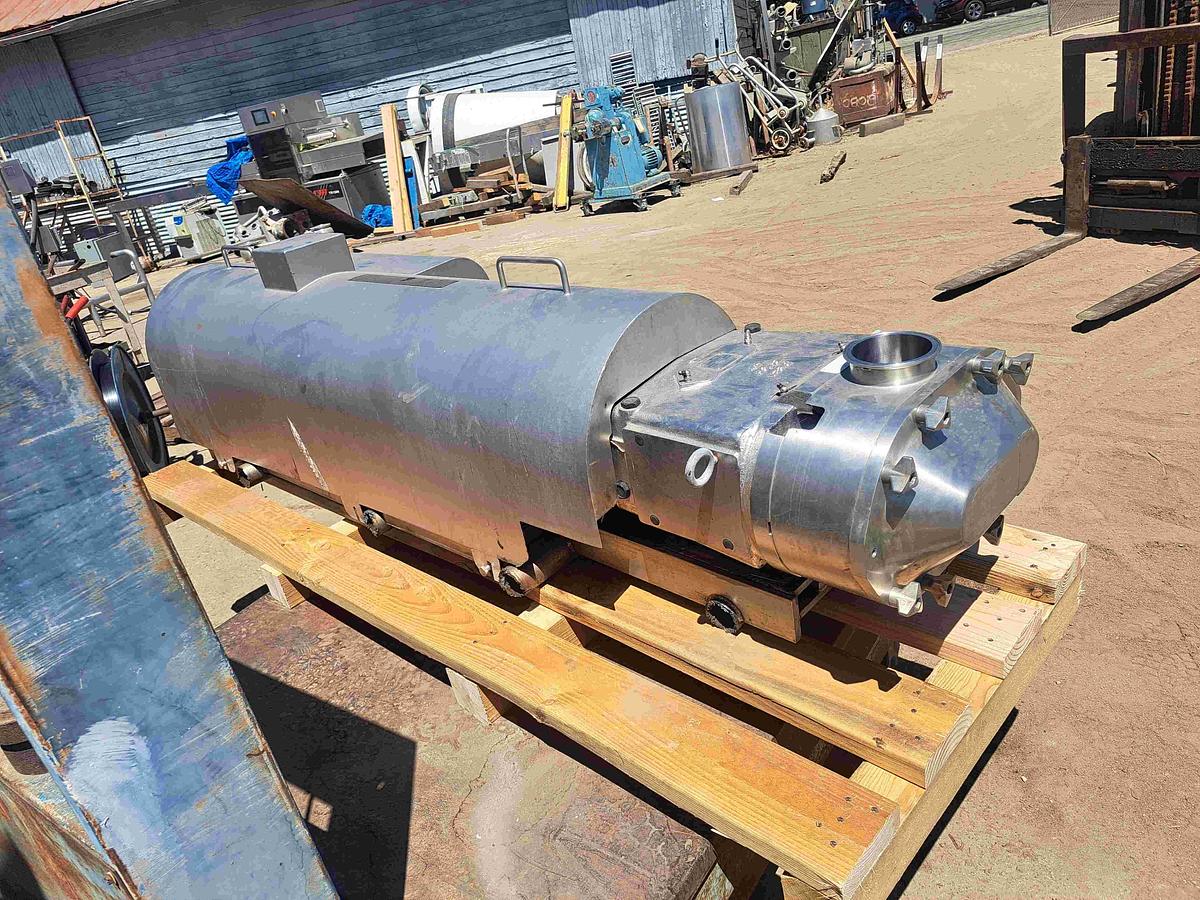

Waukesha Cherry-Burrell Model 220U2 sanitary positive displacement rotary lobe pump with stainless steel product contact parts. Features 4" diameter inlet and outlet connections and is driven by 30 HP, 1770 RPM, 230/460 V, 3 phase, 60 Hz motor through 7.70:1 gear reducer with approximately 230 RPM output speed. Rated for up to approximately 310 GPM. Last used at a yogurt processing facility. Serial number 415400.
Specifications
| Stock Number | 5991944 |
| Manufacturer | Waukesha |
| Model | 220U2 |

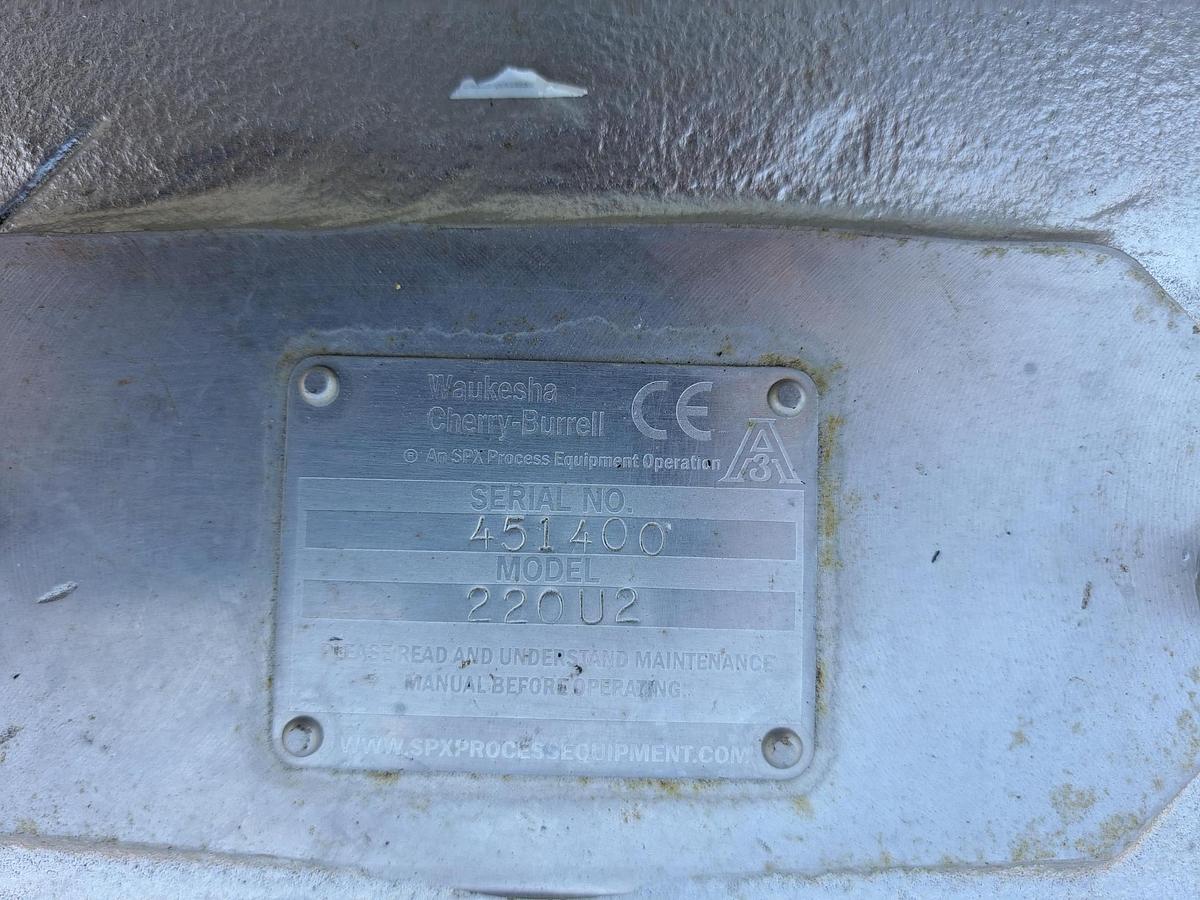

| Serial Number | 451400 |
| Inlet and Outlet | 4" Diameter |
| Capacity | Up to 310 GPM |
| Horsepower | 30 |
| Pump Spreed | Approximately 230 RPM |
| Motor Speed | 1770 RPM |
| Product Contact Parts | Stainless Steel |
| Voltage | 230/460 V |
| Phase | 3 Phase |
| Frequency | 60 Hz |
| Basis | FOB |
General Information
Waukesha Cherry-Burrell is a well-established manufacturer of sanitary processing equipment, with its positive displacement pumps widely used throughout the food, dairy, beverage, pharmaceutical and other sanitary processing industries. Rotary lobe pumps are commonly used for transferring viscous, shear-sensitive and particulate-containing products such as yogurt, cream, cheese products, sauces, syrups, concentrates, dressings and similar materials. This unit was last used at a yogurt processing facility.
