Mill, Quadro, Model U20, Stainless Steel, 7.5 HP, #5991940
Images
Videos
Mill, Quadro, Model U20, Stainless Steel, 7.5 HP, #5991940
Location:Mexico
Available quantity:1
Description

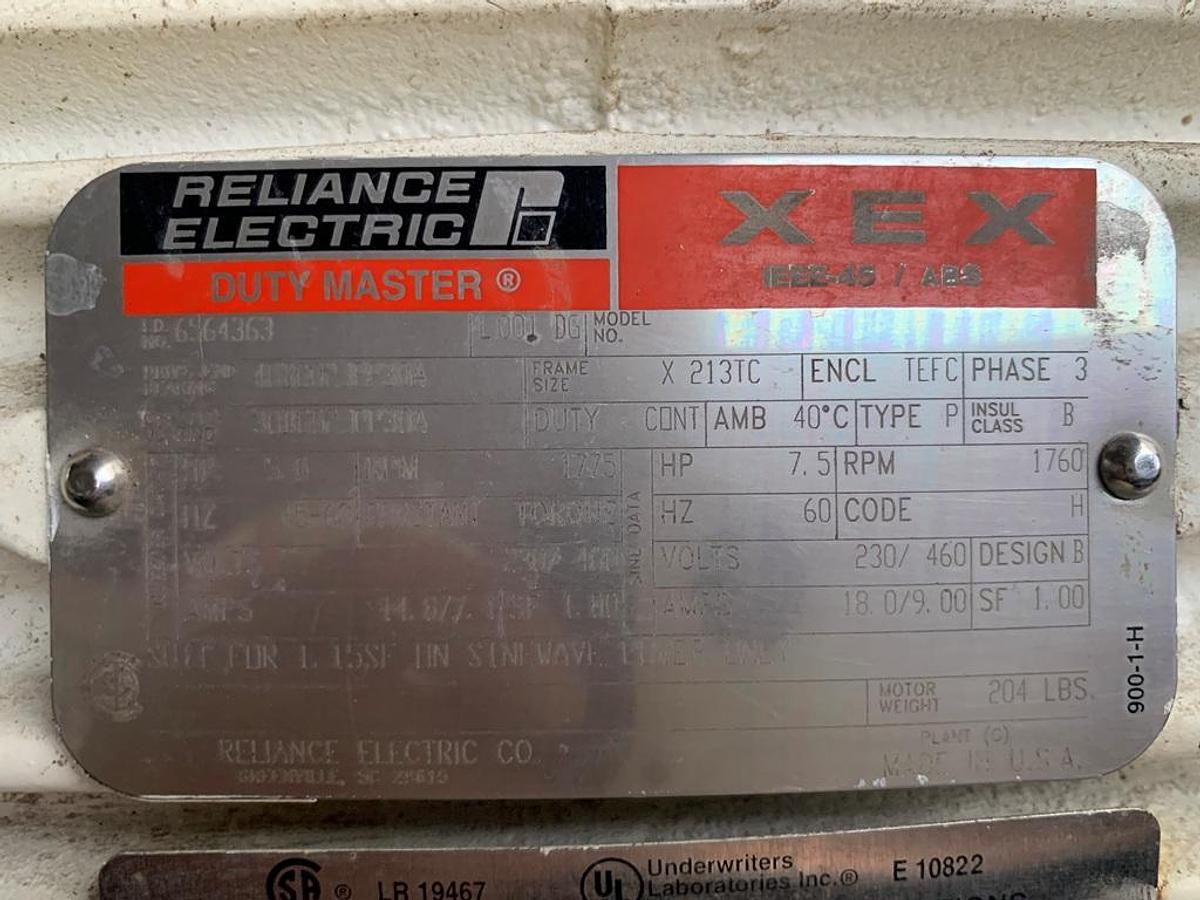

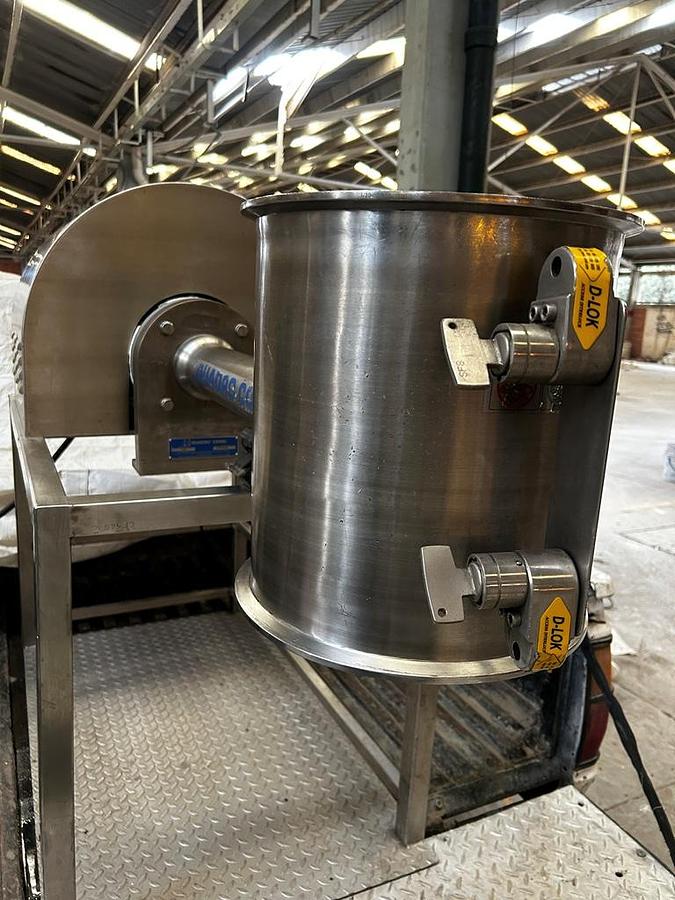

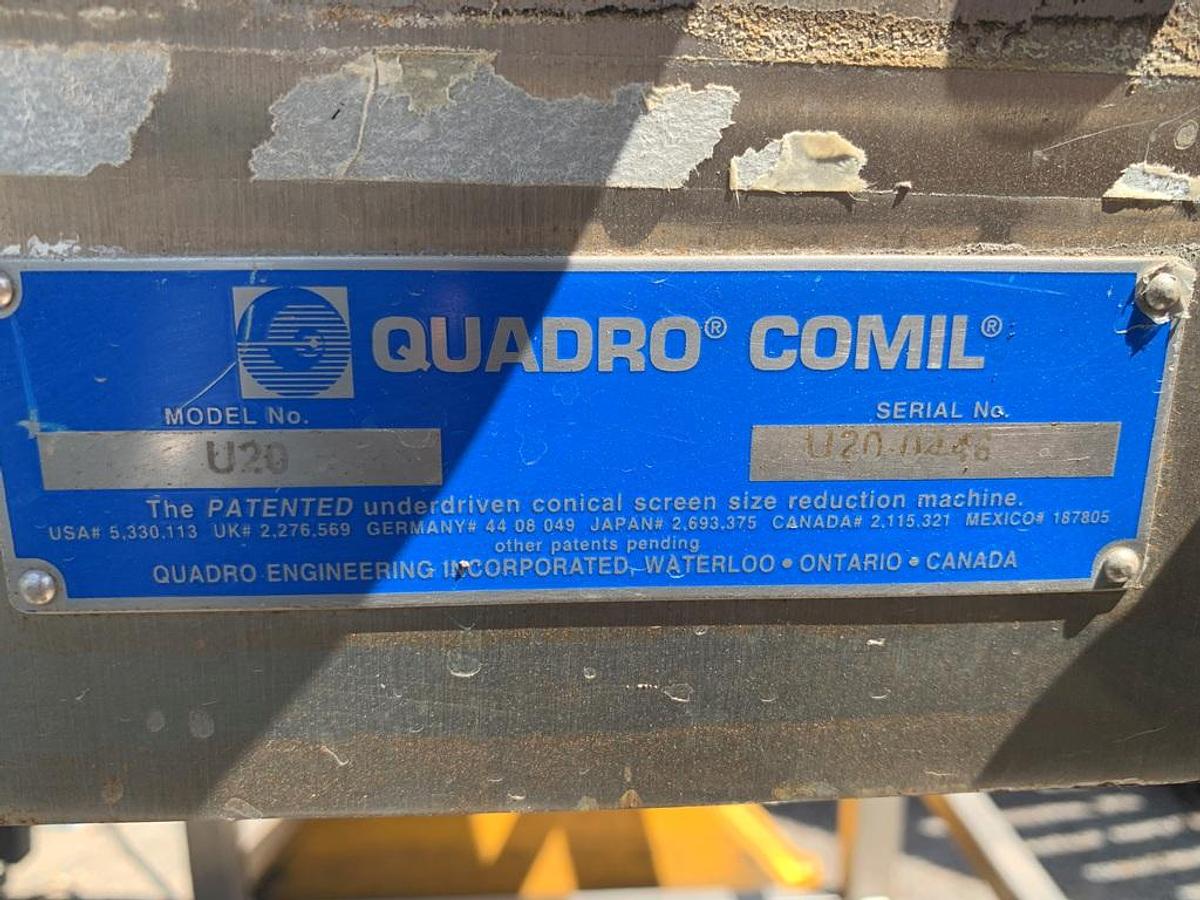

Quadro Comil Model U20 underdriven conical screen size reduction mill with stainless steel product contact construction. Unit includes a stainless steel feed hopper with two D-Lok quick-release clamps, enclosed milling chamber, stainless steel support frame, and Reliance Electric Duty Master XEX drive motor. Motor is rated 7.5 HP, 1760 RPM, 230/460V, 3-phase, 60 Hz, TEFC. The Quadro Comil uses an impeller and conical screen arrangement for controlled particle size reduction, deagglomeration, delumping, and sizing of powders and granular products. Suitable for food, pharmaceutical, chemical, nutraceutical, and general powder-processing applications. Unit is mounted on a stainless steel frame for integration into an existing processing system.
Specifications
| Stock Number | 5991940 |
| Manufacturer | Quadro Engineering |
| Model | U20 |
| Serial Number | U20/0411 |
| HP | 7.5 |
| Feed | Stainless Steel Feed Hopper |
| Hopper Connections | Quick-Release D-Lok |
| Motor Speed | 1760 RPM |
| Construction | Stainless Steel |
| Motor Duty | Continuous |
| Support | Stainless Steel Frame |
| Basis | As Is, Where Is |
General Information
Quadro Comil equipment is designed for controlled particle-size reduction using a rotating impeller within a conical screen. This design is commonly used for milling, sizing, deagglomeration, and delumping while providing more controlled product sizing than many conventional impact mills. The U20 configuration is suitable for integration into batch or continuous powder-processing systems.
