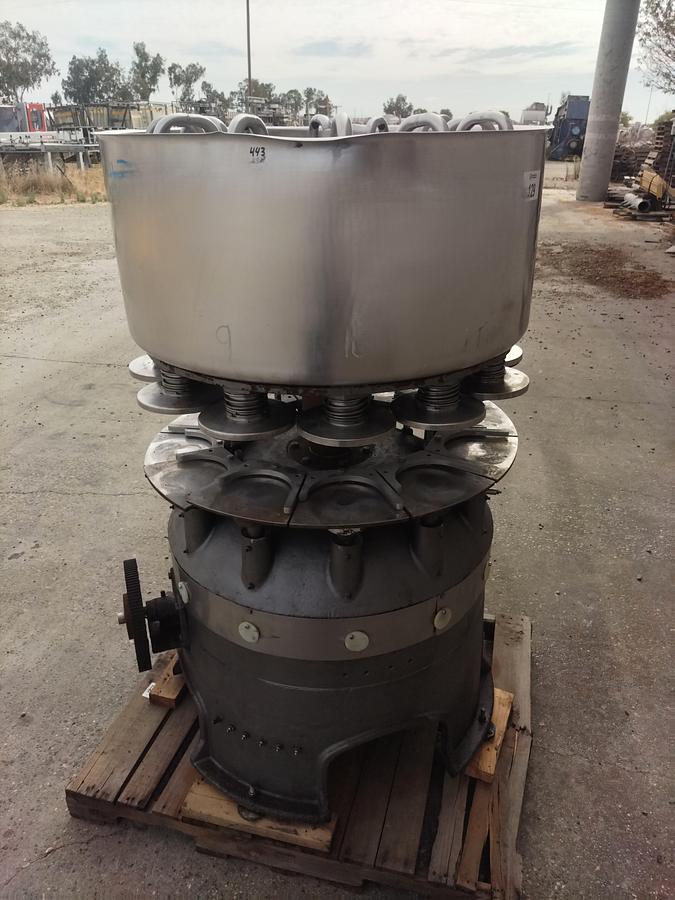

Filler, Can, Rotary, 12-Valve, Gravity, FMC, Stainless Steel, #5991924
Filler, Can, Rotary, 12-Valve, Gravity, FMC, Stainless Steel, #5991924
Location:Chowchilla, CA
Available quantity:1
Description

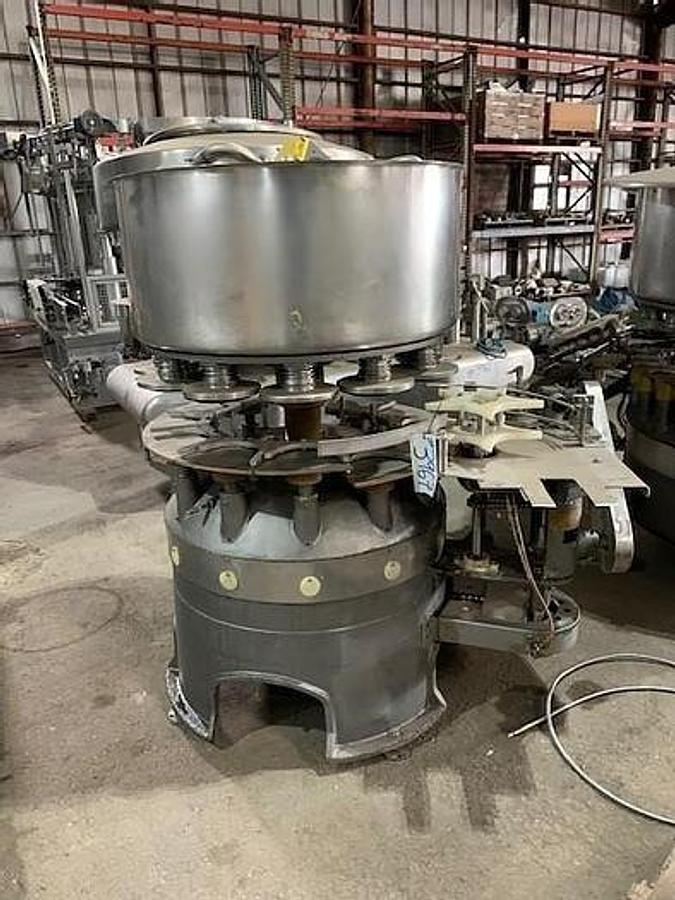

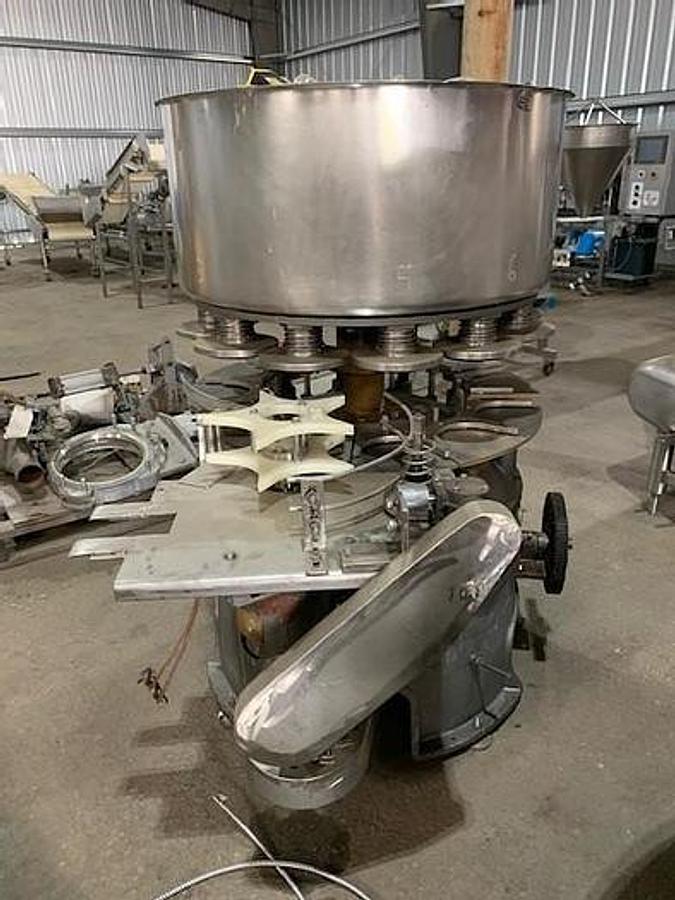

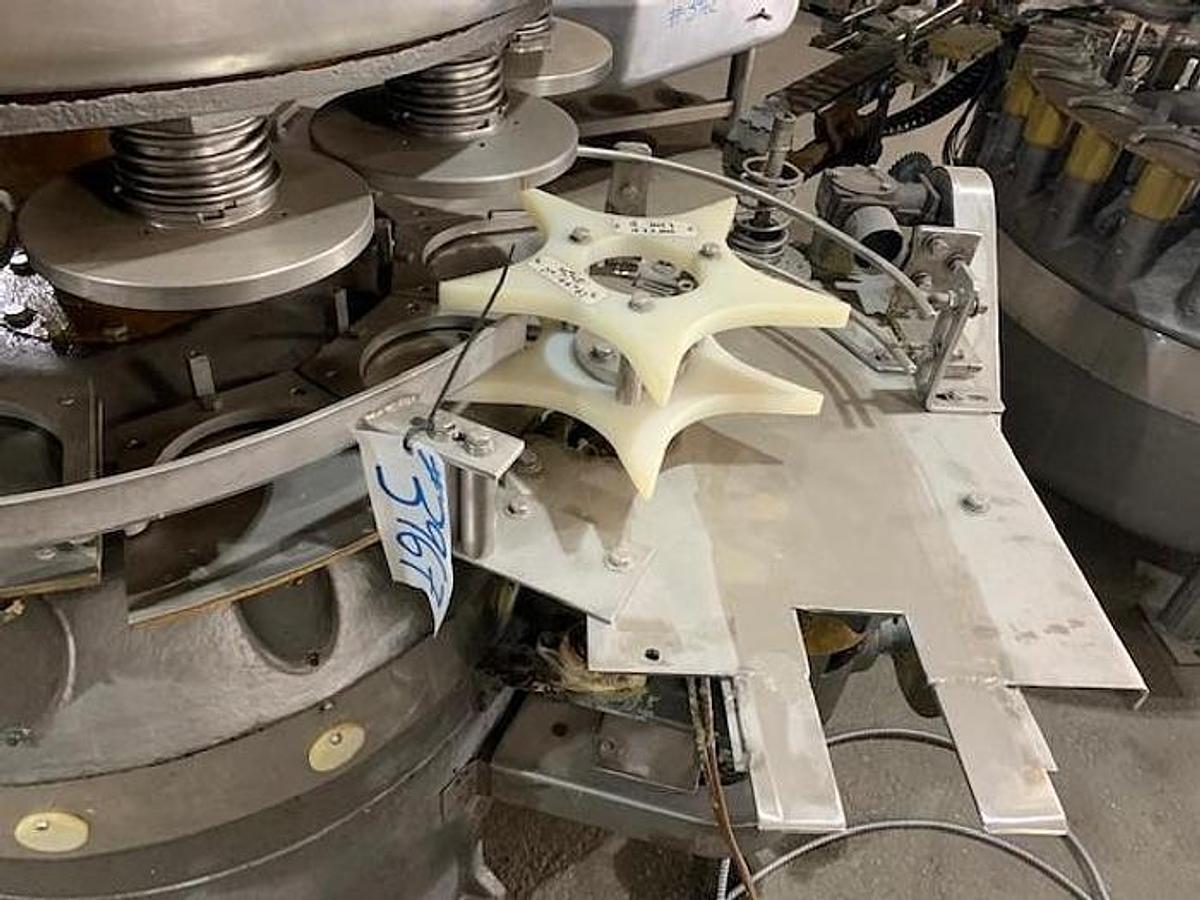

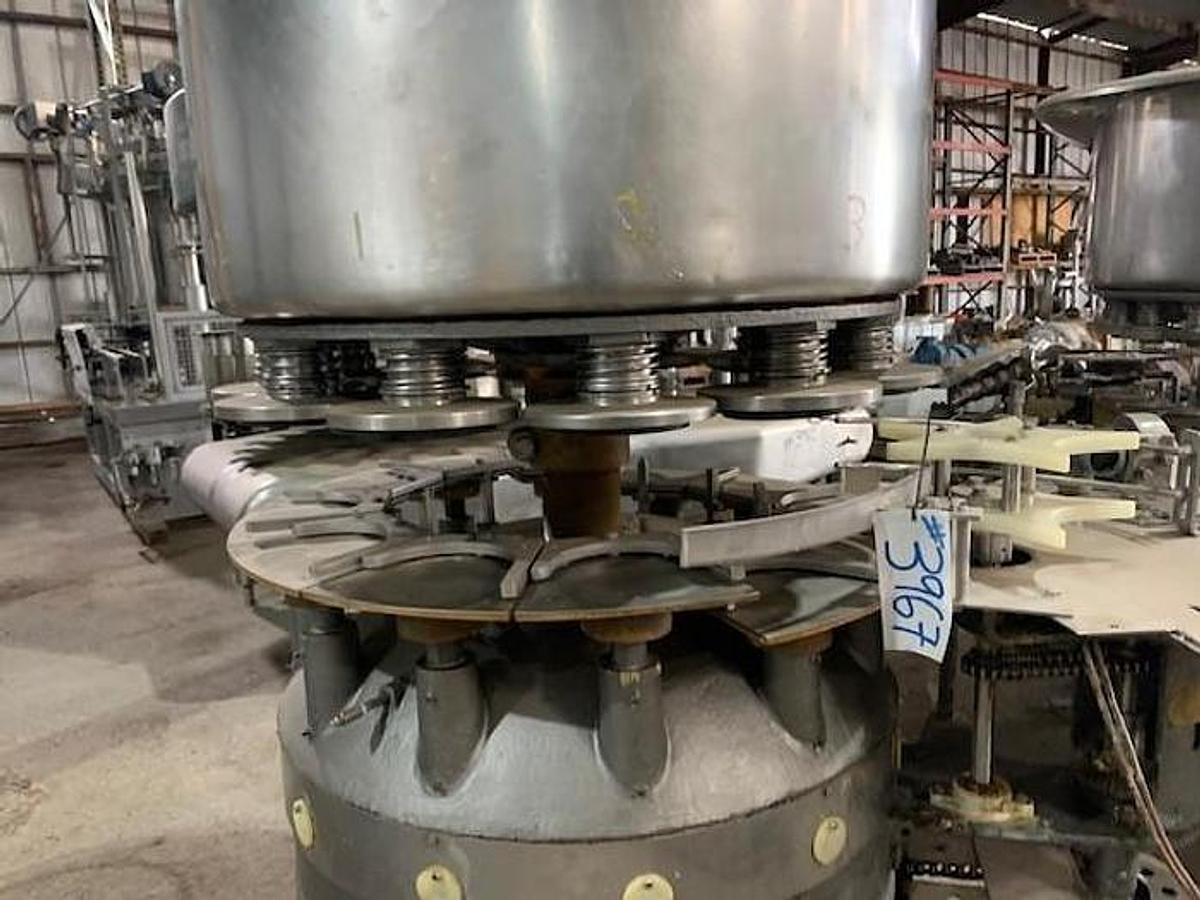

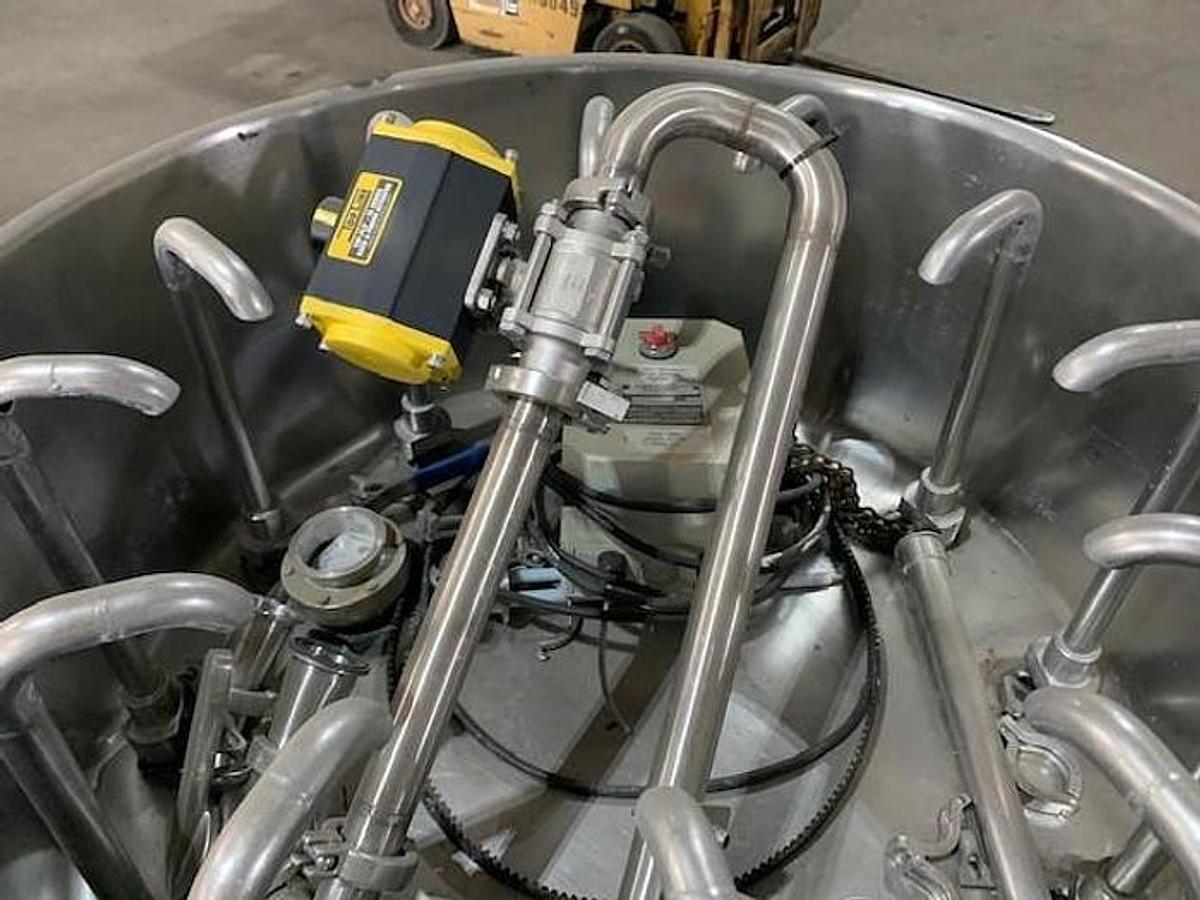

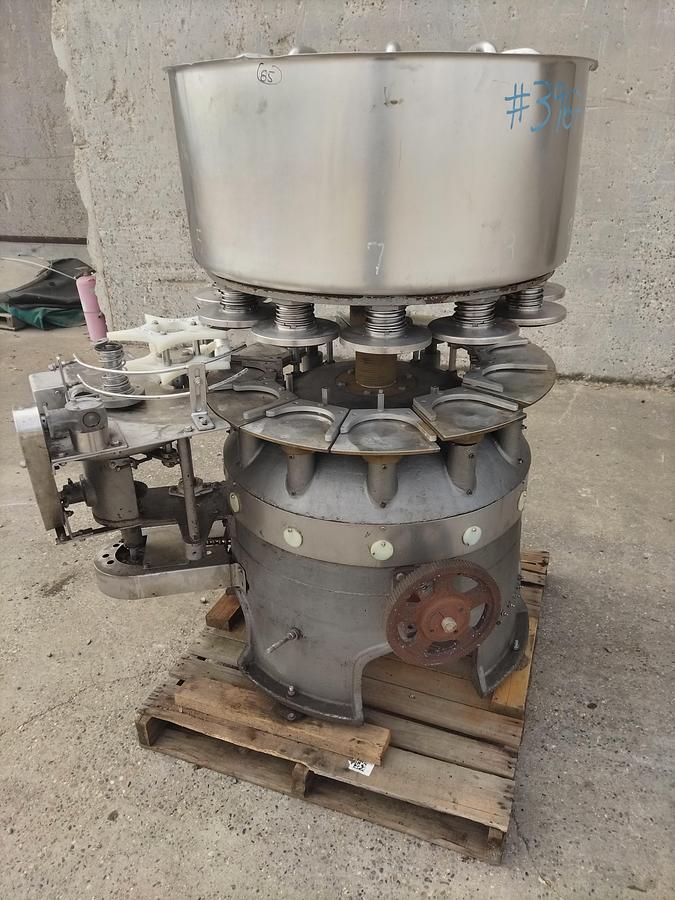

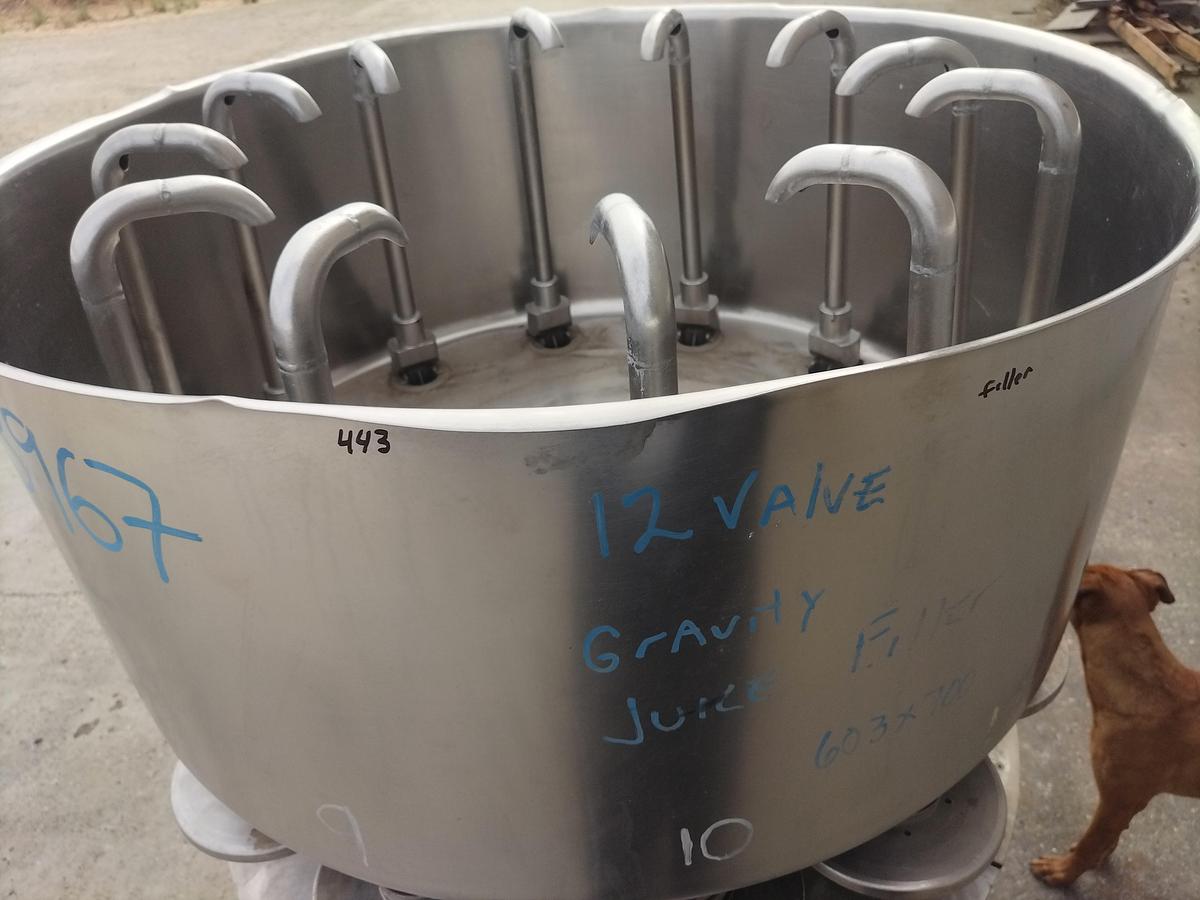

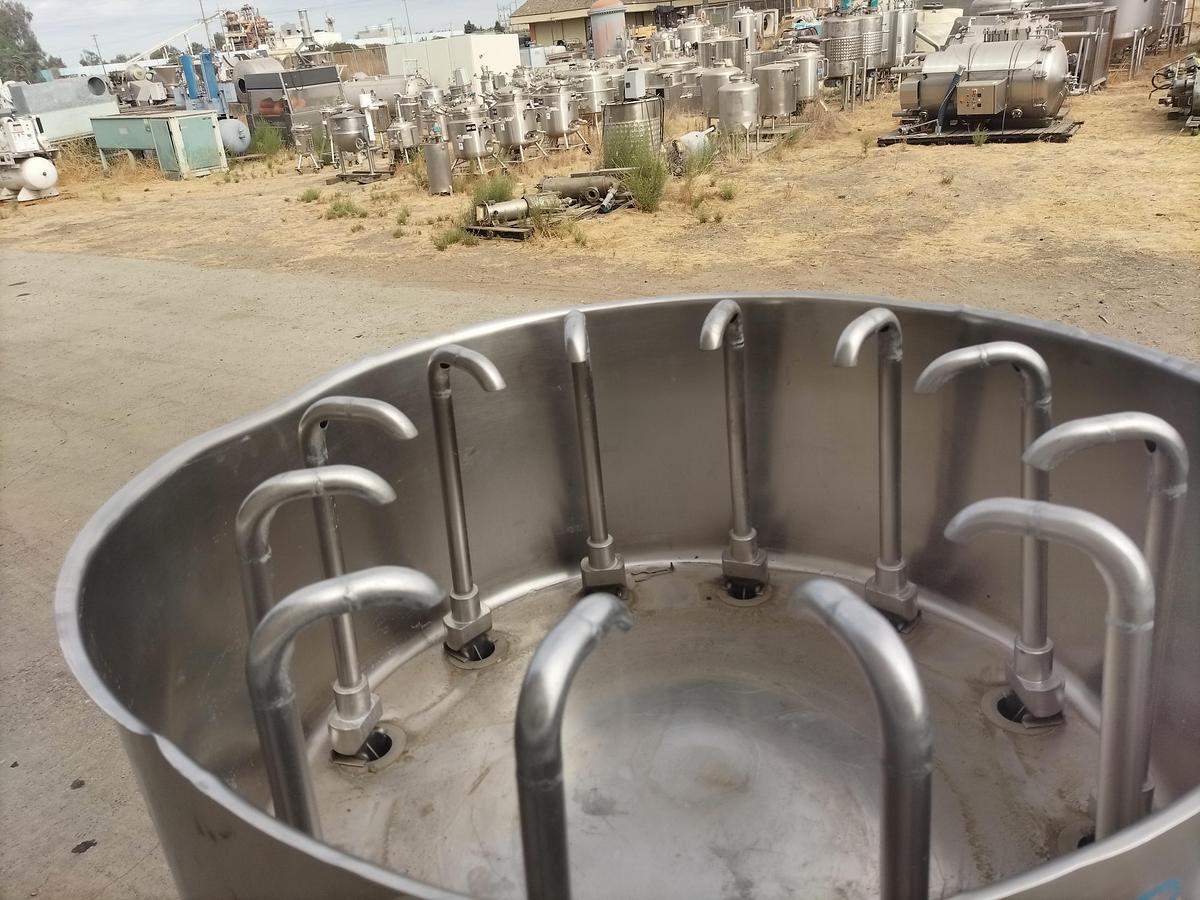

FMC 12-valve rotary gravity juice filler set for 603 x 700 can size. Unit features stainless steel product-contact construction with a large stainless steel product reservoir and 12 gravity filling valves. Can handling includes turret-style infeed, clockwise rotary operation, and tangential discharge. Filler is mounted on a mild steel base and includes sanitary stainless steel product piping and valve components. Unit has no independent drive and was previously driven by the associated can seamer, making it suitable for integration into a compatible filling and seaming line. Designed for gravity filling of juice and other free-flowing liquid food products into large cans. Existing can-handling components and starwheel are configured for the stated 603 x 700 can size.
Specifications
| Stock Number | 5991924 |
| Manufacturer | FMC |
| Filling Valves | 12 |
| Filling Method | Gravity |
| Type | Rotary Gravity Juice Filler |
| Can Size | 603 x 700 |
| Can Handling | Starwheel / Rotary |
| Rotatation | Clockwise |
| Construction | Stainless steel |
| Basis | FOB |
General Information
This FMC rotary gravity filler is designed for filling relatively free-flowing liquid products into cans. The 12-valve rotary arrangement provides continuous container handling through the filling turret, while the existing change parts are configured for 603 x 700 cans. Because the filler was seamer driven, a buyer integrating it into another line will need to provide a compatible mechanical drive or synchronize it with an appropriate seamer.
