Tank, 300 Gallon, Stainless Steel, Jacketed, Scrape Surface Agitation, Mueller,#5991920
Tank, 300 Gallon, Stainless Steel, Jacketed, Scrape Surface Agitation, Mueller,#5991920
Location:Chowchilla, CA
Available quantity:1
Description

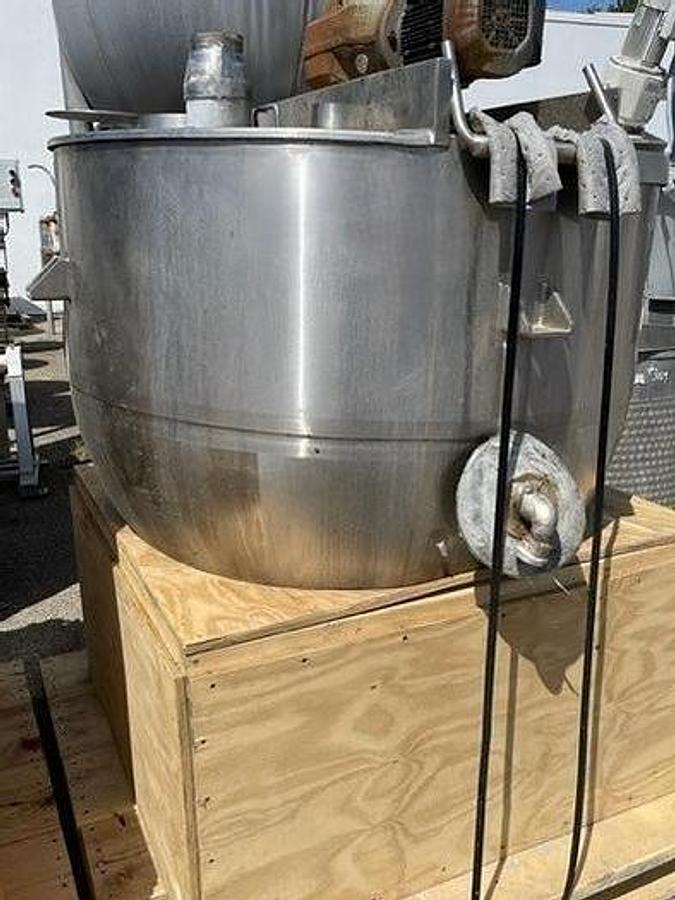

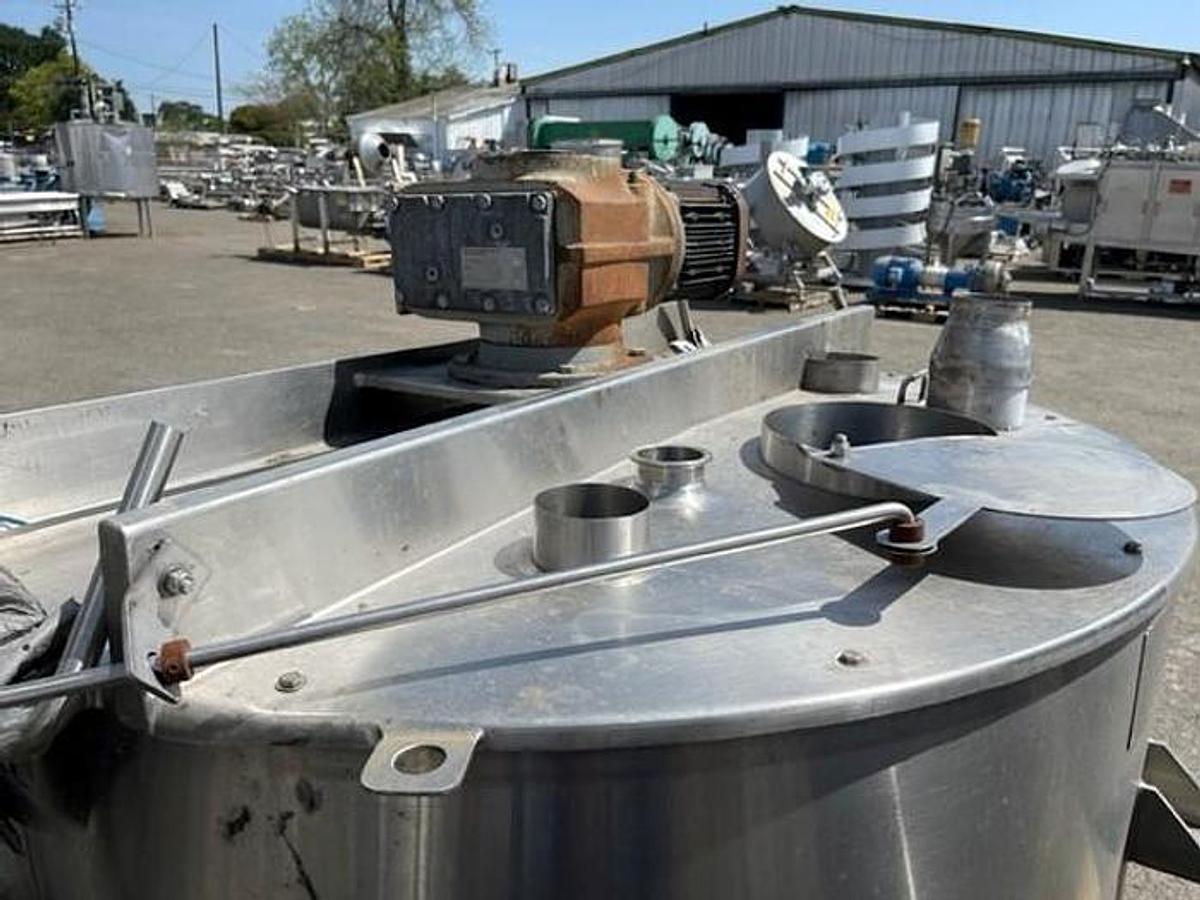

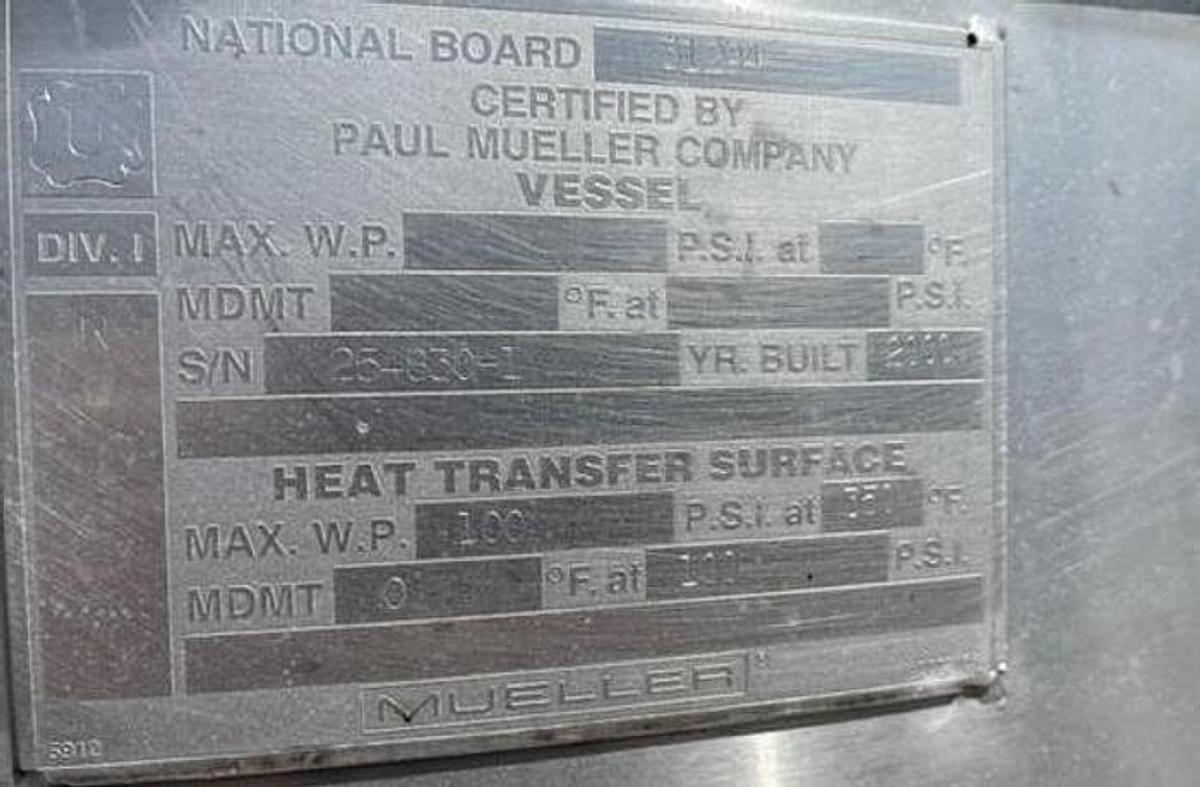

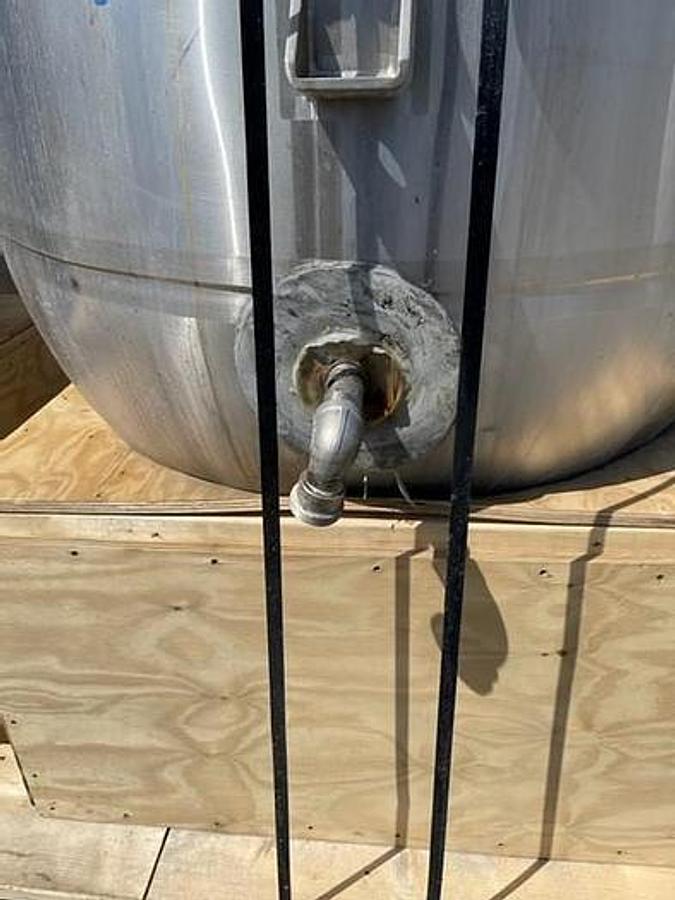

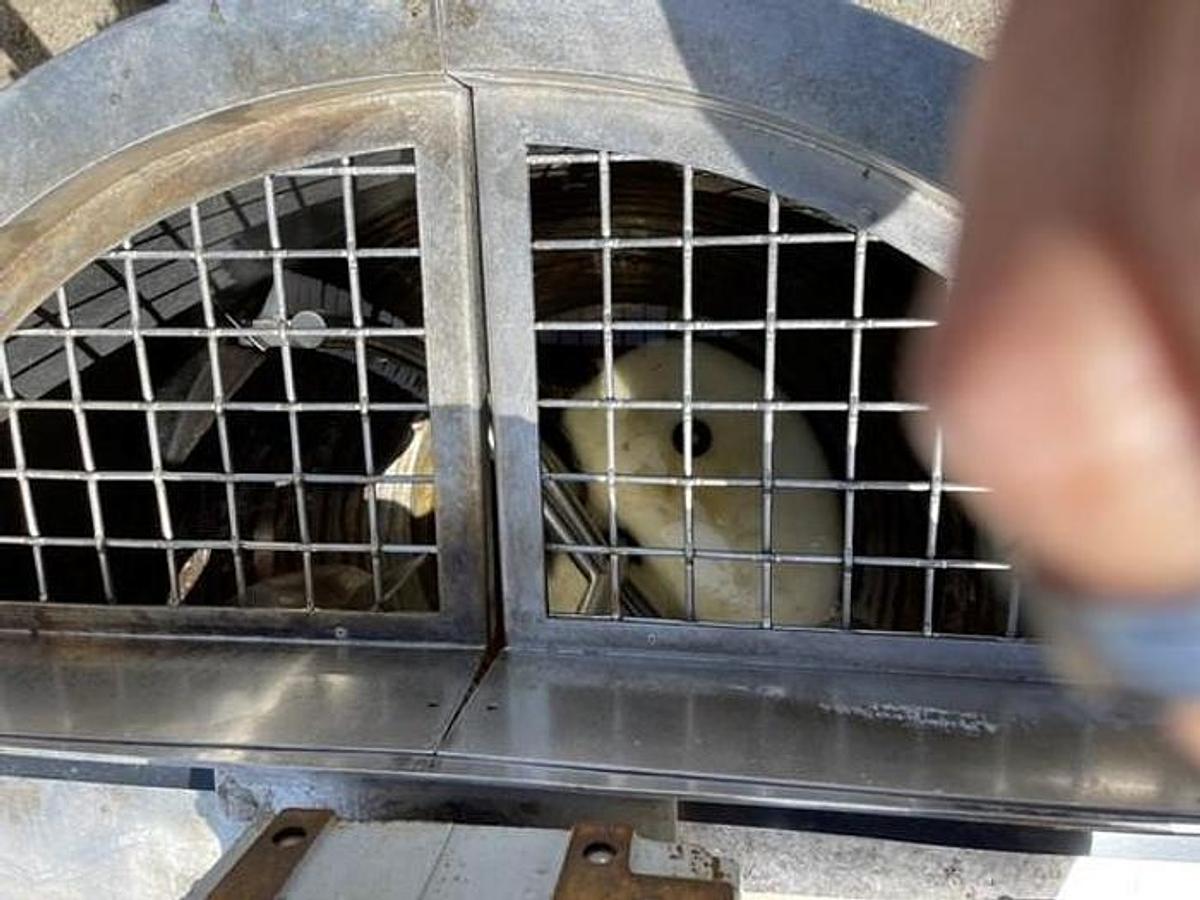

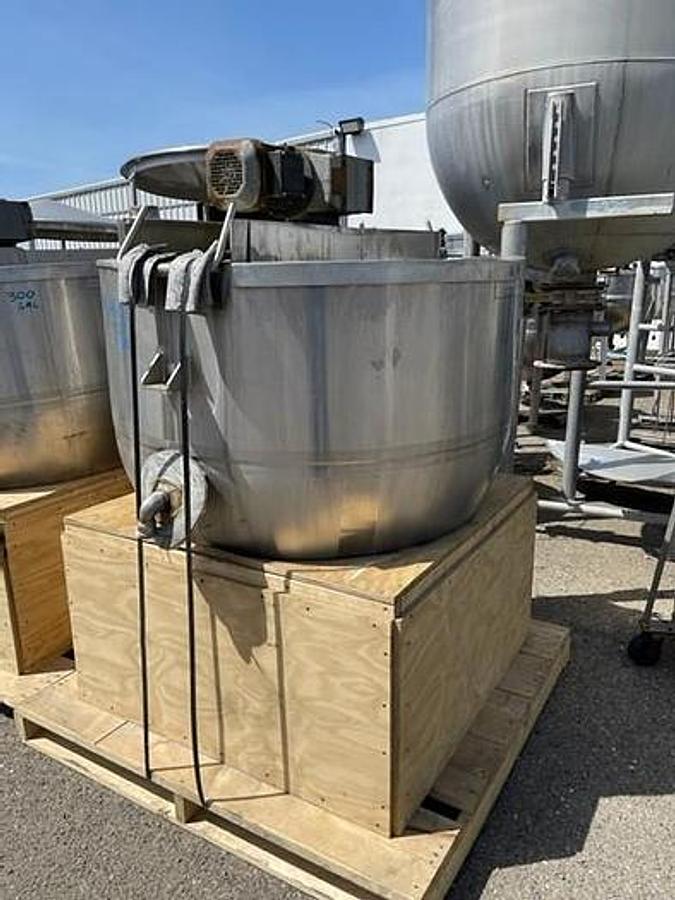

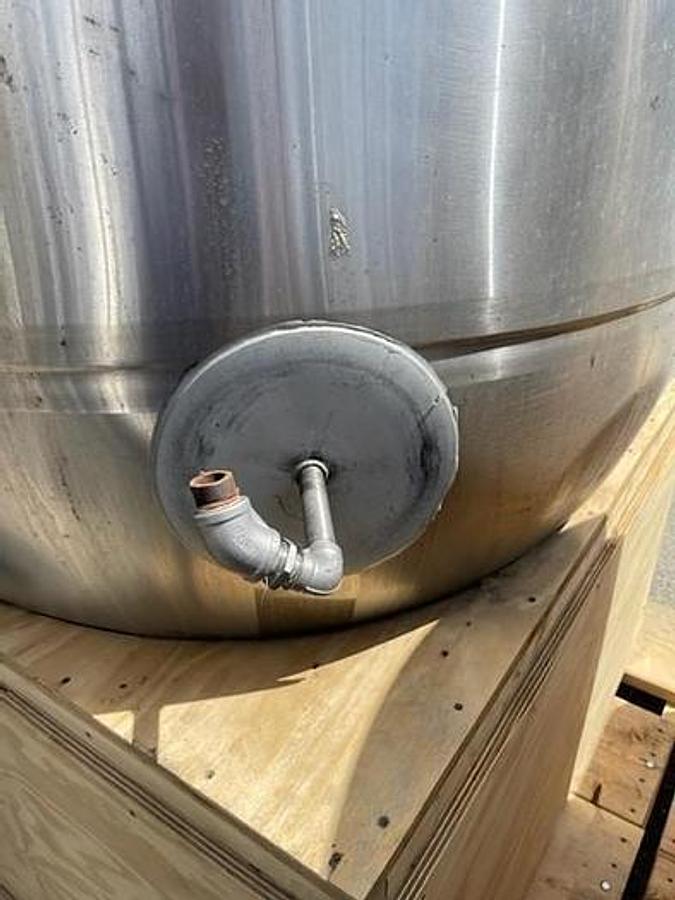

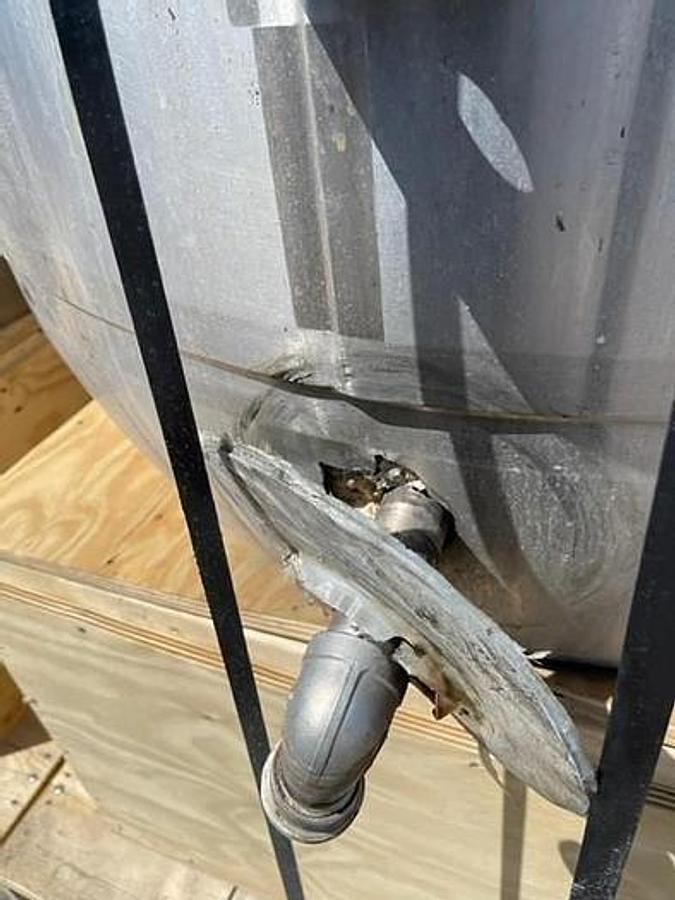

300 gallon Mueller stainless steel jacketed mixing kettle, manufactured in 2000, with bridge-mounted scrape surface agitation. Kettle measures approximately 52 in. diameter and is equipped with a half jacket rated for a maximum working pressure of 100 PSI at 350°F. National Board certified with NB No. 31295. Vessel has a stainless steel split top cover with one covered section and one grated access section. Agitation assembly is bridge mounted with gear reducer and electric drive motor and includes internal scrape surface agitator components for product movement along the kettle wall. Additional features include bottom/side process outlet, jacket connections, multiple top ports, lifting lugs, and stainless steel construction. Suitable for food, beverage, sauce, dairy, confectionery, and other heated mixing applications requiring agitation and heat transfer.
Specifications
| Stock Number | 5991920 |
| Manufacturer | Paul Mueller Company |
| Year | 2000 |
| Serial Number | 25-830-1 |
| Gallons | 300 |
| Type | Jacketed Mixing Kettle |
| Construction | Stainless Steel |
| Diameter | Approximately 52 in. |
| Jacket Maximum Working Pressure | 100 PSI @ 350°F |
| Agitation | Bridge-Mounted Scrape Surface Agitation |

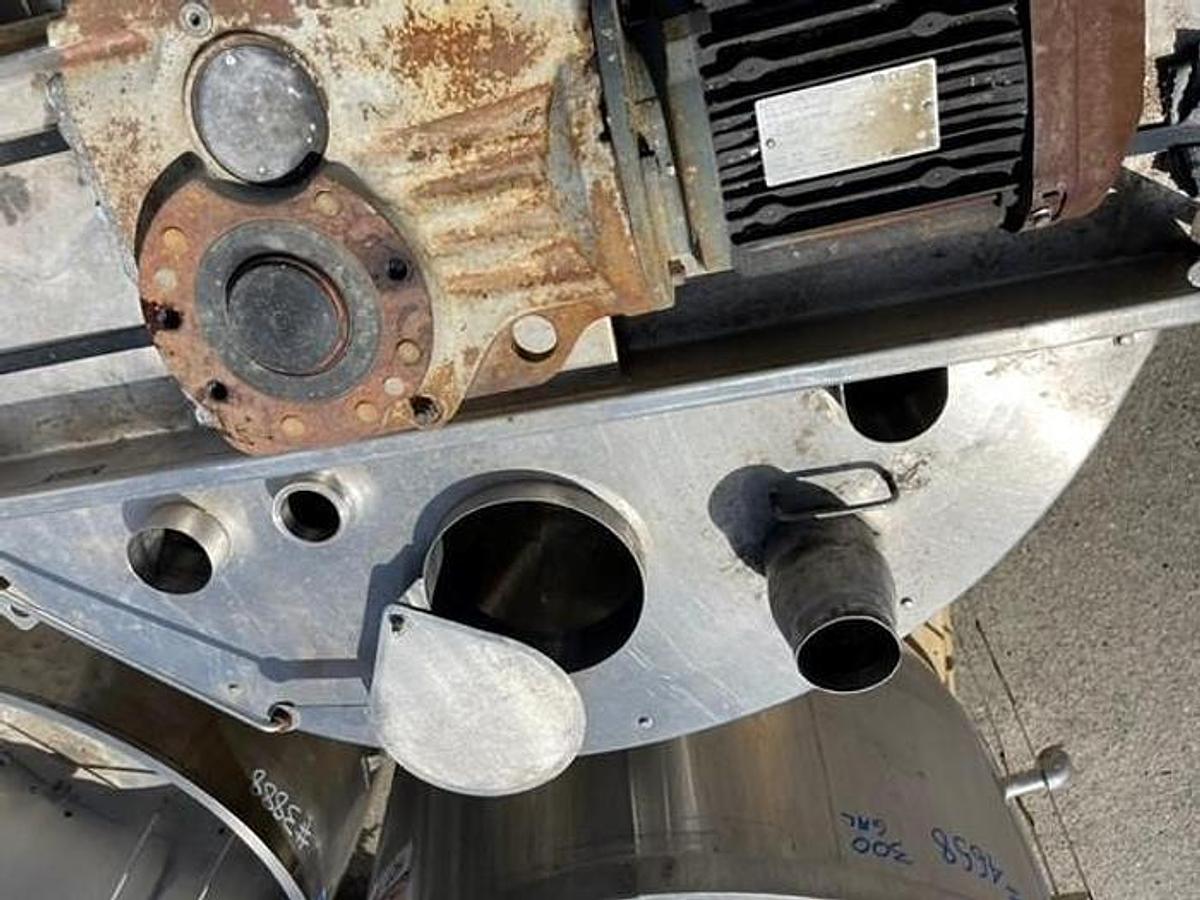

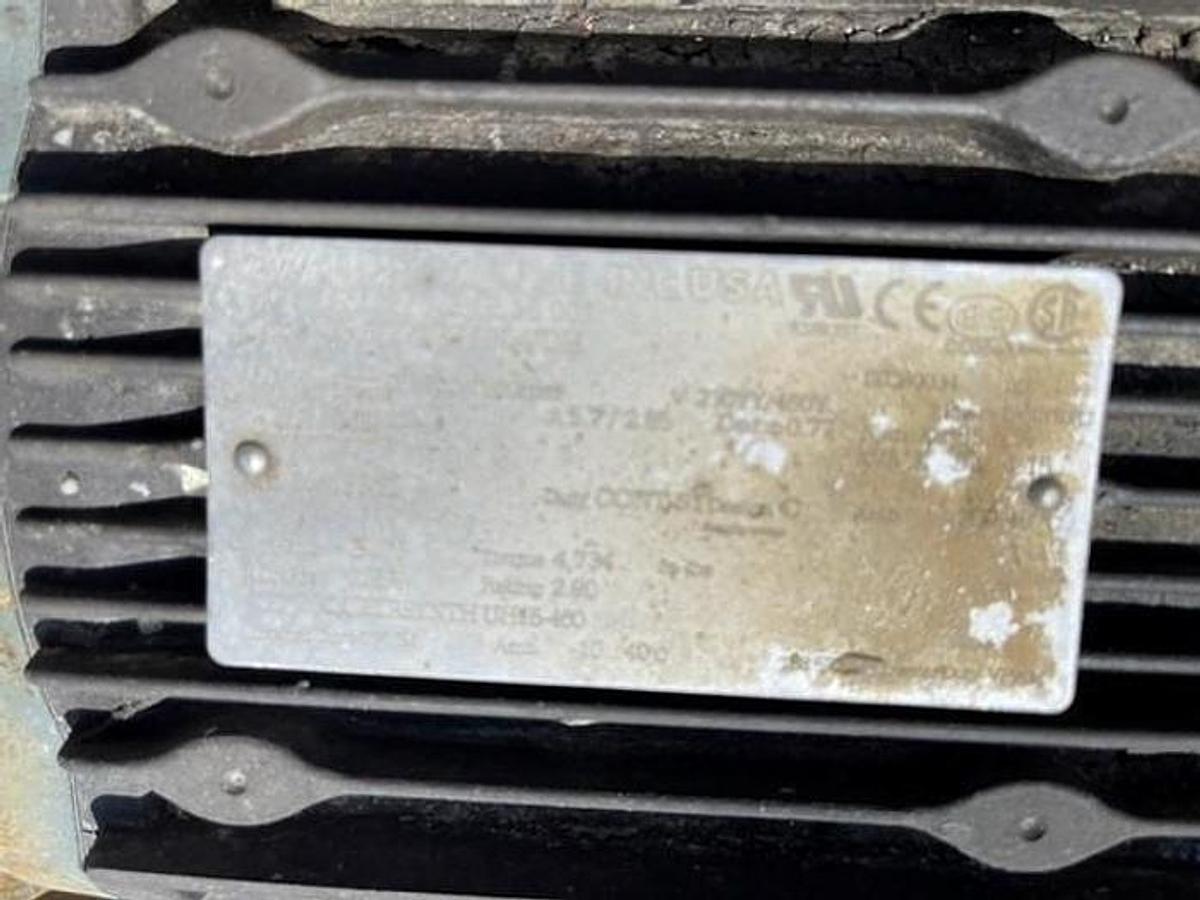

| Agitator Drive | Electric Motor with Gear Reducer |
| Previous Use | Chocolate Processing Line |
| Basis | FOB |
General Information
Mueller stainless steel kettles are widely used for sanitary batch processing where heating and continuous product movement are required. Scrape surface agitation is particularly applicable to viscous or heat-sensitive products because the agitator maintains movement near the heated vessel surface. Typical applications include sauces, fillings, dairy products, syrups, soups, confectionery products, and other food or beverage formulations.
