CIP System, 3-Tank Brew System, 25 Gallon Each, Metalcraft, Chester Jensen Heat Exchanger, #5991918
CIP System, 3-Tank Brew System, 25 Gallon Each, Metalcraft, Chester Jensen Heat Exchanger, #5991918
Location:Chowchilla, CA
Available quantity:1
Description

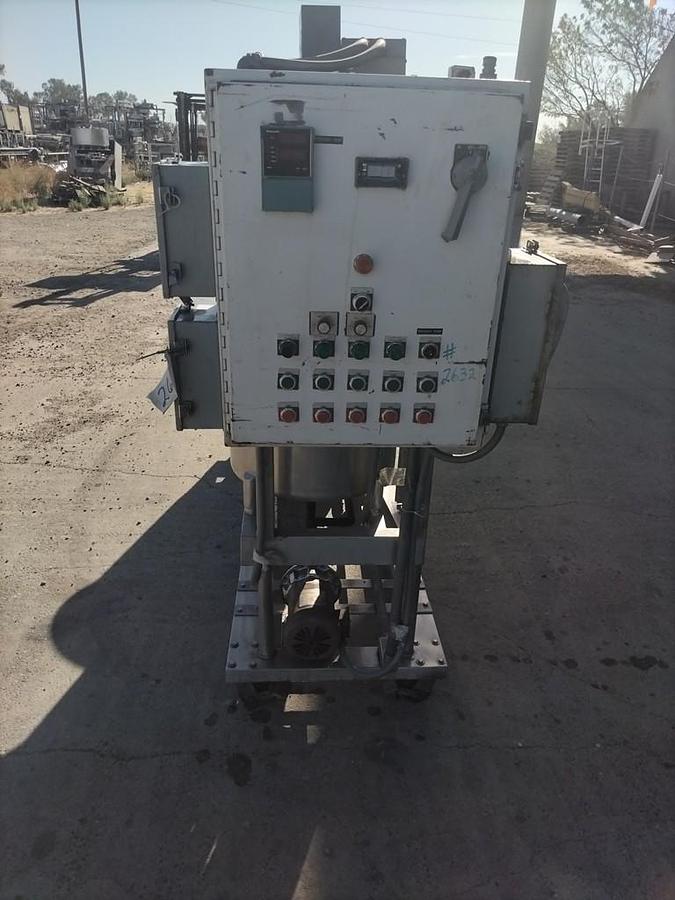

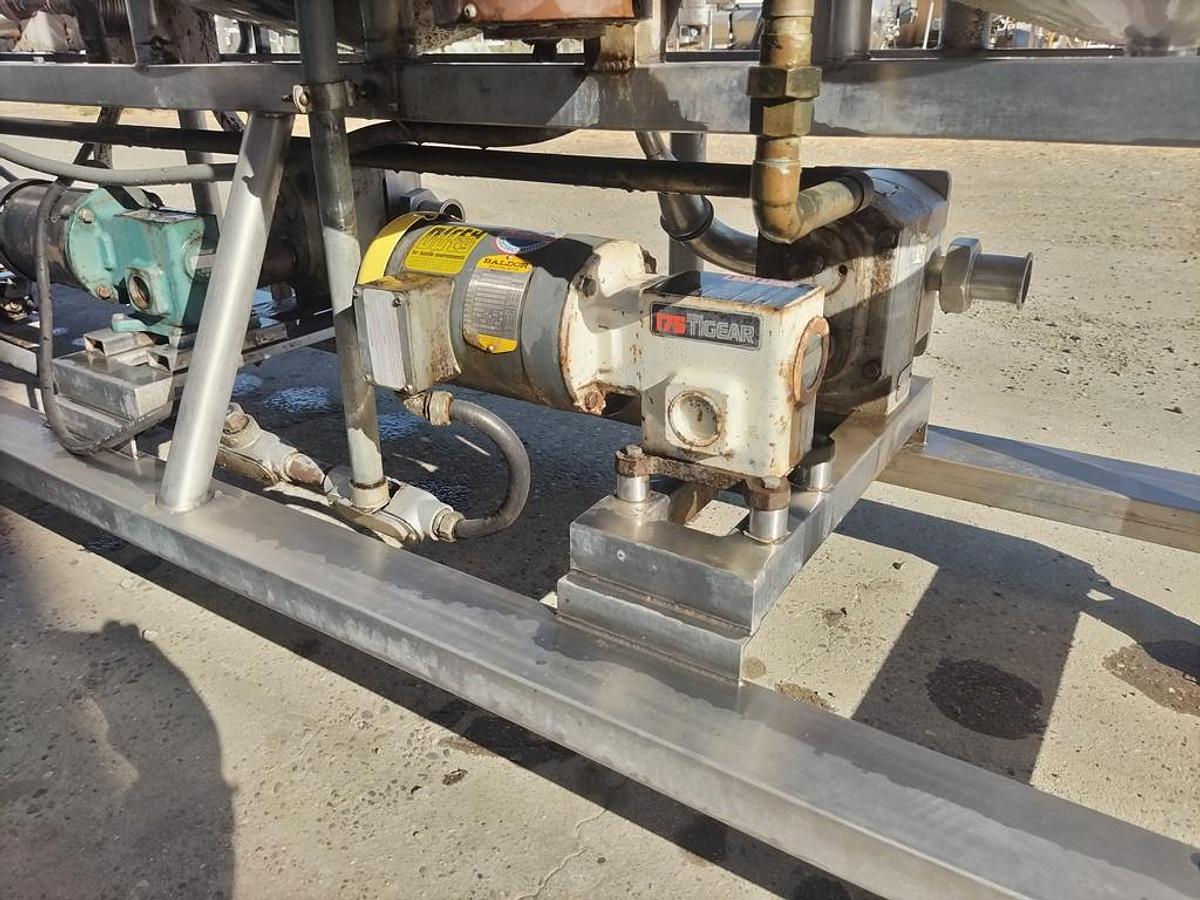

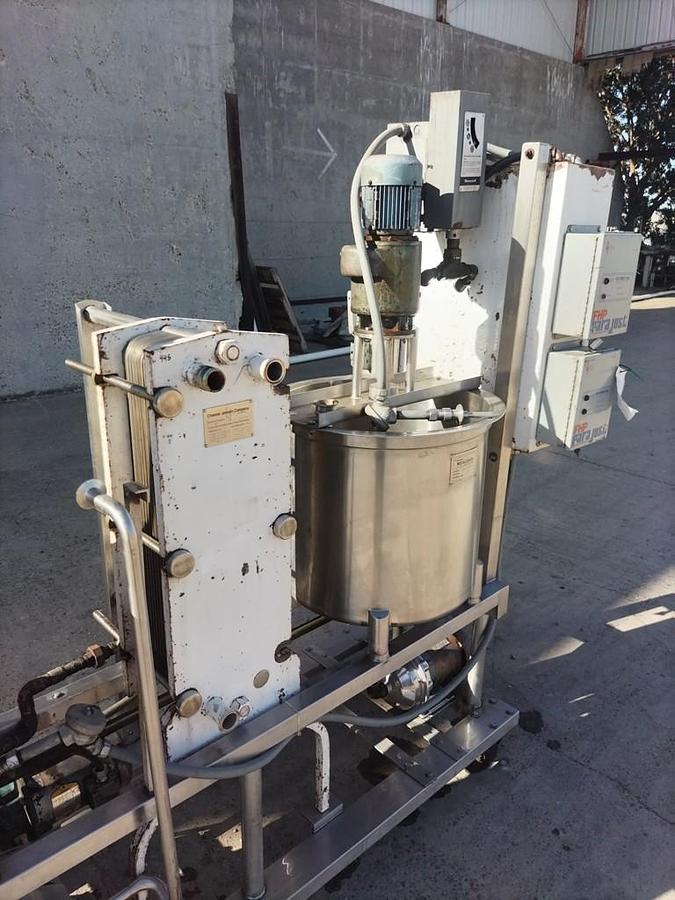

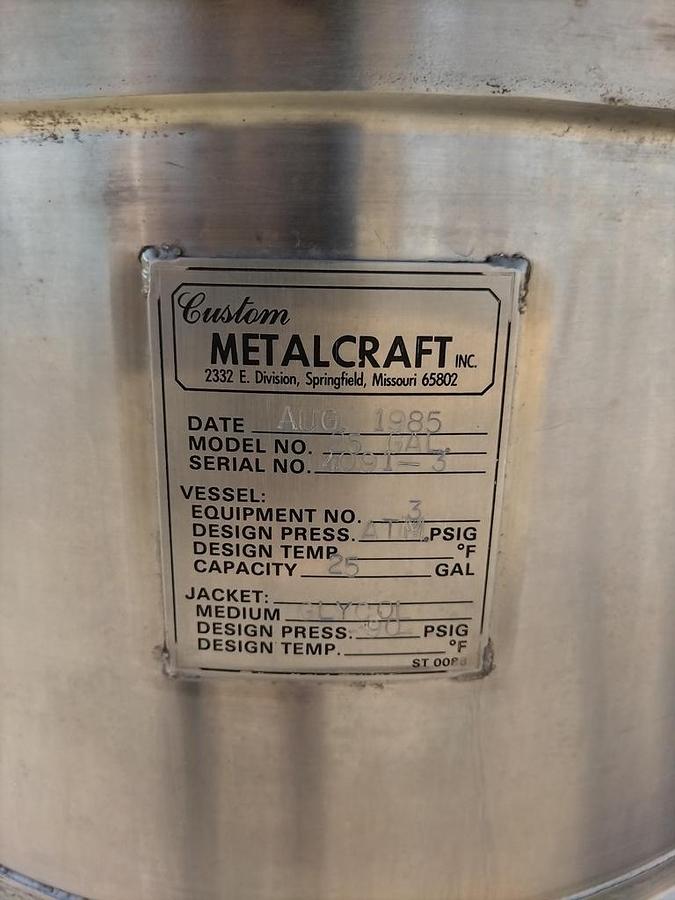

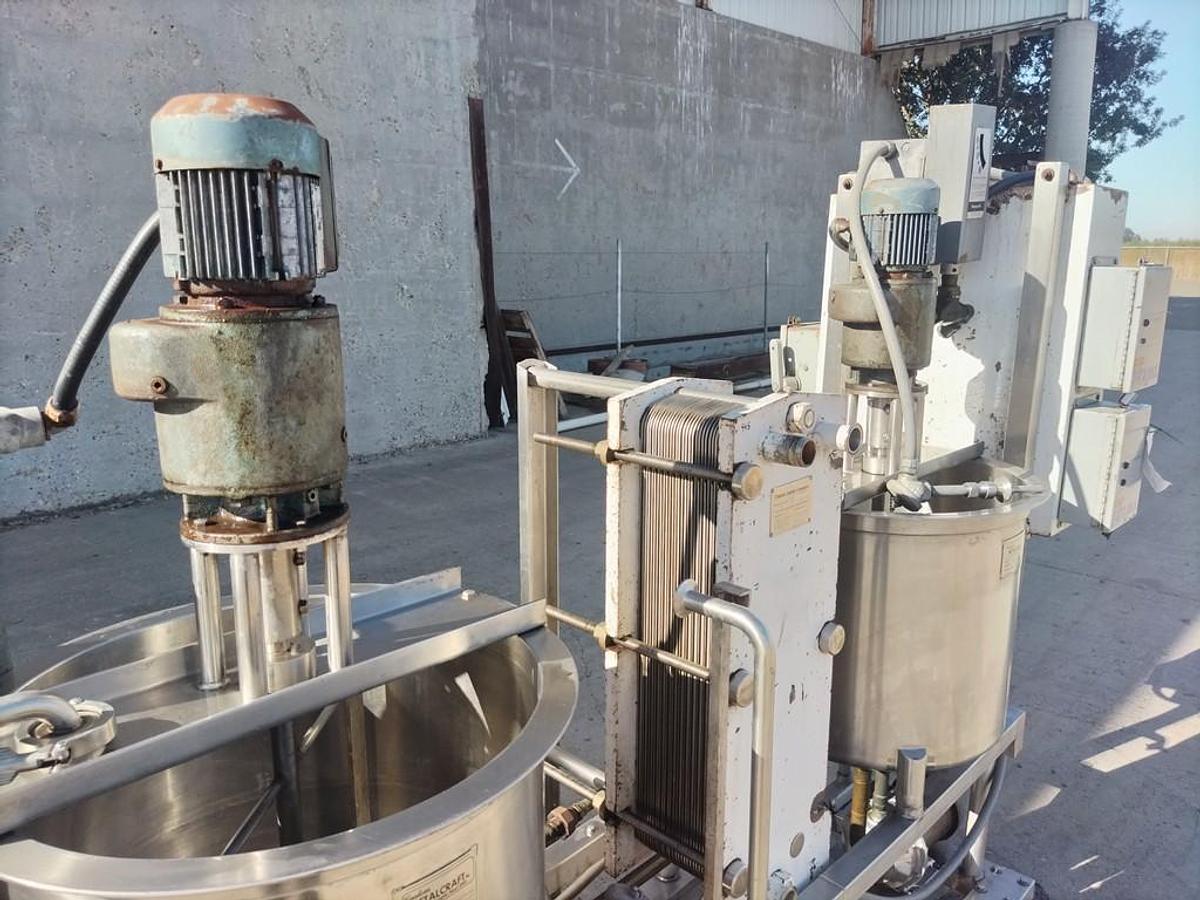

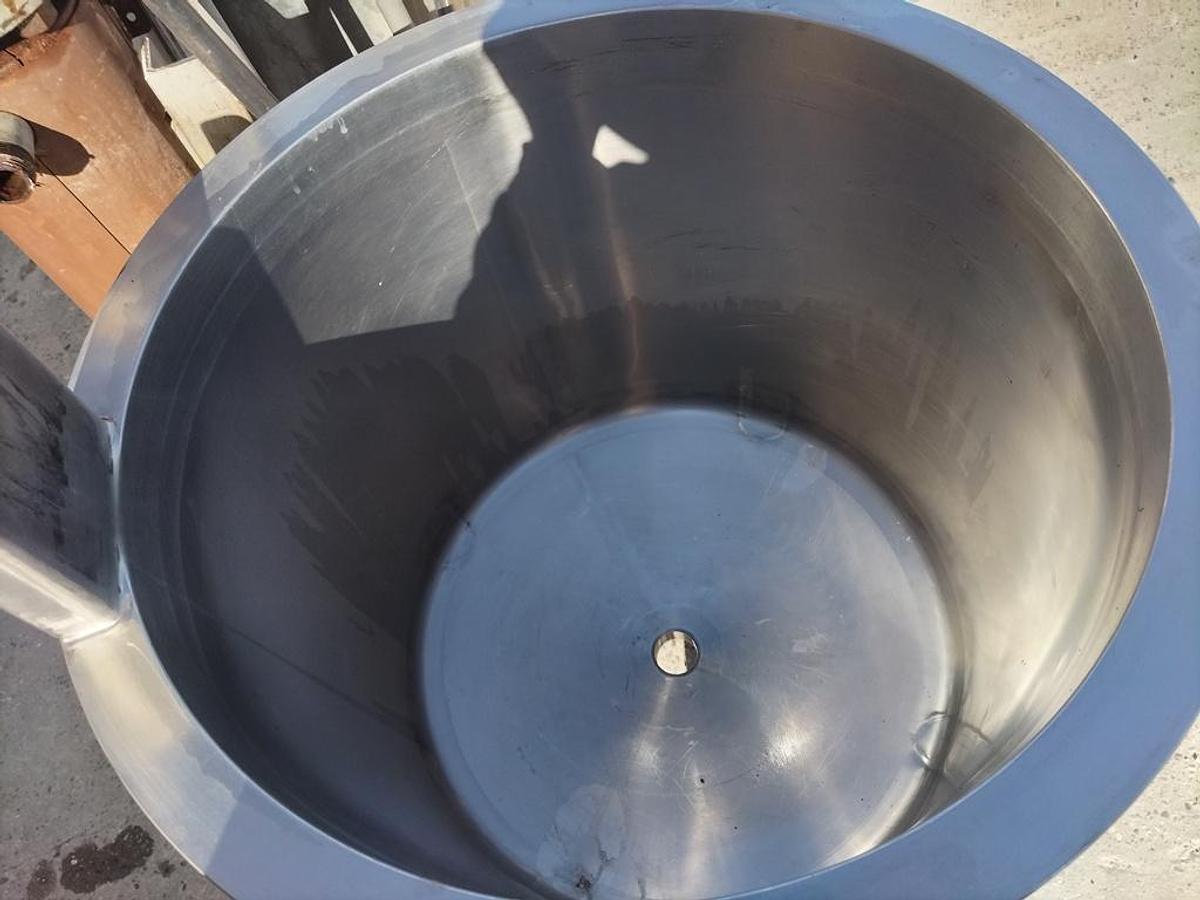

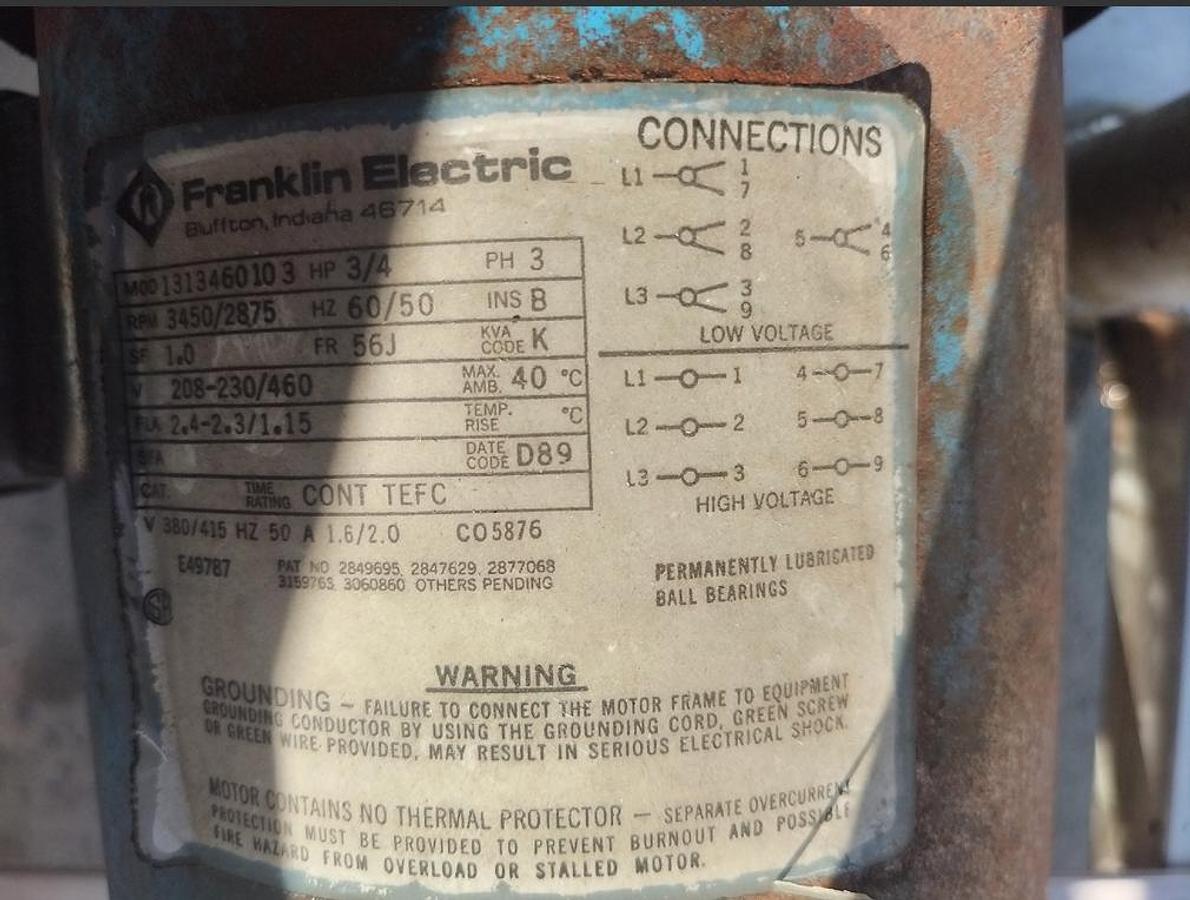

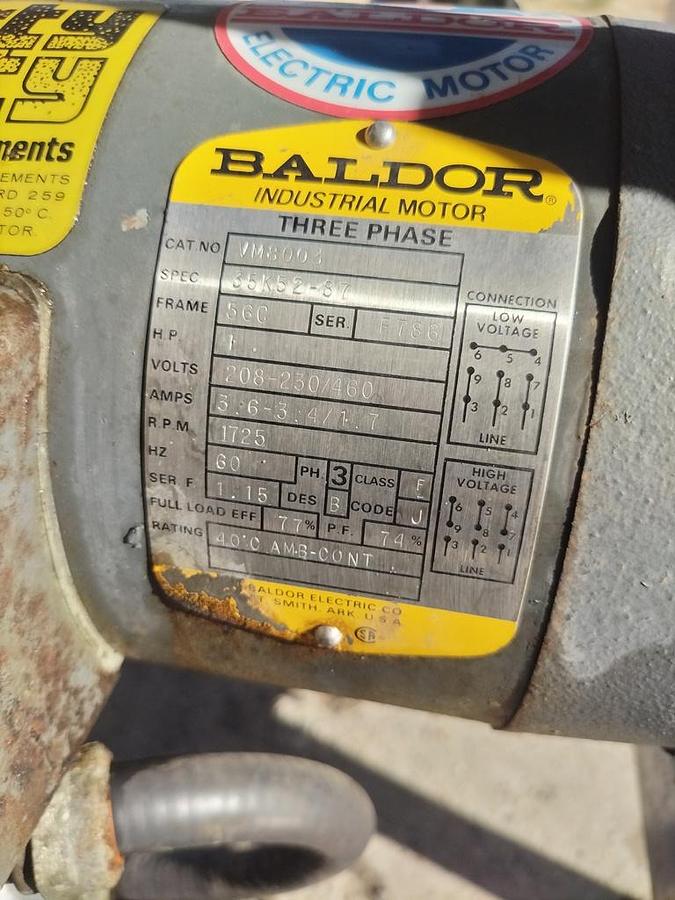

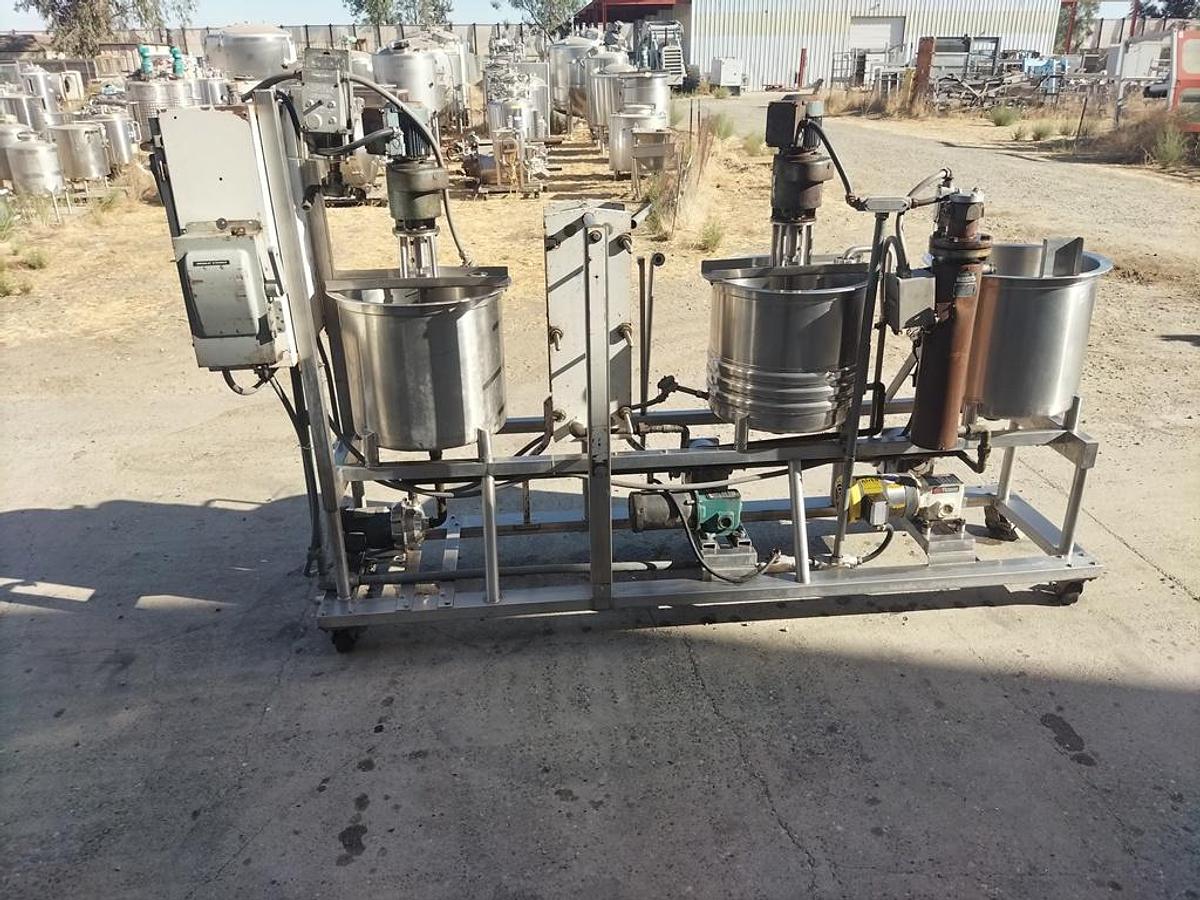

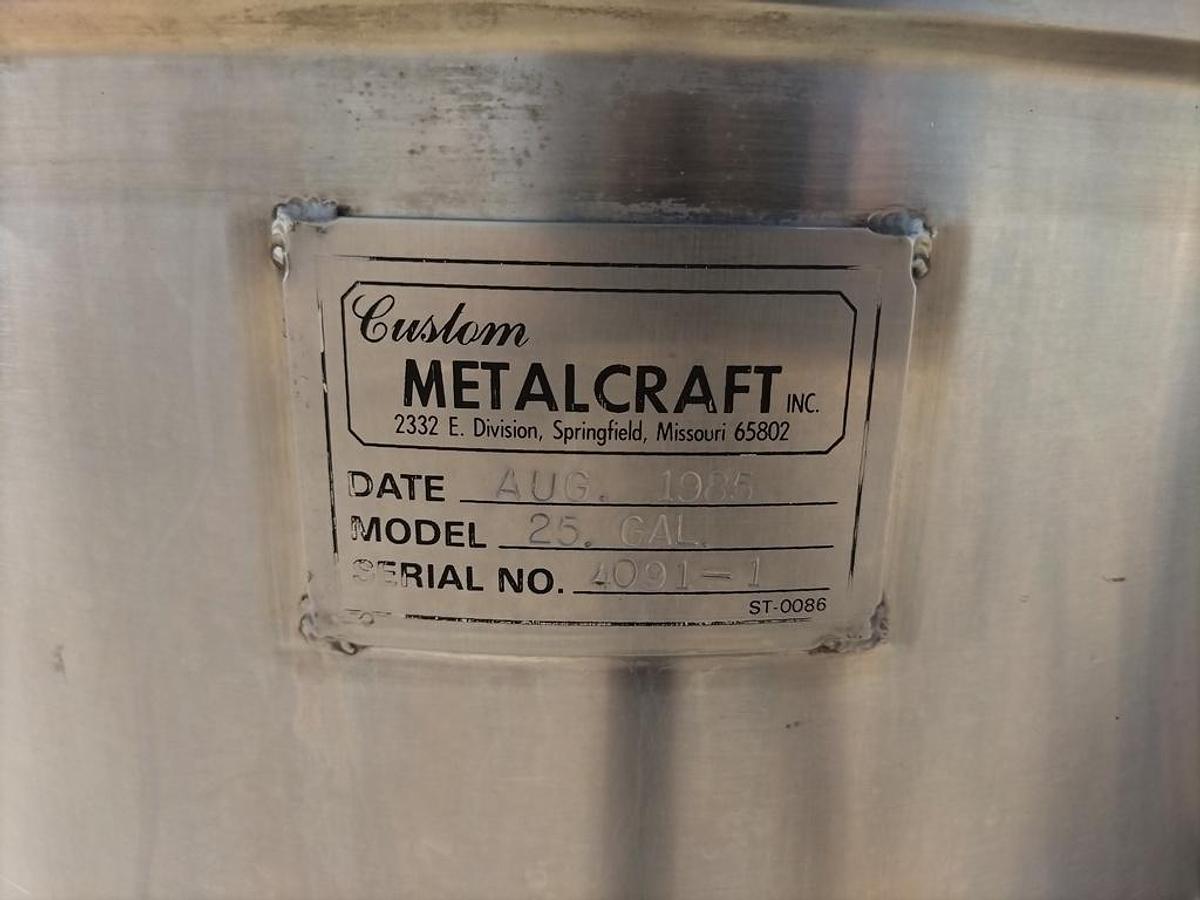

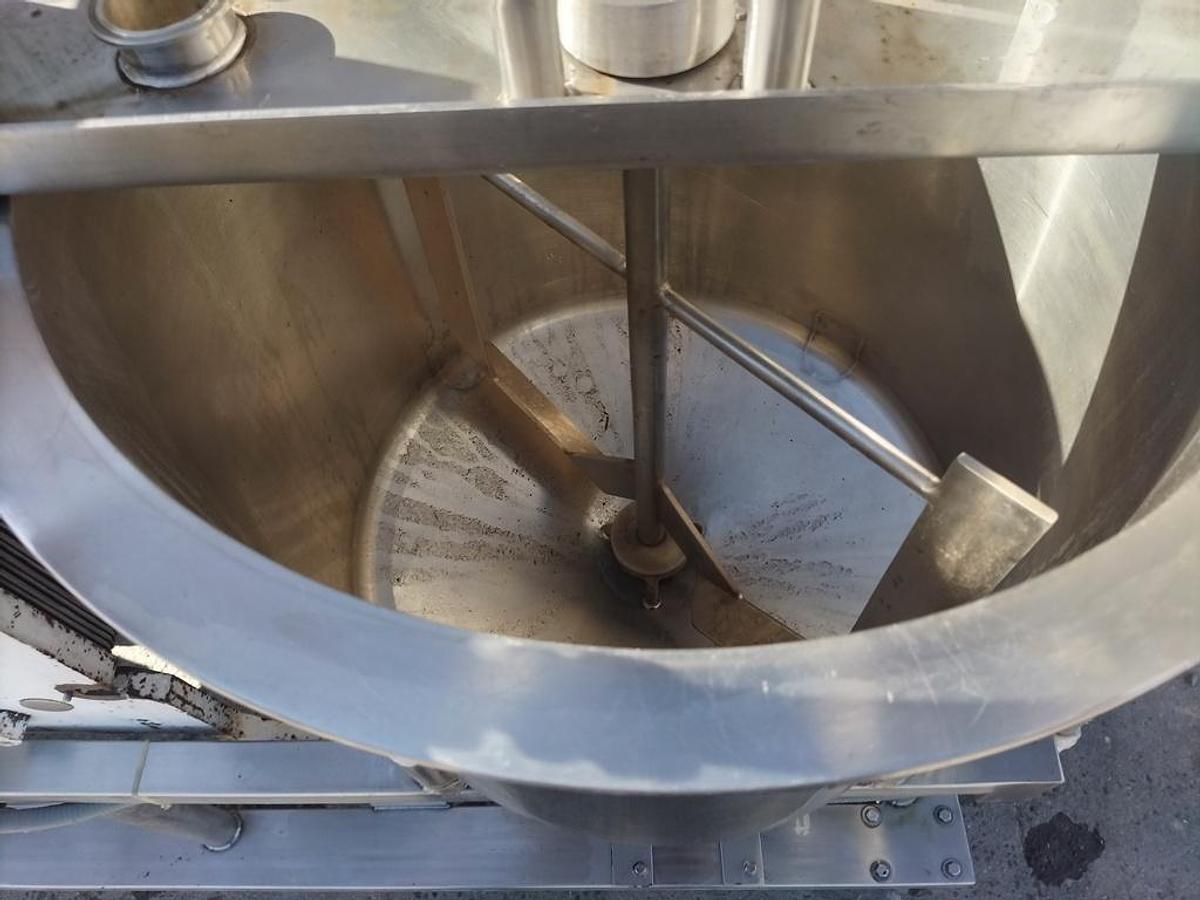

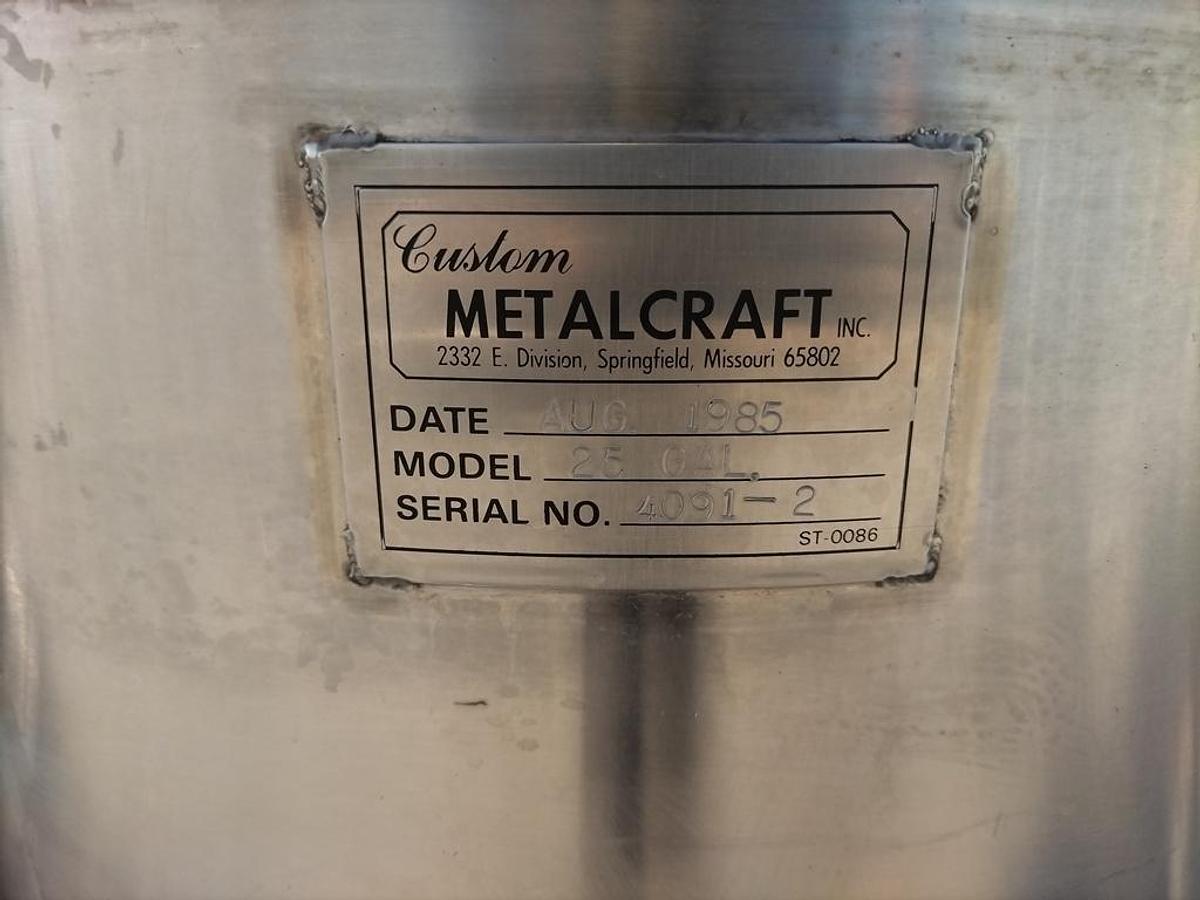

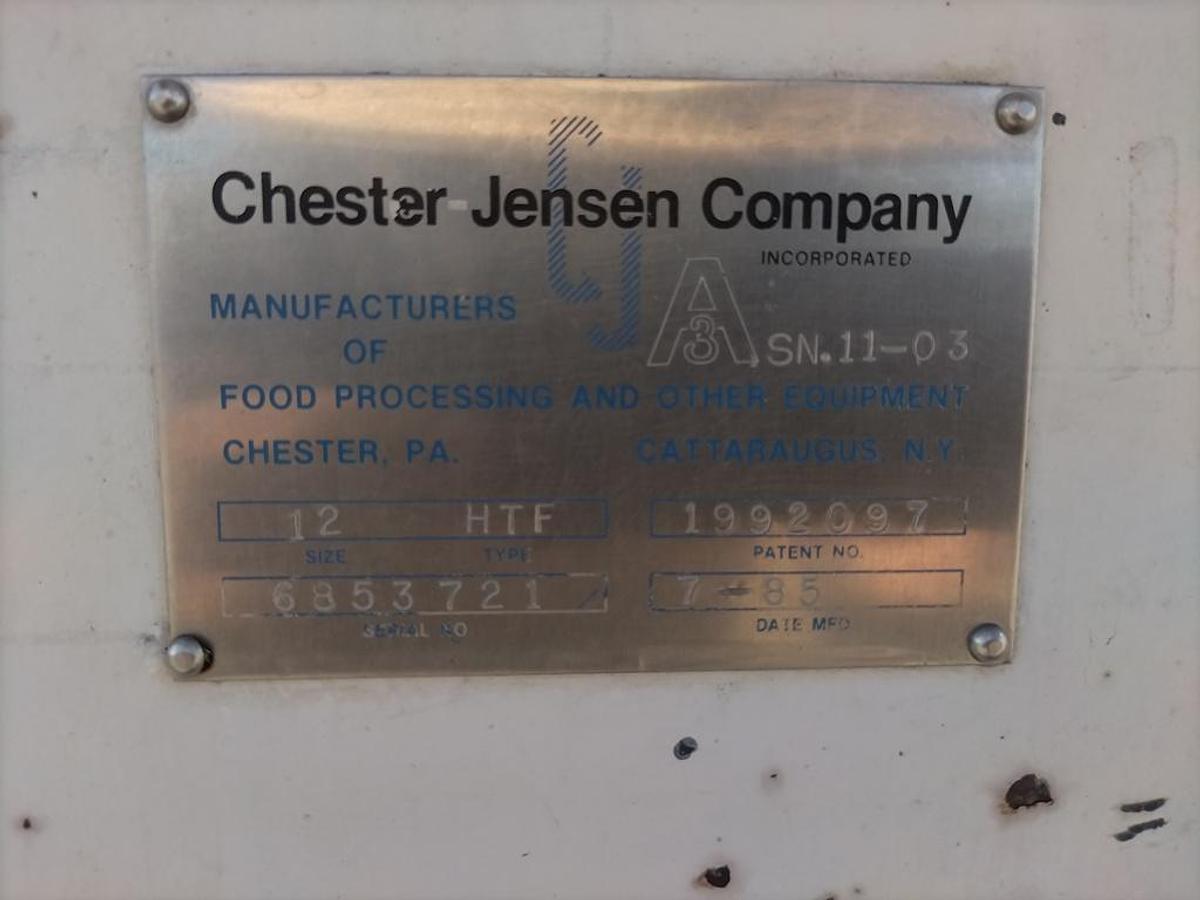

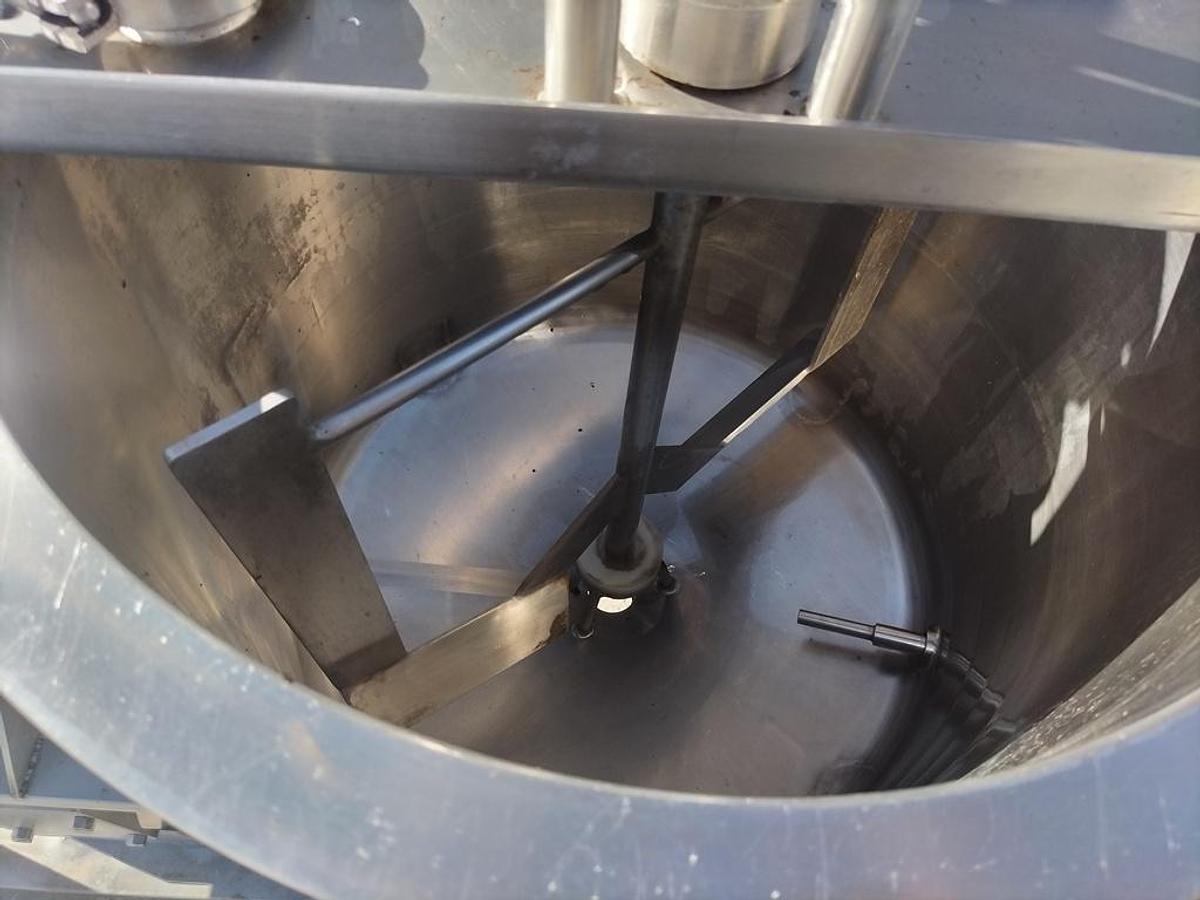

Metalcraft 3-tank brew/process system consisting of three 25 gallon stainless steel tanks, Chester Jensen plate heater, sanitary pumps, piping, and controls mounted on a common stainless steel skid. System includes one 25 gallon jacketed mix tank rated at 90 PSI with sweep agitator and 1/2 HP drive; one 25 gallon single-wall tank with sweep agitator and 1/2 HP drive; and one 25 gallon hold tank. Heating is provided by a Chester Jensen Model 12 HTF plate heater equipped with 31 stainless steel plates approximately 8 in. x 30 in. and 1-1/2 in. Tri-Clamp inlet/outlet connections. System also includes a 1-1/2 in. x 1 in. centrifugal pump with 3/4 HP, 3450 RPM motor, two Crepaco Model R3R pumps with 1 HP drives, sanitary process piping, valves, and control panel.
Specifications
| Stock Number | 5991918 |
| Manufacturer | Metalcraft |
| Capacity | 25 Gallons Each |
| Type | 3-Tank Brew / Process System |
| Materials of Construction | Stainless Steel |
| Mix Tank Agitation | Sweep Agitator |
| Jacket Pressure Rating | 90 PSI |
| Included Equipment | (3) Tanks, Plate Heater, (3) Pumps, Agitators, Sanitary Piping, Valves and Control Panel |
| Basis | FOB |
General Information
This compact three-tank system combines mixing, heating, transfer, and holding functions on a common process skid. The jacketed and agitated vessels, plate heater, sanitary connections, and multiple pumps make the system suitable for small-batch brewing as well as beverage, food, pilot plant, and other liquid-processing applications.
