Mill, Dispersion, Draiswerke, Stainless Stel, 20HP, PM 10 PU H/RF, #5991897
Mill, Dispersion, Draiswerke, Stainless Stel, 20HP, PM 10 PU H/RF, #5991897
Location:Chowchilla, CA
Available quantity:1
Description

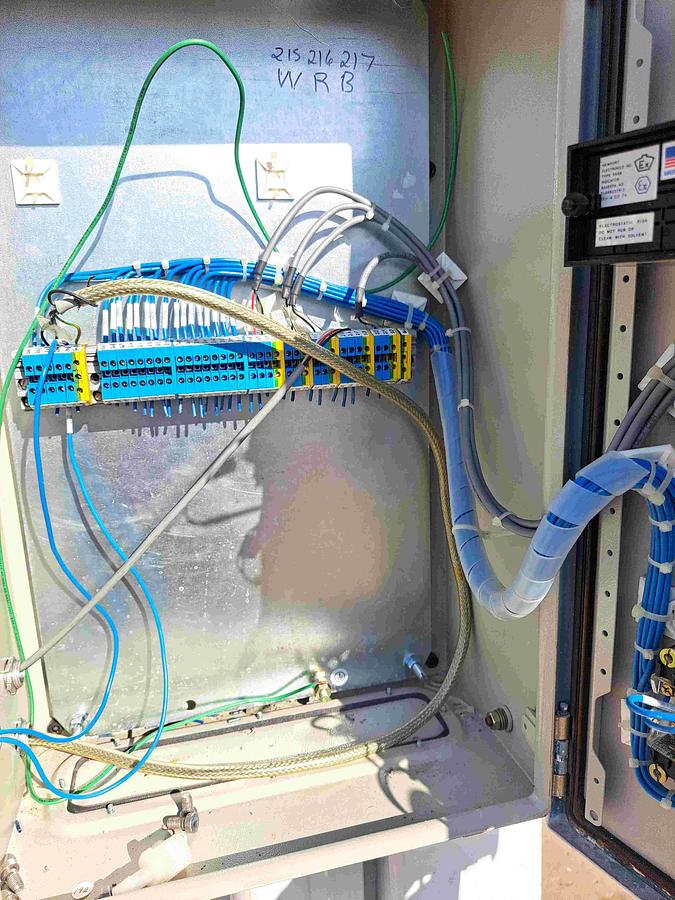

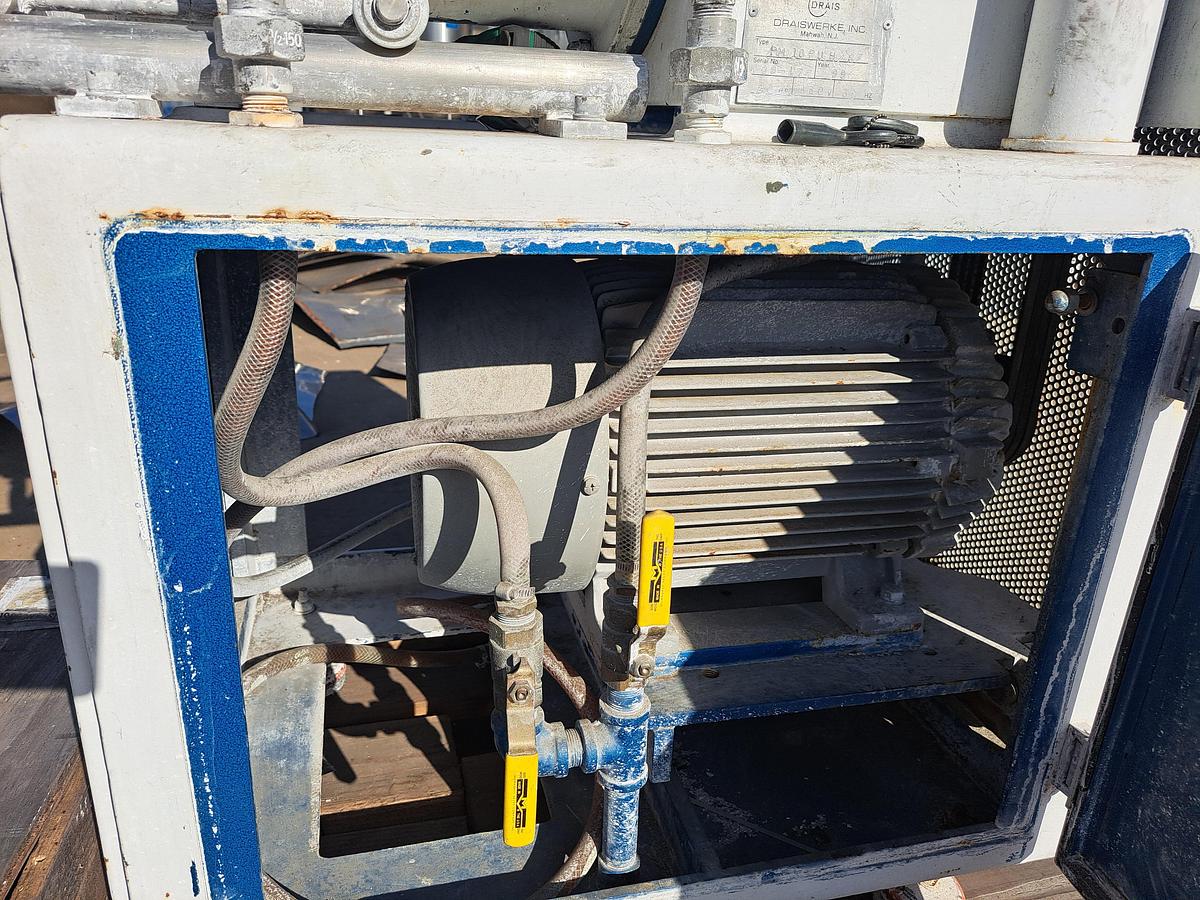

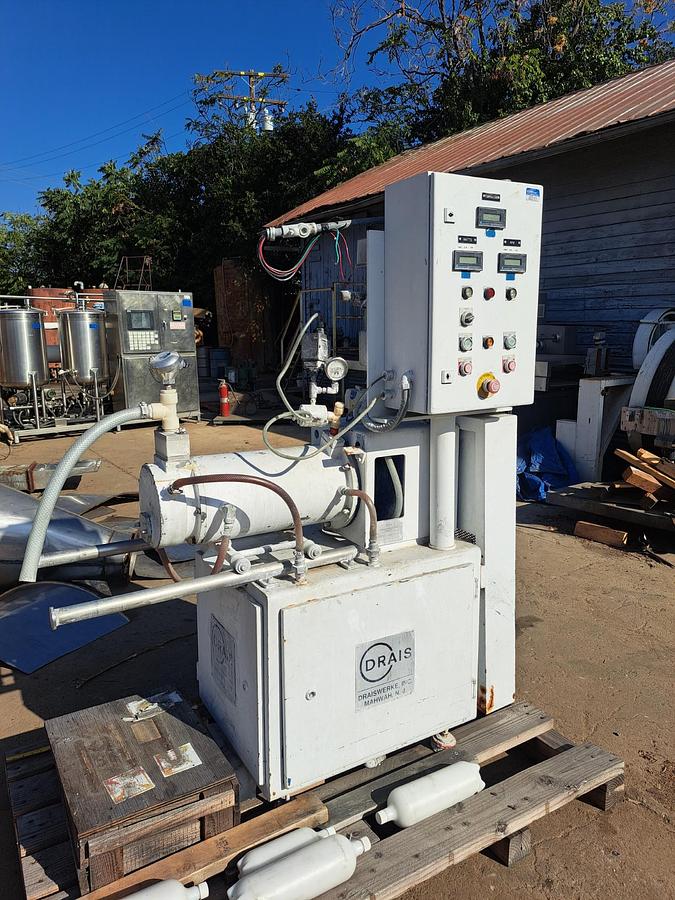

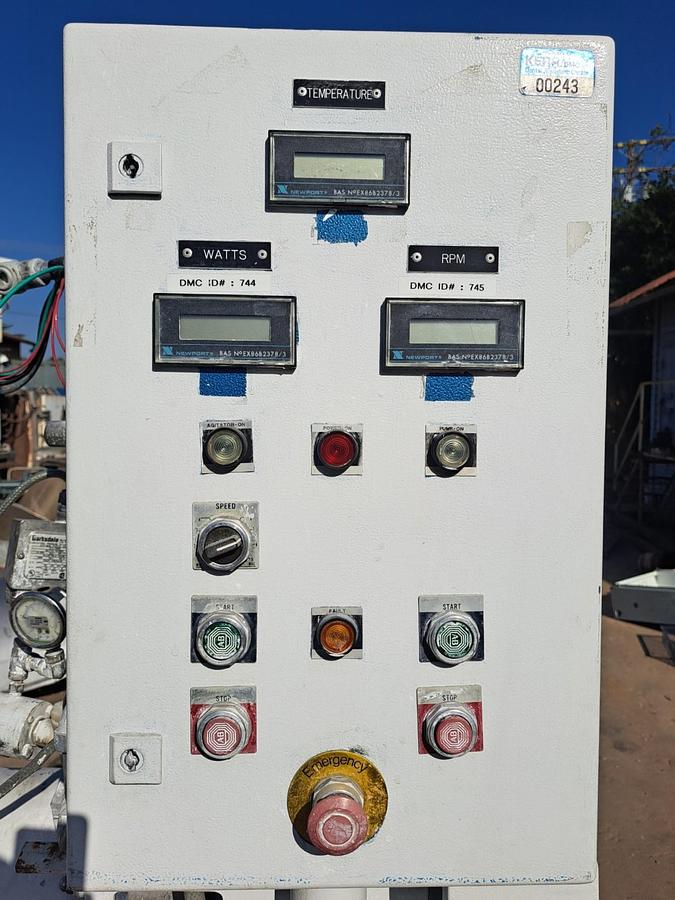

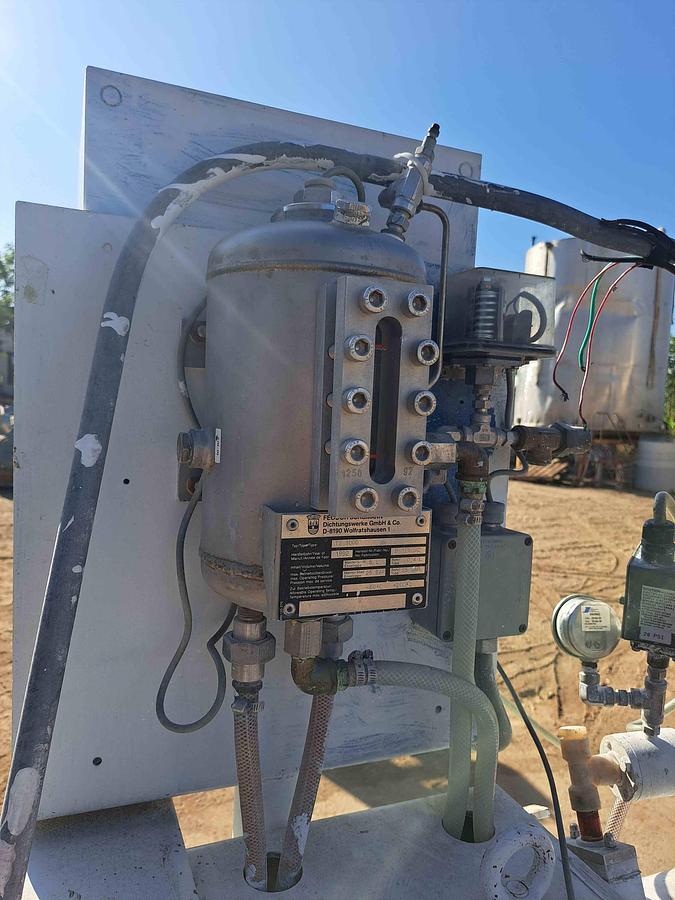

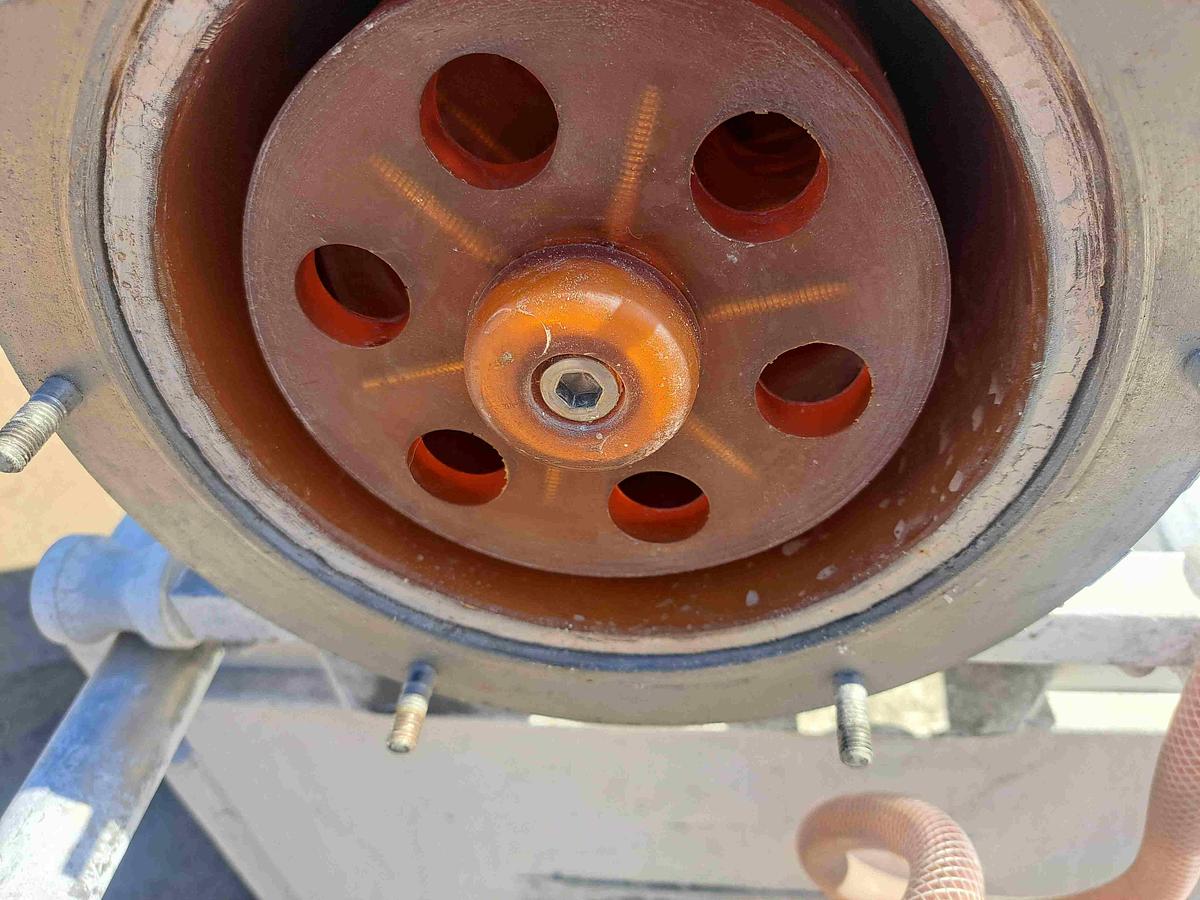

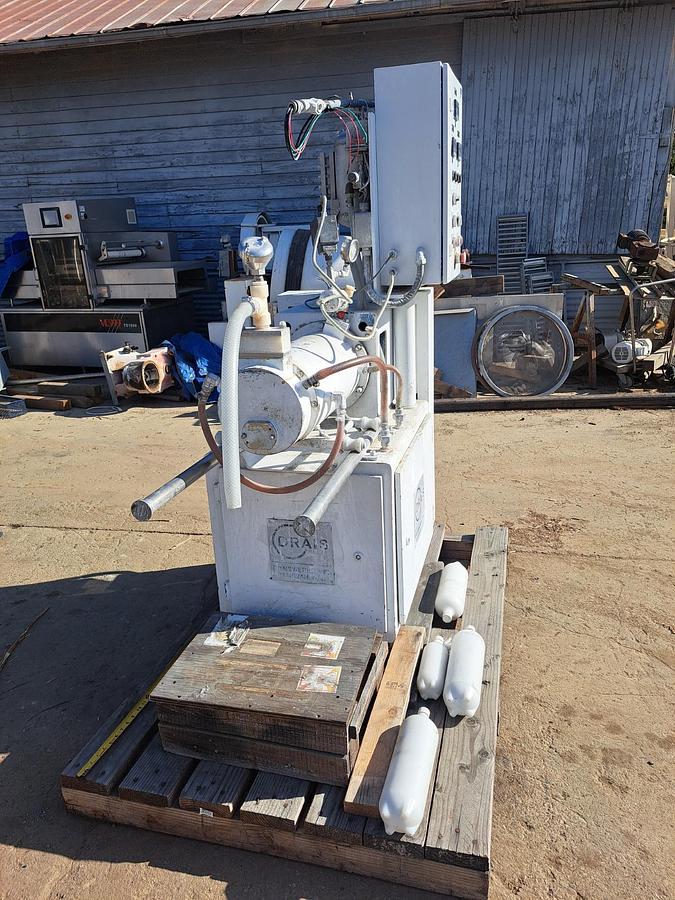

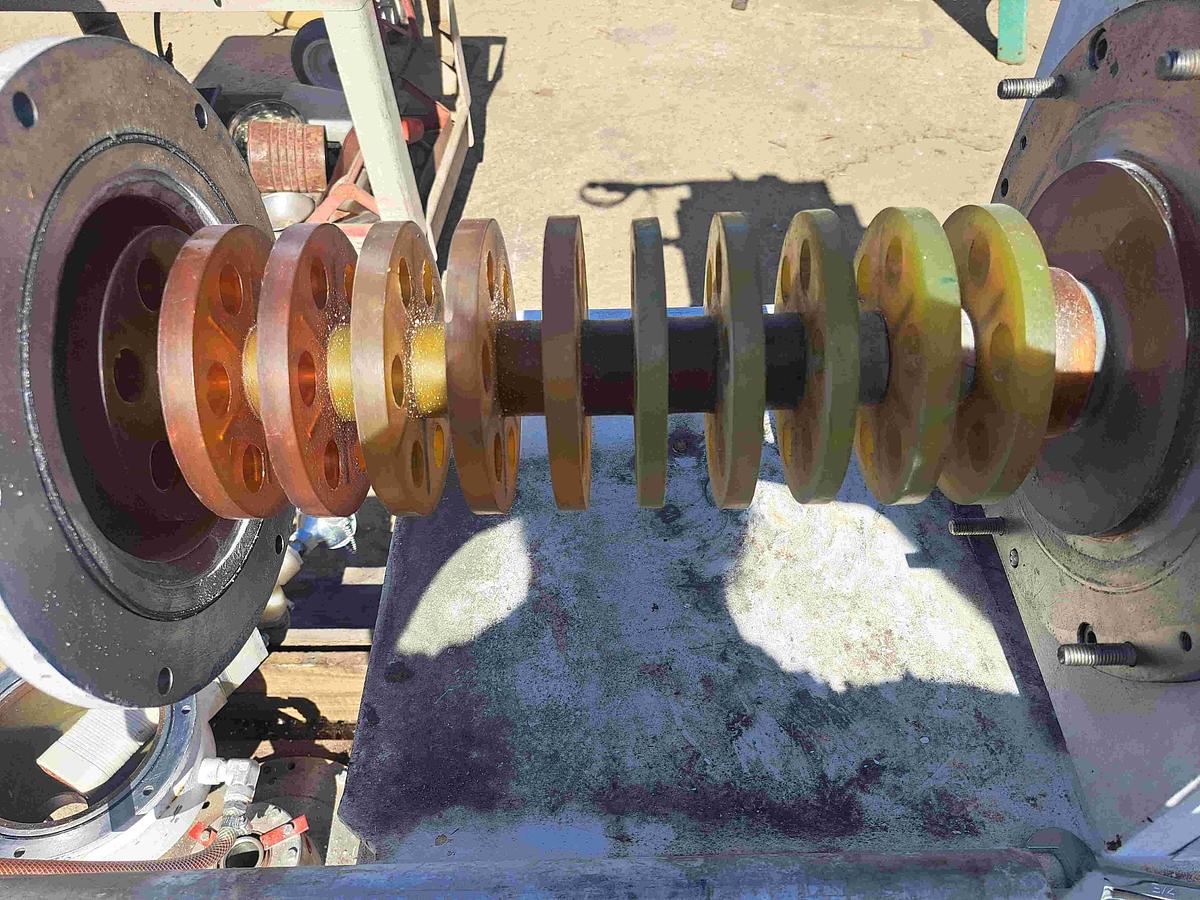

Drais PM 10 PU H/RF horizontal media mill designed for fine grinding, particle size reduction, and dispersion of coatings, inks, pigments, chemicals, pharmaceuticals, ceramics, cosmetics, and specialty materials. The mill features a polyurethane-lined grinding chamber with ceramic internal components, horizontal shaft with multiple grinding discs, mechanical seal system, integrated coolant and lubrication system, and a free-standing electrical control panel with digital displays for temperature, motor load (watts), and shaft RPM. Driven by a 20 HP motor operating on 460 Volt, 3-phase, 60 Hz power. Manufactured in 1999.
Specifications

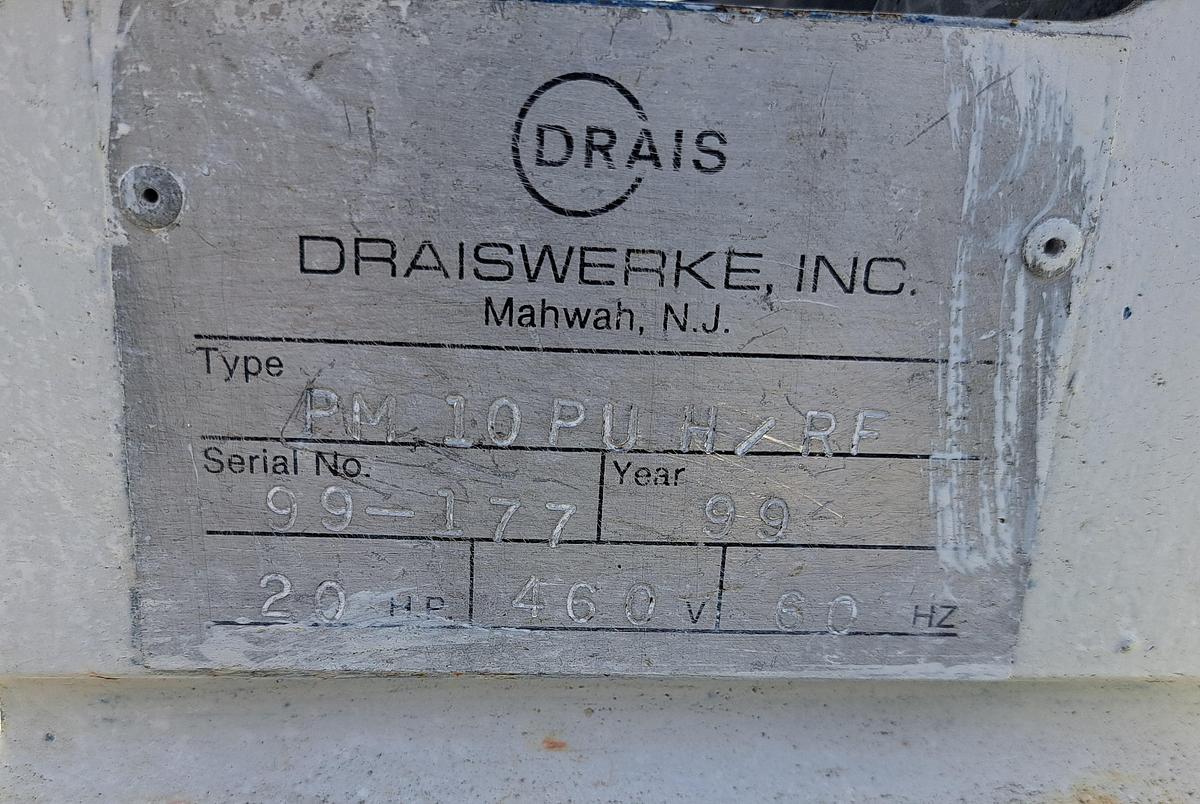

| Stock Number | 5991897 |
| Manufacturer | Draiswerke, Inc. |
| Model | PM 10 PU H/RF |
| Year | 1999 |
| Serial Number | 99-177 |
| Motor | 20 HP |
| Type | Horizontal Media Mill |

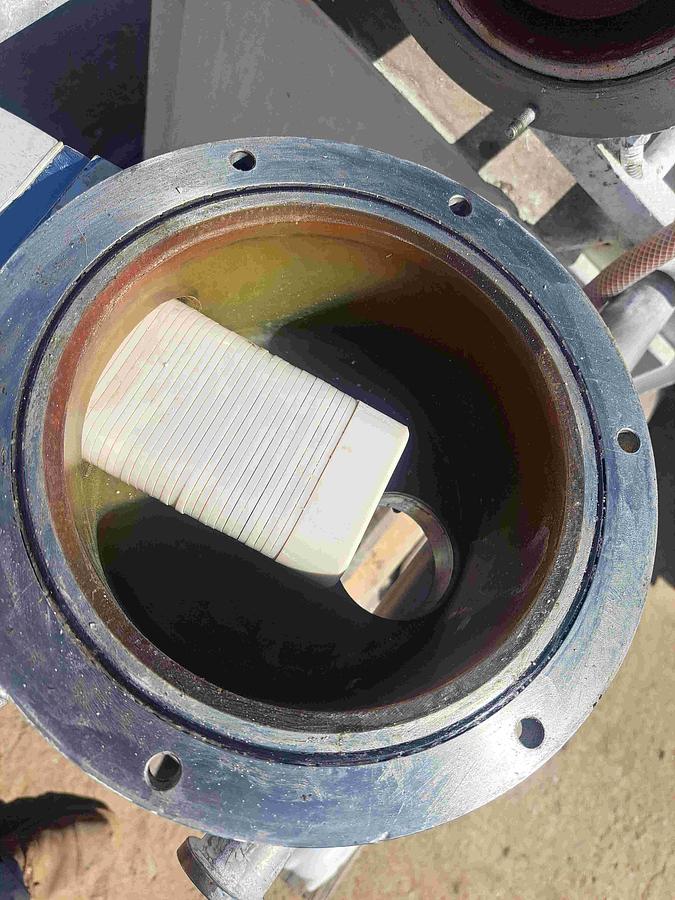

| Grinding Chamber | Polyurethane Lined (PU) |
| Grinding Media System | Disc Agitated |
| Internal Components | Ceramic Rotor and Ceramic Liner |

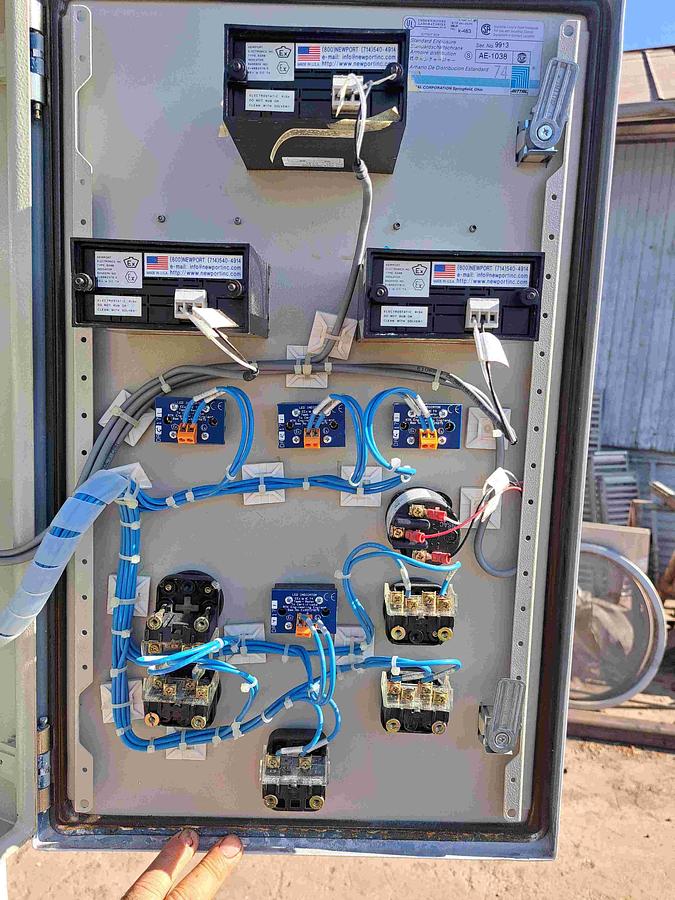

| Controls | Remote Electrical Control Panel |
| Construction | Painted Steel Frame with Process Components |
| Basis | FOB |
General Information
Drais horizontal media mills are widely used for high-energy wet milling and dispersion applications requiring consistent particle size reduction and efficient processing. The PM Series is designed for continuous operation and is commonly utilized in the paint, ink, pigment, chemical, pharmaceutical, ceramic, battery, and specialty materials industries.
