Reactor, 3,000 Gallon, Glass Lined, De Dietrich, #5991817
Reactor, 3,000 Gallon, Glass Lined, De Dietrich, #5991817
Location:United States
Available quantity:1
Description

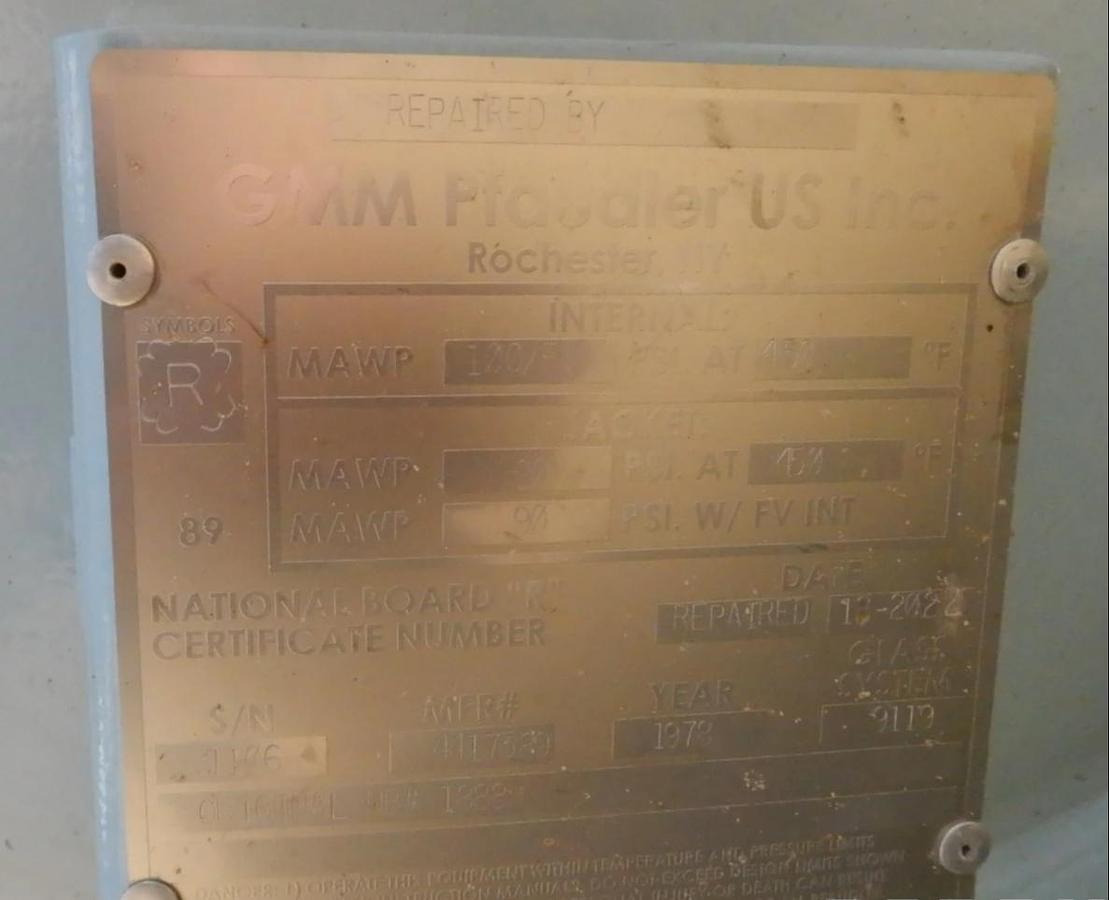

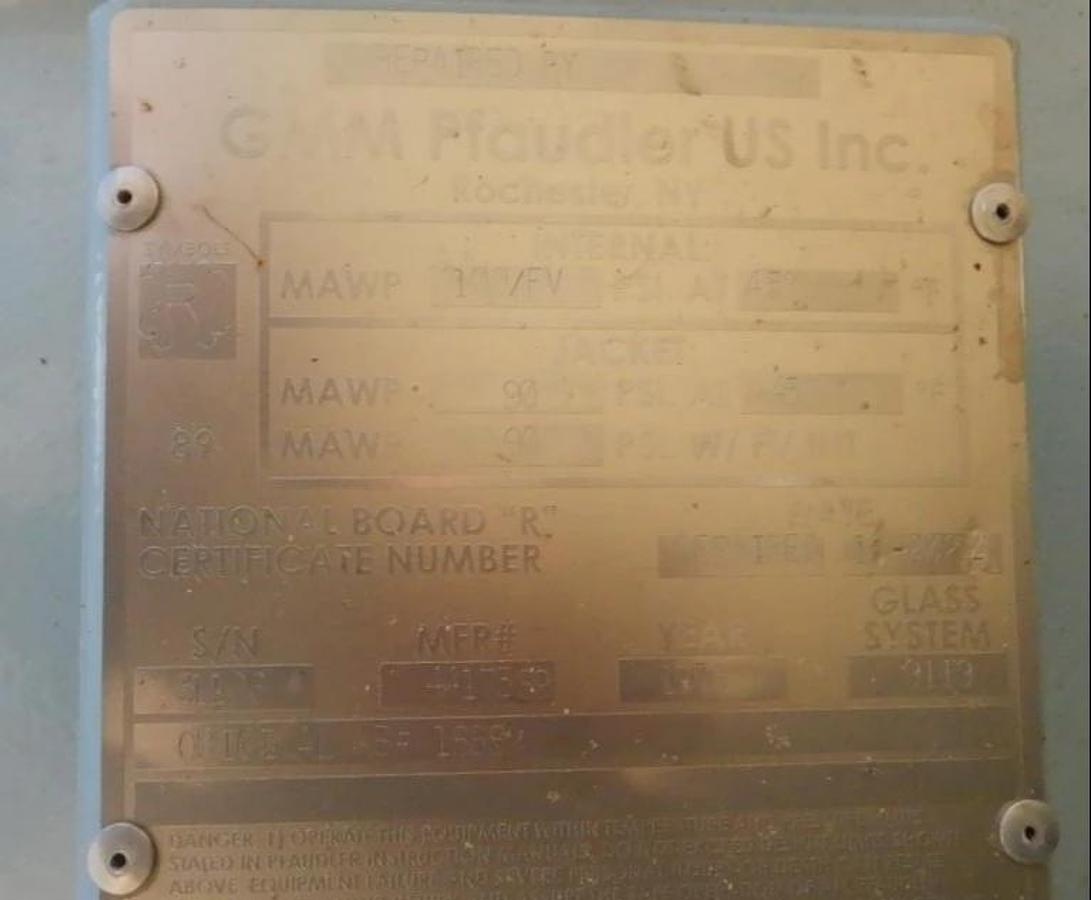

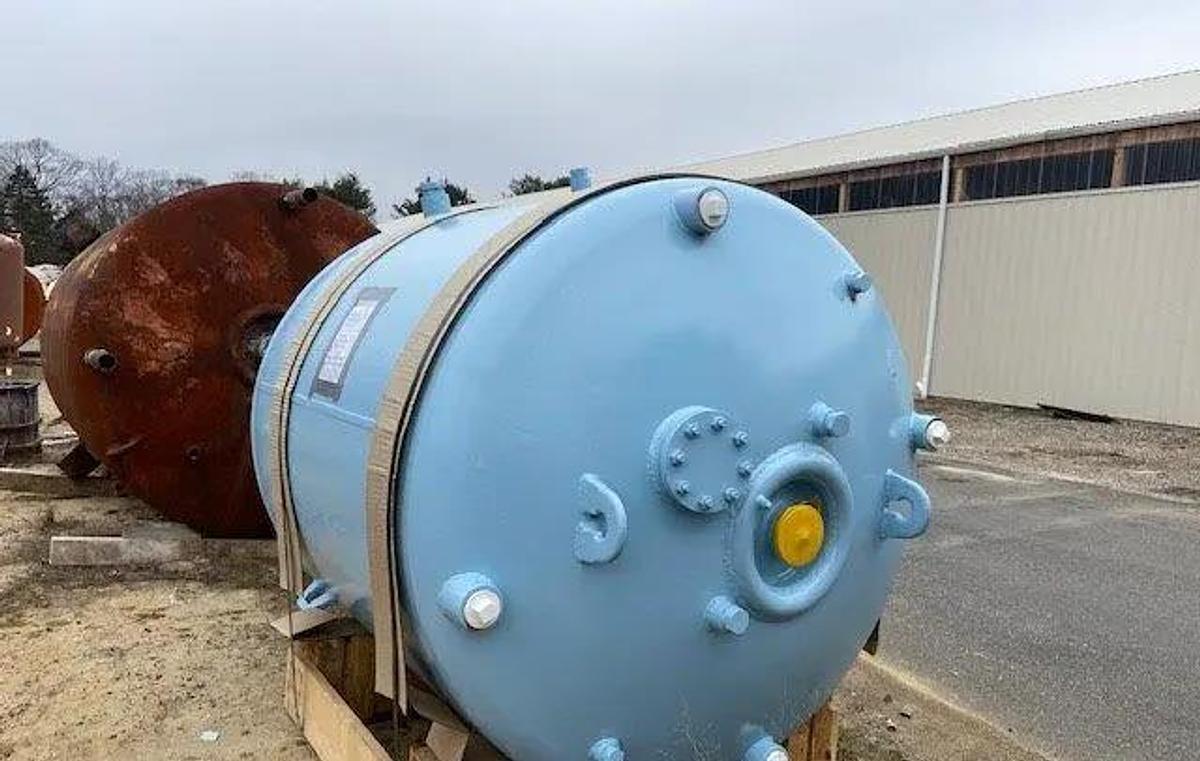

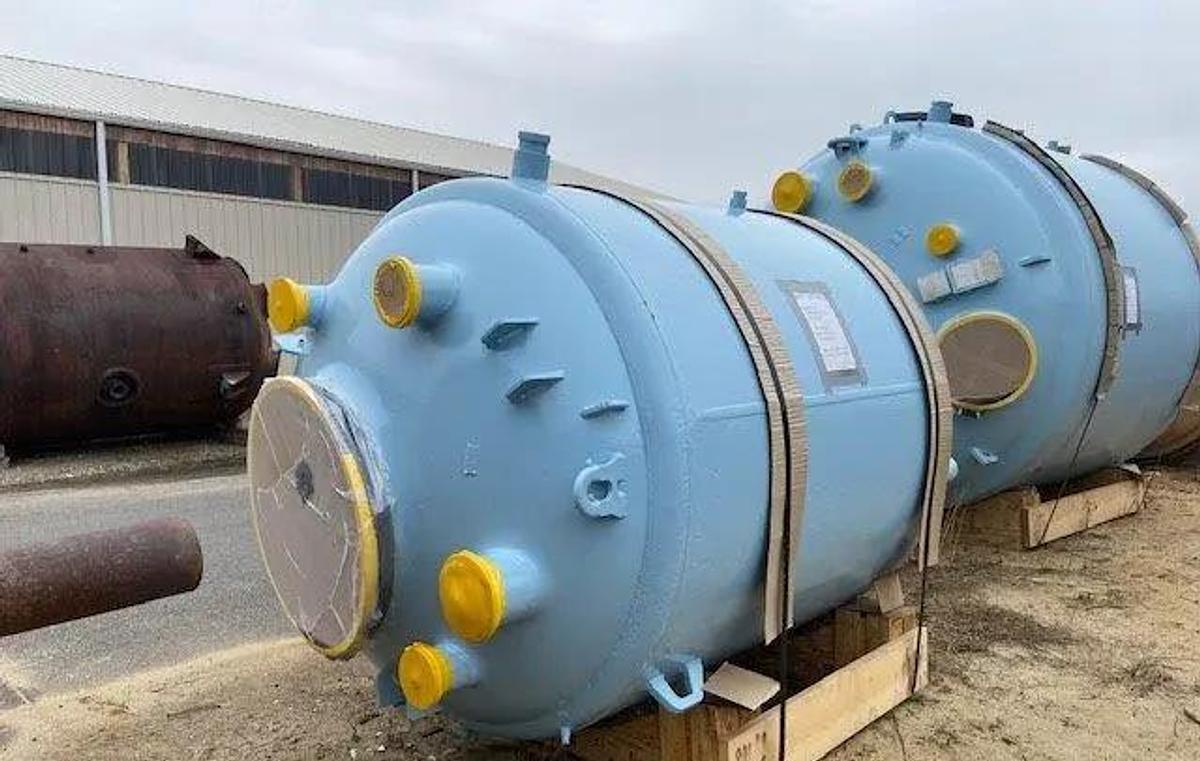

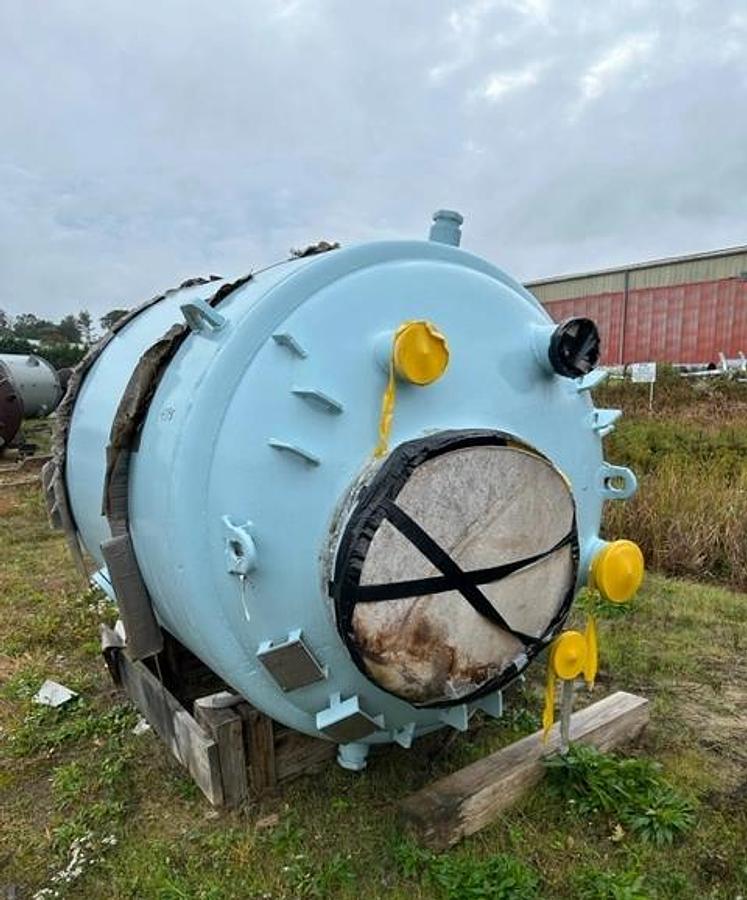

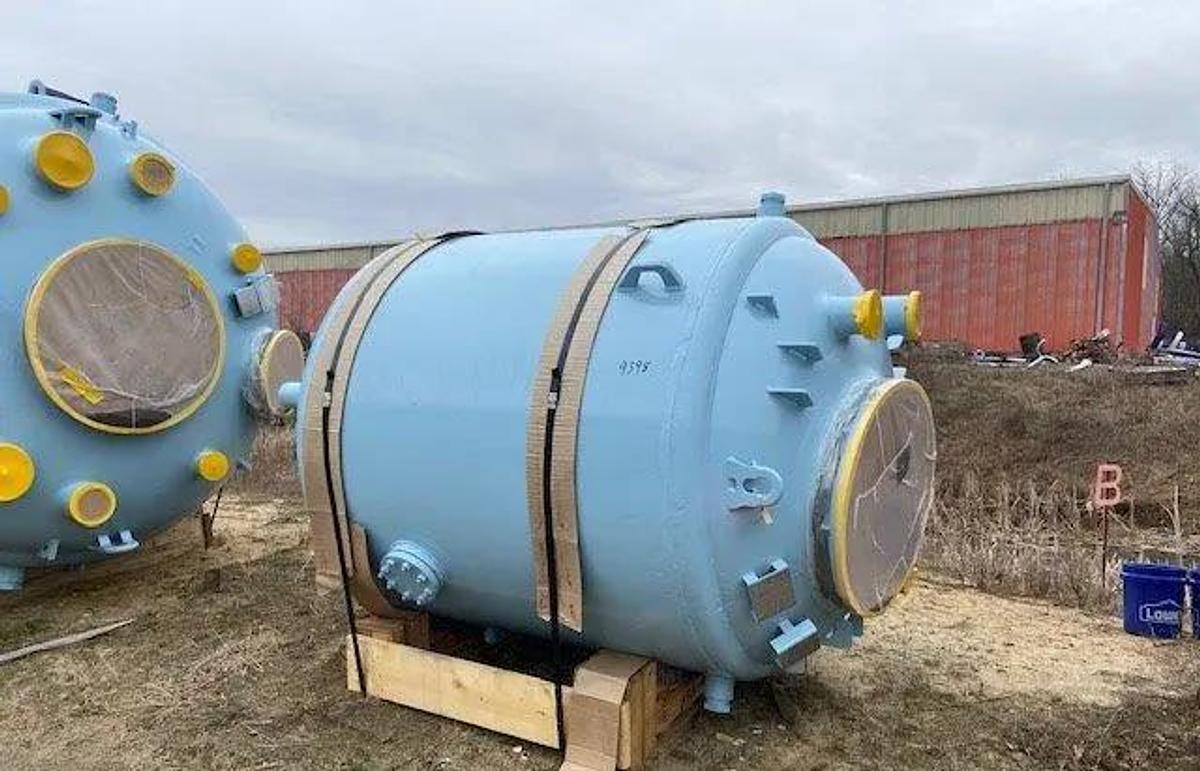

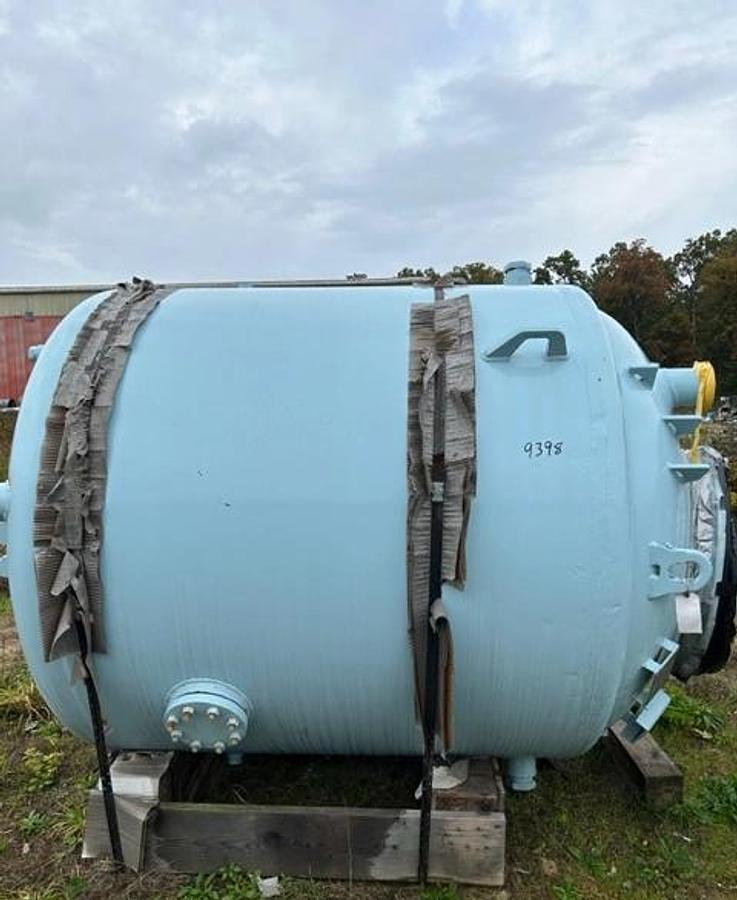

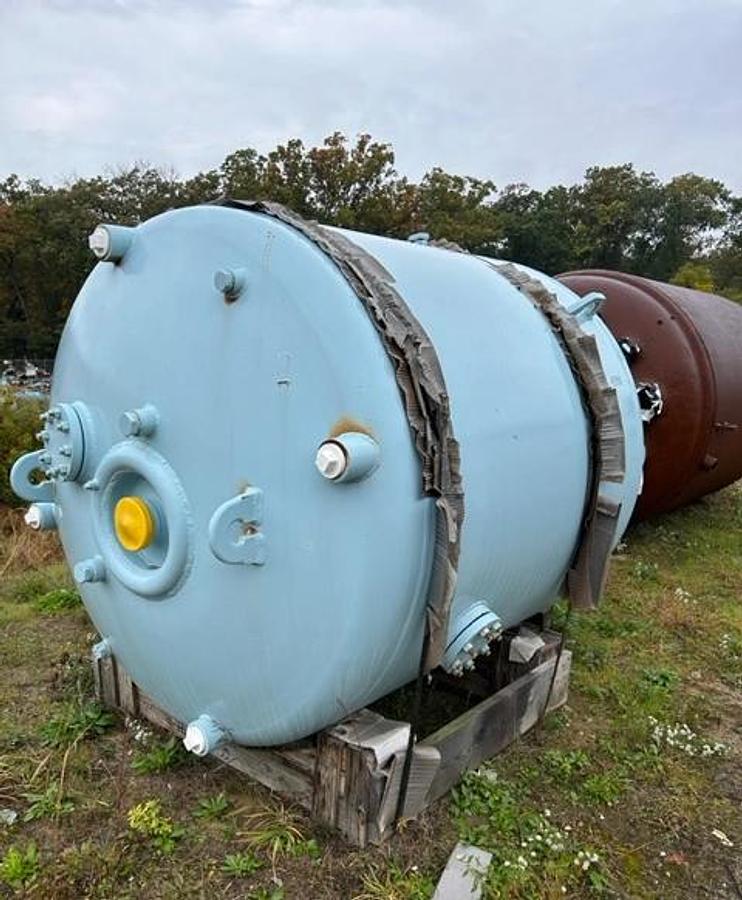

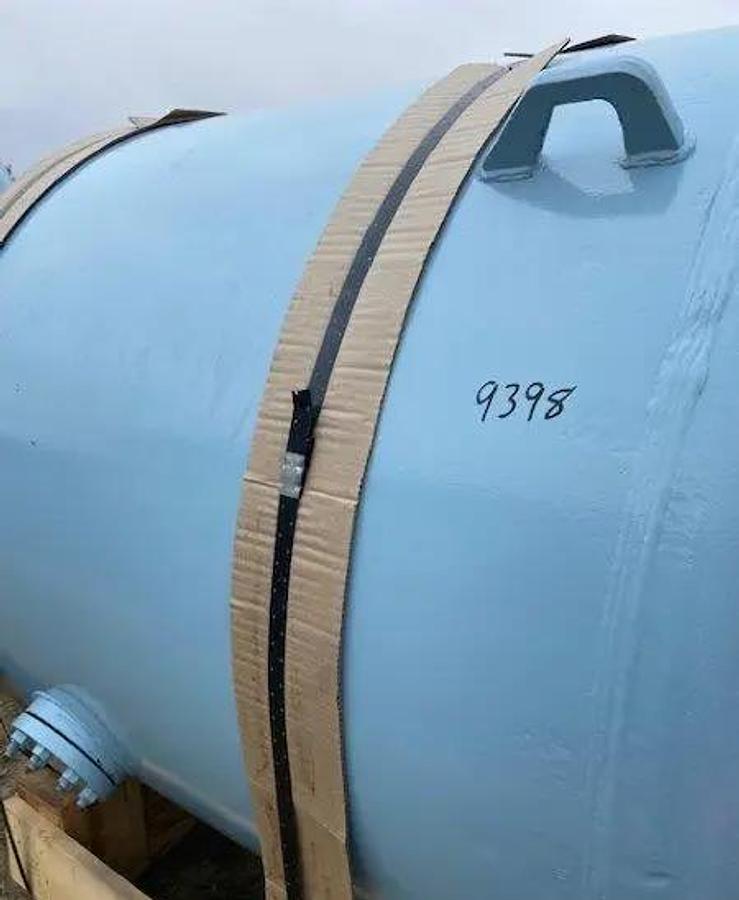

De Dietrich Unused/reglassed approximately 1,000 gallon glass lined reactor body . Reactor features glass lined internal surfaces for corrosion resistant processing applications in chemical, pharmaceutical, and specialty manufacturing environments. Vessel is rated for 100 PSI internal pressure/full vacuum at 400°F with jacket rated for 90 PSI at 400°F. Unit was reglassed by GMM Pfaudler US Inc. in 2021 and includes updated reglass certification. Reactor body features multiple flanged and nozzled process connections, large front manway access opening, jacketed shell construction, lifting lugs, and dished heads. National Board number 4598. Suitable for batch processing, blending, reaction, crystallization, and high-purity process applications requiring glass lined corrosion protection and pressure-rated operation. Vessel is offered as a reactor body only without agitator, drive assembly, or support frame installed.
Specifications
| Stock Number | 5991817 |
| Manufacturer | De Dietrich |
| Model | Reactor Body |
| Year | 1988 |
| Serial Number | 3392 |
| Gallons | 1,000 (approx.) |
| Materials of Construction | Glass Lined Steel |
| Head Type | Dished Heads |
| Openings | Multiple Flanged and Nozzled Connections |
| Access Opening | Front Manway |
| Reglassed | GMM Pfaudler US Inc. 2021 |
| Vessel Type | Jacketed Reactor Body |
| Basis | As-is, Where-is |
General Information
Glass lined reactors are widely used in chemical and pharmaceutical processing where resistance to aggressive chemicals and contamination prevention are critical. The glass lining protects the vessel interior from corrosion while providing a smooth, non-reactive process surface. Jacketed reactor vessels permit controlled heating and cooling using circulating thermal media to support precise batch processing conditions. De Dietrich glass lined vessels are recognized throughout the process industries for durable construction, pressure-rated operation, and long service life. Reglassing by certified facilities such as Pfaudler restores the integrity of the glass lining system and extends vessel usability for continued production service.
