Tank, 2,200 Gallon, 316L Stainless Steel, Jacketed, Mix Tank, Alloy Fabricators, #
Tank, 2,200 Gallon, 316L Stainless Steel, Jacketed, Mix Tank, Alloy Fabricators, #
Location:United States
Available quantity:1
Description

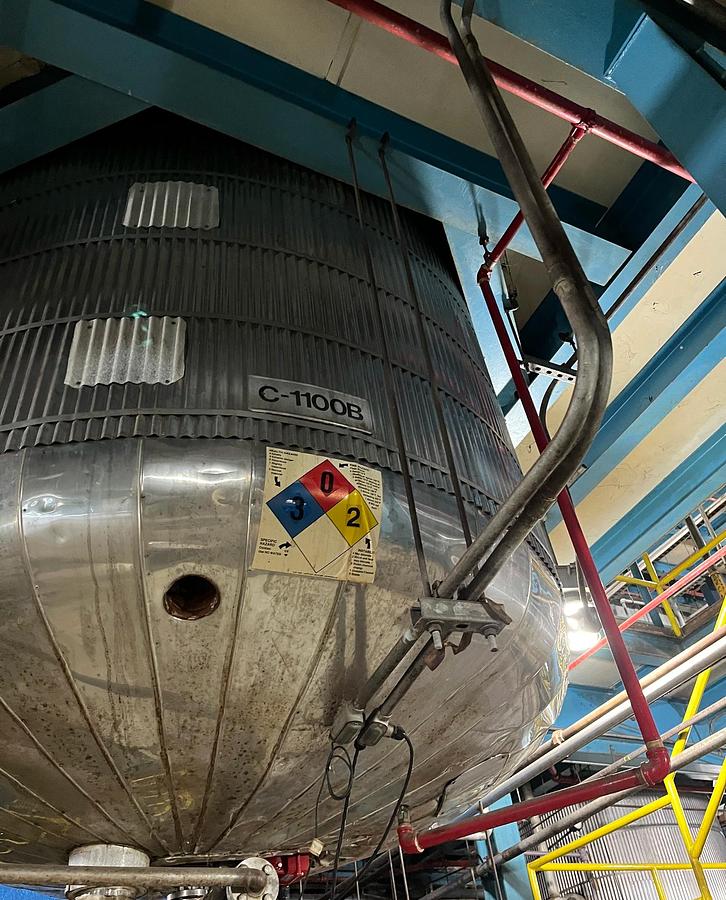

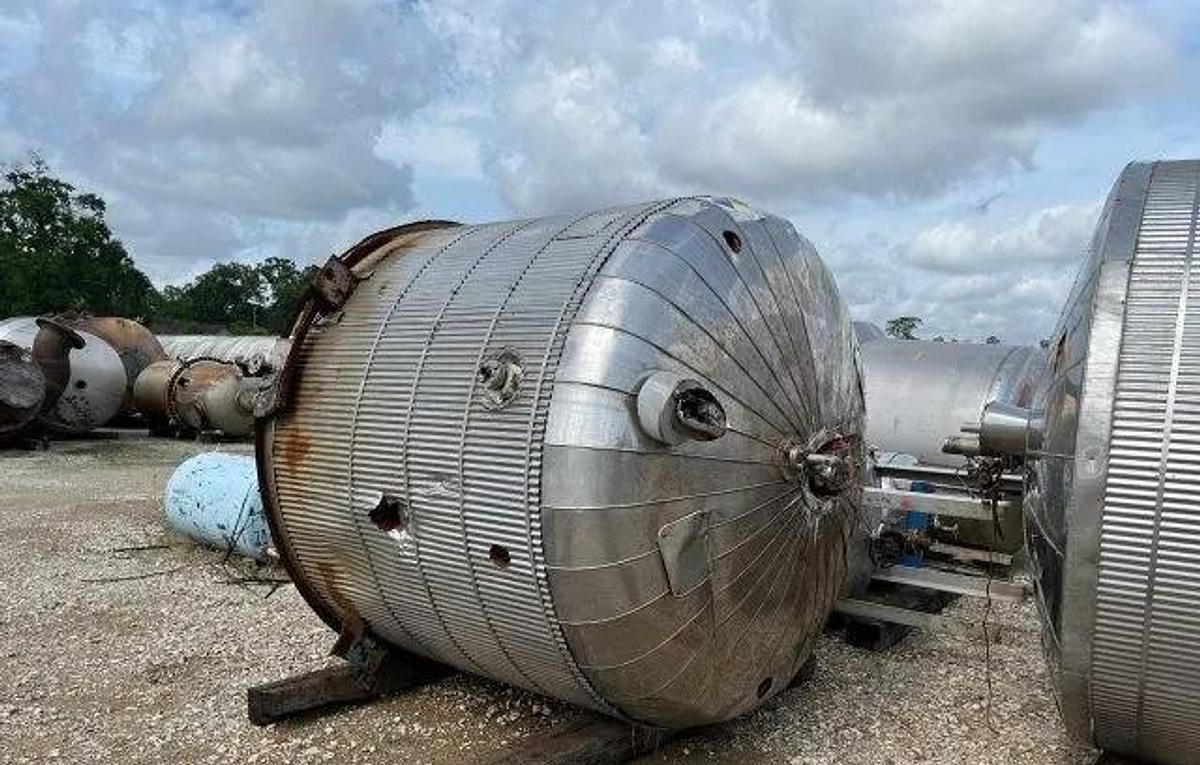

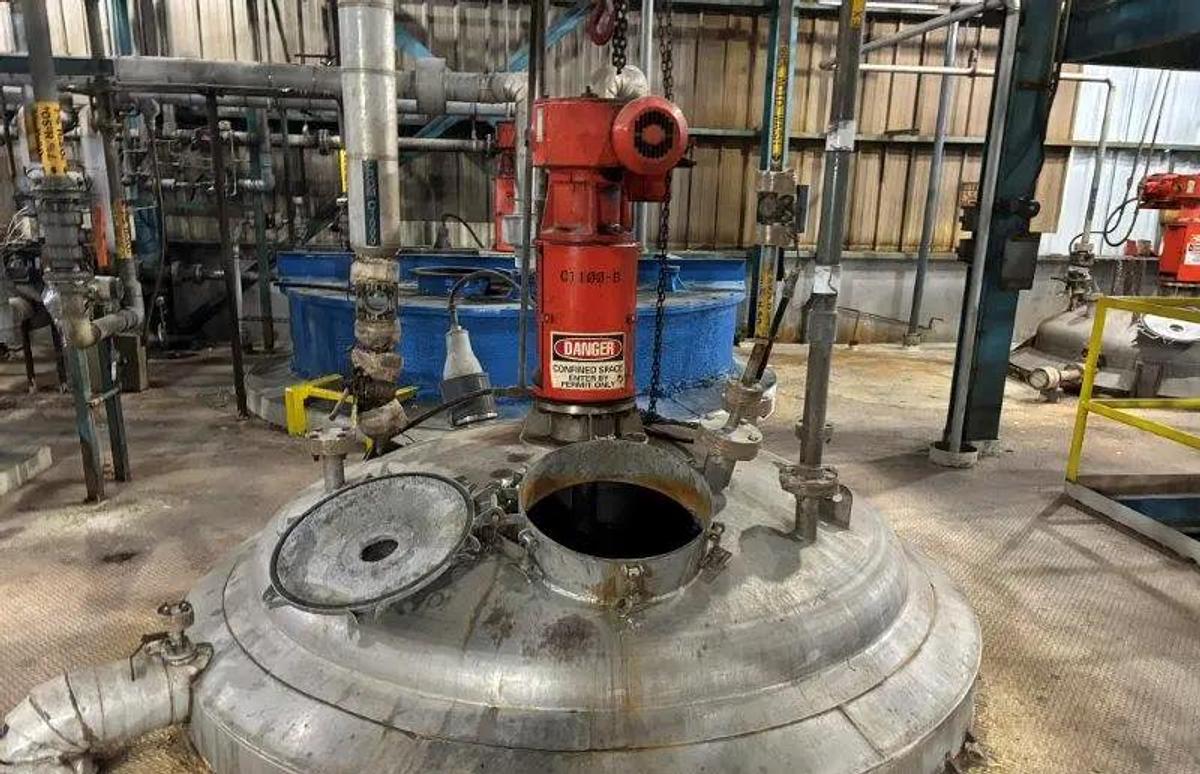

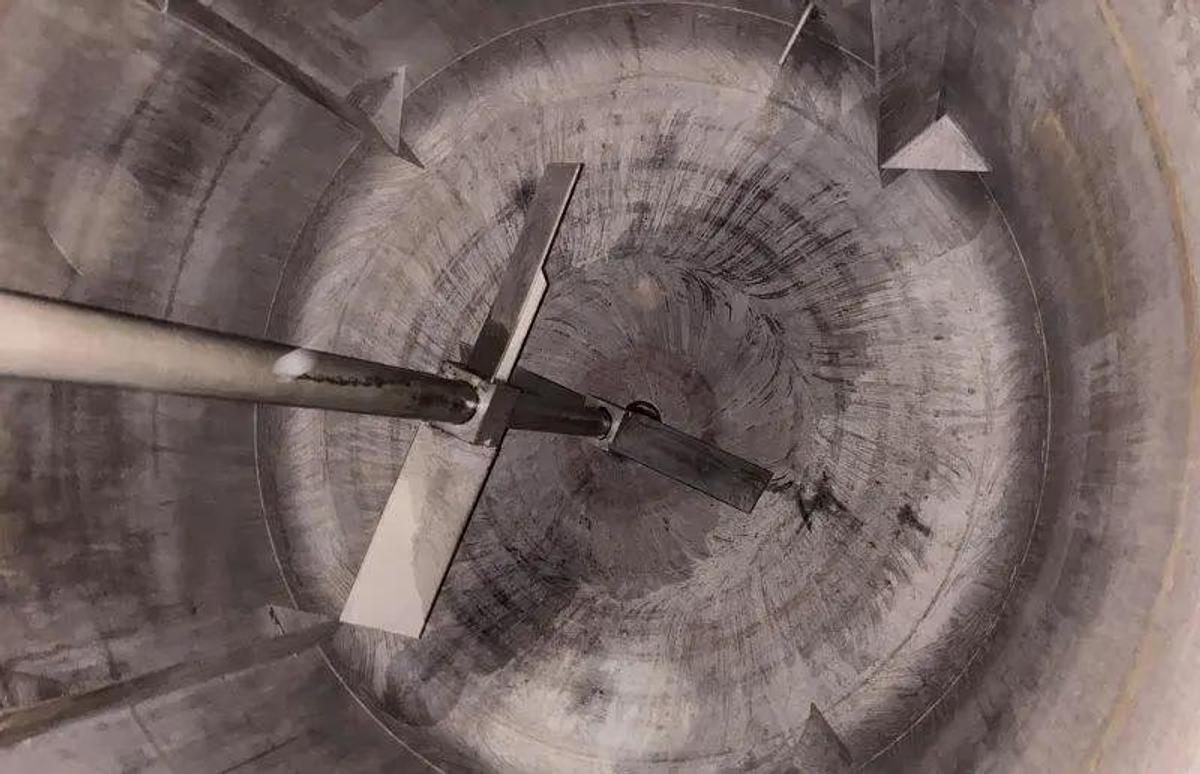

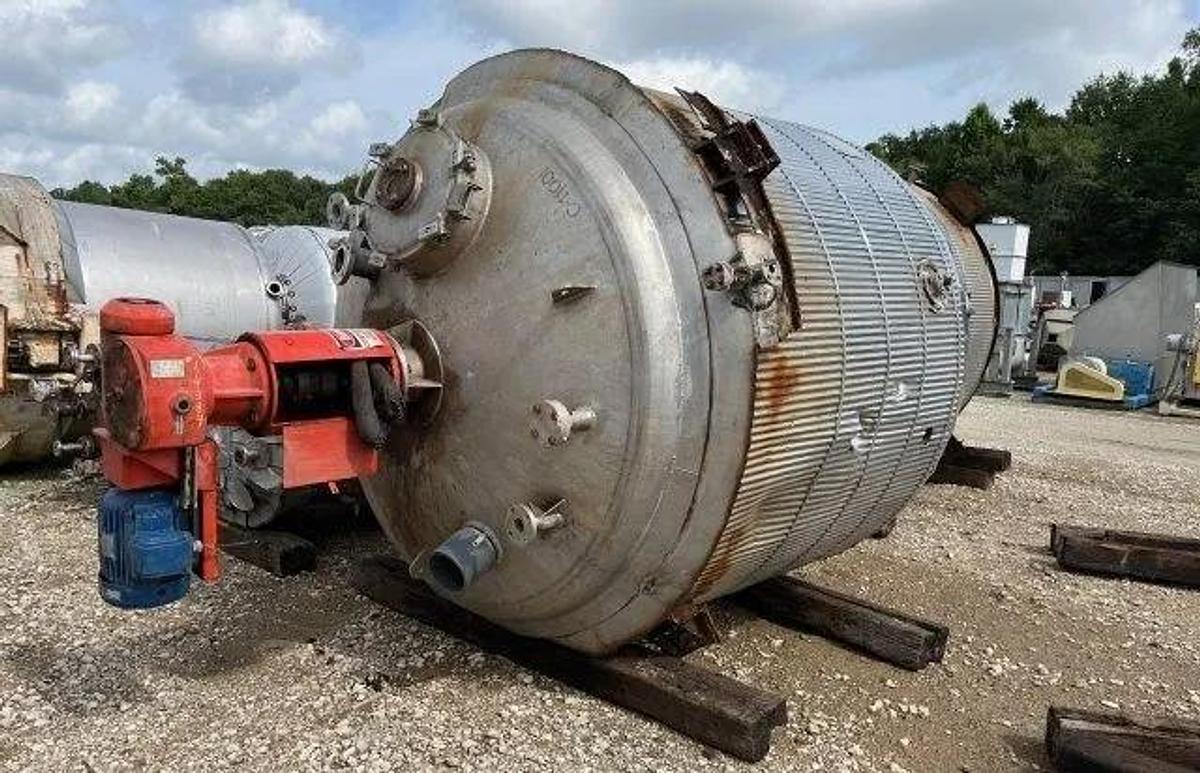

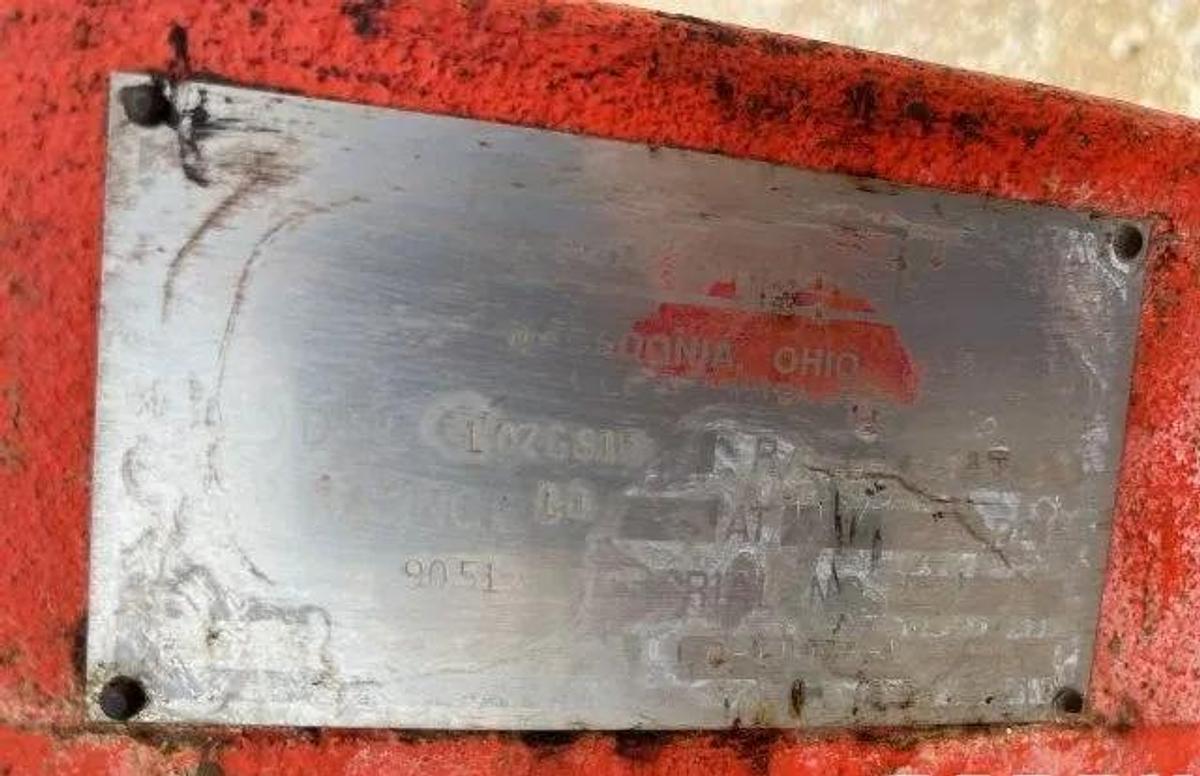

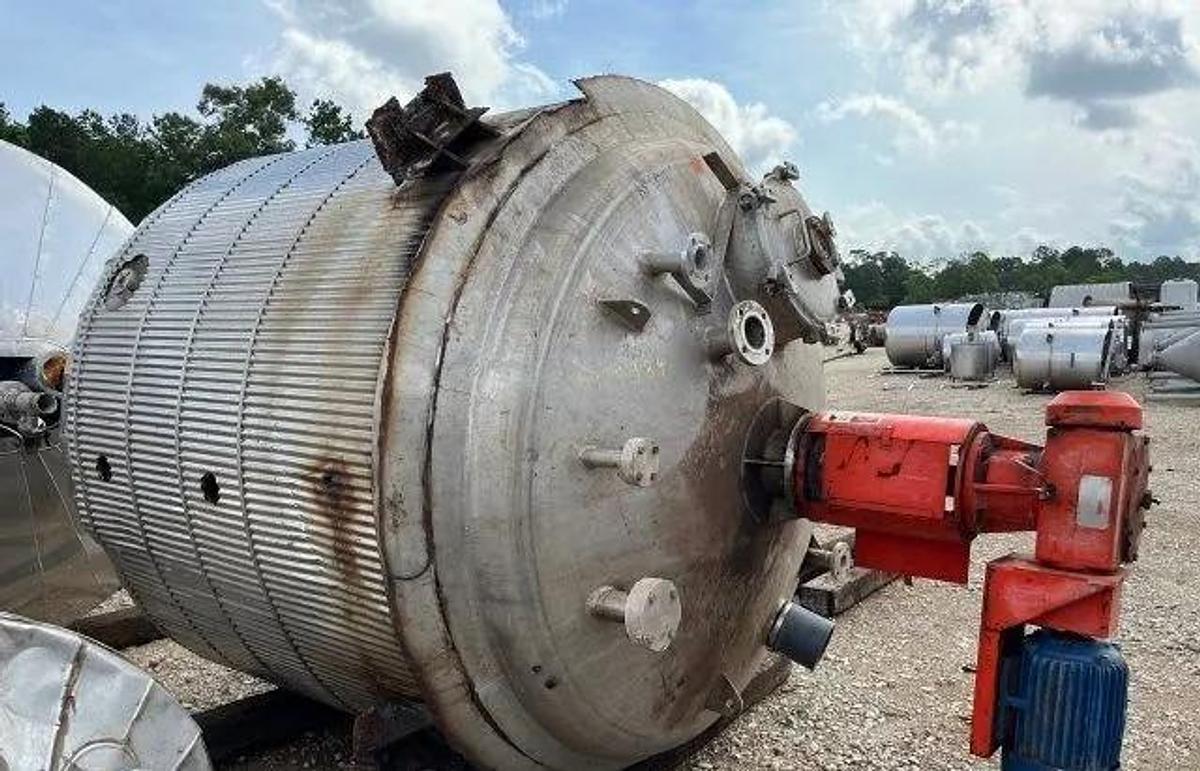

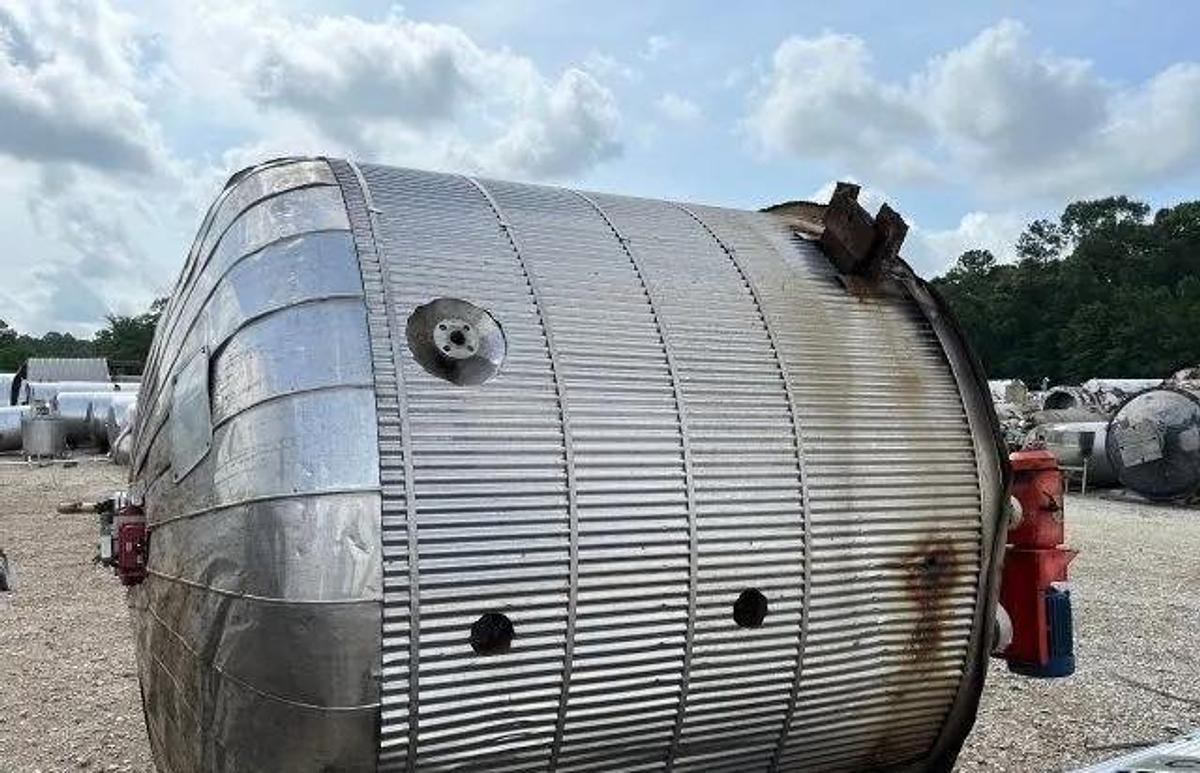

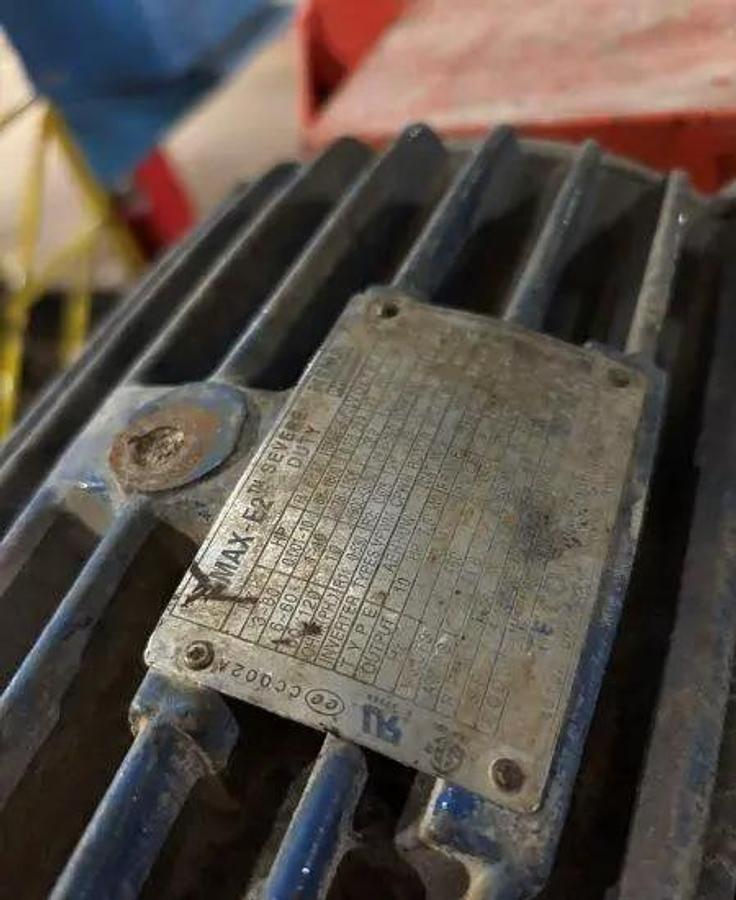

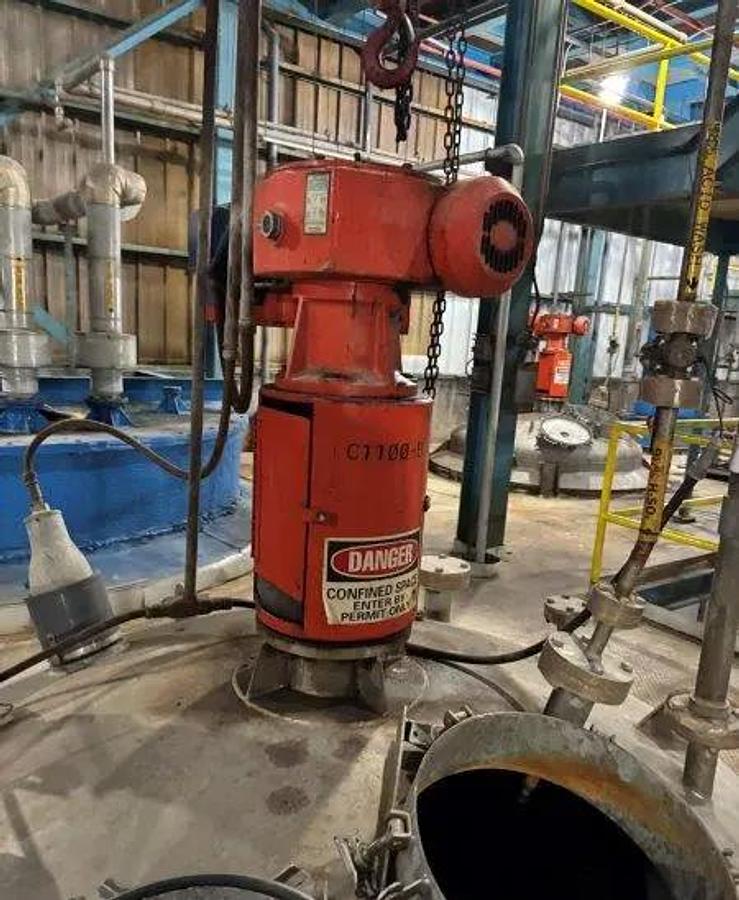

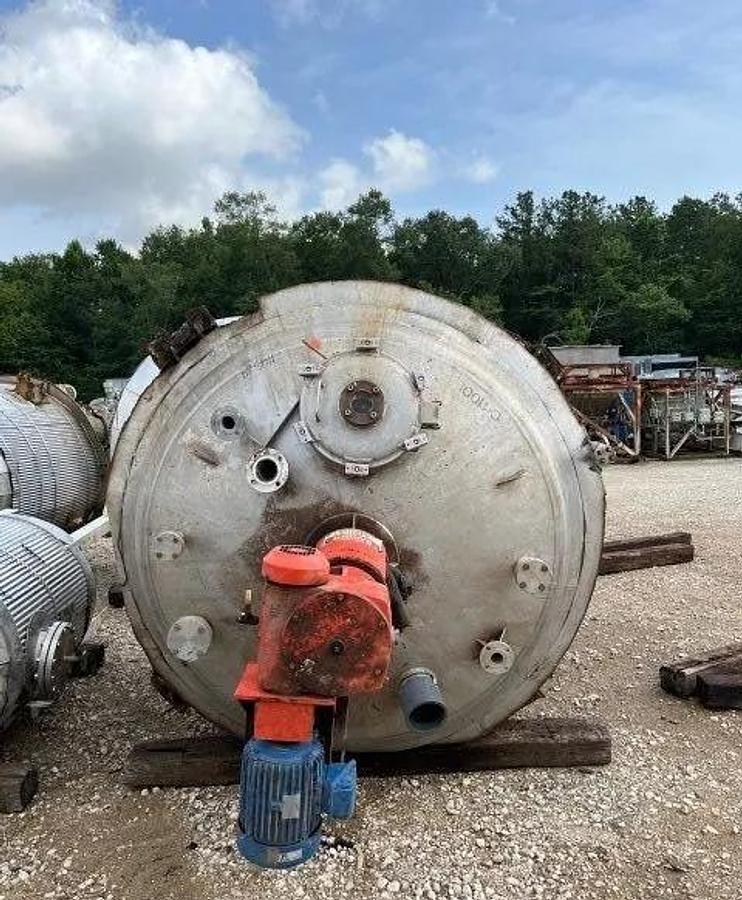

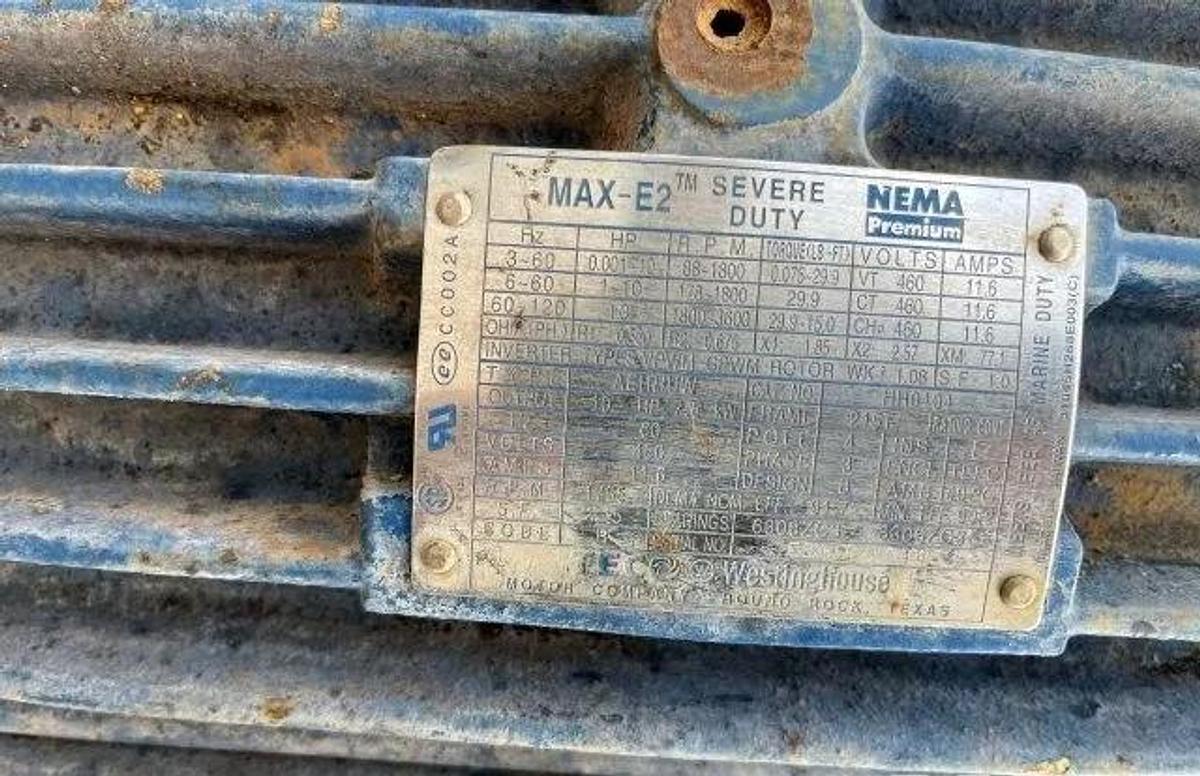

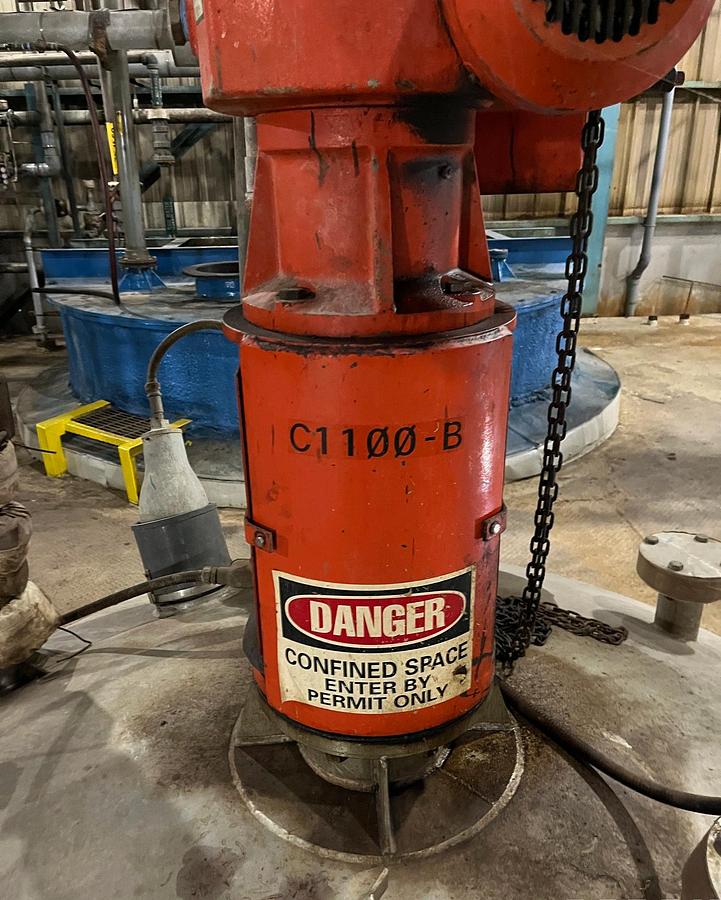

Alloy Fabricators 2,200 gallon jacketed mix tank . Vessel is constructed of 316L stainless steel with 304 stainless steel half-pipe jacket. Tank is rated for 15 PSI internal pressure at 120°F with jacket rated 85 PSI at 120°F. Features dished top and dished bottom design with top-entering agitator assembly. Agitation system includes approximately 10 HP drive with variable speed range from 0–80 RPM and axial flow impeller arrangement. Agitator consists of dual hubs with two blades each measuring approximately 35 1/2" diameter and is identified as Pro Quip model 10ZGS15B. Vessel dimensions are approximately 84" diameter x 72" straight side. Unit includes multiple top nozzles, manway access, and insulated exterior cladding. Suitable for blending, mixing, heating, cooling, and general process applications in chemical, pharmaceutical, cosmetic, and food processing industries.
Specifications
| Stock Number | 5991815 |
| Manufacturer | Alloy Fabricators |
| Model | 1-131A |
| Year | 1991 |
| Serial Number | 1-131A |
| Gallons | 2,200 (approx.) |
| Dimensions | 84" Diameter x 72" Straight Side |
| Materials of Construction | 316L Stainless Steel |
| Jacket Construction | 304 Stainless Steel Half-Pipe Jacket |
| Mounting | Leg Mounted |
| Basis | As Is, Where Is |
General Information
Jacketed stainless steel mix tanks are widely used for blending liquid products, slurry mixing, batch processing, and temperature-controlled manufacturing applications. Half-pipe jacket construction provides efficient heat transfer for heating or cooling media circulation while maintaining vessel integrity under pressure. Axial flow agitators are commonly used to promote product turnover and uniform mixing throughout the vessel while minimizing shear. Tanks of this style are frequently utilized in chemical processing, pharmaceutical manufacturing, resin production, specialty coatings, and industrial liquid handling operations requiring sanitary stainless steel construction and controlled process conditions.
