Tank, 11,000 Gallon, 12' Diameter x 24' High, Spiral Aluminum, Vertical Cone Bottom, Conair, Silo, #5991771
Tank, 11,000 Gallon, 12' Diameter x 24' High, Spiral Aluminum, Vertical Cone Bottom, Conair, Silo, #5991771
Location:Wilmington, NC
Available quantity:4
Description

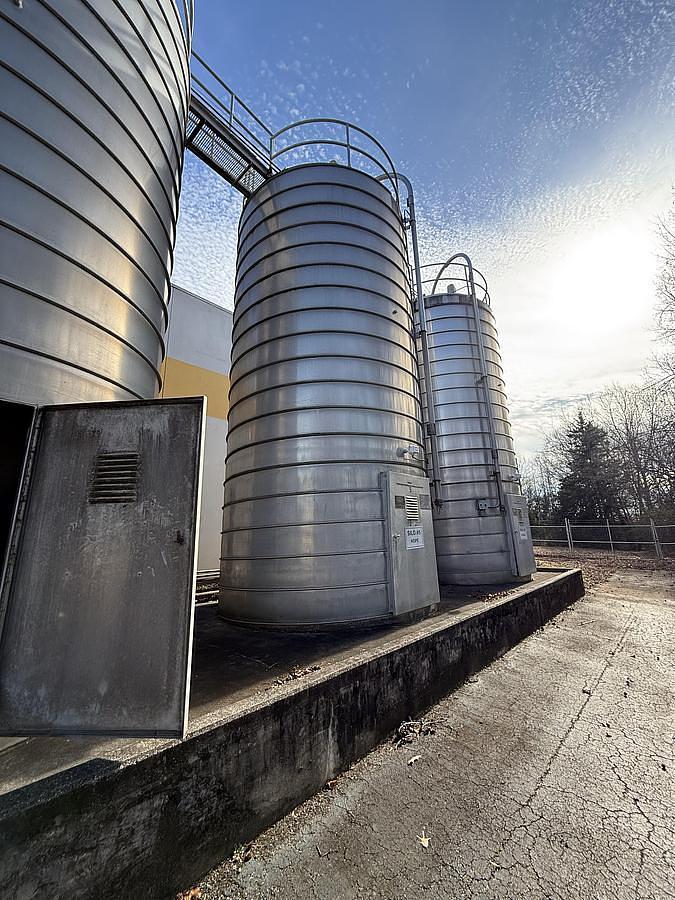

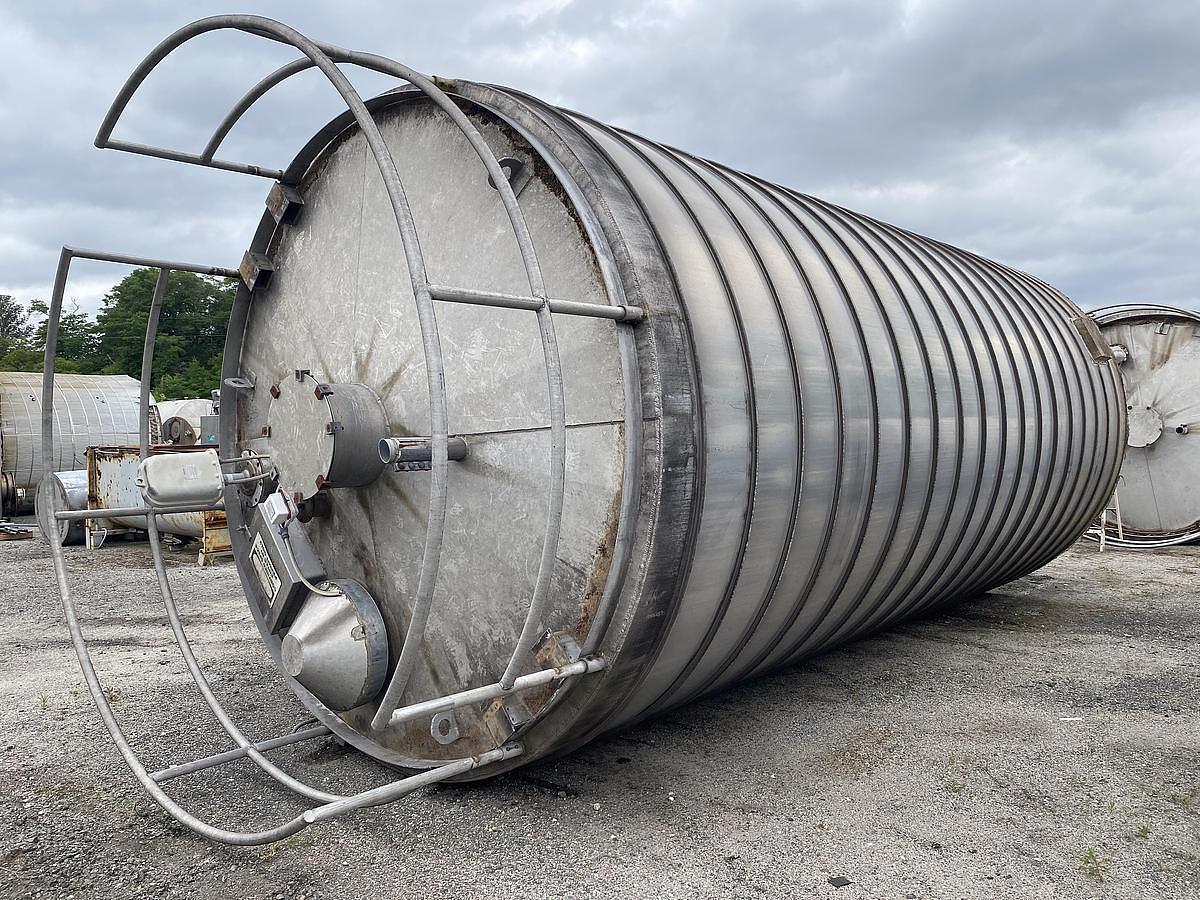

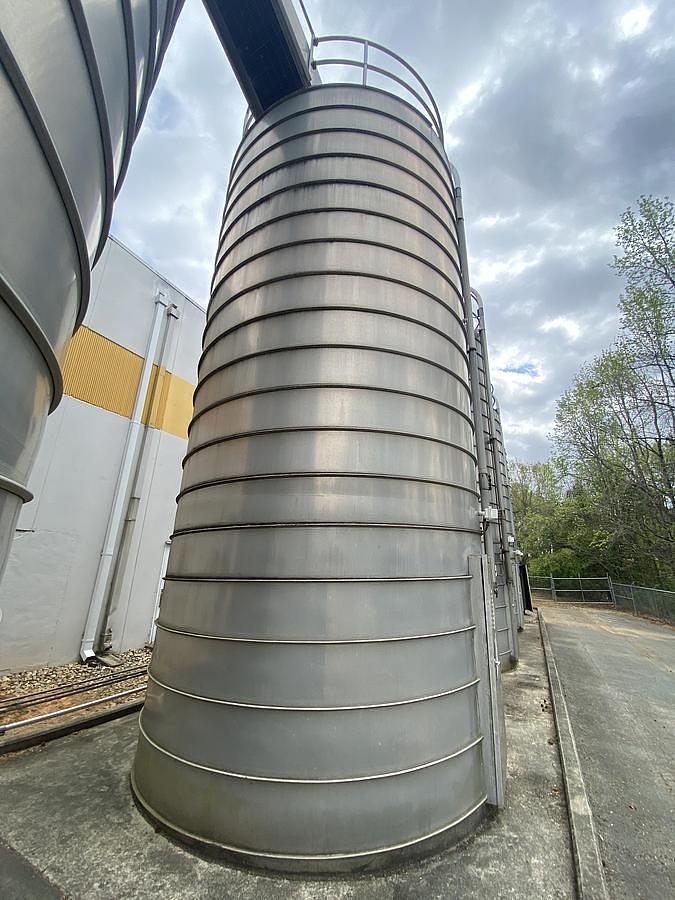

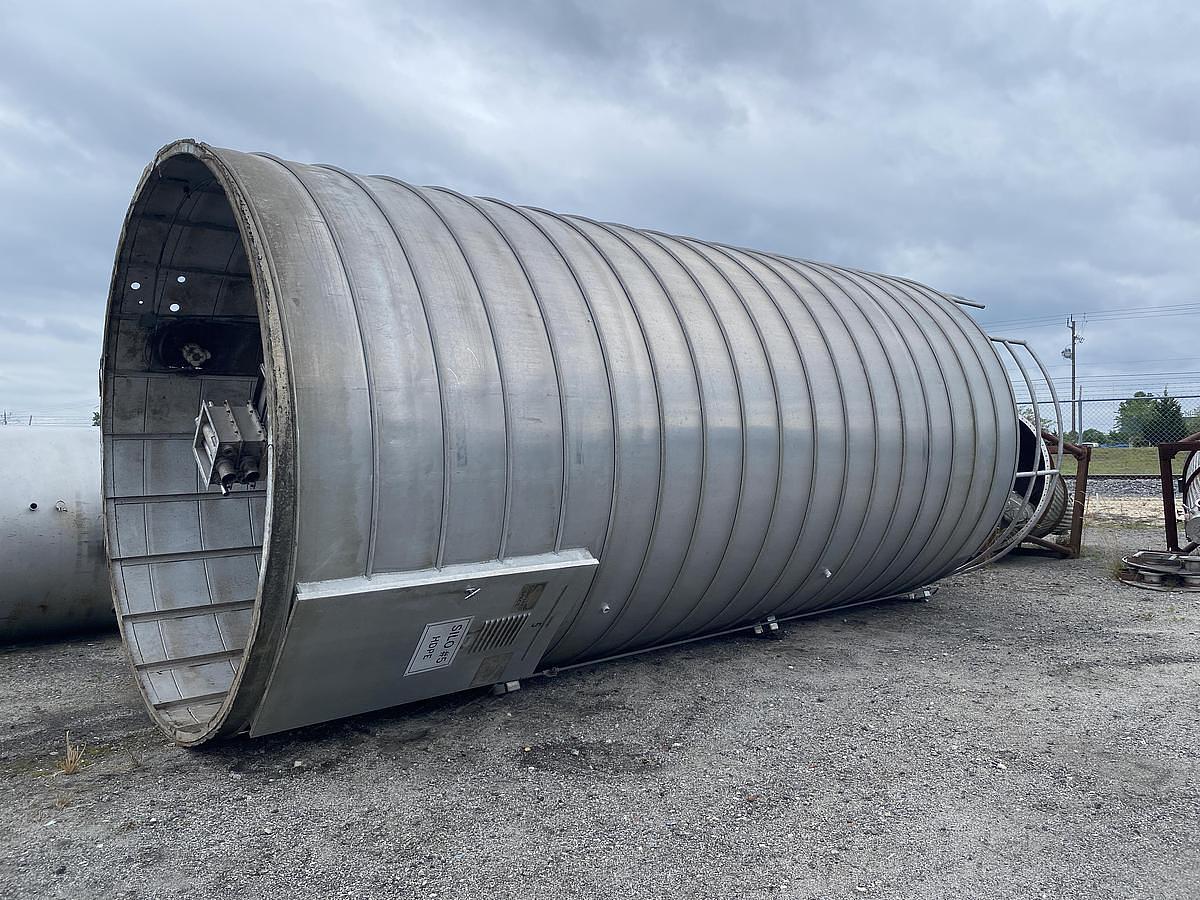

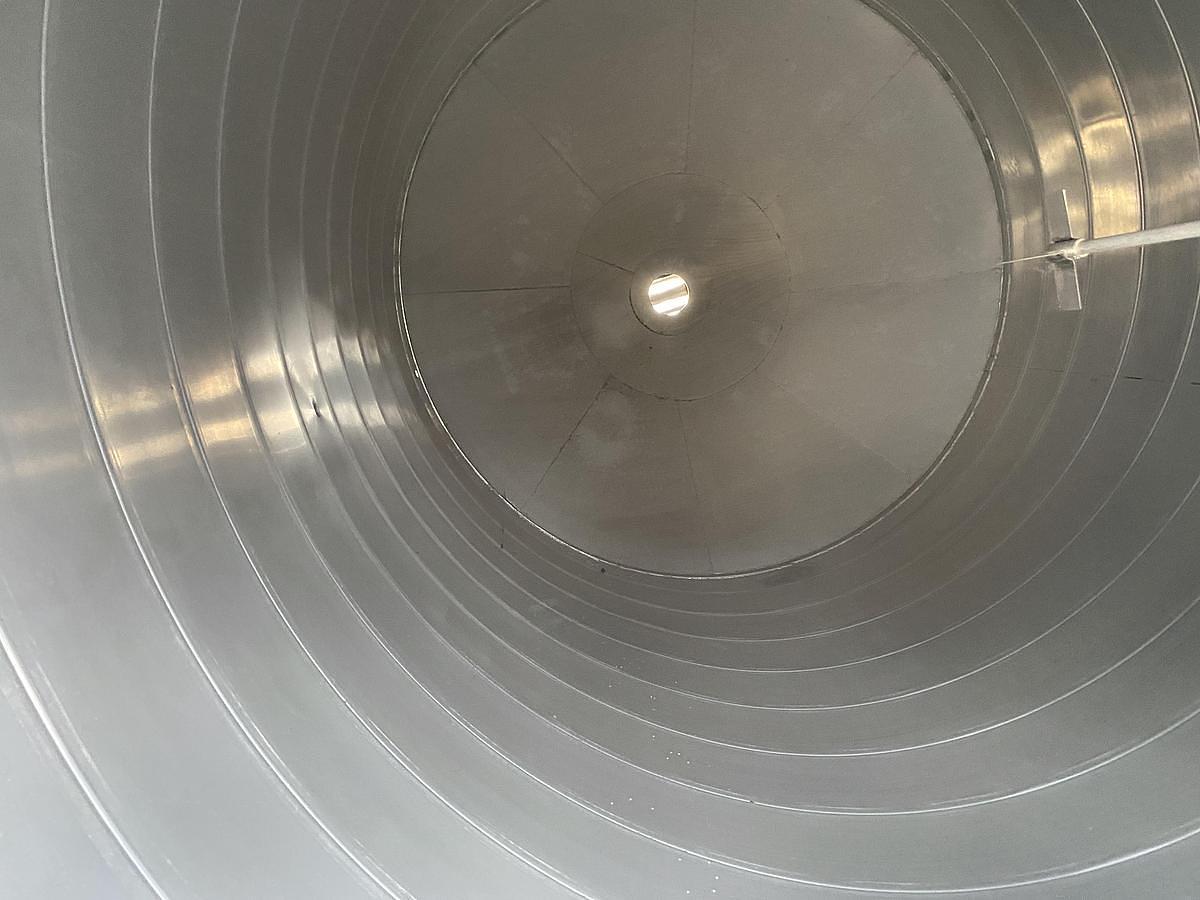

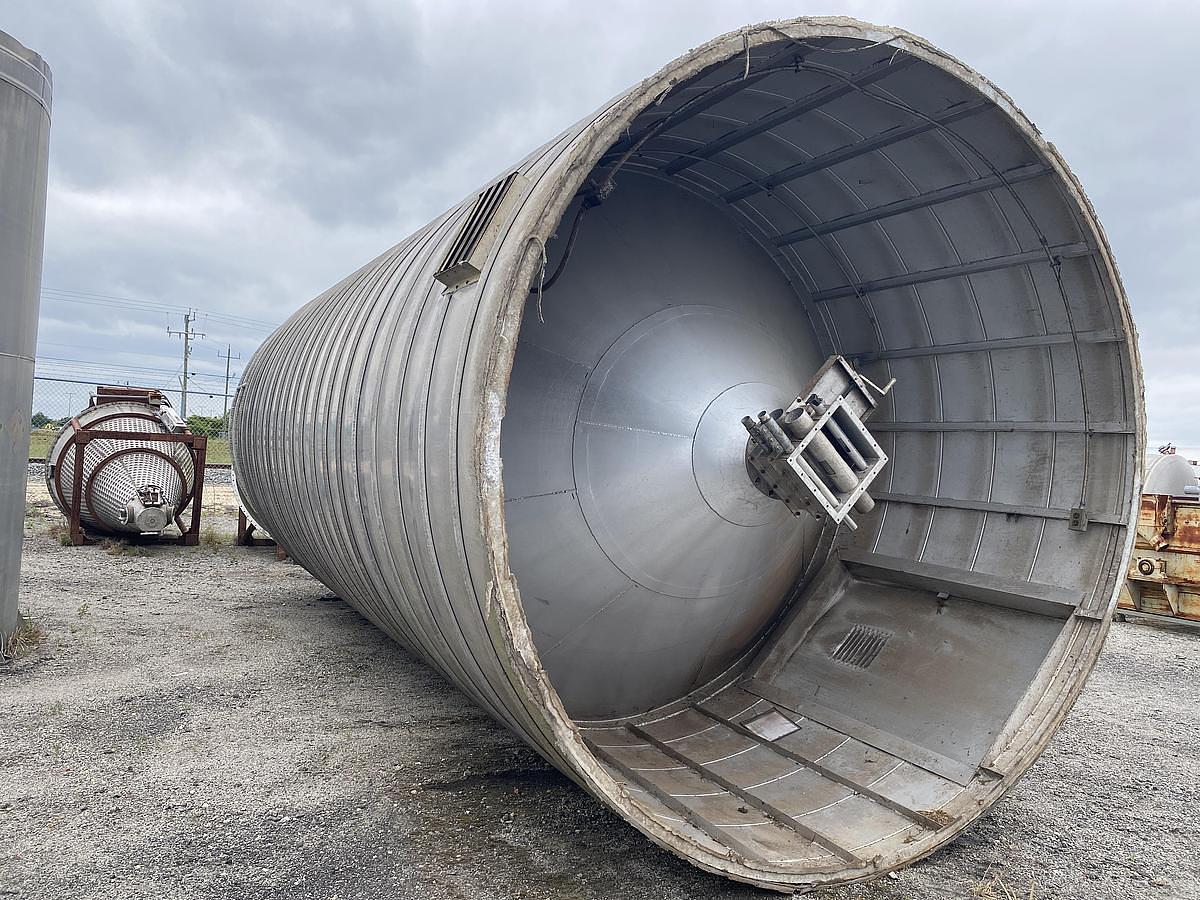

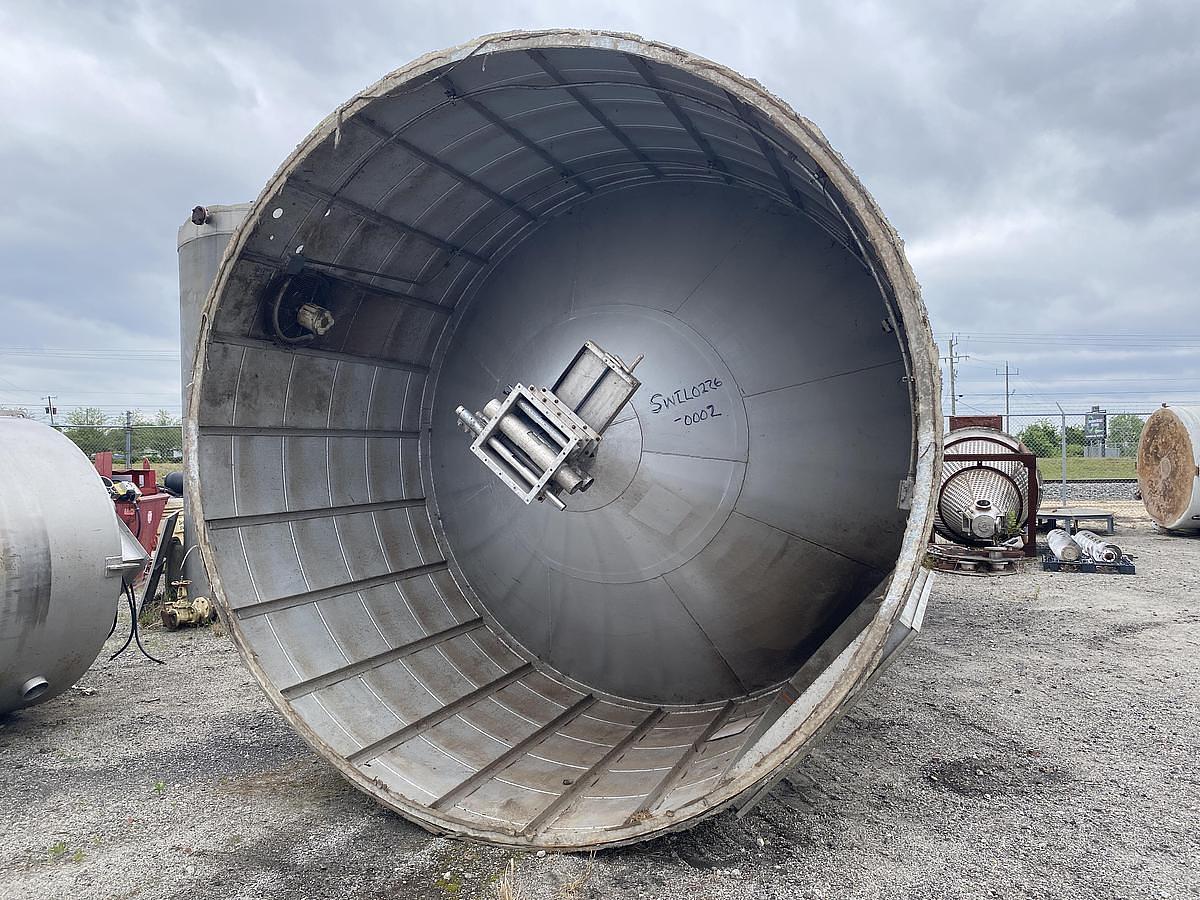

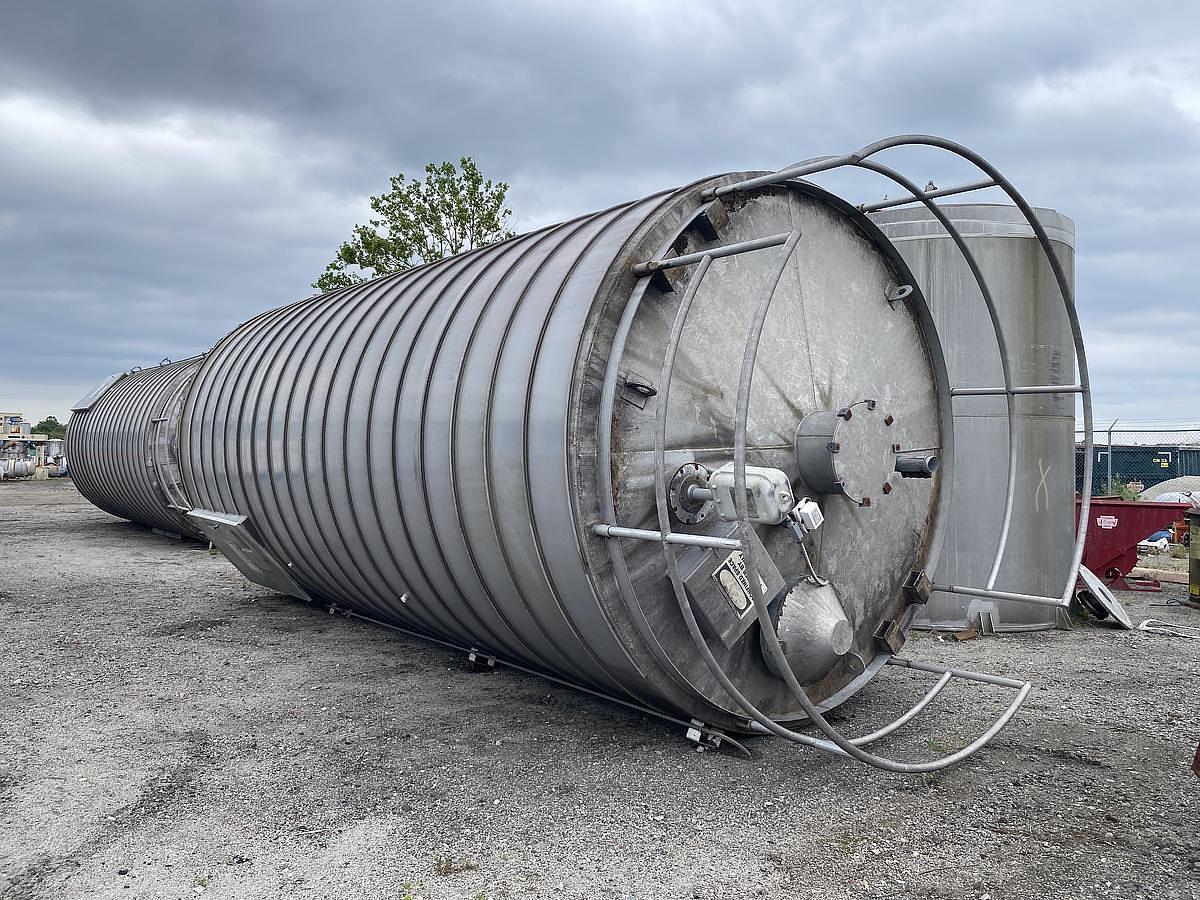

Used vertical bulk material storage silo constructed of spiral aluminum with a total capacity of 1,709 cubic feet. Unit measures 12 ft diameter by 24 ft overall height with approximately 17 ft straight side and 5 ft cone bottom for center flow discharge. Designed for storage of free-flowing materials with a maximum allowable load of 69,000 lbs and material density up to 40 lbs per cubic foot. Features include bottom access door, structural support framework, and top access platform. Built to withstand seismic zone II conditions and wind velocities up to 100 MPH.
Specifications

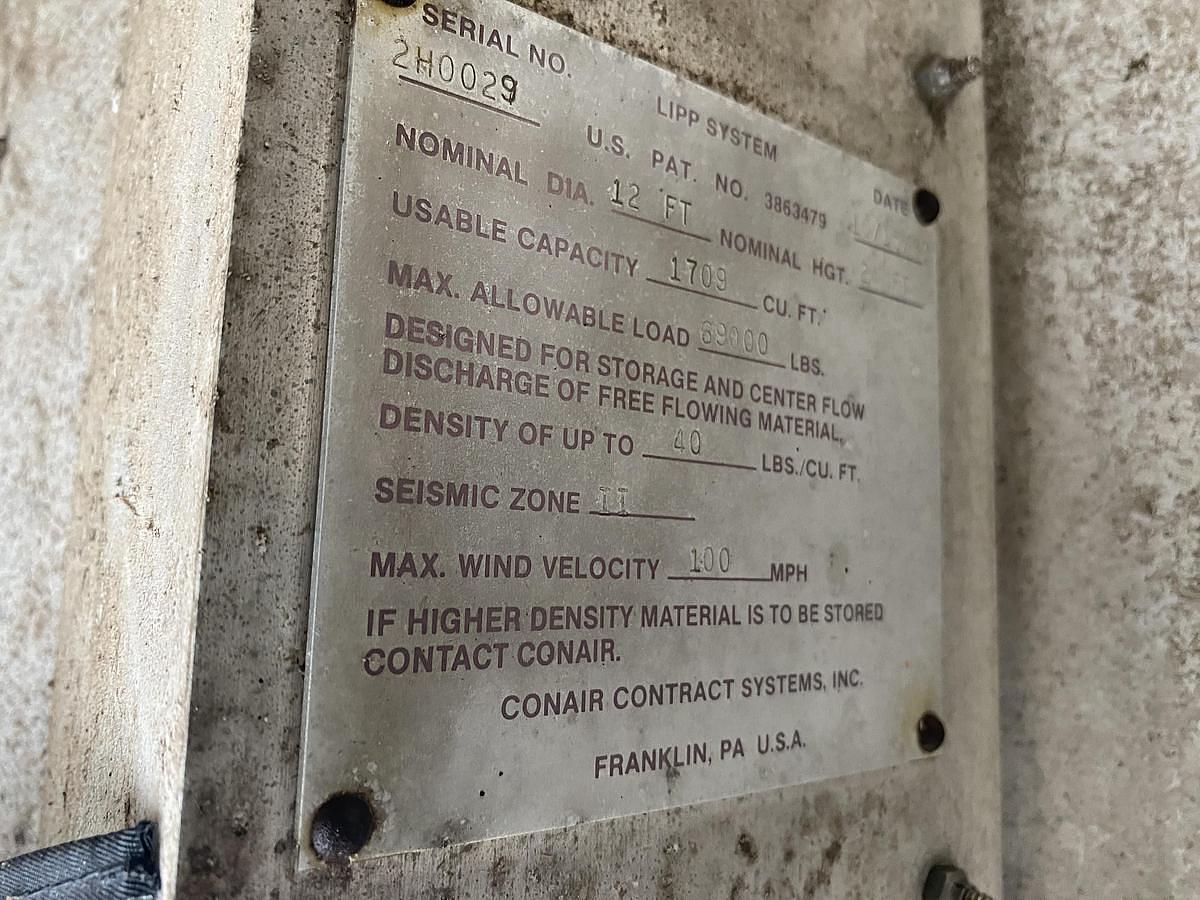

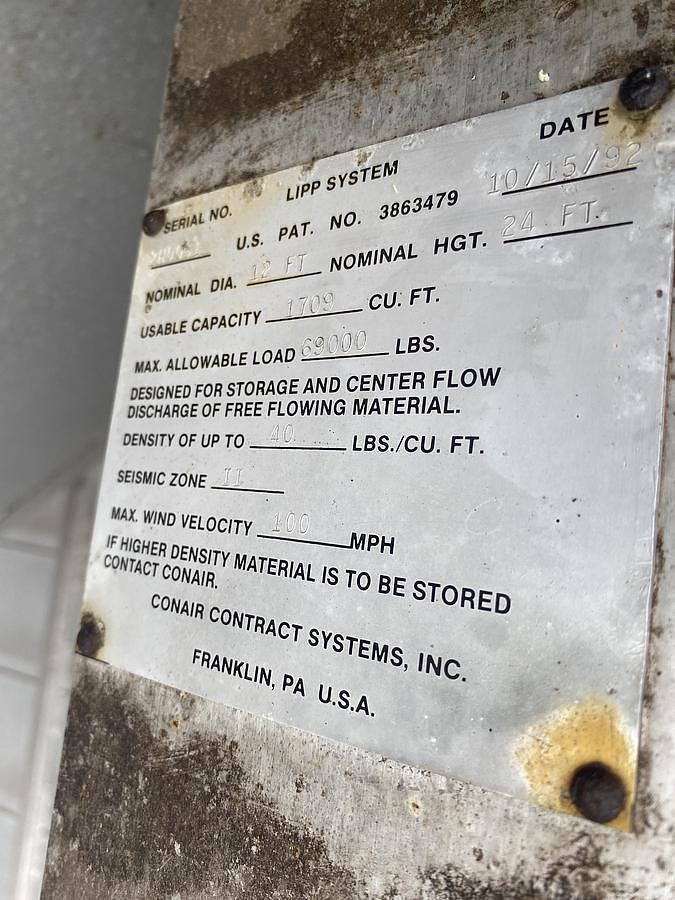

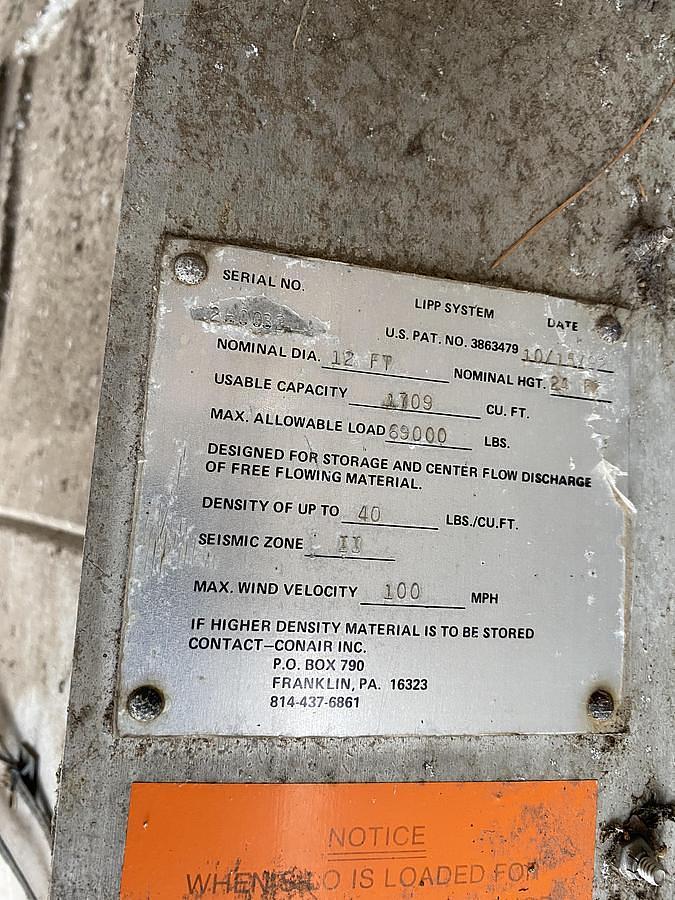

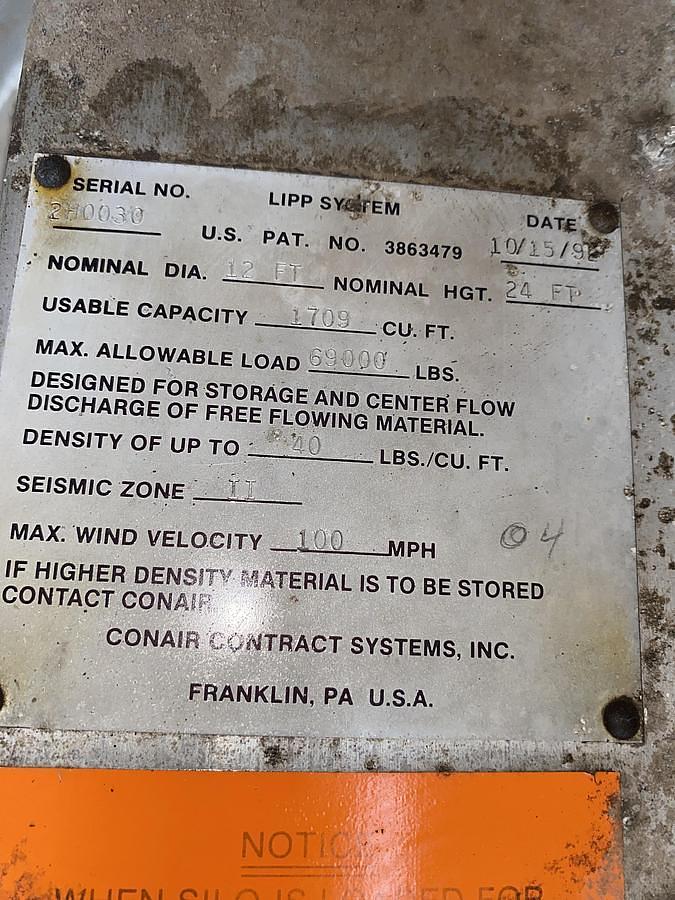

| Stock Number | 5991771 |
| Manufacturer | Conair Contract Systems, Inc. |
| Year | 1992 |
| Capacity | 11,000 Gallons |
| Diameter | 12 Ft |
| Hight | 24 Ft |
| Straight Side Height | Approx. 17 Ft |
| Cone Depth | Approx. 5 Ft |
| Materials of Construction | Spiral Aluminum |
| Discharge | Center Flow, Cone Bottom |
| Max Allowable Load | 69,000 lbs. |
| Material Density Rating | Up to 40 lbs/cu ft |
| Seismic Zone | II |
| Max Wind Velocity | 100 MPH |
| Access | Bottom Door, Top Access Platform |
| Basis | As Is, Where is |
General Information
Spiral aluminum silos are commonly used in plastics, food, and bulk material handling industries for efficient storage and controlled discharge of dry, free-flowing materials. Their lightweight yet durable construction provides corrosion resistance and long service life, while cone-bottom designs ensure reliable gravity discharge and minimal material bridging.
