Pump, Piston, FMC M220 Bean Piston Pump, Ceramic, 75 HP, (Qty 3), #5991756
Pump, Piston, FMC M220 Bean Piston Pump, Ceramic, 75 HP, (Qty 3), #5991756
Location:Grandview, WA
Available quantity:3
Description

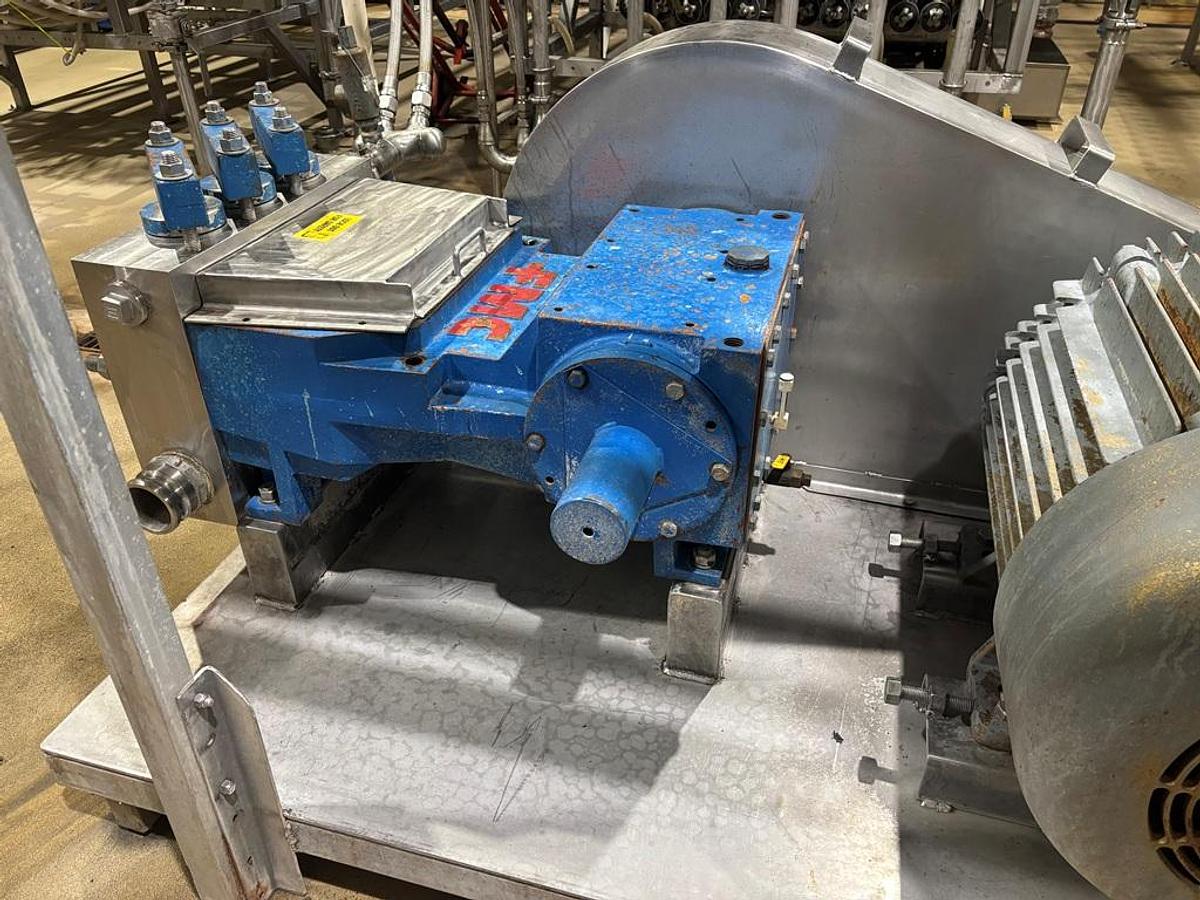

FMC M220 Bean piston pump package mounted on skid (approx. 6' x 4'), equipped with ceramic pistons for abrasive service. Rated up to approximately 90.7 GPM (343 LPM) with maximum discharge pressure of 1,250 PSI (8,618 kPa). Driven by 75 HP (55.9 kW) motor, operating at approximately 500 crank RPM. Pump features heavy-duty reciprocating design with replaceable wear components, integrated crankcase lubrication (12 qt oil capacity, ISO VG 100), and high-pressure fluid end suitable for continuous duty applications.
Specifications

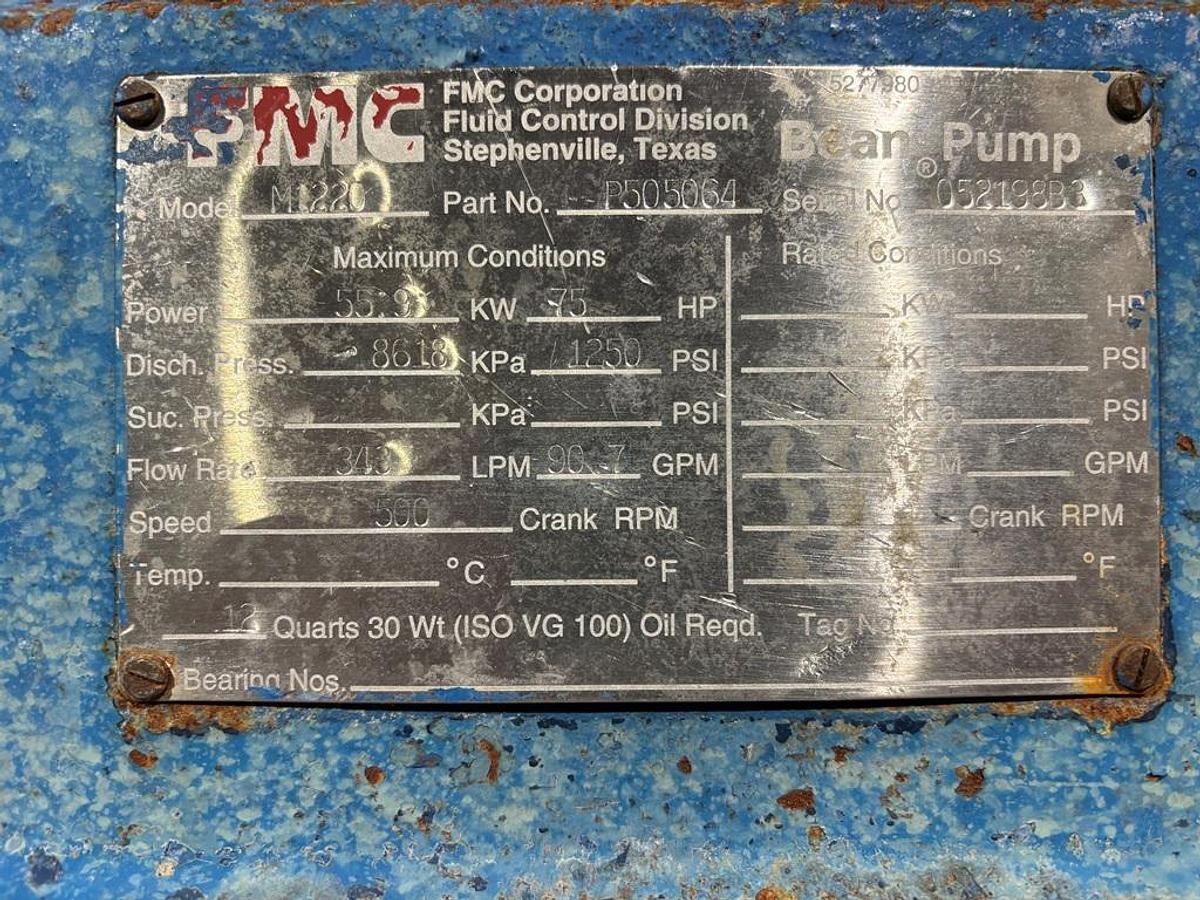

| Stock Number | 5991756 |
| Manufacturer | FMC Corporation |
| Model | M220 |
| Serial Number | 052198B3 |
| Materials of Construction | Heavy-duty reciprocating piston pump |
| Mounting | Skid mounted (approx. 6' x 4') |
| Electrical | 480V, 3 Phase, 60 Hz |
| Lubrication | 12 qt oil capacity (ISO VG 100) |
| Pistons | Ceramic |
| Speed | Approx. 500 Crank RPM |
| Drive Power | 75 HP (55.9 kW) |
| Max Discharge Pressure | 1,250 PSI (8,618 kPa) |
| Flow Rate | Approx. 90.7 GPM (343 LPM) |
| Model | M220 |
| Basis | Each, FOB |
General Information
FMC “Bean” piston pumps are widely recognized in industrial, drilling, and process industries for their durability, simplicity, and ability to handle abrasive and high-pressure applications. Designed for continuous duty, these pumps utilize a low-speed reciprocating mechanism with heavy-duty bearings and replaceable wear parts to maximize service life and reduce maintenance. Common applications include drilling fluids, wastewater, slurry transfer, pressure washing, and other demanding pumping services where reliability and high pressure capability are critical. FMC pump packages are frequently supplied on skids with integrated drives for ease of installation and transport.
