Tank, 15,000 Gallon, Vertical, 304L Stainless Steel, ASME, Unused, #5991729
Tank, 15,000 Gallon, Vertical, 304L Stainless Steel, ASME, Unused, #5991729
Location:North East
Available quantity:2
Description

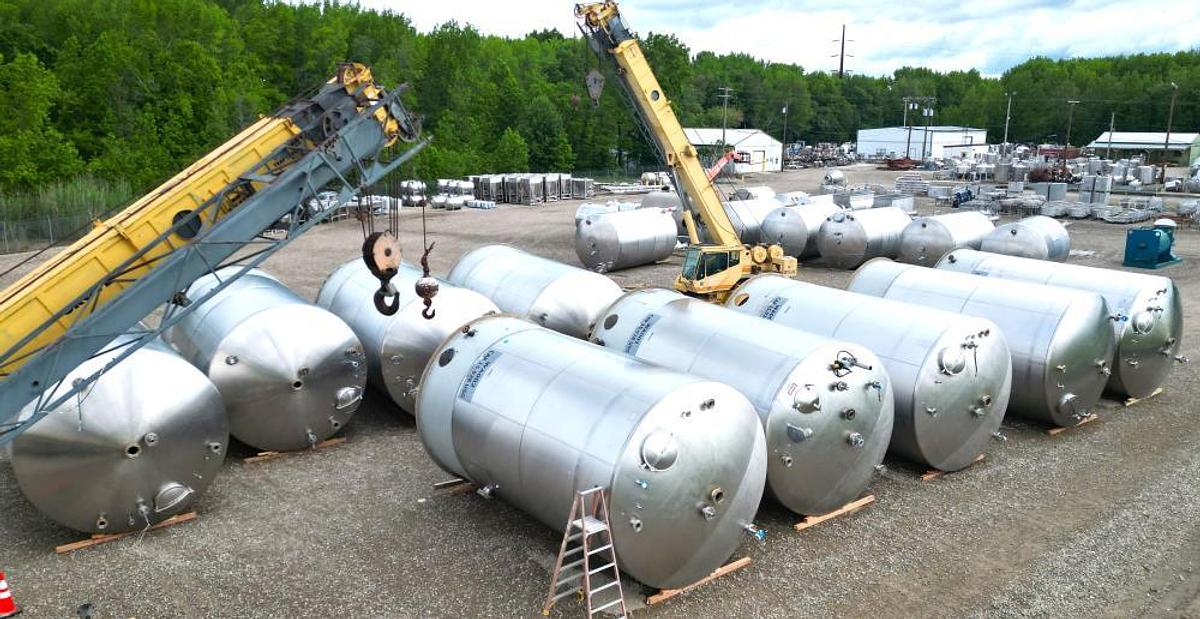

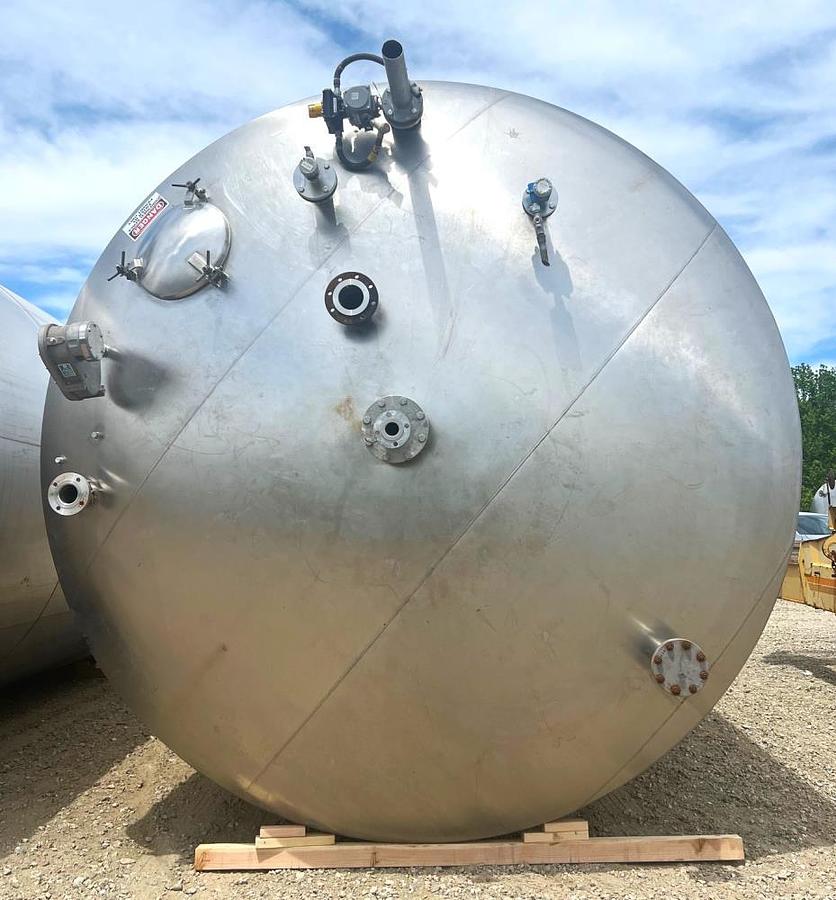

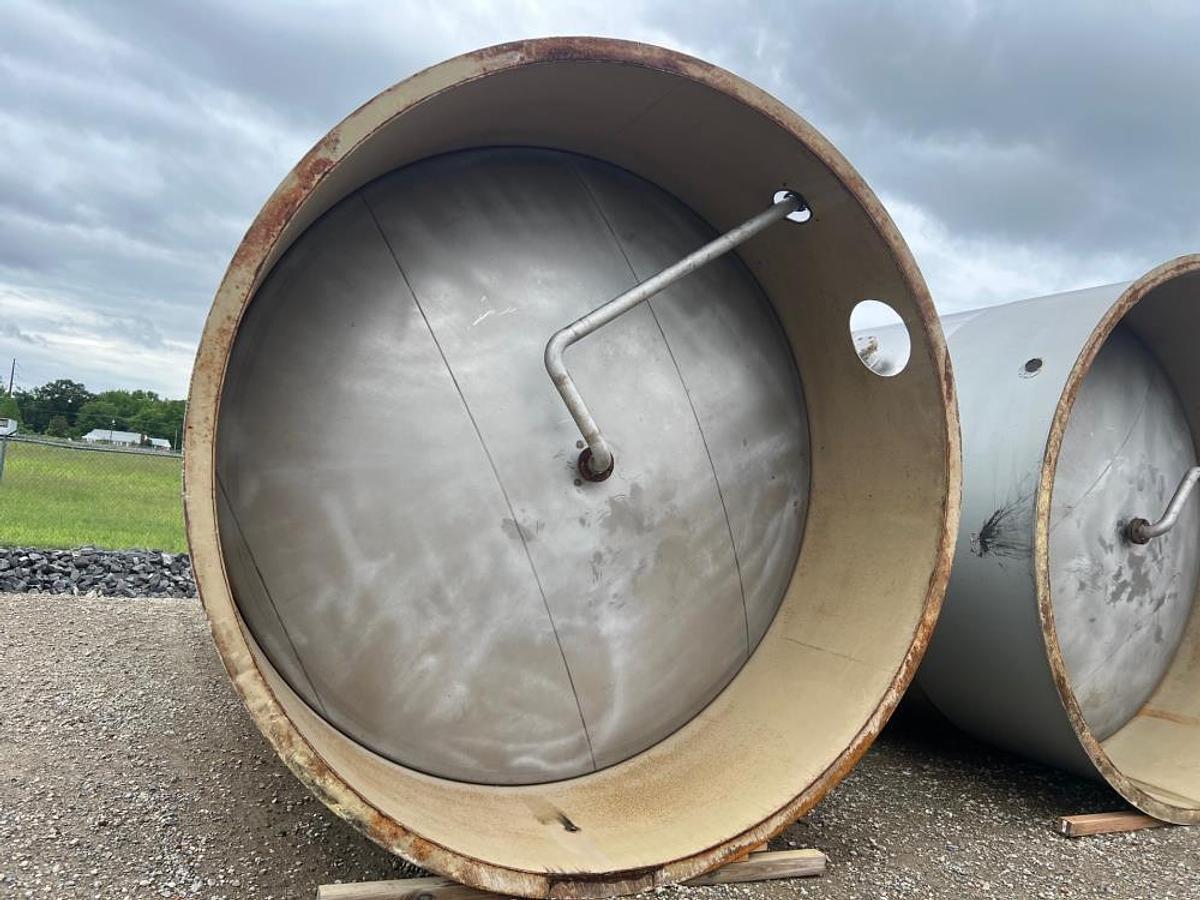

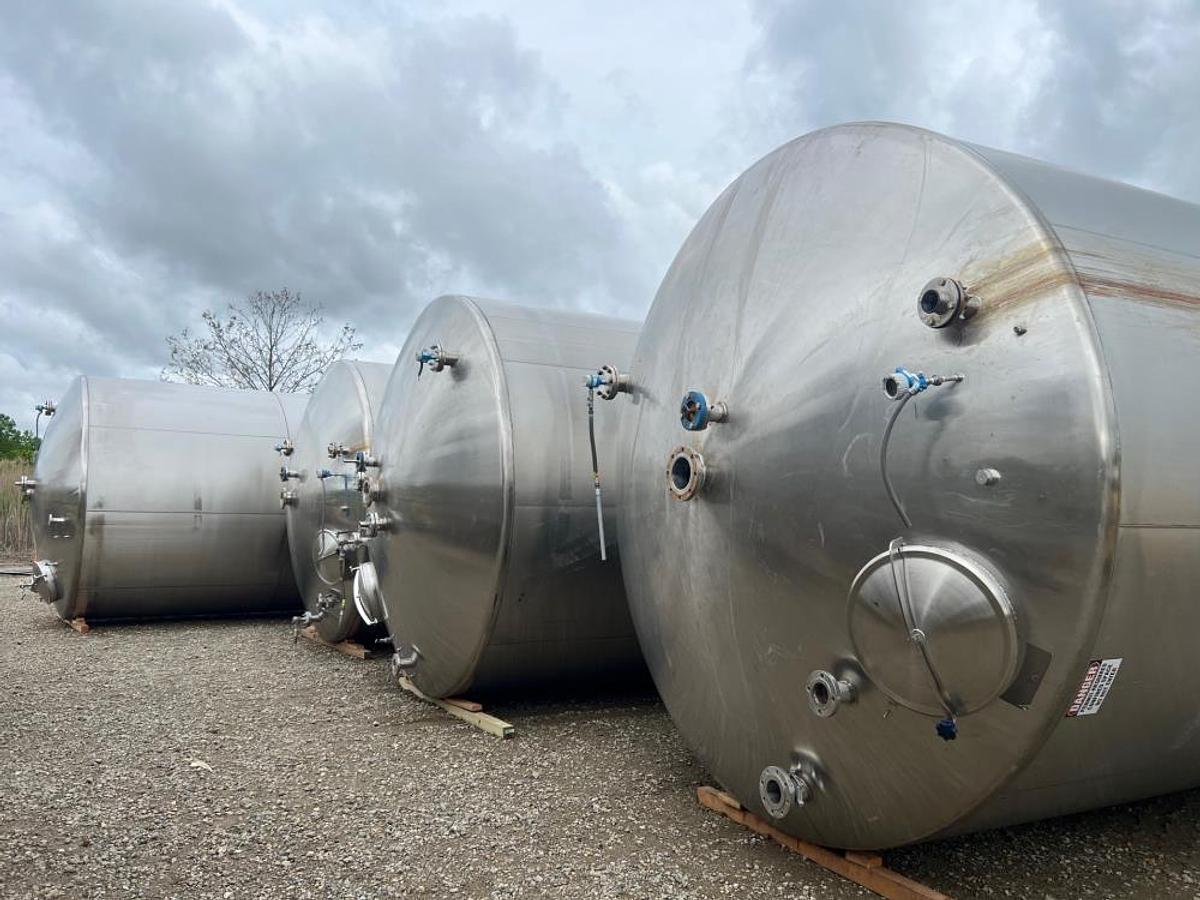

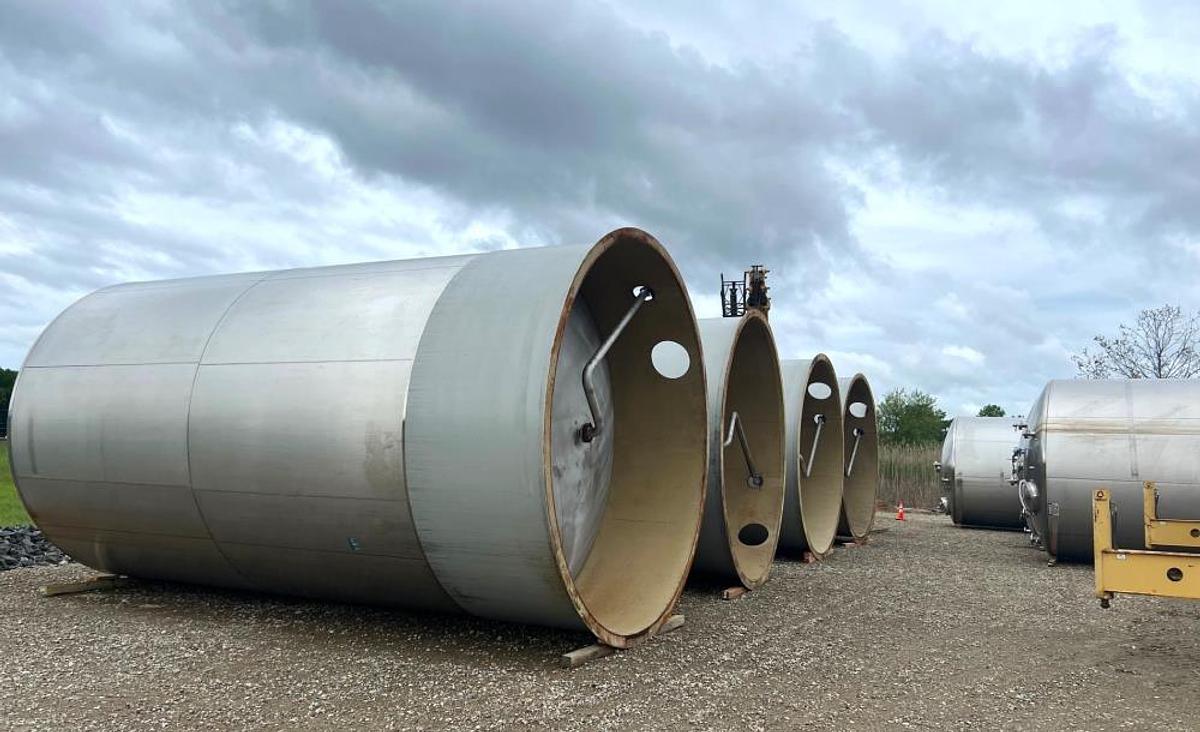

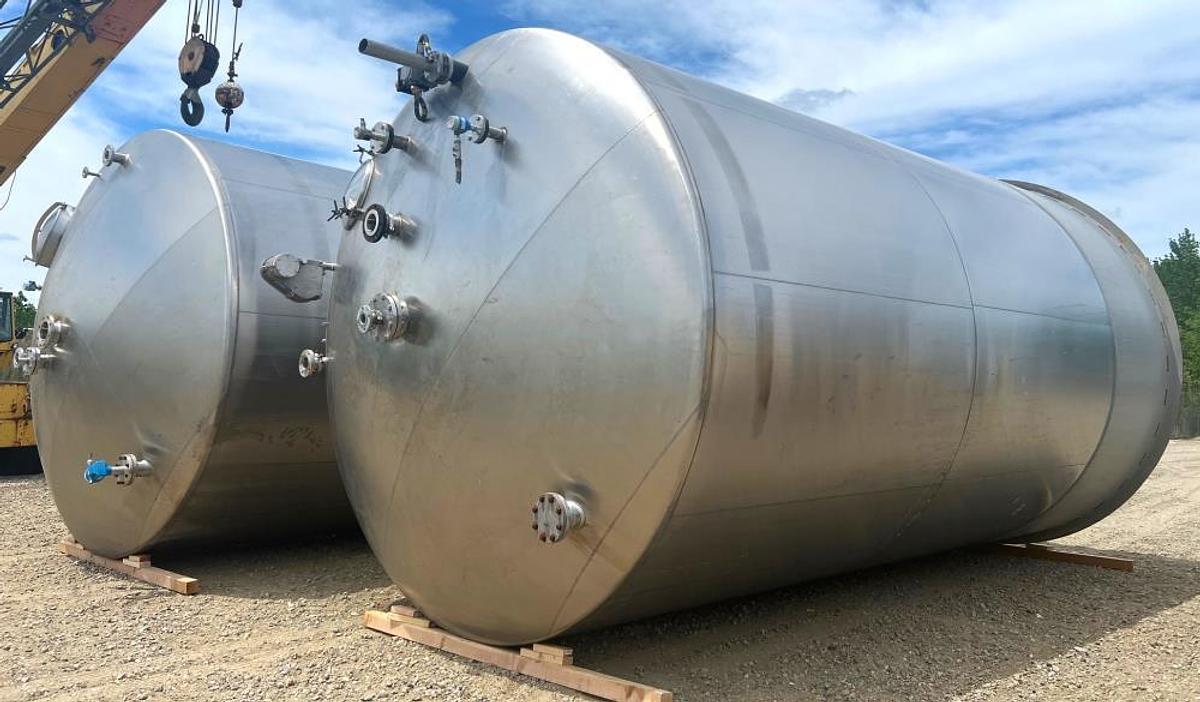

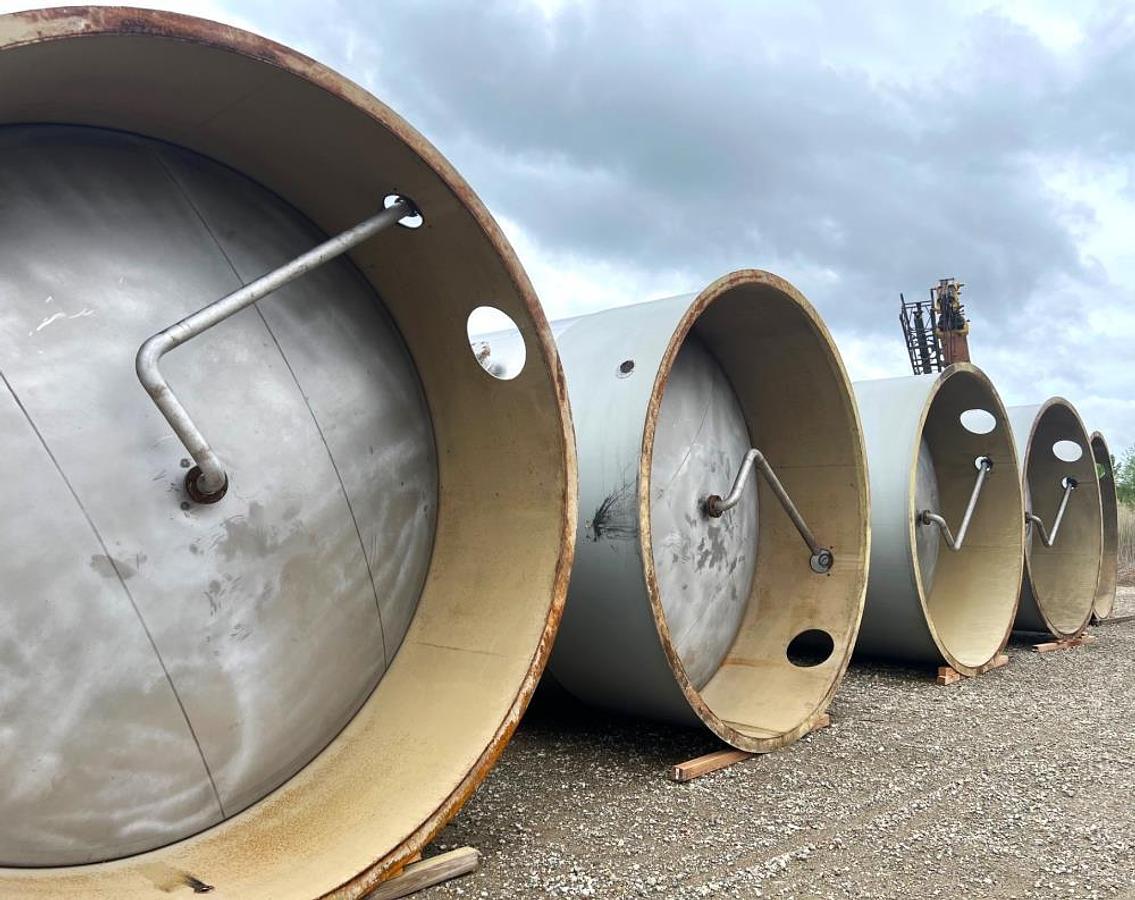

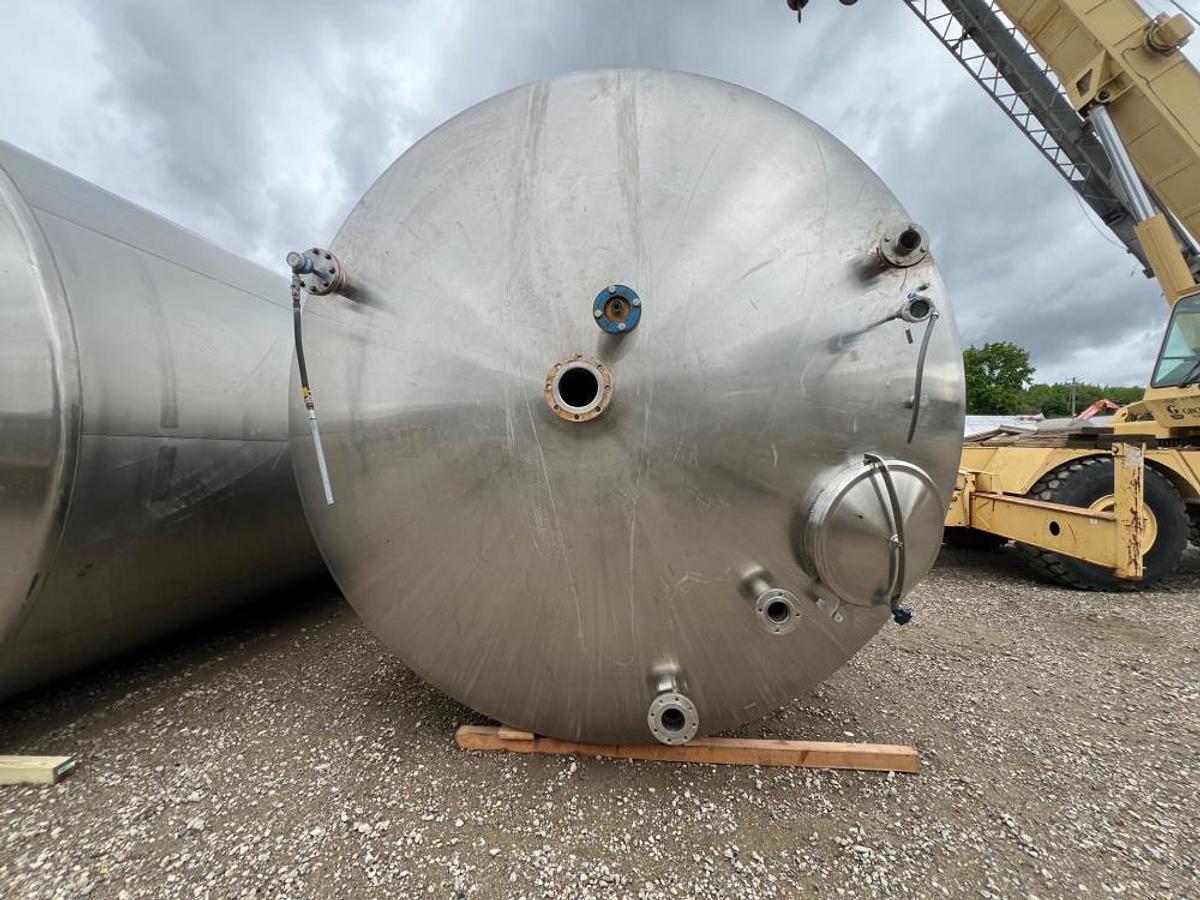

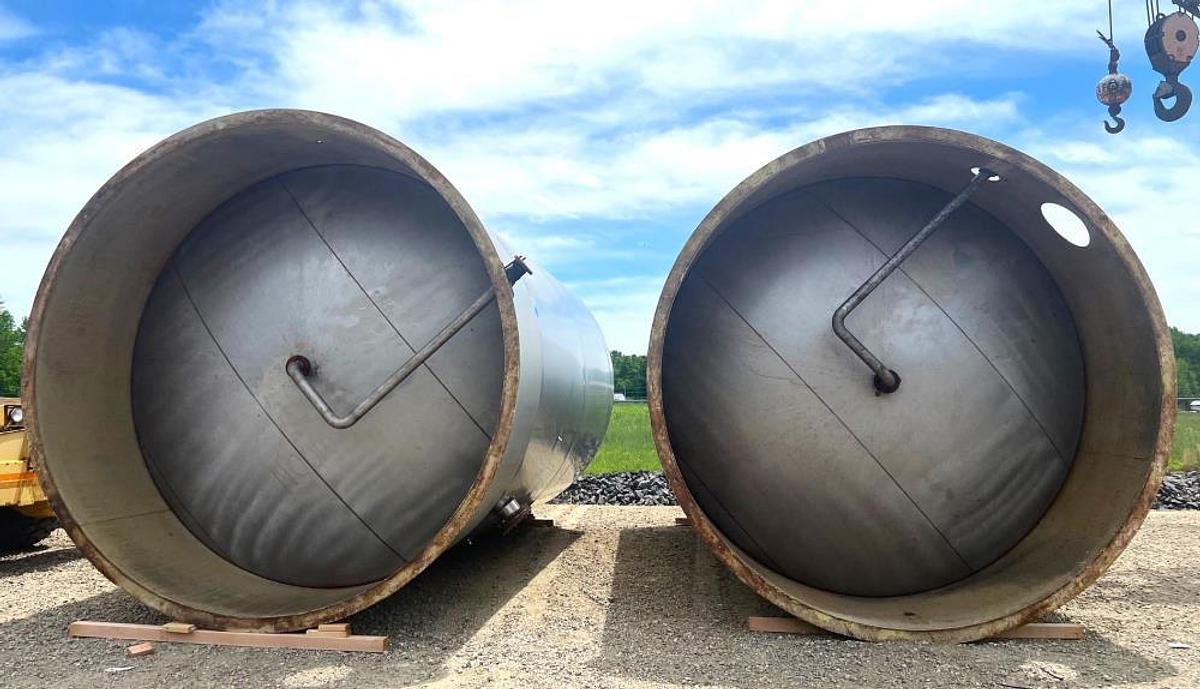

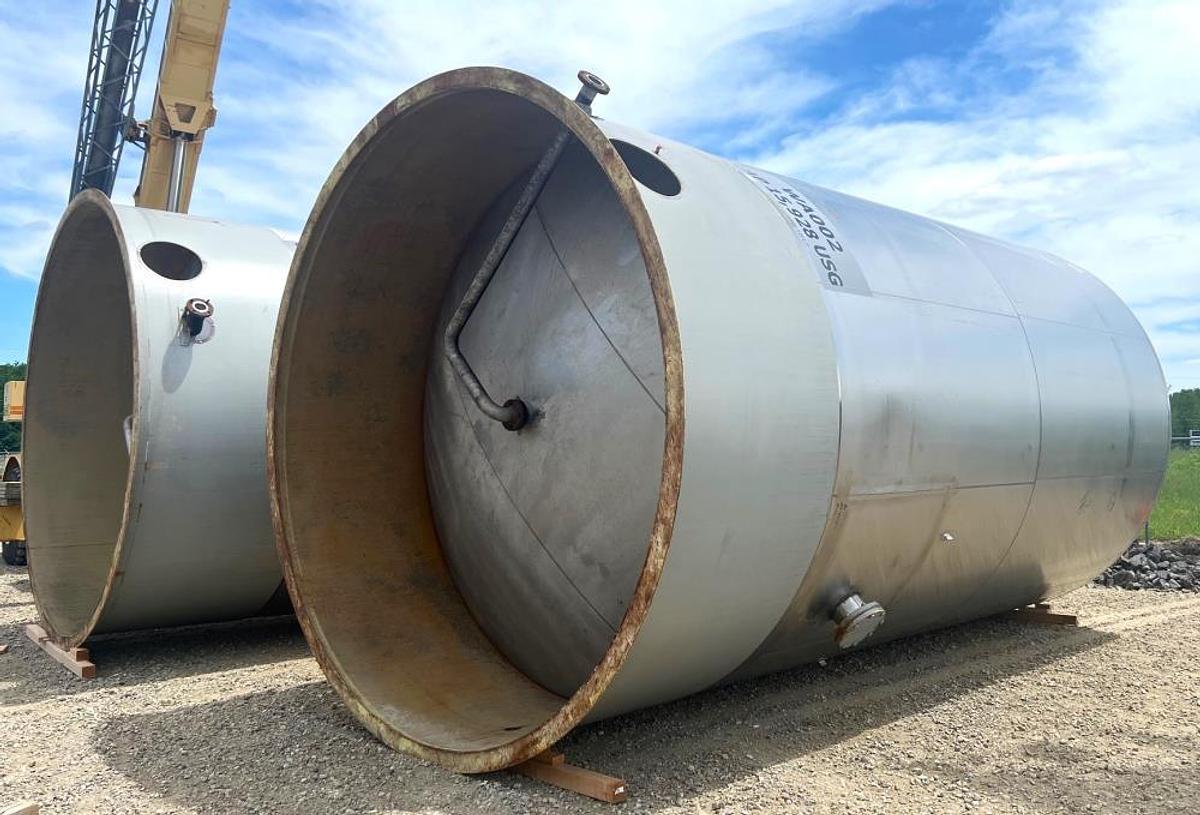

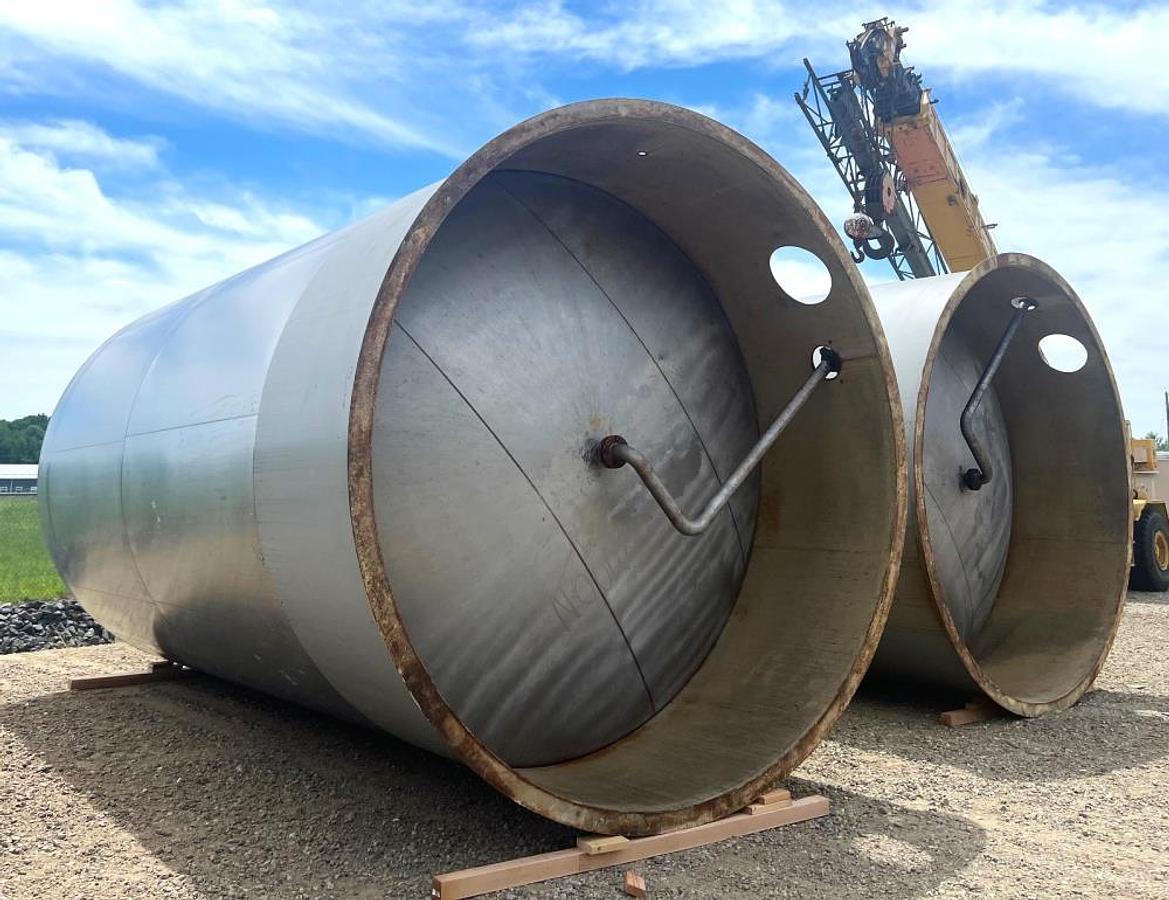

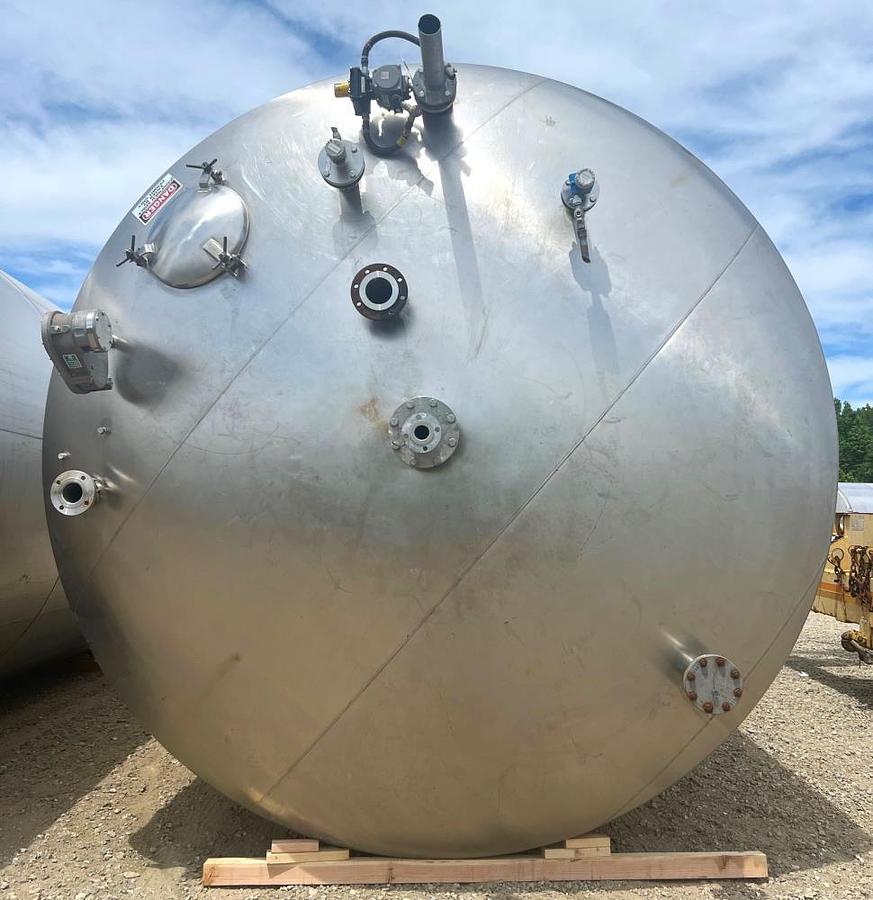

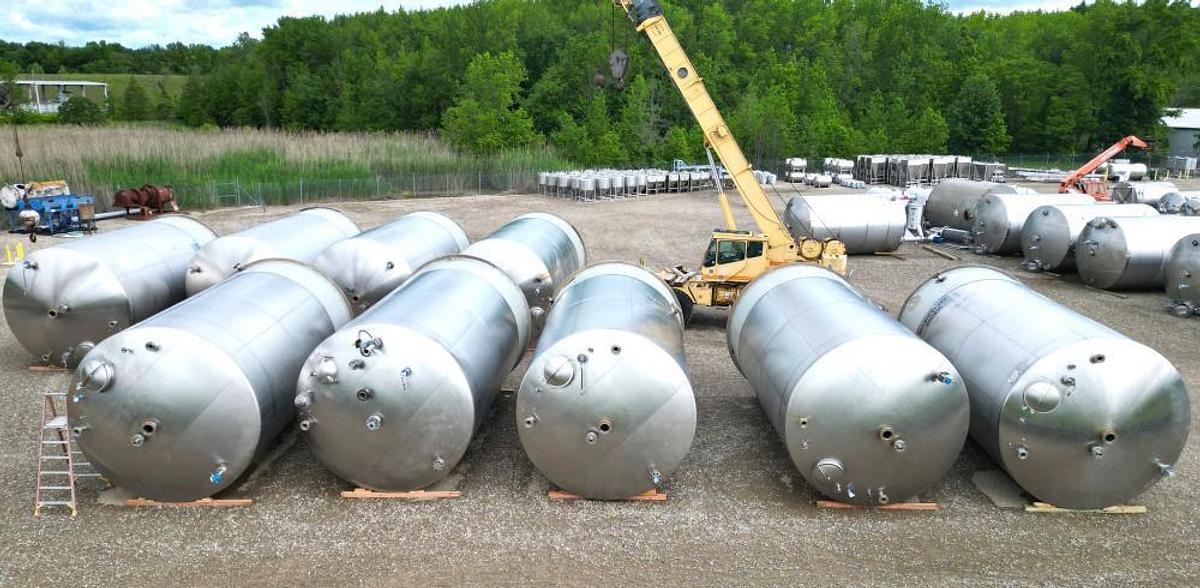

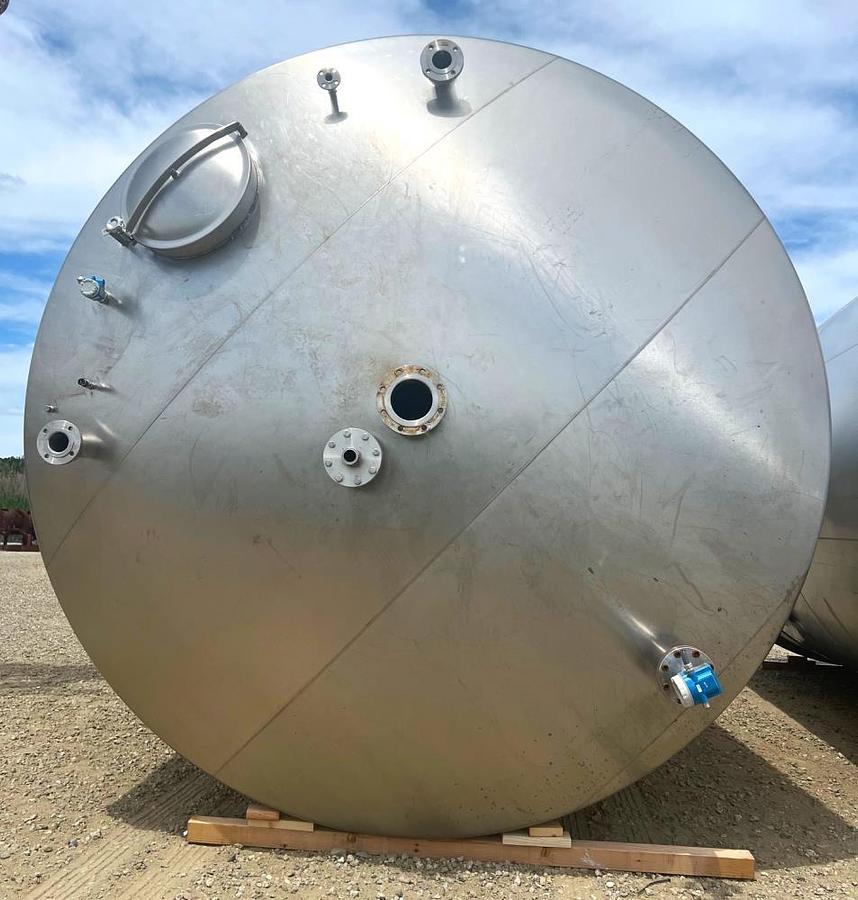

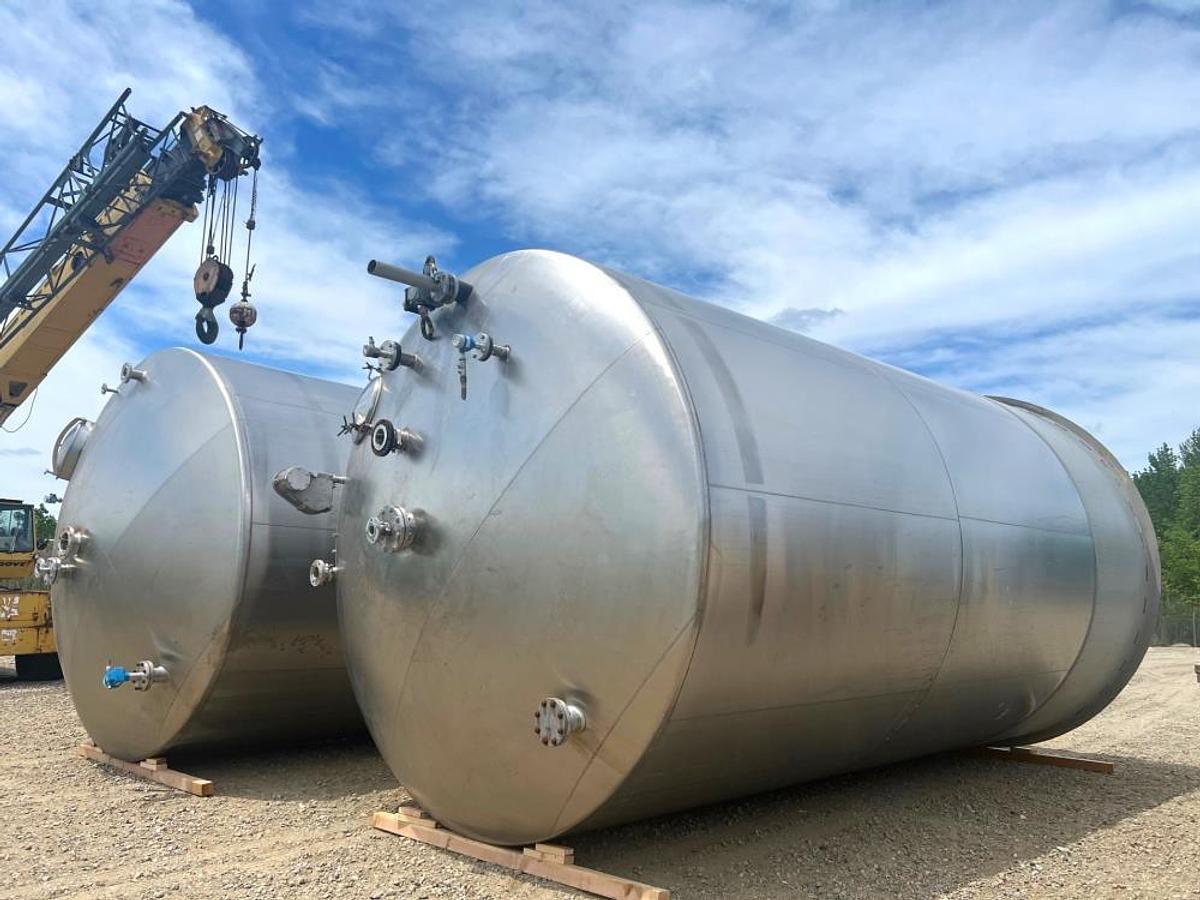

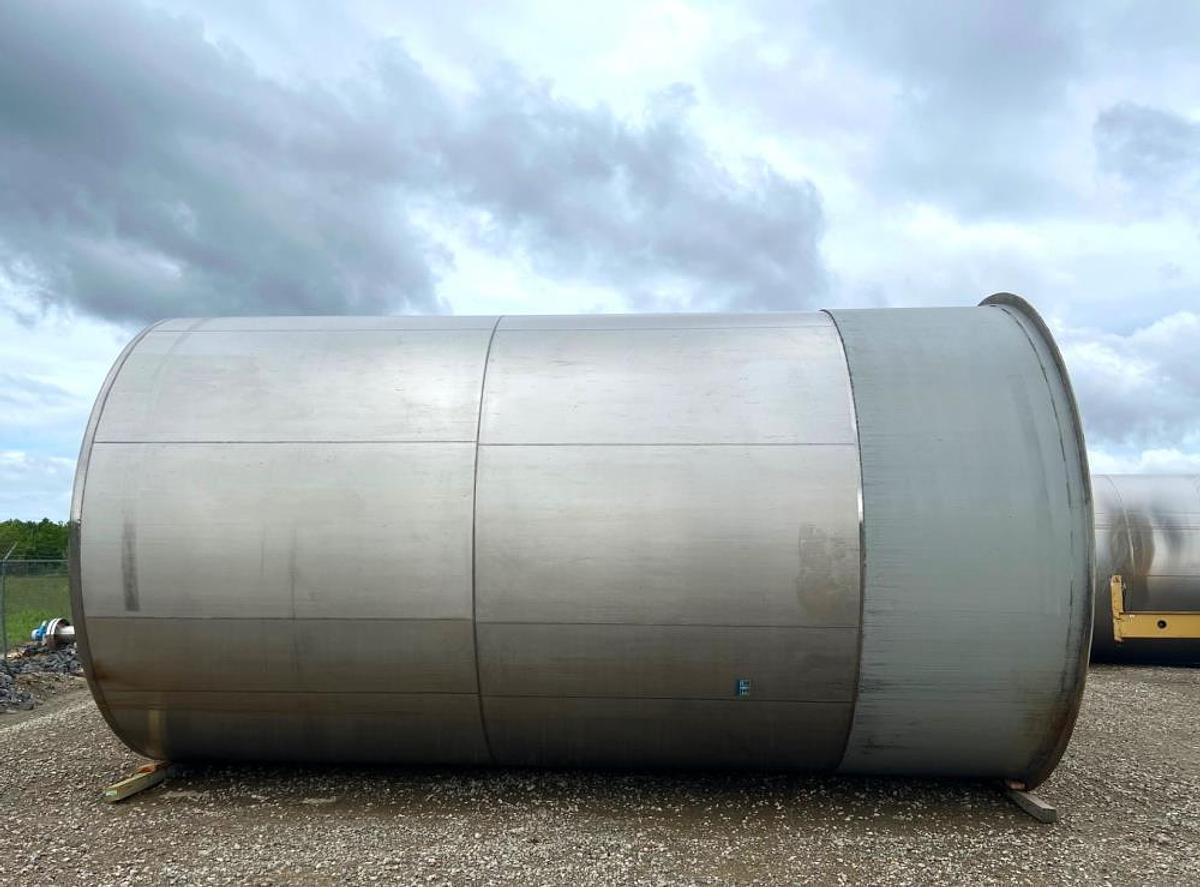

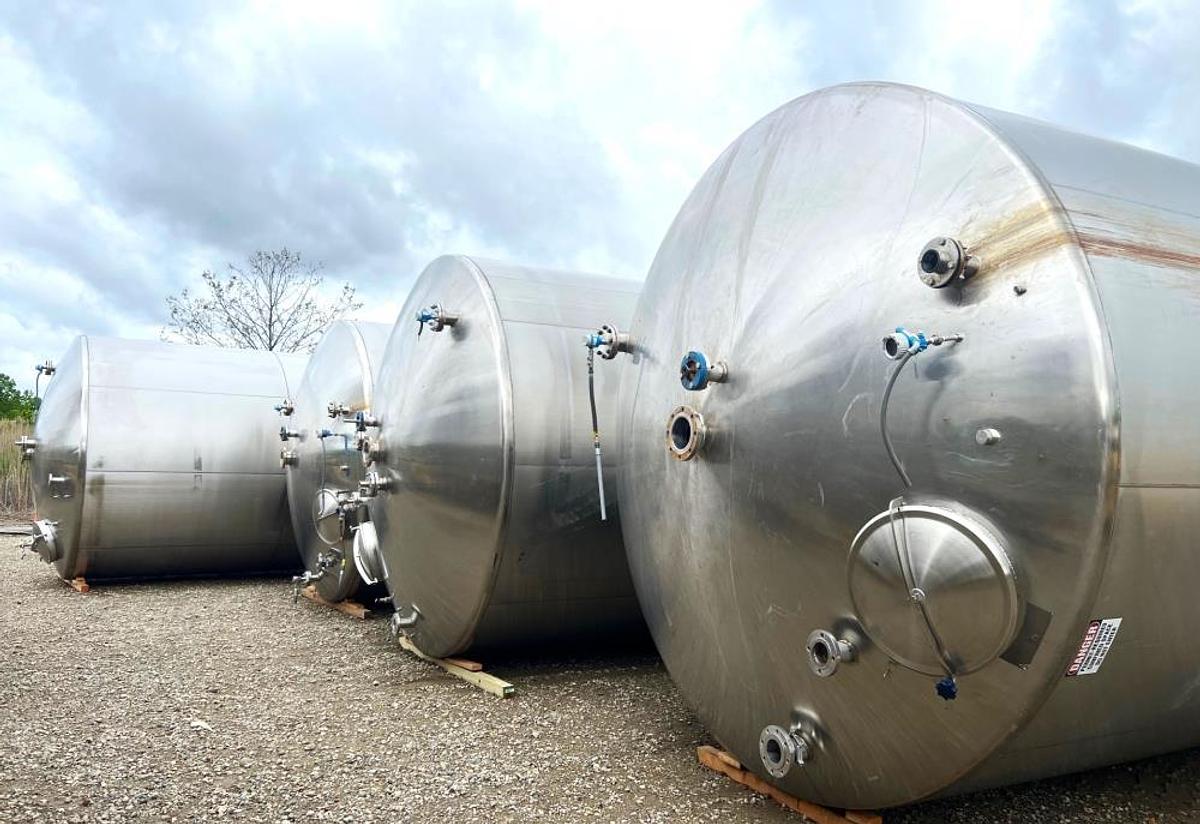

Stainless Steel approximately 15,000 gallon 304L stainless steel storage tanks designed and constructed in accordance with ASME Section VIII Division 1 and National Board registered. Tanks are vertical vessels currently stored on their side and fabricated with 5/16" minimum wall thickness (SA-240-304L) and Brighton Tru-Edge heads. Rated for 1 PSI @ 212 deg. F. Each unit includes (1) 24" (610 mm) 150# bolted manway, (12) 2" (50.8 mm) 150# RF nozzles, (1) 3" (76.2 mm) 150# RF nozzle, and (4) heavy-duty stainless steel lifting lugs. Vessel is rated for approximately 1 PSI at 212°F and is suitable for atmospheric or low-pressure storage applications.
Specifications
| Stock Number | 5991729 |
| Manufacturer | Feldmeier |
| Year | 2018 |
| Gallons | 15,000 |
| Materials of Construction | 304L Stainless Steel |
| Vessel MAWP | 1 PSI @ 212°F |
| External MAWP | 0.36 PSI @ 212°F |
| Wall Thickness | 5/16" (7.9 mm) |
| Manway | 24" (610 mm) 150# bolted |
| Nozzles | (12) 2" (50.8 mm), (1) 3" (76.2 mm) |
| Construction | ASME Section VIII, Div. 1 |
| Condition | Used |
| Basis | FOB |
General Information
Feldmeier Equipment is a well-regarded manufacturer of stainless steel vessels used in sanitary and industrial processing environments. Large-capacity ASME stainless steel tanks of this type are commonly utilized in chemical processing, water treatment, agriculture, and bulk liquid storage applications including ammonia solutions, process water, and other non-pressurized or low-pressure services. ASME construction and National Board registration support use in regulated industrial environments requiring certified vessel fabrication.
