Filler, Liquid, Can/Bottle, Solbern LFF-103, Stainless Steel, 1,400 CPM, #5991709
Filler, Liquid, Can/Bottle, Solbern LFF-103, Stainless Steel, 1,400 CPM, #5991709
Location:American Canyon, CA
Available quantity:1
Description

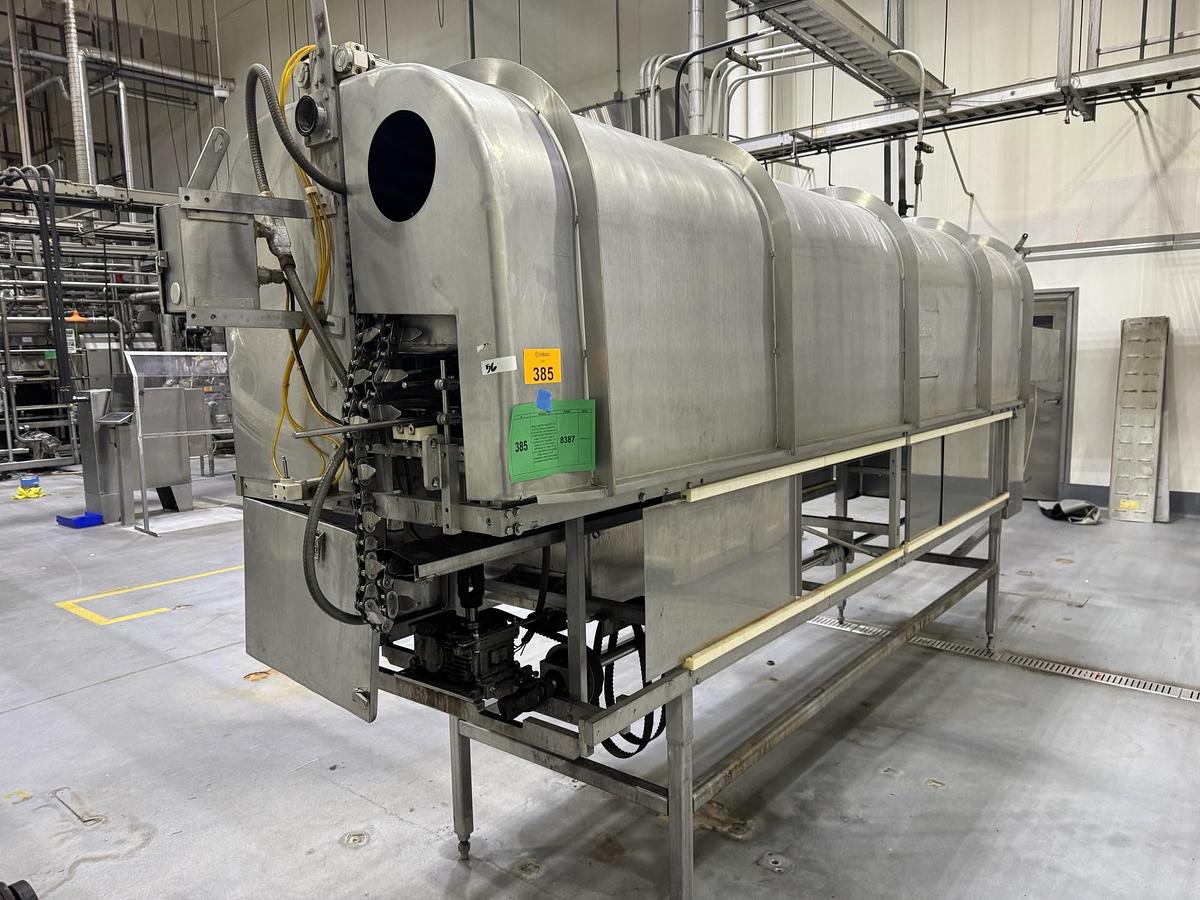

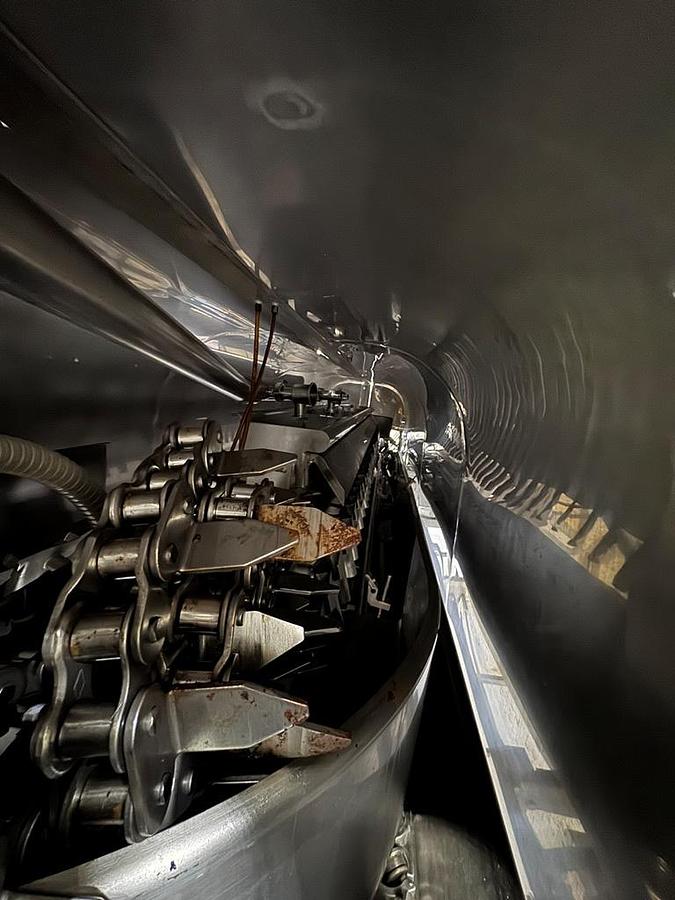

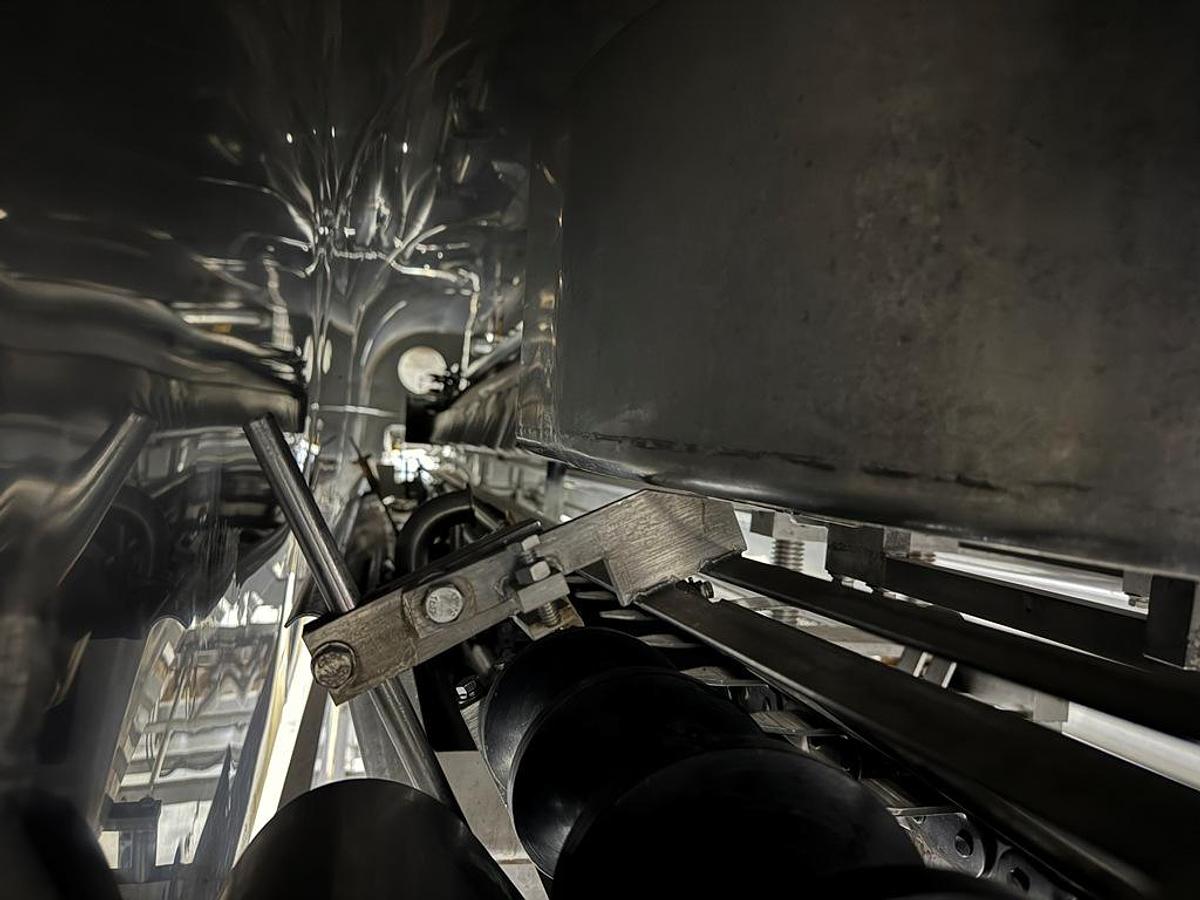

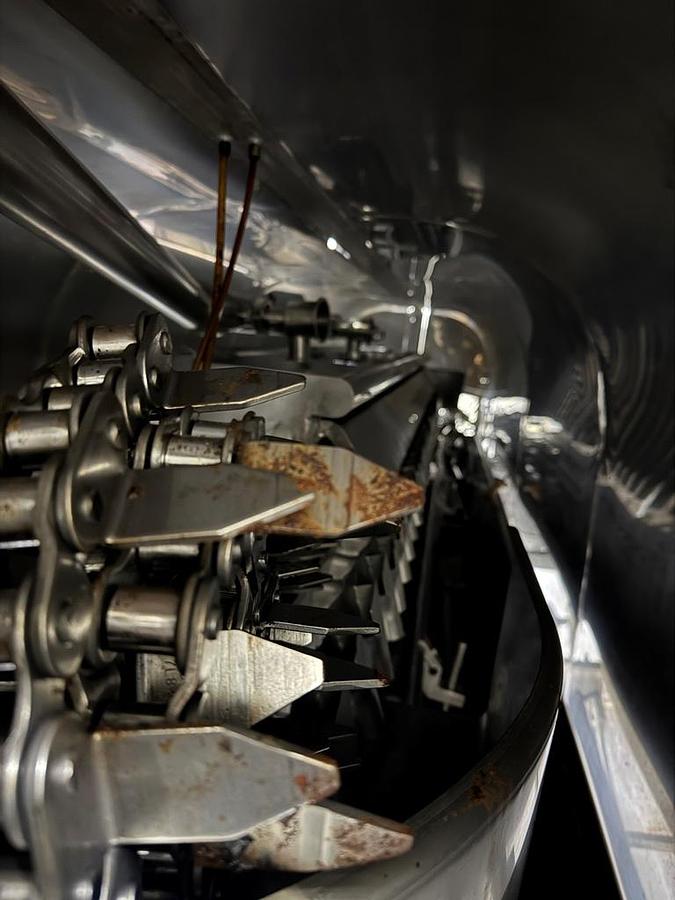

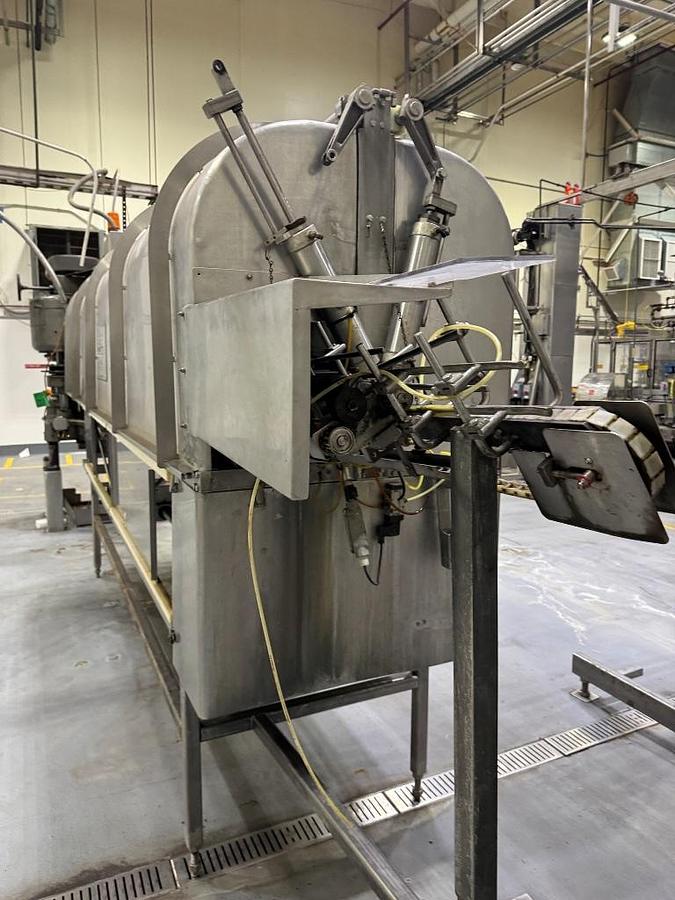

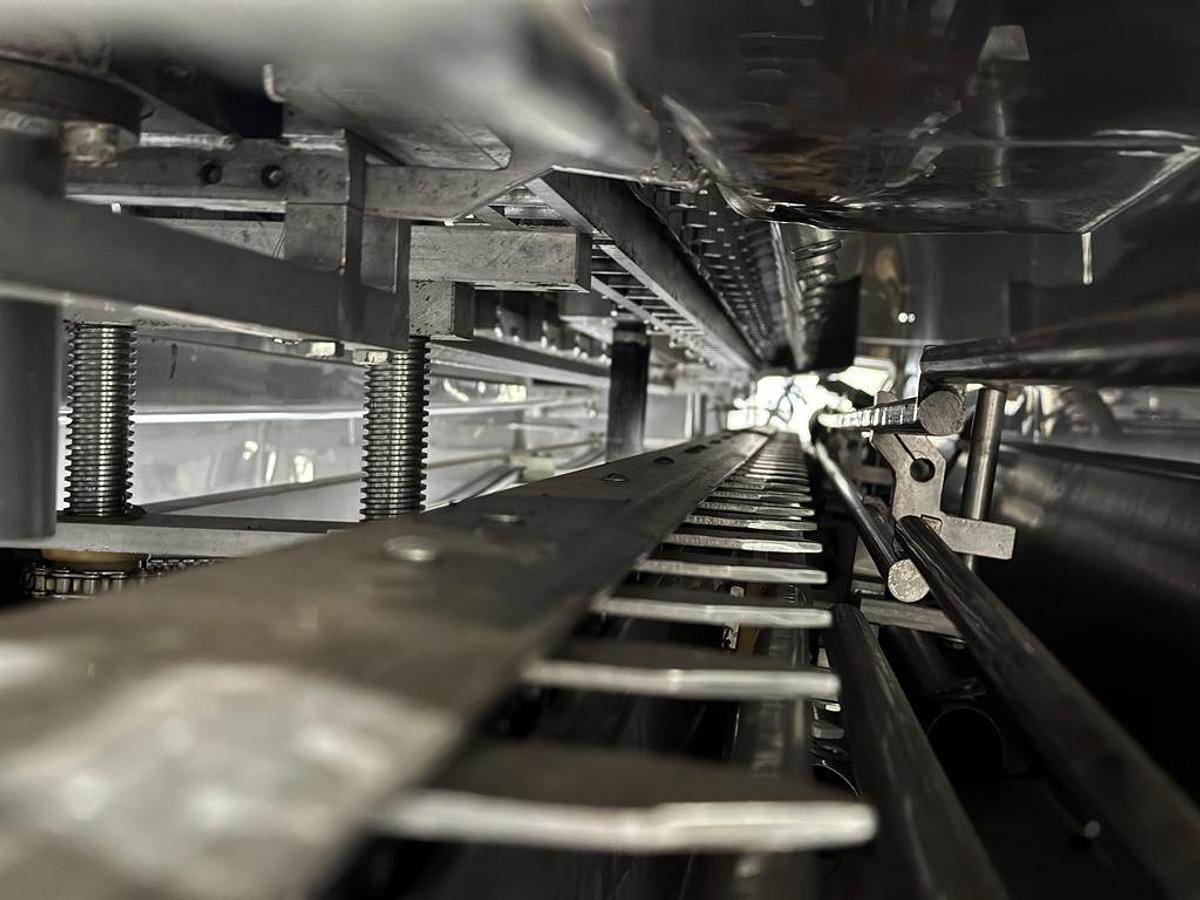

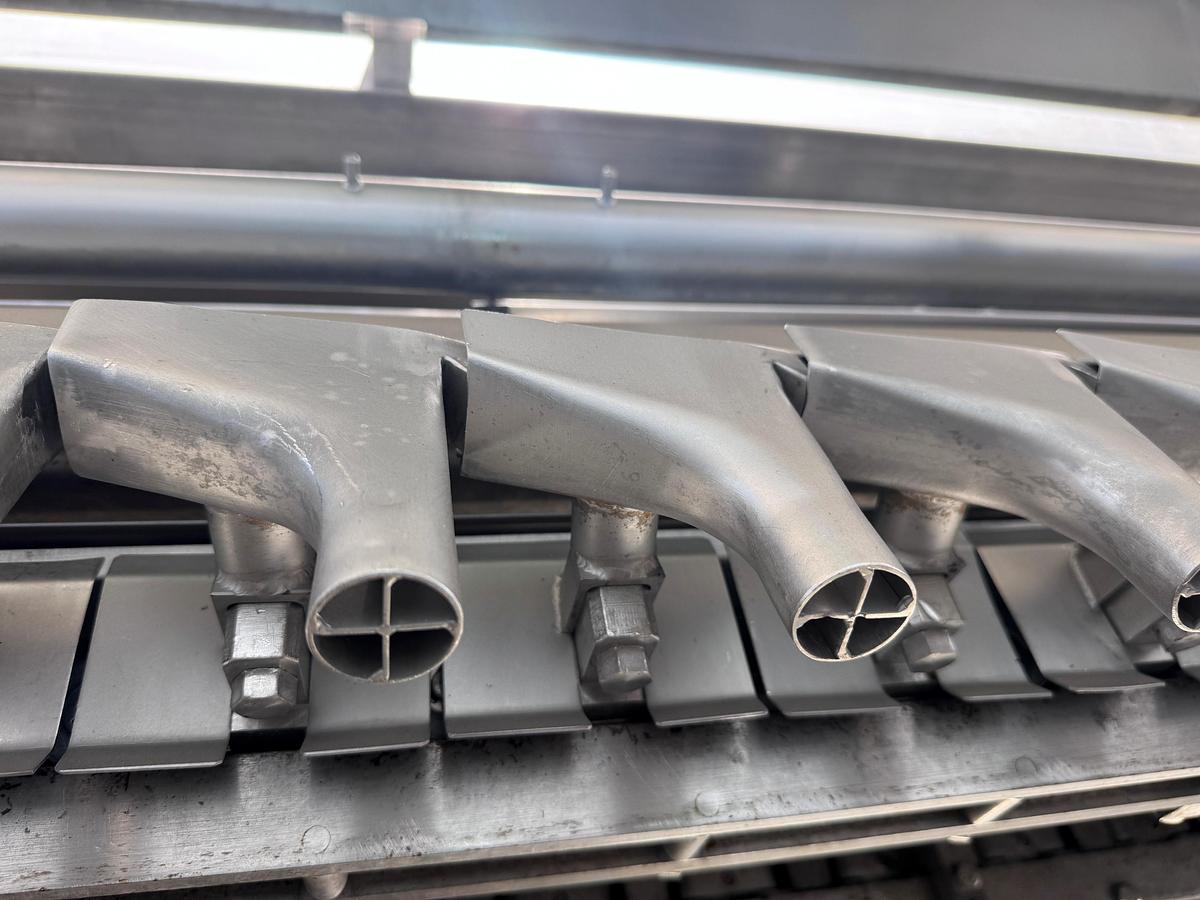

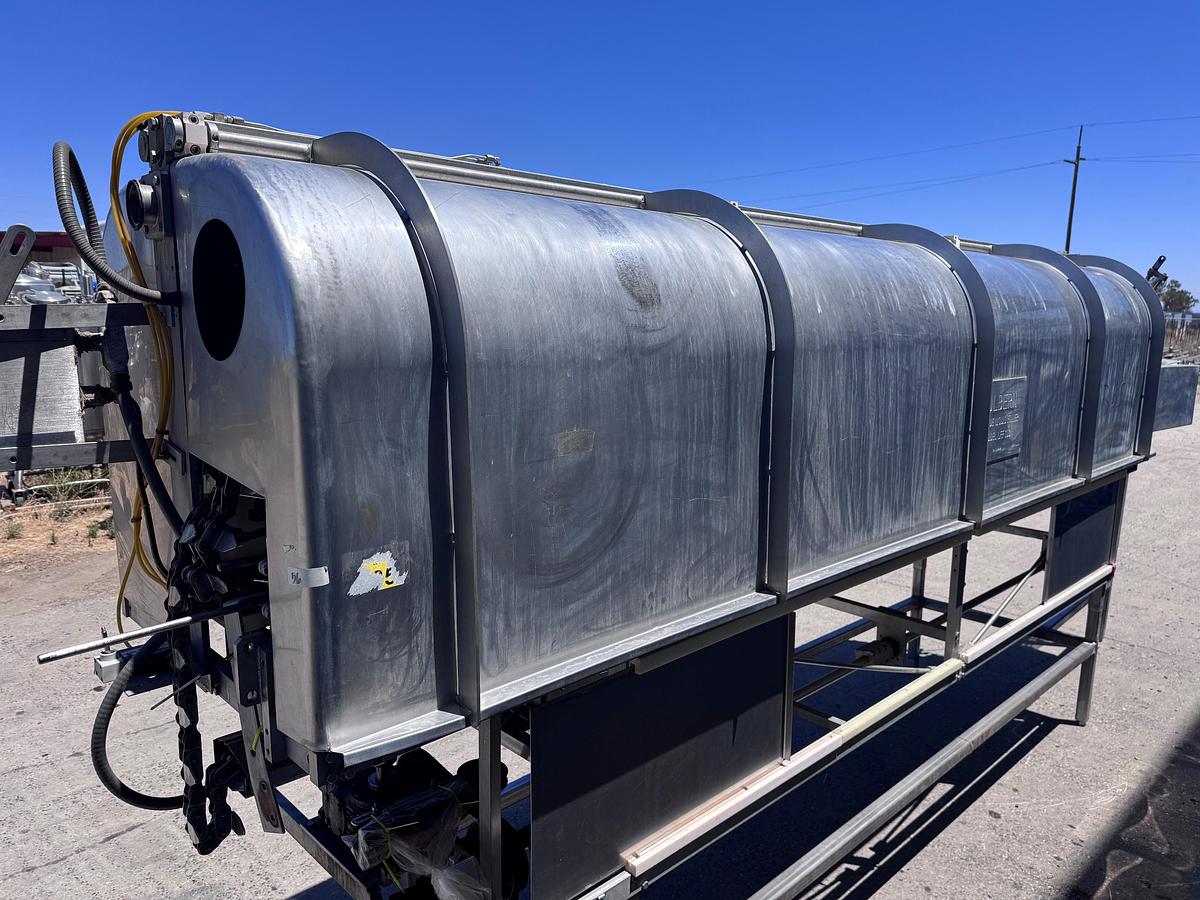

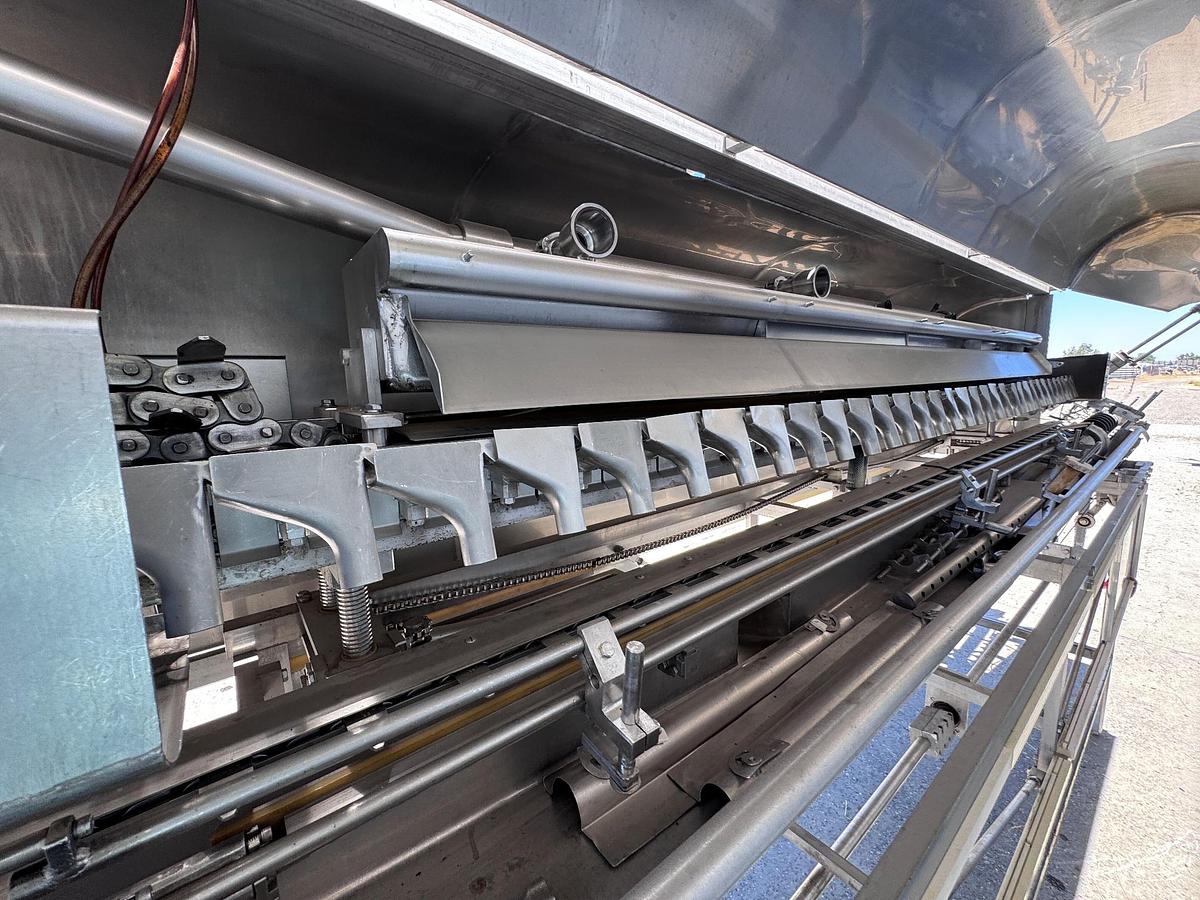

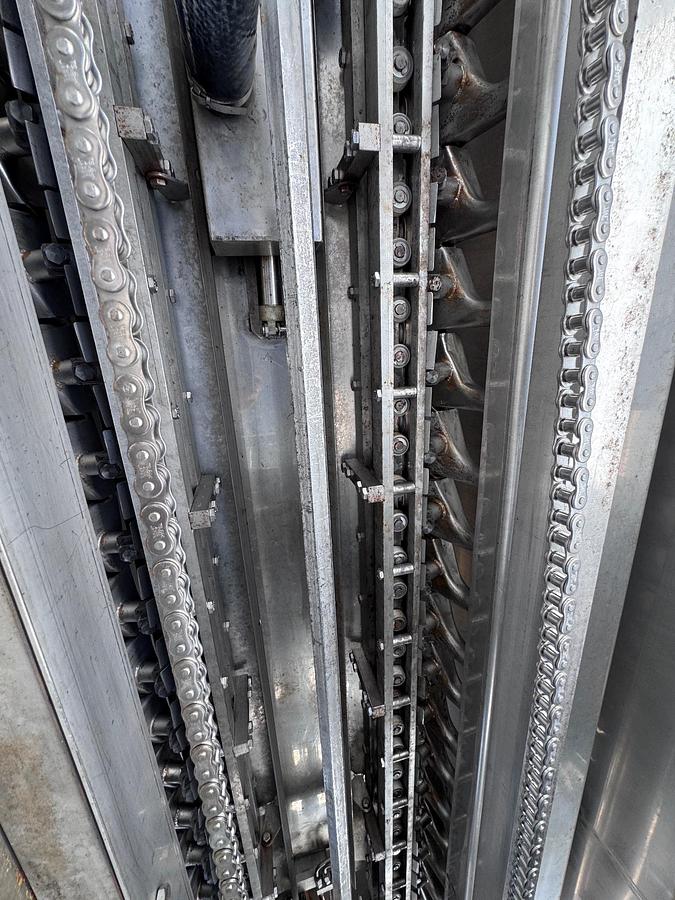

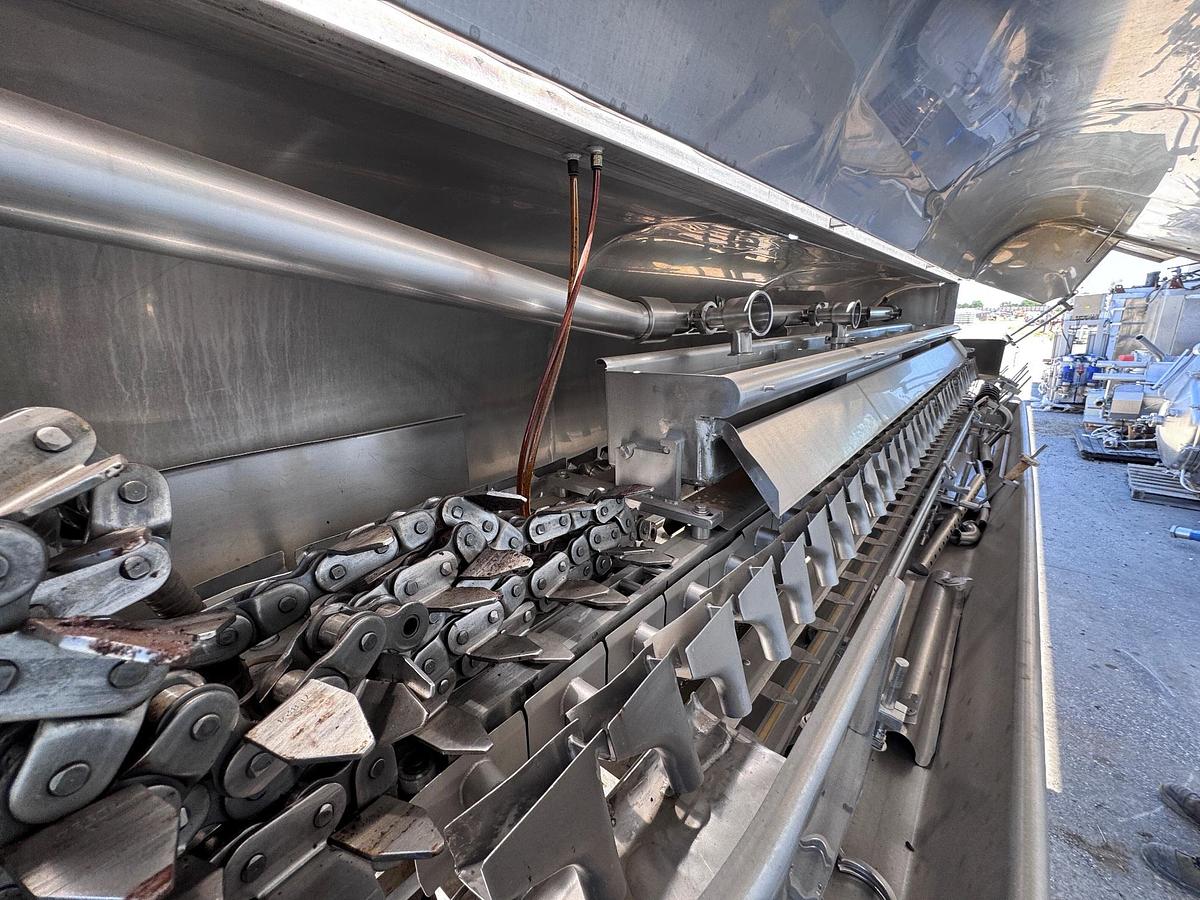

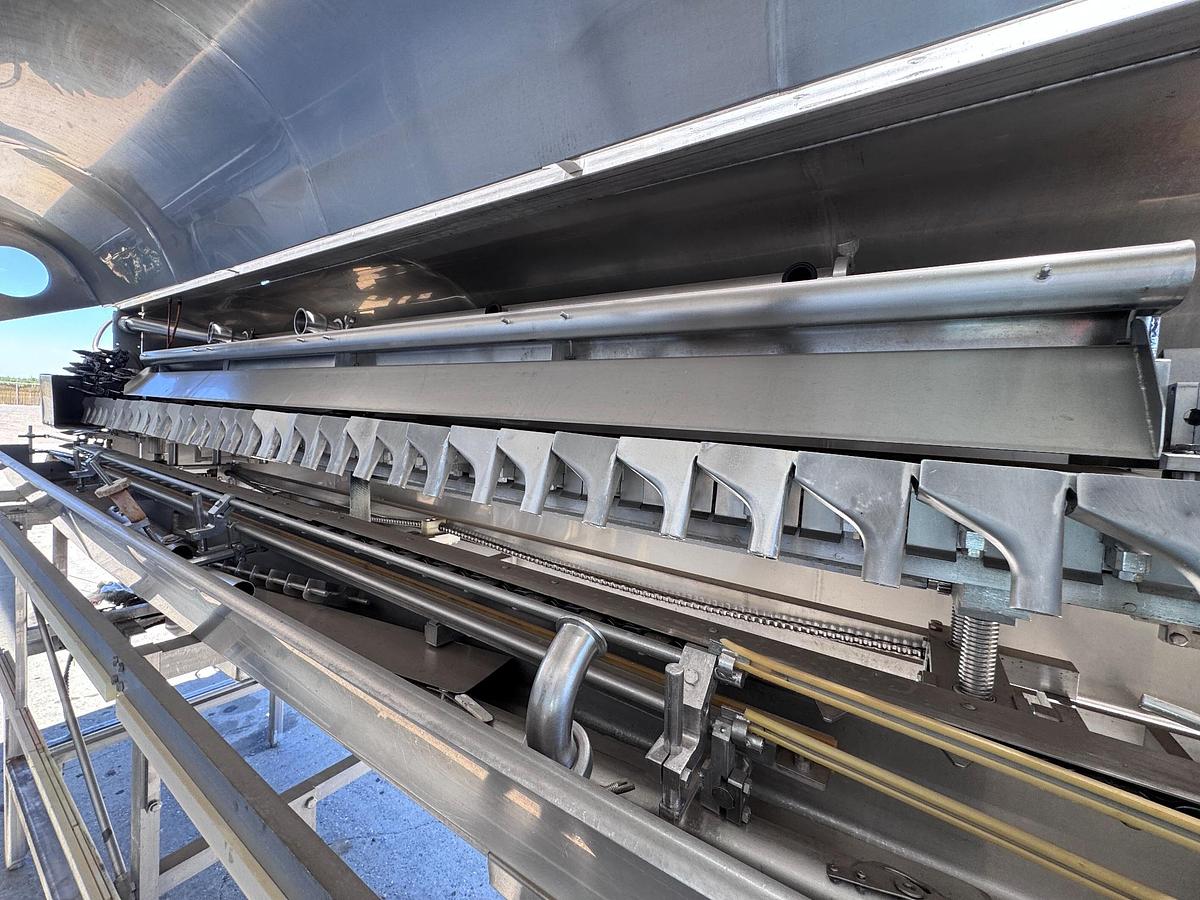

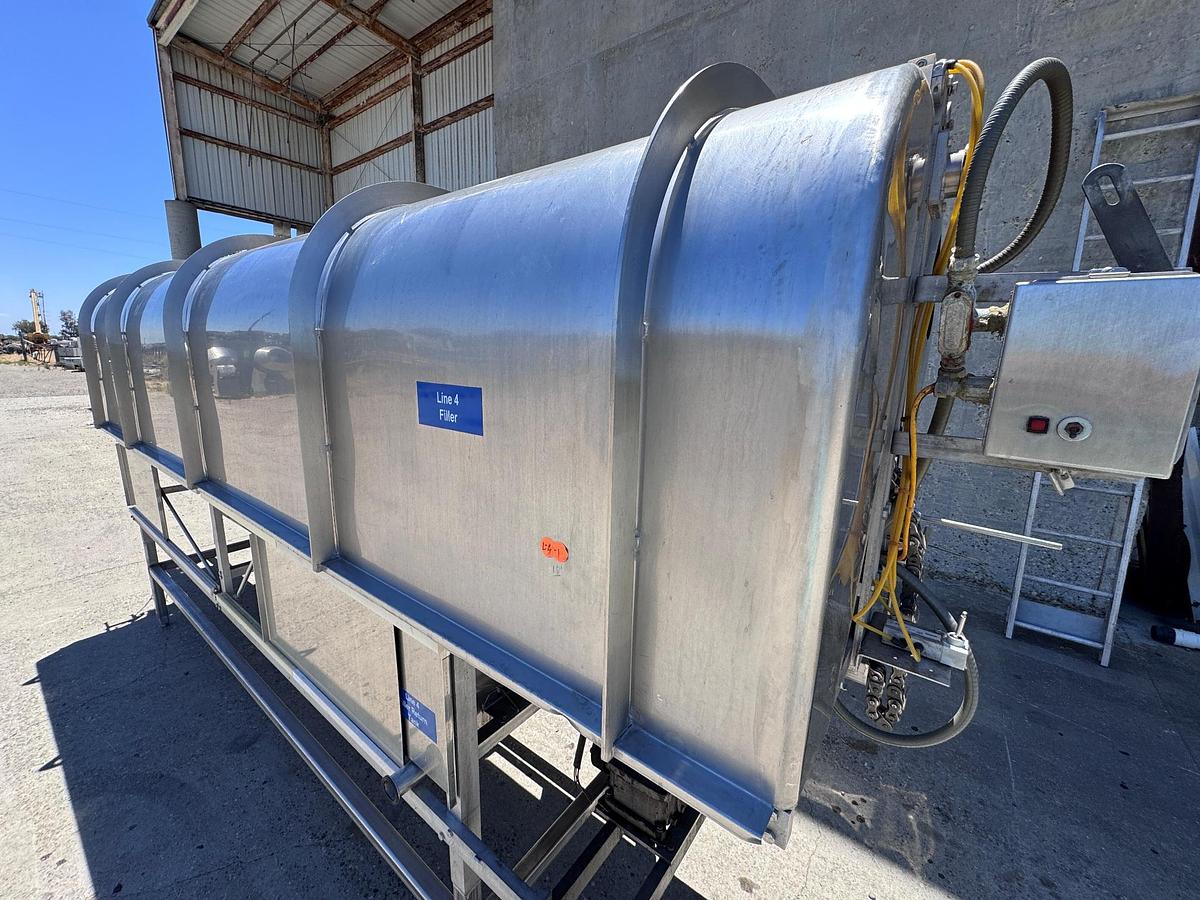

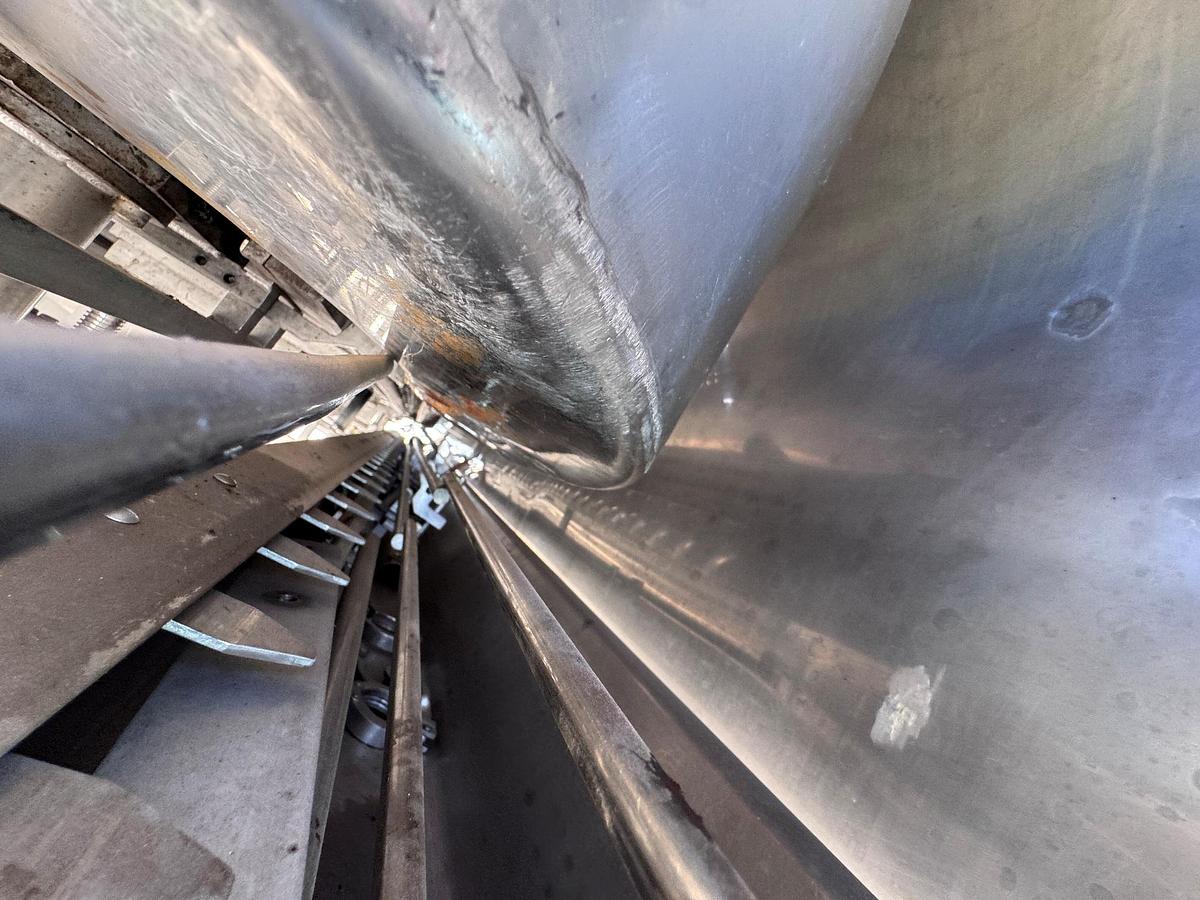

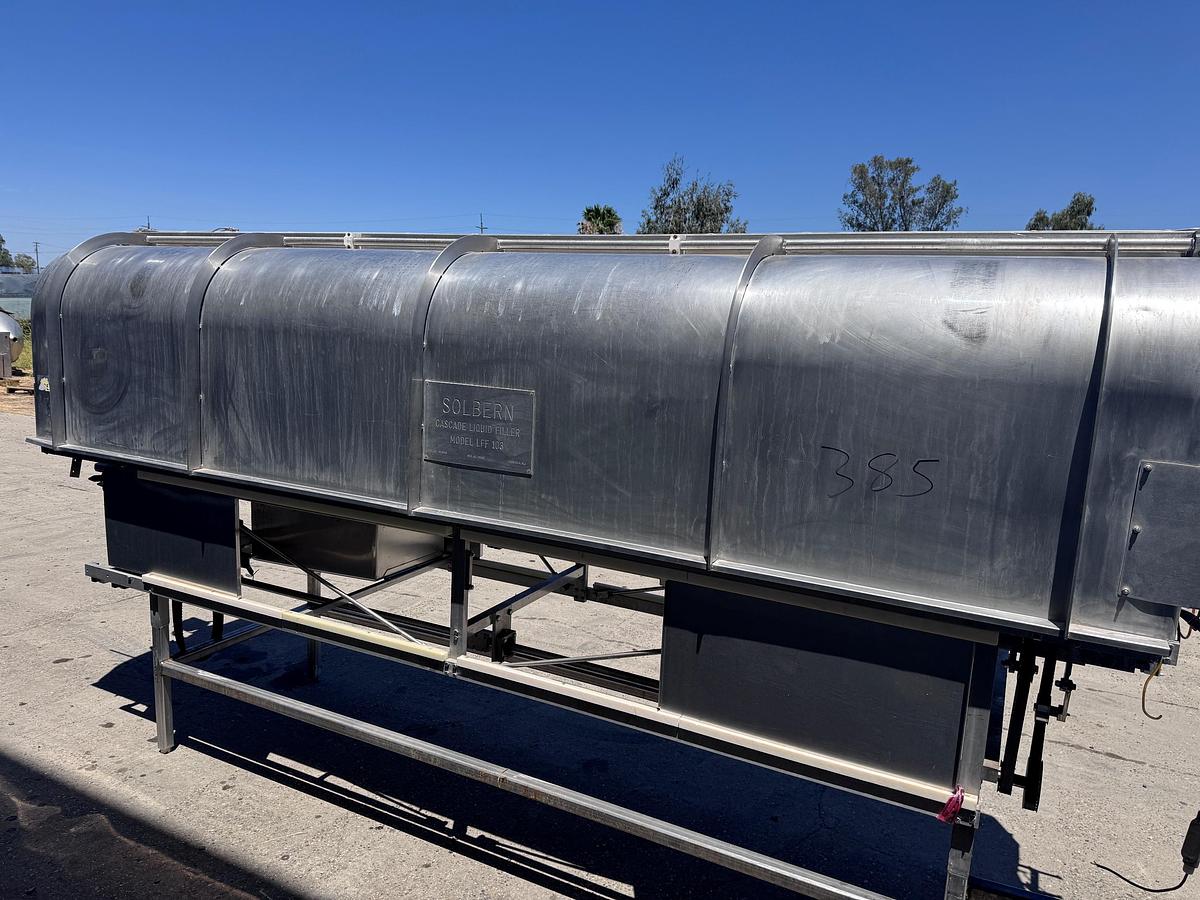

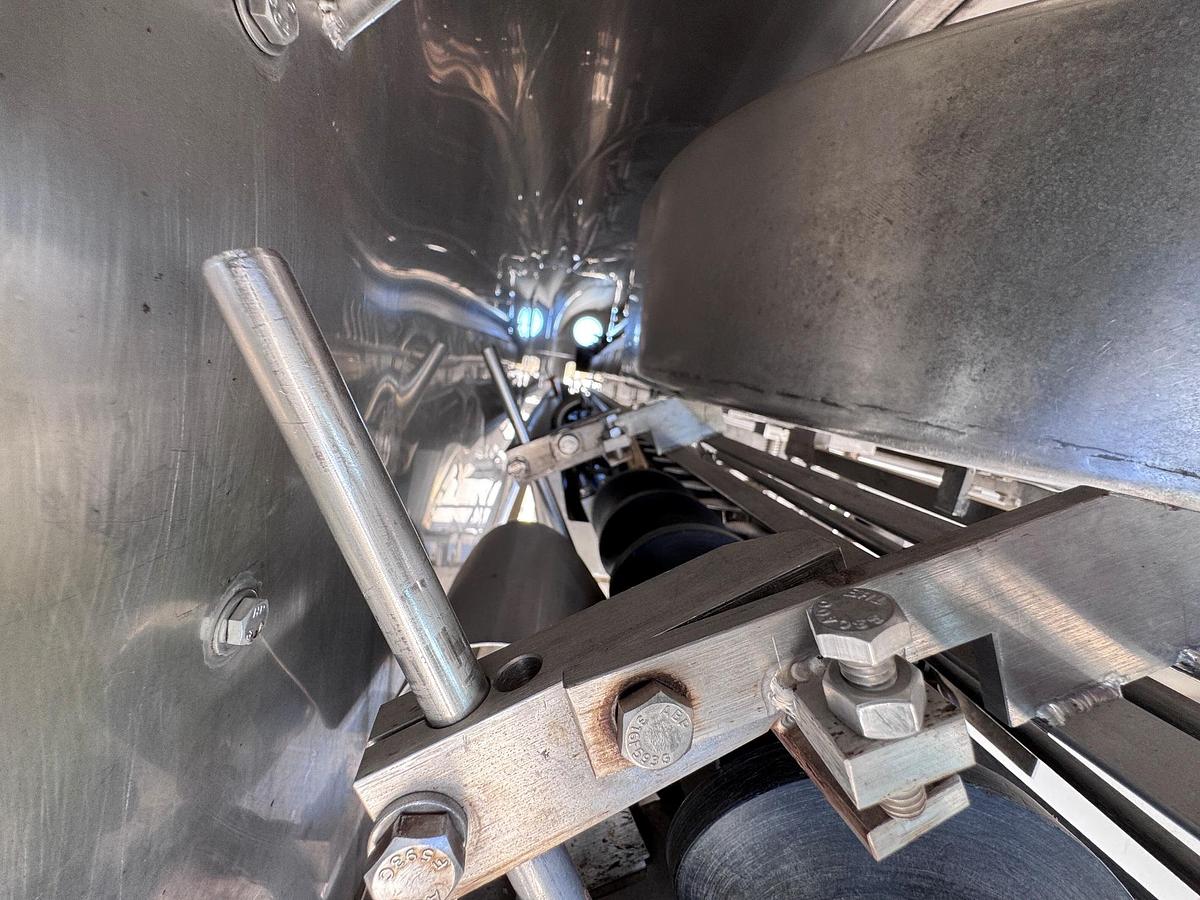

Solbern Model LFF-103 stainless steel straight line liquid filling system designed for high-speed beverage packaging applications. Hot Fill Liquid Filler. Previously operated on a 500 ml tea bottling line with a production capacity of approximately 500 bottles per minute. The filler features constant flow hot-fill capability and includes 103 bottle pockets with approximately 52 traveling funnels. Unit is equipped with stainless steel construction throughout, infeed worm, lug chain conveyor, overflow catch pan, hinged lift-up cover, and tubular stainless steel support legs approximately 30” high. System is rated for production speeds up to approximately 1,400 containers per minute depending on product viscosity and container size.
Specifications
| Stock Number | 5991709 |
| Manufacturer | Solbern |
| Model | LFF-103 |

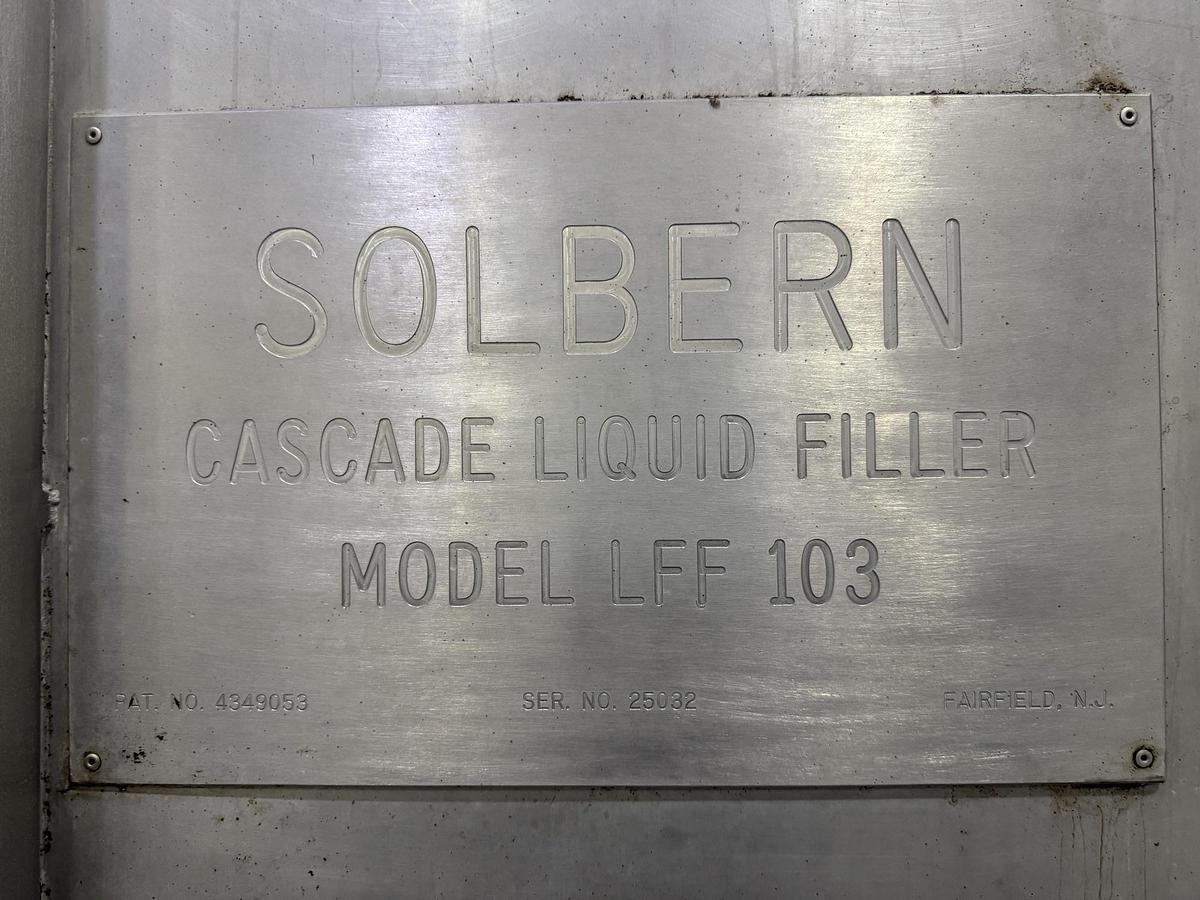

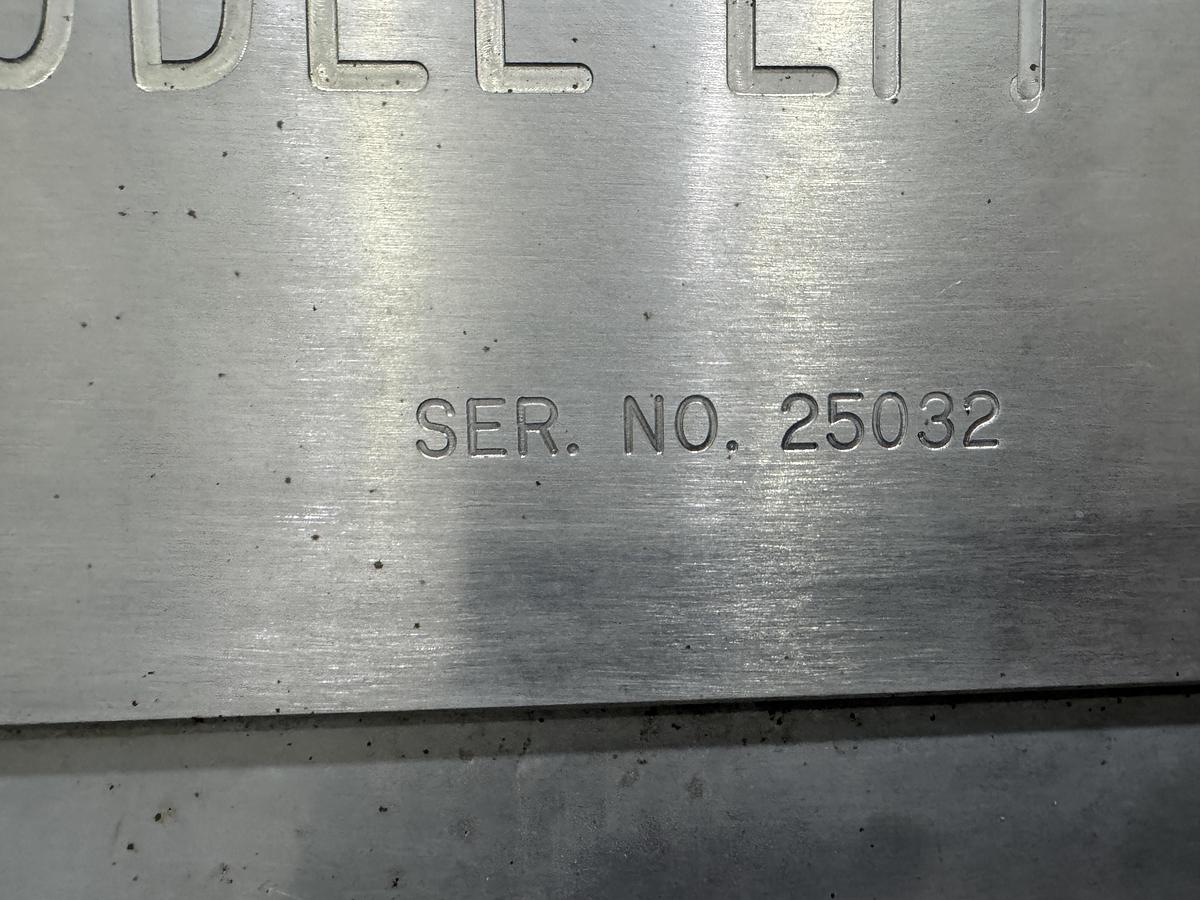

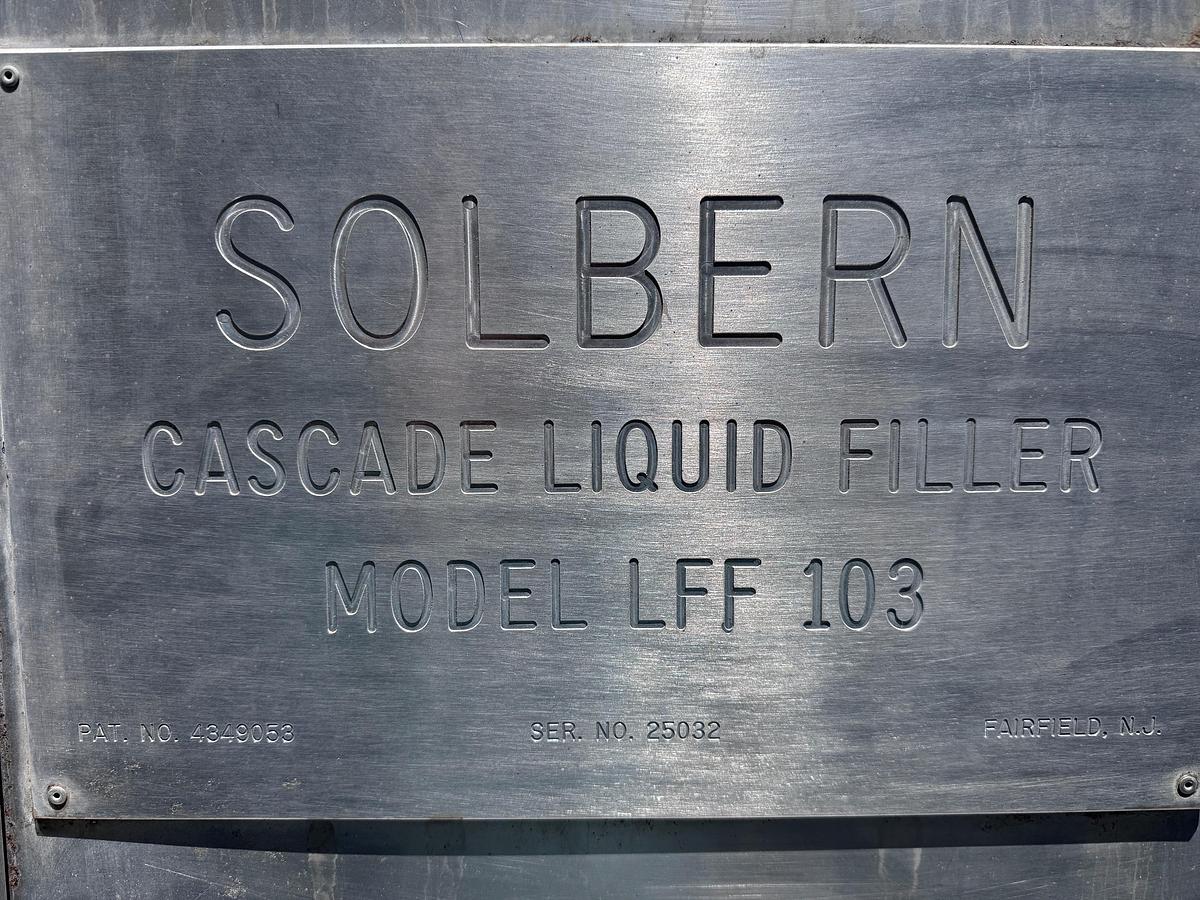

| Serial Number | 25032 |
| Type | Liquid Filler |
| Filling Method | Constant Flow / Hot Fill |
| Bottle Pockets | 103 |
| Traveling Funnels | Approx. 52 |
| Rated Capacity | Up to 1,400 CPM |
| Previous Application | 500 ml tea bottling line (approx. 500 BPM) |
| Materials of Construction | Stainless Steel |
| Basis | FOB |
General Information
Solbern is known for manufacturing reliable high-speed liquid filling systems widely used in beverage, food, and consumer packaged goods industries. Rotary constant-flow fillers of this type are commonly utilized for hot-fill beverages such as tea, juices, flavored drinks, and functional beverages where consistent fill levels and high throughput are required. Equipment of this design is often integrated into large bottling lines operated by beverage manufacturers, co-packers, and private label producers. The LFF is widely use throughout the Food Industry for filling free flowing non-carbonated products such as juice, nectar, ice tea, broth, sauce and water-topping for soup.
