Homogenizer, High Pressure, APV Gaulin MS45, 5TBS, Two Stage, 5,000 PSI, #5991689
Homogenizer, High Pressure, APV Gaulin MS45, 5TBS, Two Stage, 5,000 PSI, #5991689
Location:Pennsylvania
Available quantity:1
Description

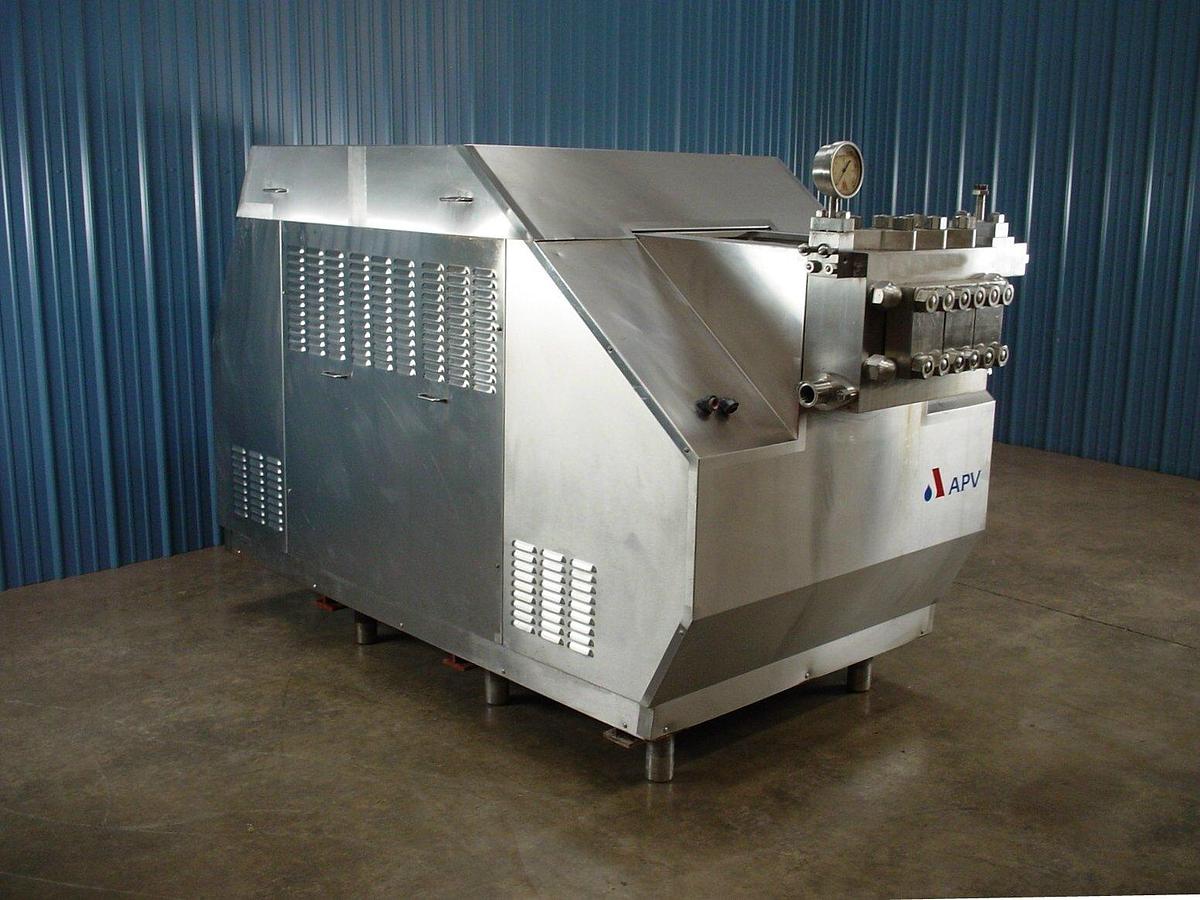

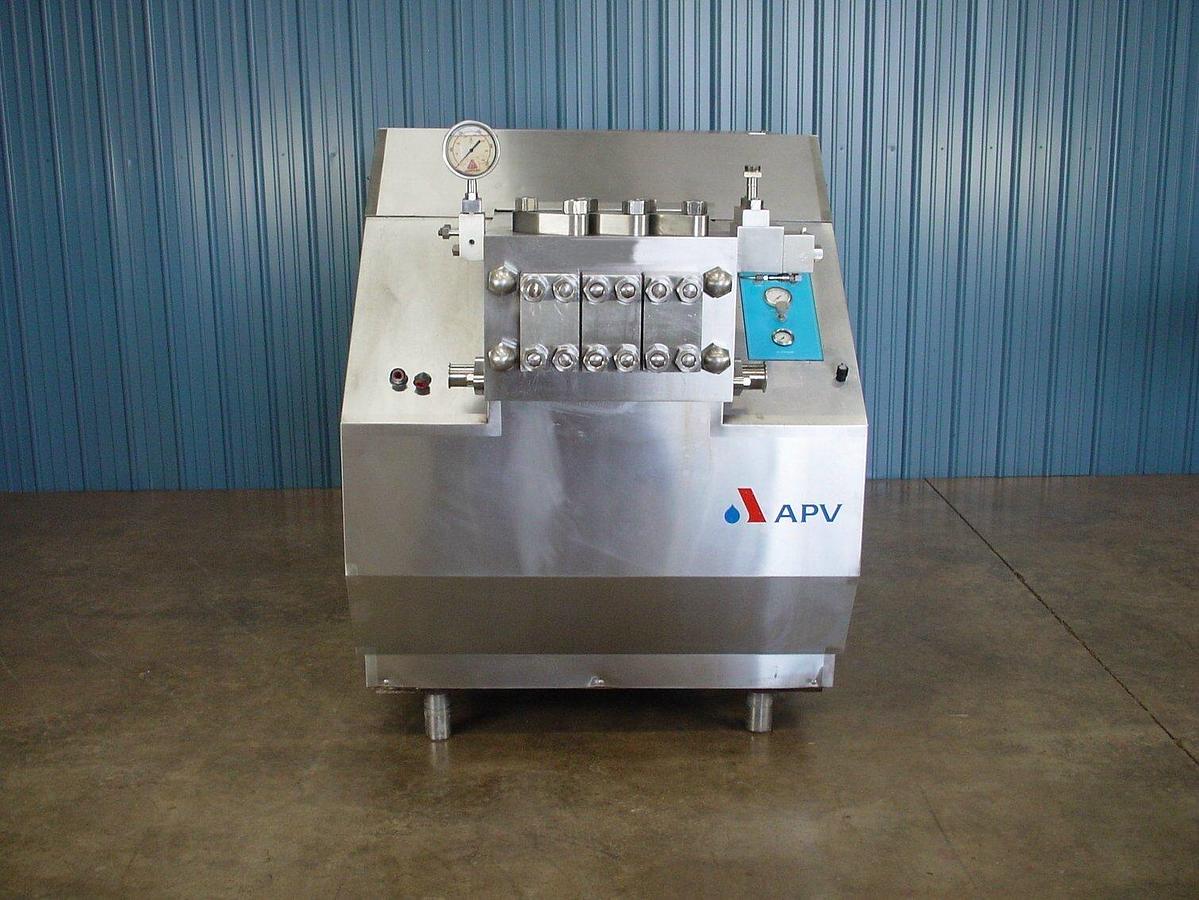

APV Gaulin Model MS45 5TBS stainless steel clad high-pressure homogenizer configured with a two-stage homogenizing valve assembly (HVA). Unit features 2-1/8" diameter plungers and a 5,000 PSI tapered seat ball valve cylinder, designed for continuous emulsification, dispersion, and particle size reduction of liquid products. Operating capacity ranges from a minimum of approximately 1,000 GPH up to a maximum of approximately 2,270 GPH, depending on product characteristics and operating pressure. Built for sanitary processing environments, this homogenizer is suited for demanding food, beverage, dairy, and industrial liquid applications requiring consistent particle size reduction and stable emulsions.
Offered Reconditioned
Specifications
| Stock Number | 5991689 |
| Manufacturer | APV Gaulin |
| Model | Model MS45 5TBS |
| Year | 1994 |

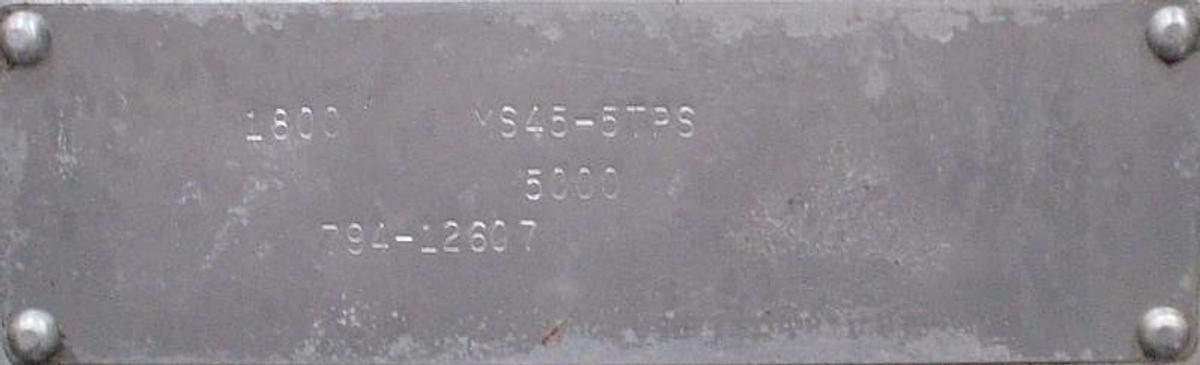

| Serial Number | 79412607 |
| Capacity | 2,270 GPH (Maximum) |
| Type | High-Pressure Homogenizer |
| Plunger Diameter | 2-1/8" |
| Valve Type | Tapered seat ball valve cylinder |
| Maximum Pressure | 5,000 PSI |
| Capacity (Maximum) | 2,270 GPH |
| Basis | FOB |
General Information
APV Gaulin MS-series homogenizers are widely used across dairy, beverage, food, pharmaceutical, and chemical processing industries for producing stable emulsions and uniform particle size distributions. The MS45 platform is known for its robust pump block construction, serviceable valve and plunger assemblies, and ability to operate reliably across a broad capacity range. Typical applications include milk and cream homogenization, beverage emulsions, sauces, dressings, plant-based liquids, and similar shear-sensitive products in continuous processing lines.
