Mixer, Paddle, 519 CF, 304 Stainless Steel, Jacketed, 100 HP, Barely Used, #5991662
Mixer, Paddle, 519 CF, 304 Stainless Steel, Jacketed, 100 HP, Barely Used, #5991662
Location:Wisconsin
Available quantity:1
Description
Scott Equipment heavy-duty single-shaft paddle mixer with approximately 519 cubic feet working capacity and 577 cubic feet total volume. Constructed with 304 stainless steel product-contact surfaces, designed for low-shear blending of powders, granules, and moisture-sensitive materials. The lower trough includes a low-pressure water/glycol jacket to support heating or cooling during conditioning processes.

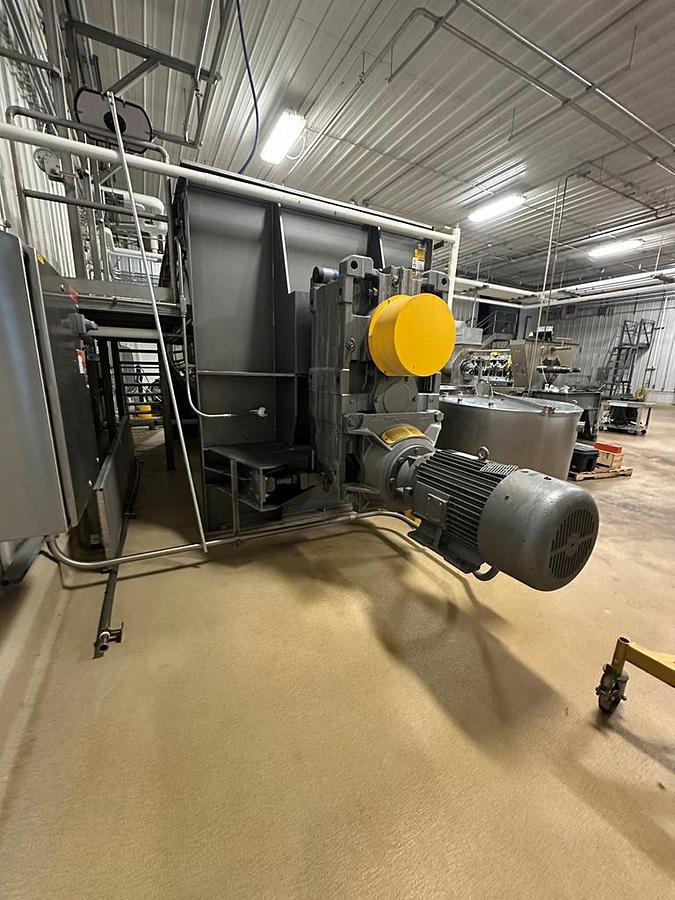

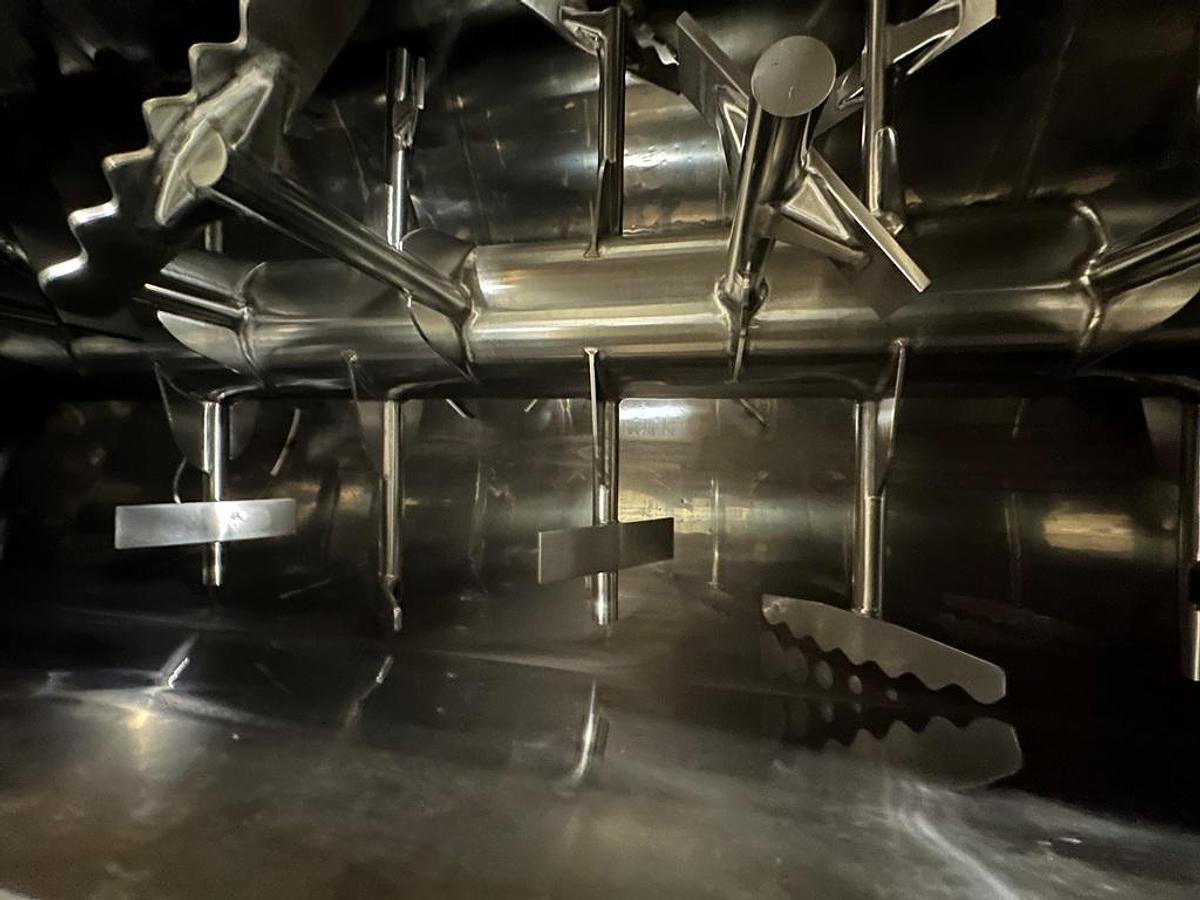

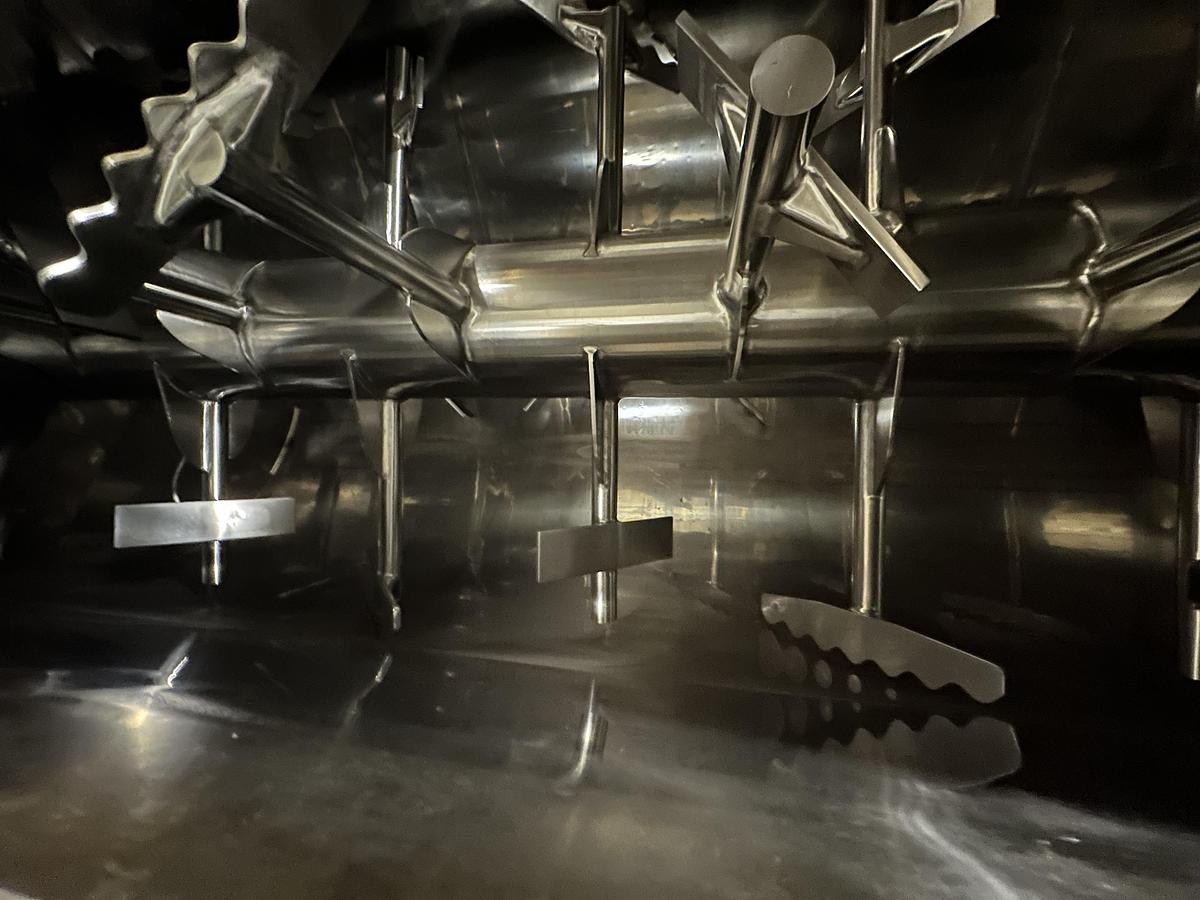

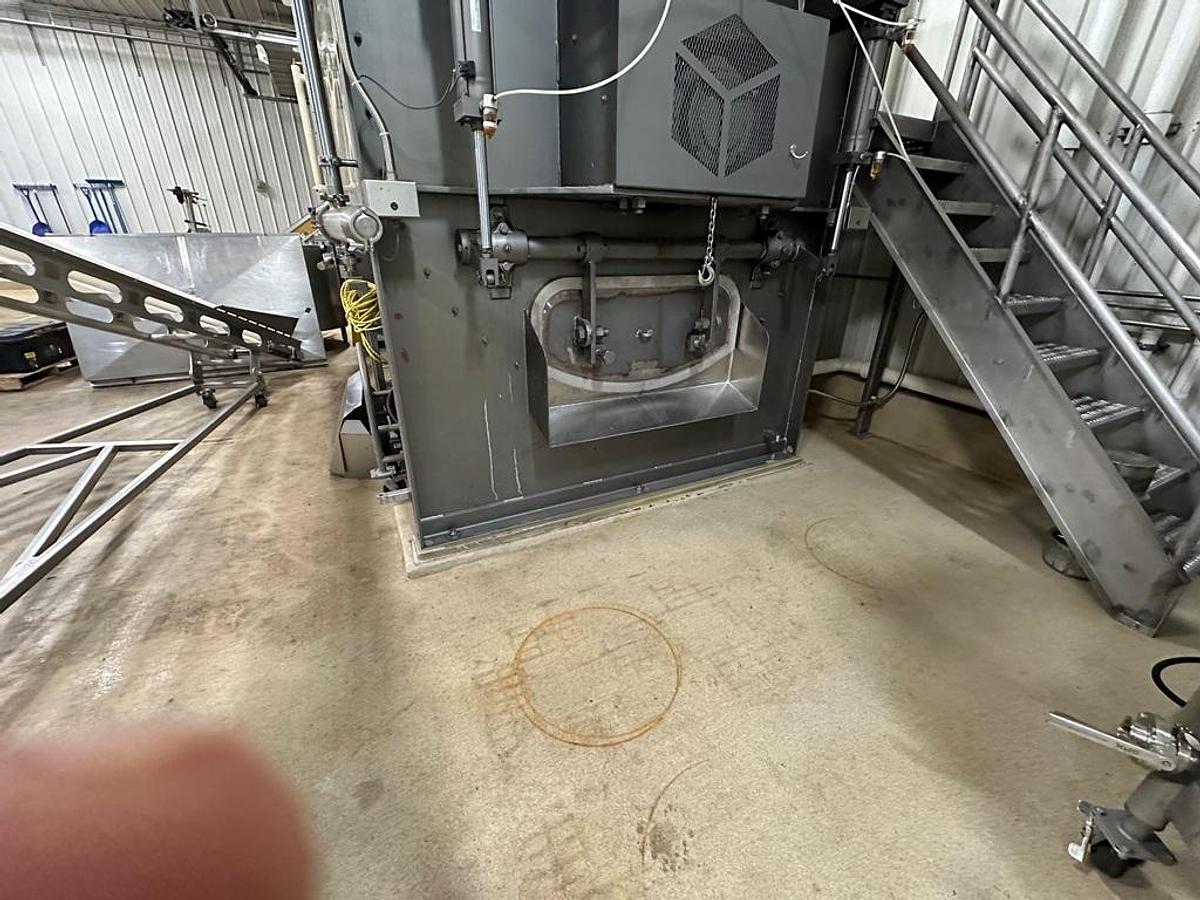

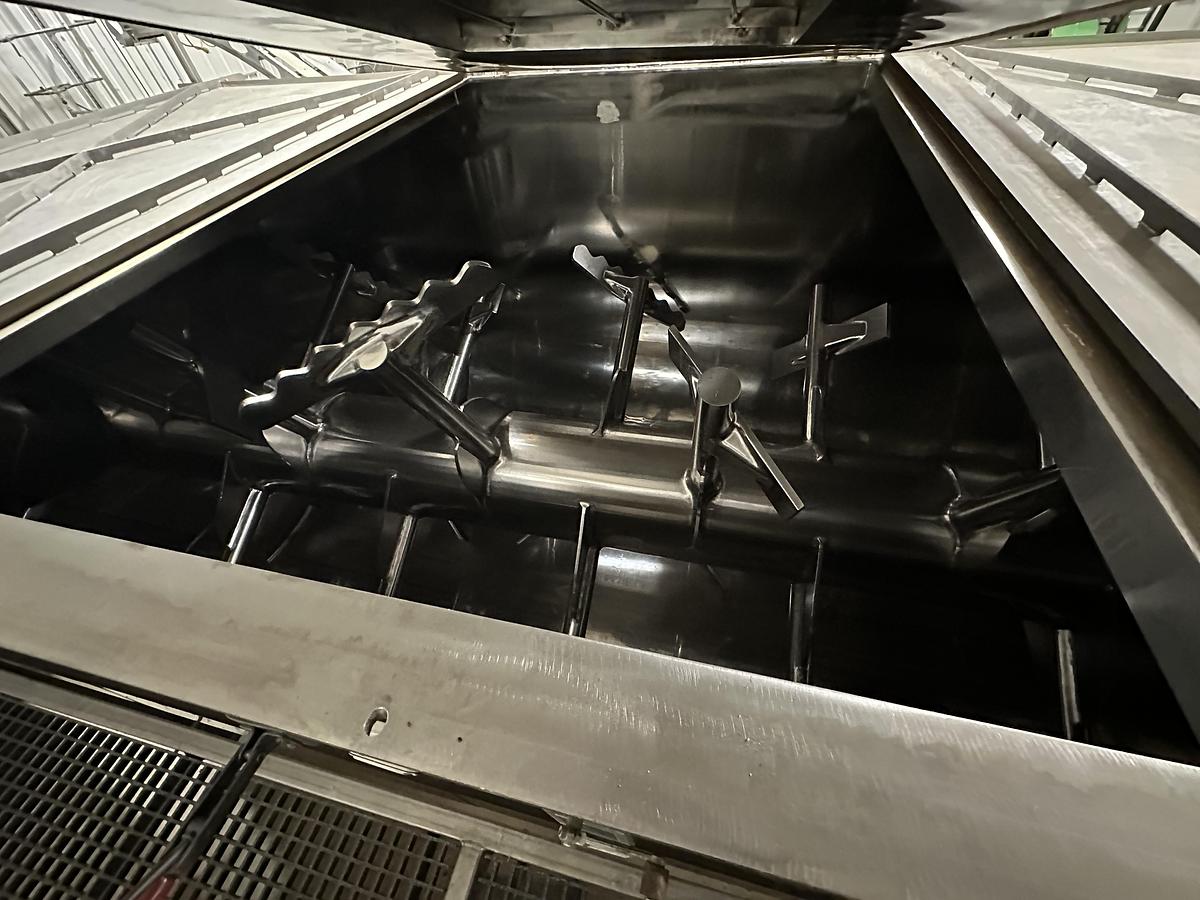

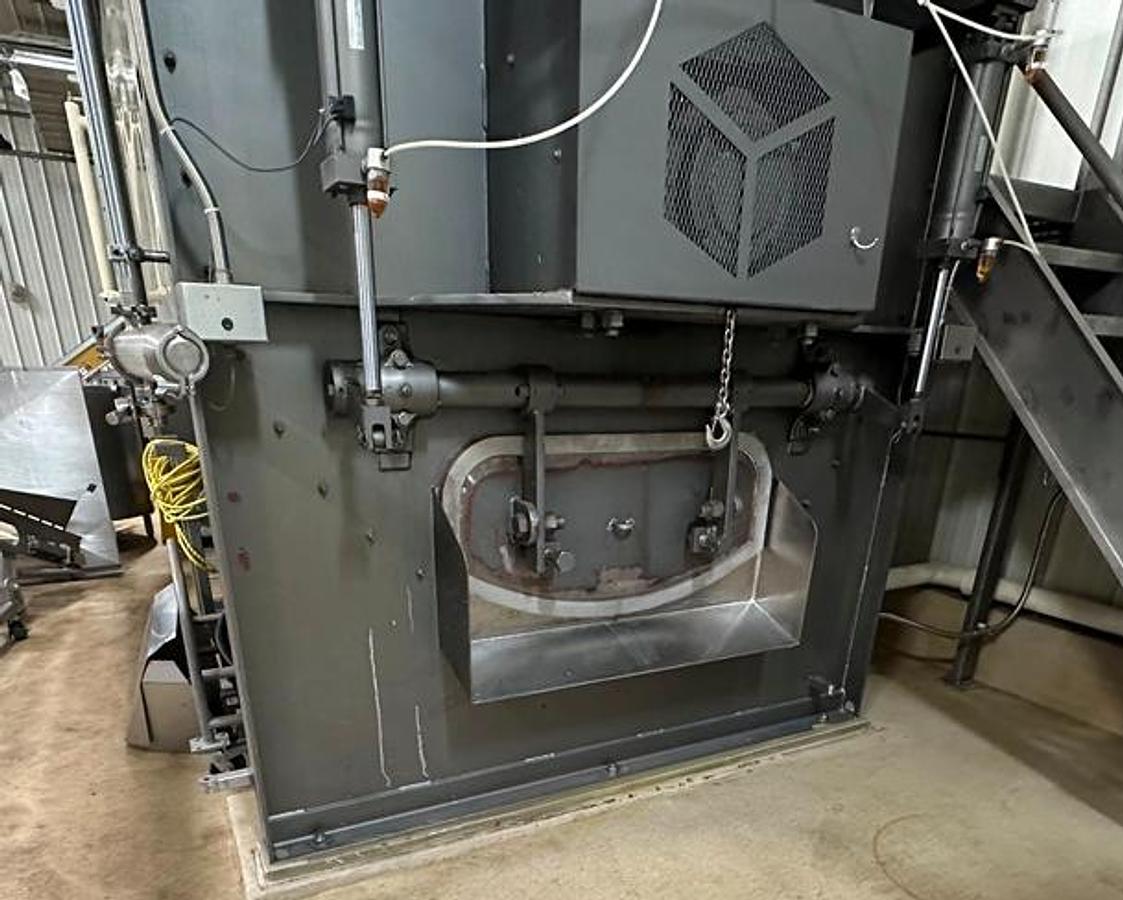

The mixing chamber is equipped with a full-length paddle shaft, along with dual 14" × 12" hinged access doors and a 24" × 12" sliding discharge gate. The drive assembly consists of a 100 HP motor coupled to a hollow-bore reducer, achieving an approximate 10 RPM paddle speed. Bearings are heavy-duty Dodge SAF housings.
The interior features an 80–100 grit stainless finish, appropriate for nutraceutical or food-grade applications. This mixer was previously used for nutraceutical blending and was reportedly run only three or four times.
Specifications
| Stock Number | 5991662 |
| Manufacturer | Scott Equipment |
| Model | 84" x 180" Paddle Mixer (Single Shaft) |
| Year | 2012 |
| Cubic Feet | 519 CF working (577 CF total) |
| Materials of Construction | 304 Stainless Steel |
| Trough Dimensions | 84" W × 180" L |
| Agitation | Single-shaft, 10 RPM |
| Jacket | Water/glycol |
| Discharge | 24" × 12" sliding gate |
| Drive | 100 HP gear motor, hollow-bore reducer, direct drive |
| Interior Finish | 80–100 grit |
| Basis | As-is, Where-is |
General Information
Scott Equipment paddle mixers are recognized for their robust construction and consistent, homogenous blending across a wide range of dry and semi-dry materials. The single-shaft paddle design provides gentle, rapid mixing with full particle suspension, making it ideal for nutraceutical formulations, botanical blends, functional ingredients, and temperature-conditioned mixing via the integrated jacket. The large capacity and easy-access doors support batch flexibility and simplified sanitation.
