Filler, Piston, 4-Head, Stainless Steel, Semi-Automatic, 1.5 Gallon, #5991651
Filler, Piston, 4-Head, Stainless Steel, Semi-Automatic, 1.5 Gallon, #5991651
Location:Oregon
Available quantity:1
Description

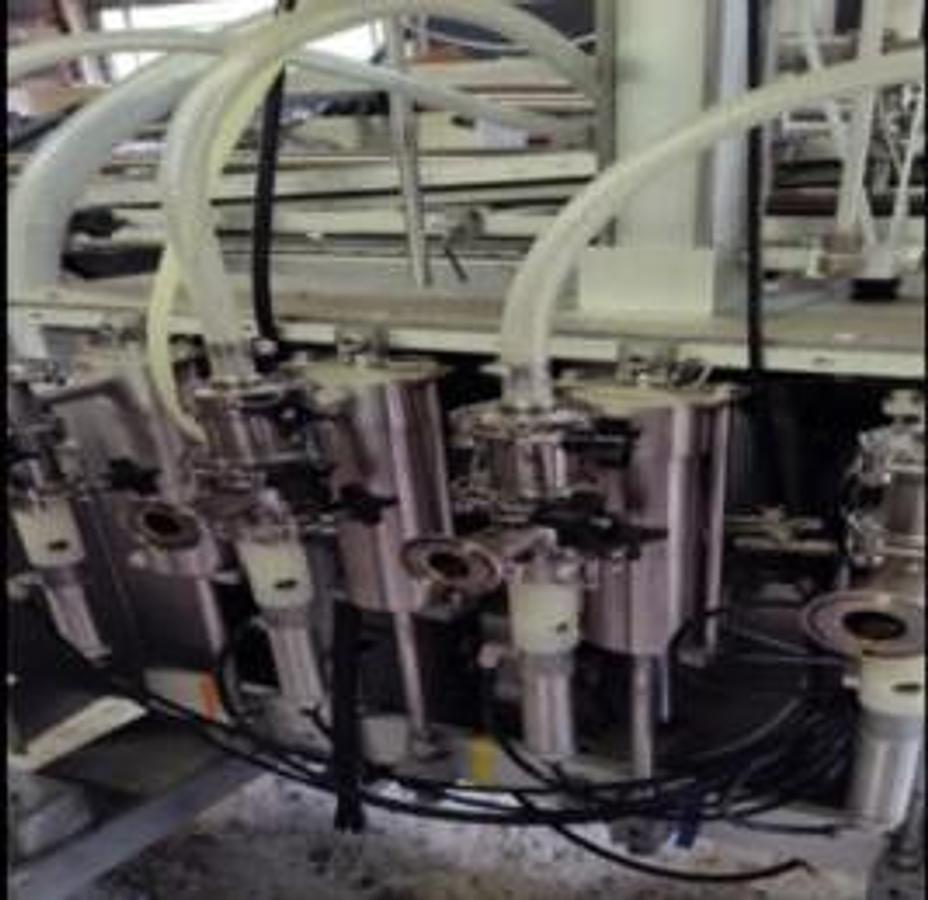

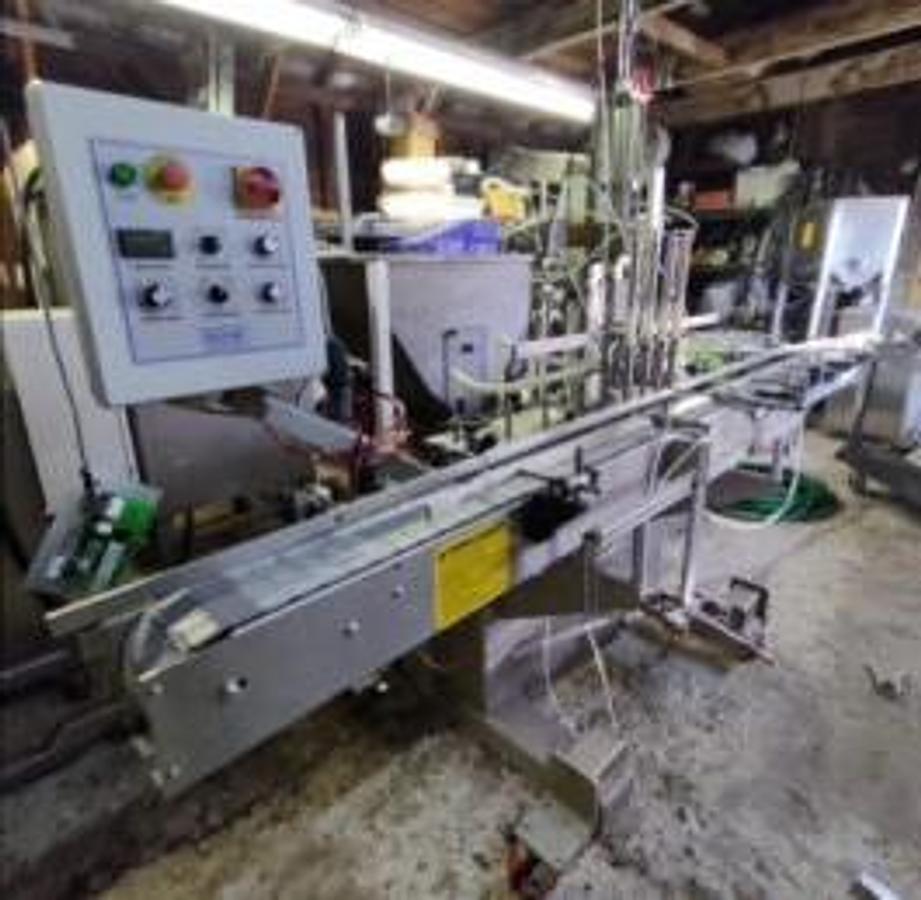

4-piston stainless steel filling system designed for semi-automatic filling of liquids, sauces, viscous products, and specialty food items. Unit includes four stainless steel cylinders with poly sleeves, pneumatic actuation, and adjustable stroke controls. Equipped with 2" stainless steel nozzles (closed-tip style) with ½" diameter outlets. System features top-mounted product feed lines, piston metering assemblies, and synchronized valve operation. Electrical panel includes PLC, relays, controls, and wiring for coordinated piston operation. Conveyor indexing belt is present but requires a new belt (current belt broken). Capable of filling small jars efficiently and larger containers, including gallons, at slower rates. Previously used for vinaigrette (12.5 oz) and pesto sauce (5.5 oz) per original 1997 documentation.
Specifications
| Stock Number | 5991651 |
| Heads | 4 |
| Full Size Range | Small jars up to 1.5-gallon containers |
| Materials of Construction | Stainless steel with poly piston sleeves |
| Drive | Pneumatic pistons, stroke-adjustable |
| Previous Containers | 12.5 oz , 5.5 oz |
| Basis | As Is, Where Is |
General Information
Piston fillers are valued for their accuracy in handling products with varying viscosities, from thin liquids to dense sauces and pastes. Often used in food production, specialty condiments, and small-batch packaging, these systems provide reliable volumetric dosing without relying on gravity or external pumps. Units of this type are suited for operations requiring repeatable fill volumes across multiple container sizes and are commonly applied in sauce production, dressings, spreads, oils, dips, and similar products.
