Dryer, Turbo, Wyssmont Turbo Tray Dryer Model N-22, 22 Trays, Stainless Steel Cladded, 9’-9” Base, 12’-0” Height, 1.5 HP Turbo Drive, #5991640
Dryer, Turbo, Wyssmont Turbo Tray Dryer Model N-22, 22 Trays, Stainless Steel Cladded, 9’-9” Base, 12’-0” Height, 1.5 HP Turbo Drive, #5991640
Location:West Virginia
Available quantity:1
Description

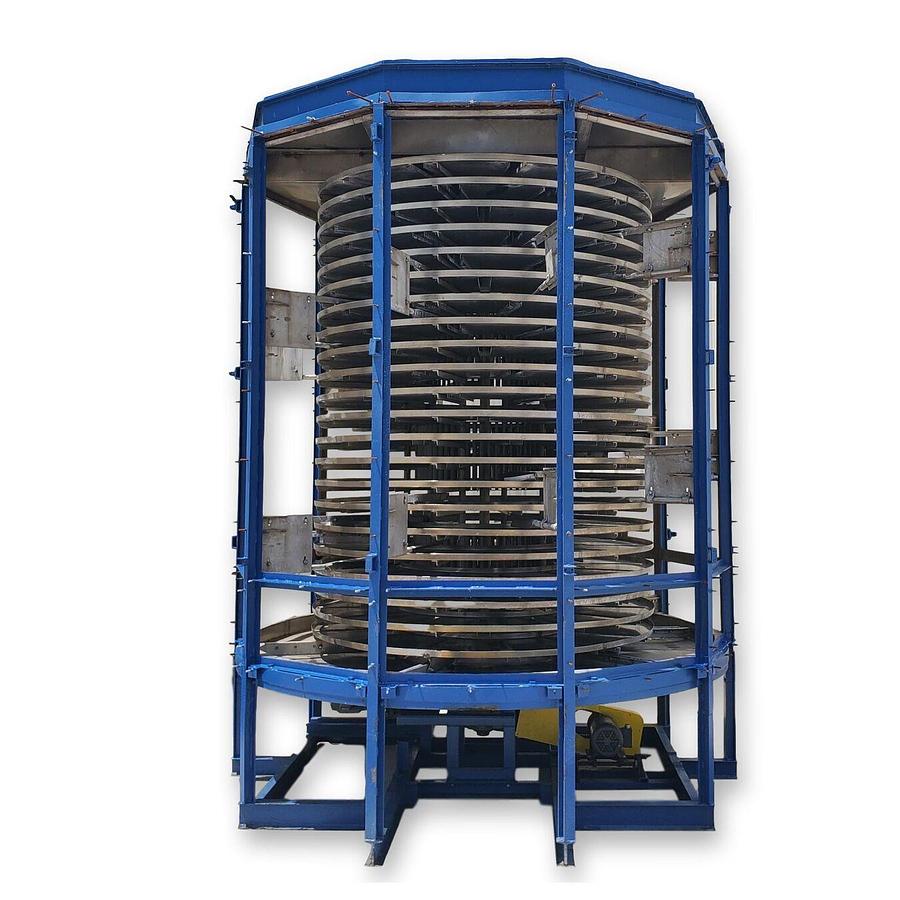

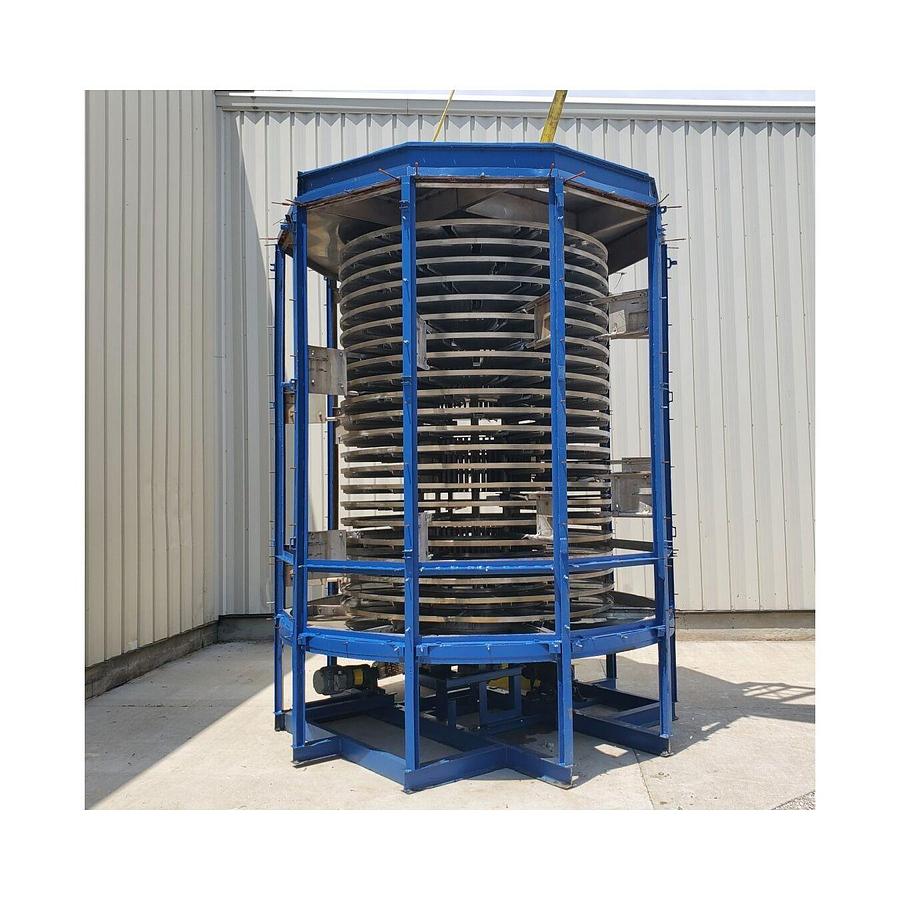

Wyssmont Turbo Tray Dryer Model N-22, featuring 22 stainless steel trays (78” diameter) stacked on close centers for efficient continuous drying. Unit includes Aerofin steam coil heating system, HEPA-filtered inlet air system, 1.5 HP turbo fan drive, and 1 HP tray drive gearmotor. The dryer’s insulated and stainless-cladded frame provides durability and superior heat retention. Ideal for food ingredients, chemicals, catalysts, pharmaceuticals, and other heat-sensitive materials requiring gentle, consistent drying.
Specifications
| Stock Number | 5991640 |
| Manufacturer | Wyssmont Company, Inc. |
| Model | N-22 |

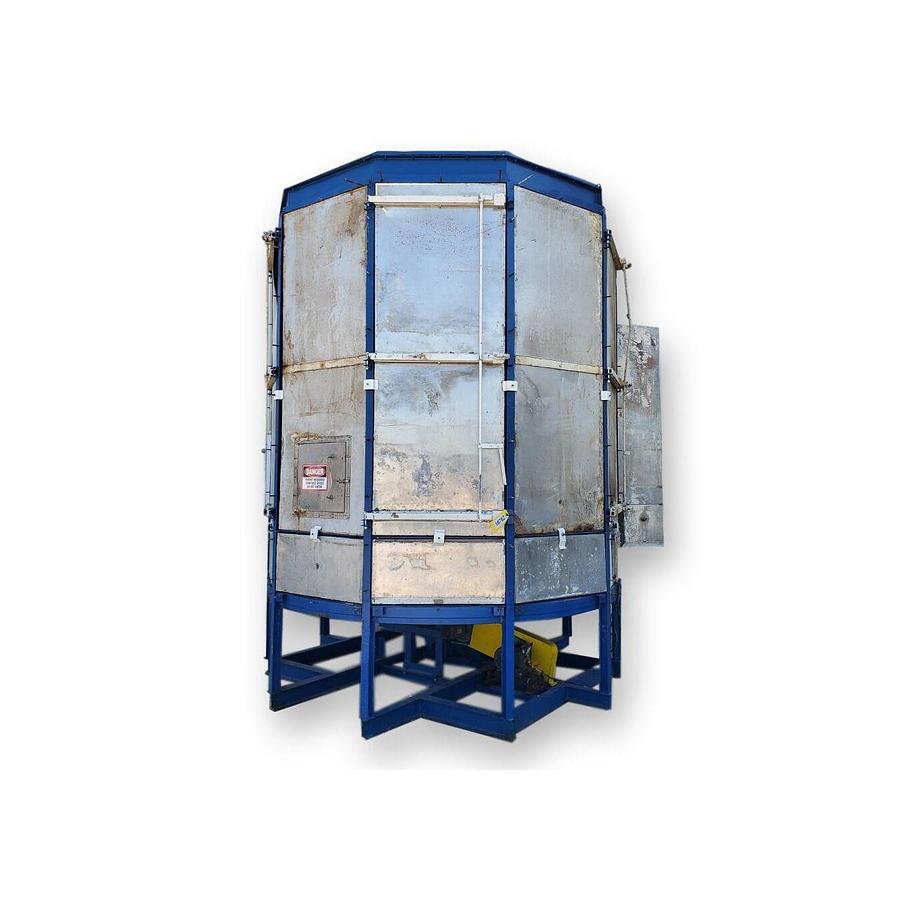

| Materials of Construction | Structural steel frame with 1.5" thick insulated panels, stainless steel sheet cladded |
| Base Configuration | Decagon (10-sided) shape, measuring 9'-9" across corners |
| Overall Hight | 12'-0" roof height with 5" step-down level |
| Dryer Diameter | 120" (129" overall width) |

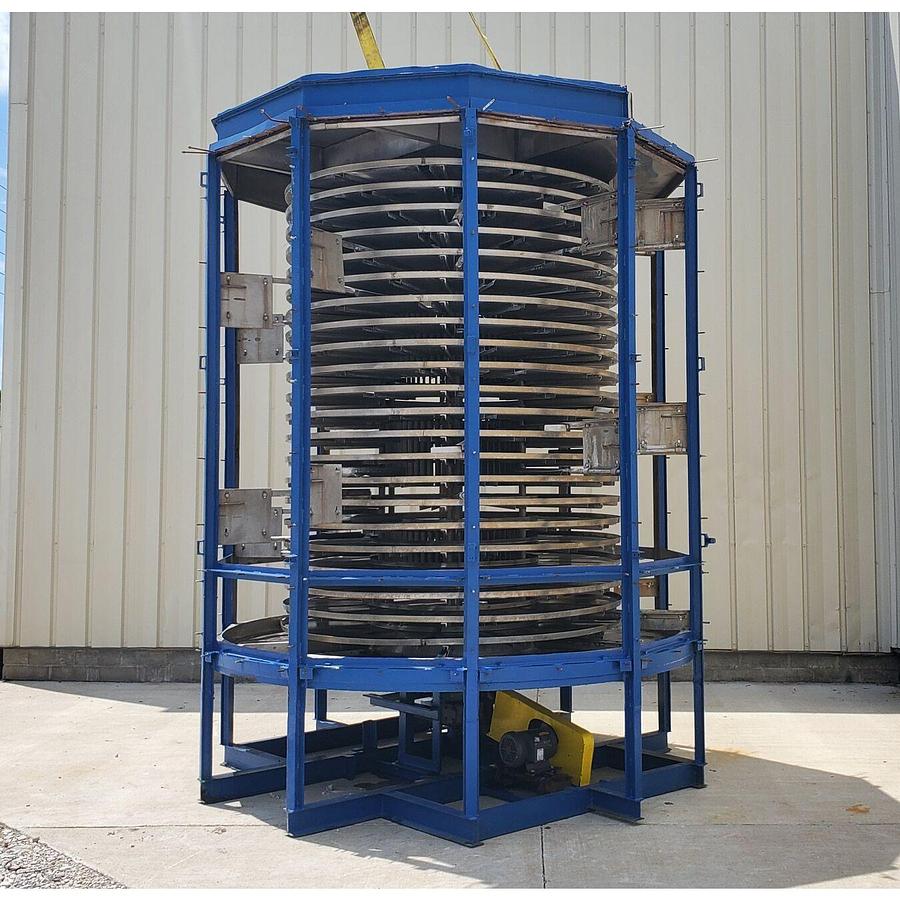

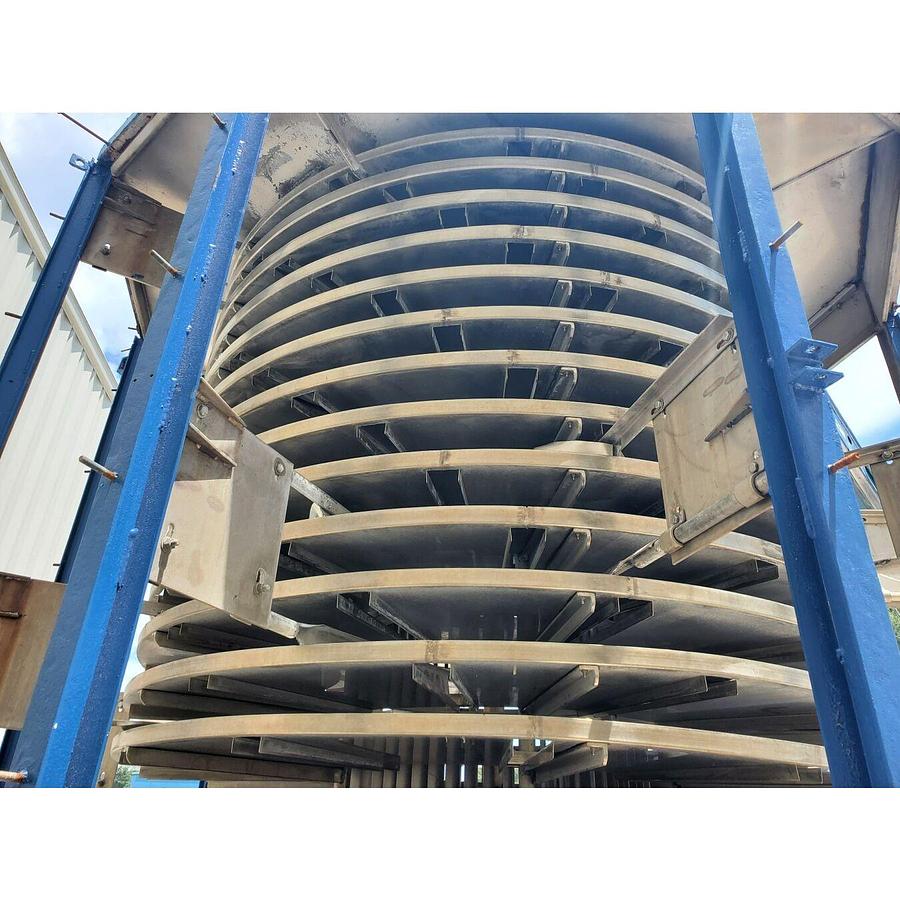

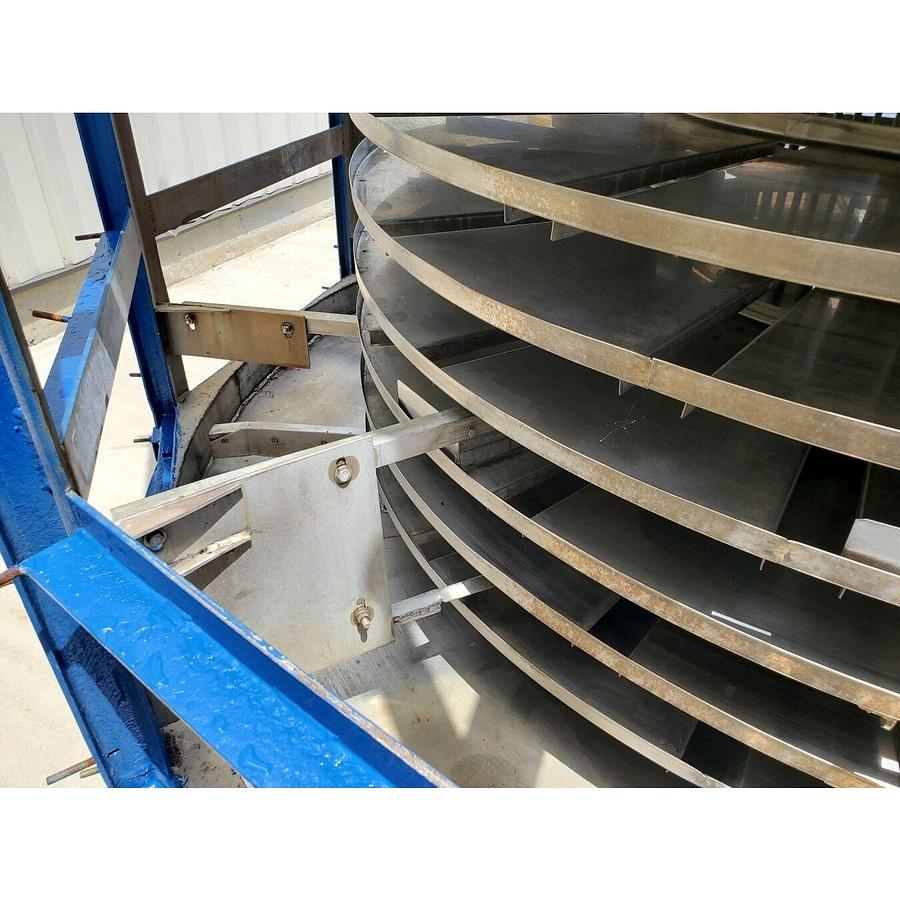

| Dryer Trays | 22 trays, each 78" diameter, stacked at 4-11/16" spacing |
| Product Inlet | 5" x 15" sleeve @ 12'-7" elevation |
| Product Discharge | 5.5" x 23" opening @ 2'-5-1/4" elevation |
| Drying Air Outlet | 18" diameter opening @ 12'-0" elevation |

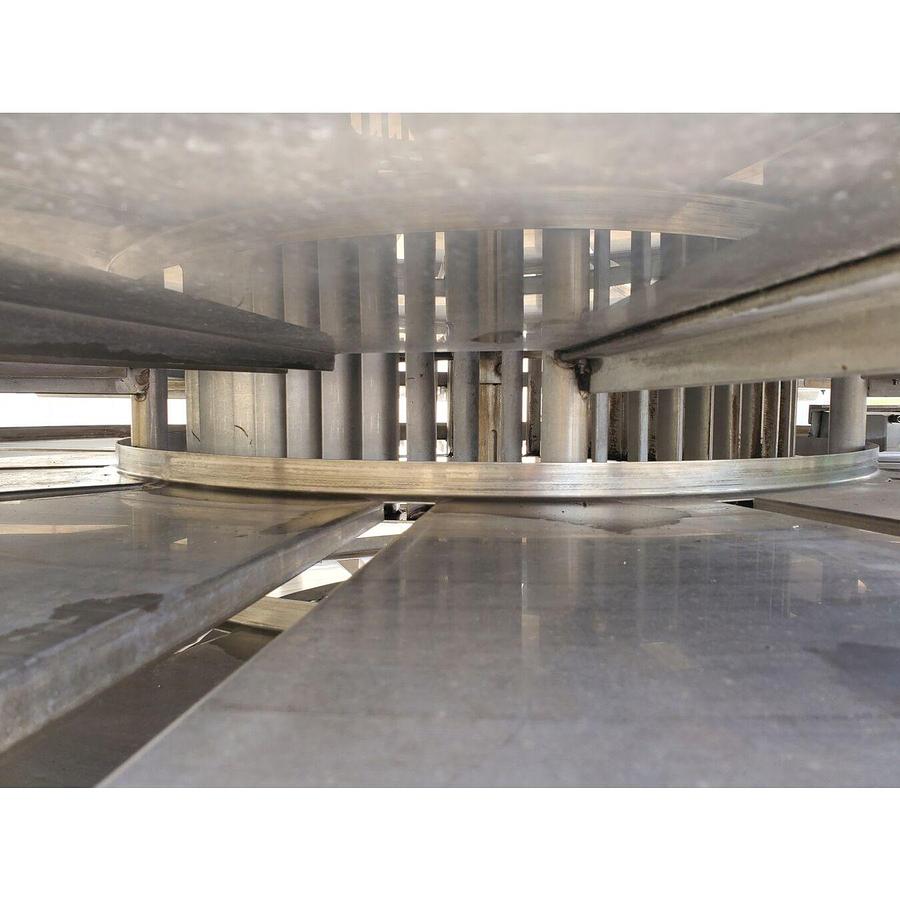

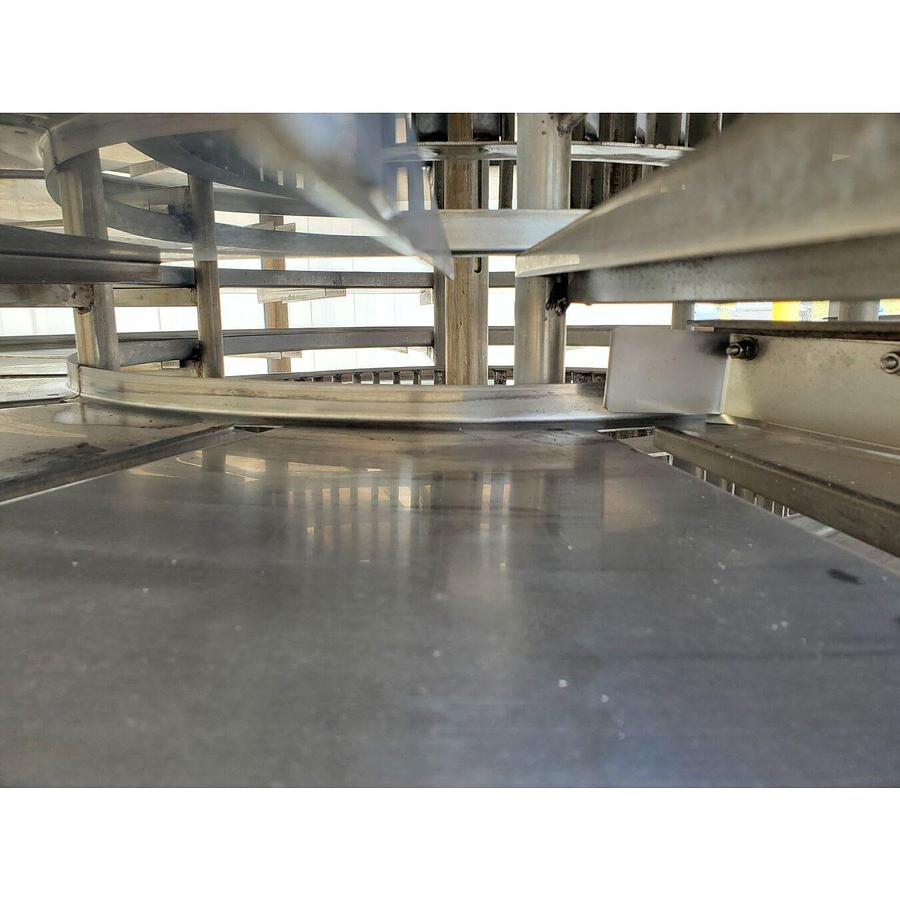

| Turbo Fan Drive | 1.5 HP motor with Roto-clone variable speed pulley |

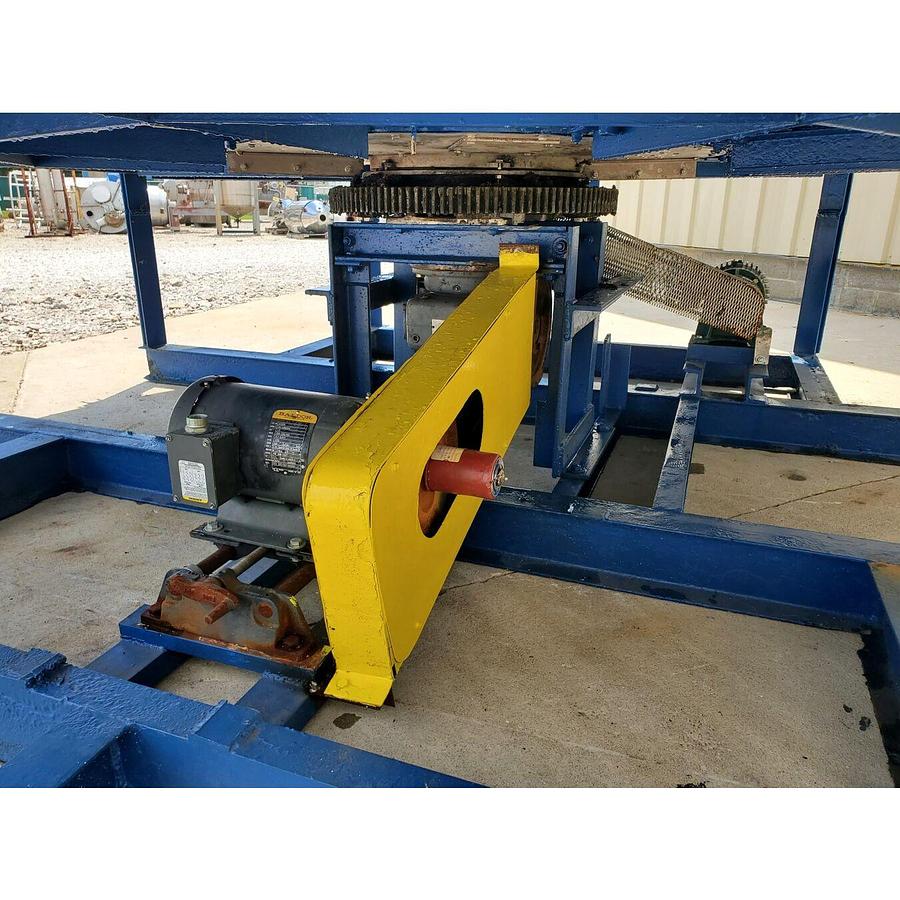

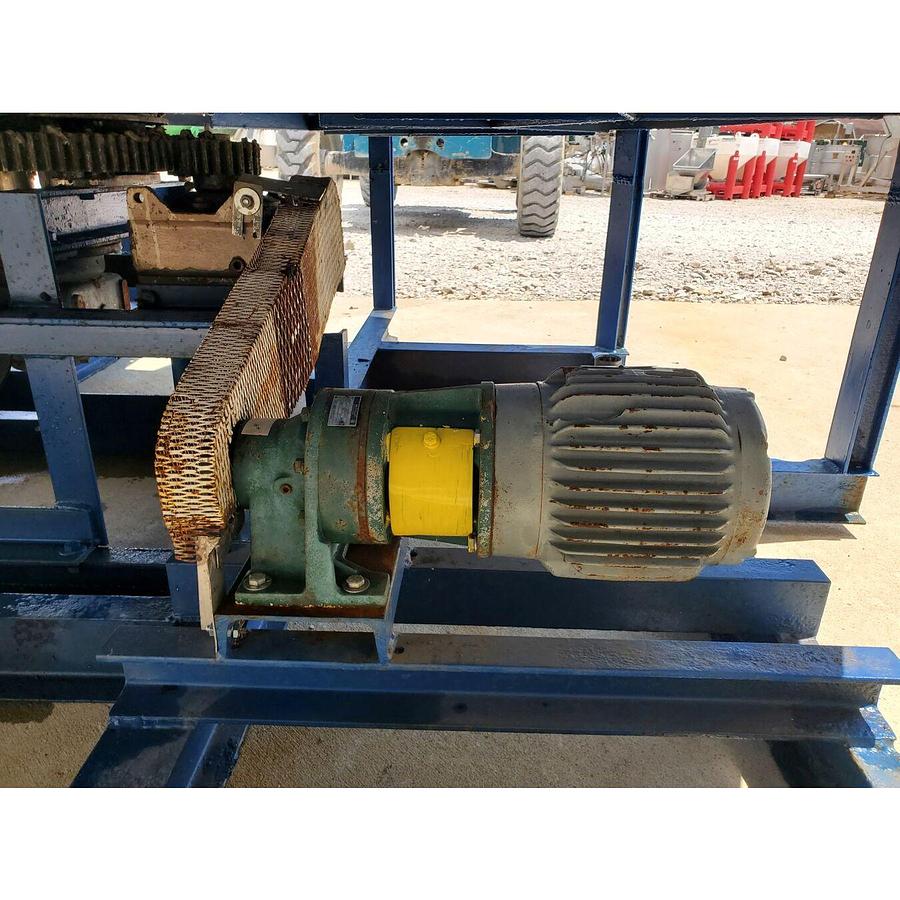

| Tray Drive | 1 HP gearmotor with chain drive |

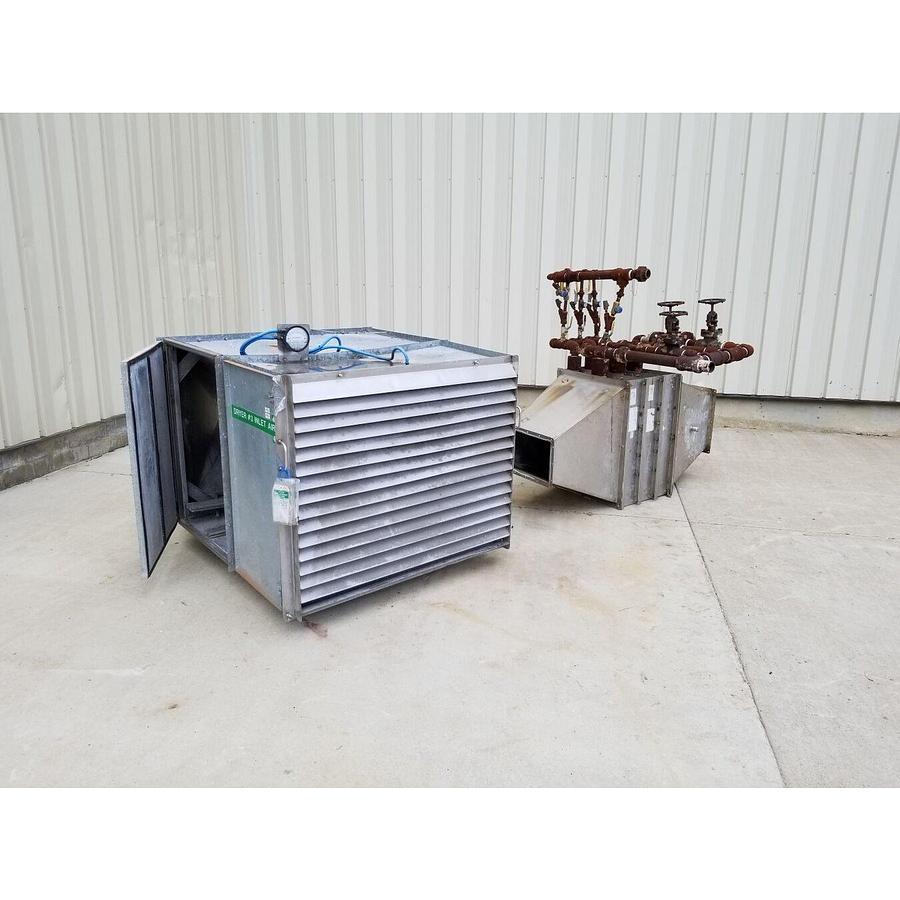

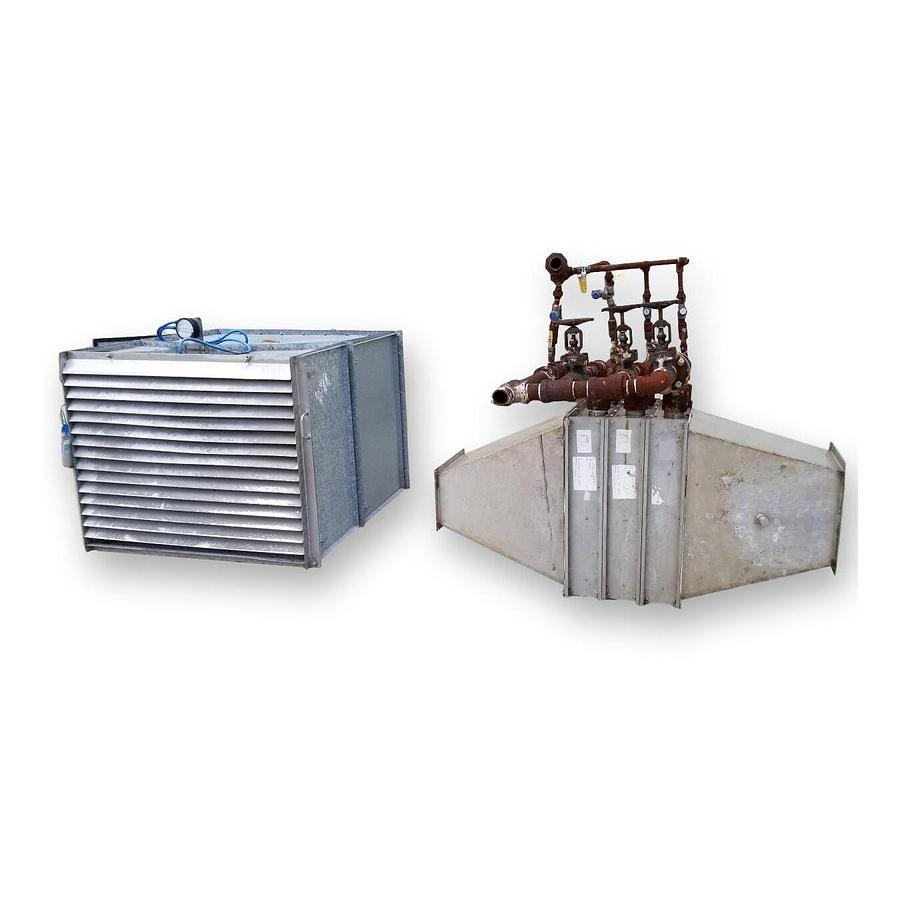

| Heating Coils | (3) inline Aerofin steam coil heating units |
| Inlet Air Filter: | Filter housing for 44"W x 35"H HEPA filters |
| Heater Fan | Not included |
| Panels | Includes cover panels |
| Dimensions | 120" diameter (129" overall width) x 151" high |
| Basis | As Is, Where Is |
General Information
Wyssmont Company, Inc. designs and manufactures Turbo-Dryers®, the industry standard in continuous tray drying technology. Known for their reliability, uniform drying performance, and low operating cost, Wyssmont dryers are used globally for food, chemical, mineral, and pharmaceutical processing applications.
