Dryer, Turbo, Wyssmont, Turbo-Dryer Model N-28, 304 Stainless Steel, 28 Trays, 9’-6” Base, 14’-0” Height, #5991638
Dryer, Turbo, Wyssmont, Turbo-Dryer Model N-28, 304 Stainless Steel, 28 Trays, 9’-6” Base, 14’-0” Height, #5991638
Location:West Virginia
Available quantity:1
Description

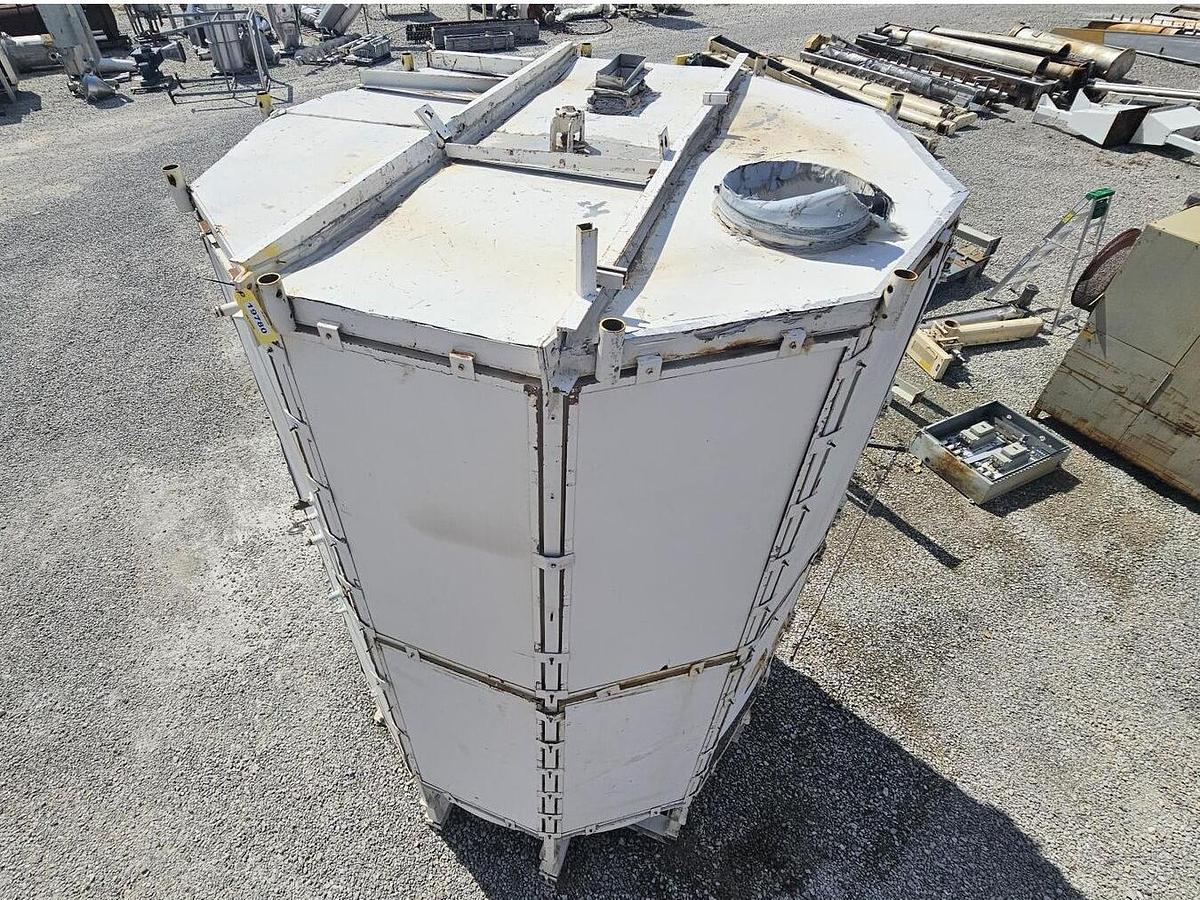

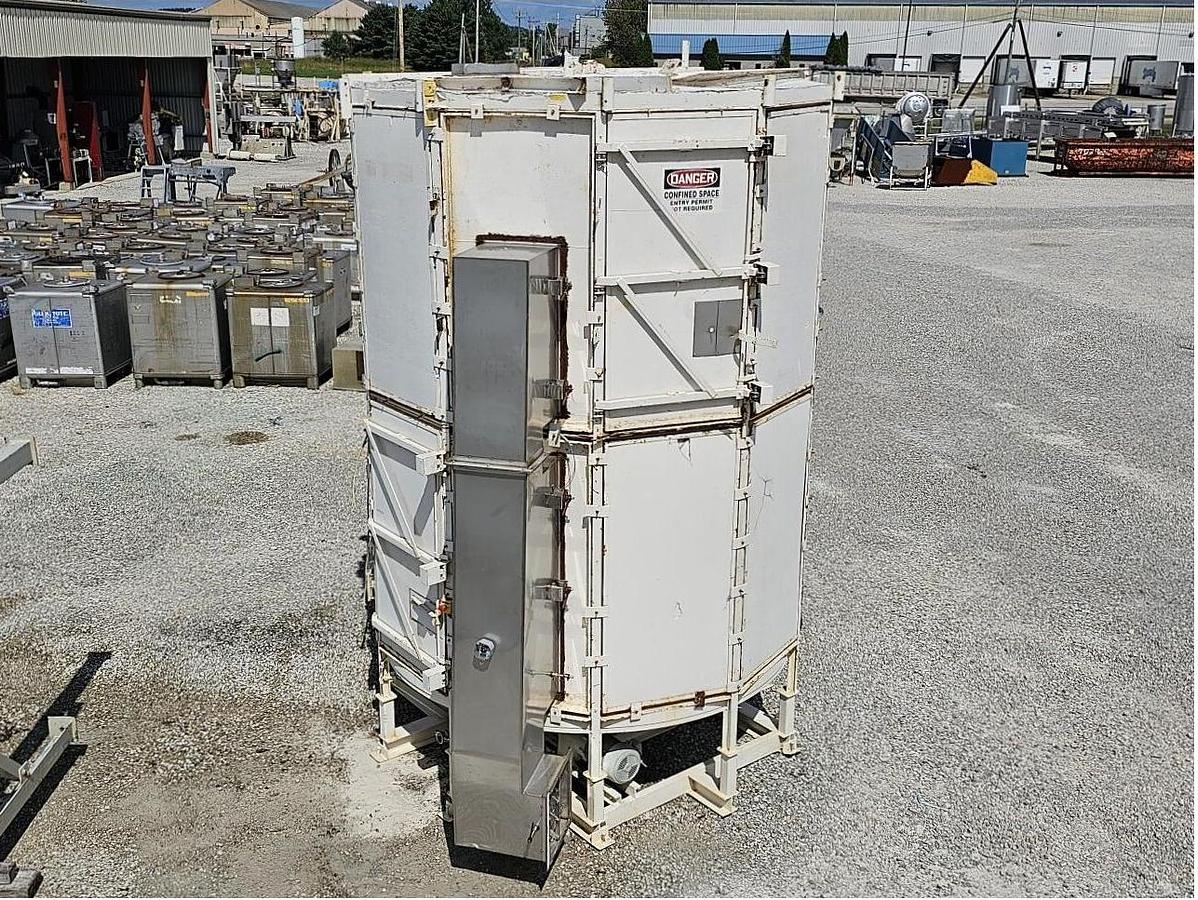

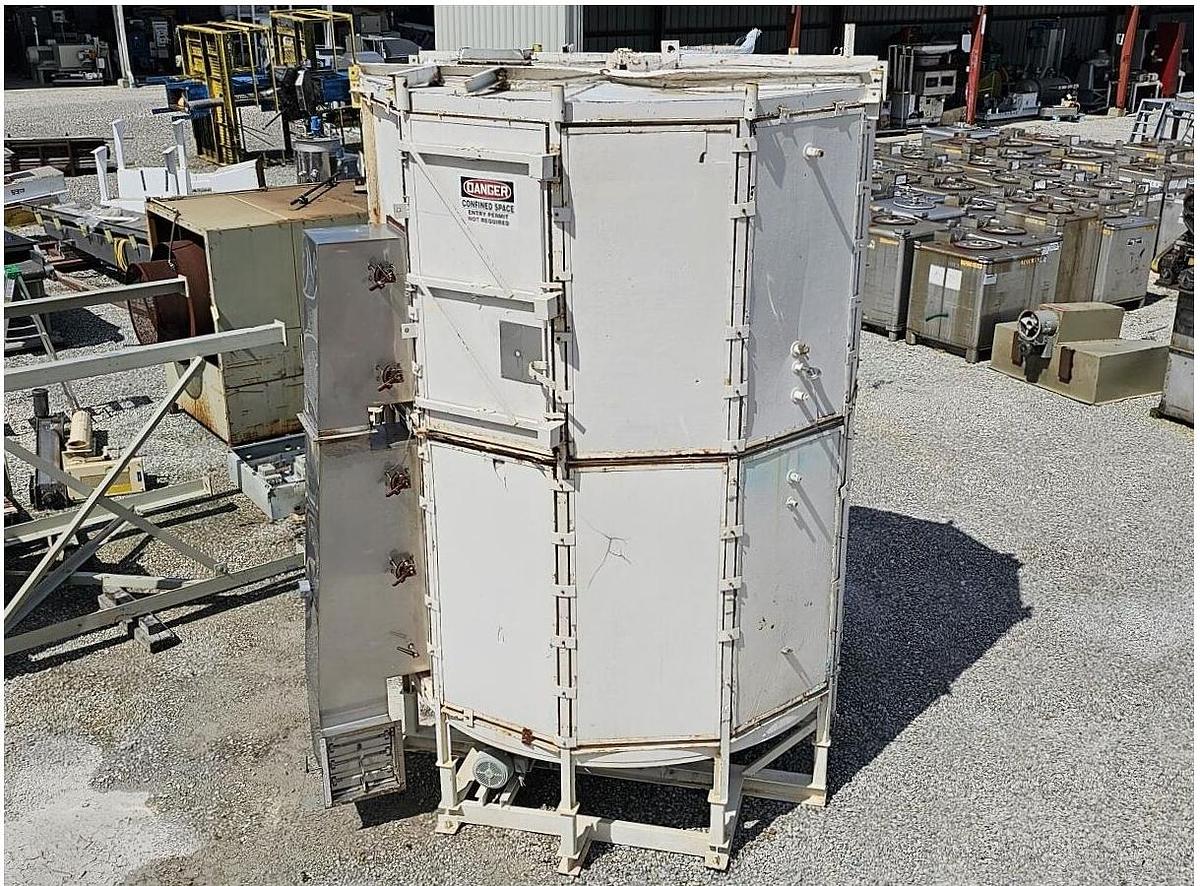

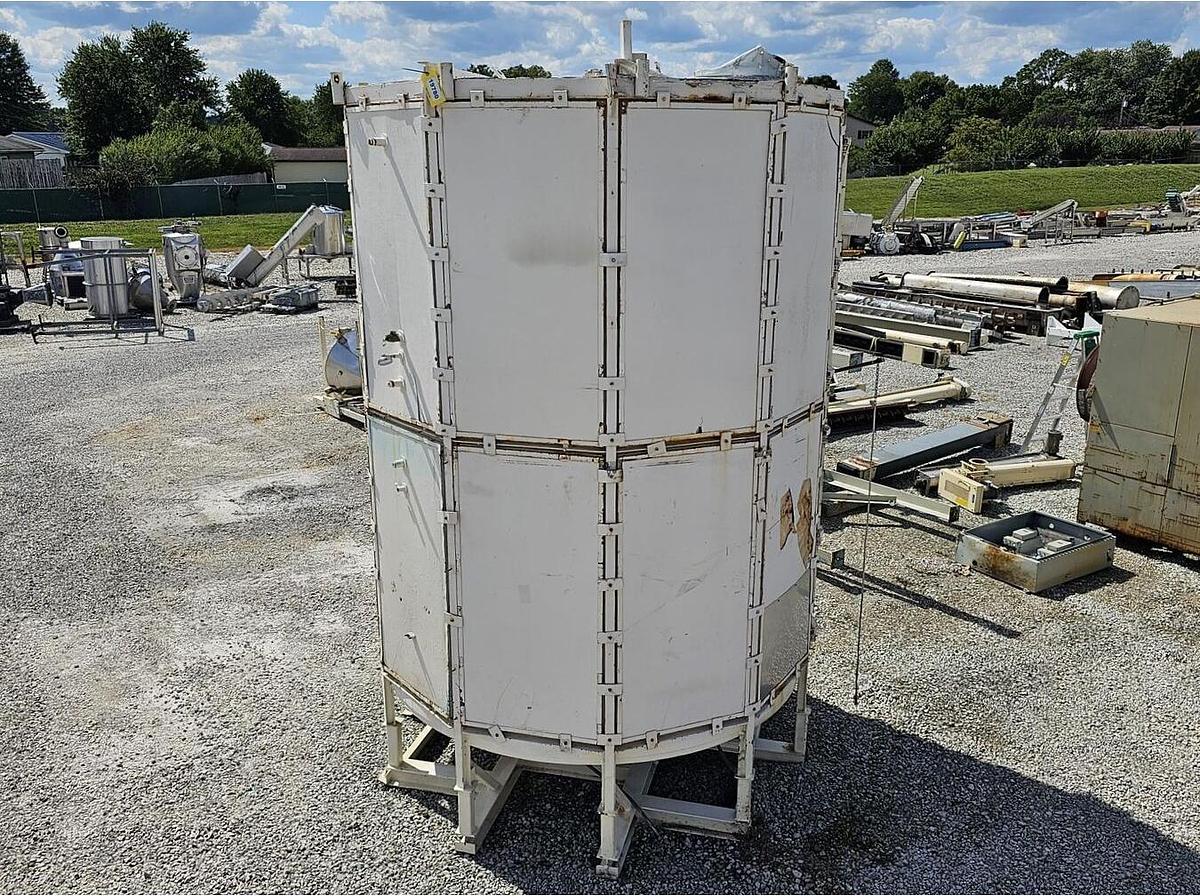

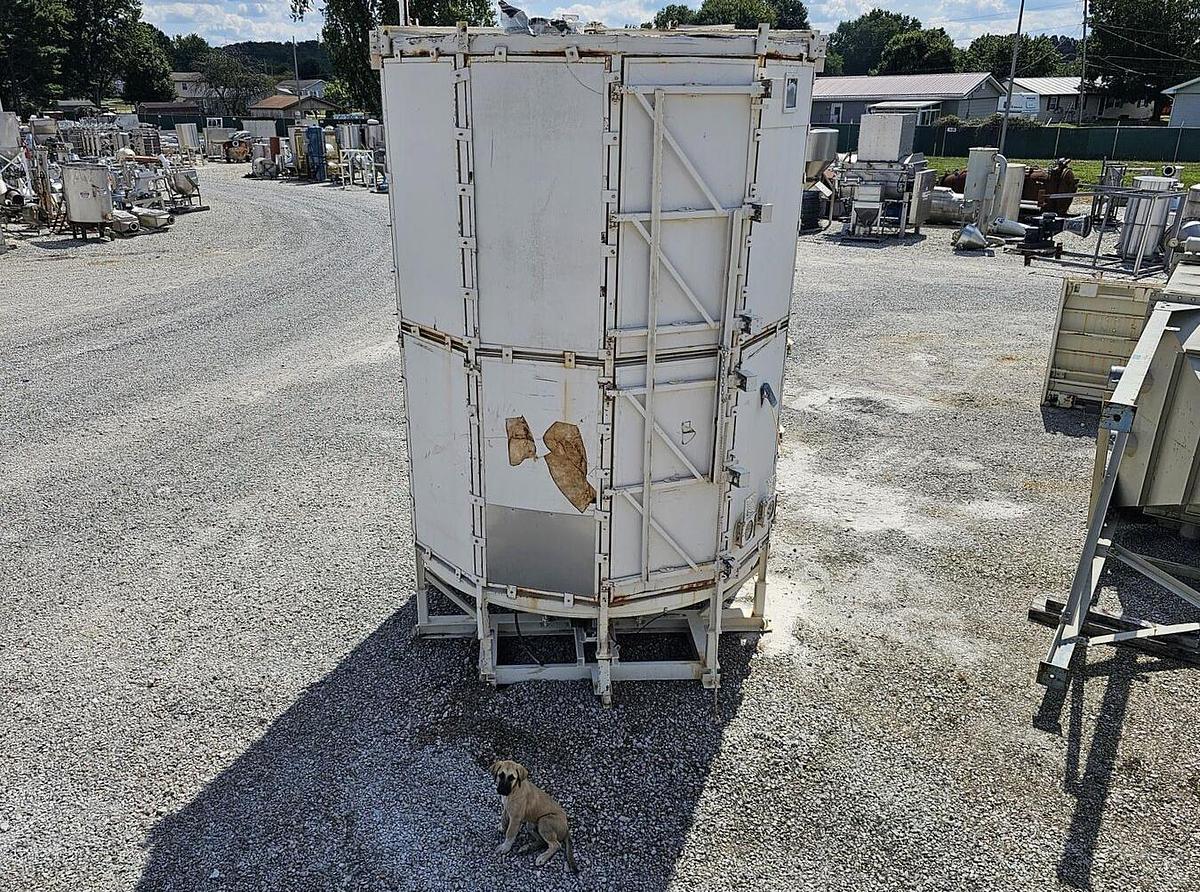

Wyssmont Turbo-Dryer Model N-28, serial number J-256, featuring 304 stainless steel product contact construction and a structural steel insulated housing. The system is equipped with 28 trays (78” diameter each), spaced at 4-5/8”, and provides continuous counterclockwise tray rotation for even drying. The ten-sided base measures 9’-6” across corners, with a total height of approximately 13’-10”. Equipped with a 1.5 HP turbo fan drive, 3 HP tray drive motor, and a stainless steel air inlet header with dampers. Suitable for a broad range of applications in the food, chemical, and industrial processing sectors
Specifications
| Stock Number | 5991638 |
| Manufacturer | Wyssmont Company, Inc. |
| Model | N-28 |
| Serial Number | J-256 |
| Materials of Construction | Product contact parts in 304 stainless steel |
| Support Frame | Structural steel with 2” thick insulated panels |
| Base Configuration | Ten-sided shape measuring 9’-6” across corners |
| Overall Hight | 13’-10” to roof |

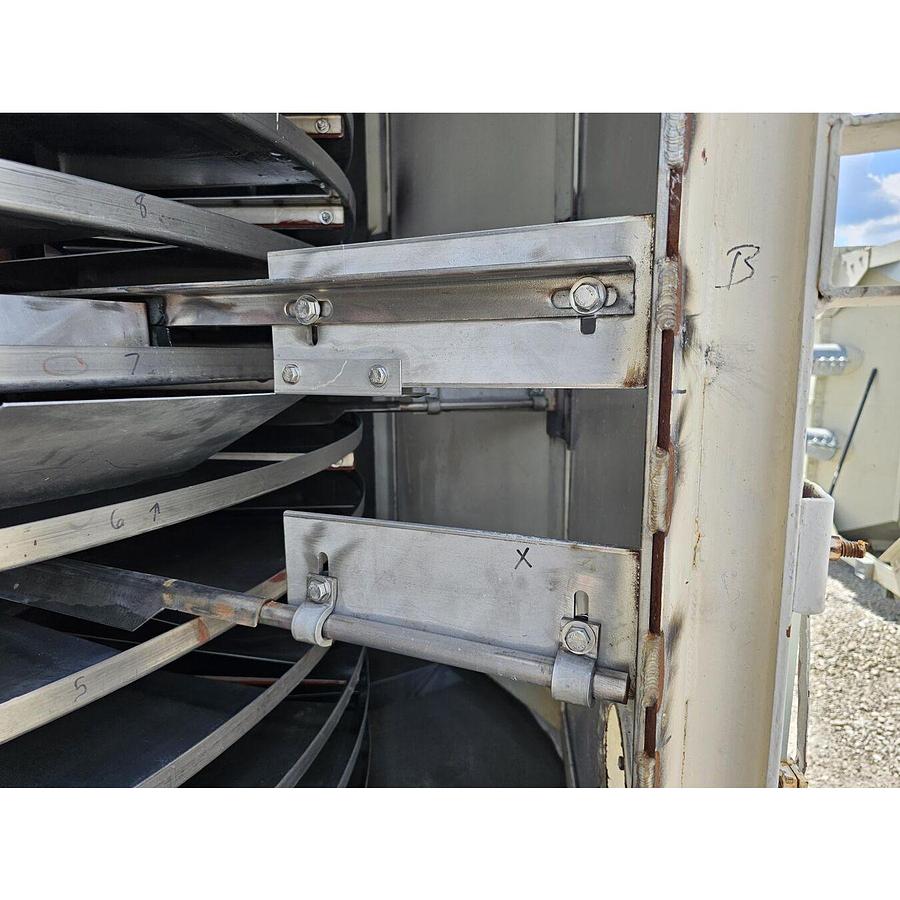

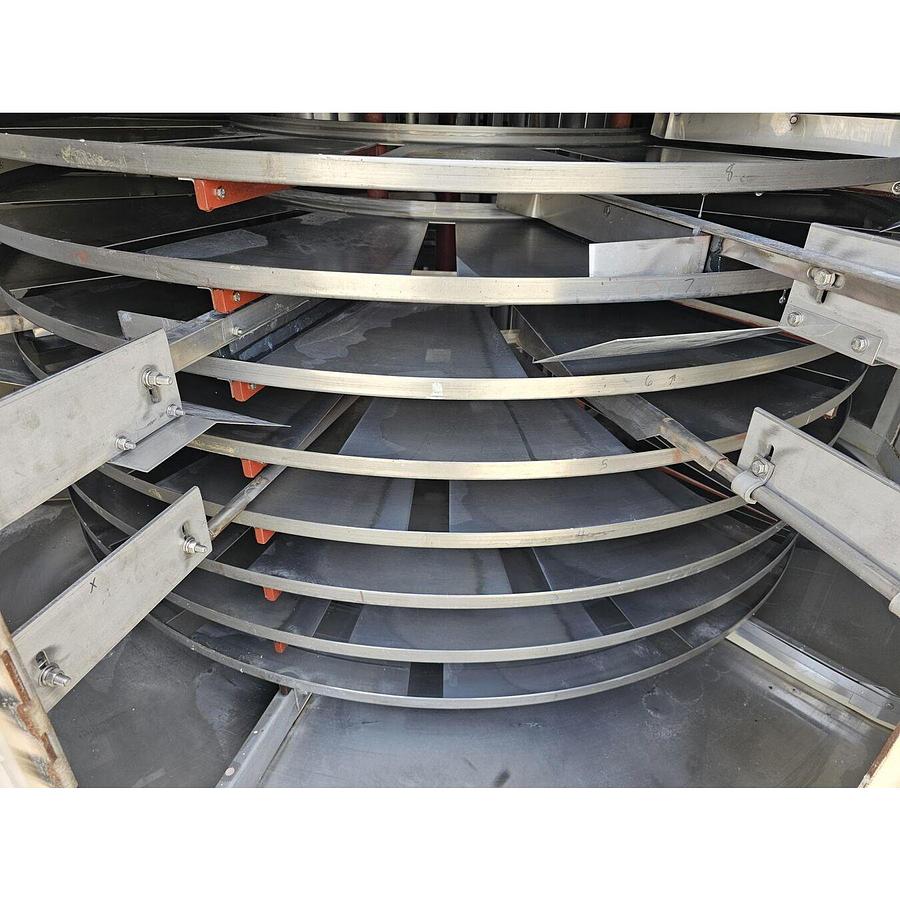

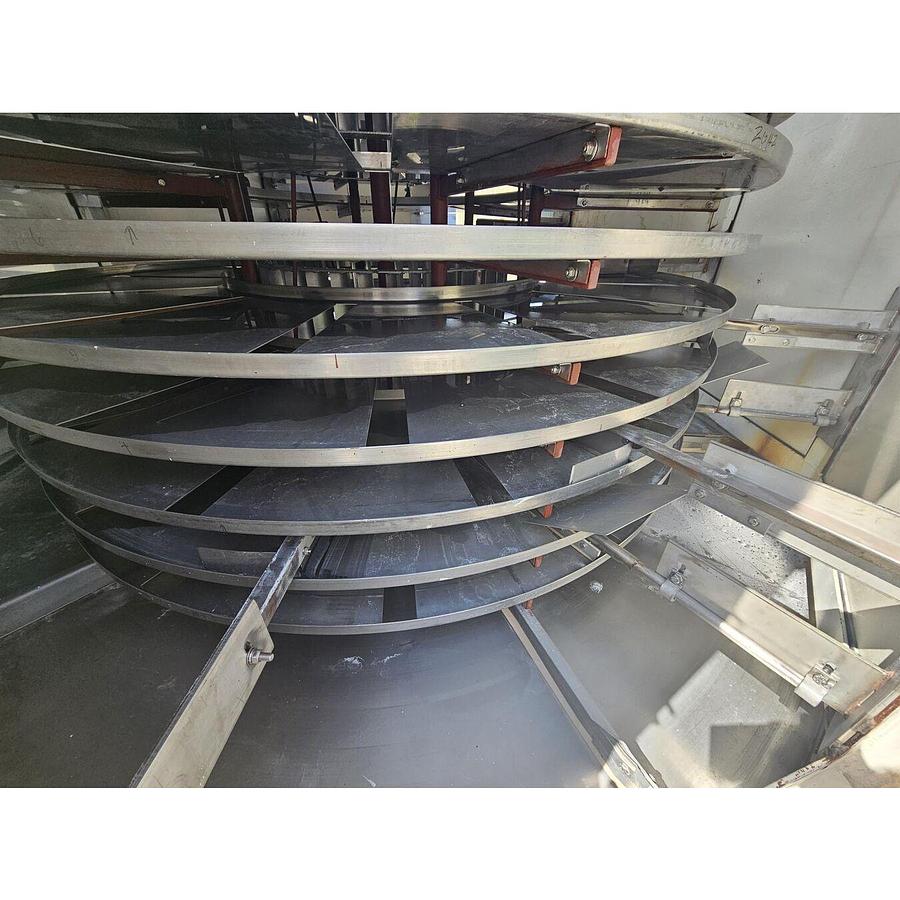

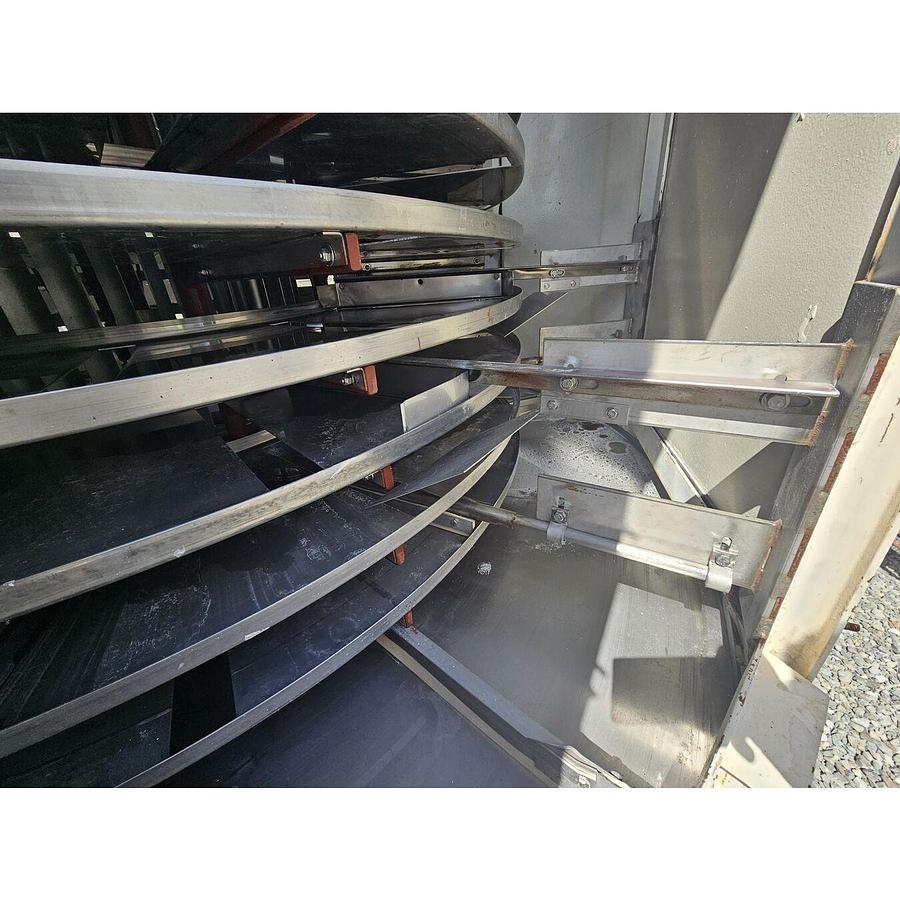

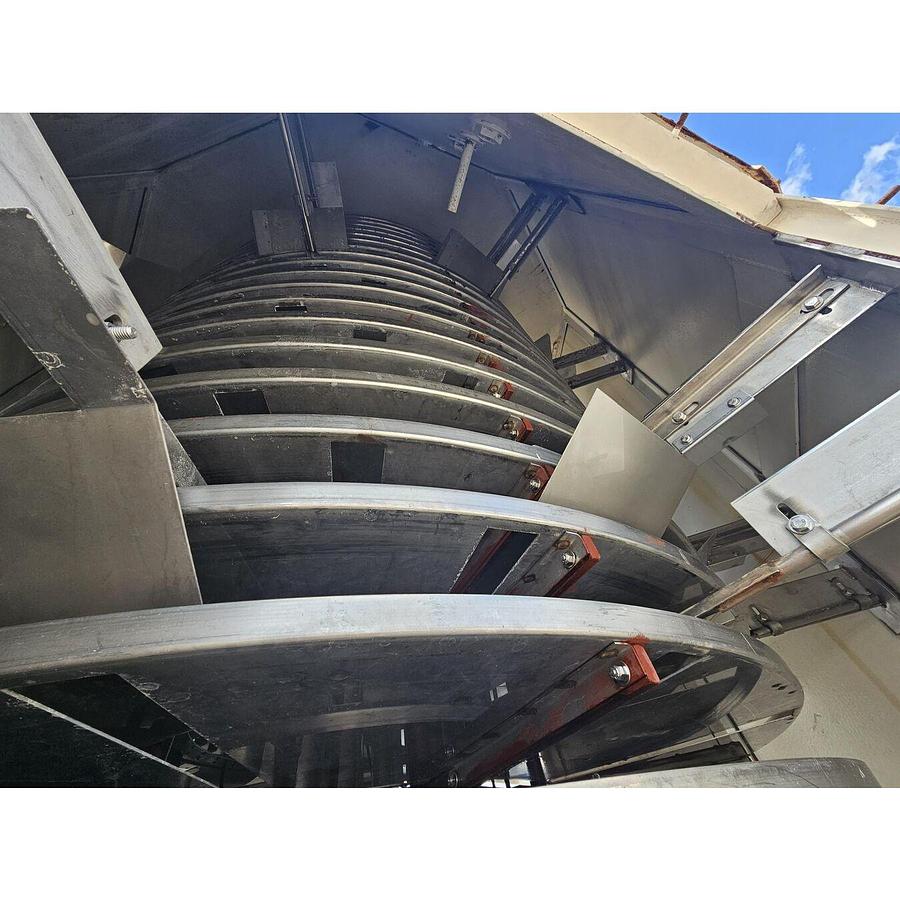

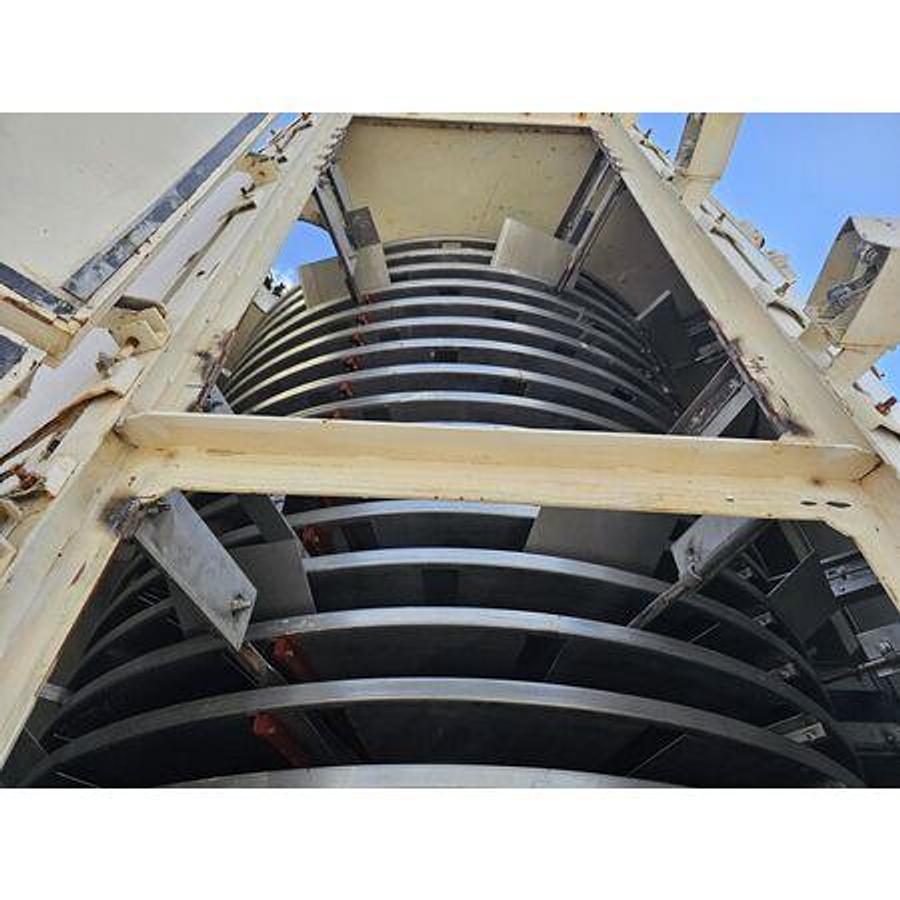

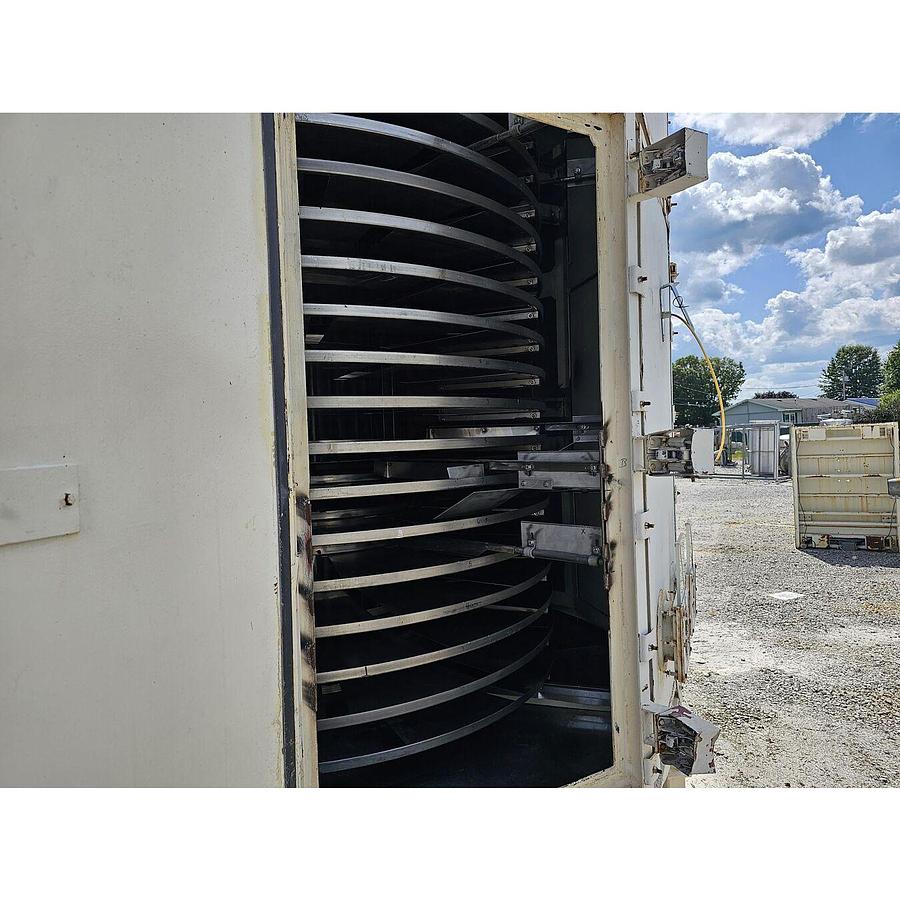

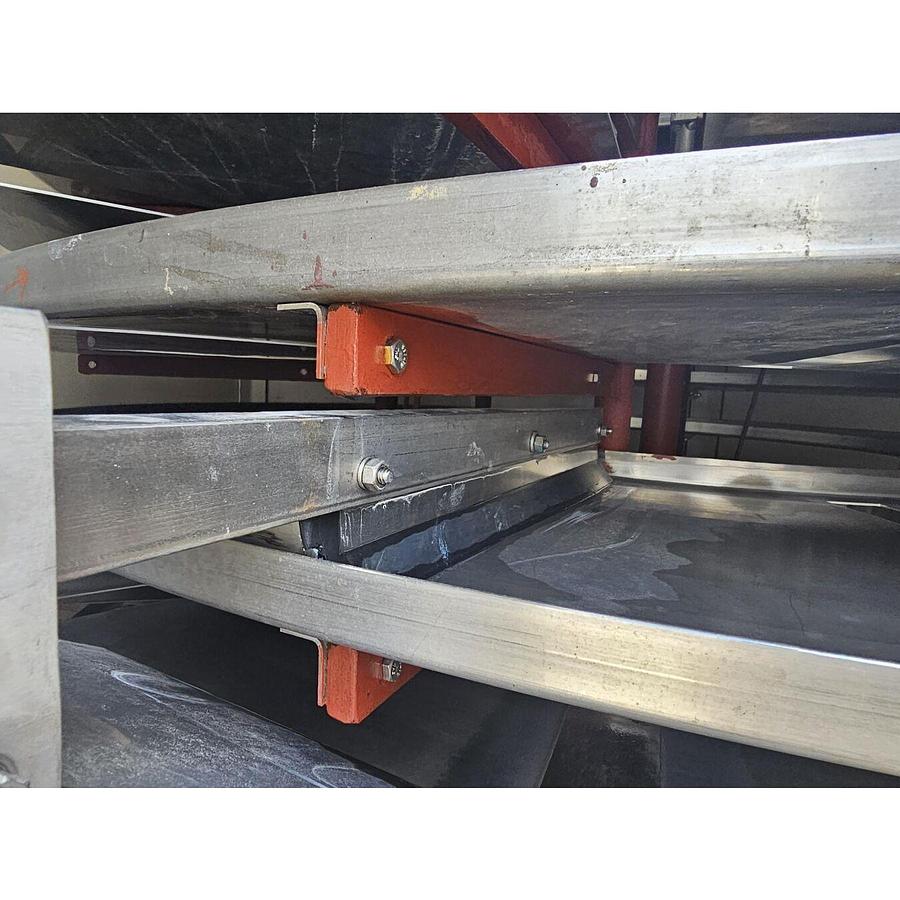

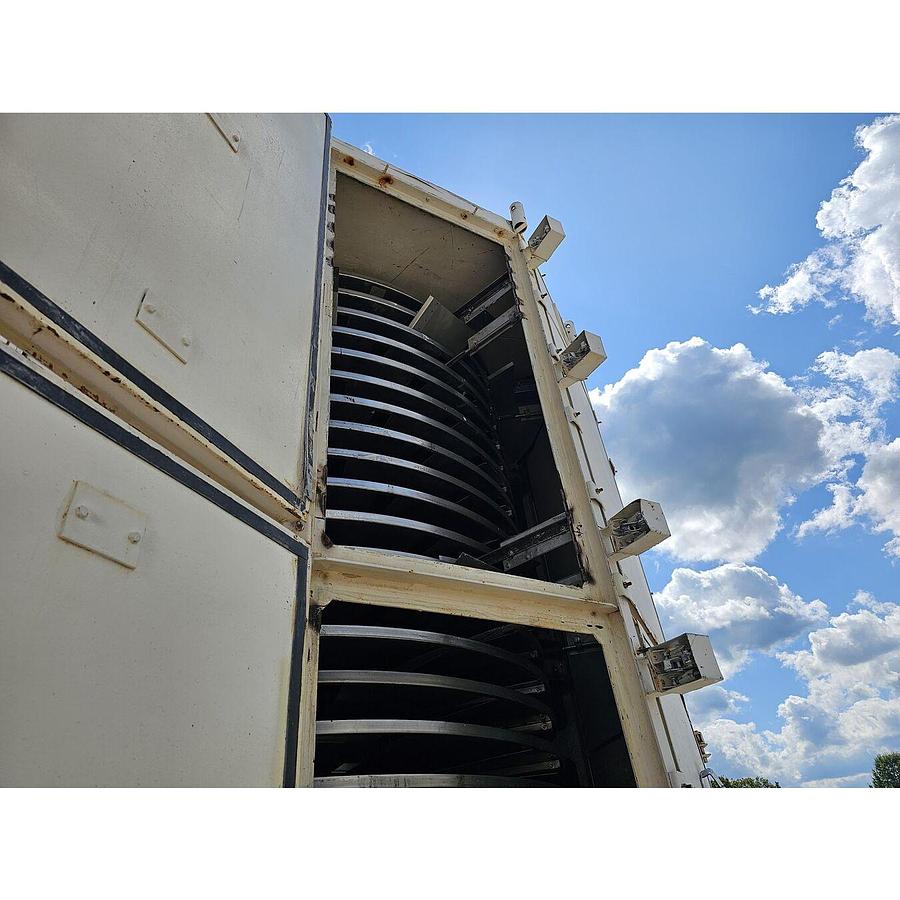

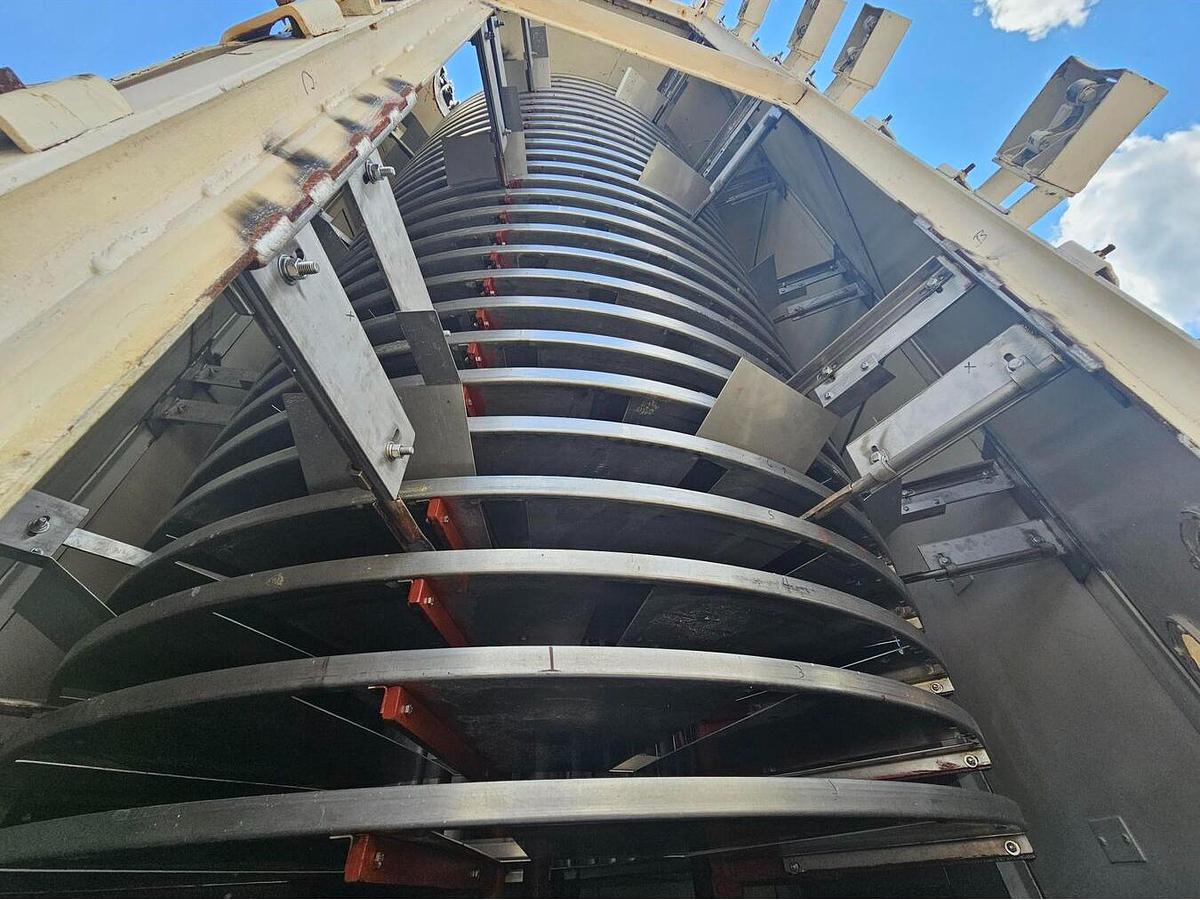

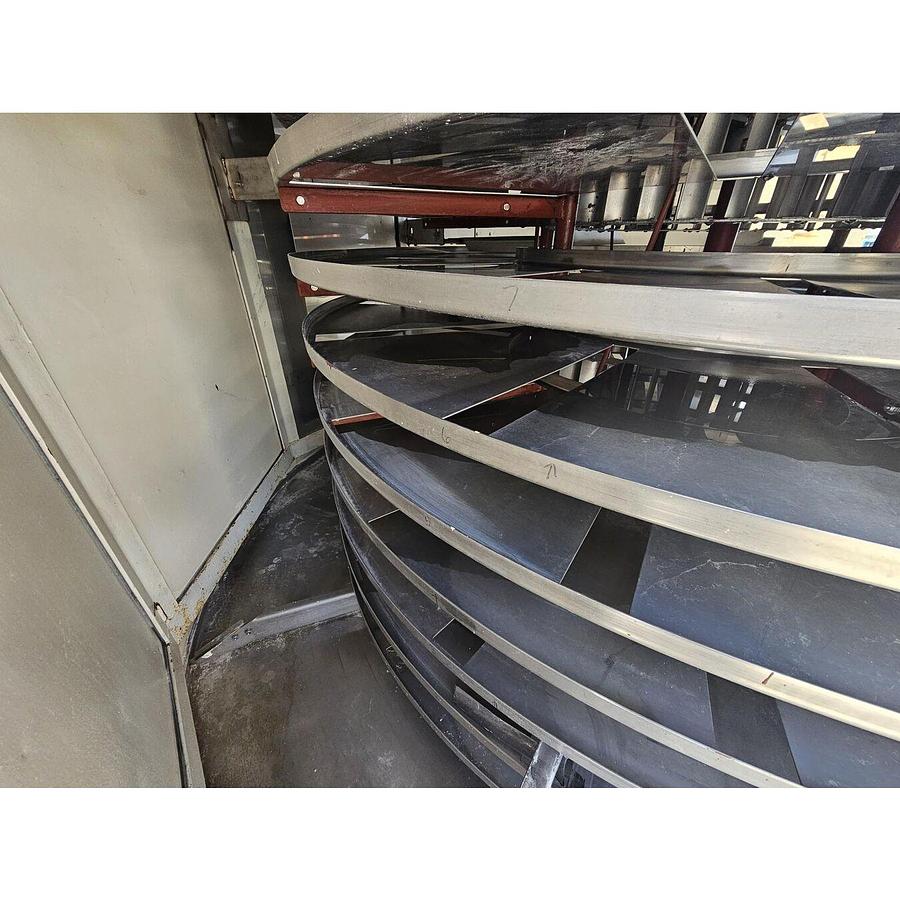

| Dryer Trays | 28 trays, each 78” diameter, stacked at 4-5/8” spacing |
| Tray Roation | Counterclockwise (CCW) |
| Product Inlet (Roof) | 5” x 15” flange @ 14’-2” elevation |
| Product Discharge | 5.5” x 23” flange with pneumatic conveying adapter (2” cam-lock) |

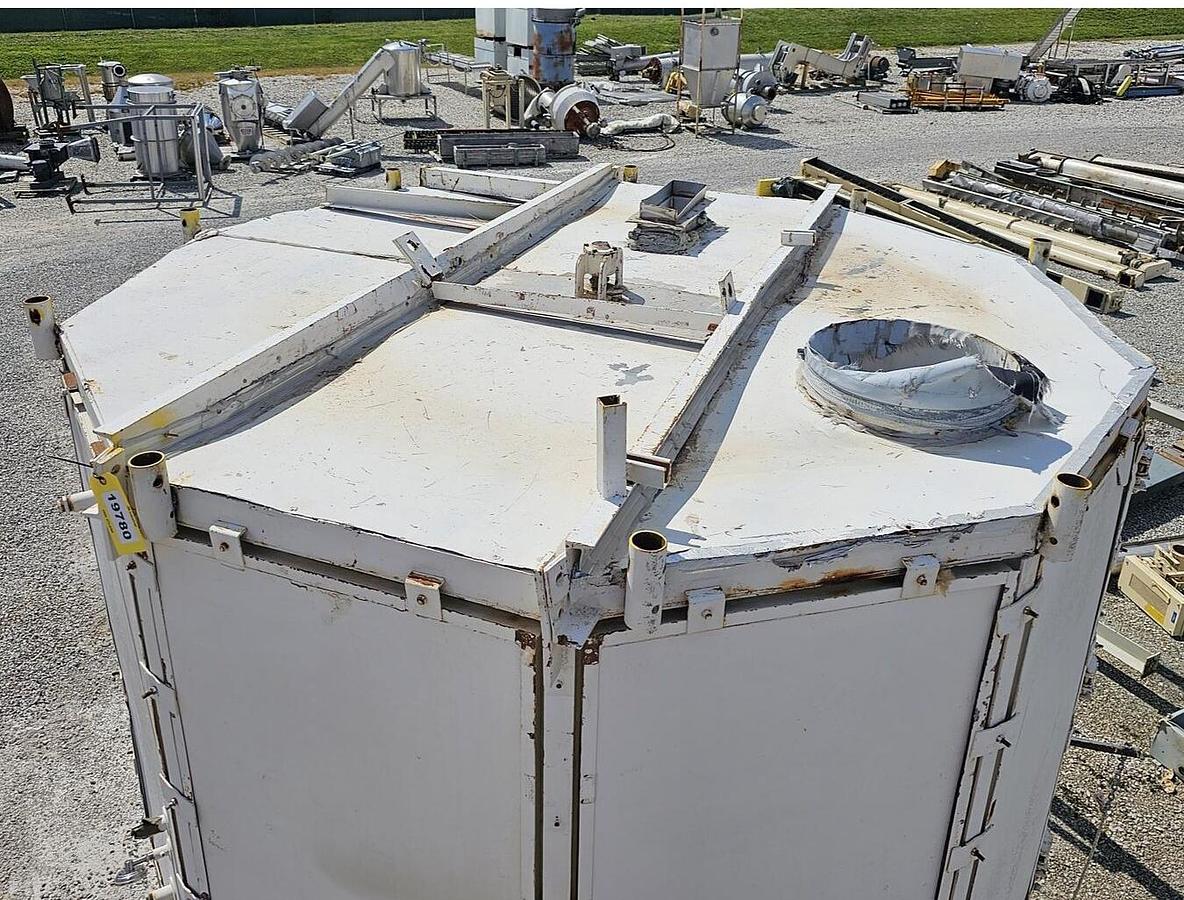

| Drying Air Outlet (Roof) | 18” diameter opening @ 14’-2” elevation |

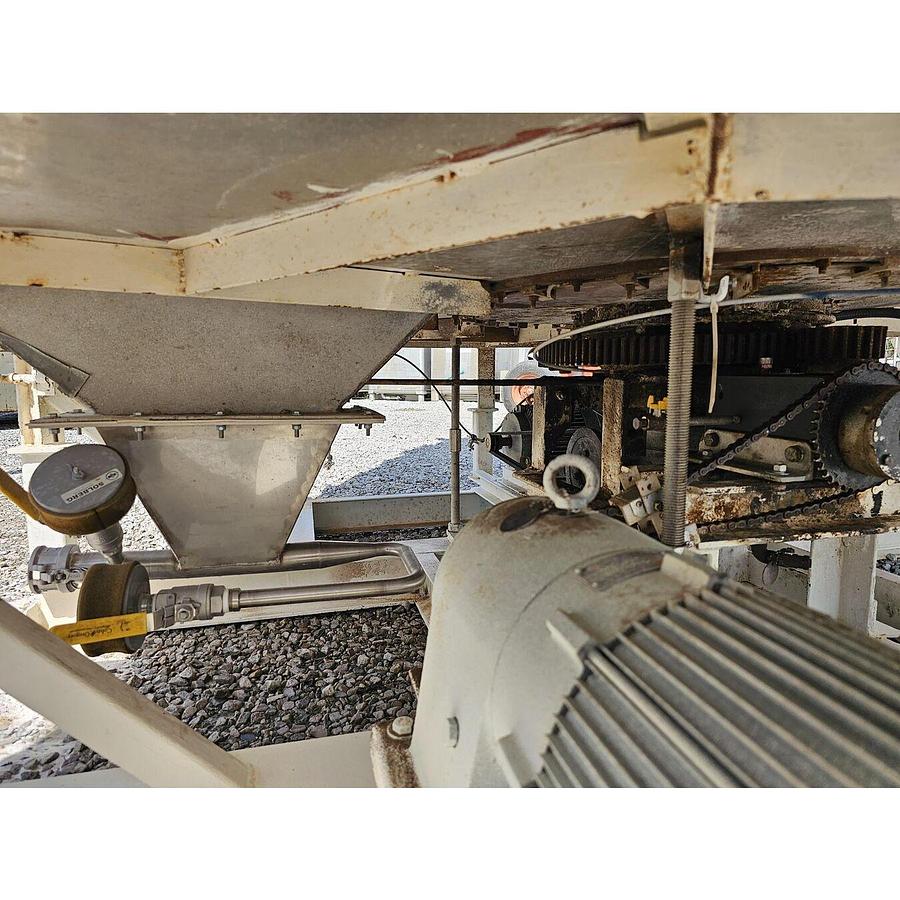

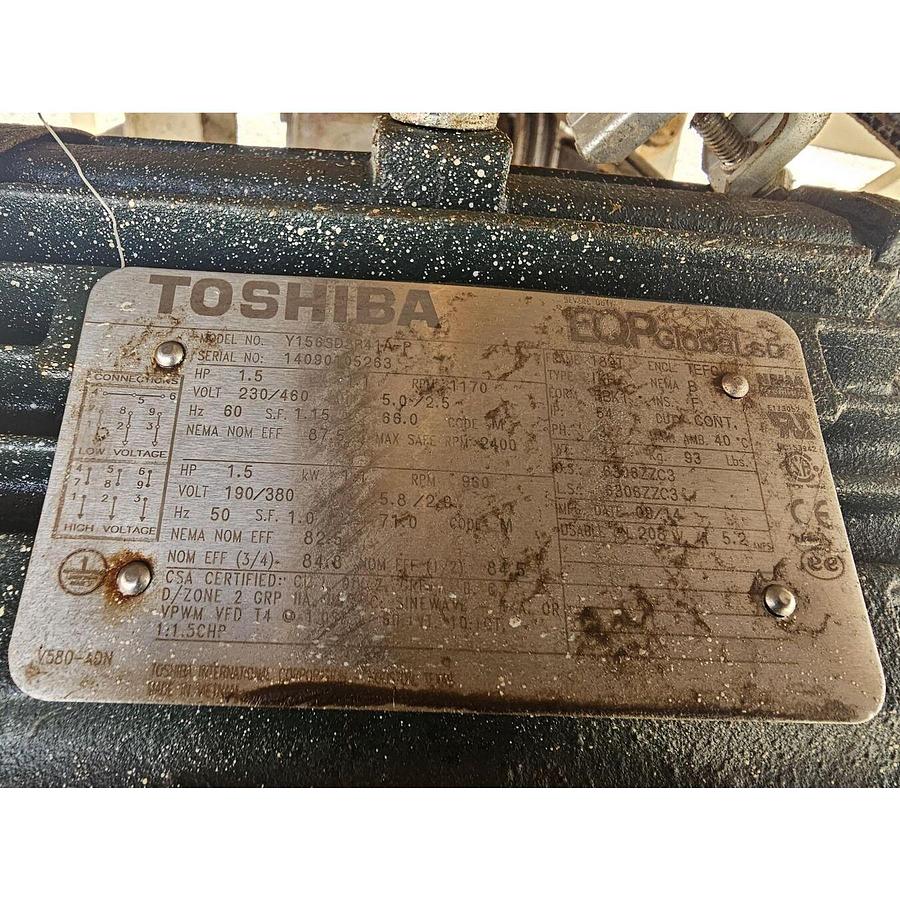

| Turbo Fan Drive | 1.5 HP, 230/460V, 60Hz, 3Ph |

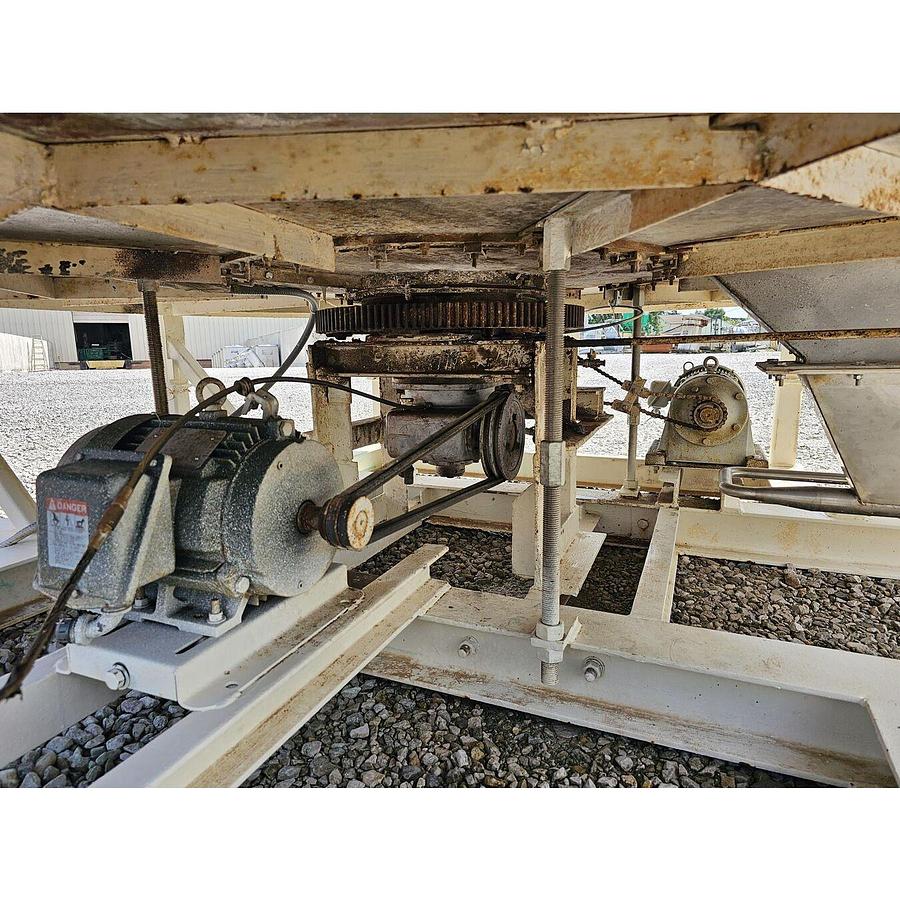

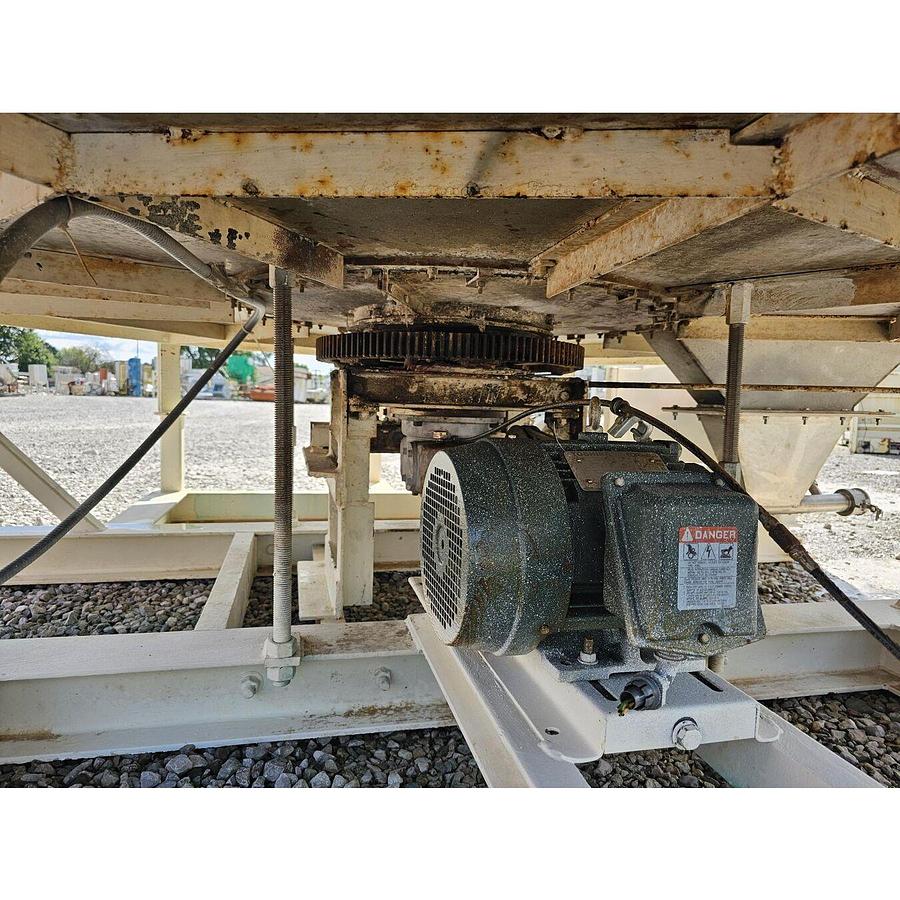

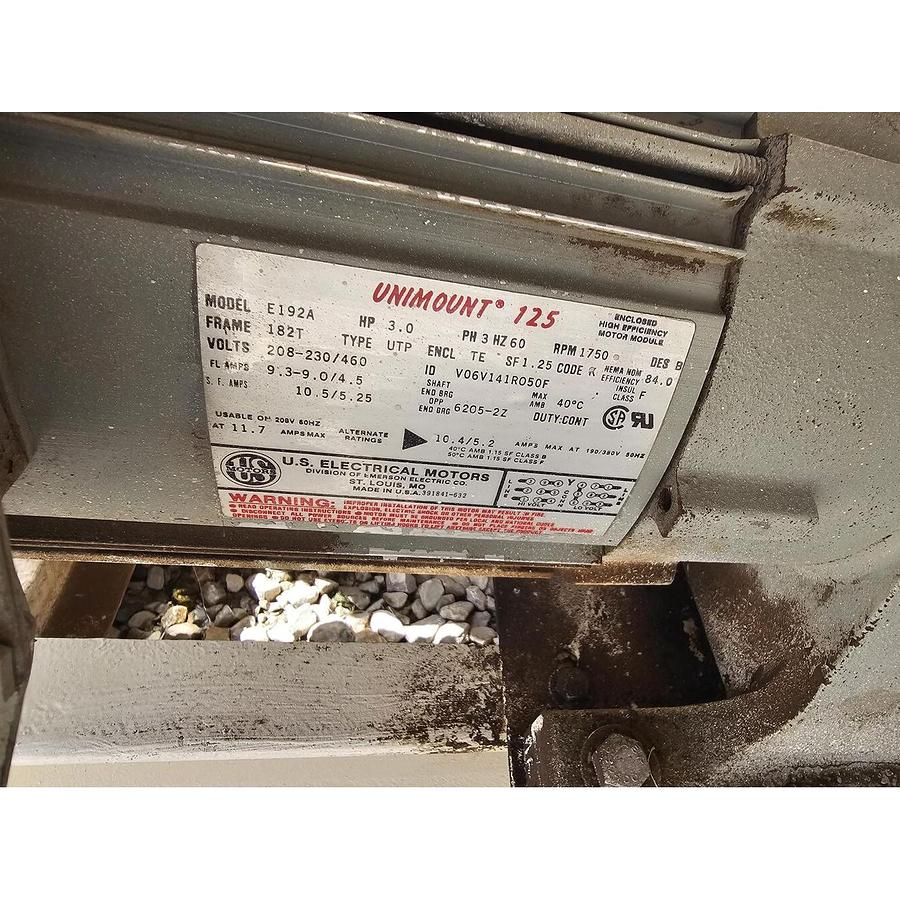

| Tray Drive Motor | 3 HP, 230/460V, 60Hz, 3Ph |
| Includes | Stainless steel air inlet header with dampers |
| Basis | As Is, Where is |
General Information
Wyssmont Company, Inc. specializes in continuous rotary tray drying systems known as Turbo-Dryers®, engineered for high-quality, uniform drying of sensitive products. Their dryers are used globally across food, chemical, pharmaceutical, and mineral industries, offering reliability, efficiency, and scalability for a wide range of materials.
