Liquifier Tank, 400 Gallon, Breddo, Likwifier, Stainless Steel, 40 HP, #5991618
Liquifier Tank, 400 Gallon, Breddo, Likwifier, Stainless Steel, 40 HP, #5991618
Location:American Canyon, CA
Available quantity:1
Description

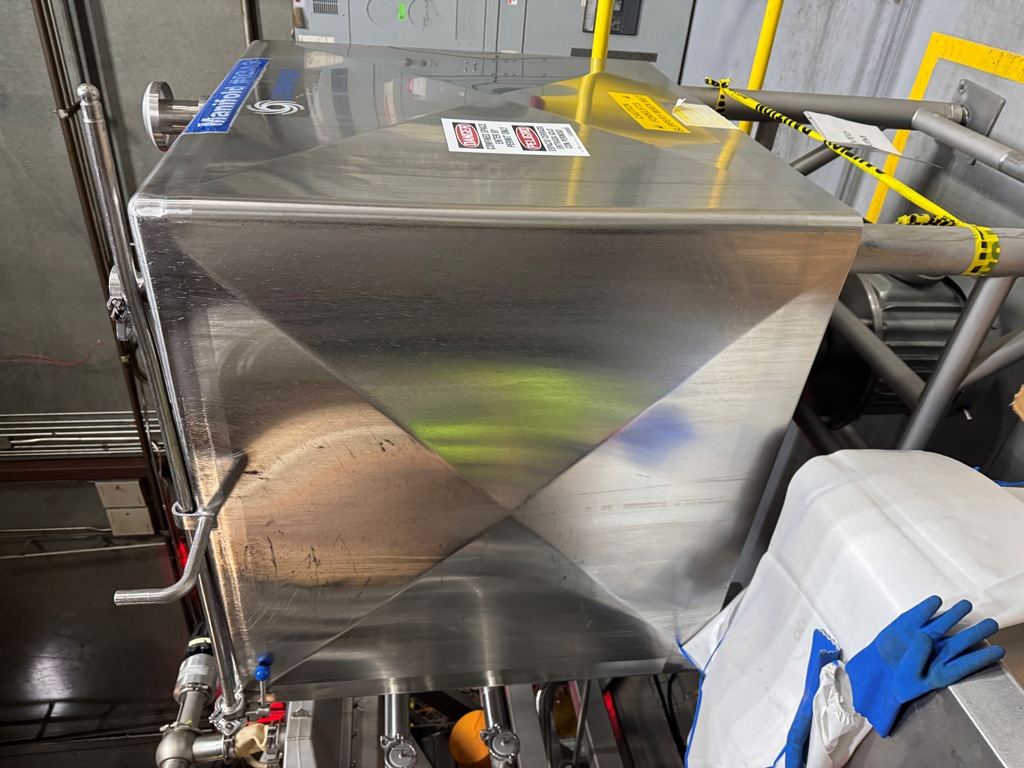

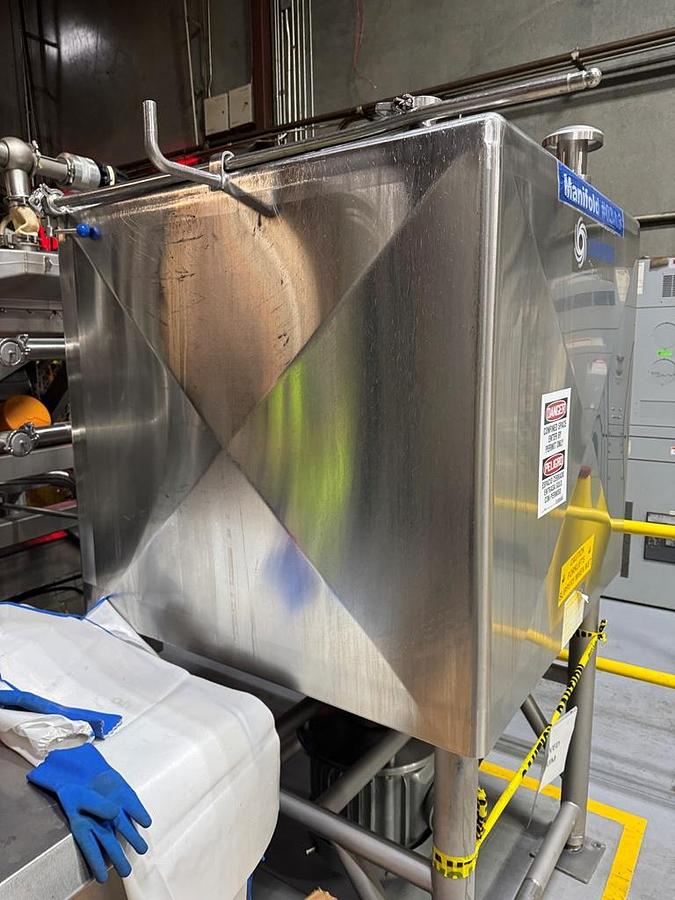

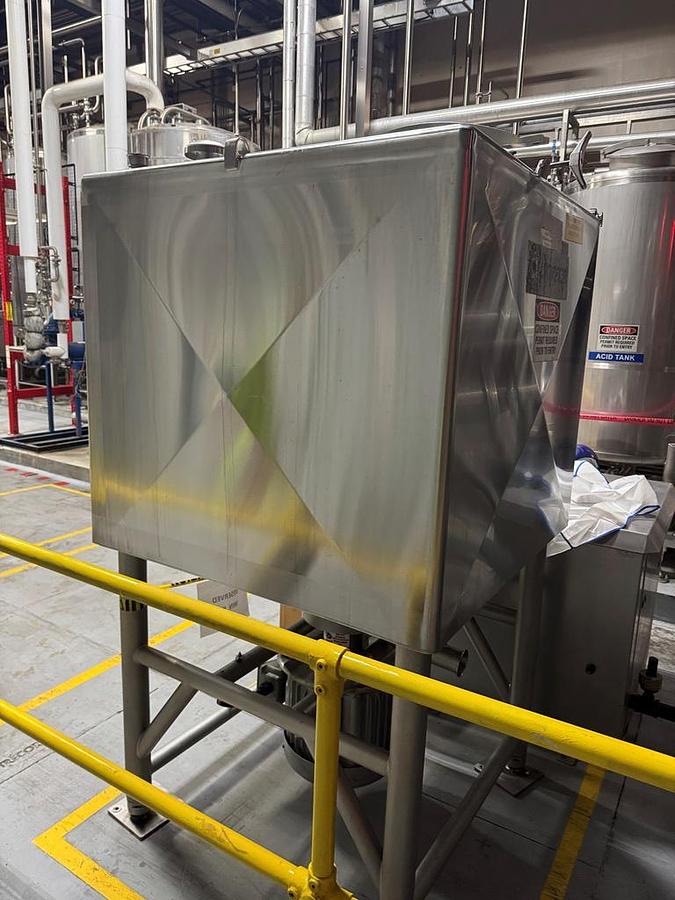

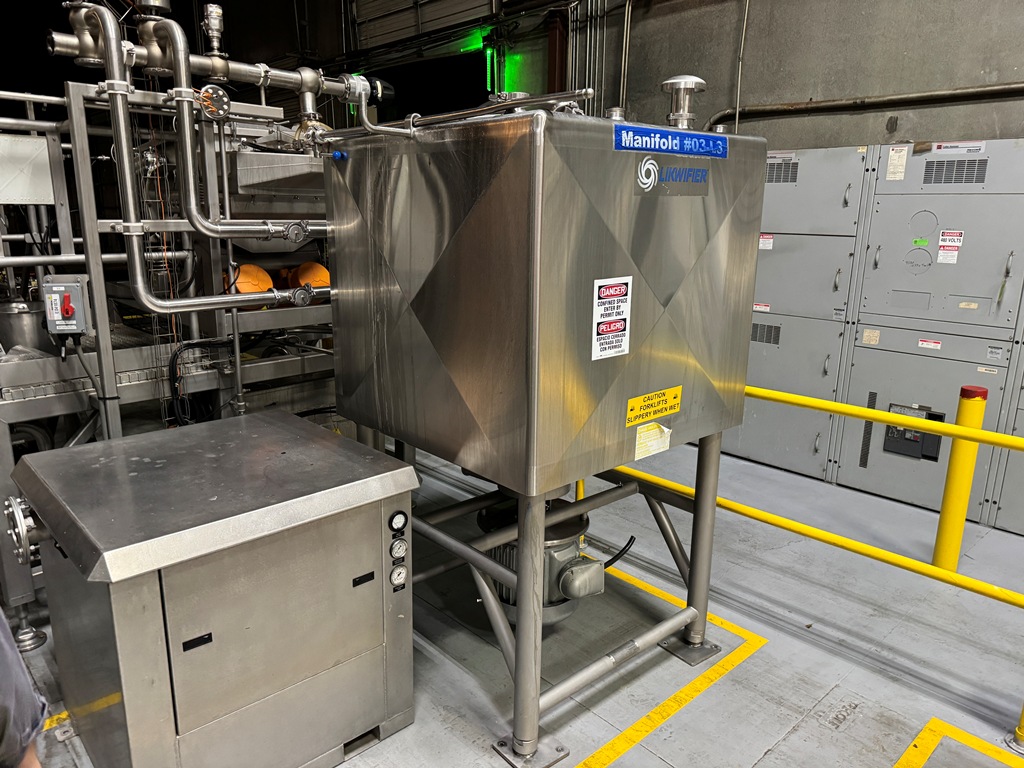

400-gallon Breddo Likwifier, Model LDT 400, Serial No. 178125. Rectangular stainless steel liquifier tank measuring approximately 48" x 48" x 42" deep, with cone bottom and stainless steel support legs. Equipped with a 40 HP bottom-mounted drive and Breddo high-shear mixing head for rapid dispersion and emulsification. Features sanitary top lid with clamps, CIP piping, and integration to blending manifold. Mounted on elevated blending platform with access steps and control interface.
Specifications
| Stock Number | 5991618 |
| Manufacturer | Breddo |
| Model | LDT 400 |
| Gallons | 400 |
| Dimensions | Approx. 48" x 48" x 42" deep |
| Motor | 40 HP, 1765 RPM, 230/460V, 3 Phase |
| Materials of Construction | Stainless steel, rectangular configuration |
| Bottom Drive | Breddo Likwifier high-shear mixing head |
| Mounting | Stainless steel legs with cone bottom |
| Top Access | Hinged sanitary lid with clamp closure |
| Connections | CIP manifold and process piping |
| Electrical | 230/460V, 3-phase |
| Basis | As-is, Where-is |
General Information
Breddo Likwifiers are widely used for high-shear mixing, emulsifying, and dissolving dry or concentrated ingredients into liquids. The sanitary design and powerful bottom-driven mixing head make this unit ideal for beverage, syrup, or tea-blending operations requiring uniform dispersion and batch consistency.
