Tank, 9,000 Gallon, Feldmeier, Agitated, Stainless Steel, Cone Bottom, Qty 3, #5991617
Tank, 9,000 Gallon, Feldmeier, Agitated, Stainless Steel, Cone Bottom, Qty 3, #5991617
Location:American Canyon, CA
Available quantity:3
Description

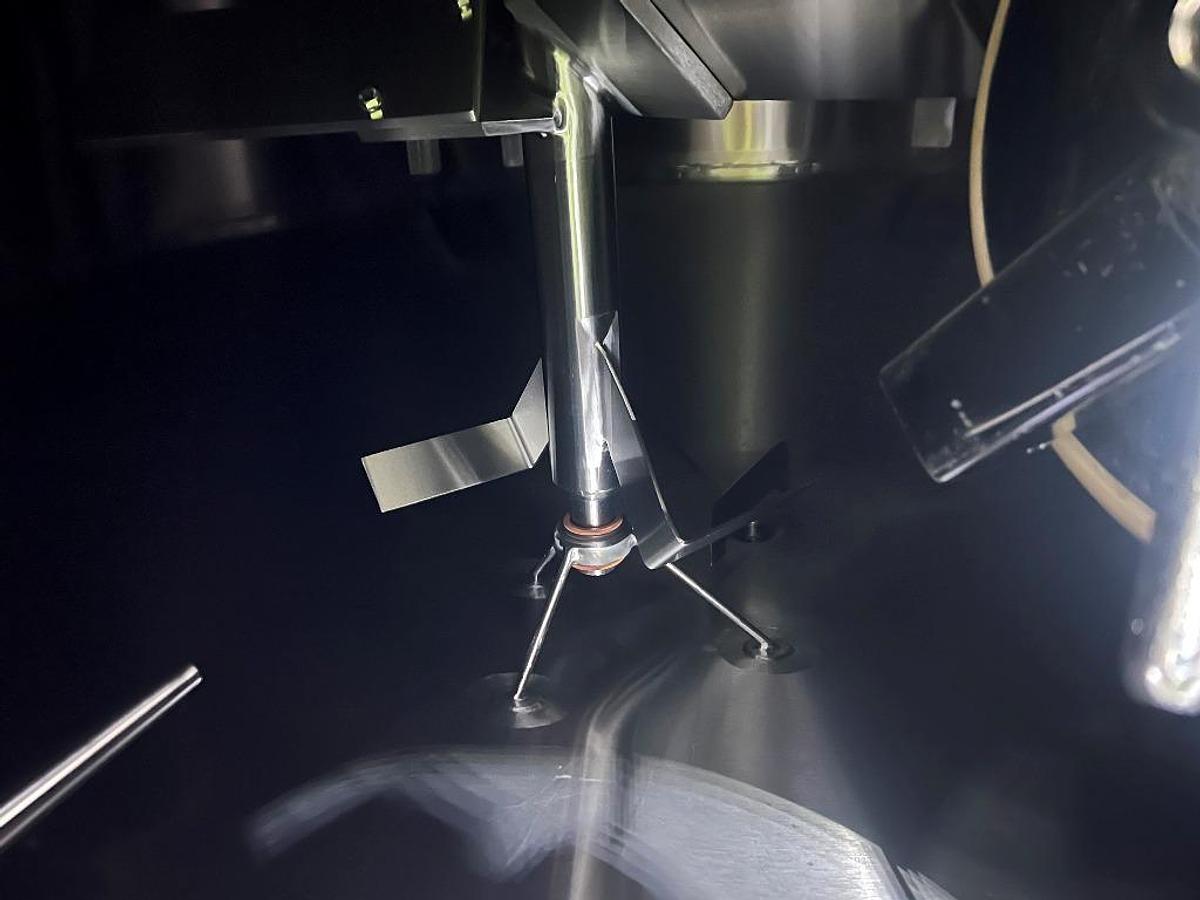

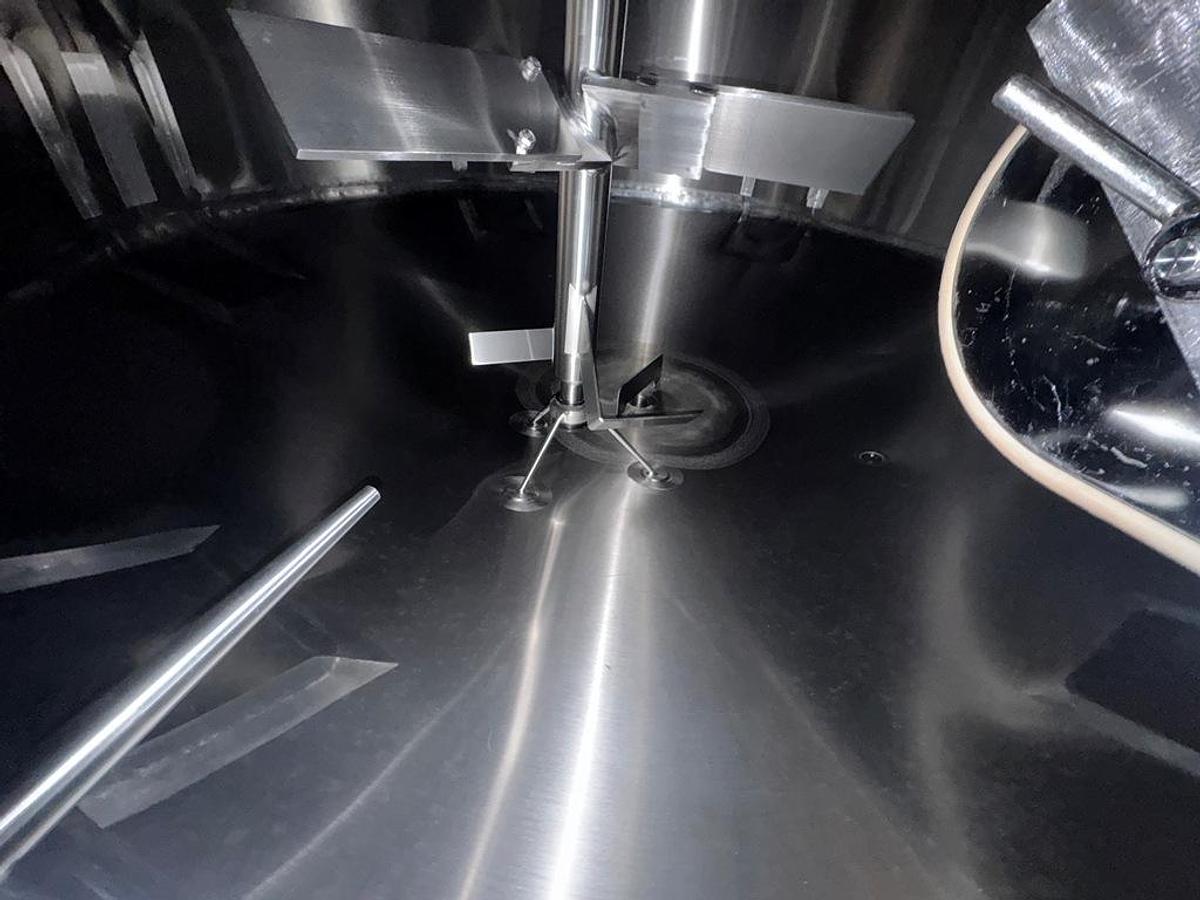

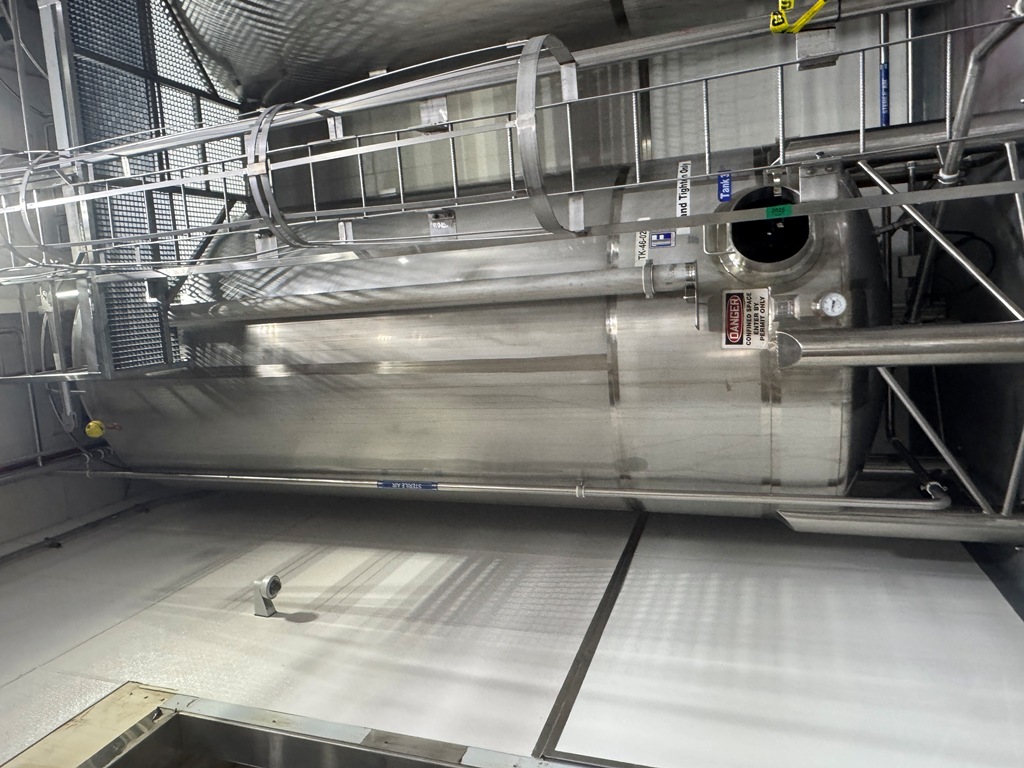

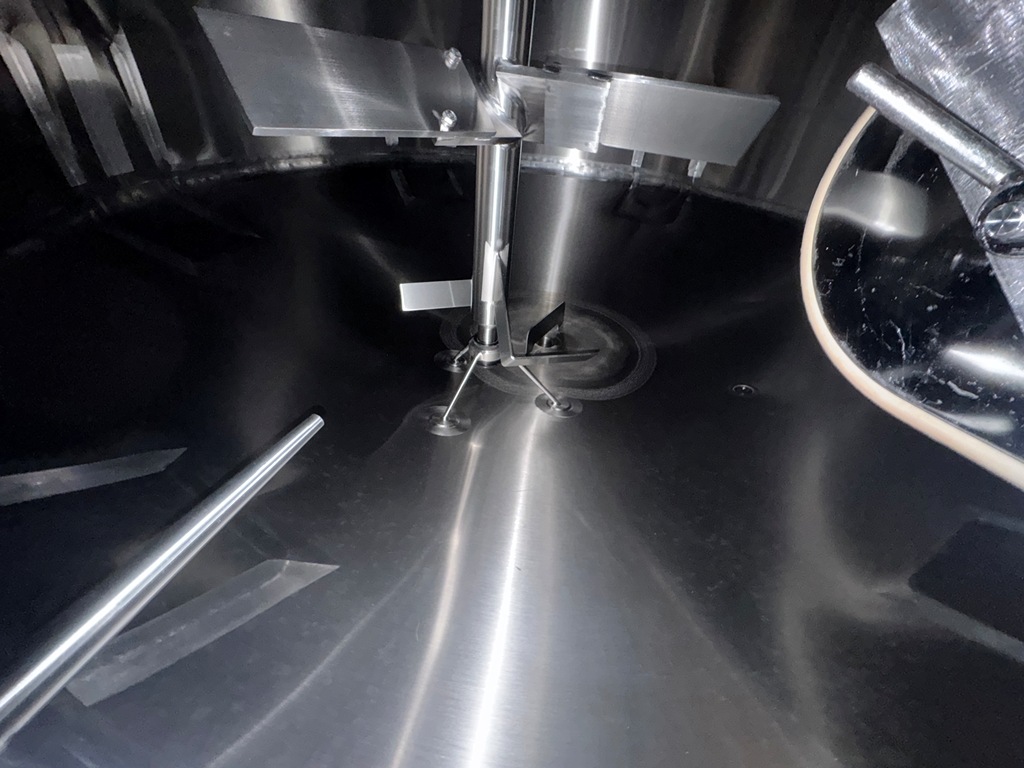

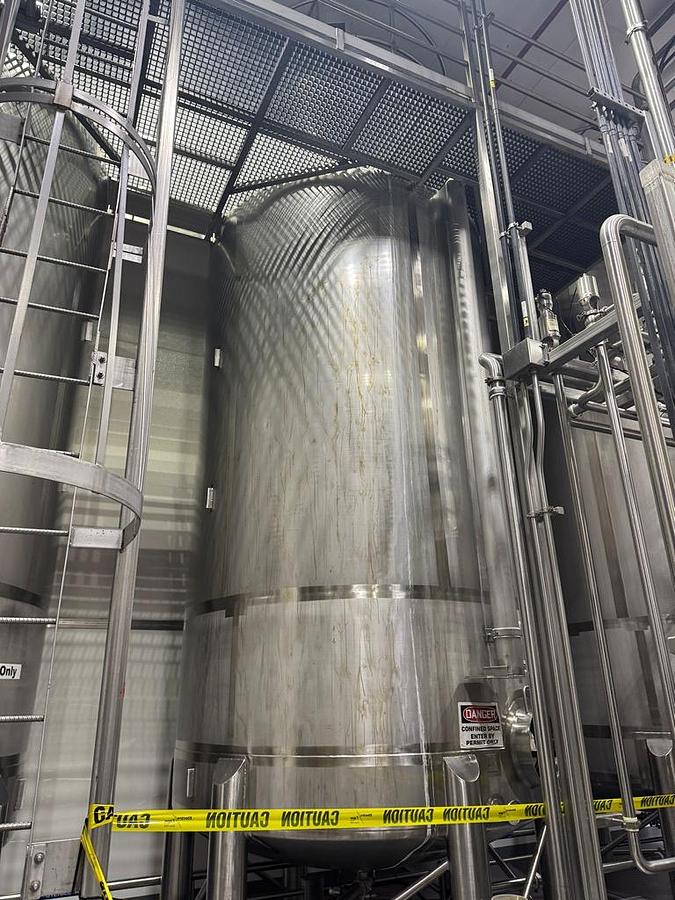

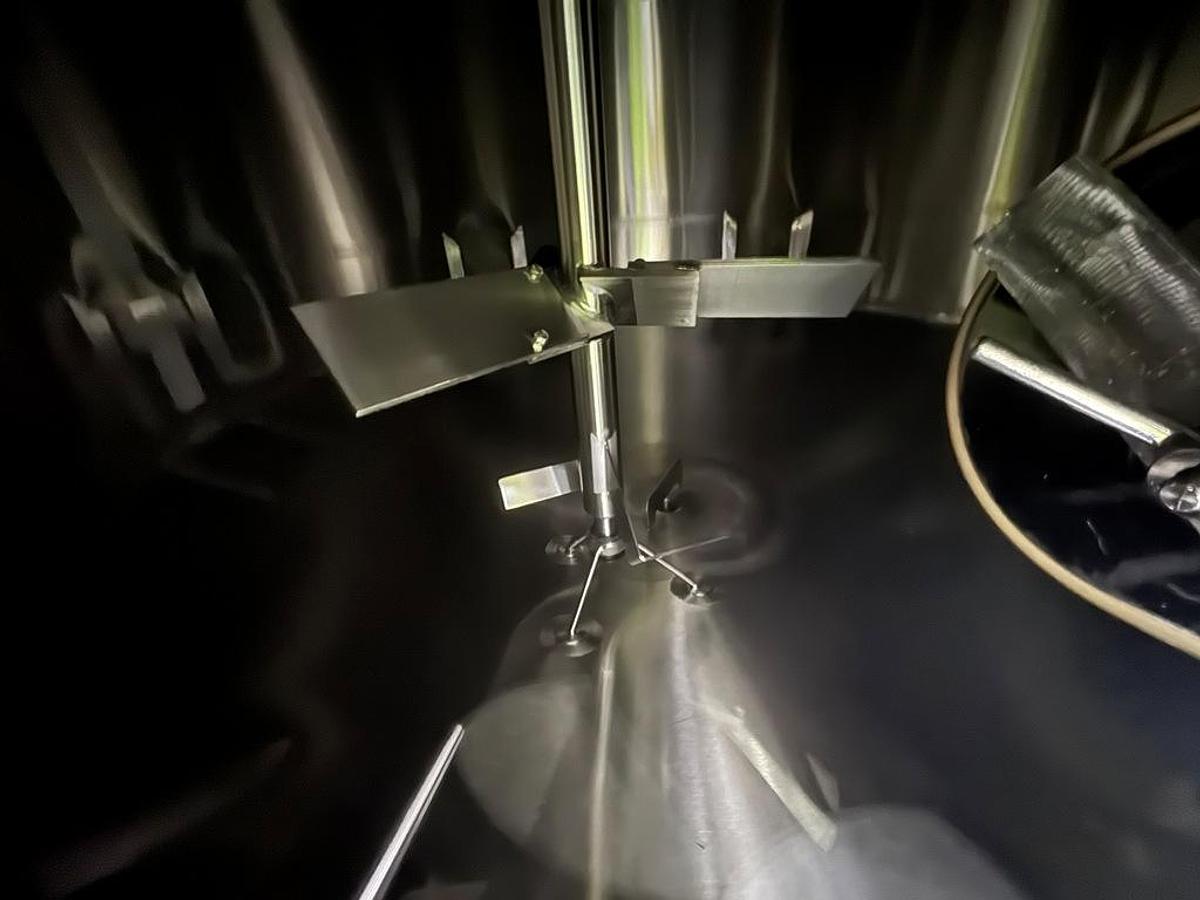

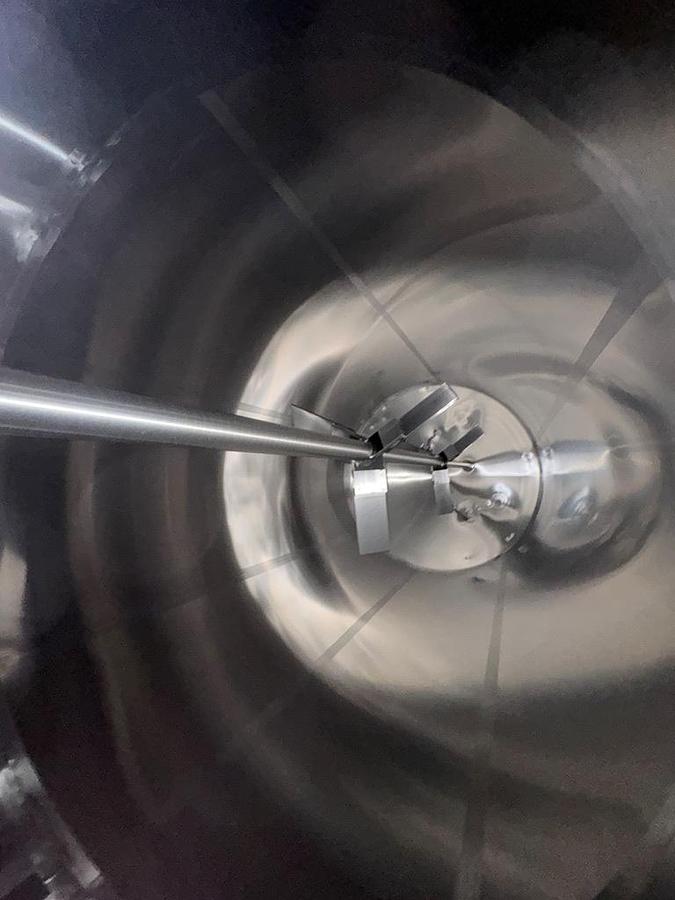

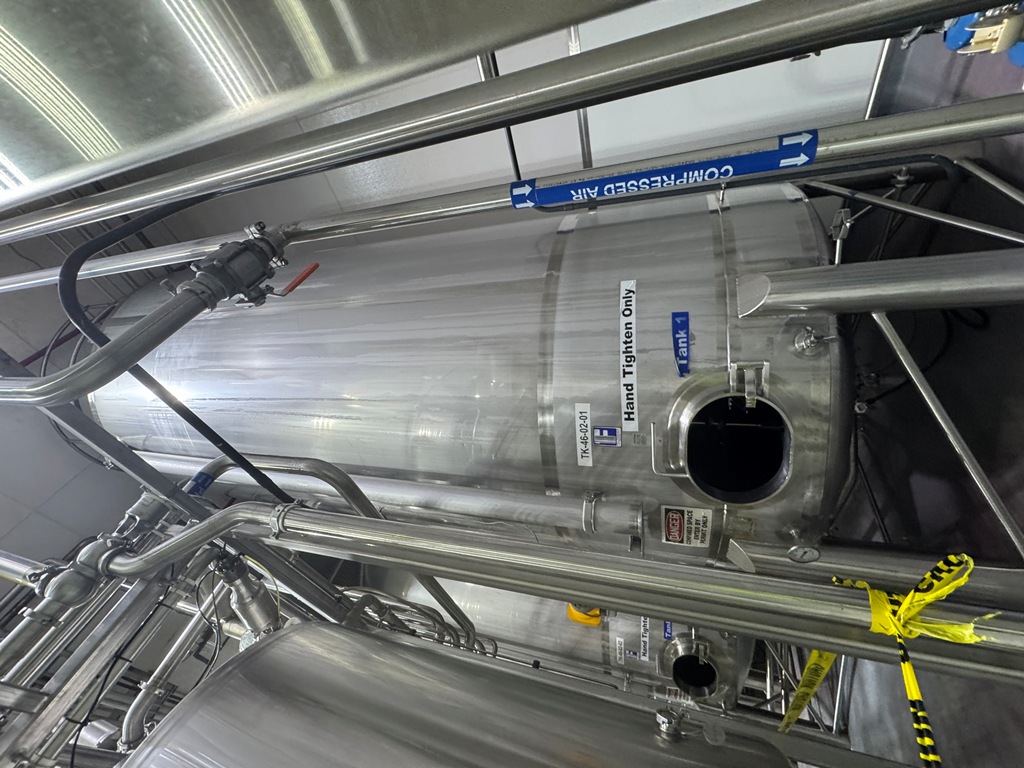

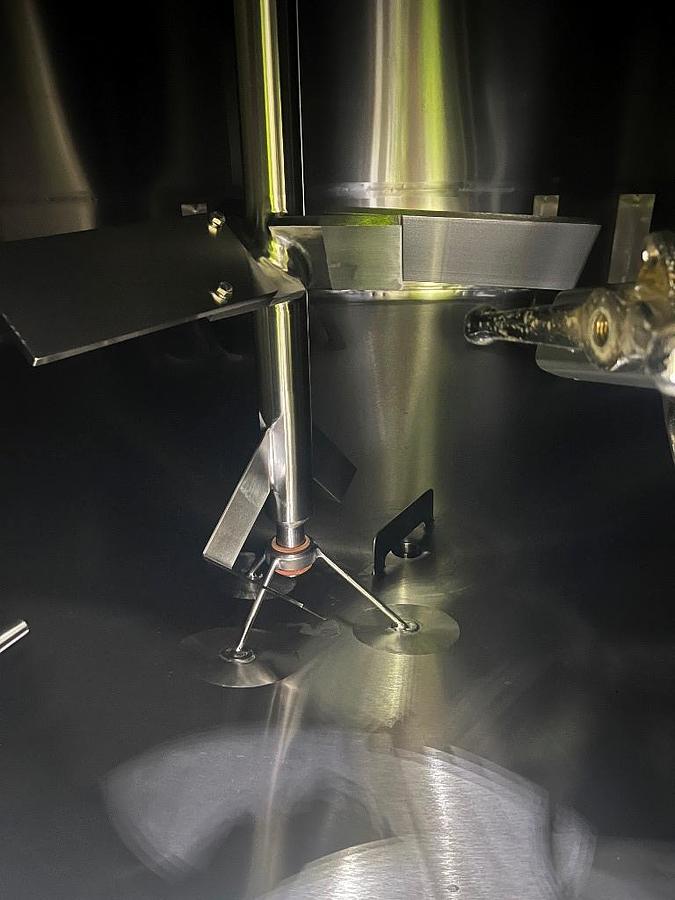

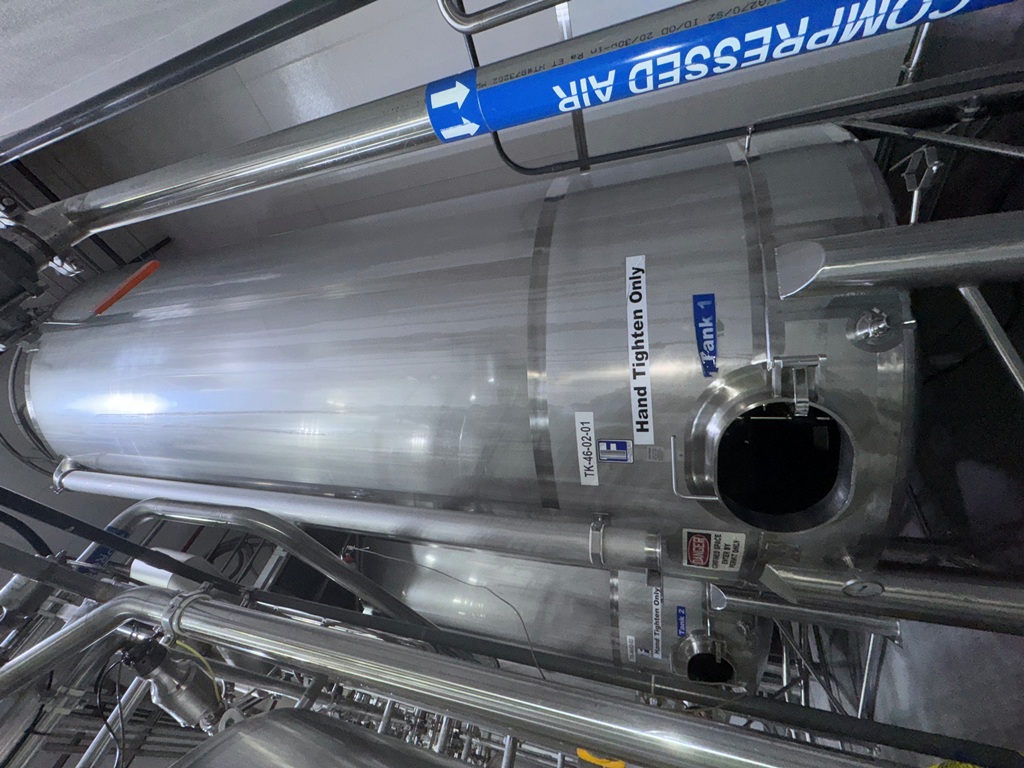

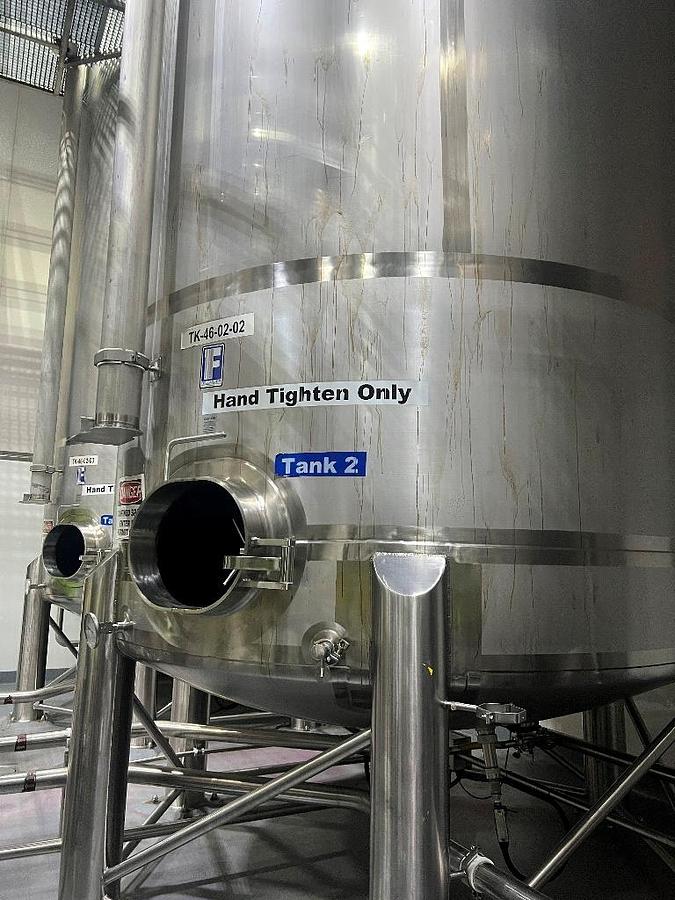

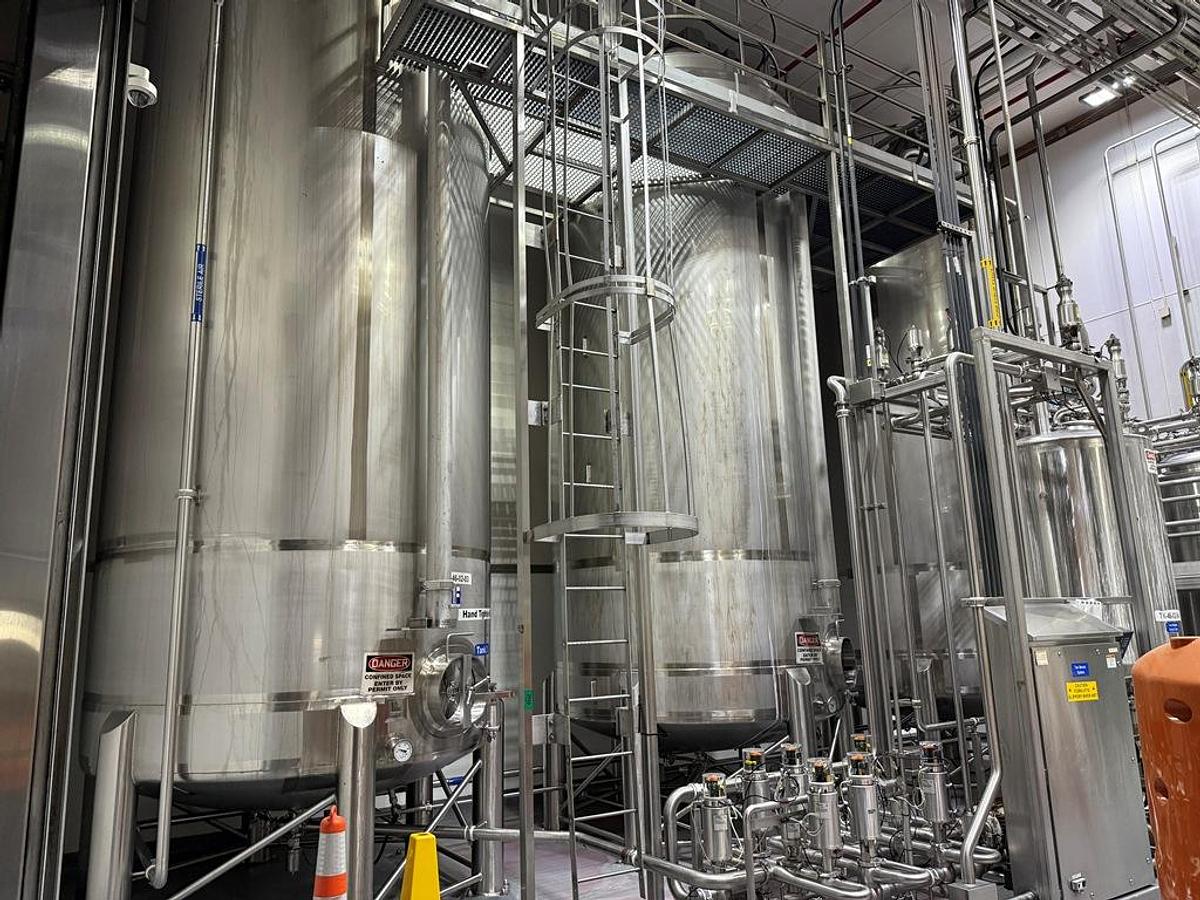

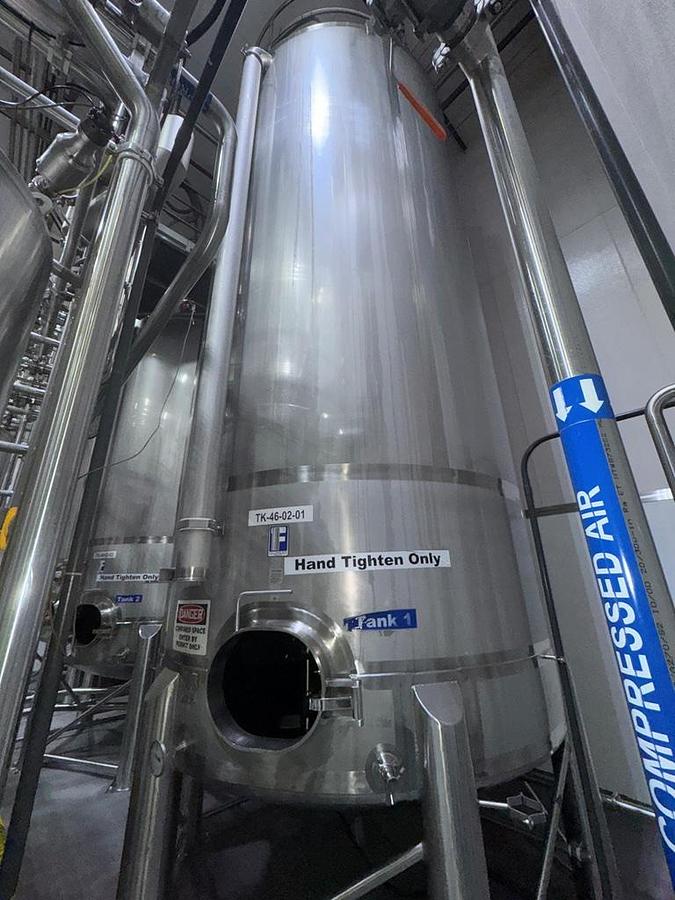

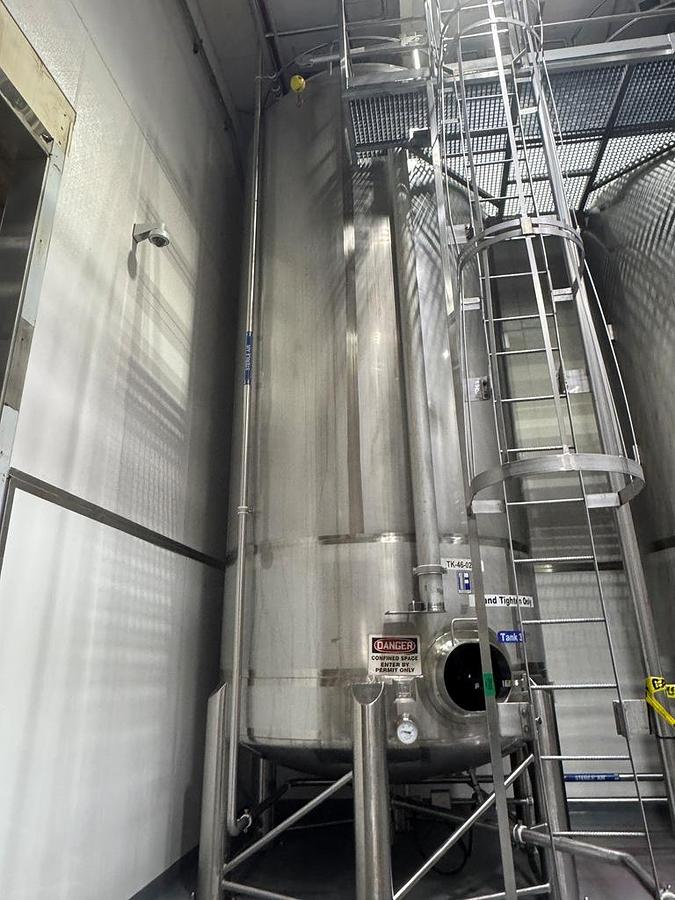

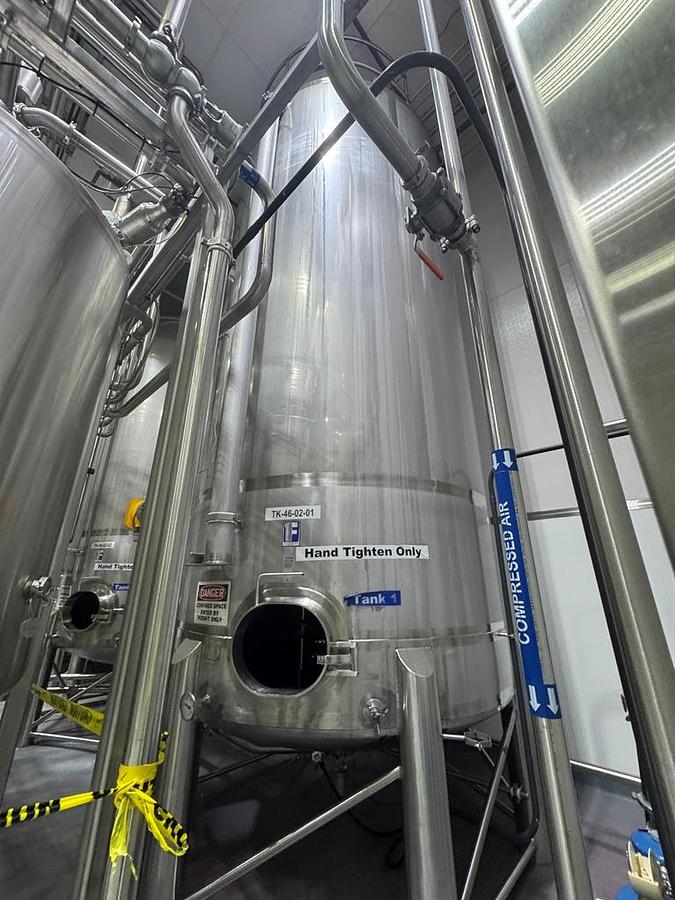

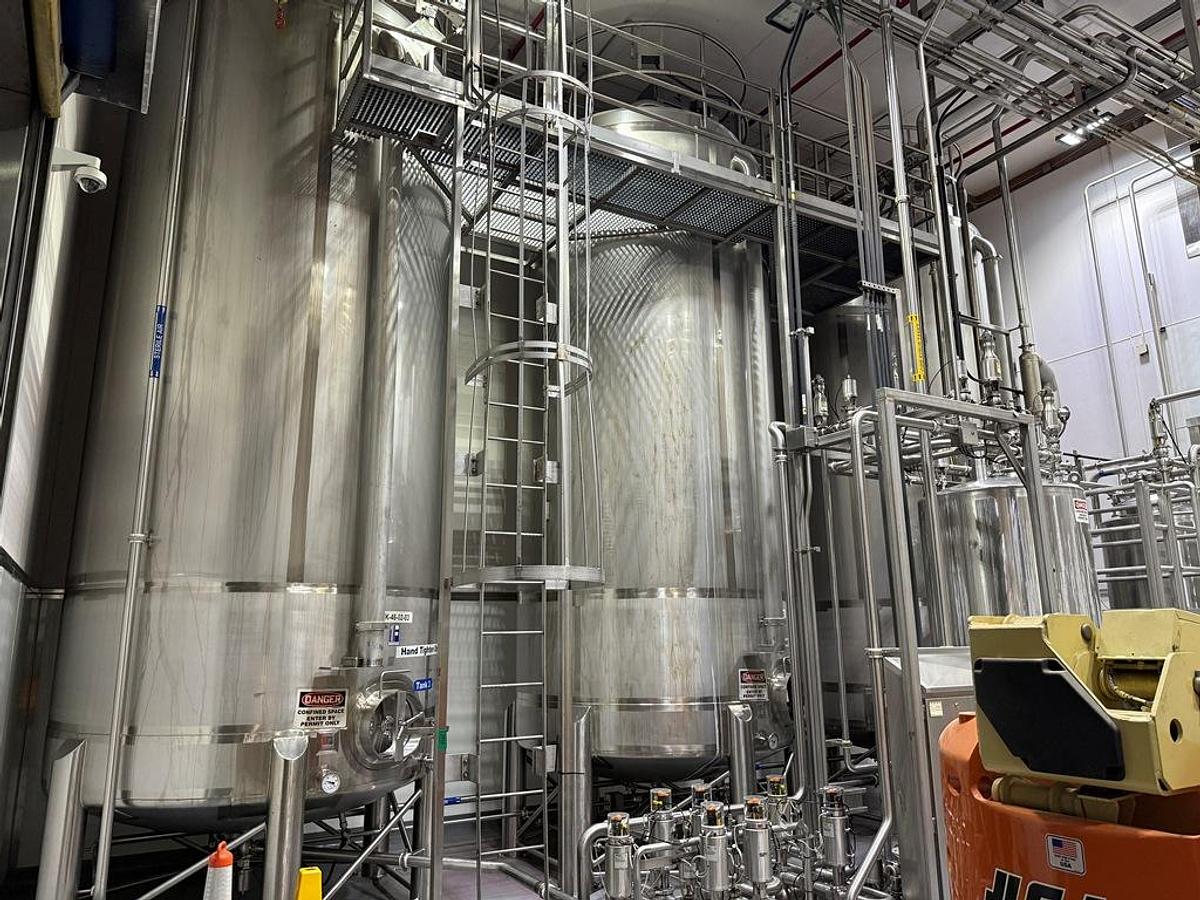

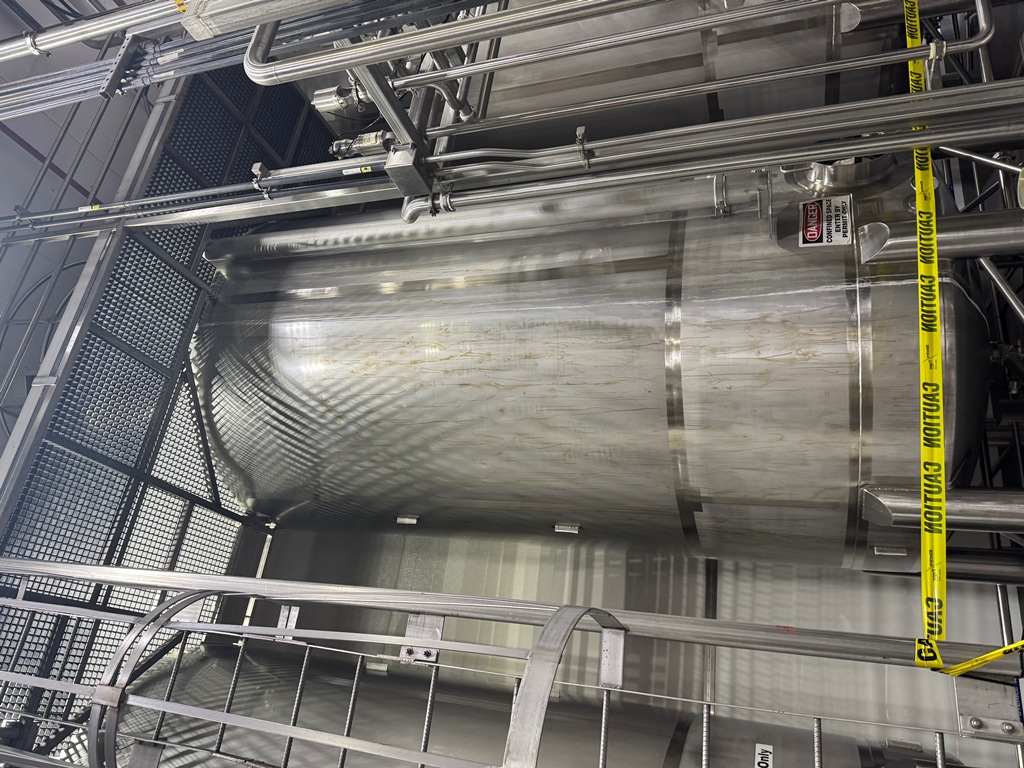

(3) 9,000-gallon Feldmeier stainless steel top-agitated insulated mixing tanks, approximately 8′ external diameter (≈7′6″ internal) × 20′ straight side with cone bottom. Each tank features a top-mounted agitator with dual-blade impeller, internal baffles, and sanitary manway with swing-bolt closure. Constructed of polished stainless steel with fully insulated shell, CIP spray ball fittings, and mounted on heavy-duty stainless steel legs for floor clearance and full drainage. Designed for beverage or syrup blending within a sanitary production environment.
Specifications
| Stock Number | 5991617 |
| Manufacturer | Feldmeier |
| Year | 2006 |

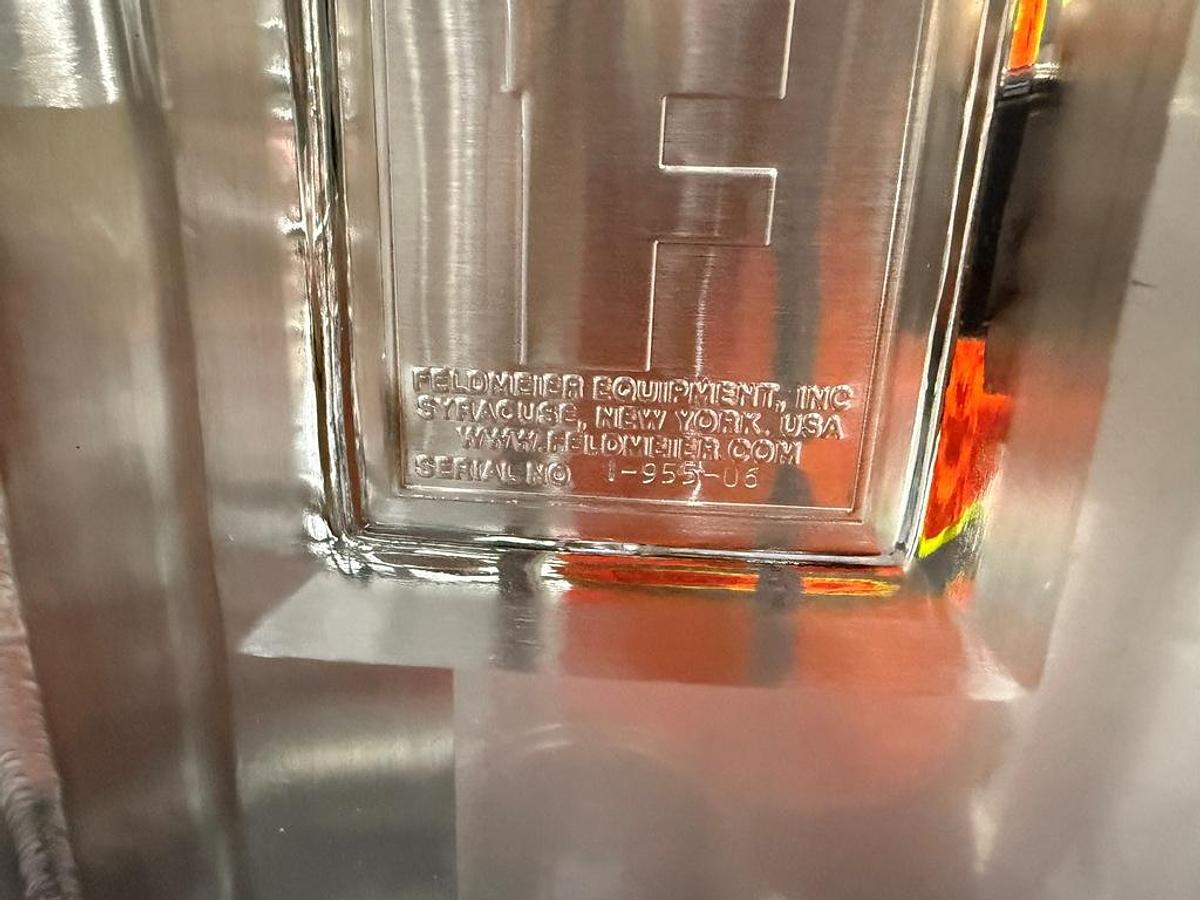

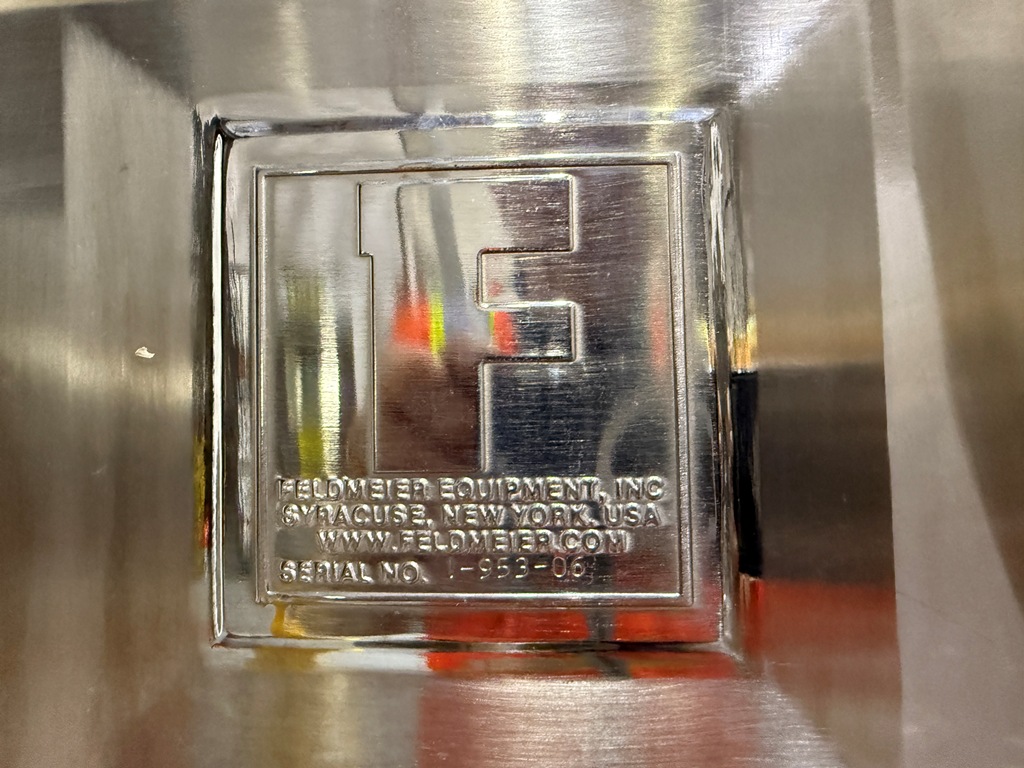

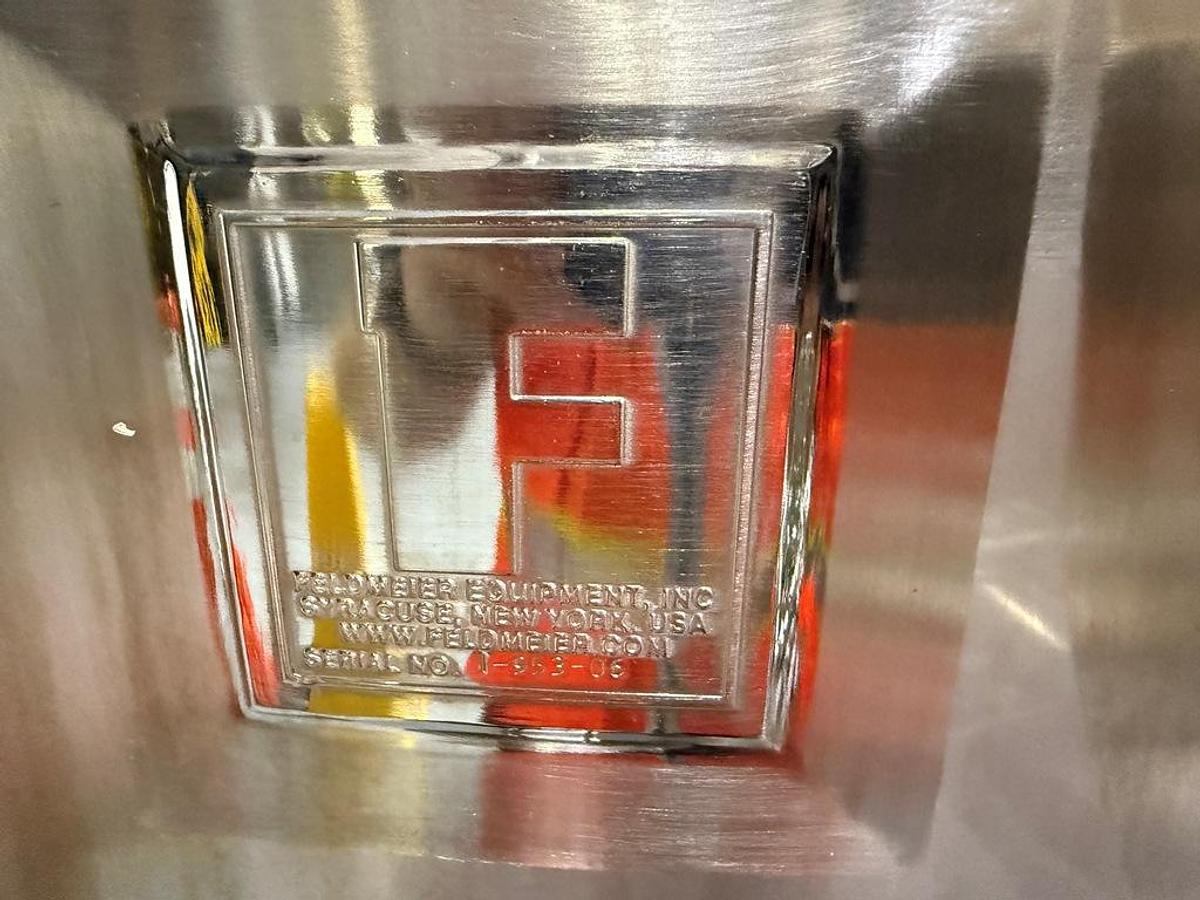

| Serial Number | 1-953-06, 1-954-06, 1-955-06 |
| Gallons | 9,000 Each |
| Dimensions | Approx. 8′ external dia. × 20′ straight side, cone bottom |

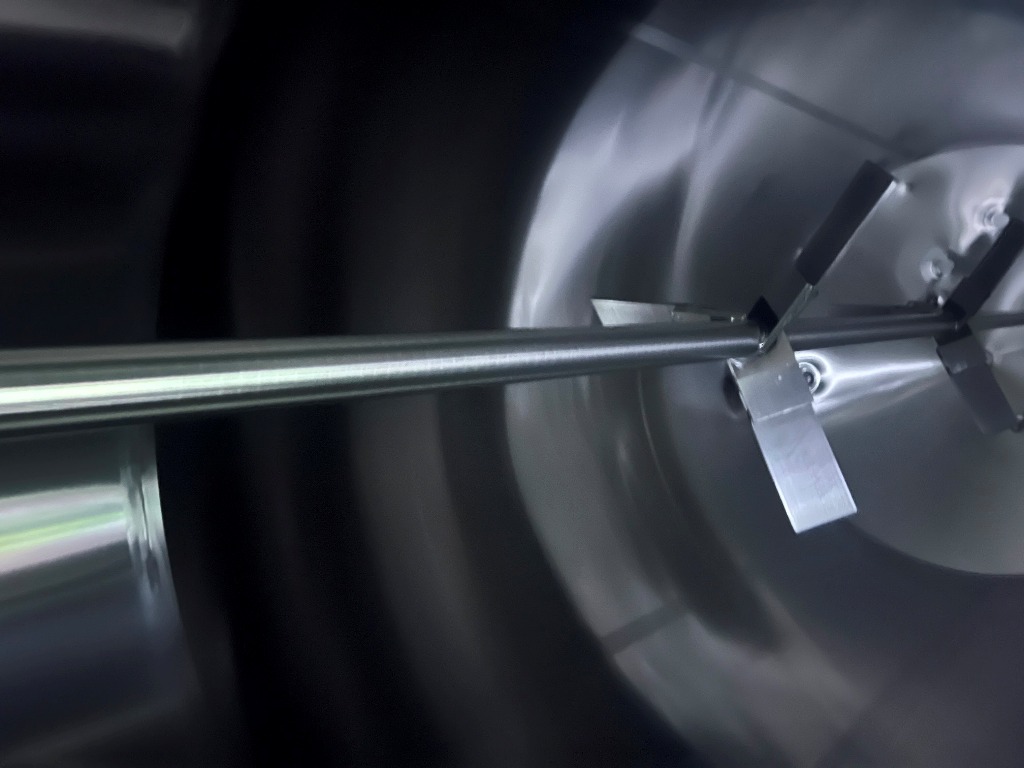

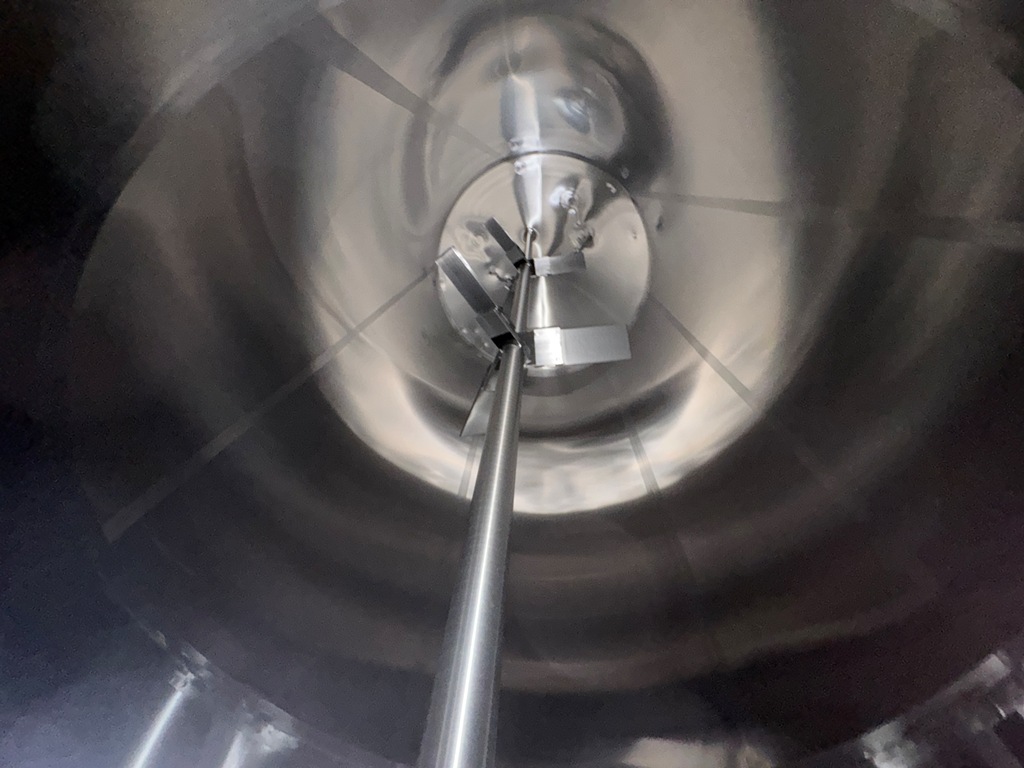

| Agitation | Top-mounted mixer with dual-blade impeller and internal baffles |
| Mounting | Stainless steel legs with cone bottom |

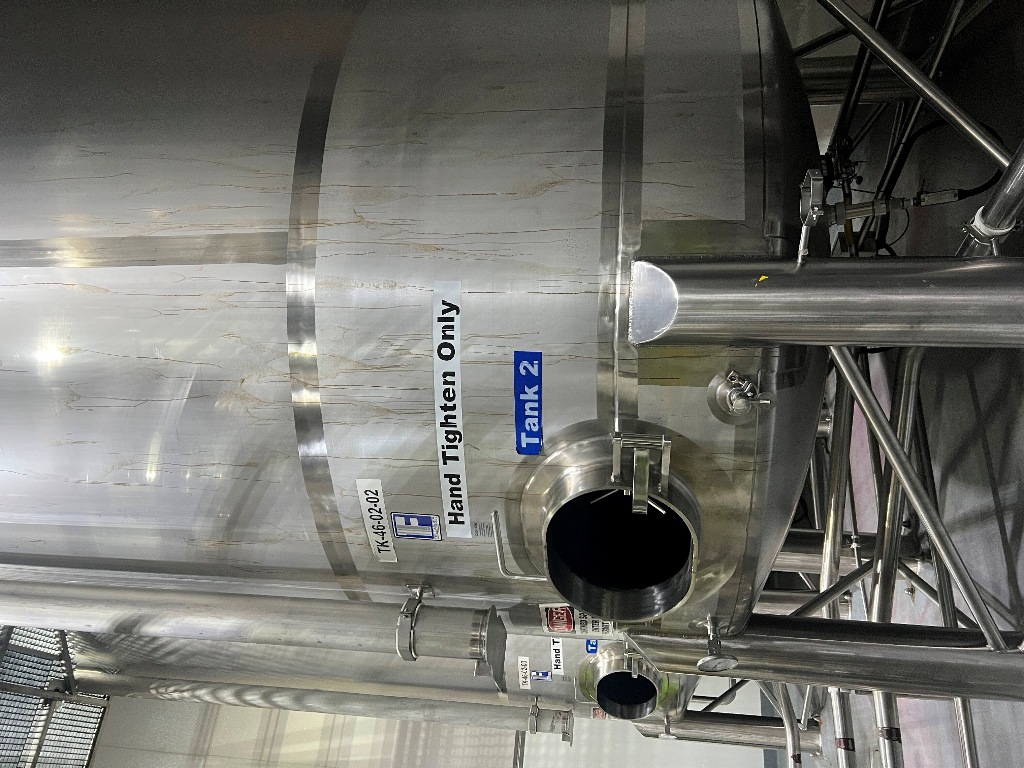

| Manway | Hinged swing-bolt closure |
| Materials of Construction | Insulated, polished stainless steel exterior |
| Connections | Sanitary process nozzles with CIP spray ball ports |
| Year Built | 2006 |
| Basis | As-is, Where-is |
General Information
Feldmeier insulated mixing tanks are widely used in beverage and syrup production for their reliable temperature control and efficient product agitation. The tall, cone-bottom configuration provides uniform blending, easy CIP access, and full product drainage—ideal for large-batch tea, juice, or sugar-blend operations in a sanitary process environment.
