Liquifier Tank, 400 Gallon, Breddo, Likwifier, Stainless Steel, 40 HP, #5991616
Liquifier Tank, 400 Gallon, Breddo, Likwifier, Stainless Steel, 40 HP, #5991616
Location:American Canyon, CA
Available quantity:1
Description

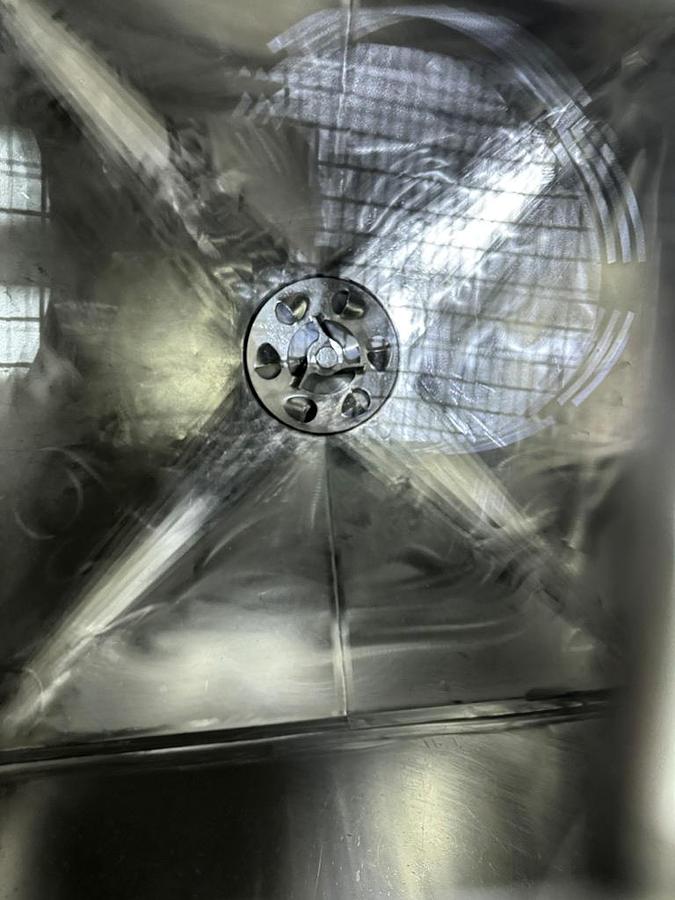

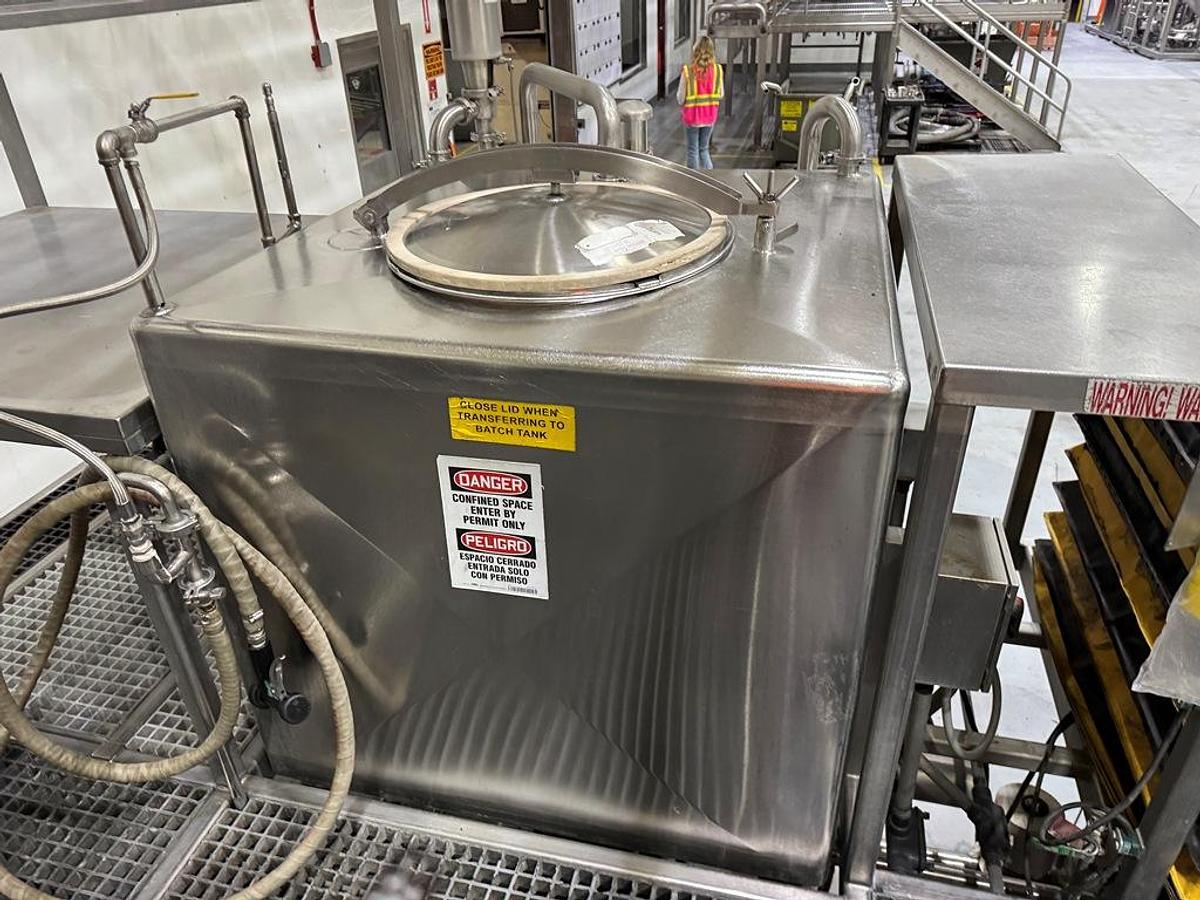

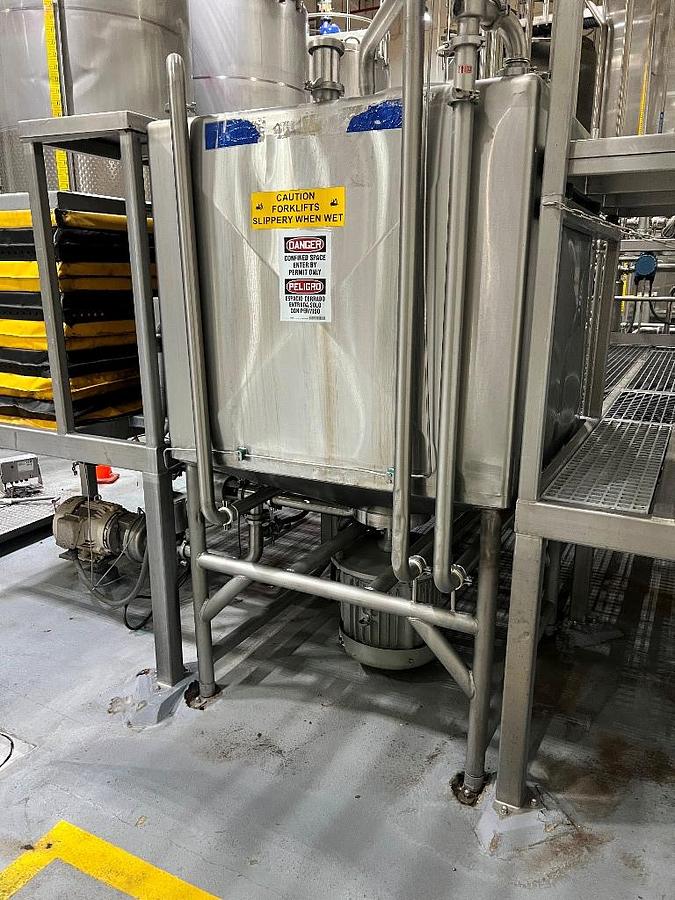

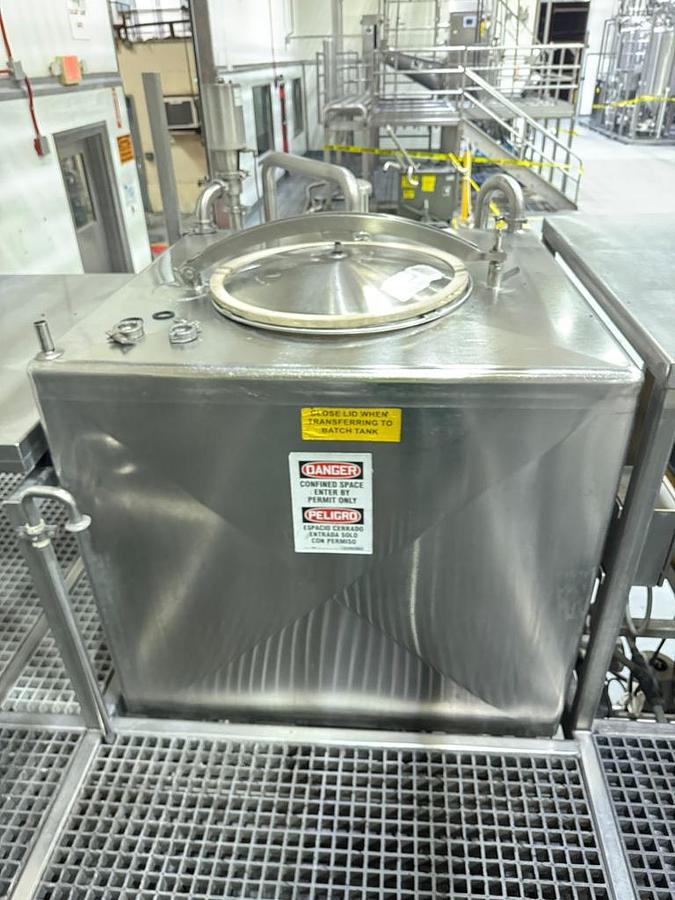

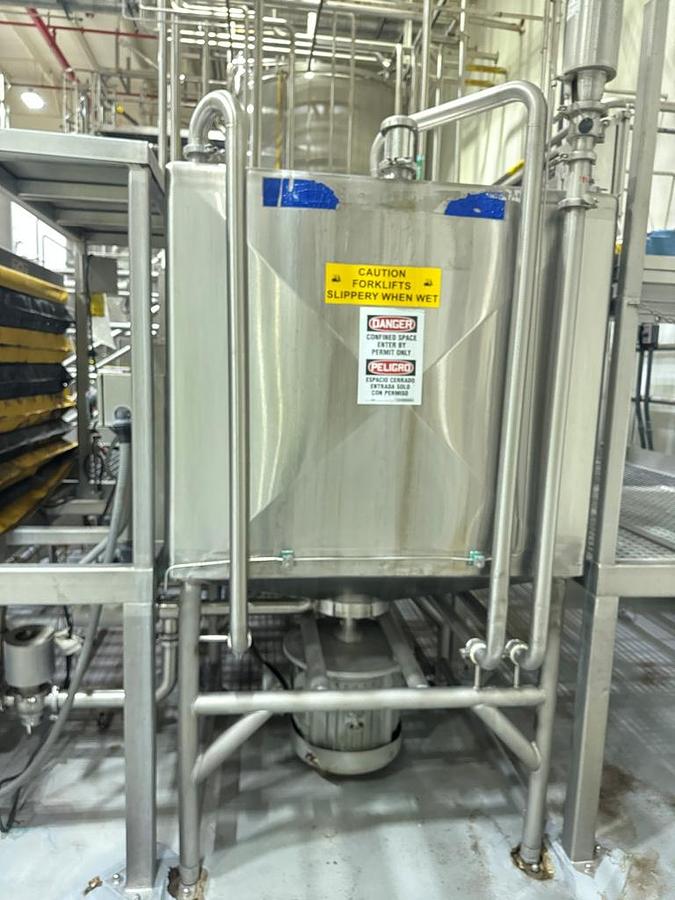

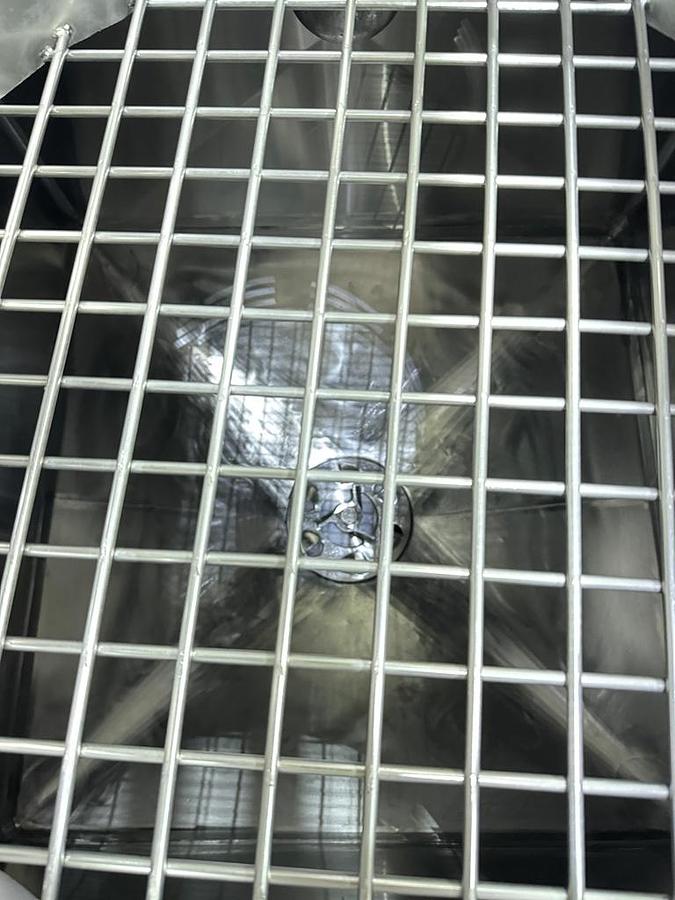

400-gallon Breddo Likwifier, Model LDT 400, Serial No. D-519326. Rectangular stainless steel liquifier tank measuring approximately 48" x 48" x 42" deep, with cone bottom and stainless steel legs. Equipped with a 40 HP bottom-mounted motor and high-shear Breddo mixing head for rapid dissolution and blending of dry or concentrated ingredients. Includes sanitary top opening with hinged clamp lid, internal mixing chamber, and CIP-compatible piping connections. Mounted on elevated blending platform with integrated process manifold.
Specifications
| Stock Number | 5991616 |
| Manufacturer | Breddo |
| Model | LDT 400 |
| Year | 2016 |
| Serial Number | D-519326 |
| Gallons | 400 |
| Dimensions | Approx. 48" x 48" x 42" deep |

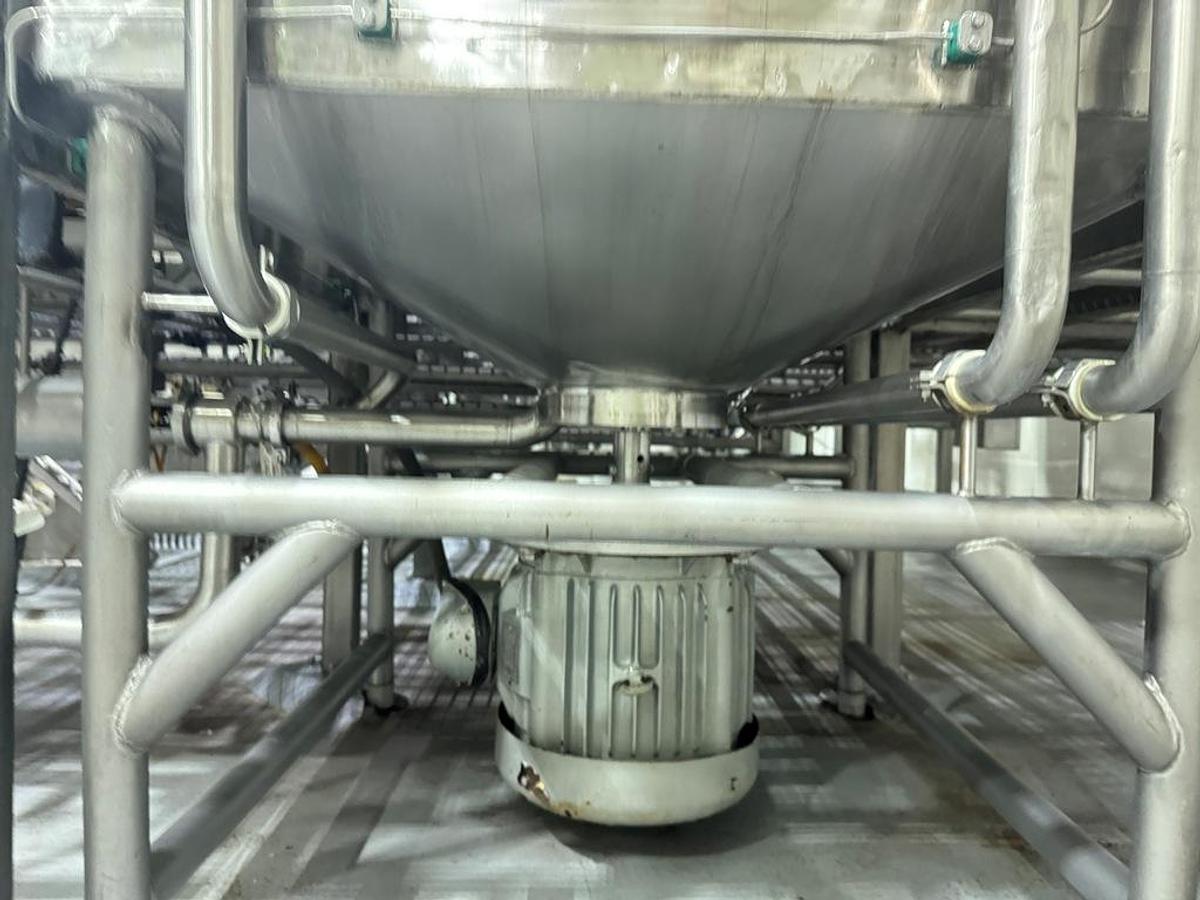

| Motor | 40 HP, 1765 RPM, 230/460V, 3 Phase |
| Materials of Construction | Stainless steel, rectangular configuration |
| Bottom Drive | Breddo Likwifier high-shear mixing head |
| Mounting | Stainless steel legs with cone bottom |
| Top Access | Hinged sanitary lid with clamp closure |
| Connections | CIP manifold and process piping |
| Basis | As-is, Where-is |
General Information
Breddo Likwifiers are widely used in beverage and syrup preparation, providing efficient high-shear mixing and rapid ingredient incorporation. The 400-gallon rectangular design ensures uniform blending for sugar solutions, concentrates, and other liquid slurries in high-sanitation production environments.
