Reactor, 20,000 Gallon, 304L Stainless Steel, Equipromex, Vertical, Continuous Bleacher, 50 PSI/FV, 316L SS Coil, Agitated, Unused, #5991586
Reactor, 20,000 Gallon, 304L Stainless Steel, Equipromex, Vertical, Continuous Bleacher, 50 PSI/FV, 316L SS Coil, Agitated, Unused, #5991586
Location:Southern California
Available quantity:1
Description

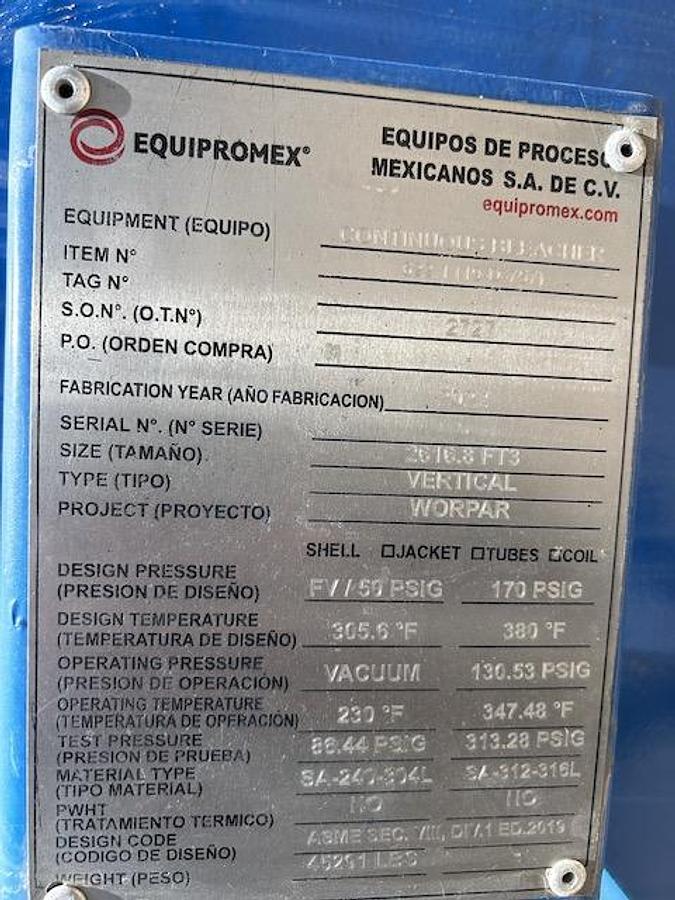

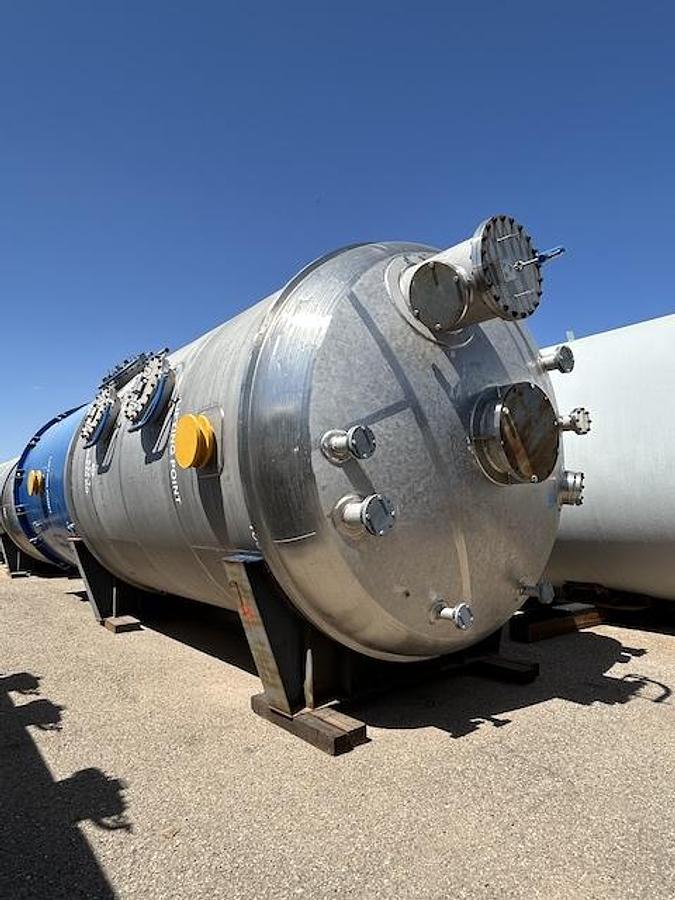

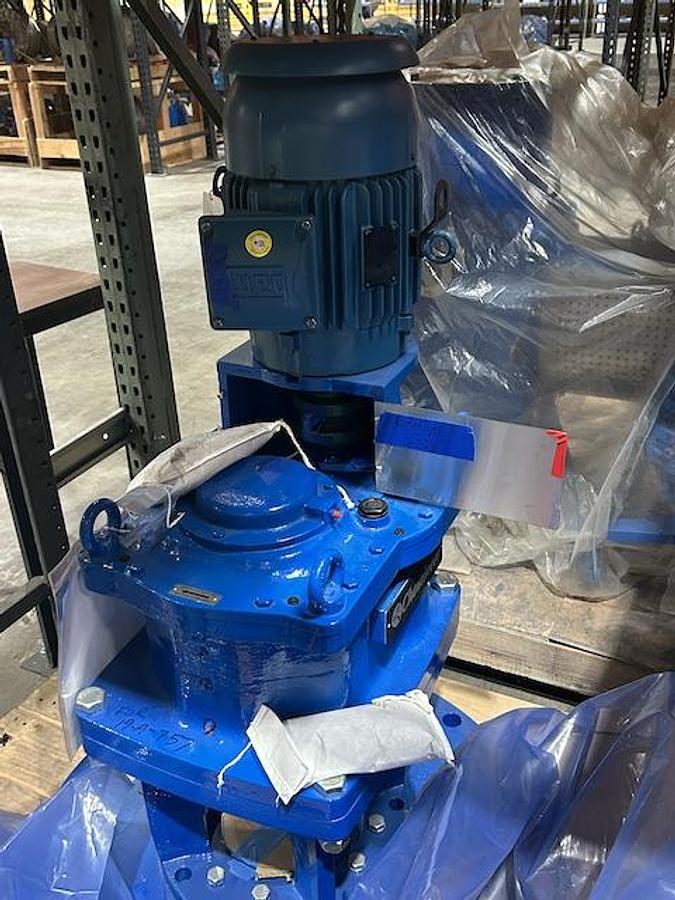

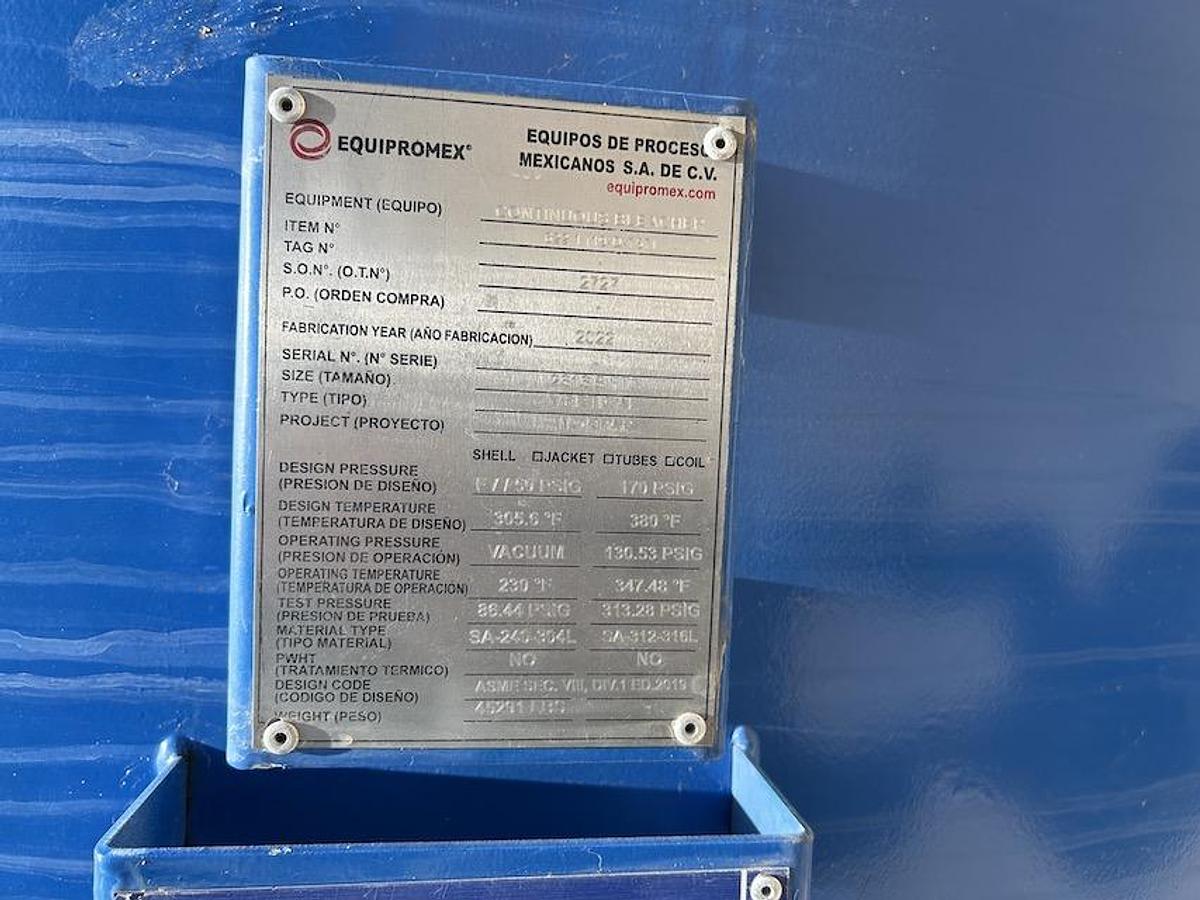

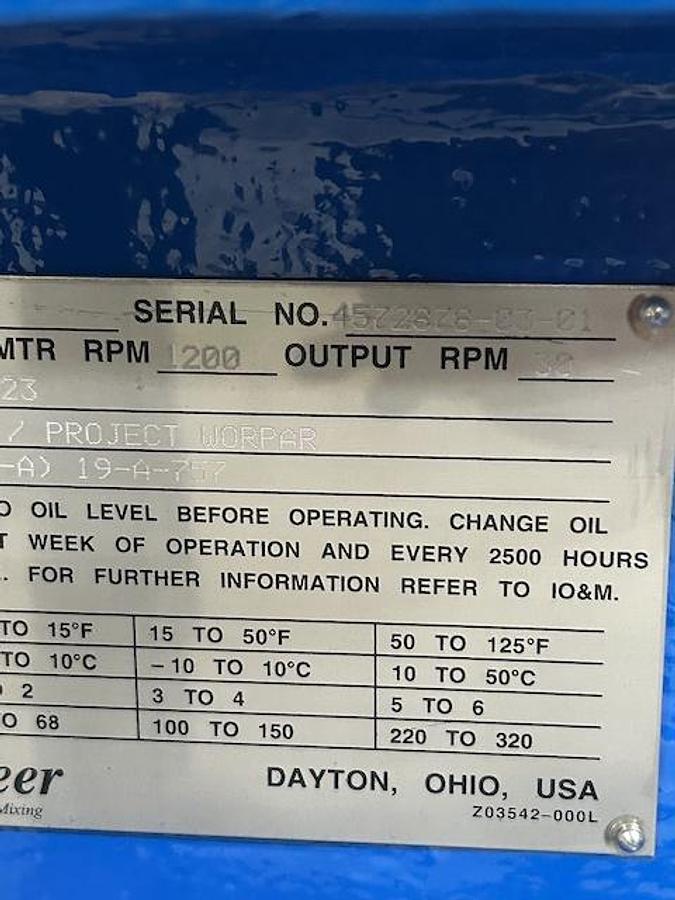

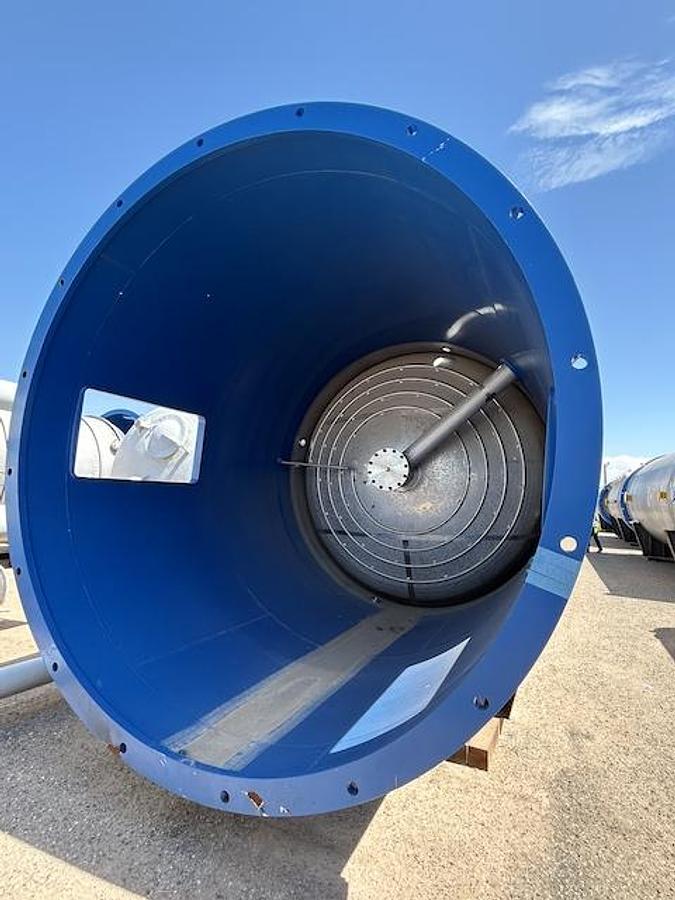

Unused 20,000-gallon vertical continuous bleacher reactor, manufactured by Equipromex (Mexico) in 2022. Constructed of 304L stainless steel with external 316L stainless steel heating coils on the bottom head for efficient temperature control. The vessel measures 12'6" in diameter x 17'9" tangent-to-tangent and is mounted on a 14-foot skirt support. Rated for 50 PSI / full vacuum on the shell and 170 PSI / full vacuum on the coil, with maximum temperature ratings of 306°F shell and 380°F coil. Equipped with a Chemineer Model #22GTN-3 agitator, 3 HP motor, 1200 RPM input, 30 RPM output. Ideal for continuous bleaching, refining, or oil processing applications. National Board registered and never used – excellent like-new condition.
Specifications
| Stock Number | 5991586 |
| Manufacturer | Equipromex |
| Year | 2022 |
| Gallons | 20,000 |
| Dimensions | 12’6" Diameter x 17'9" T/T |
| Materials of Construction | 304L Stainless Steel |
| Bottom and Top Head | Dished |
| Orientation | 14’ Skirt |
| Shell Pressure Rating | 50 PSI / Full Vacuum |
| Shell Temperature Rating | 170 PSI / Full Vacuum |
| Basis | FOB |
General Information
Equipromex (Mexico) specializes in custom-engineered stainless steel process equipment, including pressure vessels, reactors, and storage tanks. Serving industries such as chemical, food, oil refining, and pharmaceuticals, Equipromex is recognized for its ASME-compliant fabrication, precision welding, and high-quality finishes. The company frequently partners with U.S. process integrators to supply durable, code-stamped vessels with full material traceability and rigorous QA standards.
