Tank, 4,500 Gallon, 304 Stainless Steel, Equipromex, Oil Collecting Tank, 316L Steam Coil, Cone Bottom, Unused, #5991580
Tank, 4,500 Gallon, 304 Stainless Steel, Equipromex, Oil Collecting Tank, 316L Steam Coil, Cone Bottom, Unused, #5991580
Location:Southern California
Available quantity:1
Description

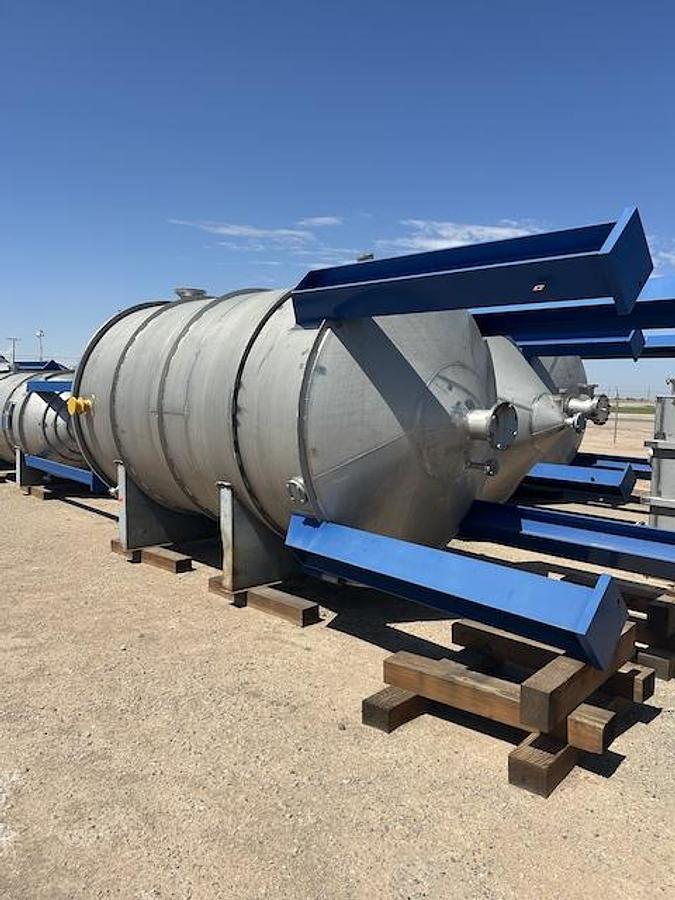

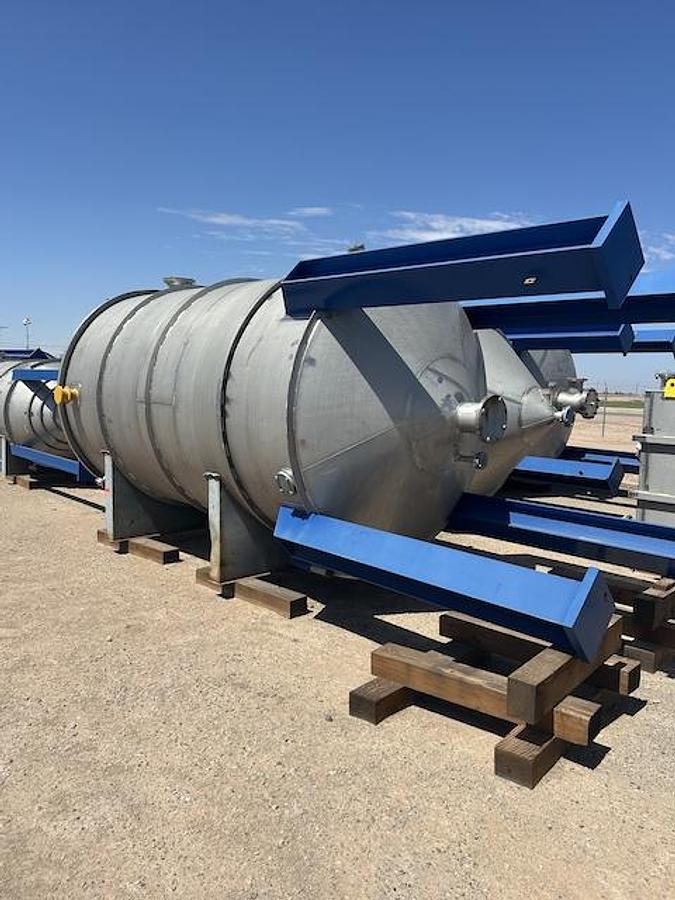

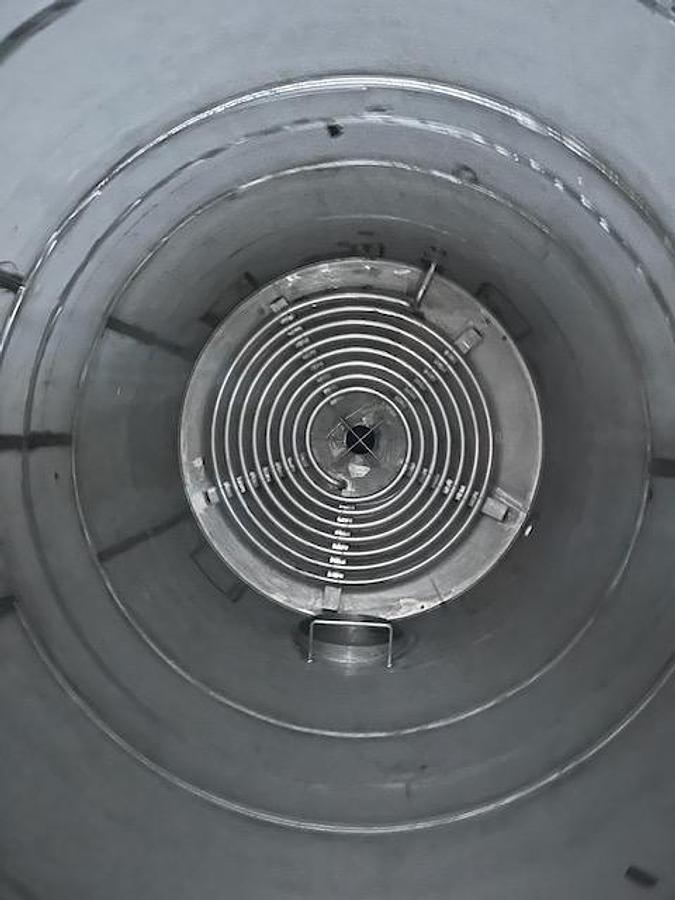

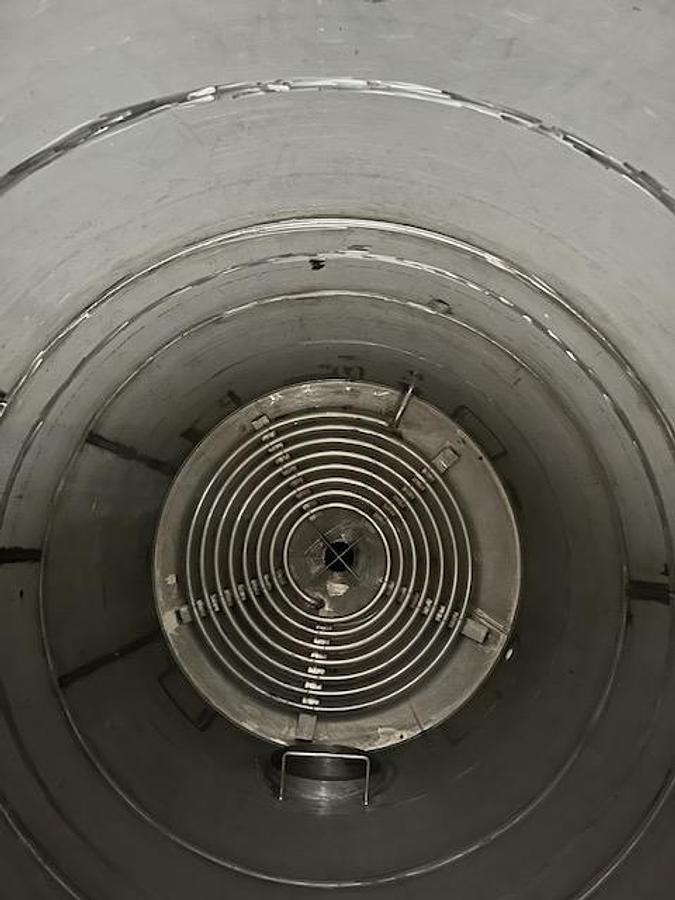

Unused 4,500-gallon vertical oil collecting tank constructed from 304 stainless steel with a 316L stainless steel steam coil for efficient heating or temperature control. Built by Equipromex (Mexico), this tank features a cone bottom for full drainage and is supported by heavy-duty leg supports for stability. Internally rated for 87 PSI and 248°F, this vessel is suitable for applications involving oil recovery, condensate collection, or process fluid storage where heat integration is required. The 316L steam coil is rated for full vacuum service and 380°F, ensuring long-term corrosion resistance and performance in demanding environments.
Specifications
| Stock Number | 5991580 |
| Manufacturer | Equipromex |
| Gallons | 4,500 |
| Dimensions | 7’5” diameter x 12’0” T/T |
| Orientation | Vertical on Legs |
| Materials of Construction | 304 Stainless Steel |
| Bottom Head | Cone |
| Pressure Rating | 87 PSI |
| Temperature Rating | 248°F |
| Full Vacuum | No |
| Code Stamp | Yes, National Board |
| Agitation | Motor: 5 HP Input Speed: 1800 RPM Output Speed: 56 RPM Voltage: 230/460V |
| Basis | FOB |
General Information
Equipromex is a reputable Mexican manufacturer of custom stainless steel process vessels, pressure tanks, and reactors serving the chemical, food, pharmaceutical, and water treatment industries. Their equipment is built to international engineering standards and designed for reliability, hygiene, and process efficiency. This particular unit exemplifies Equipromex’s craftsmanship, offering robust stainless steel fabrication, a precision steam coil system, and a clean, low-maintenance design for industrial fluid applications.
