Tank, 2,500 Gallon, 316L Stainless Steel, Jacketed & Insulated, Agitated, DCI, #5991547
Tank, 2,500 Gallon, 316L Stainless Steel, Jacketed & Insulated, Agitated, DCI, #5991547
Location:Southern California
Available quantity:2
Description

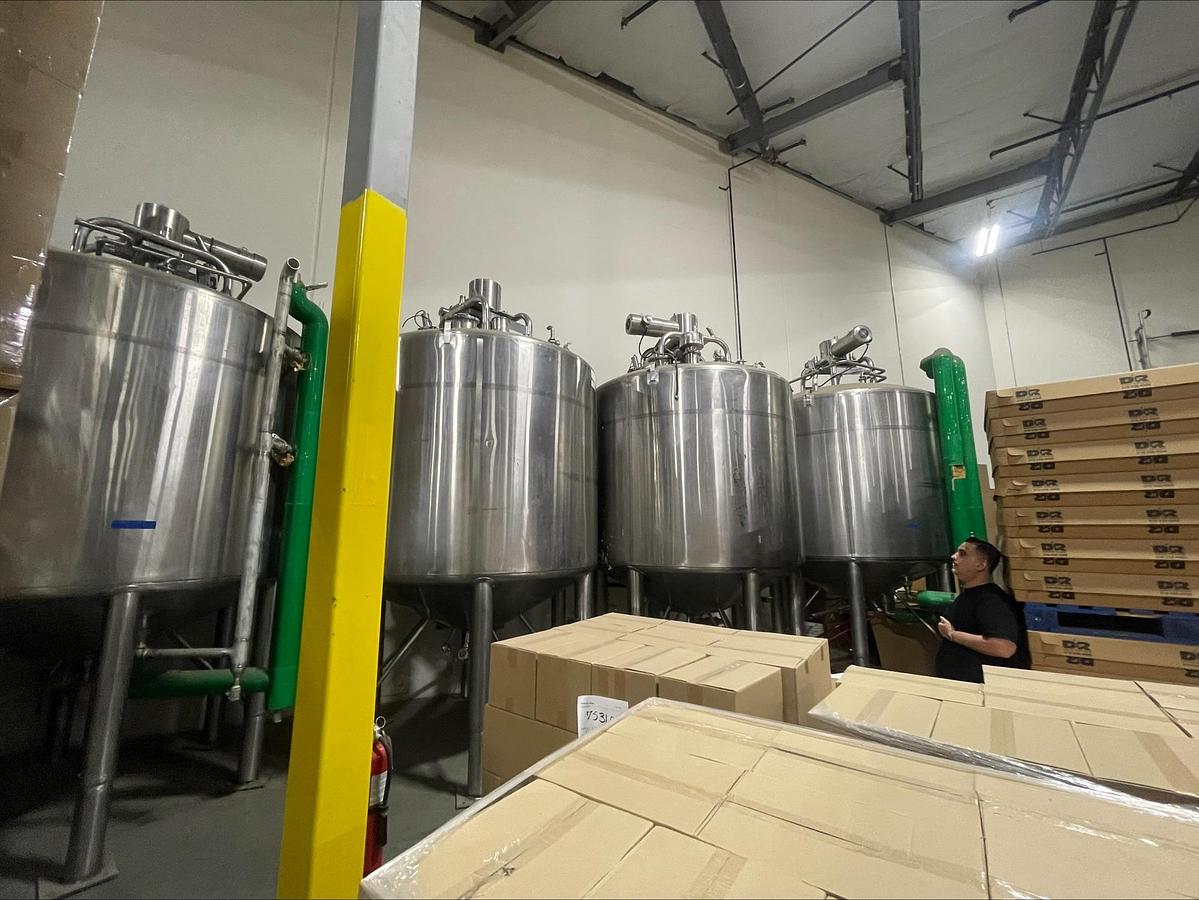

DCI 2,500-gallon insulated and jacketed vertical processor constructed with 316/316L stainless product contact surfaces and 304 stainless jacket/sheathing. Vessel features a top-entering agitator driven by a 5 HP stainless gear motor through reducers for ~18.4 RPM at 60 Hz, plus an 18" A-100 top manway, 6" TC vent, LJ Star 6" light port, (4) 2.5" TC CIP spray-ball mounts with 1.5" TC connections, and a 3" Alfa Laval outlet spud. Dimple jacket is split into two zones for heating/cooling; jacket MAWP 147 psi @ 350°F (MDMT -20°F), vessel MAWP 0 psi @ 350°F. Mounted on six legs. Approx overall height ~16'4.5". TWO AVAILABLE.
Specifications
| Stock Number | 5991547 |
| Manufacturer | DCI |
| Model | 2,500 Gallon Processor |
| Serial Number | JS5557 |
| Gallons | 2,500 |
| Materials of Construction | 316/316L Stainless Steel |
| Jacket | 147 PSI @ 350°F; MDMT -20°F |
| Agitation | Top-entering, 5 HP |
| Manway | 18" top |
| Outlet | 3" |
| Approx. Height | 16' 4.5" max |
| Basis | Each, FOB |
General Information
DCI is widely regarded for sanitary processors used across dairy, food, beverage, and biotech. A versatile platform for batch heating/cooling, holding, and mixing of products like yogurt and ice-cream base, cultured dairy, sauces, and beverage bases—especially where clean-in-place coverage and gentle agitation are preferred. The dual-zone dimple jacket with documented heat-up/cool-down design targets short cycle times and supports glycol service common in food plants.
