Cleaning Tank, Ultrasonic, 234 Gallon, Blue Wave UC-3650, 480V, Stainless Steel, #5991543

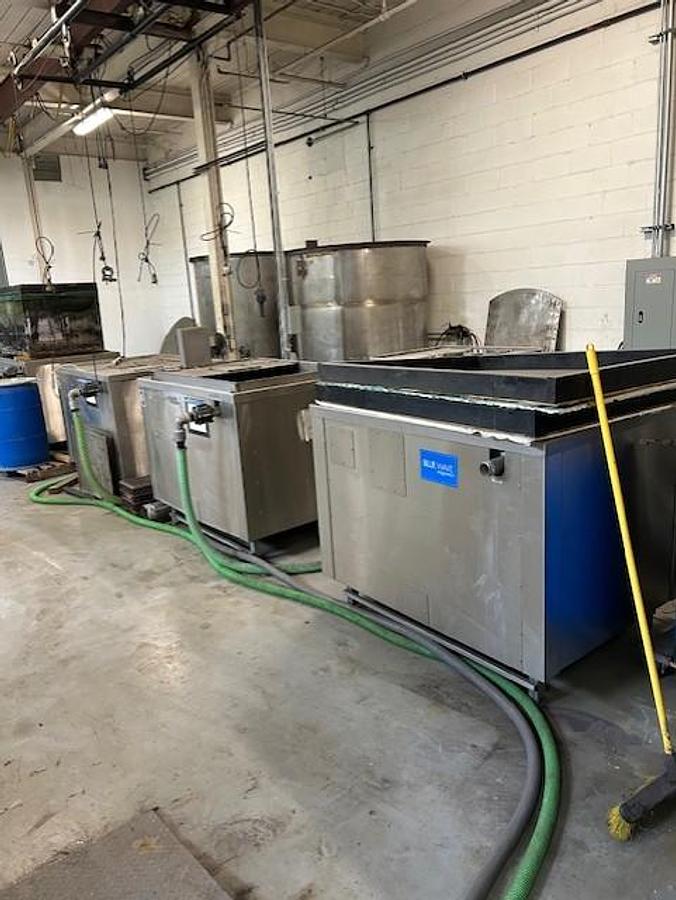

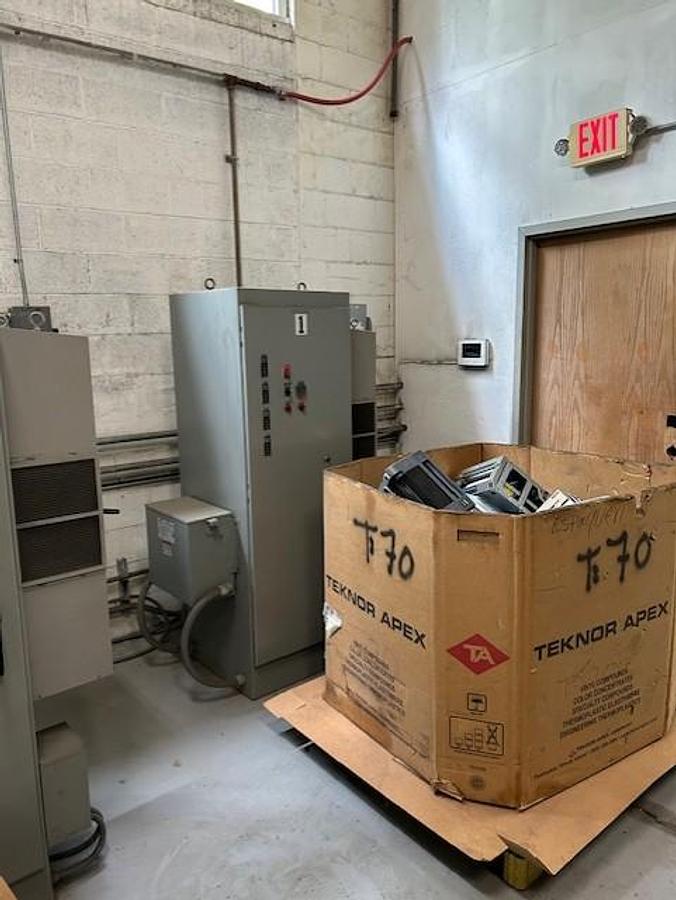

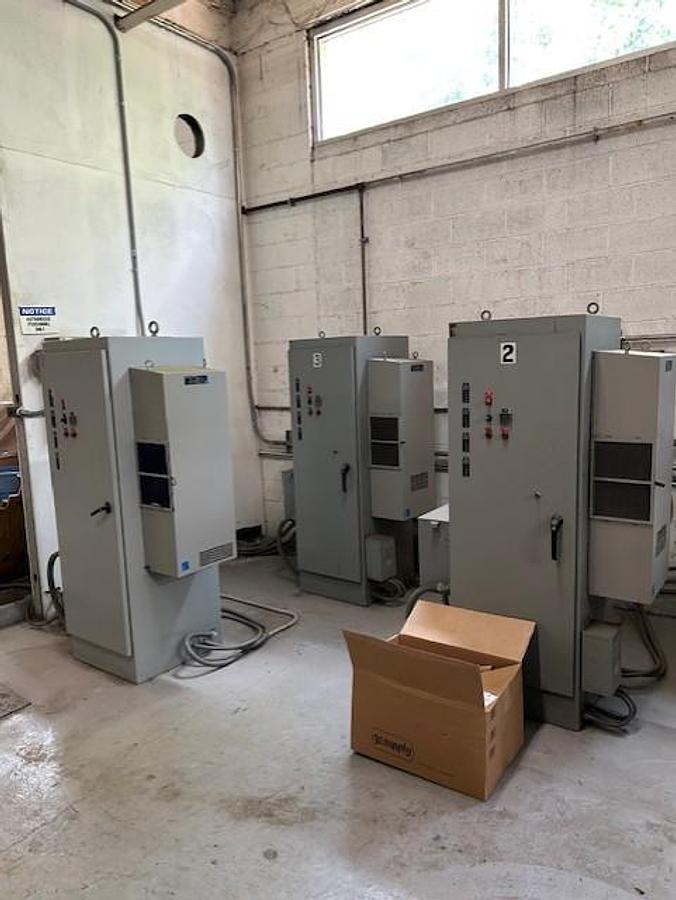

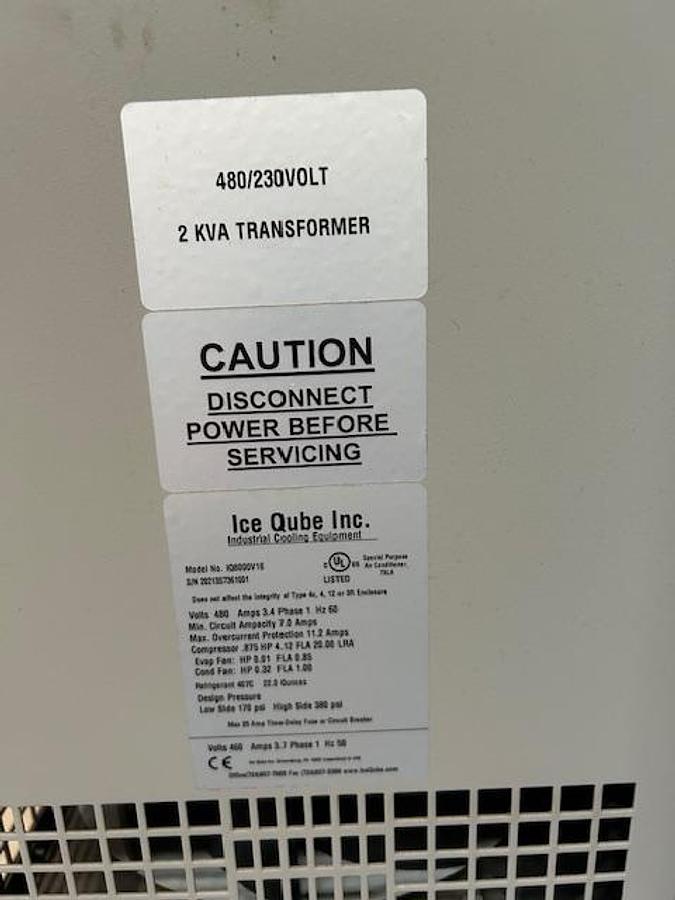

Blue Wave Ultrasonics Model UC-3650 utility ultrasonic cleaning tanks, each equipped with GS-12,000 series 8,000-watt, 30kHz ultrasonic generator enclosures. System includes 234-gallon tank capacity at 30" fill level with 11-gauge 304 stainless steel body and 3/16" 316L stainless steel diaphragms. Transducers are zero-spaced magnetostrictive with silver braze bonding. Cleaning chamber dimensions: 50" L-R x 36" F-B x 35" deep. Overall dimensions: 58" L-R x 44" F-B x 46" high. Electricals: 480V, 3-phase, 60 Hz, 21A. Includes stainless steel two-piece lift-off lids with trap doors, digital reset timer, low-level protection shutoff, and internal work rests. Generator enclosures measure 24" x 24" x 72" high and feature 8,000 BTU closed-loop air conditioning and 16x 500W modules. Originally upgraded with 4kW ultrasonic power add-on for extended coverage along 50" tank sides. Age ranges from 2016 – 2023.
