Dust Collector, 4,500 SF, 50,000 CFM, High Temp, Insulated, #5991542
Dust Collector, 4,500 SF, 50,000 CFM, High Temp, Insulated, #5991542
Location:Washington
Available quantity:1
Description

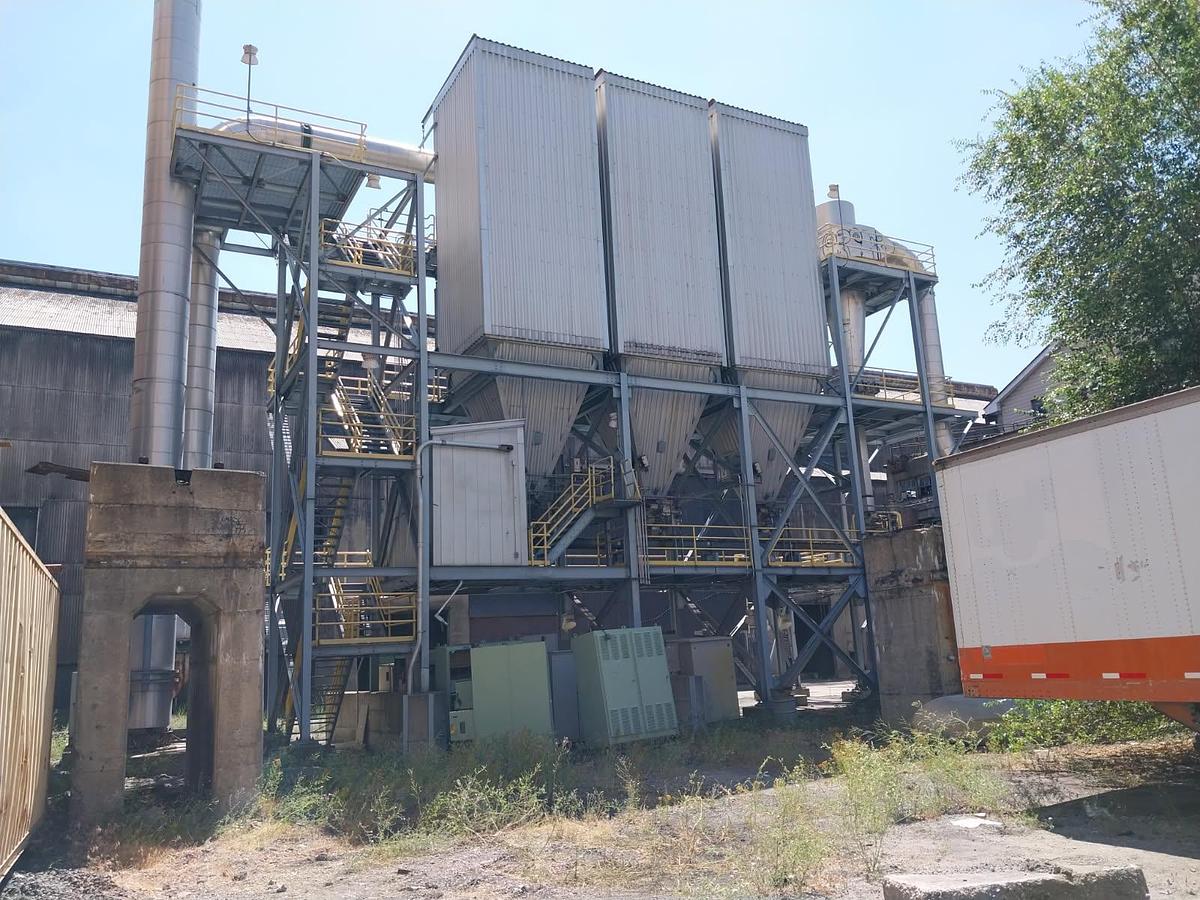

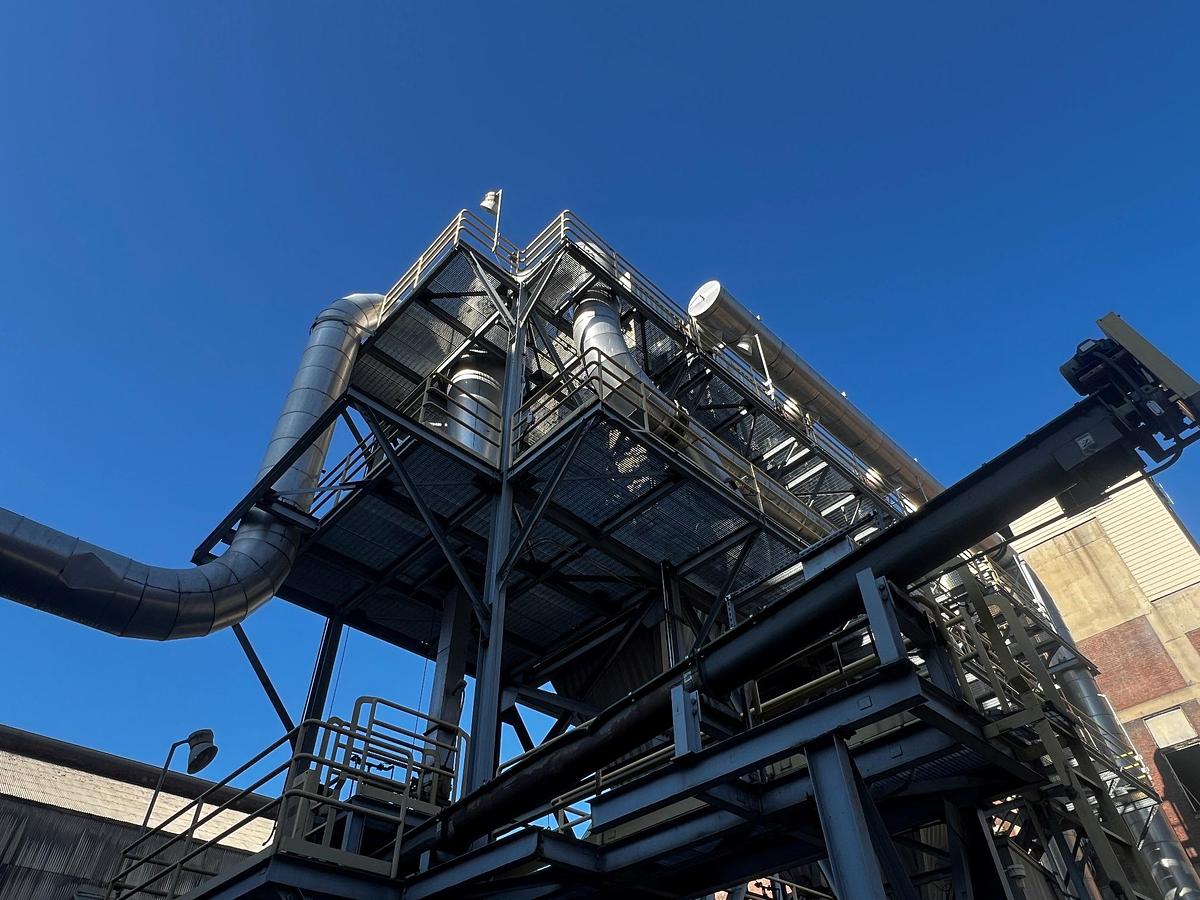

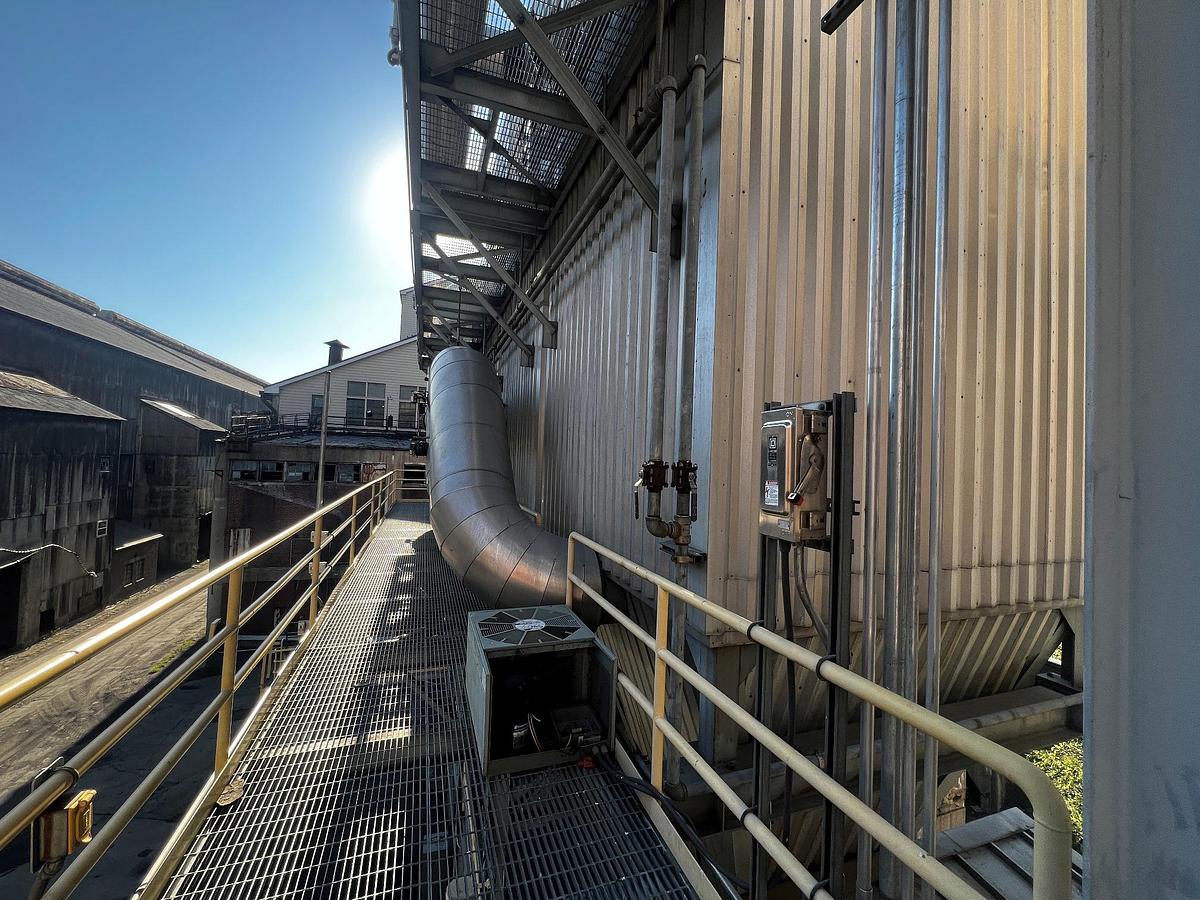

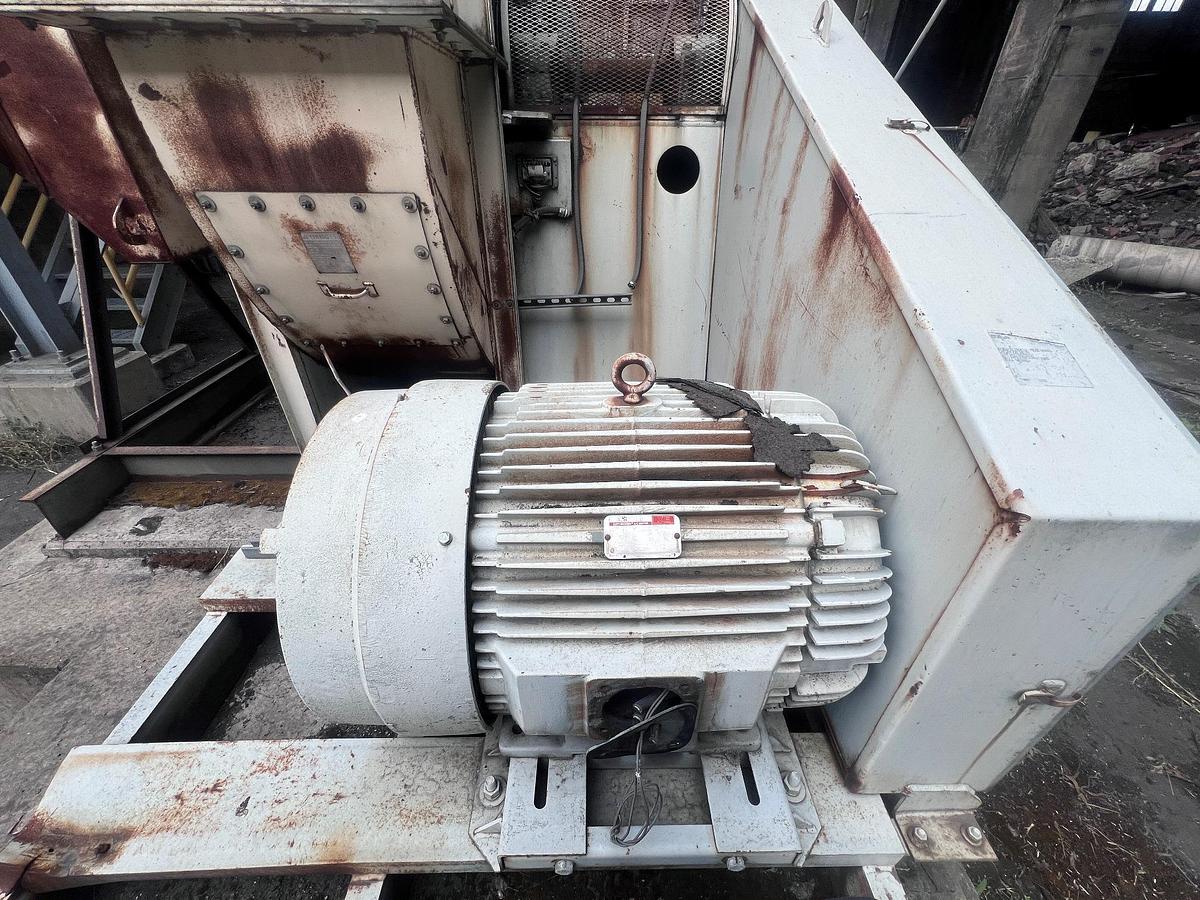

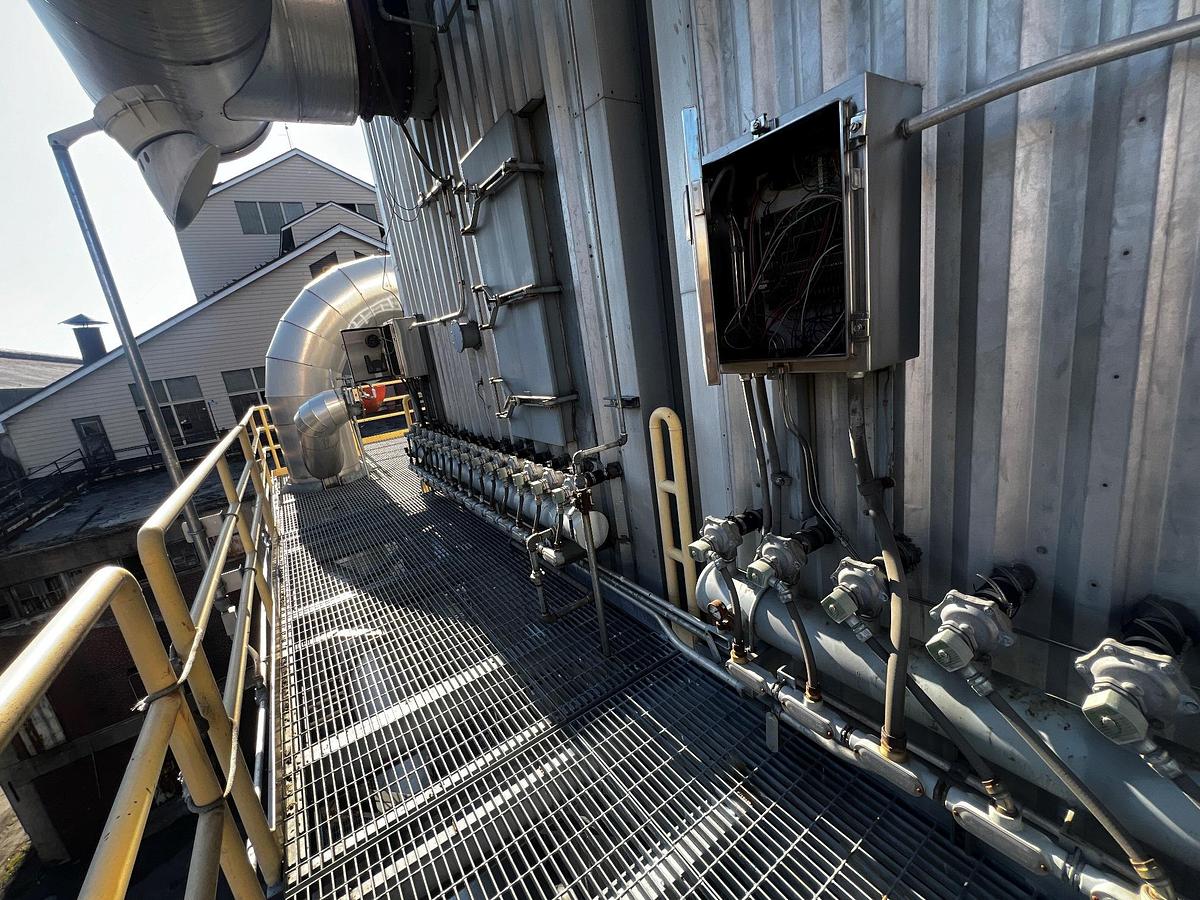

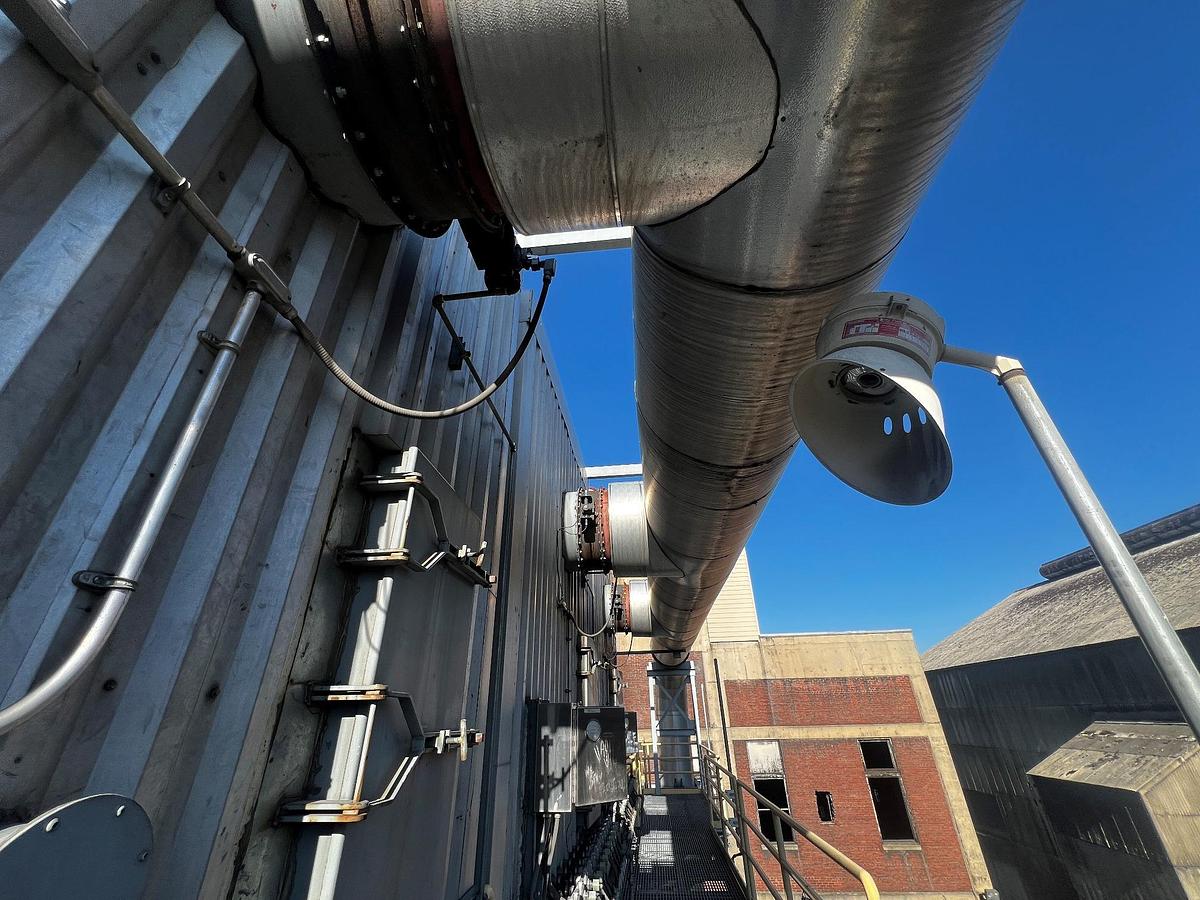

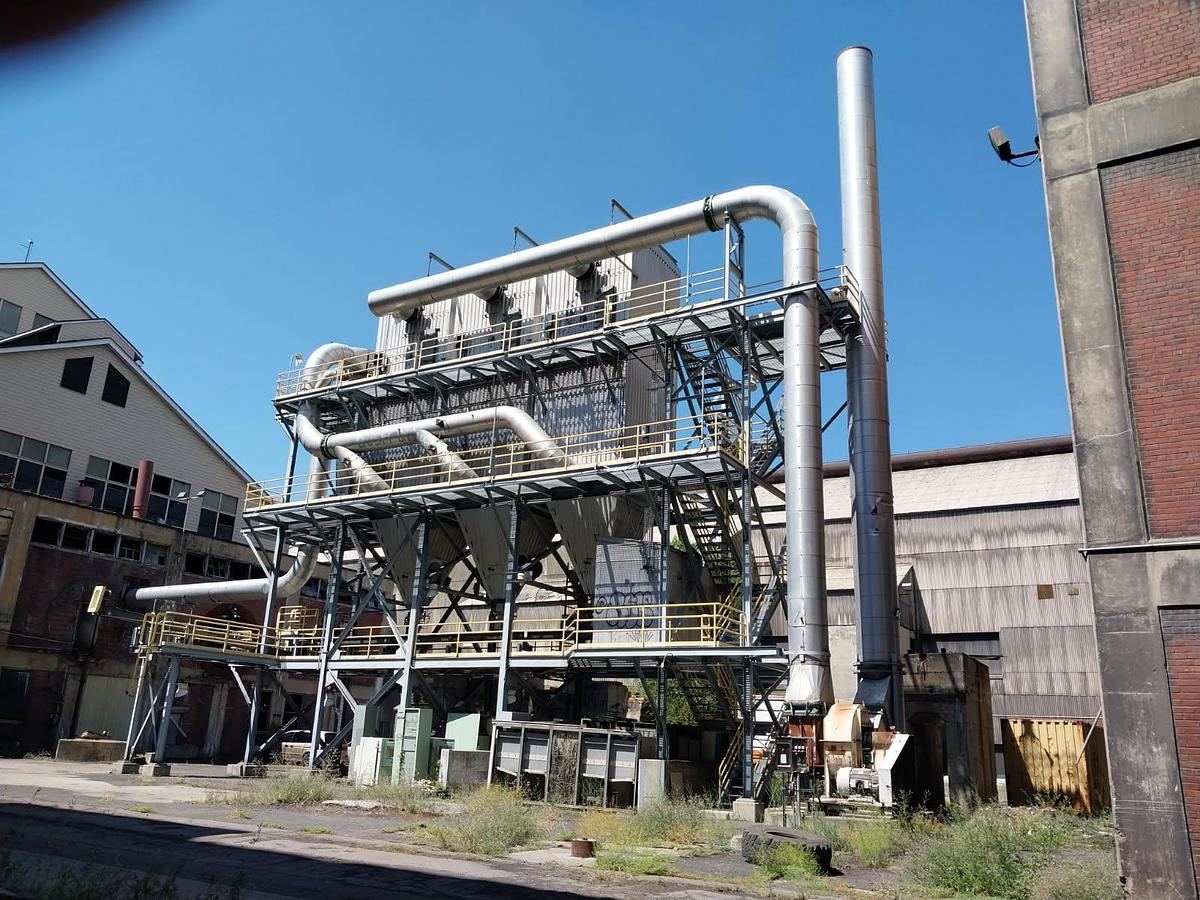

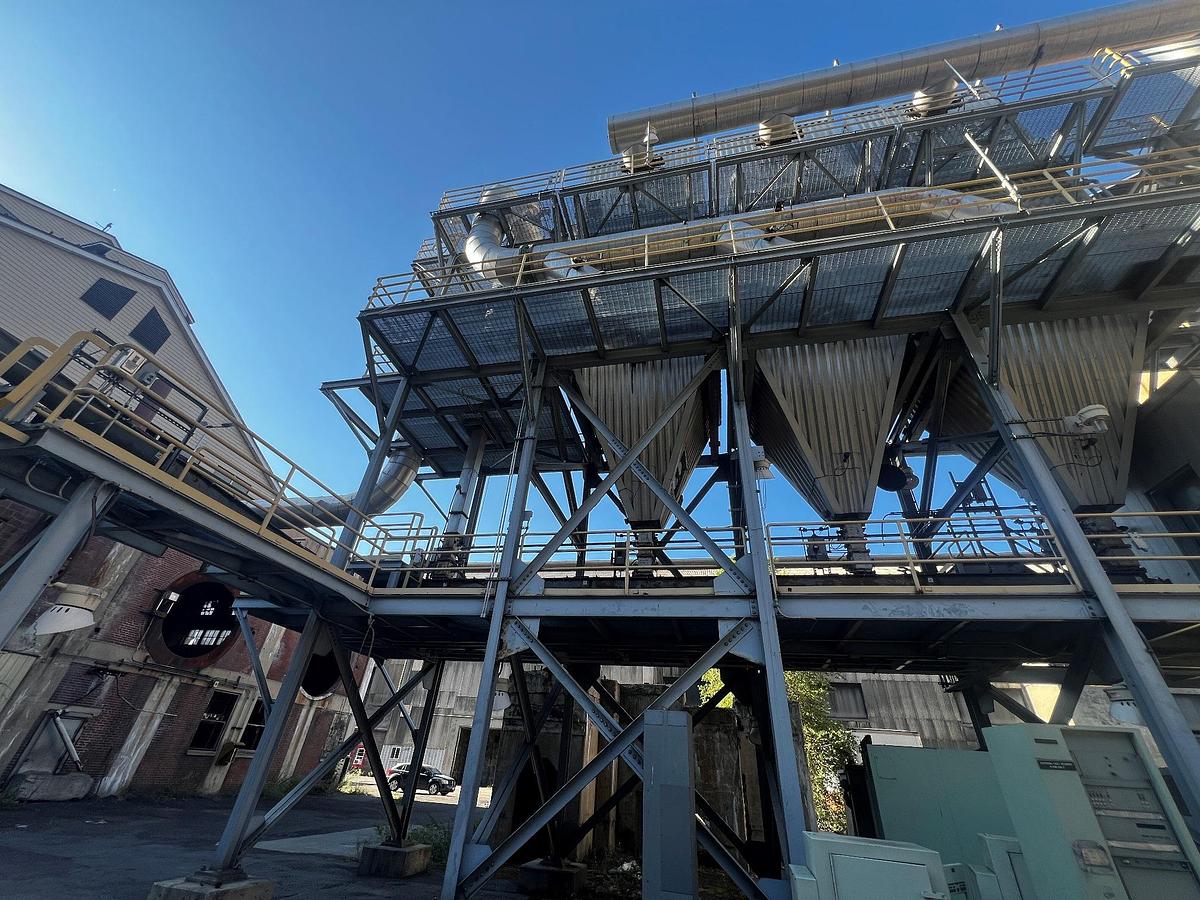

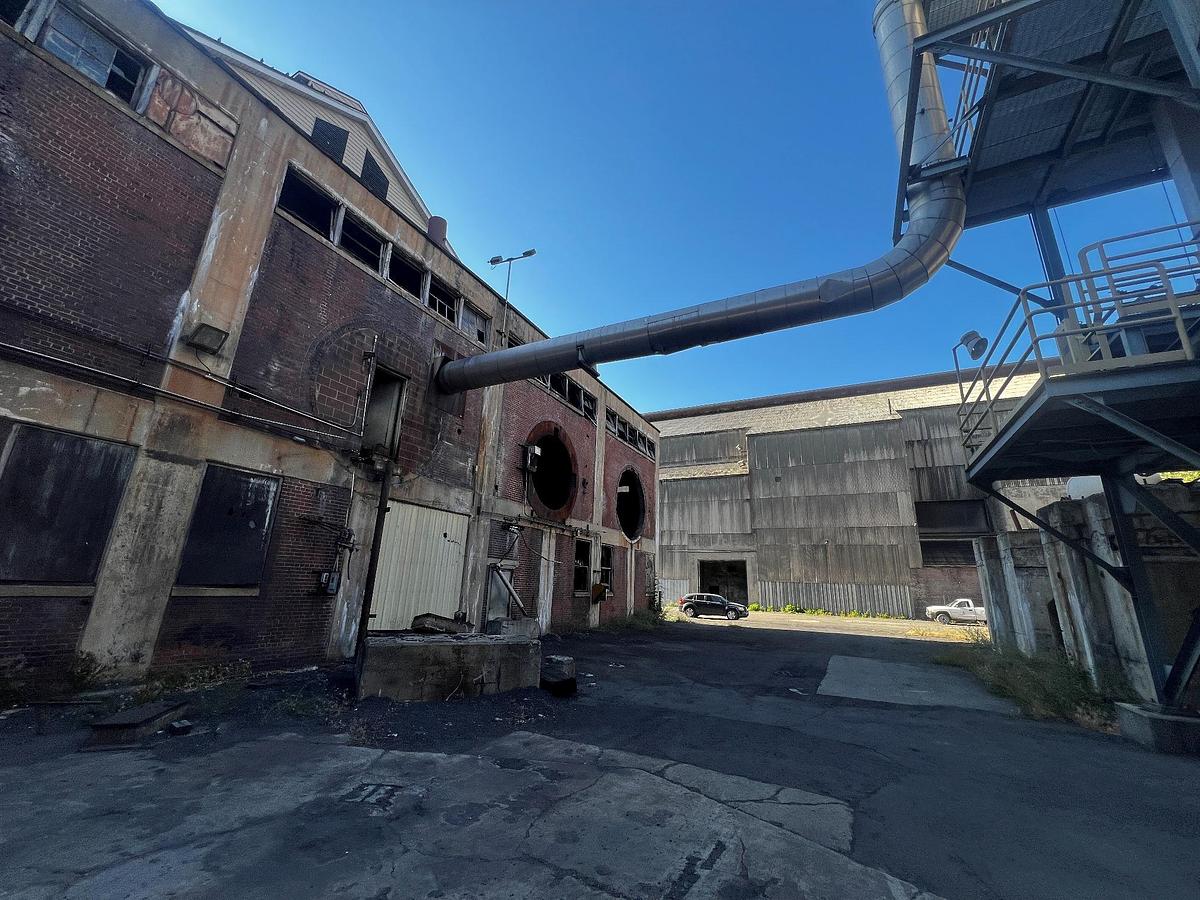

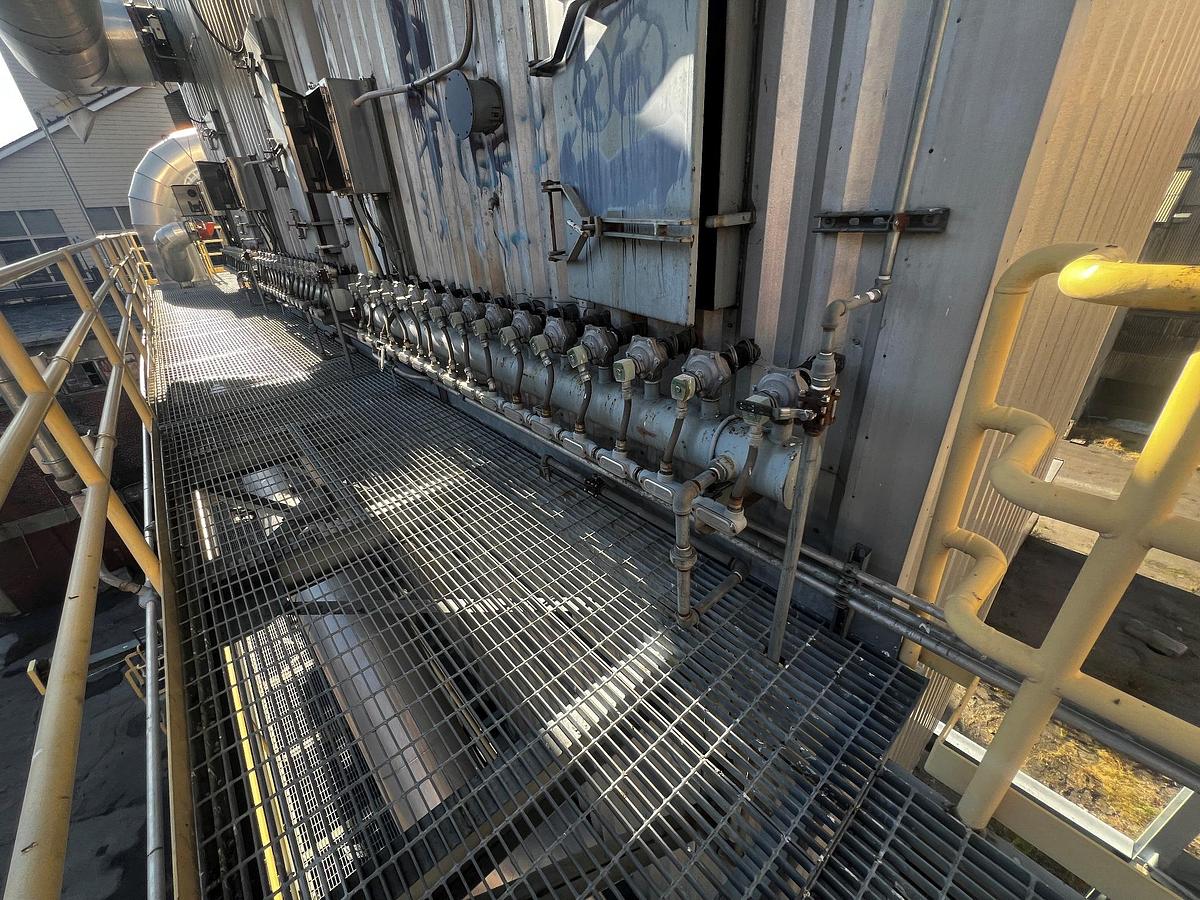

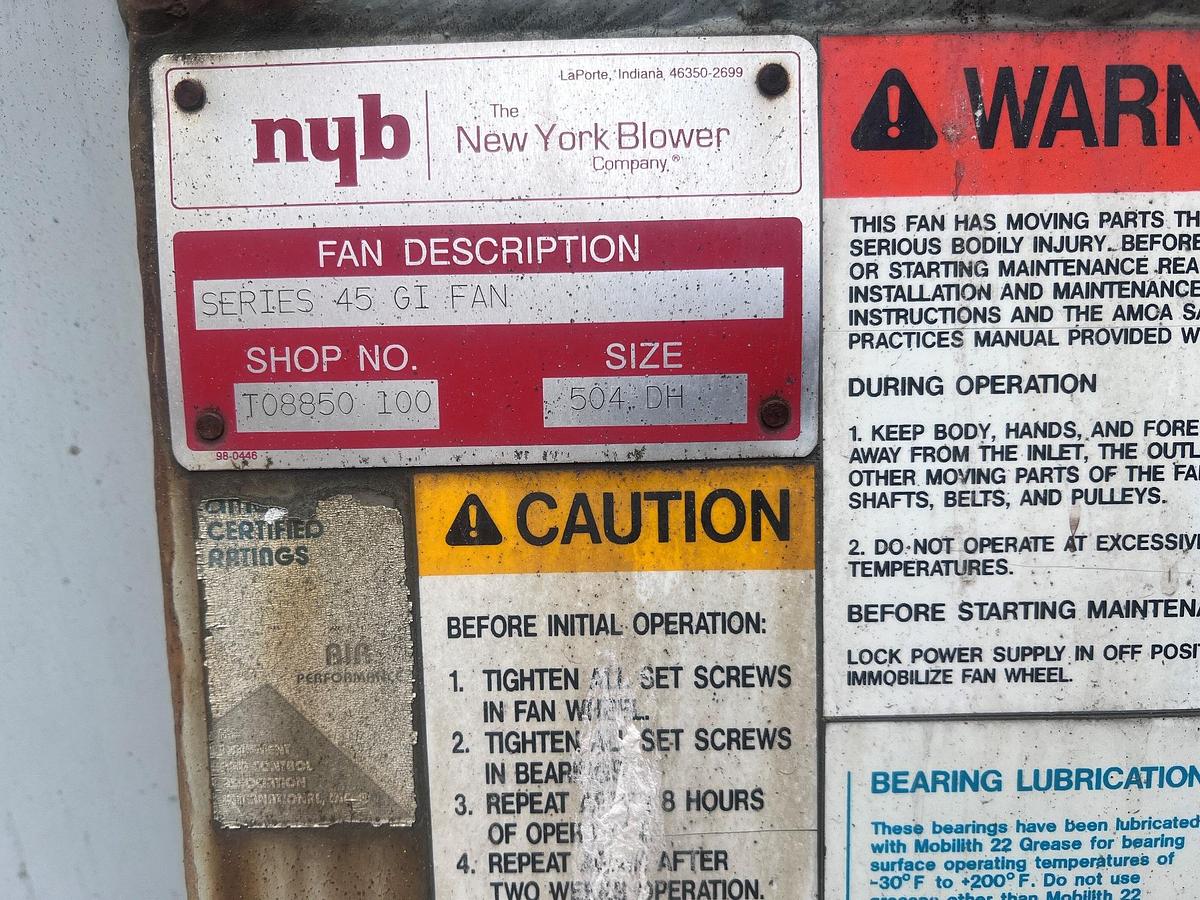

Dust collection system designed for high-temperature particulate capture. Includes (3) insulated baghouse modules with pulse-jet cleaning and 480V Hotfoil HB blanket heaters (5,304W each, 150–650°F range), rated for ~50,000 CFM and an estimated 4,500 sq.ft. of total filtration area. Process air enters via cyclone with heated discharge zones, flows through baghouses, and is pulled through an ID fan to a 38" insulated steel stack. System also includes baghouse discharge and transfer screw conveyors, insulated ducting with expansion joints and dampers, and a complete structural steel frame with stairs and walkways. Full control system: 480V MCC, PLC panel, solenoids, thermocouples, and differential pressure transmitters. Complete drawing package and photos included.
Specifications
| Stock Number | 5991542 |
| Manufacturer | Engineered System |
| Model | Rotary Cooler Dust Control System |
| Year | 2000 |
| Square Feet | 4,500 CF ( Estimated) |
| Airflow Capacity | 50,000 CFM (Estimated) |
| Baghouse Modules | 3, pulse-jet cleaned, insulated |
| Heaters | Hotfoil HB blanket heaters, 5,304W each, 480V, 3-phase |
| Temperature Range | 150–650°F |

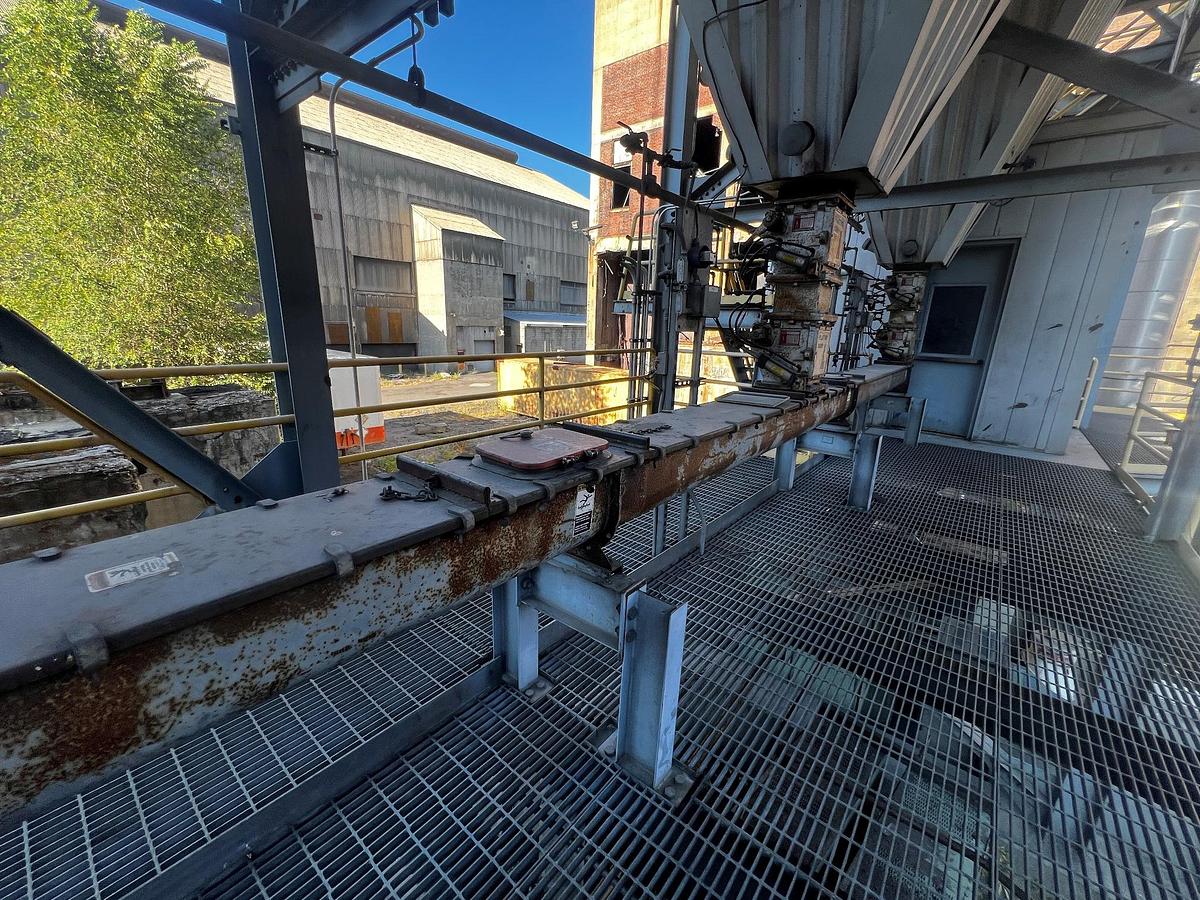

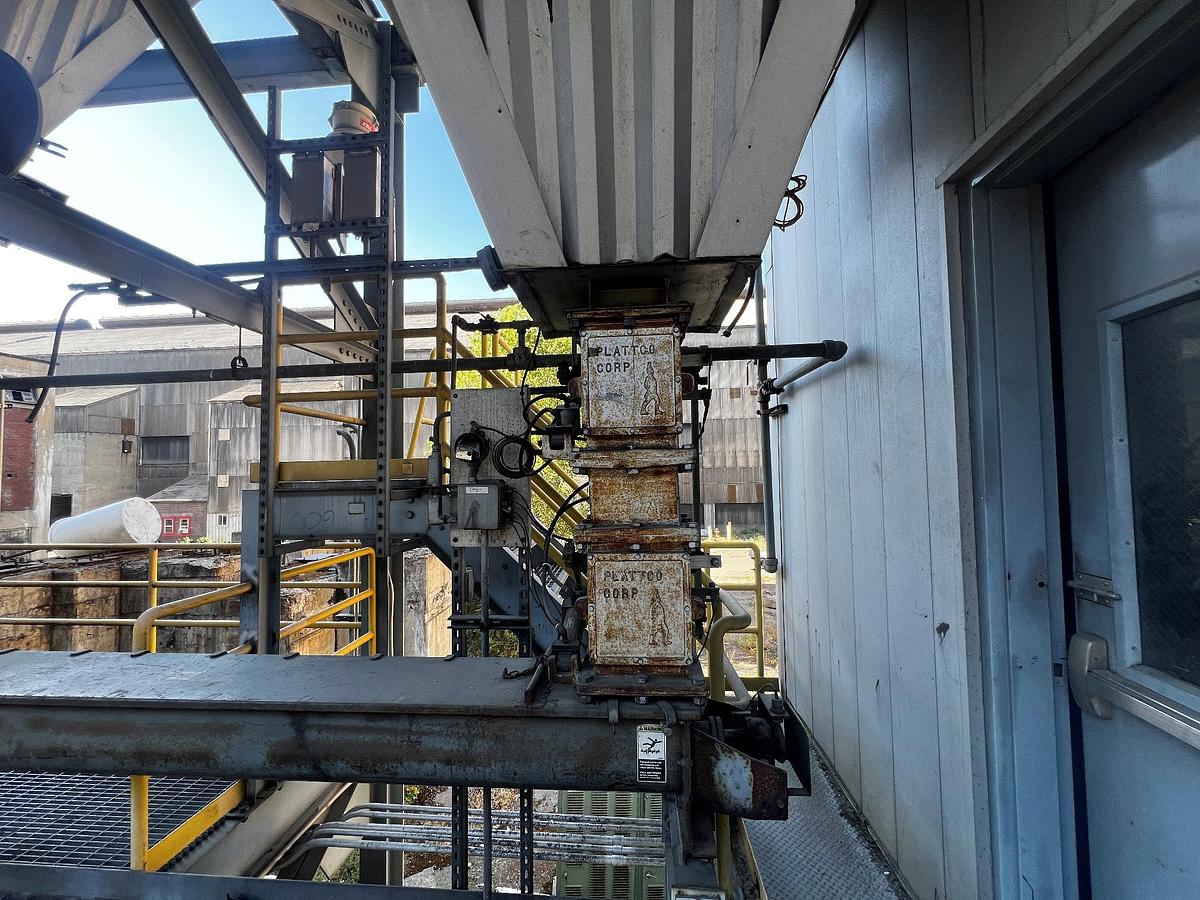

| Conveyors | Baghouse screw, transfer screw, existing piggyback screw |

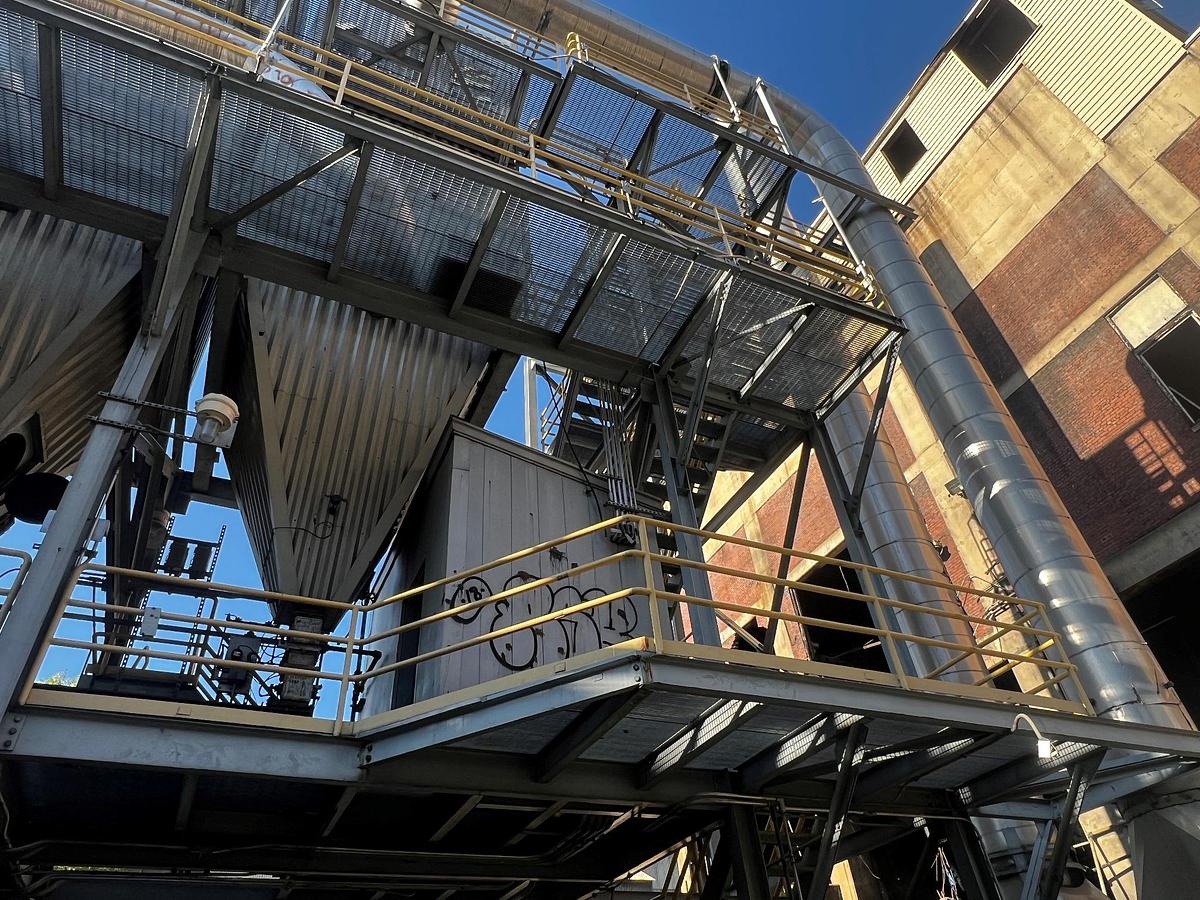

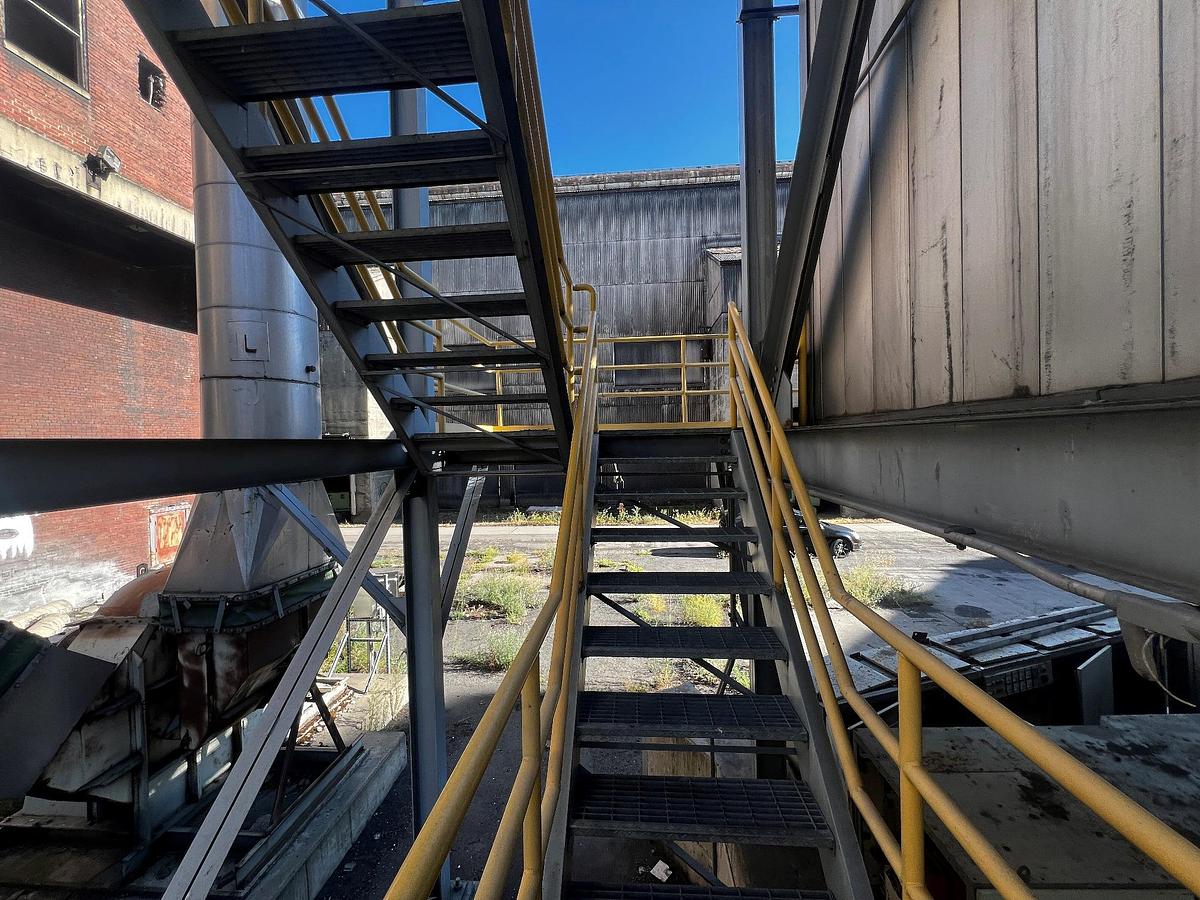

| Structure | W-beam framing, platforms, stairs, OSHA-rated access |
| Basis | As Is, Where Is |
General Information
This high-capacity system is ideal for rotary kiln, calciner, aluminum, or carbon processing operations with demanding temperature and particulate control requirements. It includes a full complement of process and structural components and is supported by complete as-built documentation and verified in-field photos.
