Reactor, 50 Gallon, Glass Lined, Pfaudler, w/ Condenser, System, Skid Mounted, #5991534
Reactor, 50 Gallon, Glass Lined, Pfaudler, w/ Condenser, System, Skid Mounted, #5991534
Location:Delaware
Available quantity:1
Description

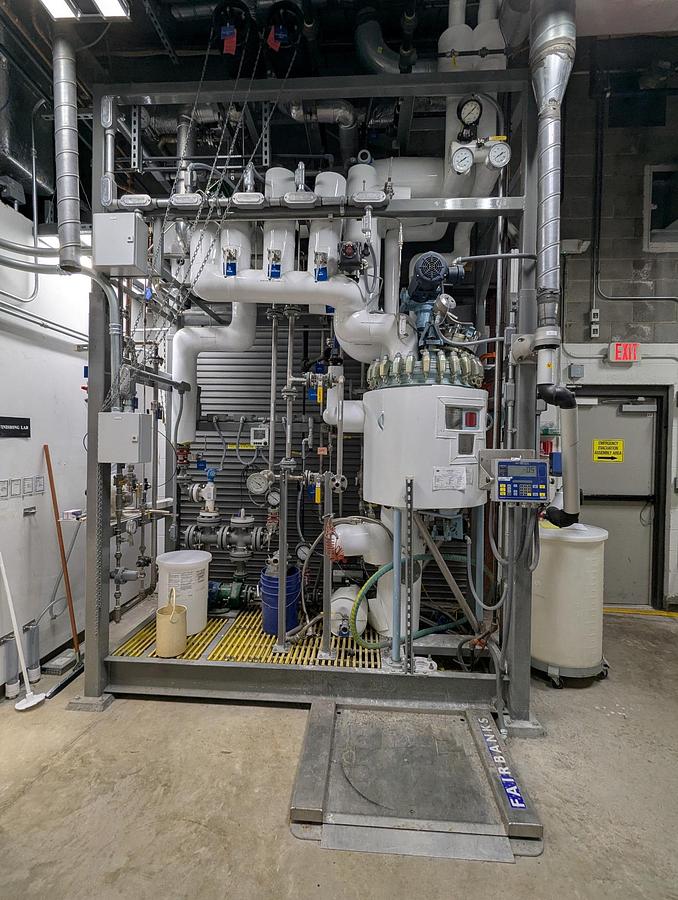

Pfaudler 50-gallon glass-lined reactor system, skid-mounted and includes condenser, Mokon temperature control unit, and integrated control panel. The vessel is internally rated for 150 PSI / Full Vacuum at 450°F and jacket rated for 125 PSI at 450°F, with a minimum design metal temperature of -20°F. Glass type 9115. Previously used in the production of silica particles, the unit is well suited for reaction processes requiring corrosion resistance and thermal control. System is still installed.
Specifications
| Stock Number | 5991534 |
| Manufacturer | Pfaudler |
| Model | RT 24-50-16S-125 JOW |
| Year | 2016 |
| Serial Number | 4196998 |
| Gallons | 50 |
| Materials of Construction | Glass-lined carbon steel |
| Pressure Rating (Internal) | 150 PSI @ 450°F / -20ºF |
| Jacket Pressure | 125 PSI @ 450ºF / -20ºF |
| Controls | Electrical control panel included |

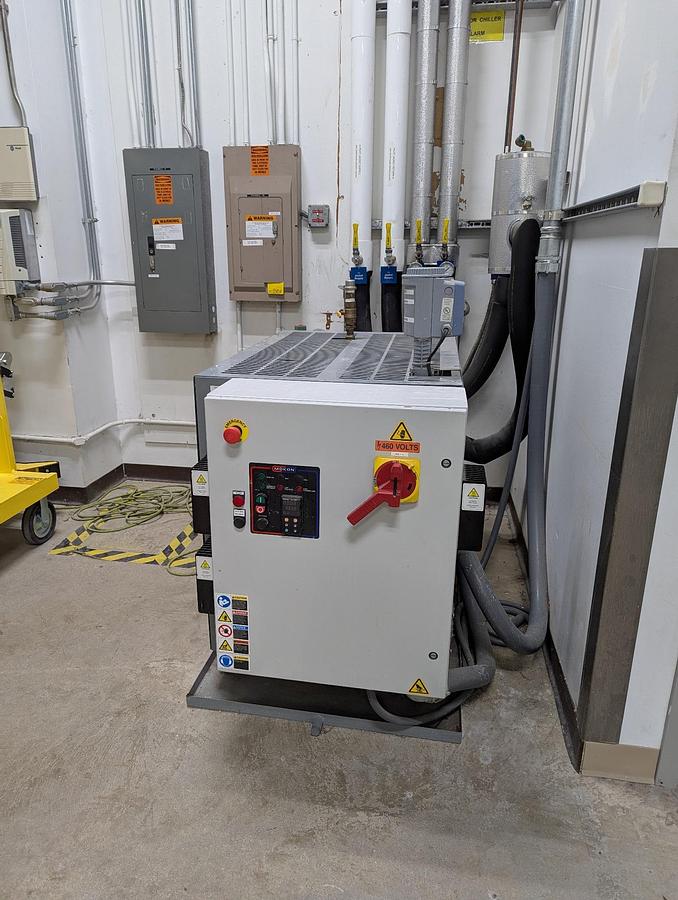

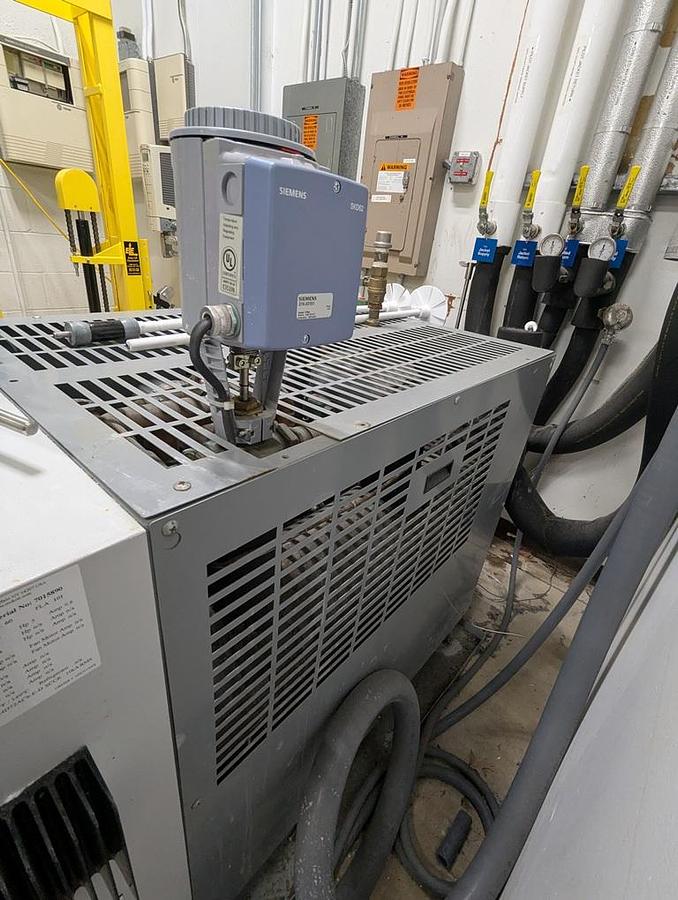

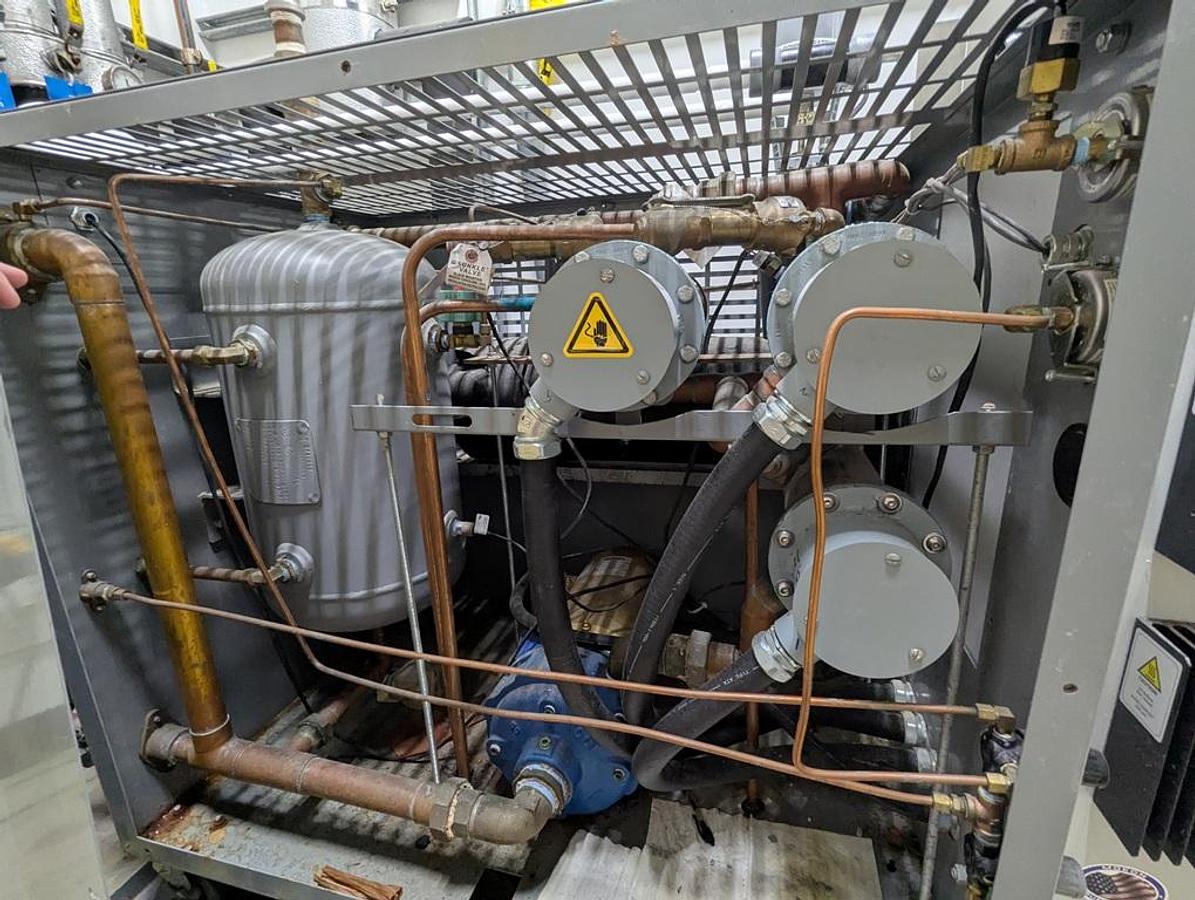

| Additional Equipment | Overhead condenser, Mokon temperature control unit |
| Basis | As Is, Where Is |
General Information
Pfaudler is a leading manufacturer of corrosion-resistant glass-lined equipment widely used in chemical and pharmaceutical processes. The skid-mounted reactor system is suited for pilot or small-scale production involving acid-sensitive or high-purity compounds. Common applications include specialty chemicals, nanoparticles, and materials processing. Included condenser and control system make this unit a turnkey option for thermal or reaction-sensitive formulations.
