Tank, 98 Gallon (370 Liter), Jacketed, Stainless Steel, Mueller, 30 PSI / FV, #5991489

Tank, 98 Gallon (370 Liter), Jacketed, Stainless Steel, Mueller, 30 PSI / FV, #5991489

Location:Chowchilla, CA

Available quantity:1

Description

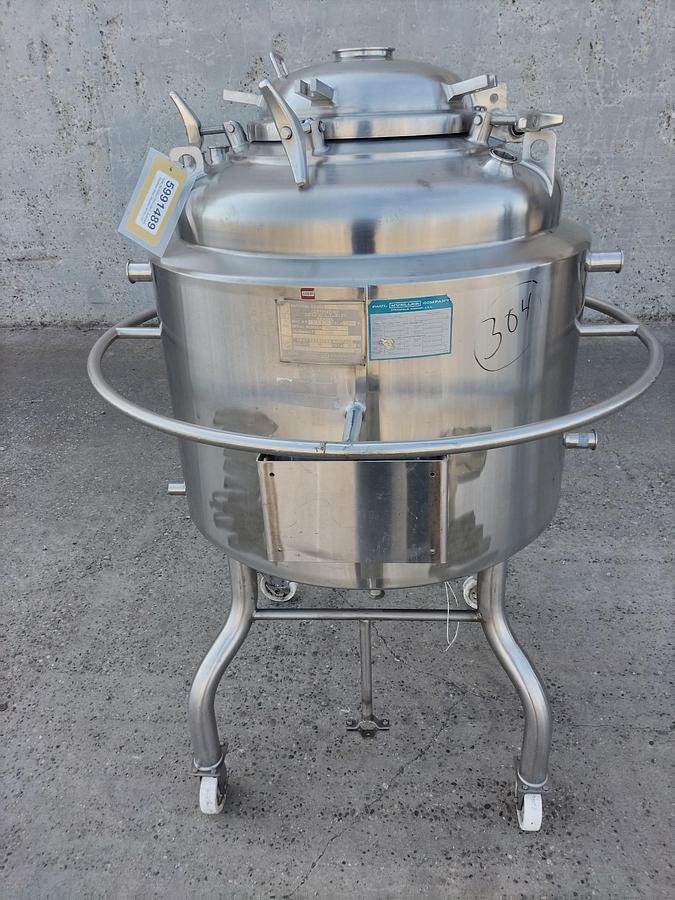

Mueller 370-liter (approx. 98 gallon) jacketed tank constructed of stainless steel with a 30" diameter x 24" straight side, welded top, and dish top & cone bottom. Tank is equipped with a 16" clamped lid with 4" center top opening, (5) top ports ranging from 2" to 2.5", and a 2" center bottom outlet. Includes jacket rated for 90 PSI @ 300°F. Internal vessel is rated for 30 PSI and full vacuum at 300°F. Mounted on stainless steel legs with casters. ASME Code. National Board #11927.


Specifications

Stock Number5991489
ManufacturerMueller
ModelP21159
Serial NumberP21159
Gallons98 (370Liter)
Dimensions30" diameter x 24" straight side
JacketYes
Materials of Construction304 Stainless Steel
Pressure Rating30 PSI / Full Vacuum @ 300°F
Jacket Pressure90 PSI @ 300°F
BasisFOB

General Information

Mueller designs high-quality stainless steel vessels used across pharmaceutical, food, beverage, and chemical industries. This 370-liter jacketed tank is ideal for heating or cooling applications in mixing, batching, or reaction processes. Common uses include preparation of culture media, broths, creams, or emulsions requiring temperature control. The sanitary construction and mobility make it suitable for both pilot plant and production environments.
