Tank, 13 Gallon (50 Liter), 316L Stainless Steel, Jacketed, Alloy Products, 115 PSI, #5991481
Tank, 13 Gallon (50 Liter), 316L Stainless Steel, Jacketed, Alloy Products, 115 PSI, #5991481
Location:Chowchilla, CA
Available quantity:1
Description

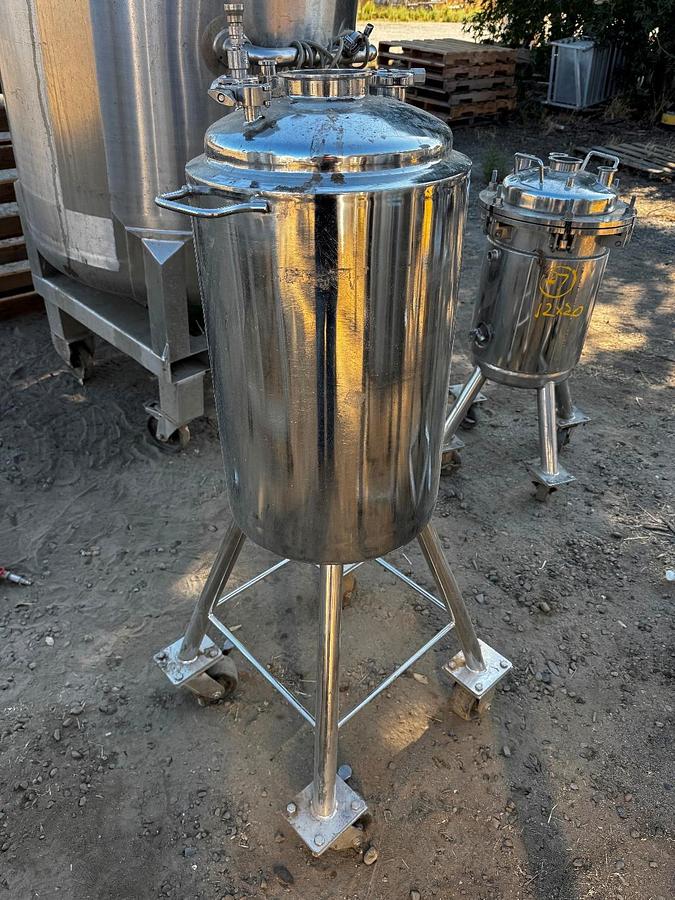

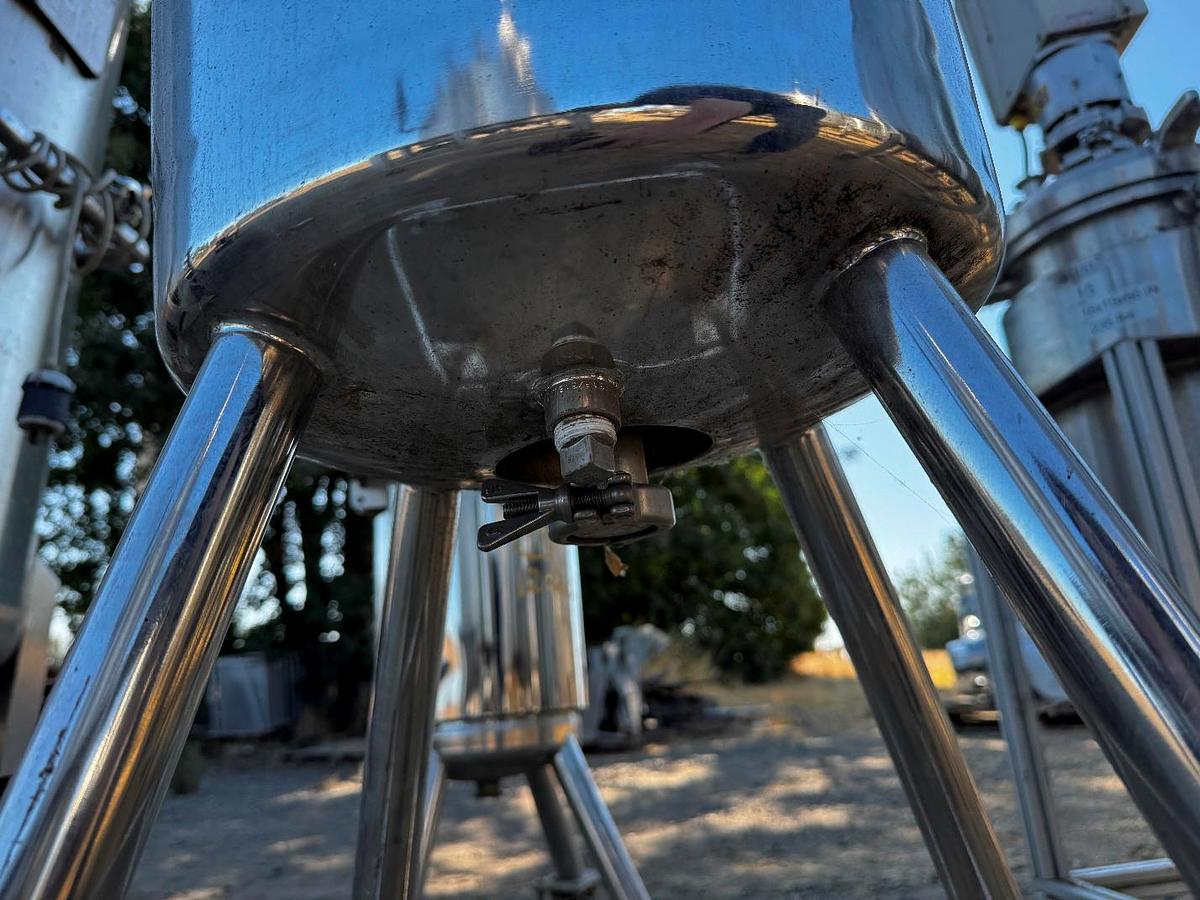

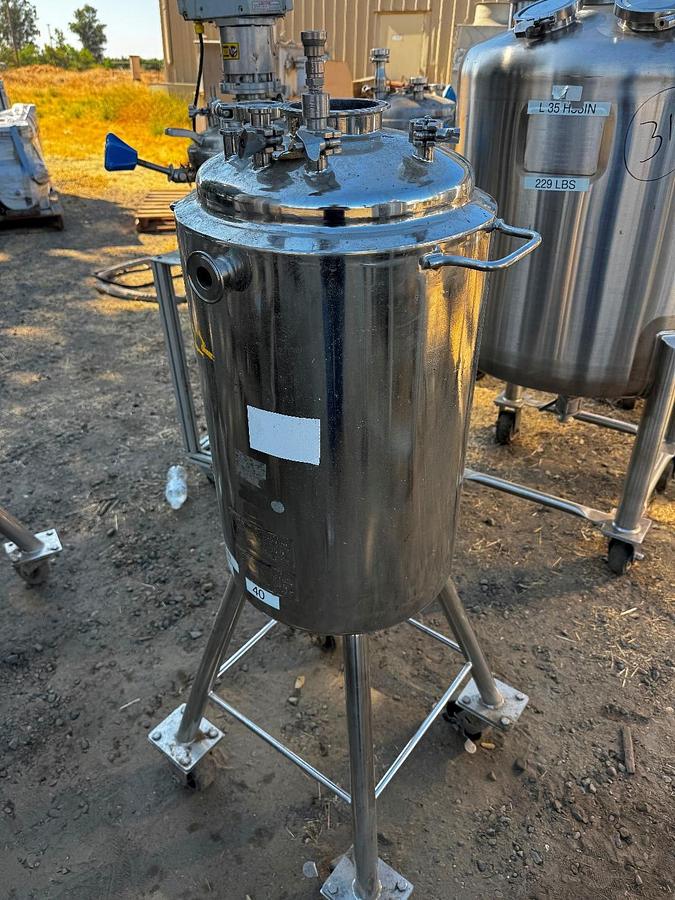

Alloy Products 50-Liter Jacketed Pressure Tank constructed of 316L stainless steel with a 304 stainless steel jacket. The tank measures 14" diameter x 20" straight side and features a welded top and dish top & bottom. Equipped with a 4" center top opening, (4) 1/2" ports, (1) 2" top port, and a 2" center bottom outlet. Mounted on casters for mobility. Internally rated 115 PSI @ 200°F; jacket rated 45 PSI @ 200°F. Built in 2002. ASME Code. National Board #28849.
Specifications
| Stock Number | 5991481 |
| Manufacturer | Alloy Products |
| Model | 114109-002 |
| Year | 2002 |
| Serial Number | 114109-002 |
| Gallons | 13 (50-Liter) |
| Dimensions | 14" diameter x 20" straight side |
| Jacket | Yes, 304 Stainless Steel |
| Materials of Construction | 316L Stainless Steel |
| Jacket Pressure | 45 PSI @ 200°F |
| Pressure Rating | 115 PSI @ 200°F (internal) |
| Basis | FOB |
General Information
Alloy Products is a respected manufacturer of high-quality pressure vessels and sanitary processing tanks for critical applications. Their equipment is widely used in biopharma, food, and chemical manufacturing environments. This jacketed tank is ideal for sanitary mixing, small-batch formulation, and heated or cooled processes such as blending syrups, nutrient broths, or other liquid intermediates under pressure.
