Heat Exchanger, Shell & Tube, 200 SF, Redman AEU-2H, 10-72-50, 1135 PSI, Unused, #5991435
Heat Exchanger, Shell & Tube, 200 SF, Redman AEU-2H, 10-72-50, 1135 PSI, Unused, #5991435
Location:California
Available quantity:1
Description

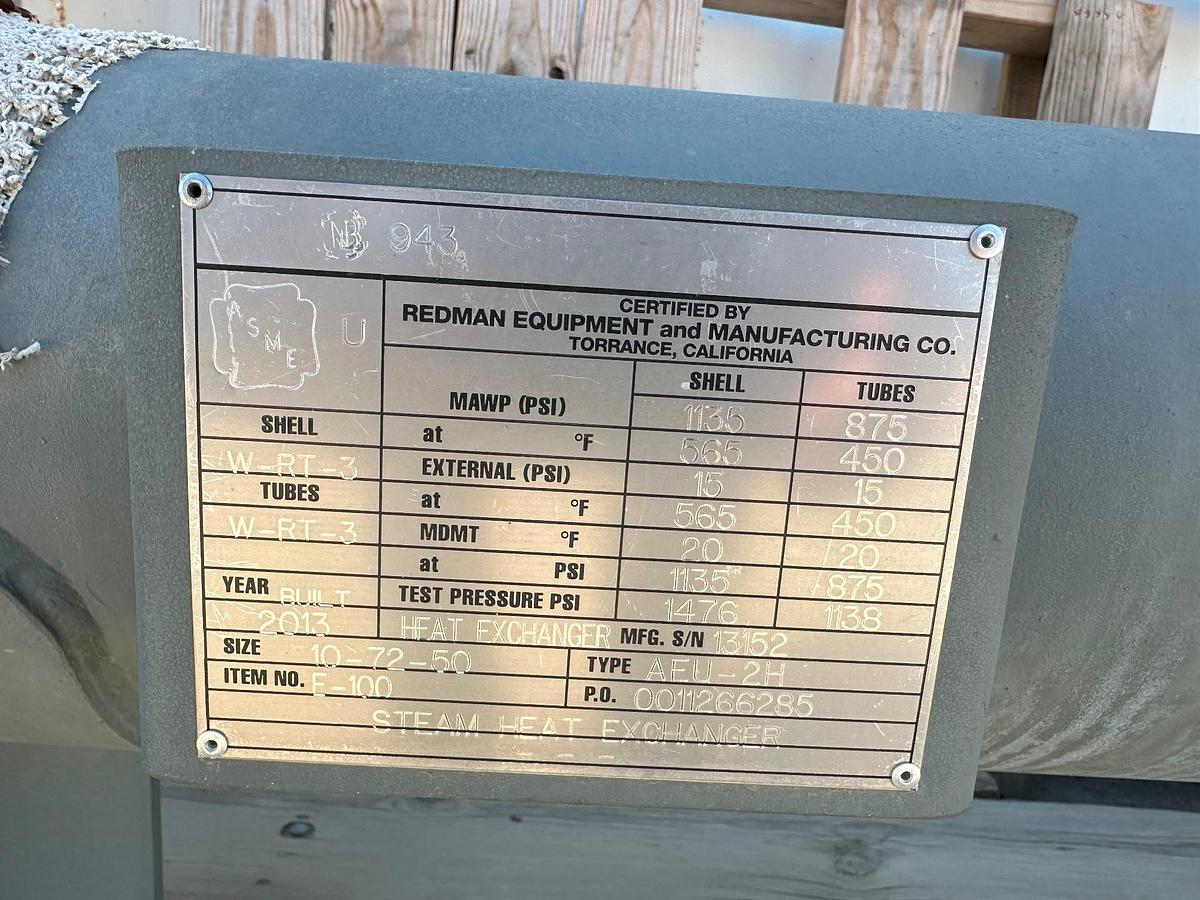

Redman shell & tube heat exchanger, model AEU-2H, size 10-72-50, serial number 13152. Built in 2013 for a project but never placed in service. Shell rated at 1135 PSI @ 565°F; tubes rated at 875 PSI @ 450°F. ASME certified with National Board #943. Test pressures: 1476 PSI (shell), 1138 PSI (tubes). Fabricated for high-pressure steam-to-crude oil applications.
Specifications
| Stock Number | 5991435 |
| Manufacturer | Redman Equipment and Manufacturing |
| Model | AEU-2H |
| Year | 2013 |
| Serial Number | 13152 |
| Square Feet | 200 Sq. Ft. (Estimate) |
| Shell MAWP | 1135 PSI @ 565°F |
| Tubes MAWP | 875 PSI @ 450°F |
| External Pressure (Shell/Tubes) | 15 PSI |
| MDMT | 20°F @ 1135 PSI (Shell), 20°F @ 875 PSI (Tubes) |
| Size | 10-72-50 |
| Basis | FOB |
General Information
Certified by Redman Equipment of Torrance, CA, this steam heat exchanger is built to ASME code and features heavy-duty construction for refinery, petrochemical, or industrial thermal transfer. Shell and tube ratings make it ideal for steam heating of viscous fluids. Originally commissioned by Chevron and stored in unused condition, this unit offers exceptional value for midstream or process plant operators.
