Pasteurizer System, Media, Alfa Laval, PHE Type, 119 GPM, Stainless Steel, #5991414
Pasteurizer System, Media, Alfa Laval, PHE Type, 119 GPM, Stainless Steel, #5991414
Location:Chowchilla, CA
Available quantity:1
Description

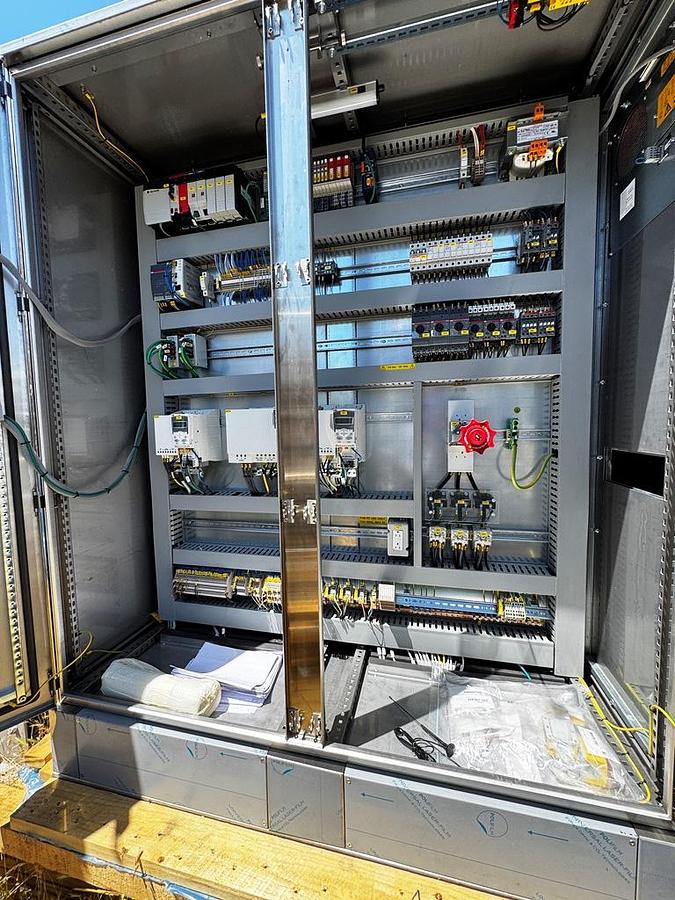

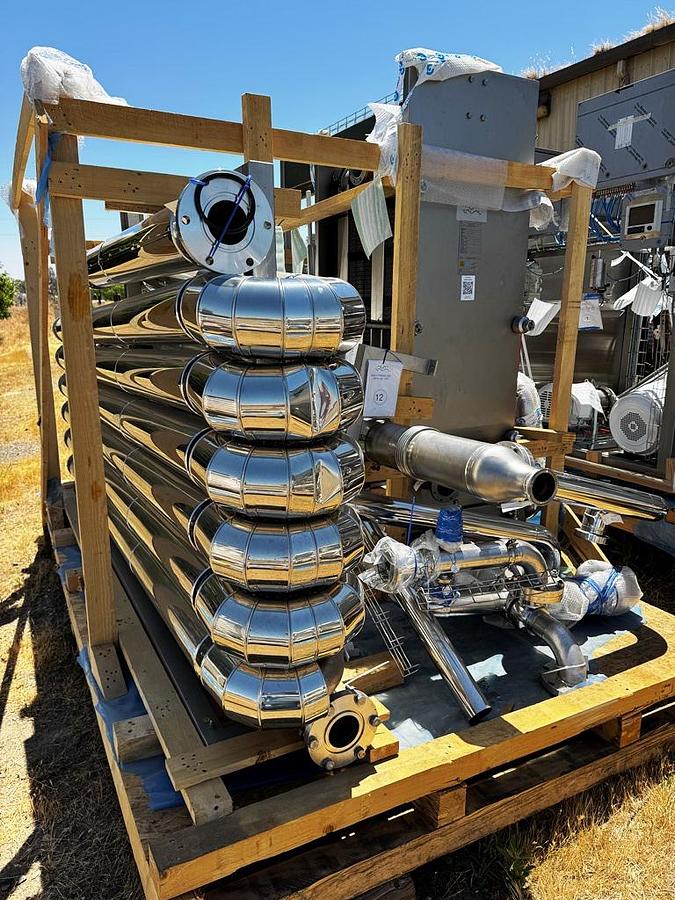

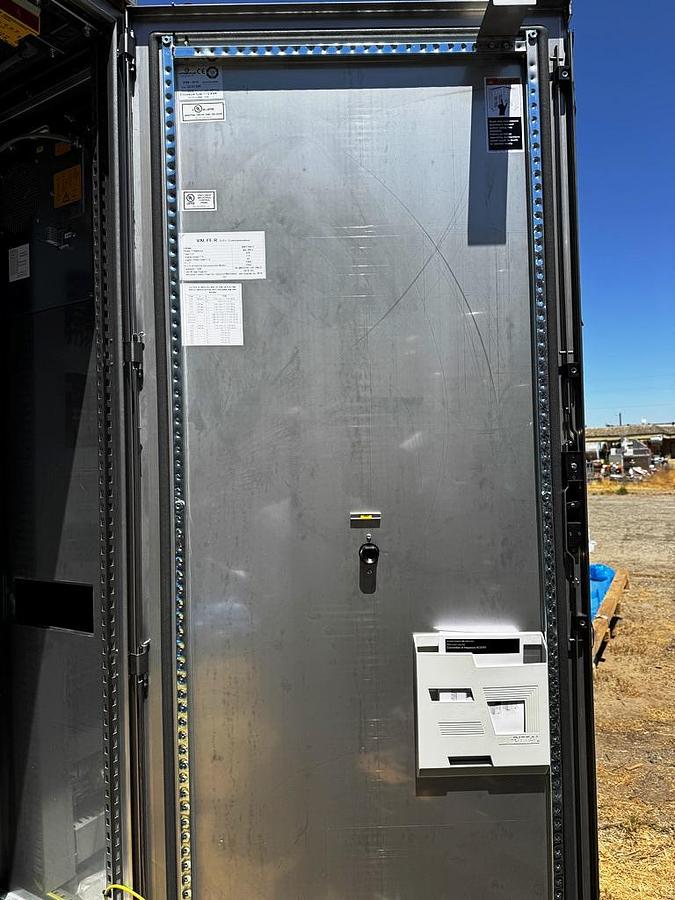

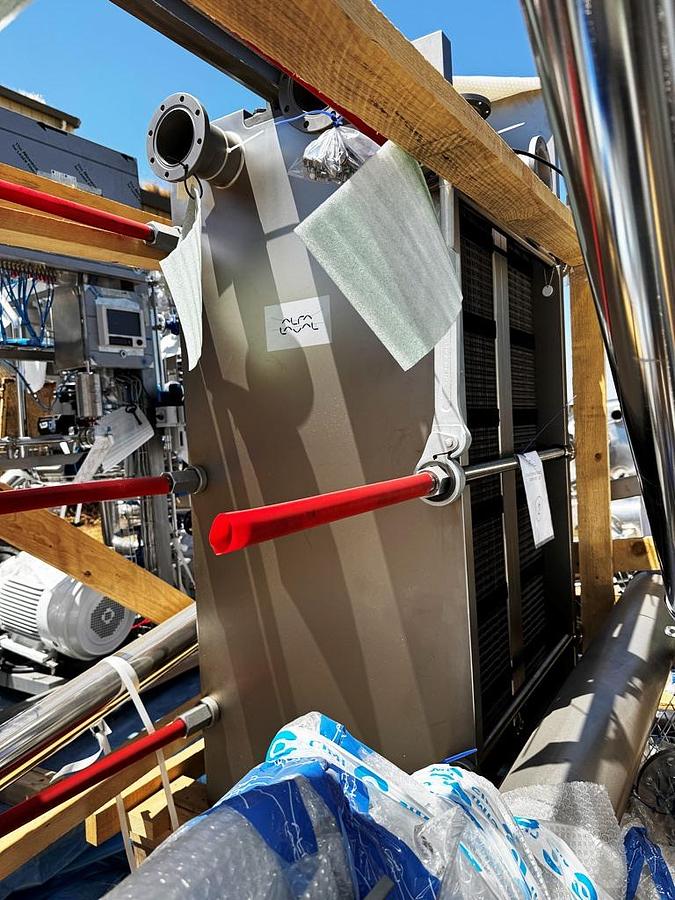

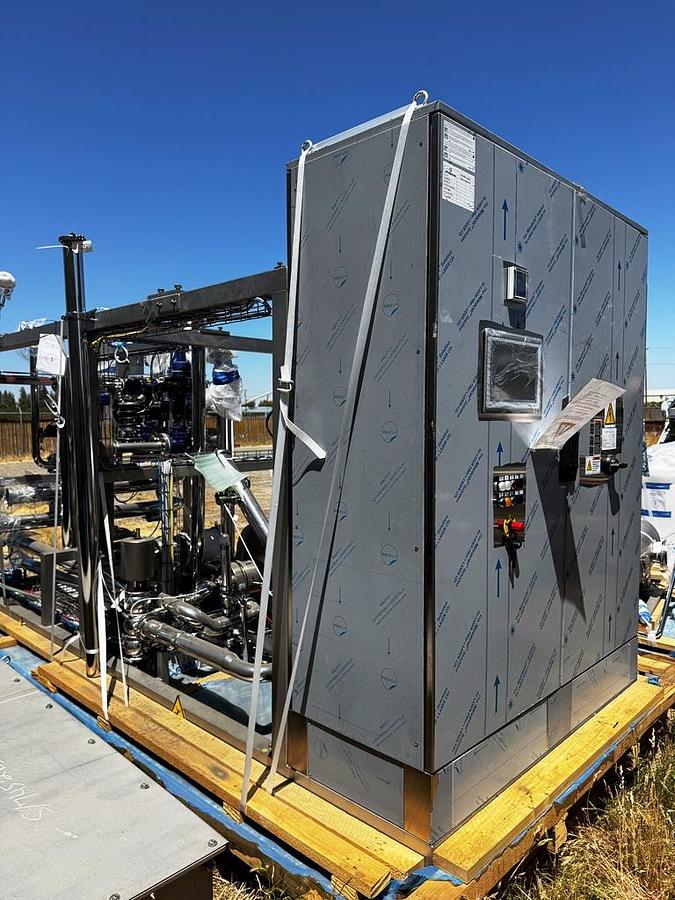

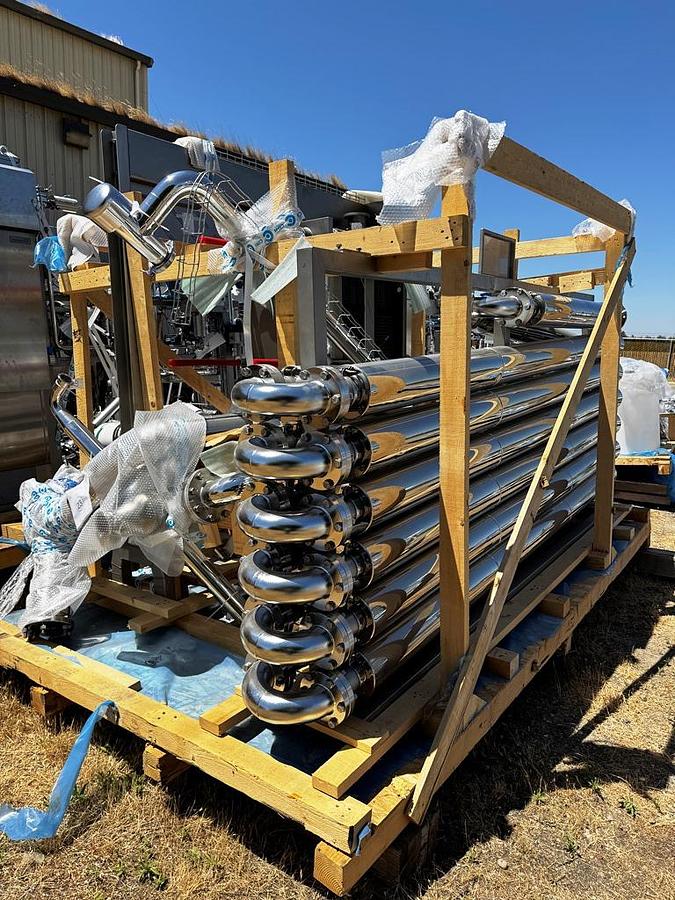

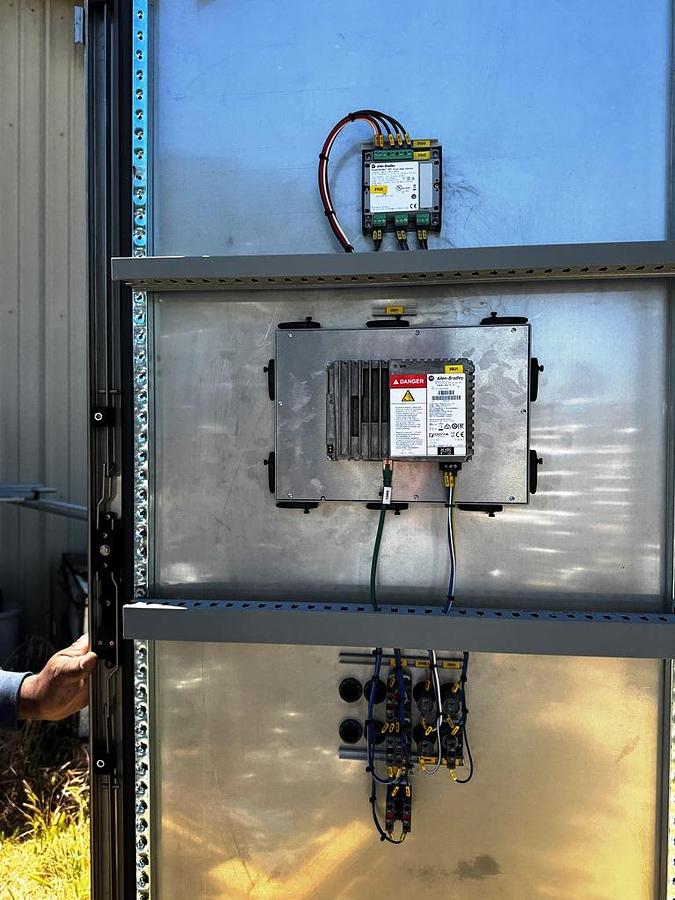

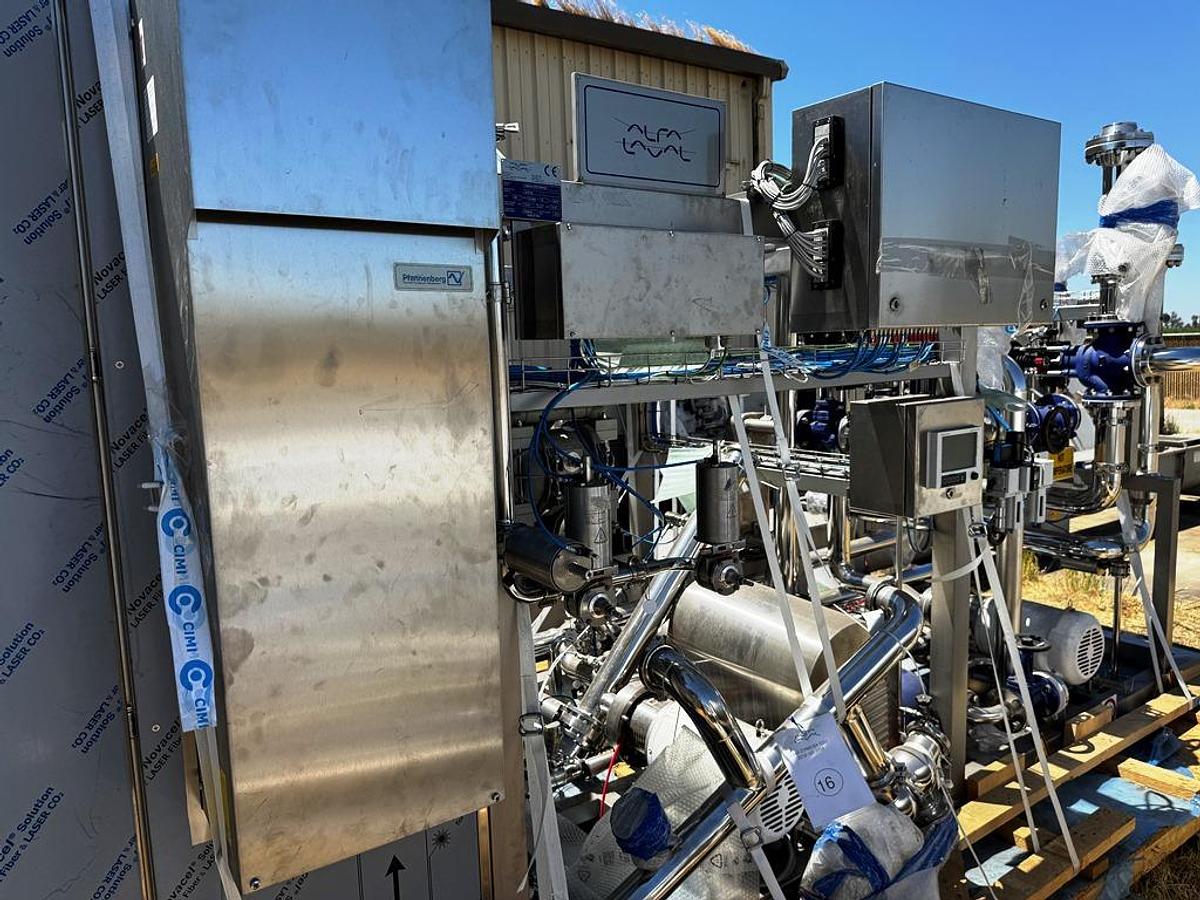

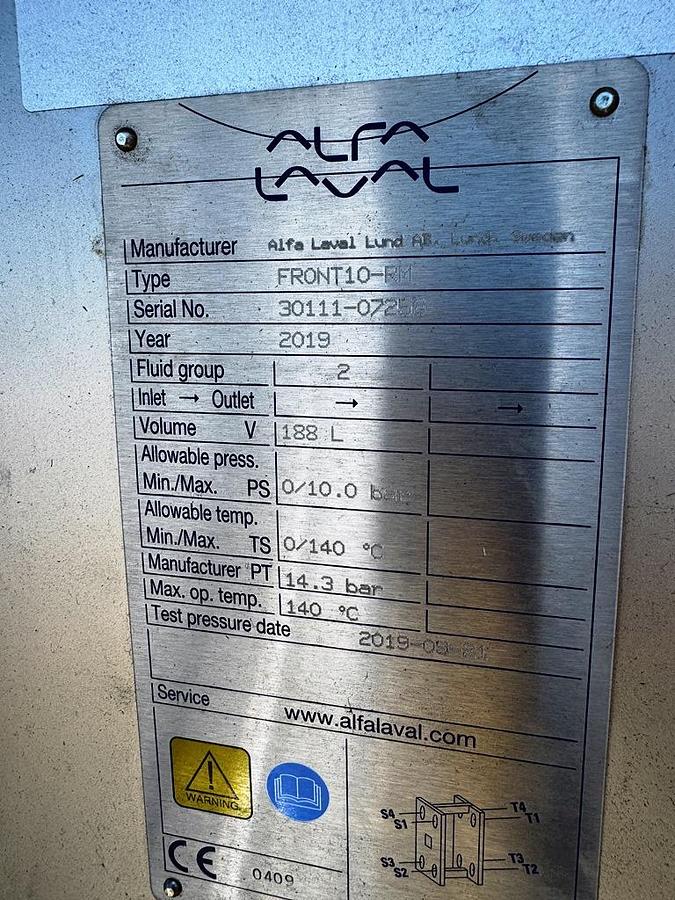

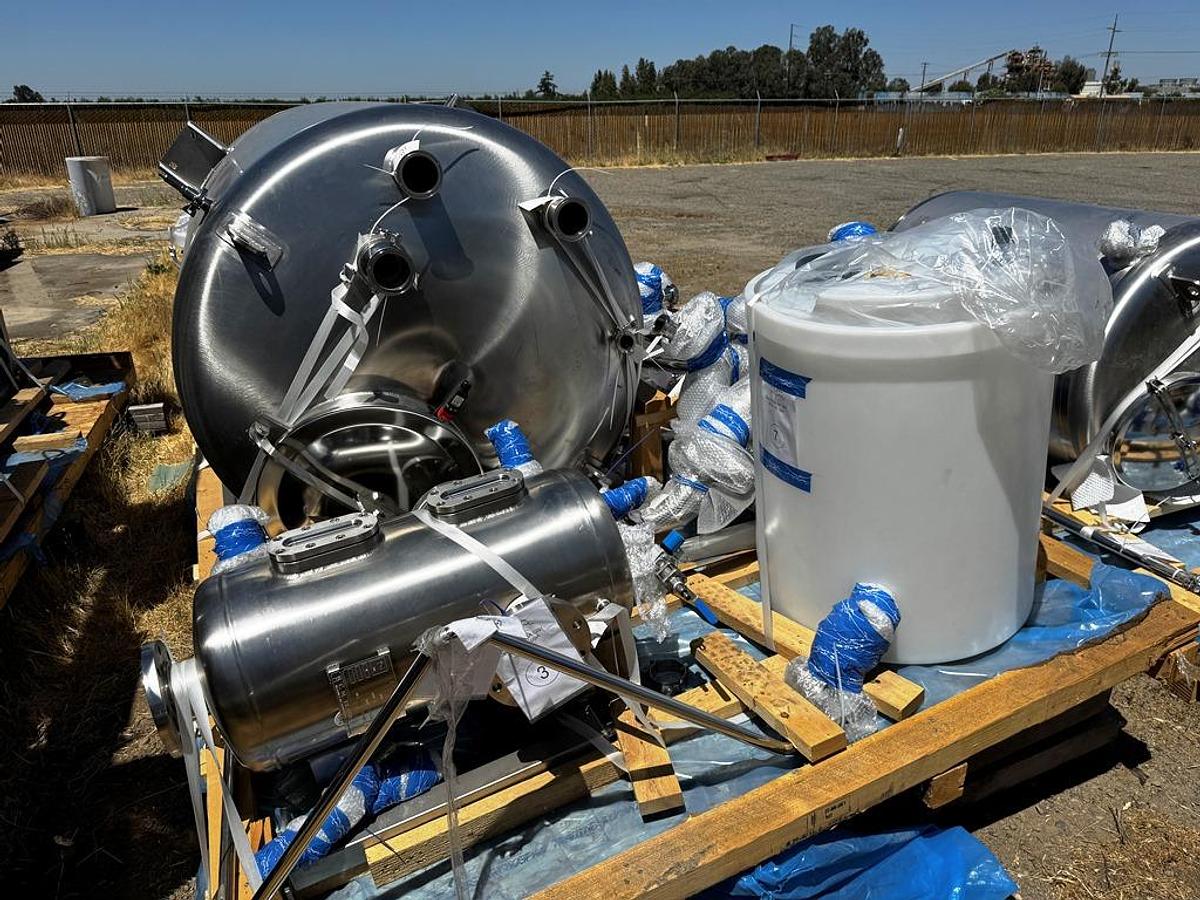

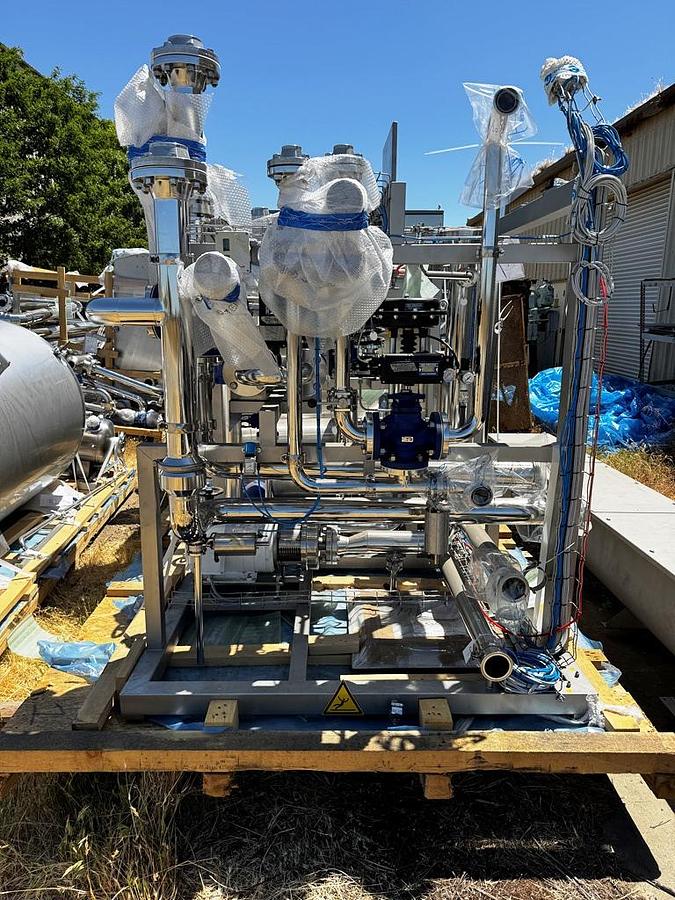

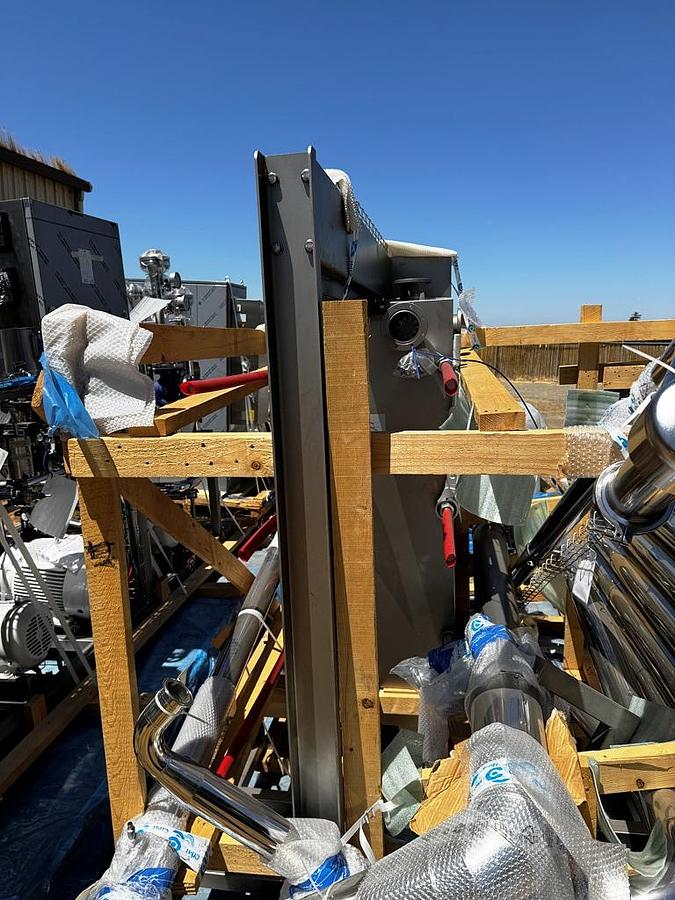

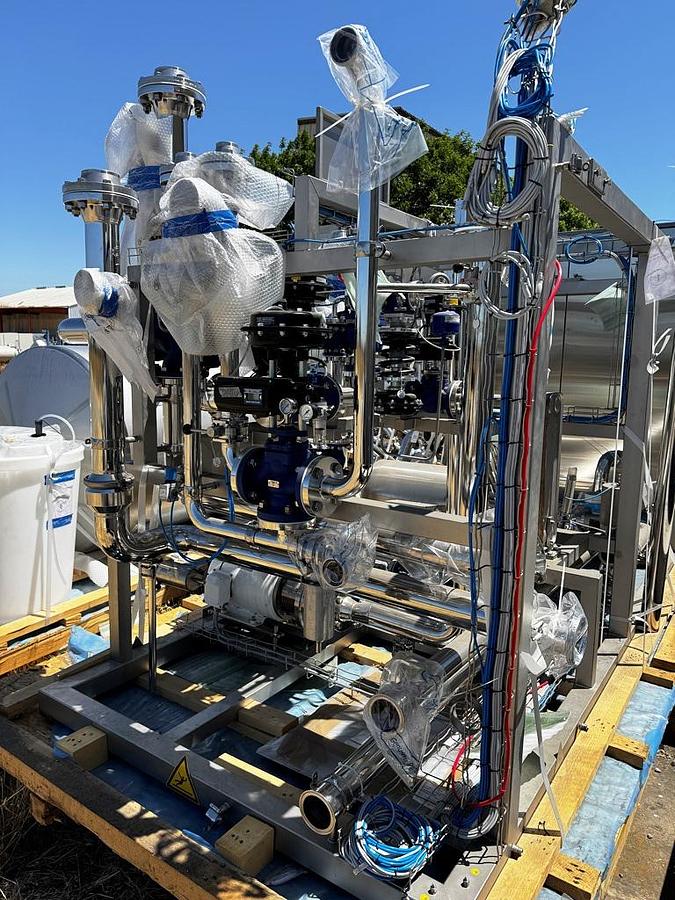

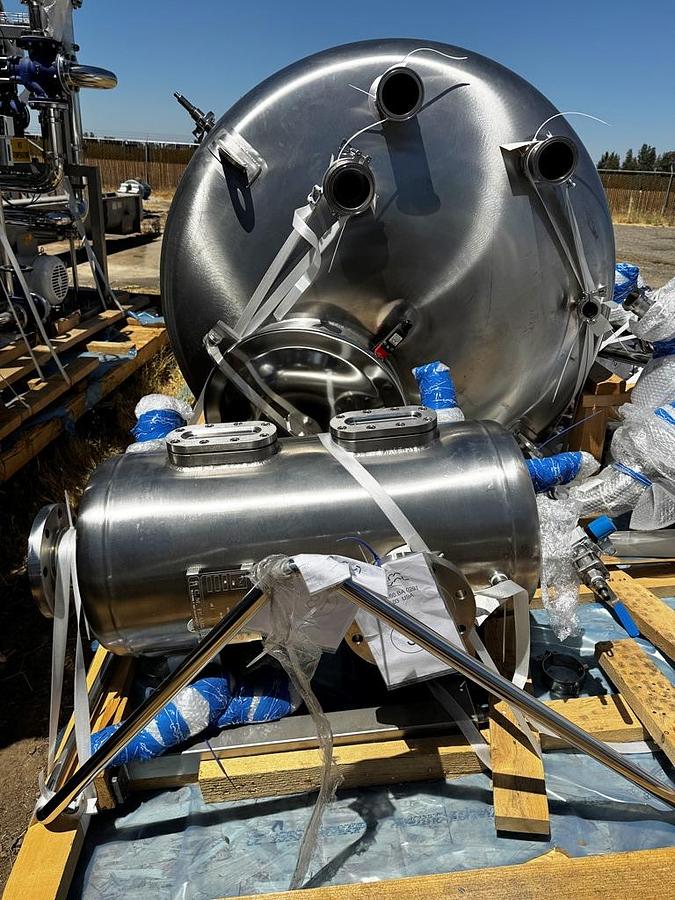

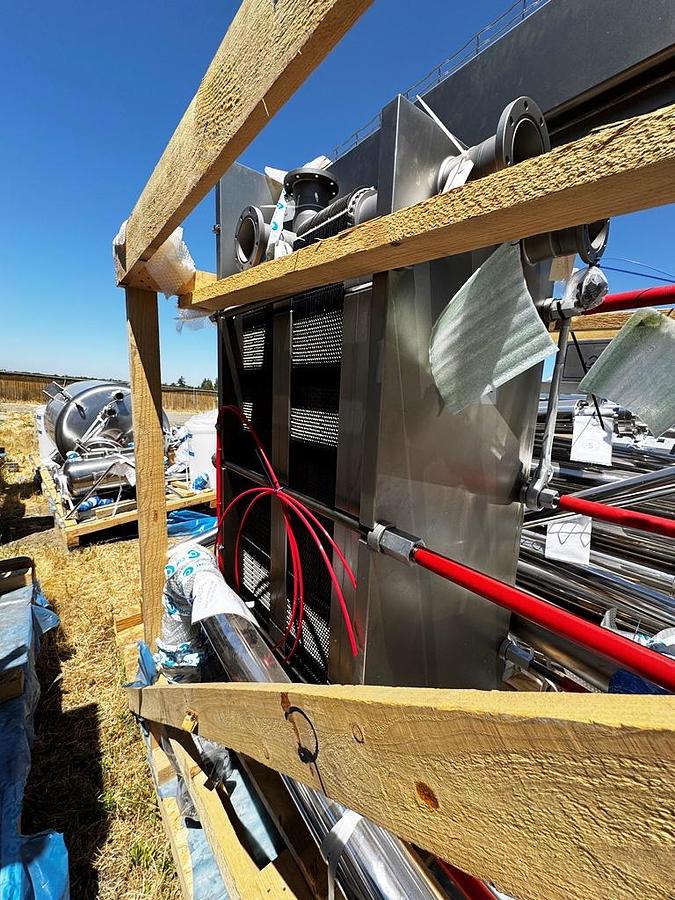

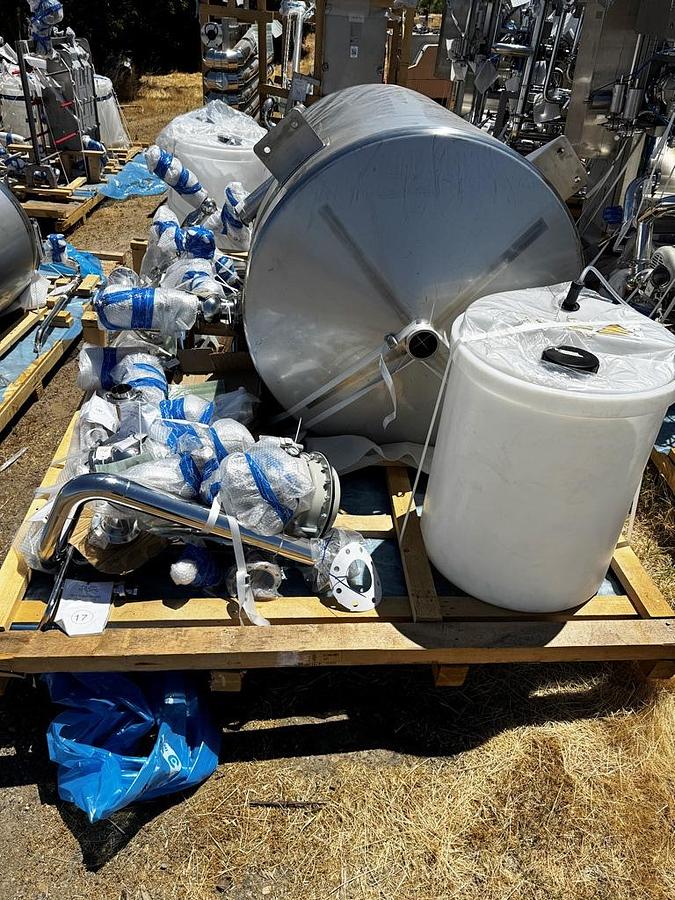

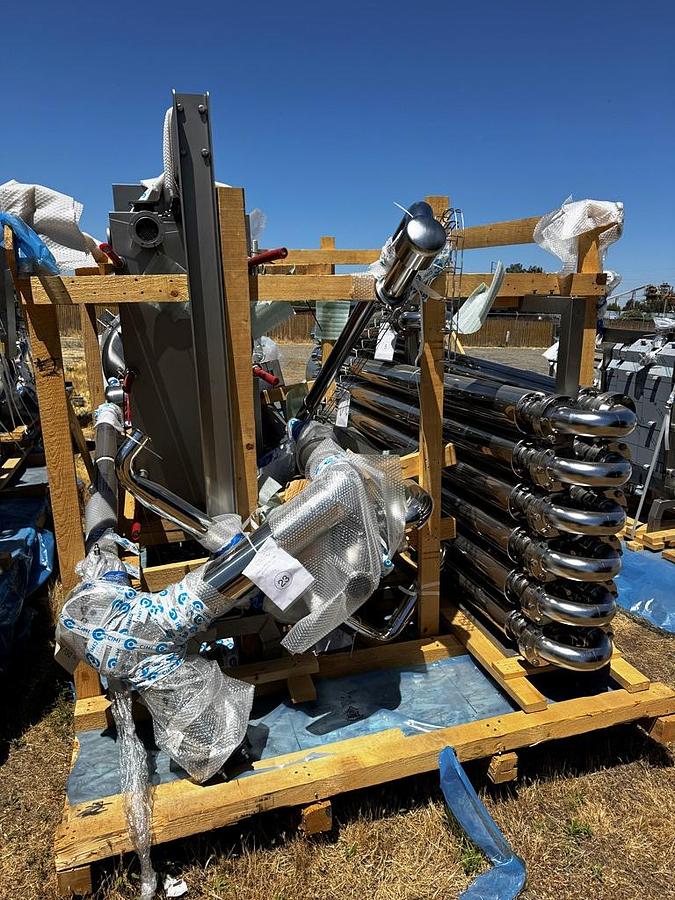

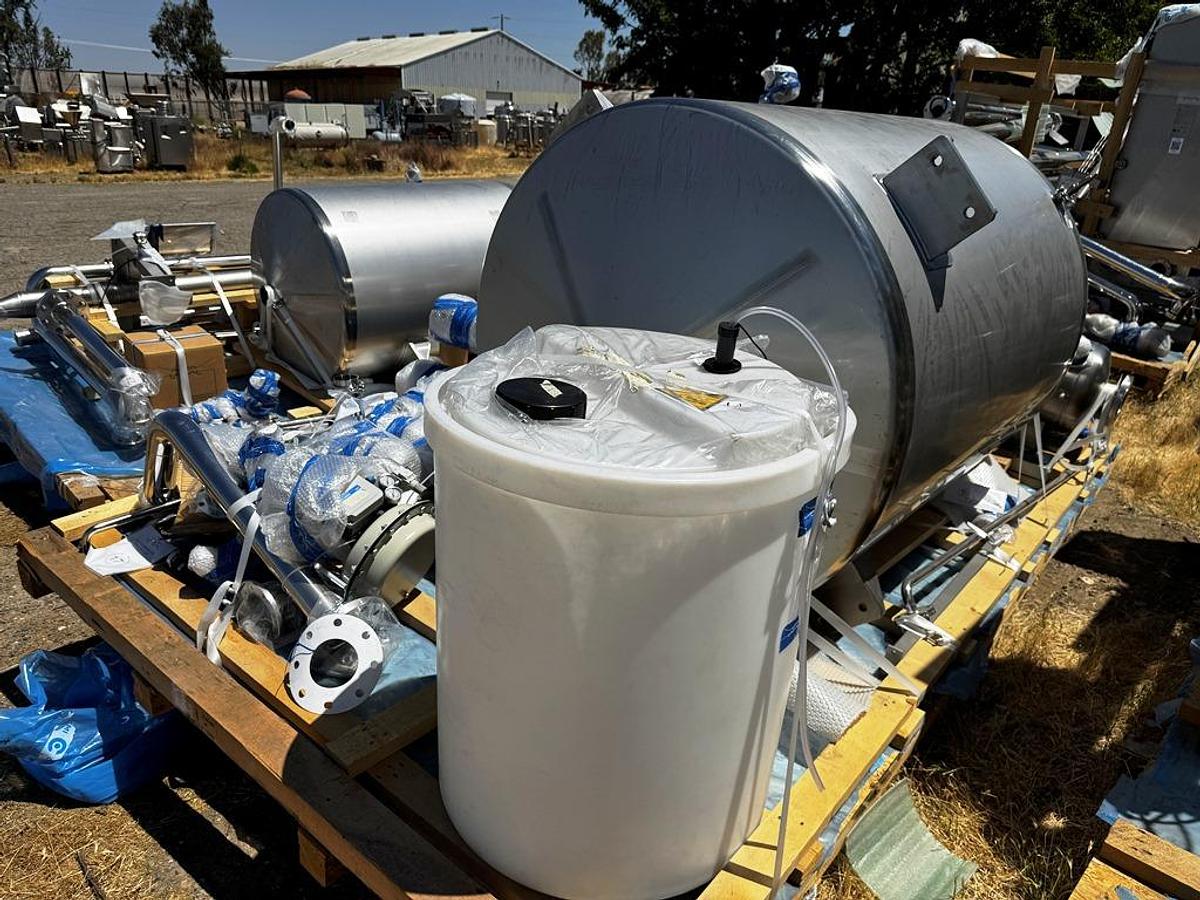

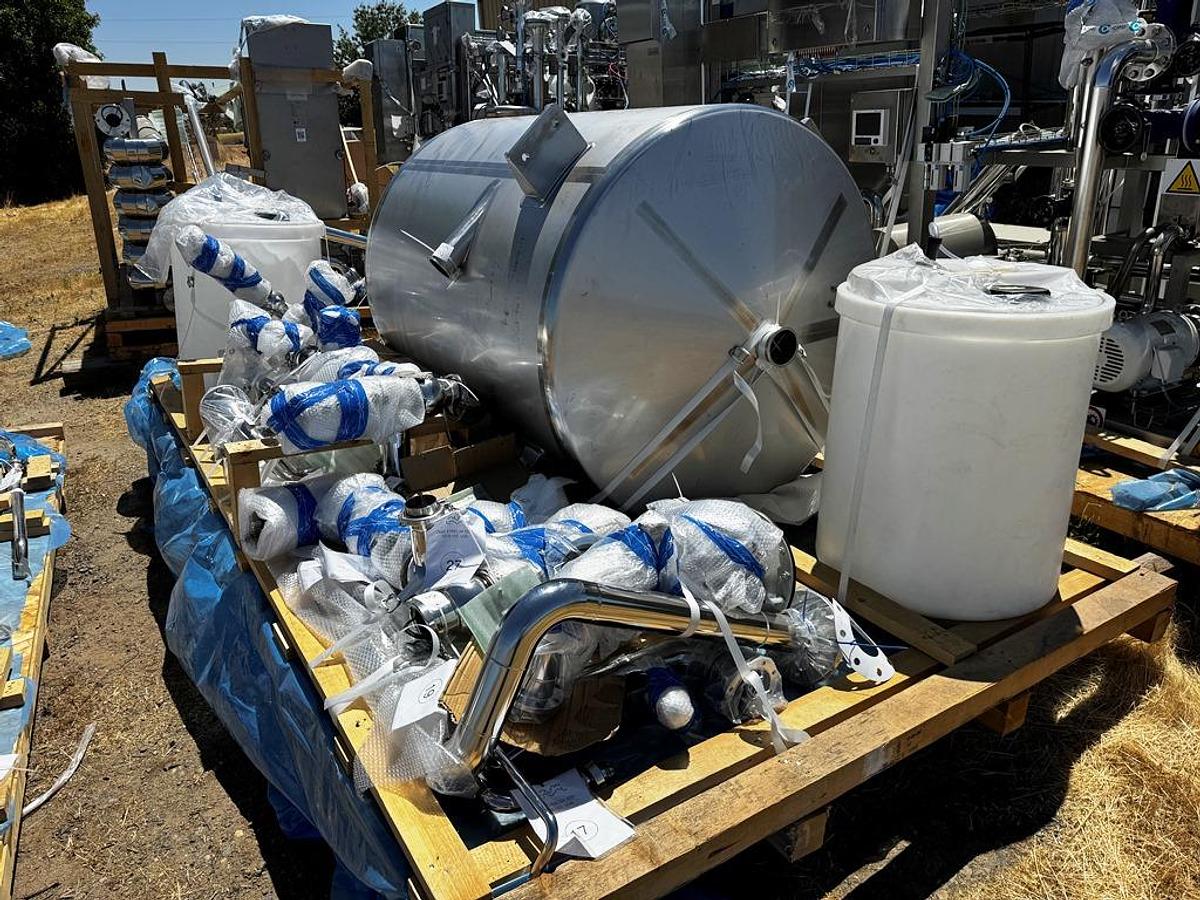

Unused Alfa Laval Steritherm PHE Media Sterilizer System rated for 27,000 kg/h of liquid media (approx. 119 GPM). Designed for aseptic thermal treatment with a maximum sterilization temperature of 284°F (140°C) and pressure rating of 140 psi (10 bar). System includes plate heat exchanger, tube-in-tube cooler, 3-1/4" I.D. product holding tube, balance tank, control panel, and instrumentation. Features 1-1/2" tri-clamp sanitary utility connections, Alfa Laval sanitary pumps, and Siemens/Allen Bradley PLC control system with remote access. System includes Alfa Laval fabricated modules and full control package. Designed for 27,000 kg/h aseptic thermal processing. Test pressure 14.3 bar / 207 psi.
Specifications
| Stock Number | 5991414 |
| Manufacturer | Alfa Laval |

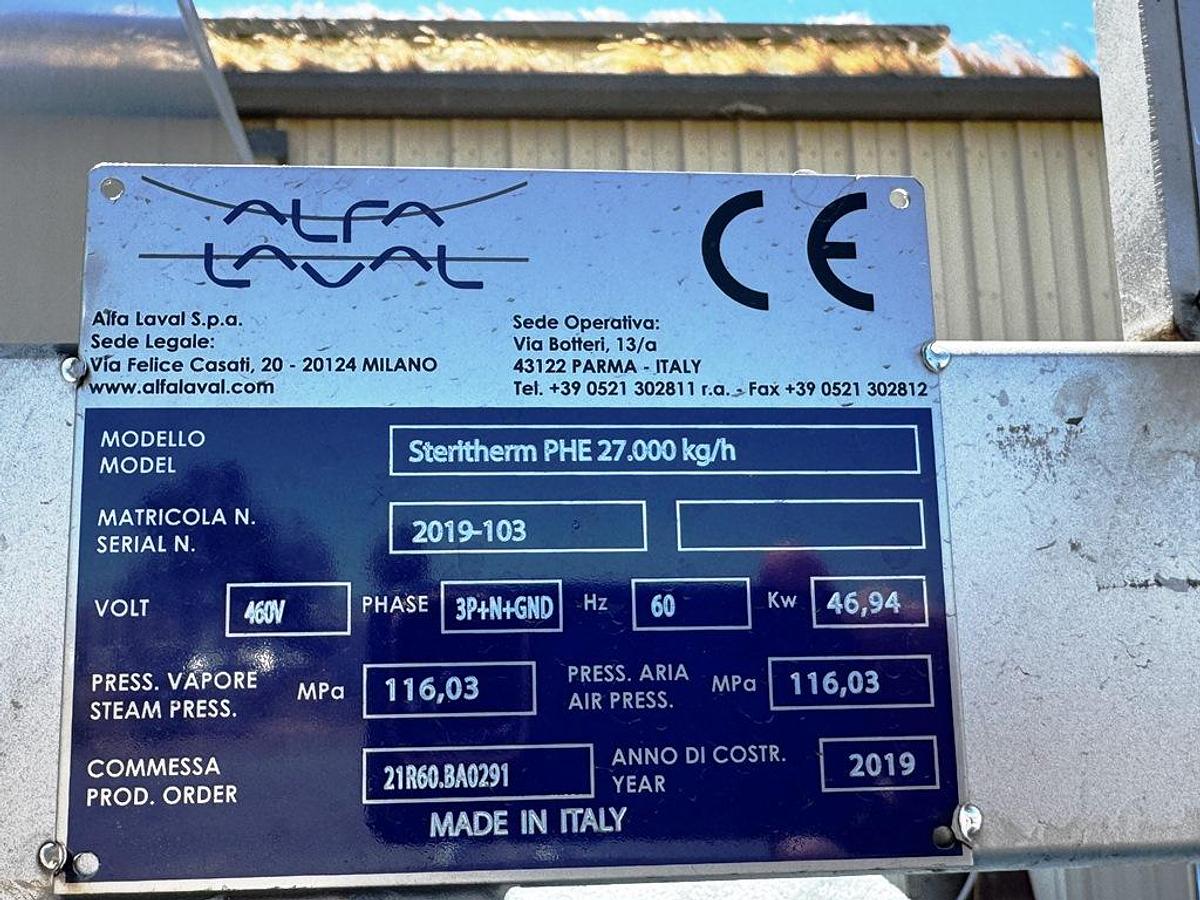

| Model | Steritherm PHE 27,000 kg/hr |
| Year | 2019 |
| Serial Number | 2019-103 |
| Flow Capacity | 27,000 kg/h (approx. 119 GPM for water-based media) |
| Design Pressure | 140 psi (10 bar) |
| Max Temperature | 284°F (140°C) |
| Connections | 1-1/2" Tri-Clamp |
| Power Requirements | 460V, 3-Phase, 60Hz |
| Materials of Construction | 316L Stainless Steel |
| Basis | FOB |
General Information
Manufactured by Alfa Laval in 2019. Engineered for continuous operation in sanitary liquid processing environments. All components skid-mounted and shipped with original preservation materials. Ideal for continuous sterilization of dairy, plant-based liquids, or pharmaceutical media.
