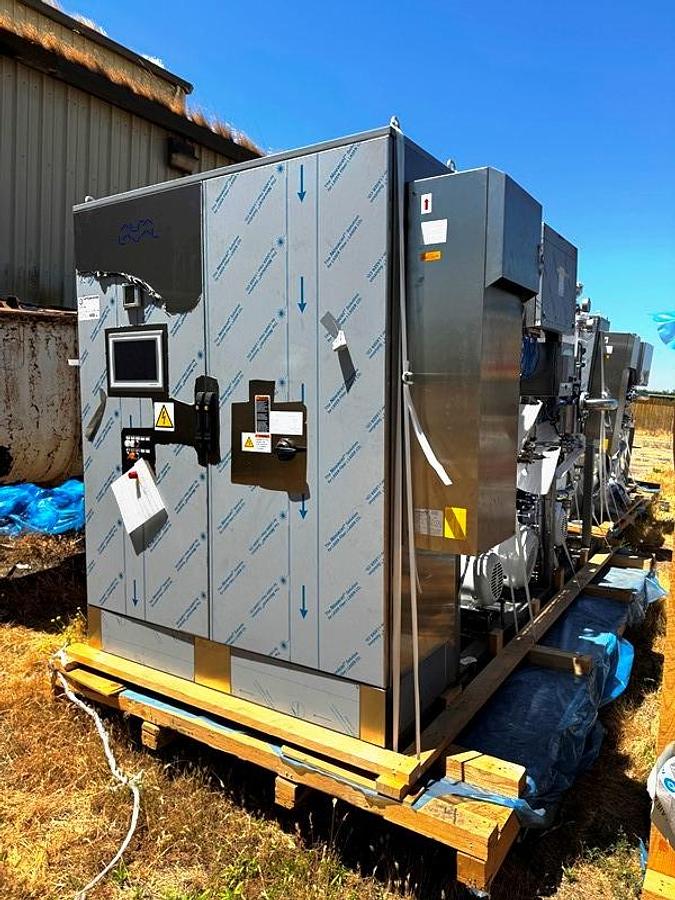

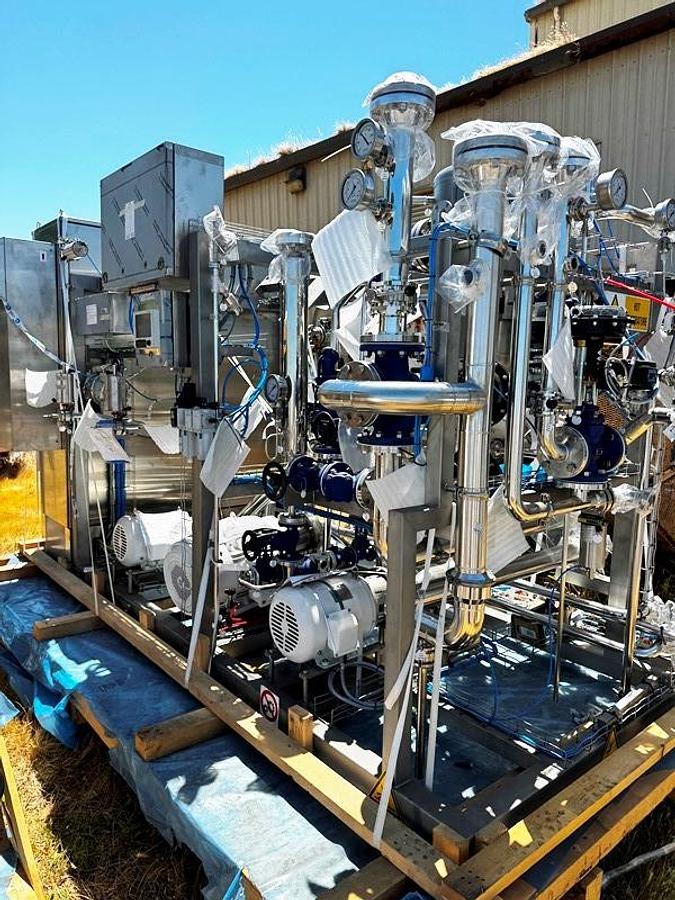

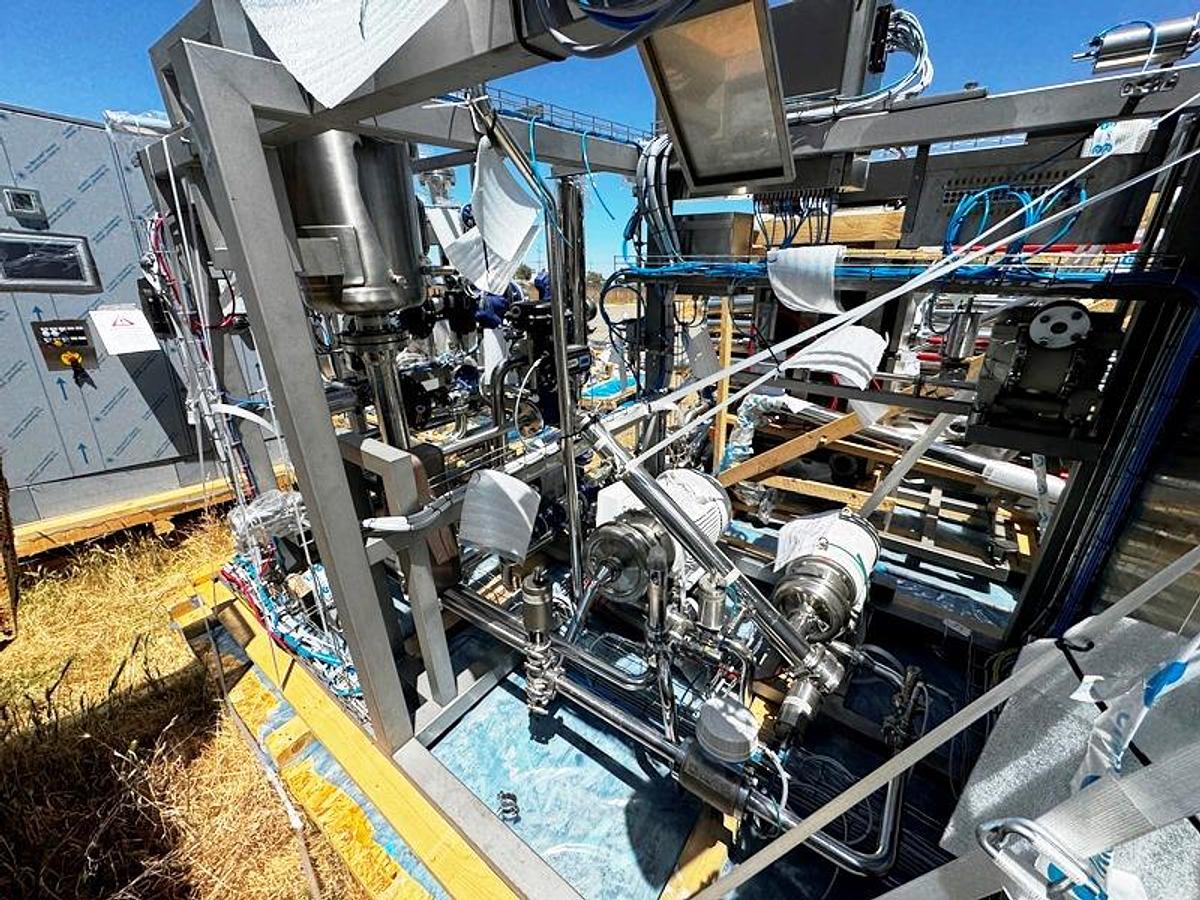

Pasteurizer System, Sugar, Alfa Laval, PHE Type, 35 GPM, 316 Stainless Steel, #5991412
Pasteurizer System, Sugar, Alfa Laval, PHE Type, 35 GPM, 316 Stainless Steel, #5991412
Location:Chowchilla, CA
Available quantity:1
Description

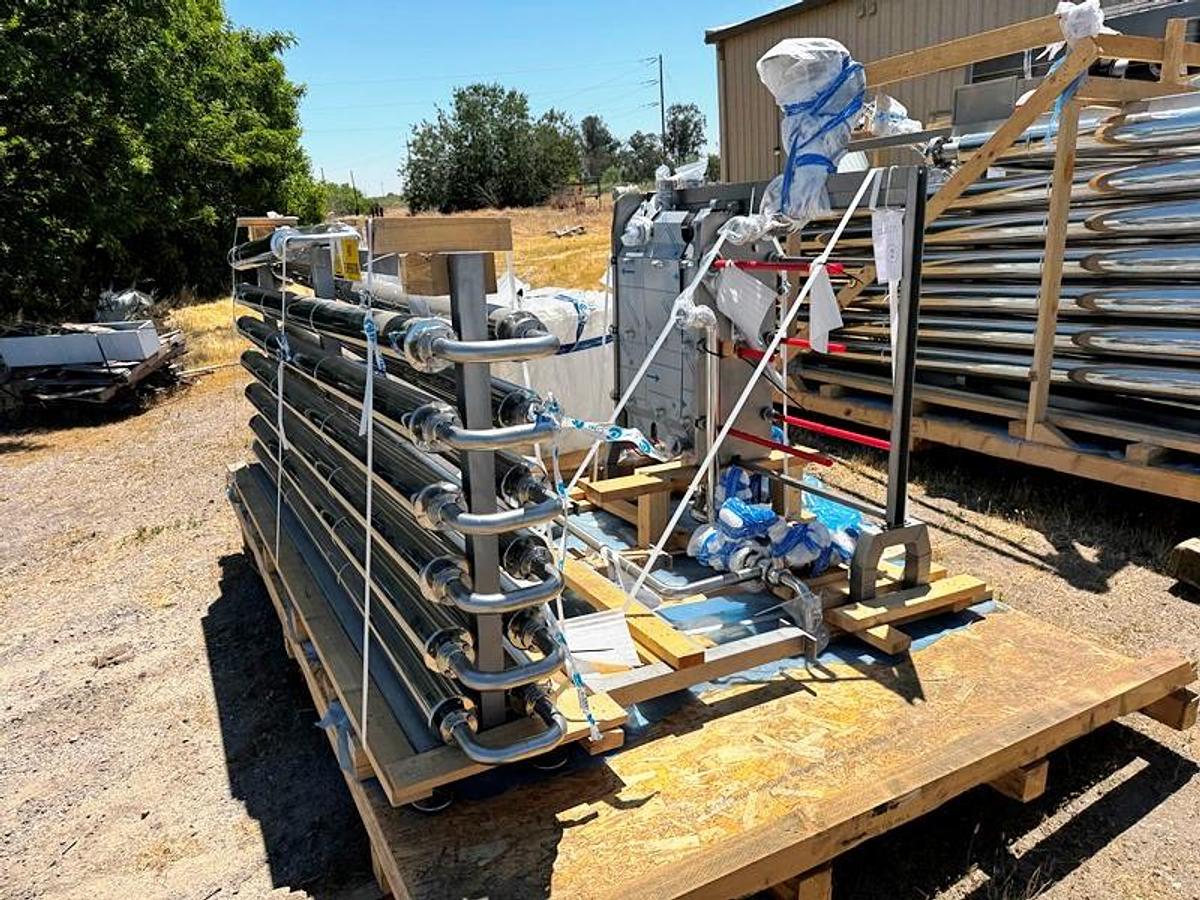

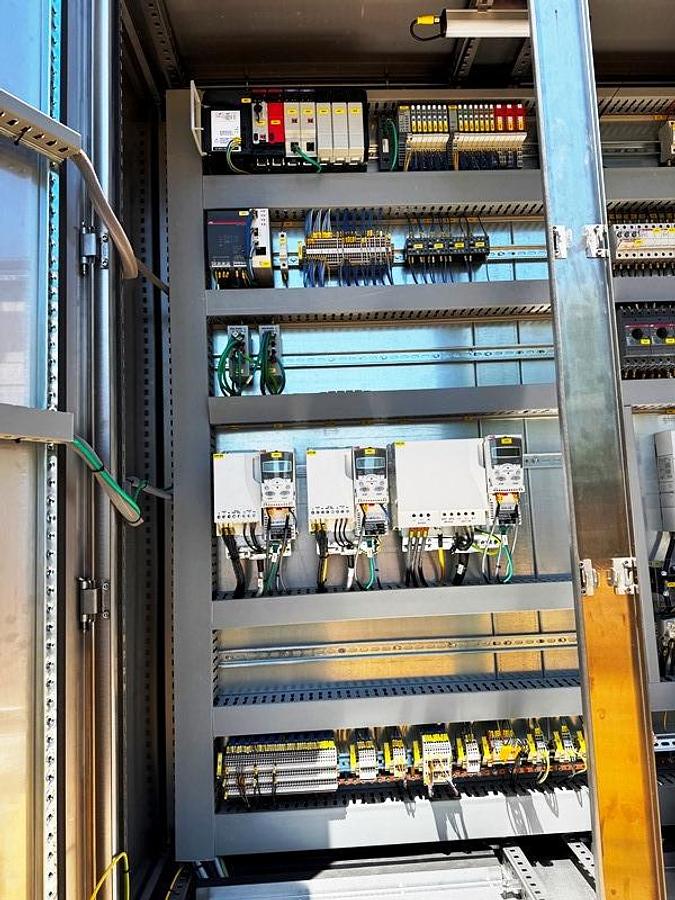

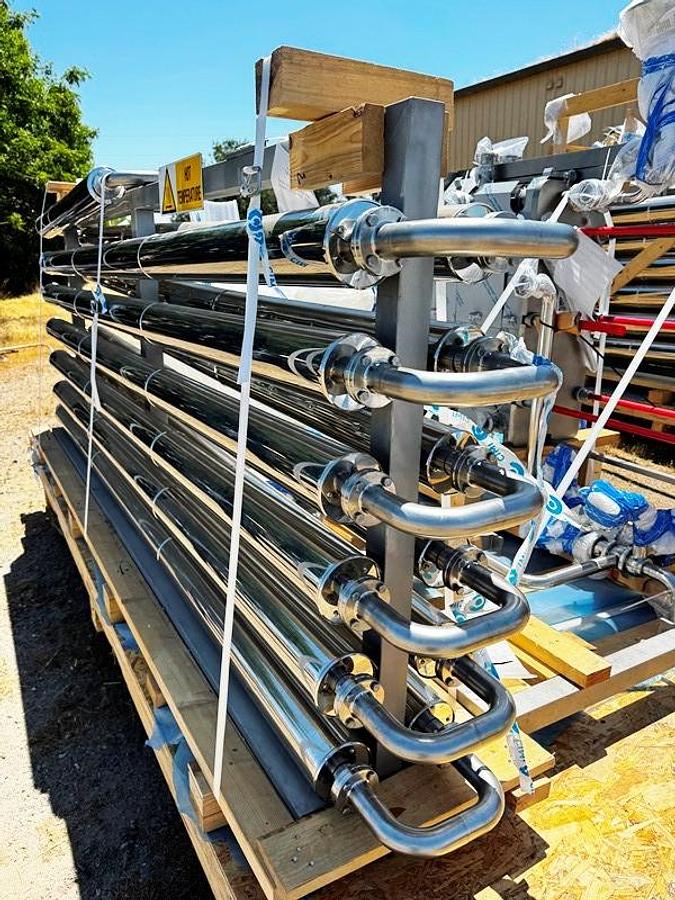

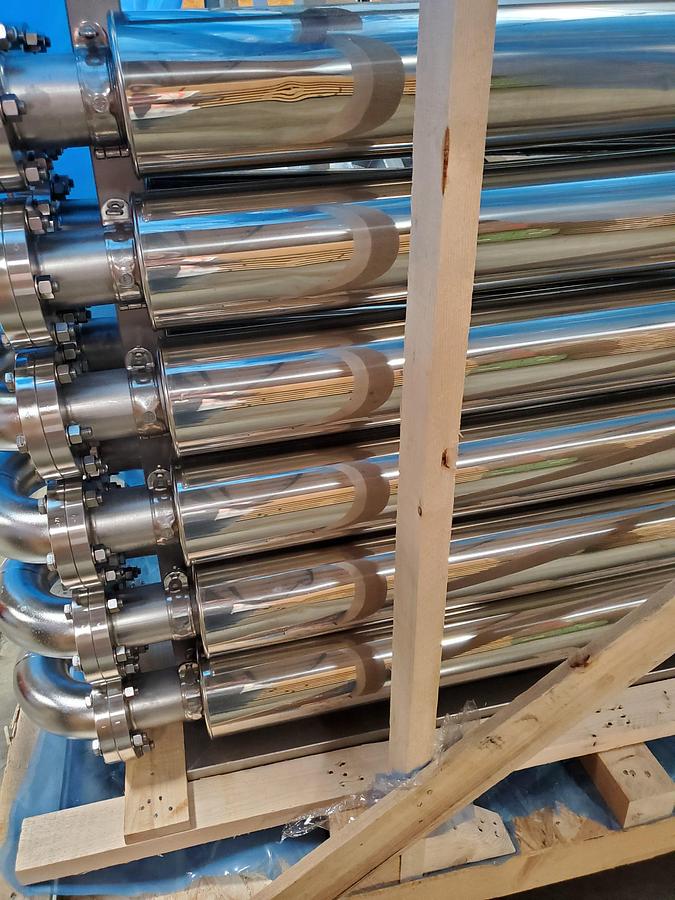

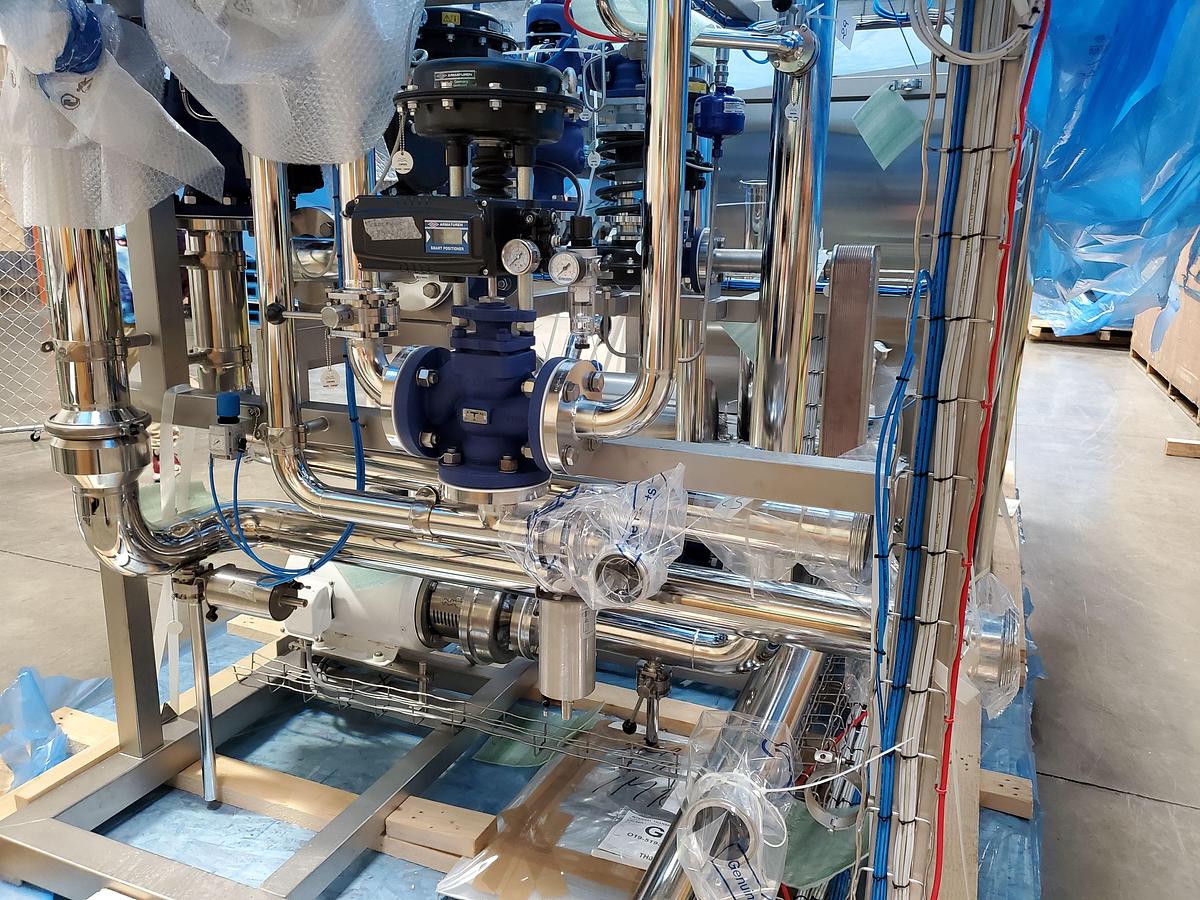

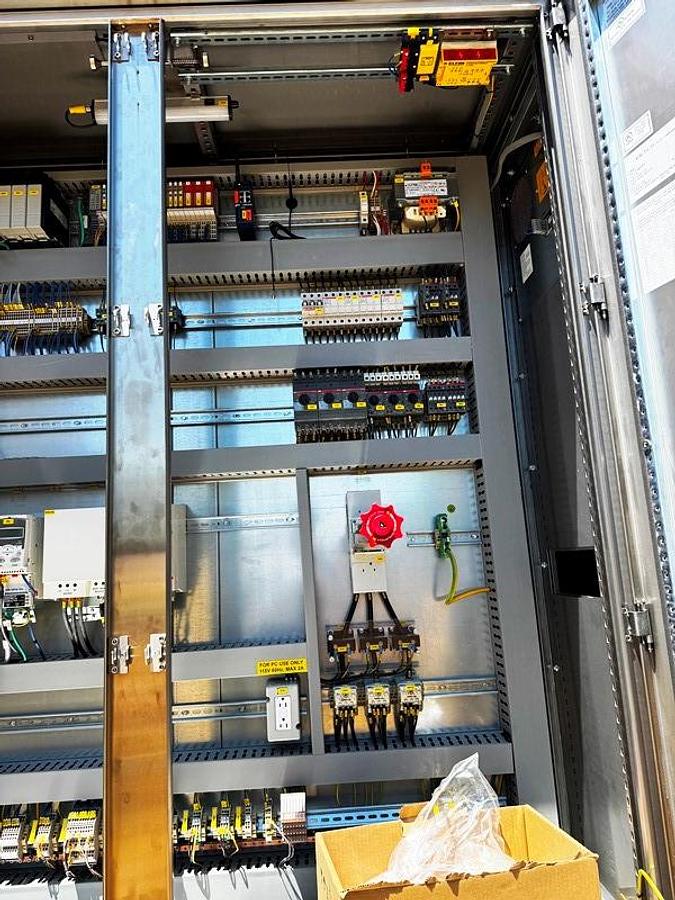

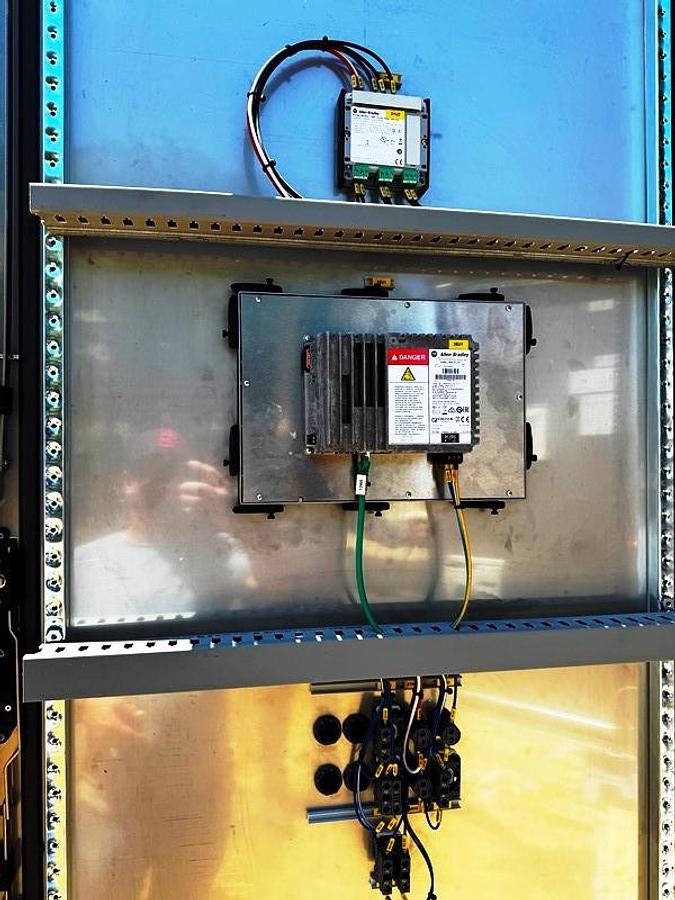

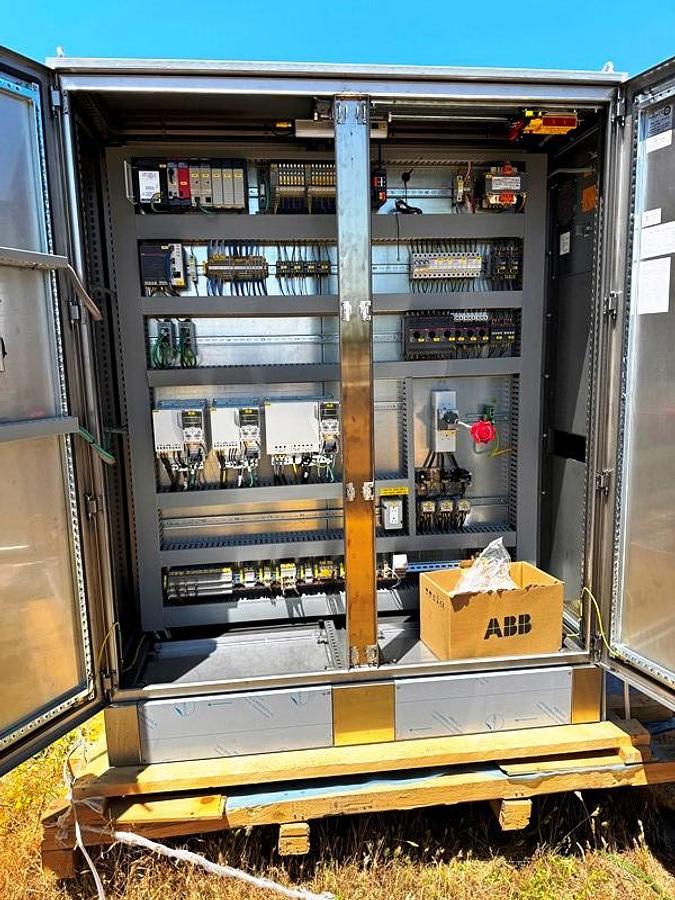

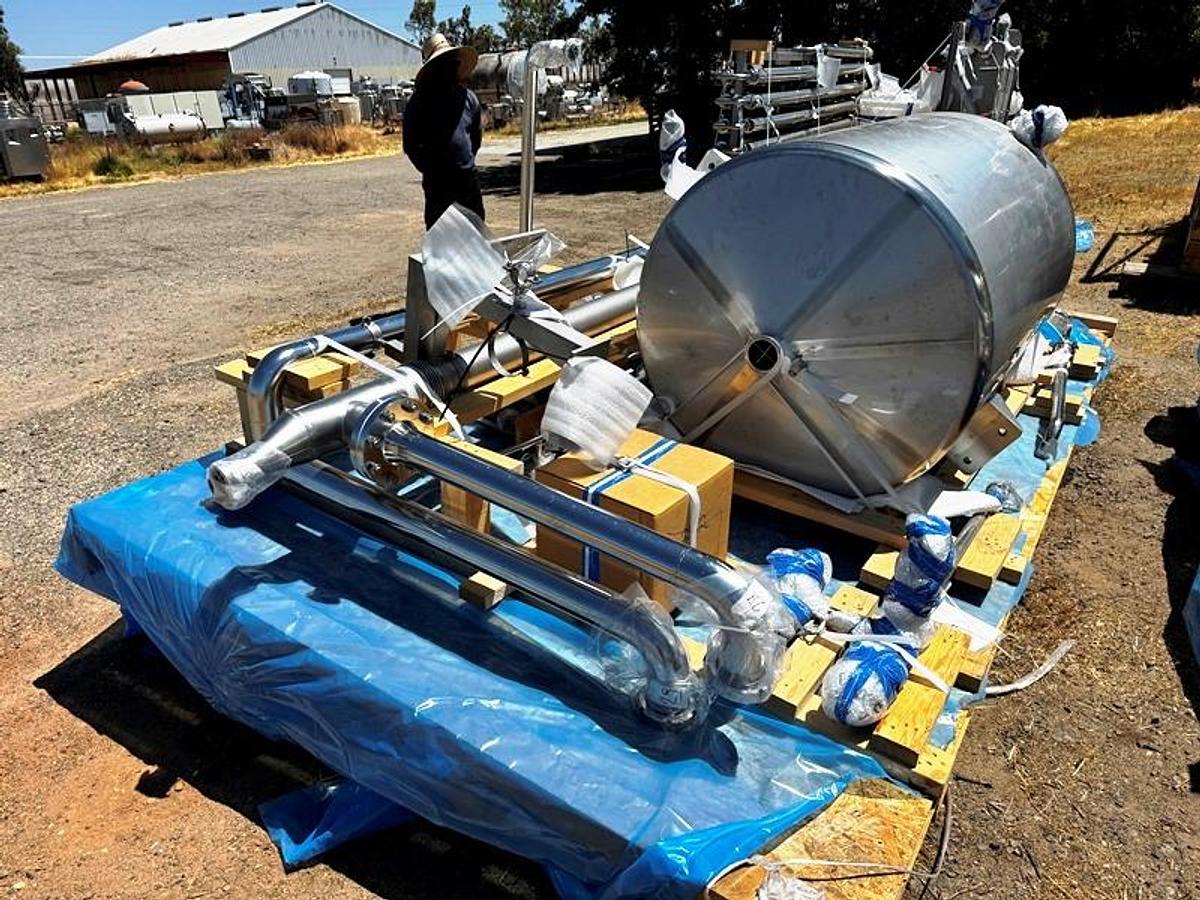

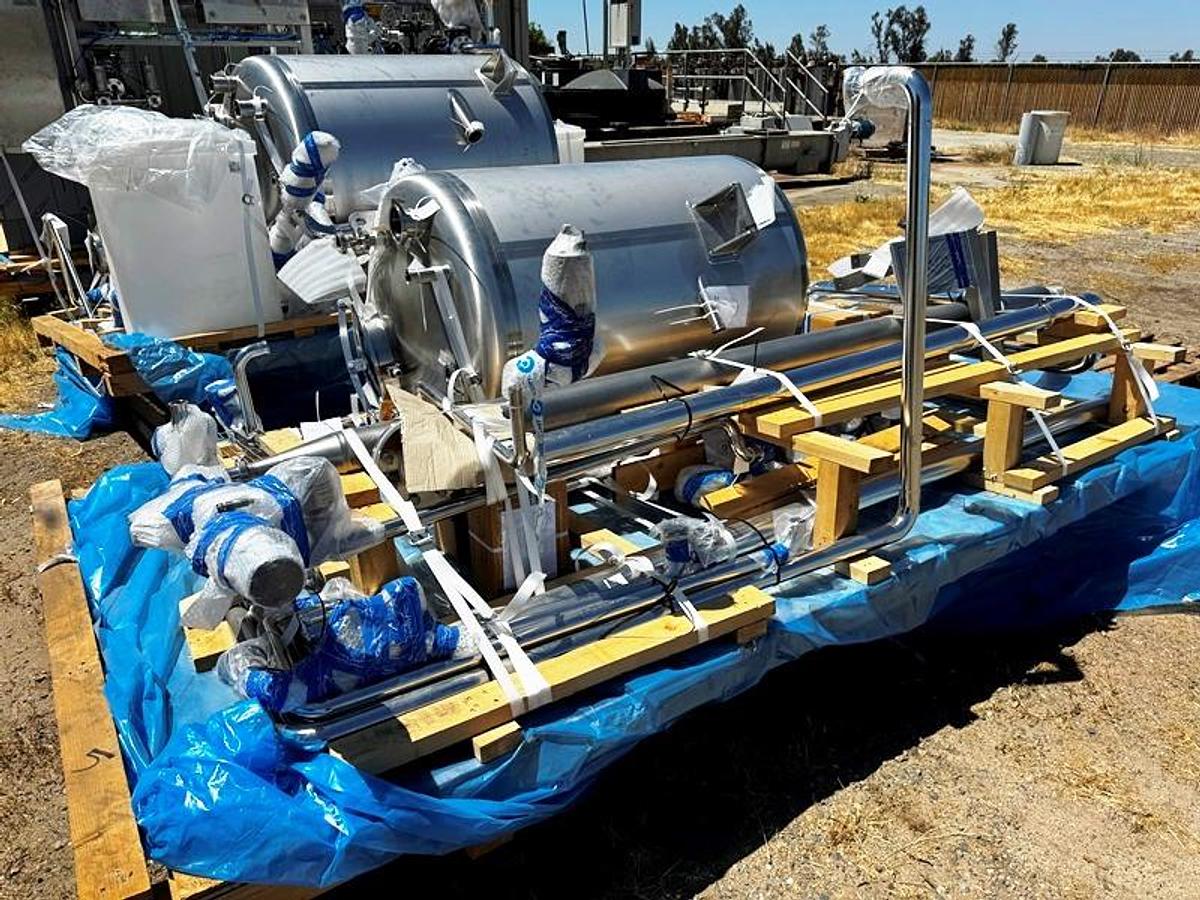

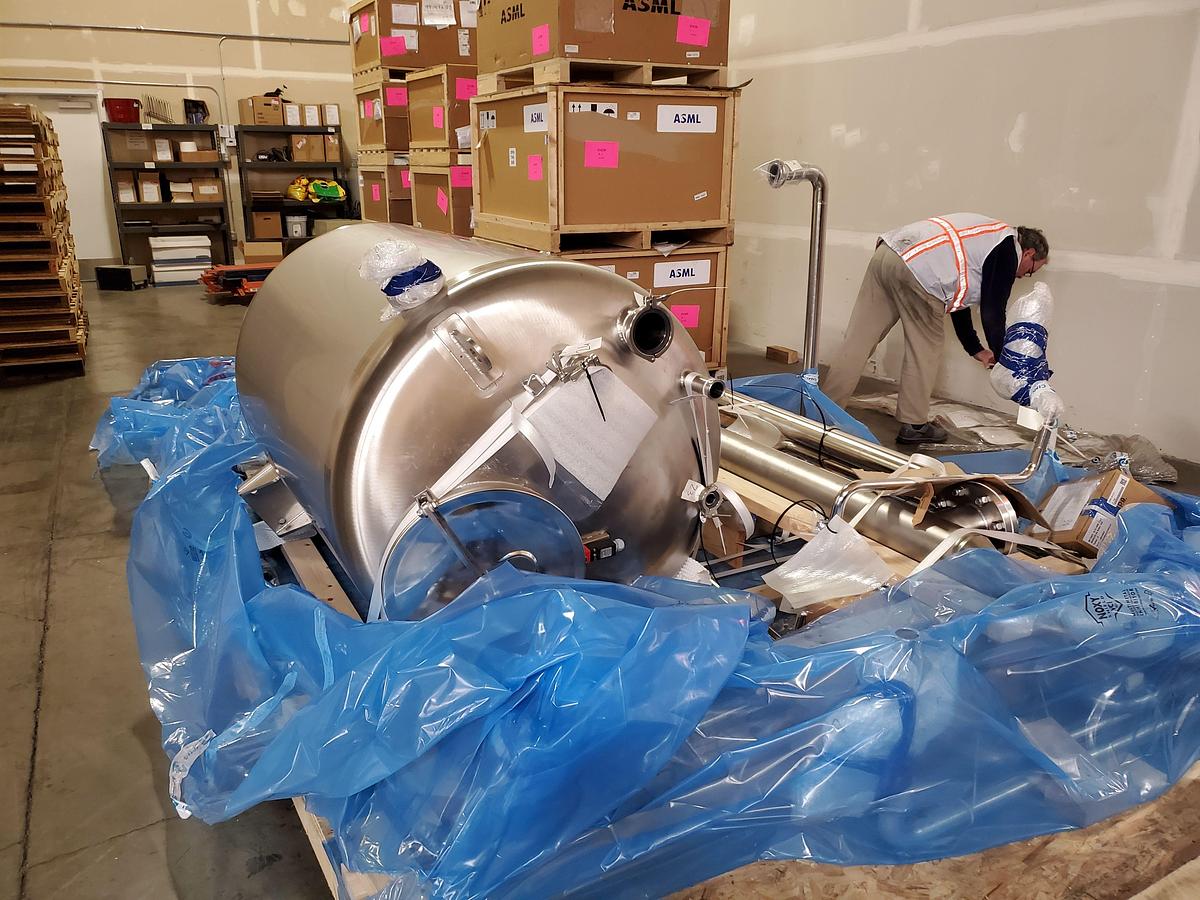

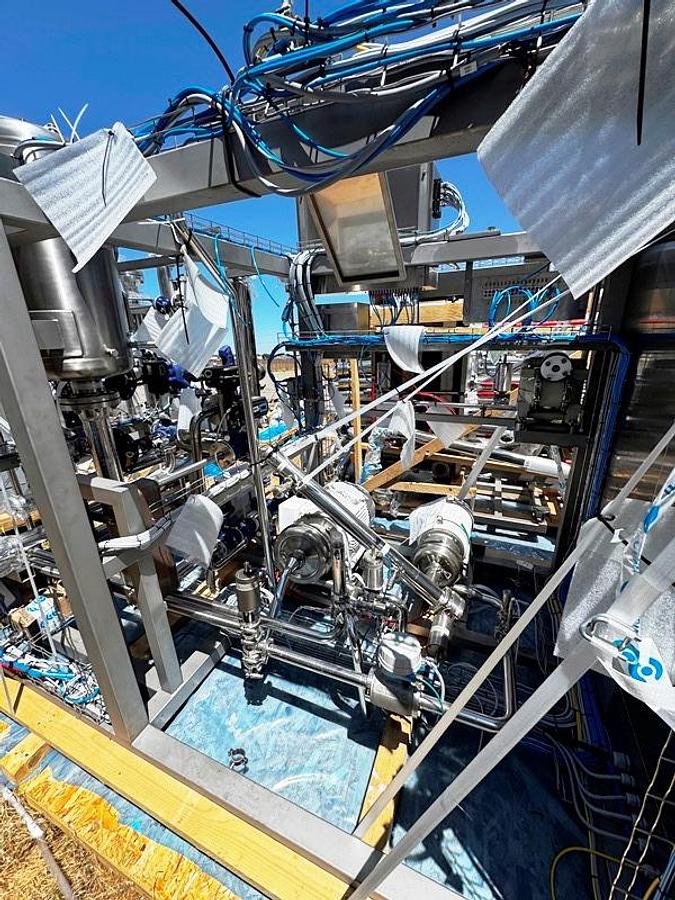

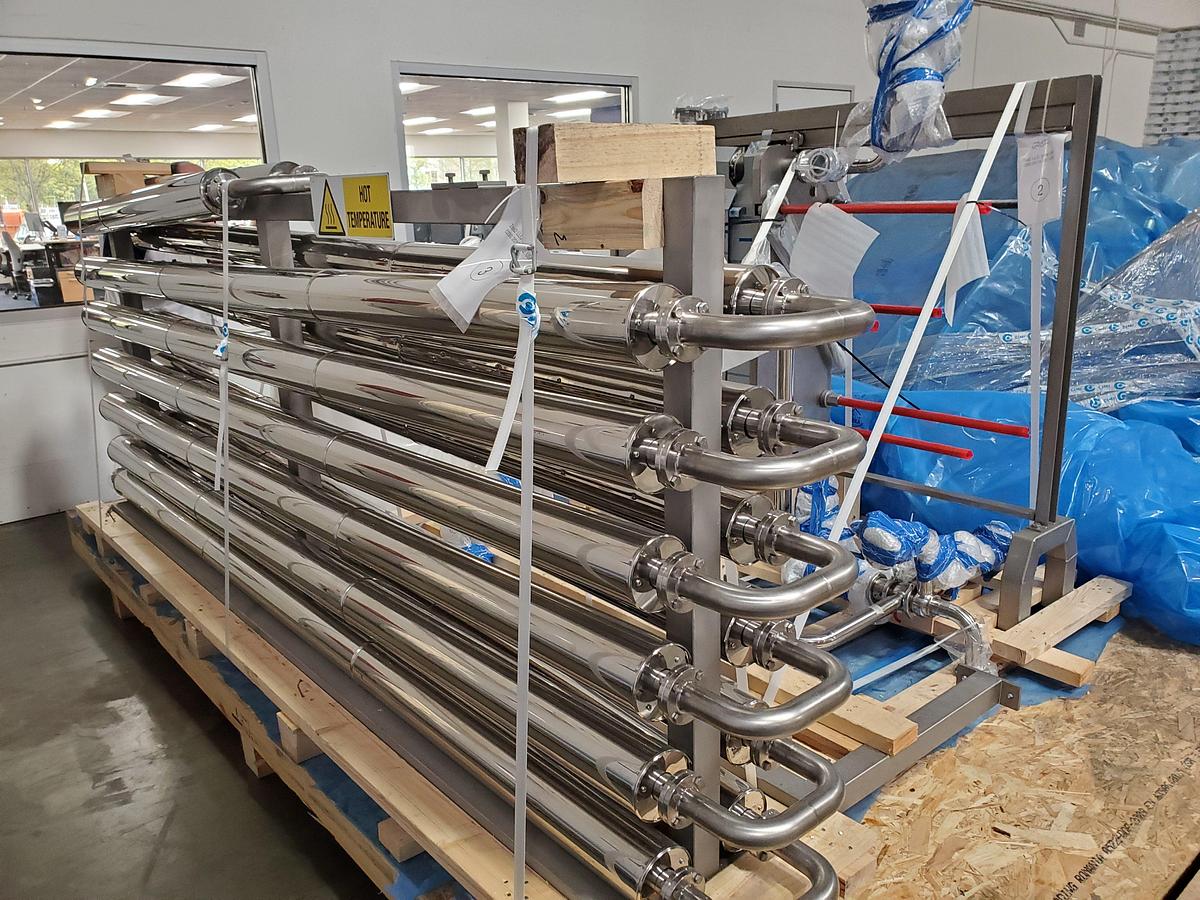

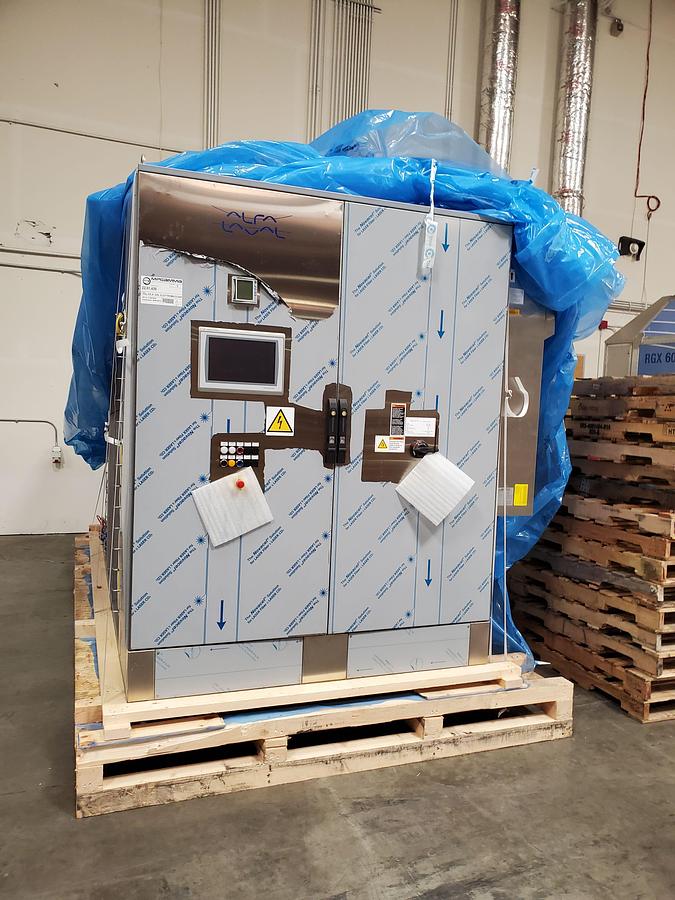

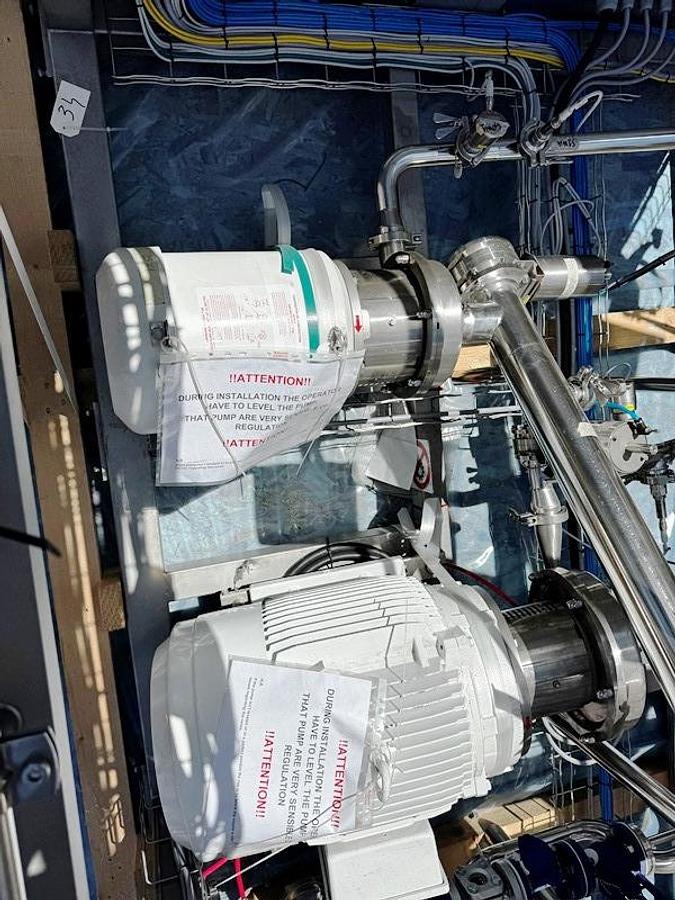

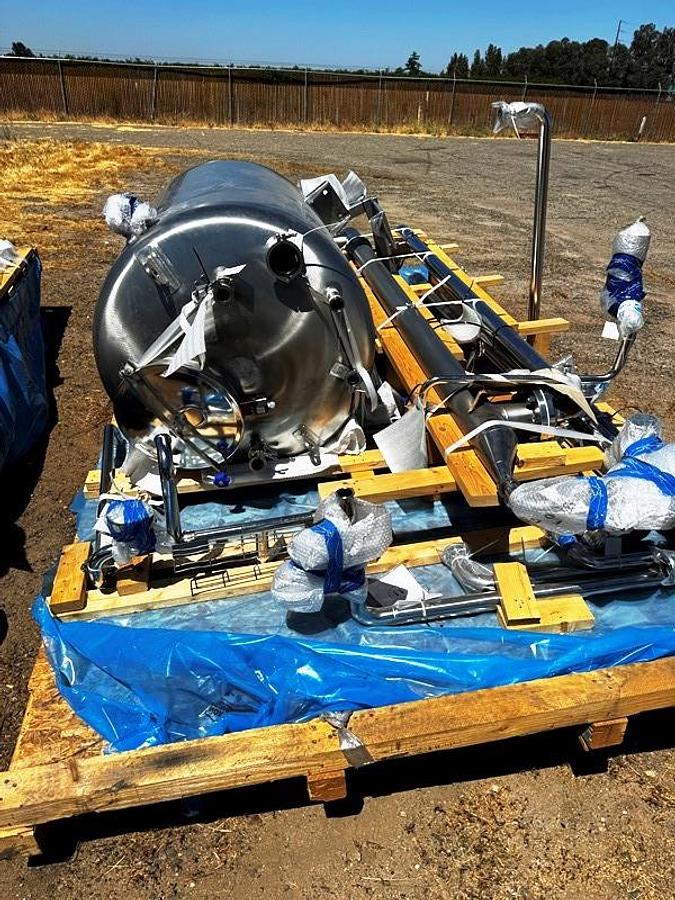

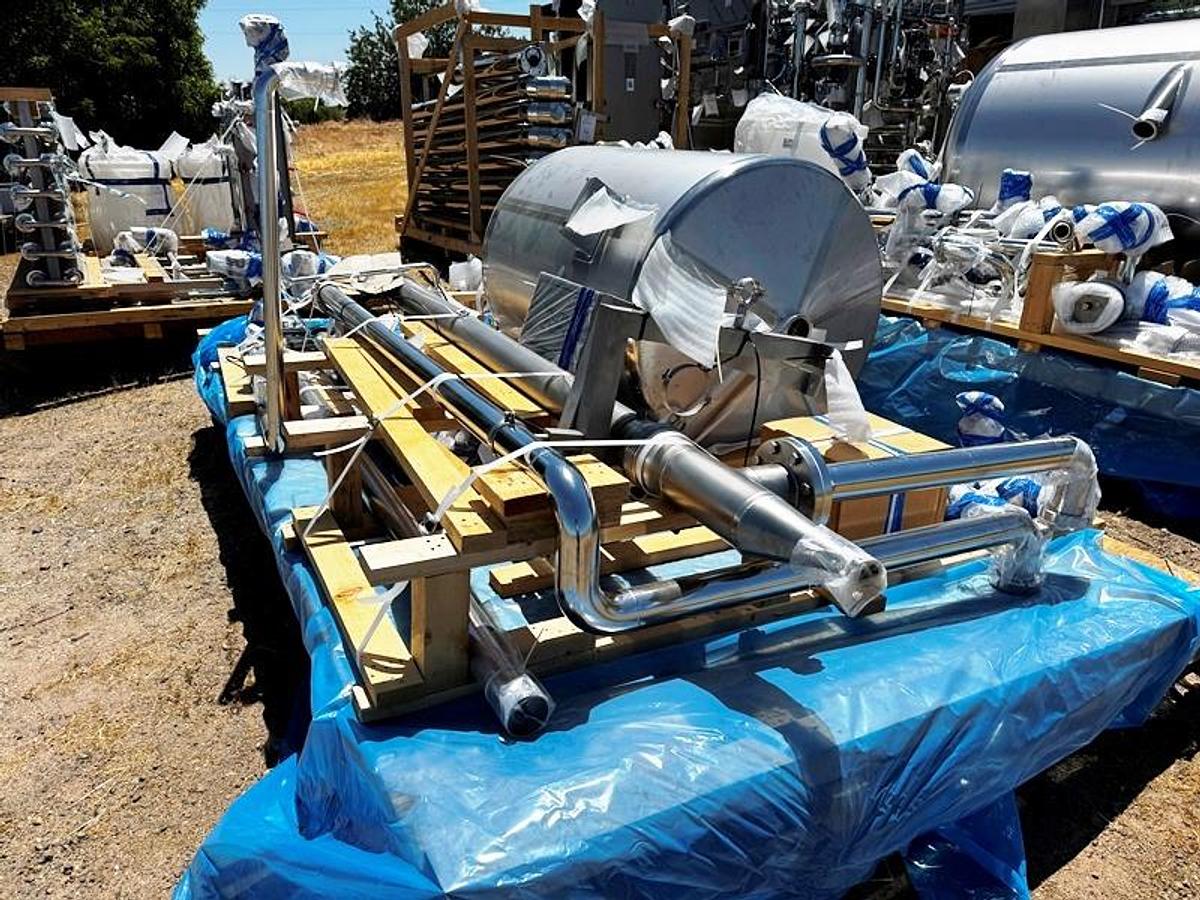

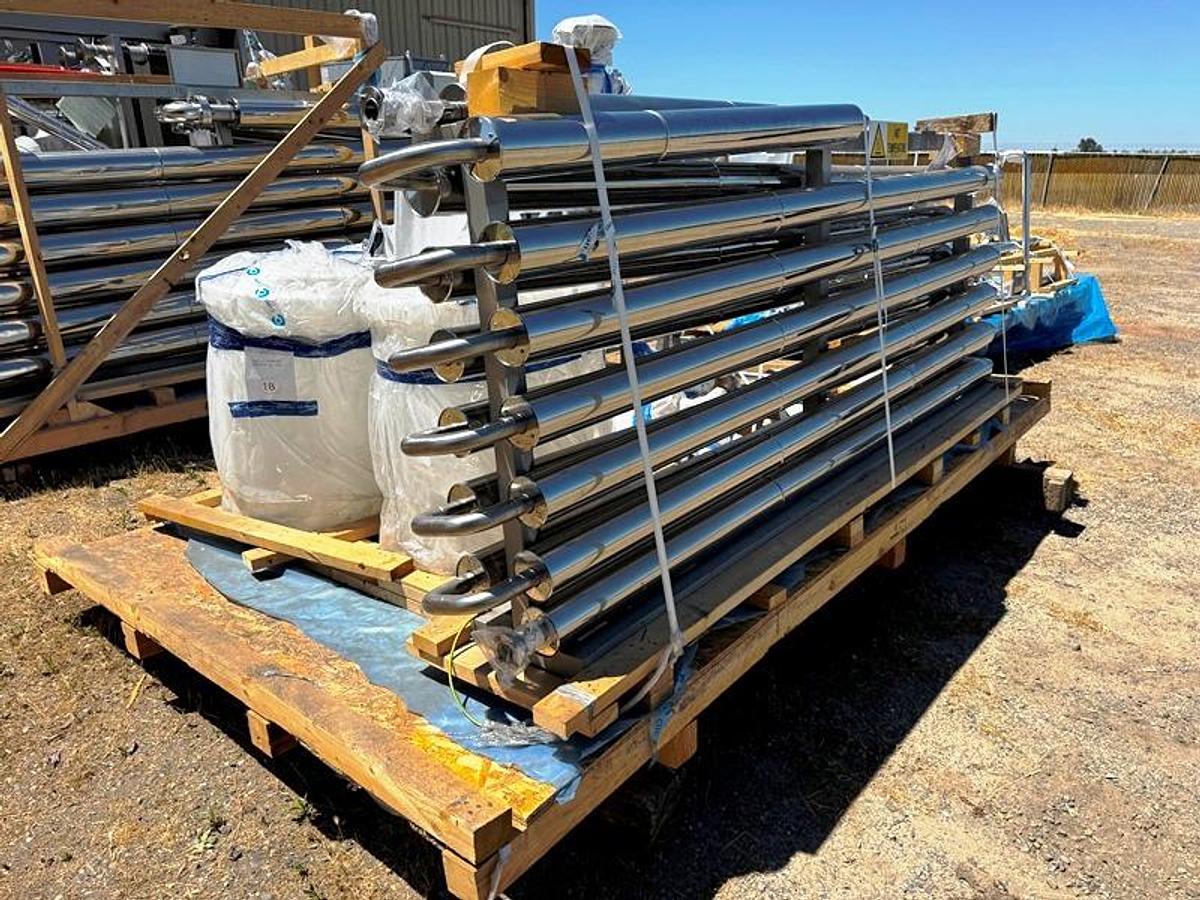

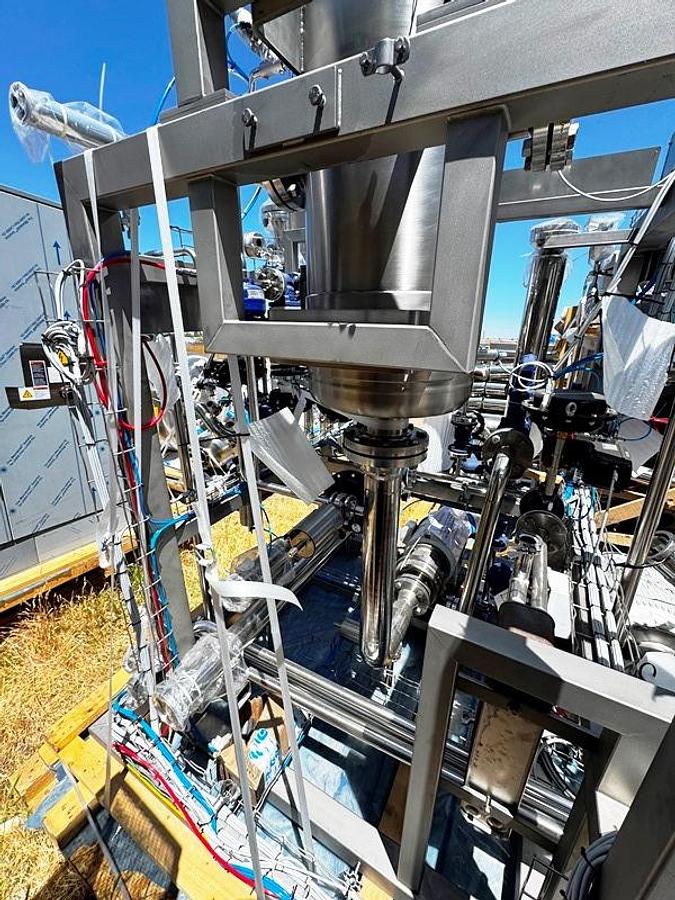

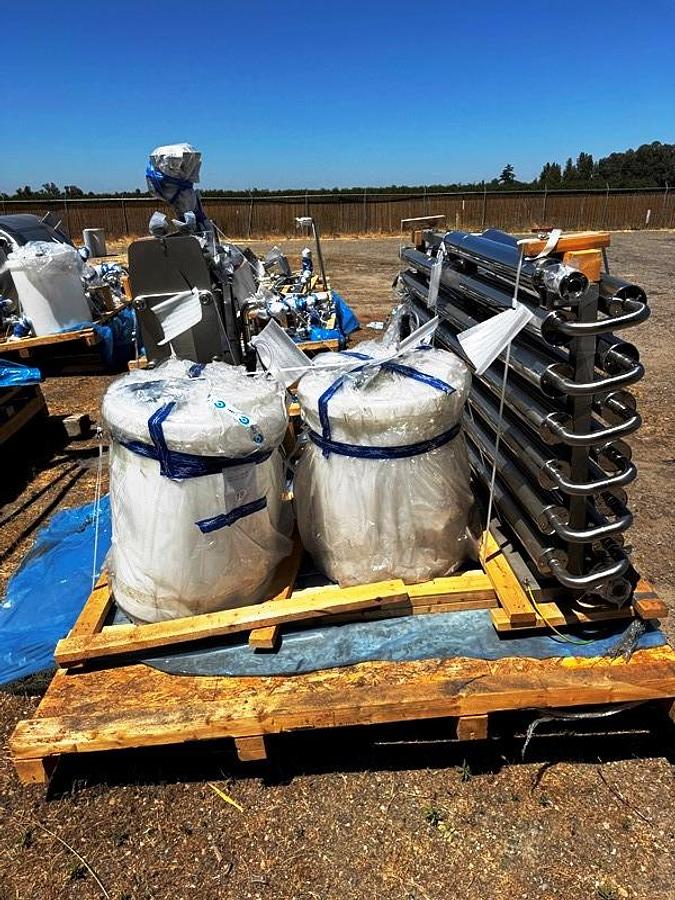

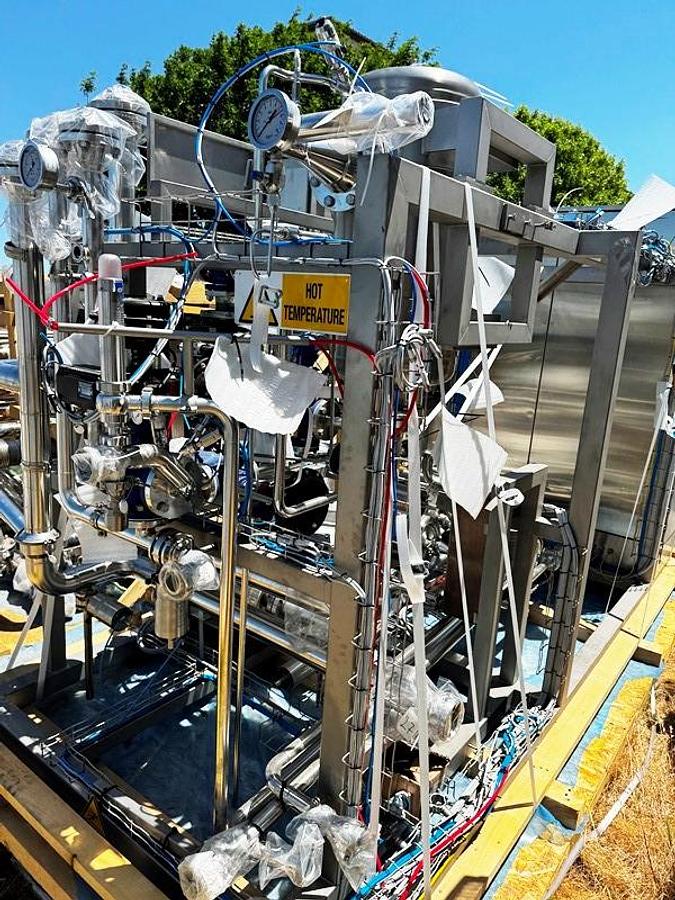

Alfa Laval Steritherm PHE Sugar Sterilizer System rated for approximately 35 GPM product flow and 1.5 GPM steam input. Designed for aseptic thermal treatment with a maximum sterilization temperature of 284°F and pressure rating of 140 psi (10 bar). The system includes a 1000L balance tank, insulated holding cell, SIP/emergency cooler, CIP dosing station, and Alfa Laval LKH sanitary pumps. Features 1-1/2" tri-clamp hygienic connections and a Siemens PLC with E-Won remote access. Ideal for food and beverage applications requiring high-Brix, continuous sterilization with sanitary design. Designed for 7000 kg/h capacity and aseptic thermal processing.
Specifications
| Stock Number | 5991412 |
| Manufacturer | Alfa Laval |
| Model | Steritherm PHE Sugar 7000 kg/hr |
| Year | 2019 |
| Serial Number | 2019-078 |
| Flow Rate | 35 GPM (subject to verification) |
| Design Pressure | 140 psi (10 bar) |
| Max Temperature | 284°F (140°C) |
| Connections | 1-1/2" Tri-Clamp |
| Power Requirements | 460V, 3-Phase, 60Hz |
| Materials of Construction | 316L Stainless Steel |
| Basis | FOB |
General Information
System manufactured by Alfa Laval, a leader in thermal processing equipment. Constructed from AISI 316L stainless steel with ASME-rated components. Skid-mounted and pre-plumbed for rapid integration. For hygienic operation. Suitable for syrup, sweetener, or clear juice sterilization in high-output facilities.
