Dust Collector, Baghouse, Delta Pulse Jet, 75,000 CFM, 300 HP #5991388
Dust Collector, Baghouse, Delta Pulse Jet, 75,000 CFM, 300 HP #5991388
Location:Ohio
Available quantity:1
Description

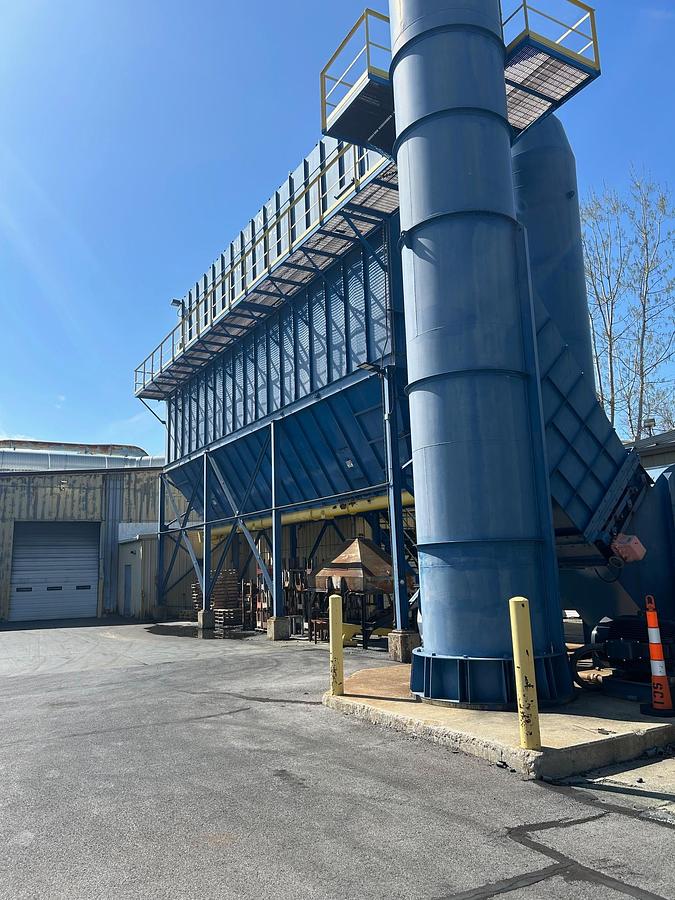

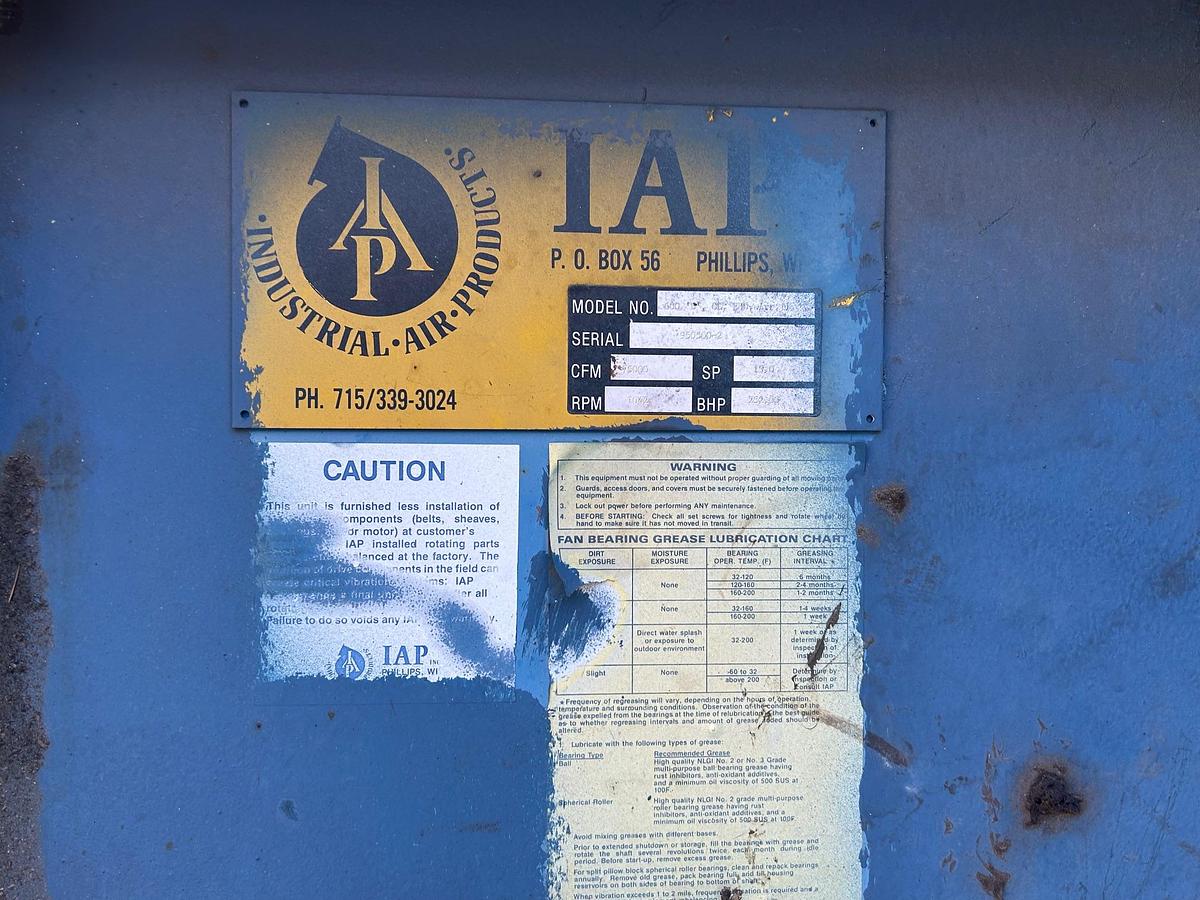

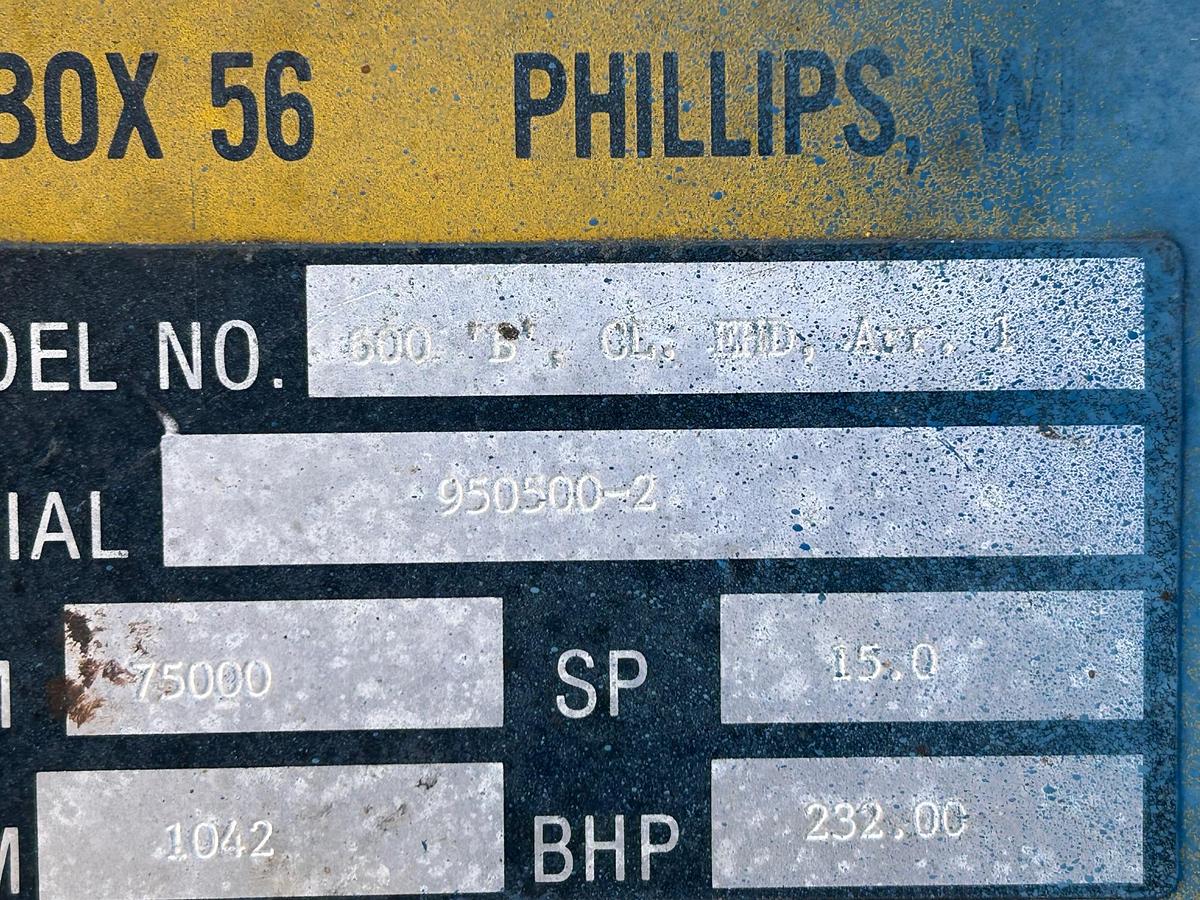

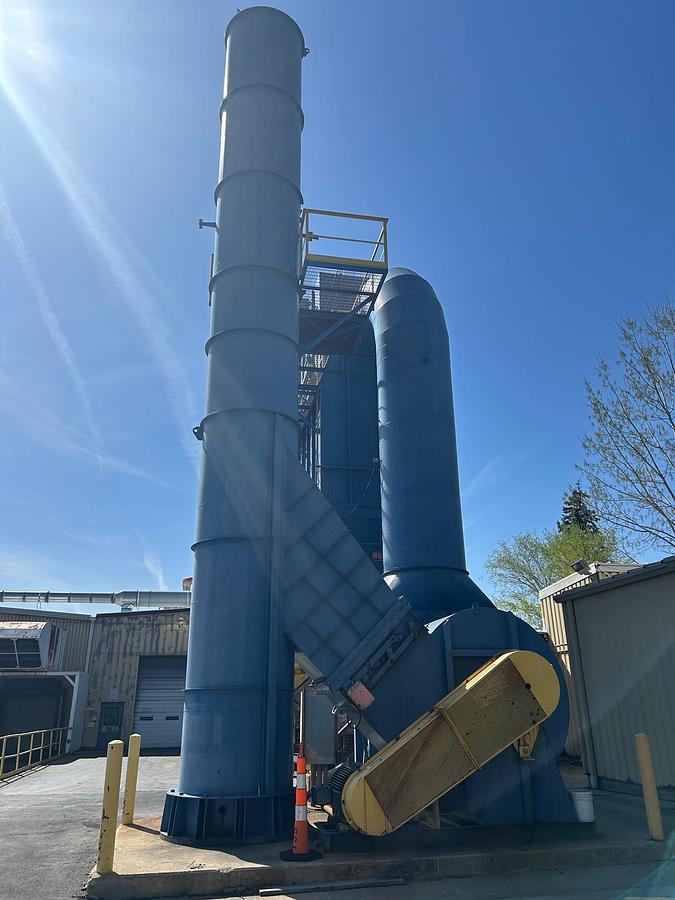

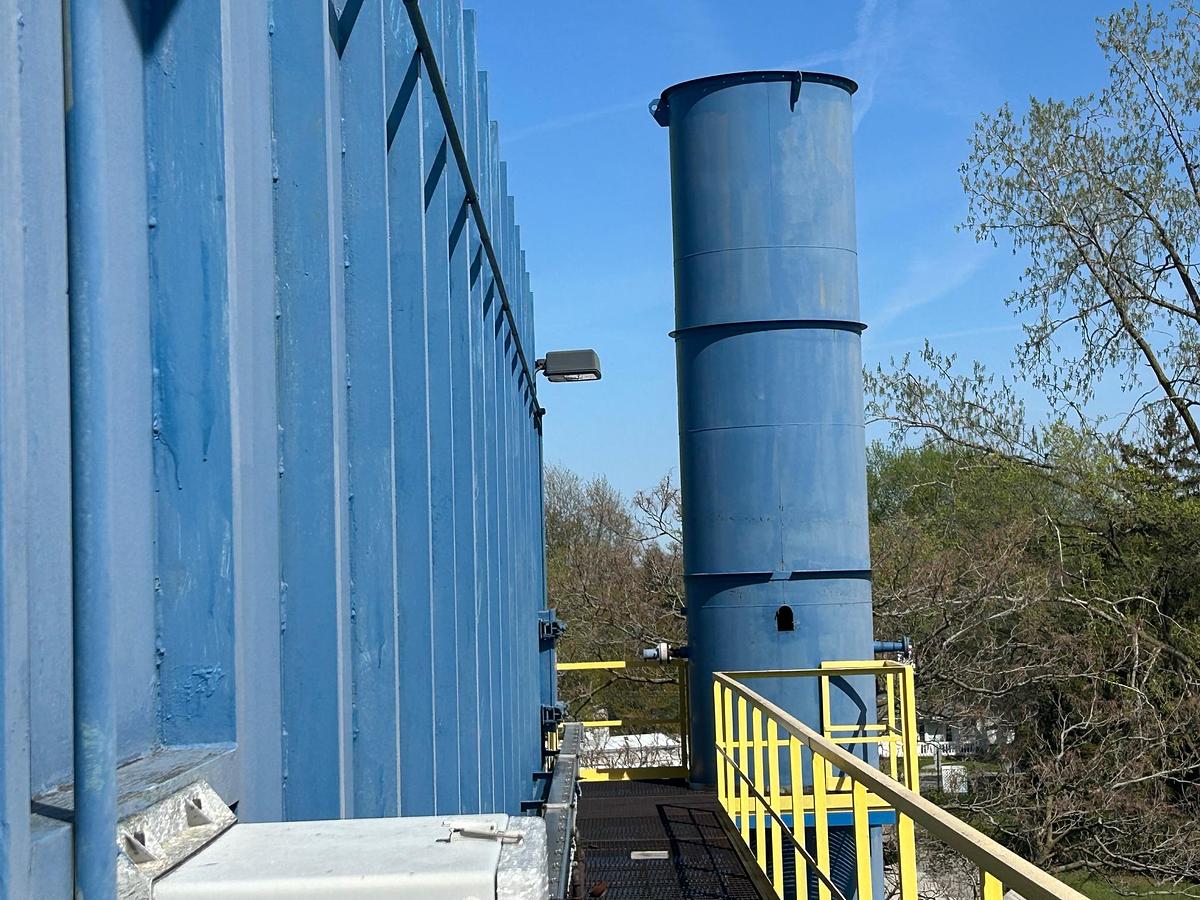

Used Delta baghouse dust collector, model 6500 B CL MID ATT 1, previously used for collecting manganese bronze and leaded tin bronze particulate. This pulse jet unit is rated at approximately 74,000–75,000 CFM and includes a 300 HP blower (fan nameplate: 232 HP, 1042 RPM, 15.0 SP). Unit features one module, ETA 2000 size, and contains 1,125 filter bags (120" TL, 16 oz PE SI) with a total cloth area of 16,663 sq. ft. Includes steel structure, access platforms, pulse jet cleaning manifold, 50'2" tall stack with 64” diameter, and CEMS monitoring via CPM 5000. Emission levels were 0.58 lbs/hr particulate and 0.0108 lbs/hr lead with a sampled flow of 17,100 CFM. Previously installed at a facility with an 18’ building height and 60’ clearance to property line. Bags were changed at a rate of approximately 3/month. Originally installed in 1996 and in good operational condition. Previously used in bronze alloy production.
Specifications
| Stock Number | 5991388 |
| Manufacturer | Delta Ducon |
| Model | 600 'B' CL. EHD Arr. 1 |
| Year | 1996 |
| SqFt | 16,663 |
| CFM Rating | 74,000–75,000 |
| Blower | 300 HP |
| Bag Type/Size | 120" TL, 16 oz PE SI |
| Number of Bags | 1125 |
| Basis | As Is, Where Is |
General Information
Manufactured by Delta Ducon and supported with a high-performance fan by Industrial Air Products, this dust collector is designed for heavy-duty air filtration in metals and foundry environments. With a substantial cloth area and continuous emission monitoring, it is well-suited for non-ferrous metal dust capture. The pulse jet configuration offers efficient self-cleaning for reduced downtime. Stack height and air specs comply with industrial ventilation and air quality standards.
