(2) Unused Outotec Ball Mills, 10.5' x 18.4', 1,000 HP motors
No longer available
(2) Unused Outotec Ball Mills, 10.5' x 18.4', 1,000 HP motors
Each
Location:California
Available quantity:2
Description

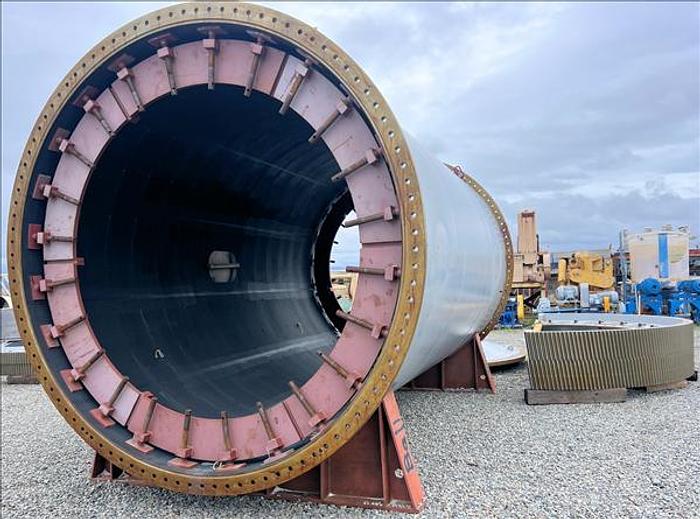

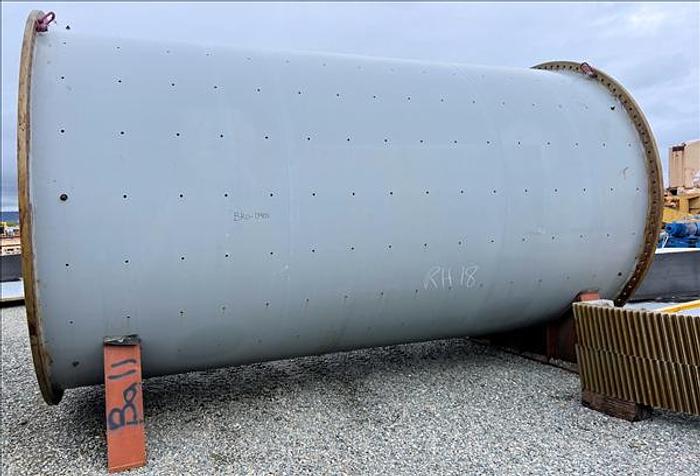

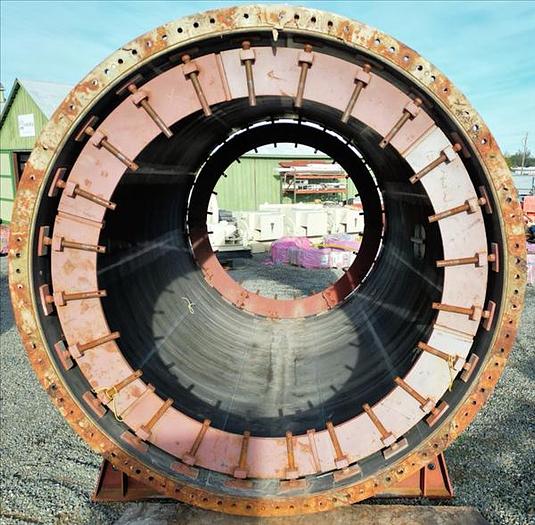

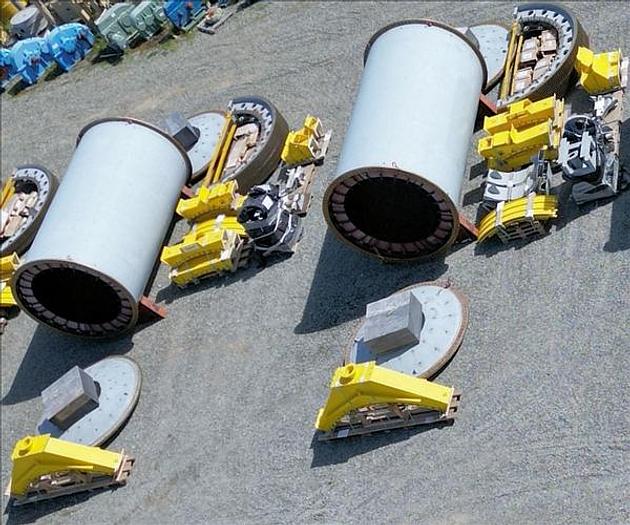

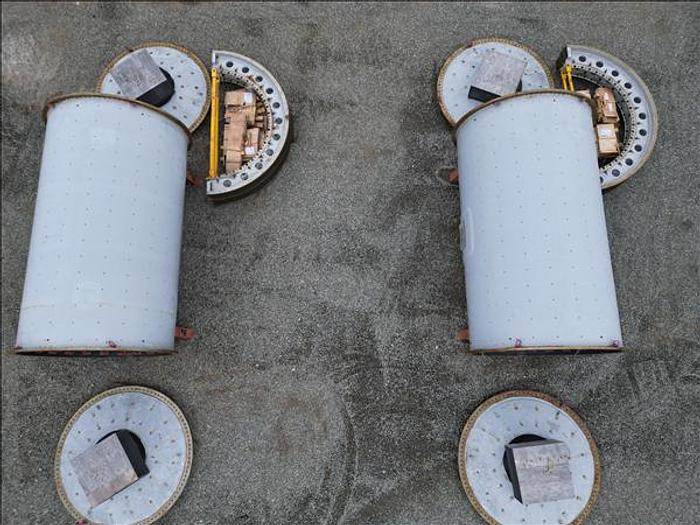

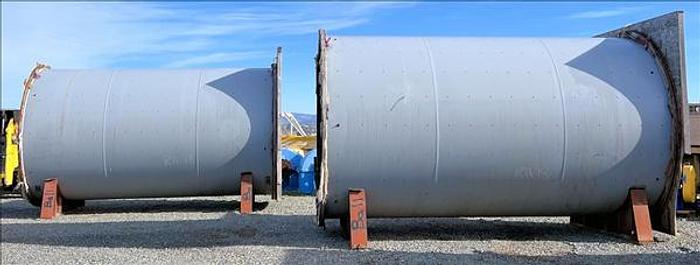

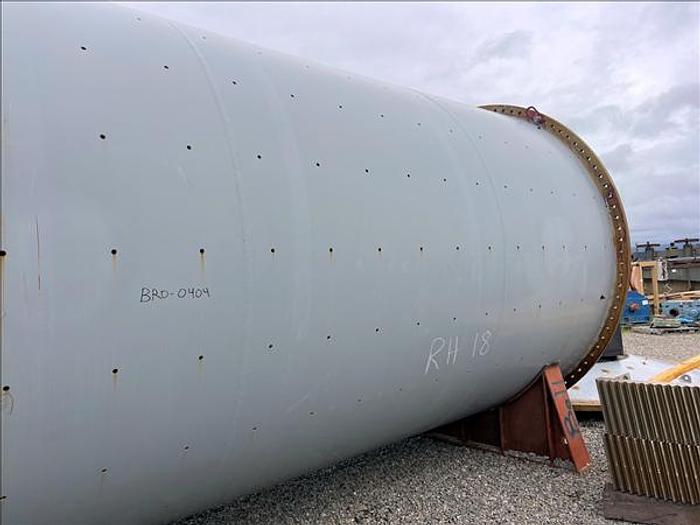

(2) Unused Outotec Ball Mills, 3.2m x 5.6m (10.5' x 18.4'), 1,000 HP (750 kW) 60 HZ motors.
Mill #1 Diameter: 3.4m, Effective Grinding Length (EGL): 5.2m. Mill #2 Diameter: 3.2m, Effective Grinding Length (EGL): 4.6m.

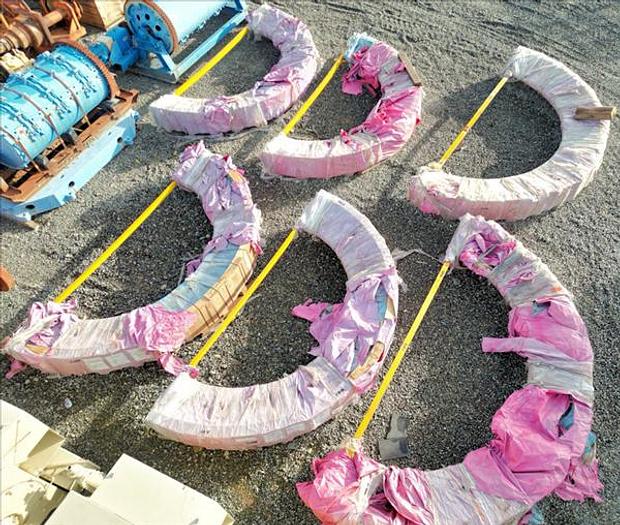

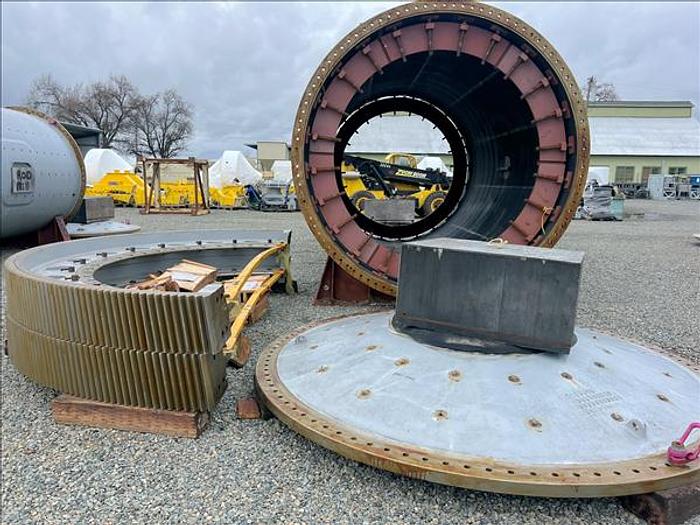

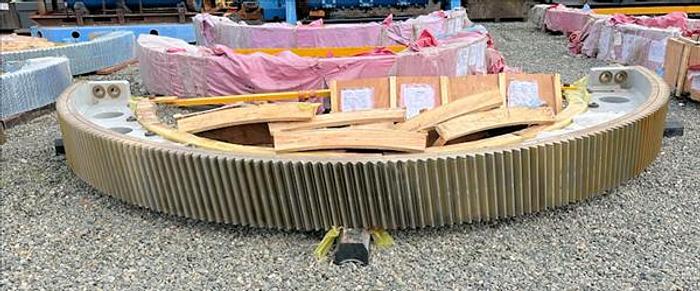

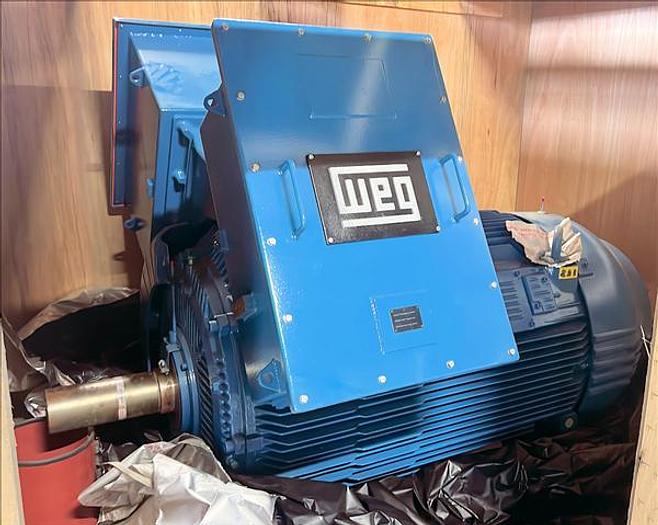

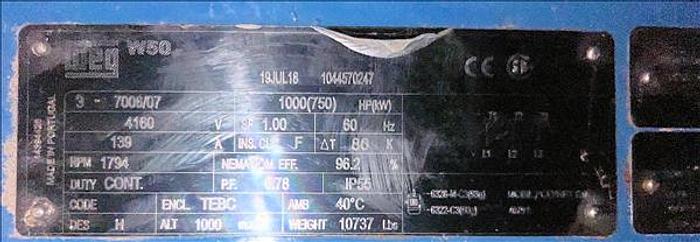

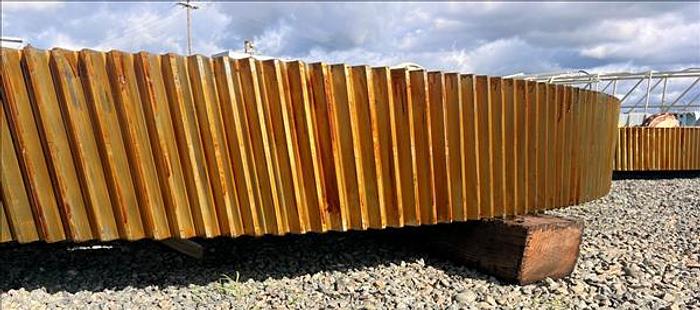

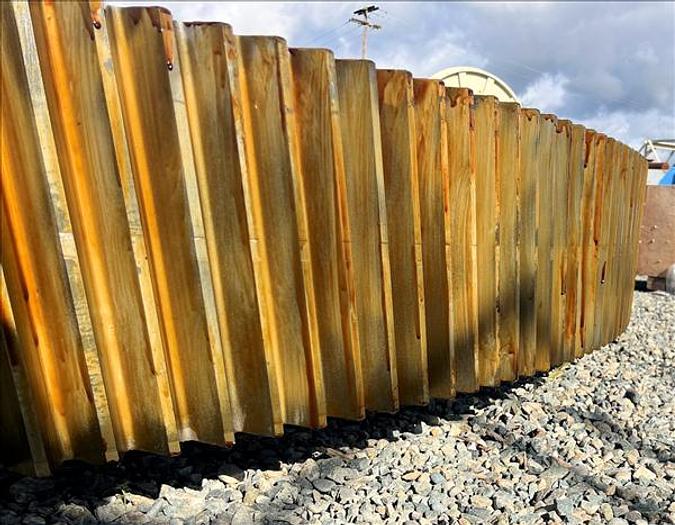

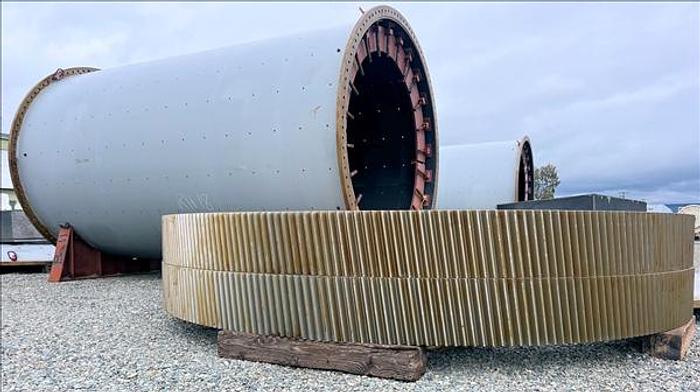

Mills feature 2-Pc Girth Gear, 280-Teeth 19-Tooth Pinion Gear, Mill Media Charge: 40.0%, Interstitial Volume: 40.0%, WEG Three Phase Induction Motor - Squirrel Cage. Motors are 1000 HP (750 kW), 1794 RPM, W50 7006/07 Frame, 4 Poles, 60 Hz, 4160 Volts, 139 Amps, Manufactured in 2018.
Specifications
| Stock Number | 5990949 |
| Manufacturer | Outotec |
| Model | 17-13-PM & 17-16-PM |
| Year | 2018 |
| Basis | As Is, Where Is |
| Diameter | 10.5' |
| Measurements | 10.5' diameter x 18.4' long |
| HP | 1,000 |
General Information
Outotec is a world leader in grinding technology. These unused ball mills offer high horsepower capacity, ideal for mining and mineral processing operations at scale.
