Autoclave, 51" x 59" X 99", Fedegari, 32 PSI, Model FOF8/9 #4903022

Autoclave, 51" x 59" X 99", Fedegari, 32 PSI, Model FOF8/9 #4903022

Available quantity: 1

Chowchilla, CA

orCall +1 (415) 467-3400

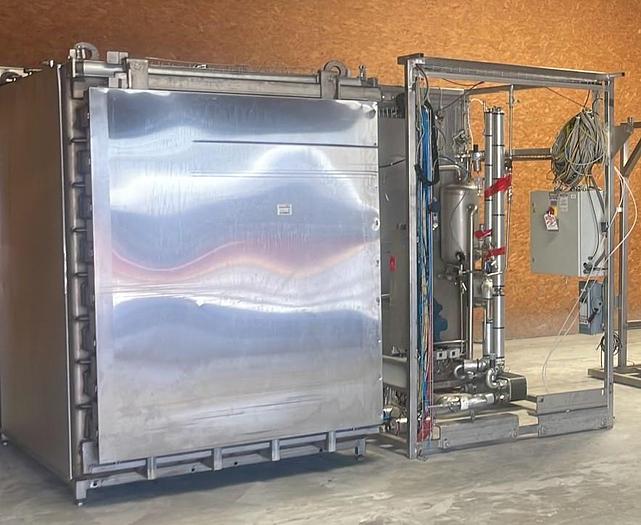

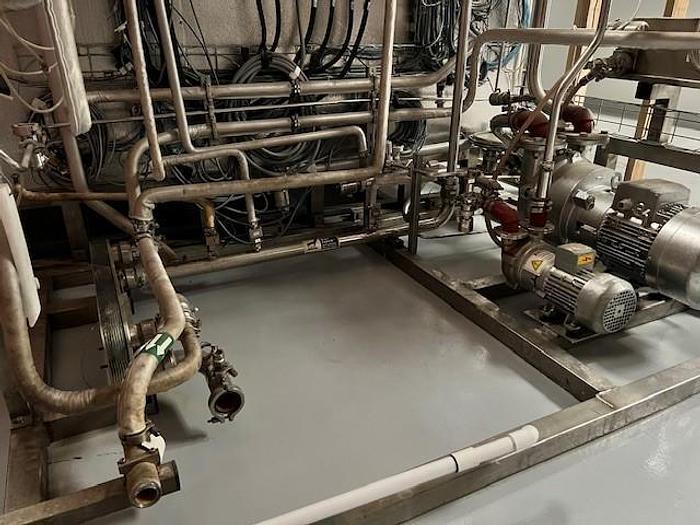

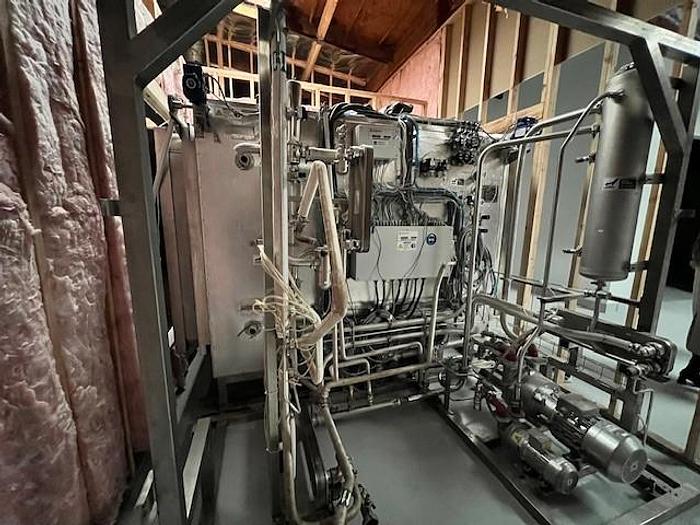

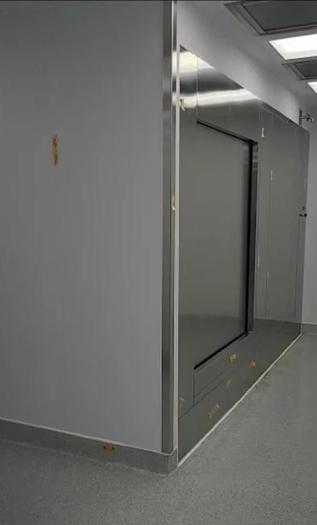

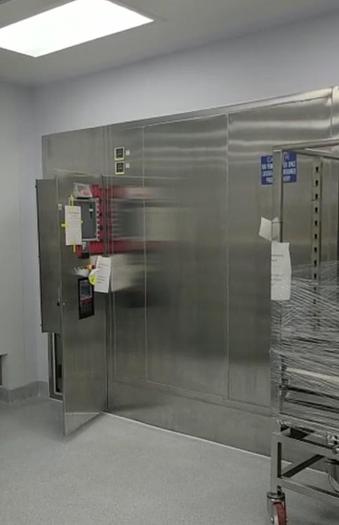

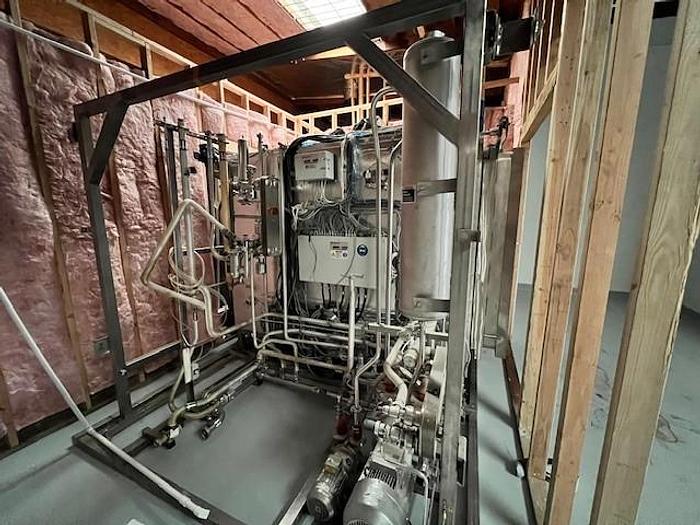

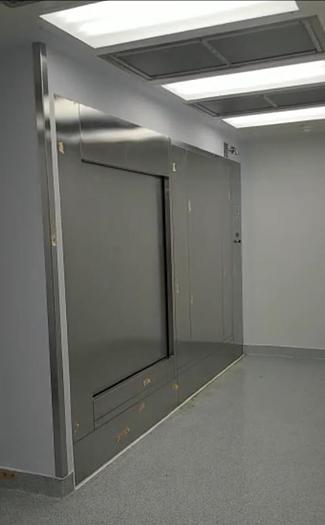

Fedegari pass-thru autoclave/sterilizer, chamber dimensions measure approximately 51" W x 59" H x 99" L (1300 mm x 1500 mm x 2500 mm), corresponding to a useful volume of around 4875 liters. Inner surfaces are constructed with stainless steel 316 Ti, with a 316 L stainless steel jacket welded to the chamber, with a design pressure of 32 PSI (2.2 bar g). The unit is equipped with a double-door system, featuring automatic sliding doors made of stainless steel 316 Ti, driven by an electric motor. The autoclave is fully insulated and pressure control is maintained through a high-quality absolute pressure transducer, managing steam supply to the chamber automatically. The sterilization cycle encompasses various phases, each of which is individually configurable through the supplied software. The autoclave is includes (2) water ring vacuum pumps, control system, etc.


Stock Number4903022

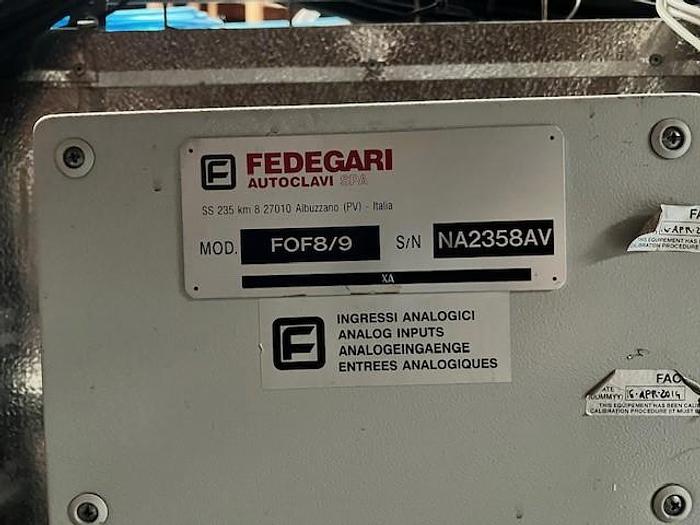

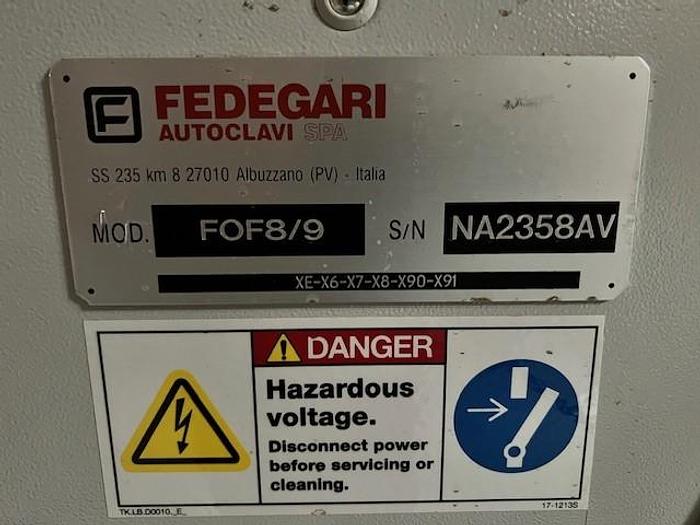

Serial NumberNA2358AV
Chamber Dimensions51" x 59" x 99"

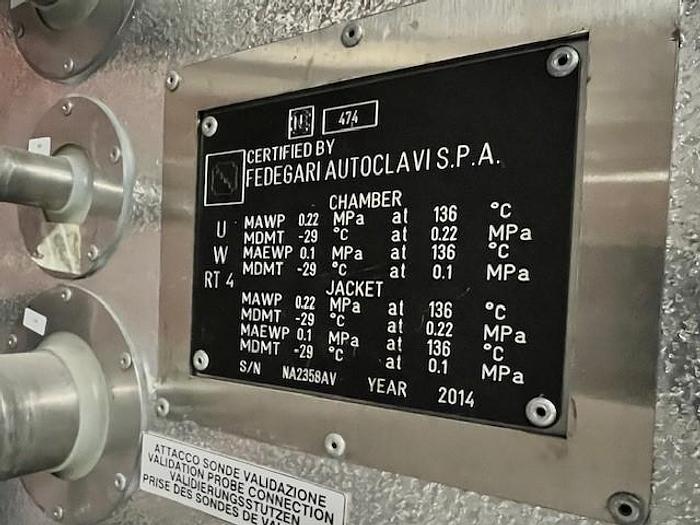

Pressure32 PSI (2.2 bar g)
Materials of Construction316Ti Stainless Steel
