Tank, 100 Gallon, Stainless Steel, Agitated, Dish Bottom #S745084

Tank, 100 Gallon, Stainless Steel, Agitated, Dish Bottom #S745084

Location:Brisbane, CA

Available quantity:1

or
Call +1 (415) 467-3400

Description

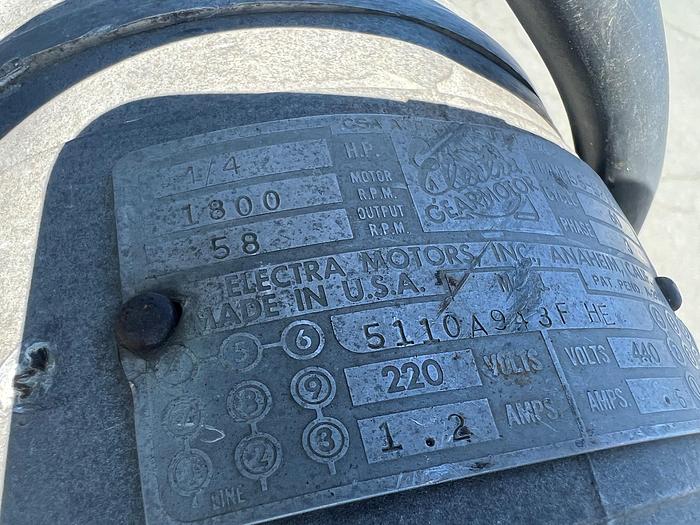

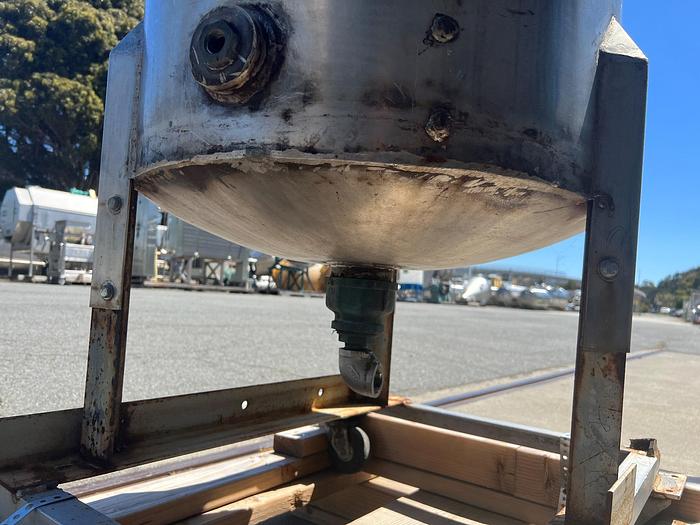

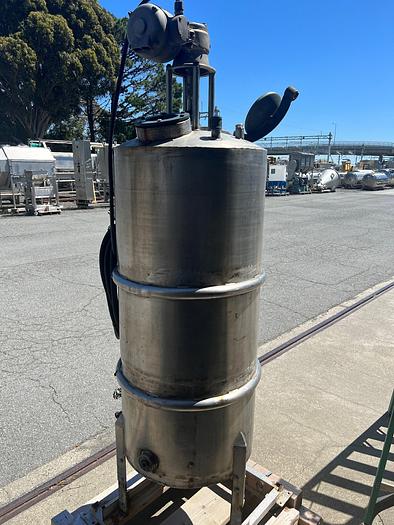

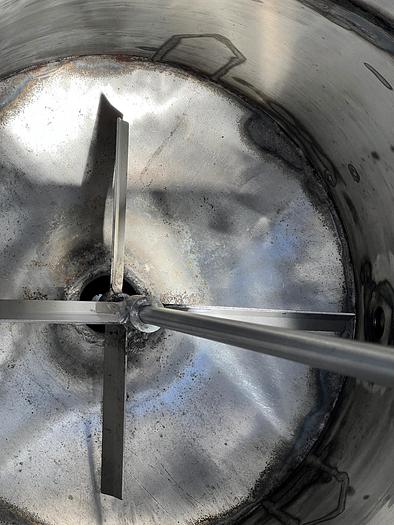

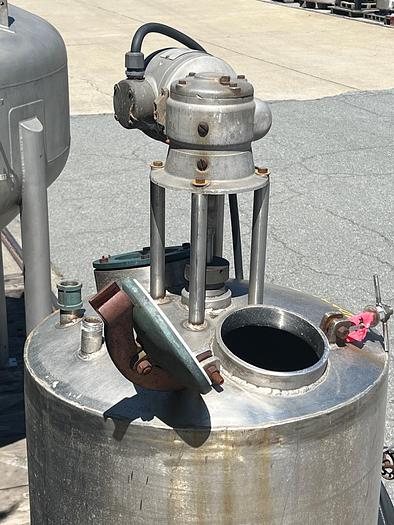

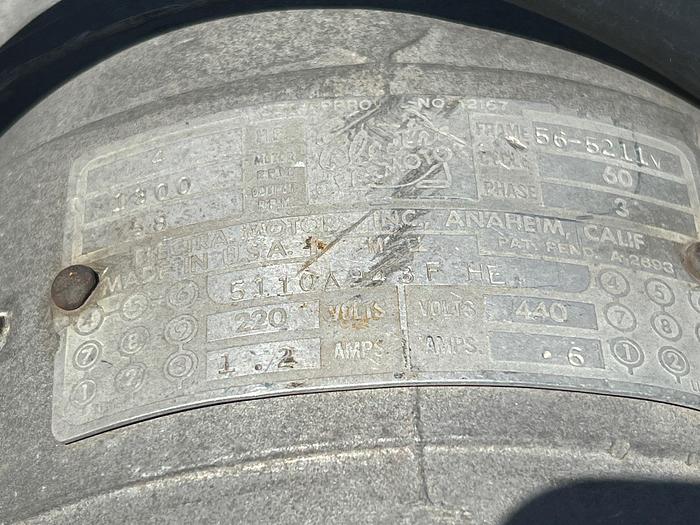

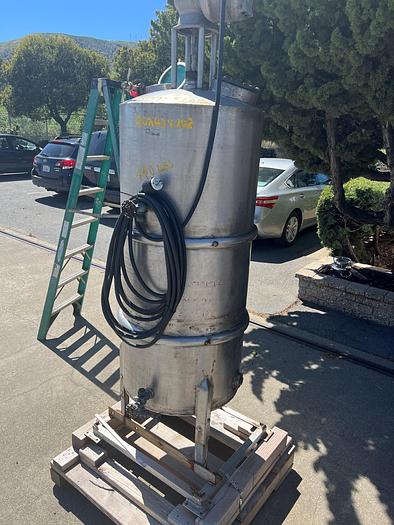

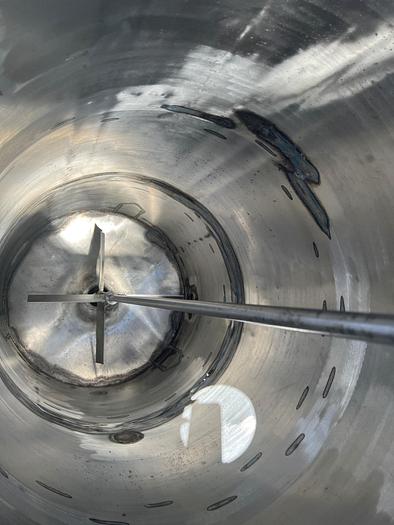

Stainless Steel 100 Gallon Mix Tank, vessel measures 24" diameter X 54" straight side with dish top and bottom. Bottom head includes 3" diameter discharge, tapered with elbow to 1" diameter threaded outlet. Top head includes center-top entering agitator drive, hand hole with hinged cover and sight glass. Agitator is driven by 1/4 HP, 220/440 Volt,, 3/60Hz, 1800 motor RPM, 58 output RPM. Agitation includes 3/4" diameter shaft with (2) 2-blade paddles with one paddle set at bottom of shaft, and one approximately 12" above bottom paddles.

Specifications

Stock NumberS745084
Materials of ConstructionStainless Steel
Gallons100
TypeMix Tank
Previous UseBeer Processing
BasisFOB

General Information

Compact jacketed tanks like this 100-gallon agitated vessel are well-suited for ingredient blending, pre-heating, or temperature-sensitive batch processing in cosmetic, chemical, or food production applications.
