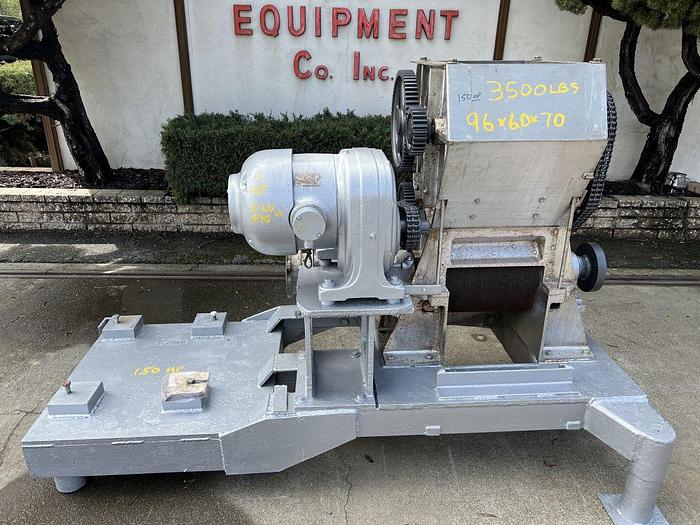

Mill, Hammer, 22" x 16", Stainless Steel, Three-Stage #S745072
Mill, Hammer, 22" x 16", Stainless Steel, Three-Stage #S745072
Location:Brisbane, CA
Available quantity:1
Description

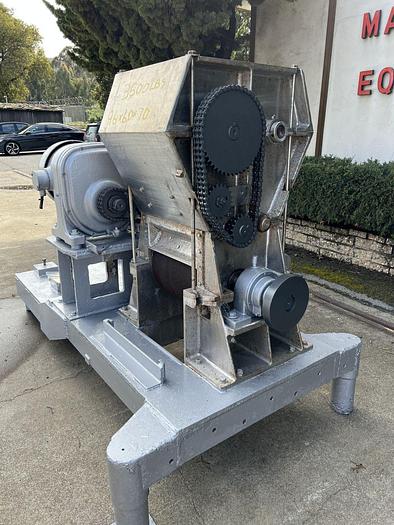

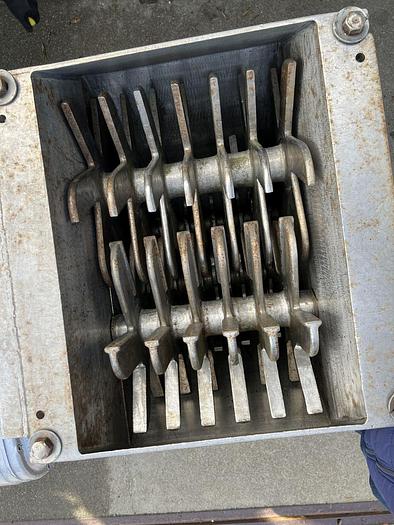

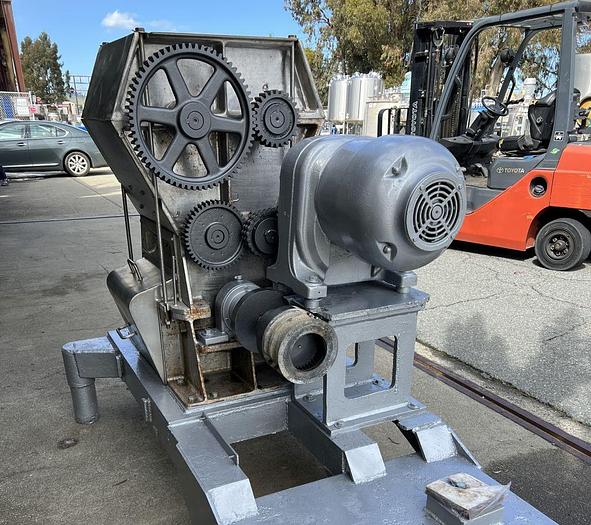

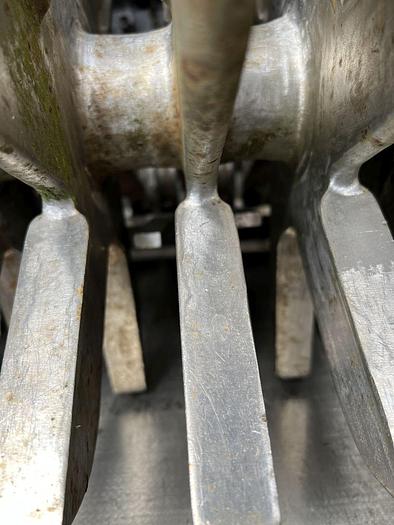

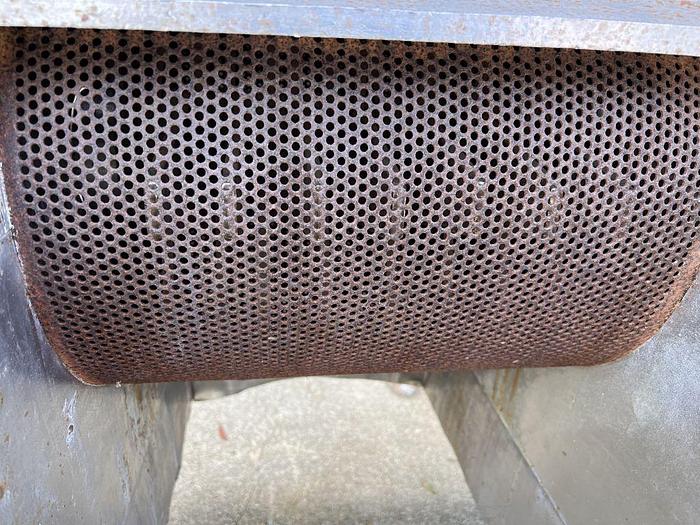

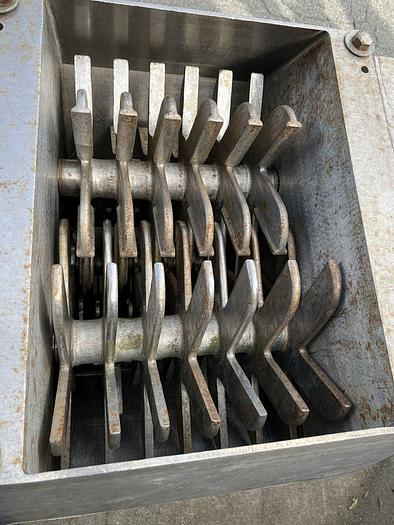

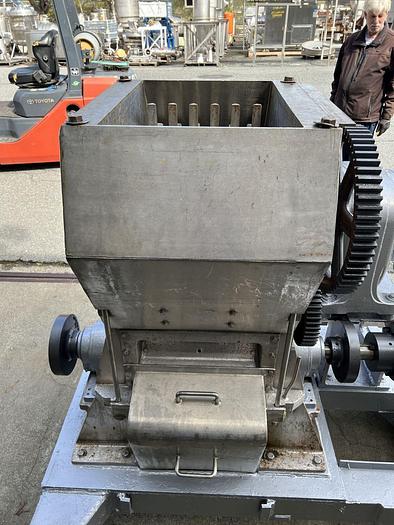

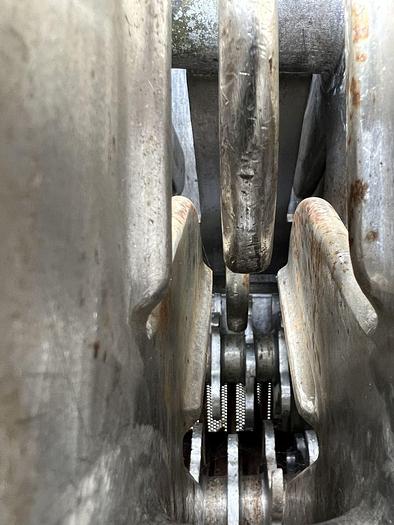

Three stage hammer mill with stainless steel chamber and hammers, chamber opening measures 22" x 16". Stage-one includes (2) 2.5" diameter rotors with (6) rows of 3/8" thick overlapping-welded hammers on 2" spacing, (5) hammers in each row. Stage-two includes (10) rows of curved-hook blades on approximately 1.5" spacing. Stage 1 & 2 are driven by a shared 5 HP, 220/440V gearmotor through chain & sprocket assemblies for both stages. Stage-three includes (7) rows of approximately 3/8" thick hammers on common shaft. Previously driven by 150 HP, 1800 RPM direct connect motor (does not include drive). Bottom section includes mild steel screen with 3/16” perforations.
Specifications
| Stock Number | S745072 |
| Chamber Dimensions | 22" Diameter x 16" Wide |
| HP | 5 |
| Materials of Construction | Stainless Steel |
| Basis | FOB |
General Information
Three-stage hammer mills like this are essential in size reduction applications for processing grains, biomass, spices, or pharmaceuticals. With multiple rotor and blade configurations, they allow for staged grinding and consistent output particle size. Ideal for facilities handling high-throughput grinding in food or chemical sectors.
