Stainless Steel 40-Barrel Mash Tun Brewery Tank #C745000
|Dimensions||96" Diameter x 54" straight side|
|Previous Use||Mash Tun Tank - Brewery|

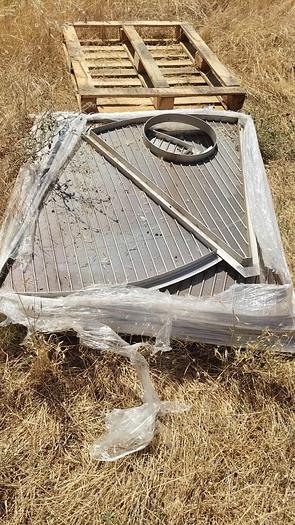

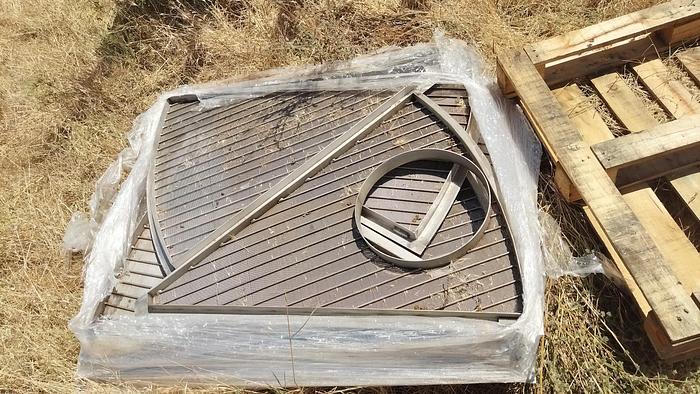

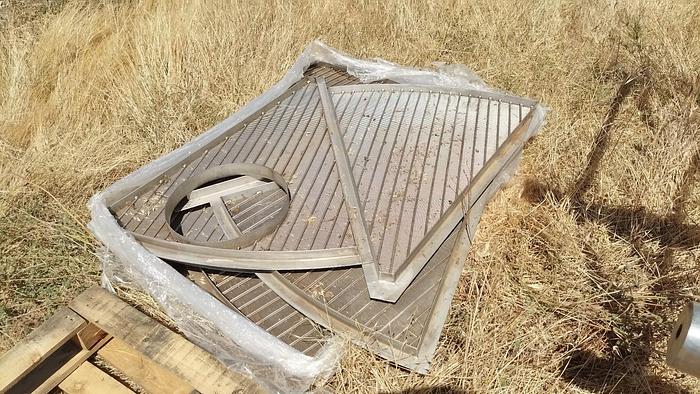

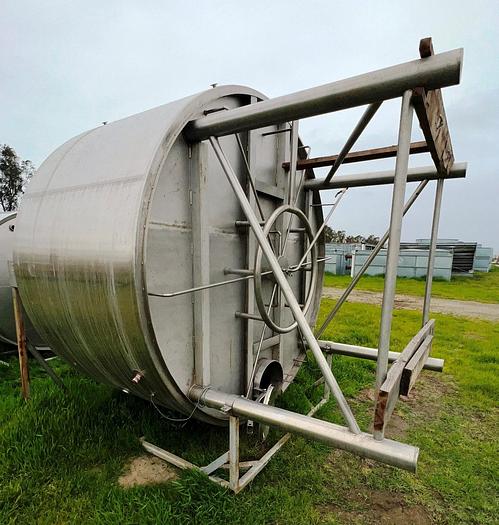

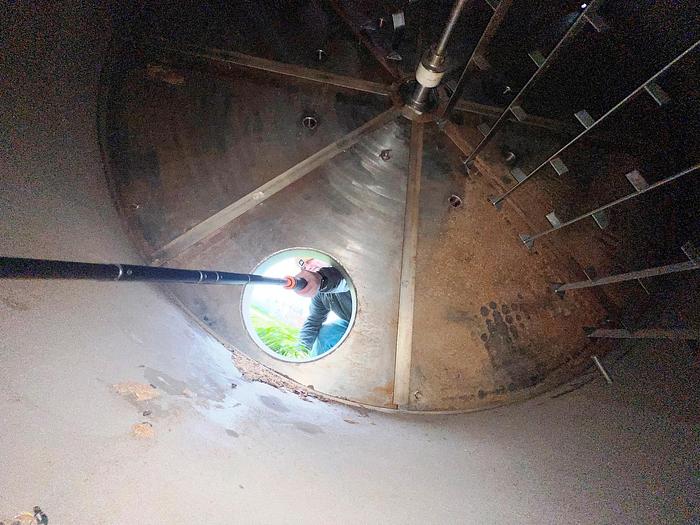

Mash Tun Tank from microbrewery, 40-barrel vessel (approximately 1,240 gallon), all stainless-steel construction with false bottom including perforated plates. Top includes dome top with manway. Center top agitation, 2 HP drive.

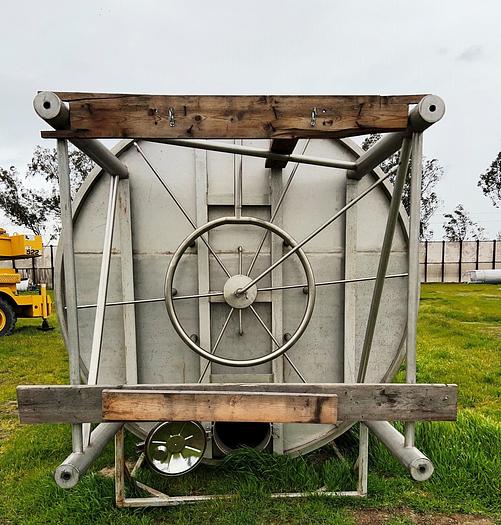

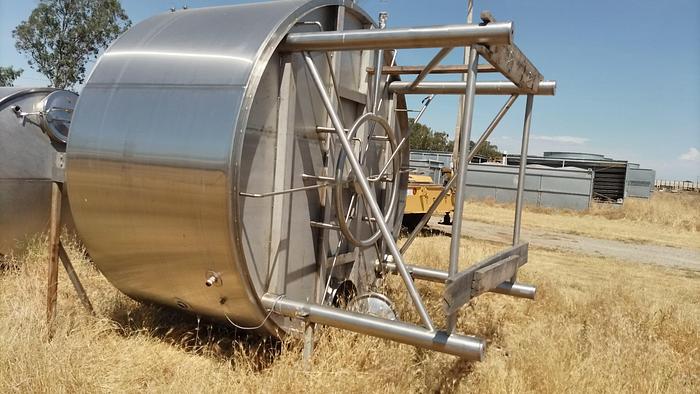

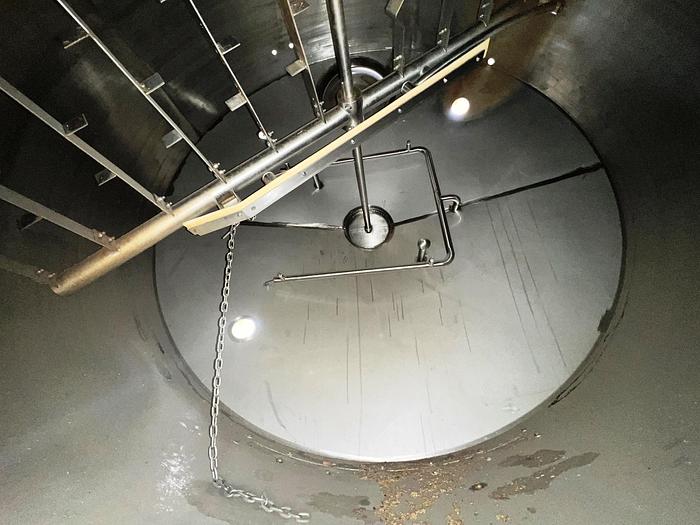

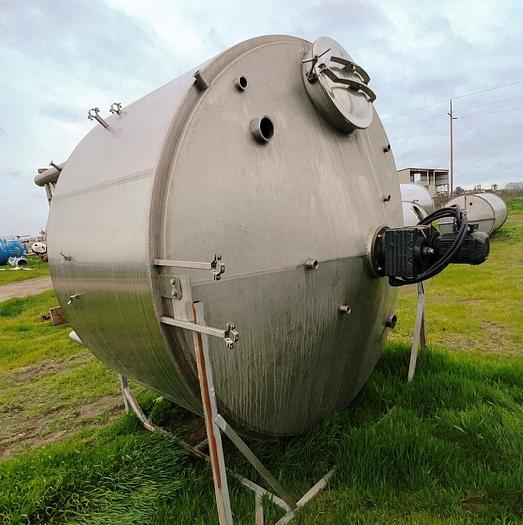

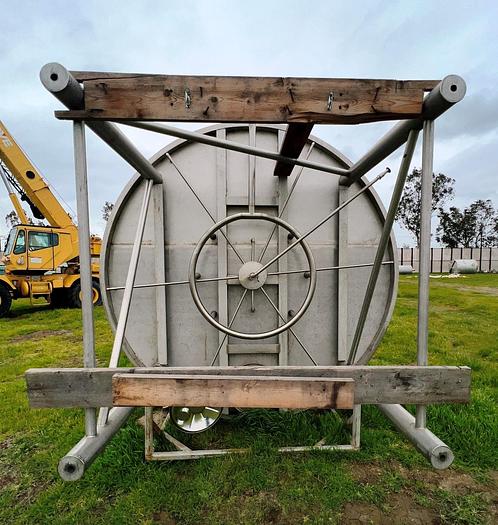

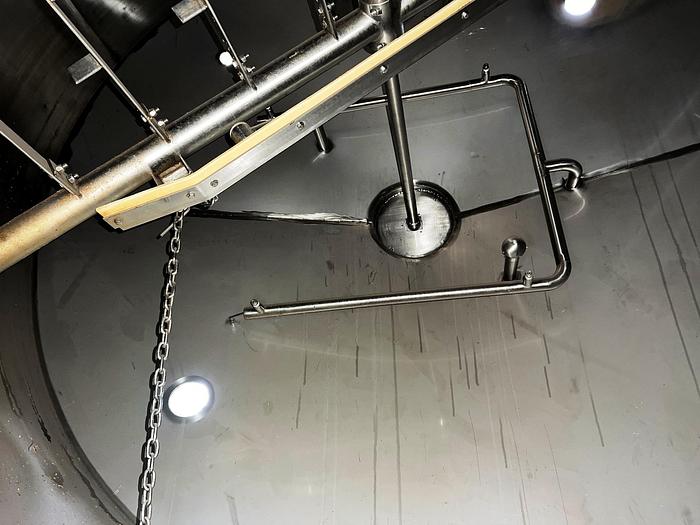

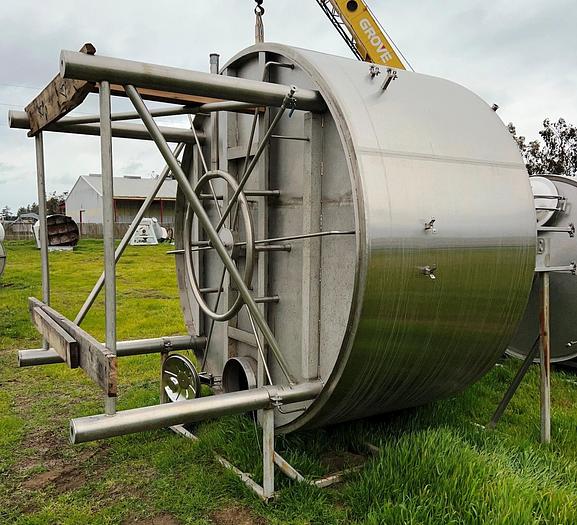

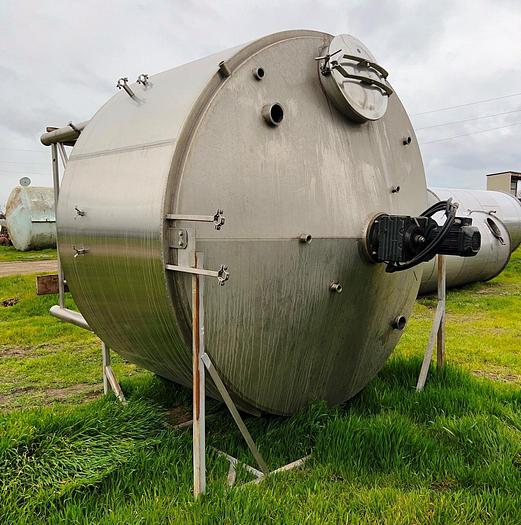

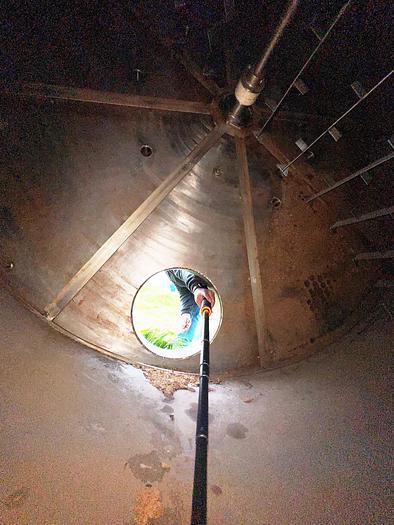

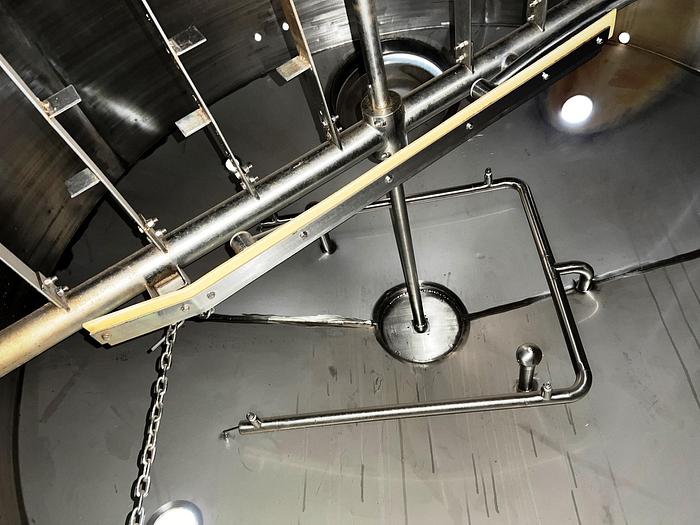

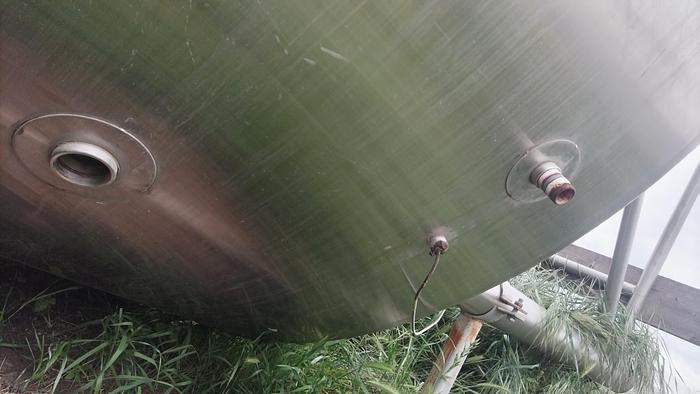

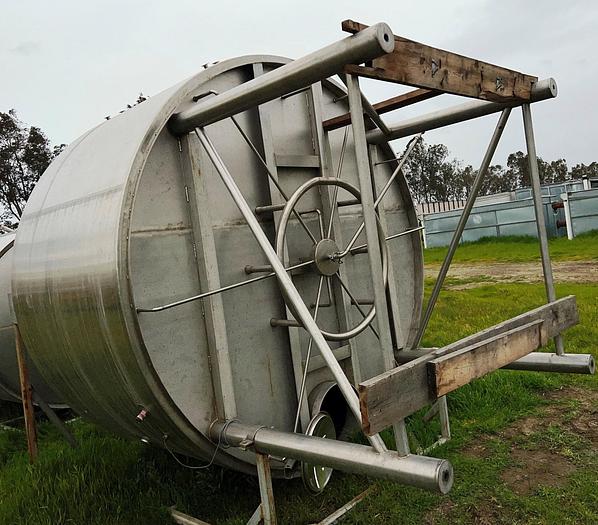

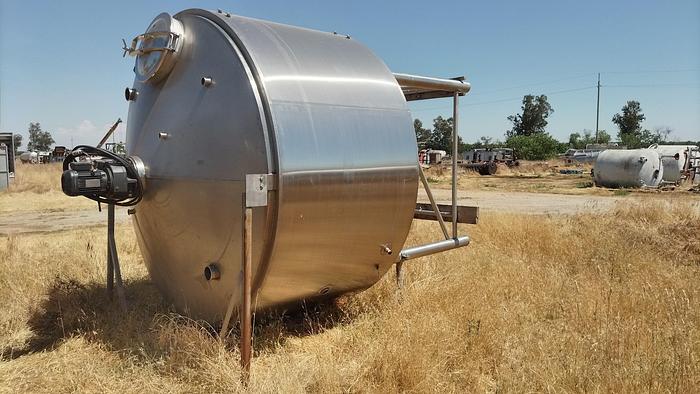

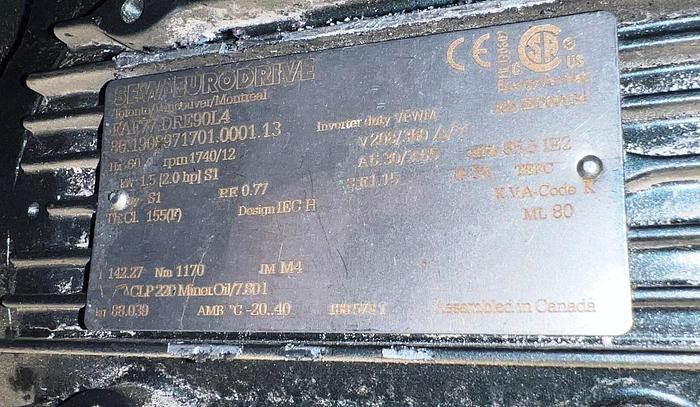

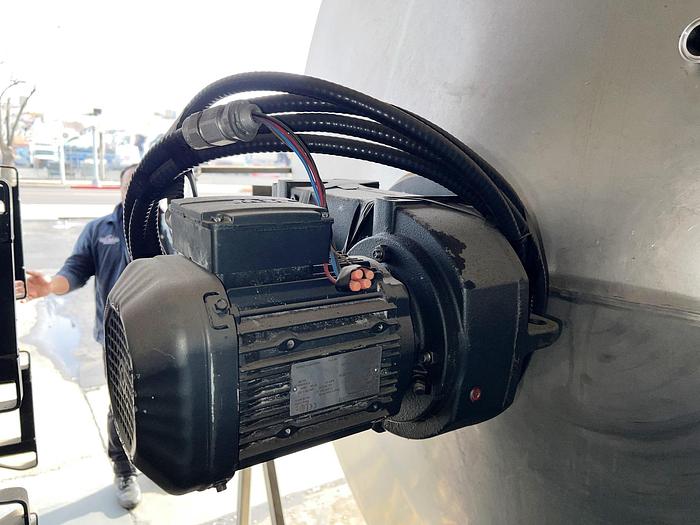

Vessel measures 96" diameter x 54" straight side with conical top and flat bottom (including false bottom). Offered with SEW-Eurodrive top mounted drive for rotary rake agitation, driven 2 HP, 208V, 3/60Hz, 1740/12 RPM. Top head includes various openings including (2) 4", (2) 2" and (2) 1.5" openings. Bottom of vessel includes 16" diameter access manway, (8) steam injection ports and (6) bottom openings piped together by one large ring. Last used at microbrewery.
