Mill, Ball, 22' x 38', Metso, 10,000 kW, Unused #D744956

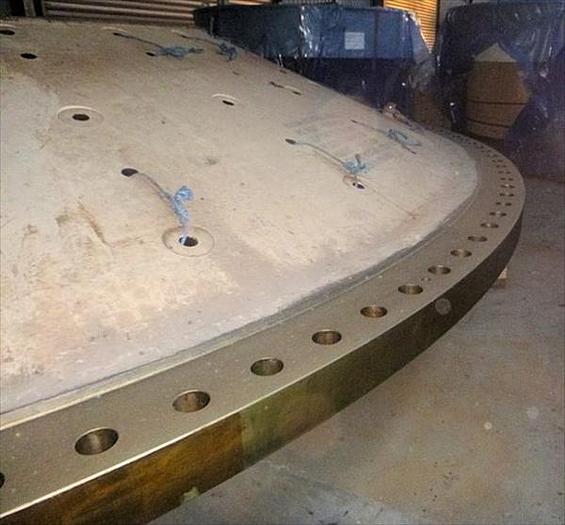

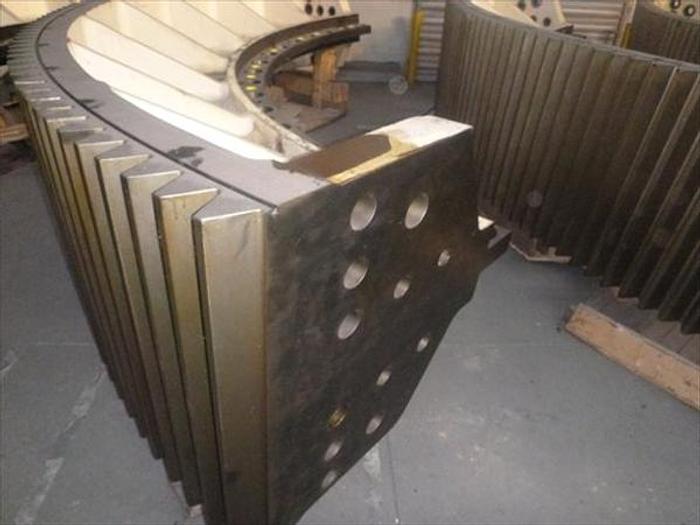

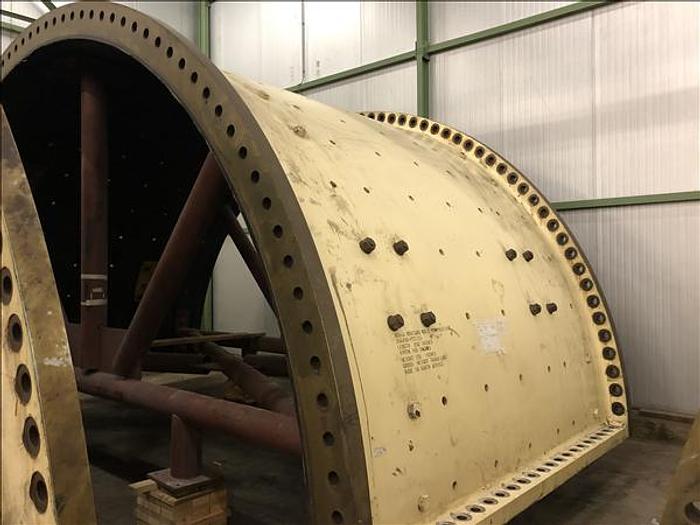

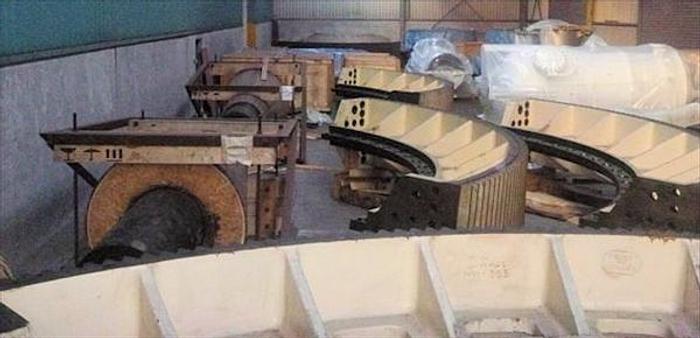

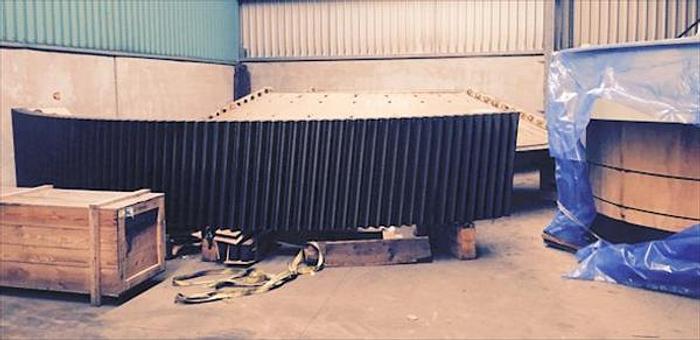

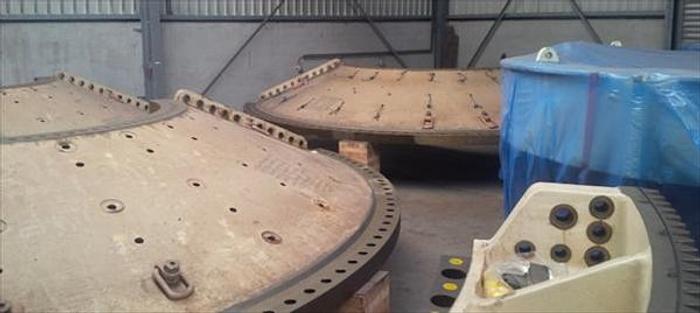

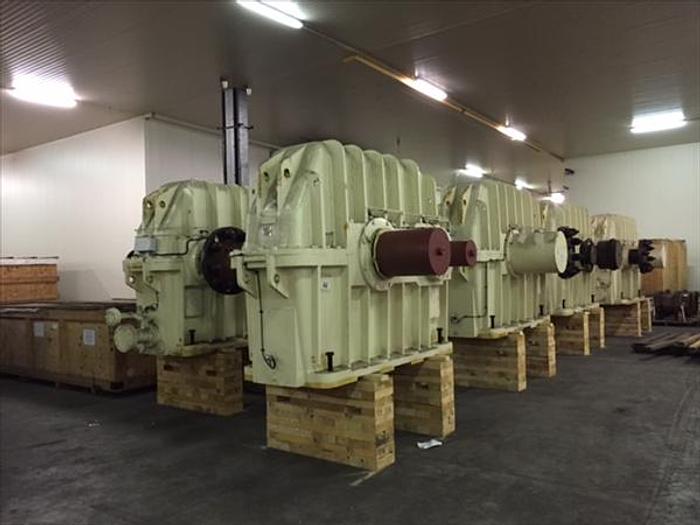

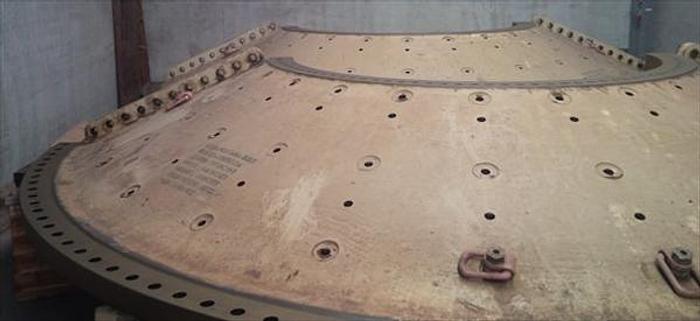

Unused 22' diameter x 38' long Metso Ball Mill, with 10,000 kW (13,410 HP) fixed speed dual motor-gearbox-pinion drive. Designed as an overflow ball mill with rubber liners. Includes lube systems, feed chute, jack cradles, currently less liners, trommel, hydraulic lifting jacks, main HV switchgear. Each of the twin mill drives consist of (2) Teco wound rotor induction motors, 5,000 kW (6,075 HP), 50 Hz driving via flexible couplings and gearboxes to the twin pinons. Unit features fixed-speed drive with LRS starting equipment.
