Mill, Impact, Entoleter, C/st, 5 HP, Mdl ECM, 16" Dia, #S744506
Mill, Impact, Entoleter, C/st, 5 HP, Mdl ECM, 16" Dia, #S744506
Location:San Dimas, CA
Available quantity:1
or
Call +1 (415) 467-3400
Description

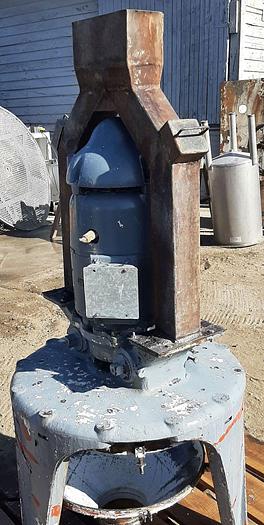

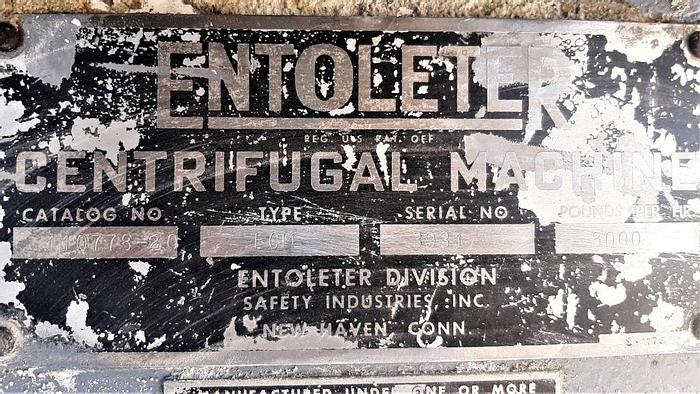

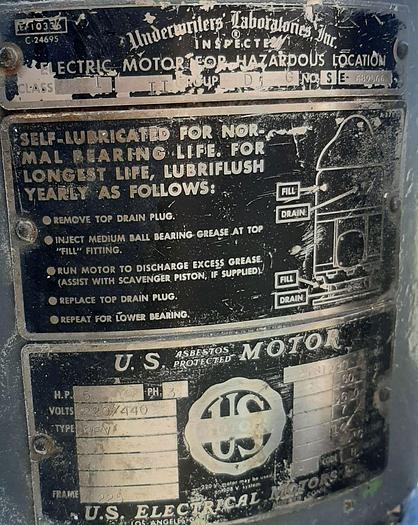

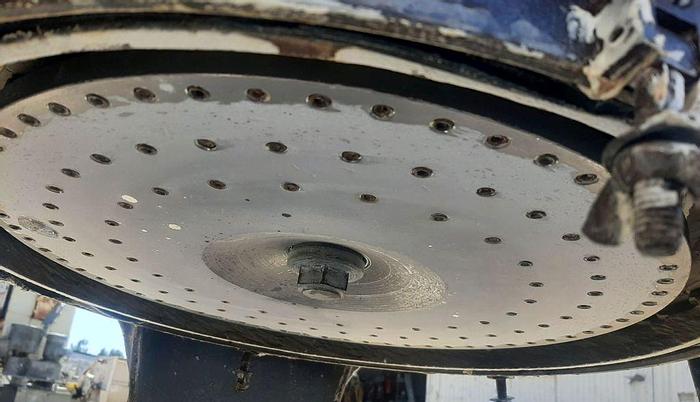

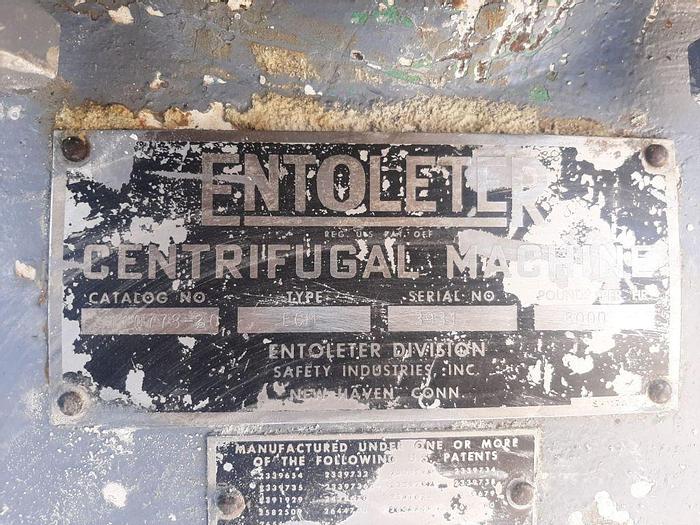

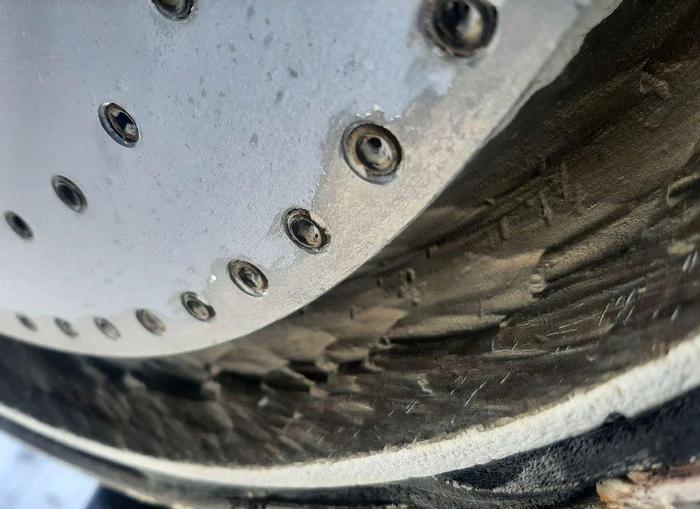

Entoleter Centrimil Impact Mill, Model ECM, carbon steel construction. Includes 16" diameter rotor with 3/8" diameter pins and 2-part rotating disc. Includes 8" X 3-1/2" top infeed and 6" diameter center bottom discharge. Driven by 5 HP, 220/440V, 3-phase, 60 Hz, 3600 RPM motor. Mounted on a frame. Catalog number 110778-20, Serial number 3931.
Manufacturer Specifications:
- Capacity: 8,000 pounds per hour
- Separated by pegs which impact material and accelerates it to wear plate
- Cyclone classifier with integral classifier zone
- Forced lubrication
- Outboard bearing housing
Specifications
| Stock Number | S744506 |
| Manufacturer | Entoleter Centrimil |
| Model | ECM |
| Serial Number | 3931 |
| Diameter | 16" |
| HP | 5.0 |
| Materials of Construction | Carbon Steel |
| Basis | FOB |
General Information
The ECM model from Entoleter is ideal for high-throughput particle size reduction. With similar specs to the FTM, it excels in grinding, pulverizing, and classifying dry materials in applications such as starch refining, pigment blending, or powdered food processing. Durable construction supports long-term industrial use.
