Heat Exchanger, Plate, 550 SF, 316 S/st, AGC, Divider Block #S744438

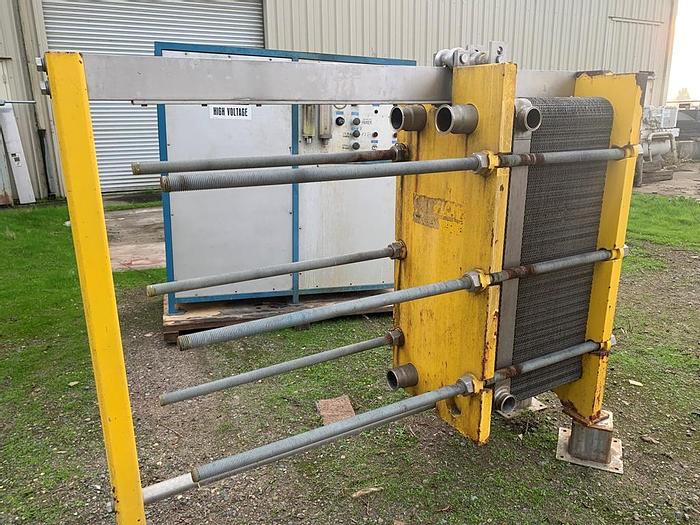

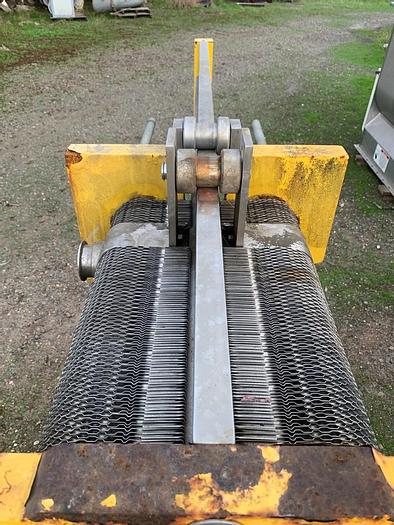

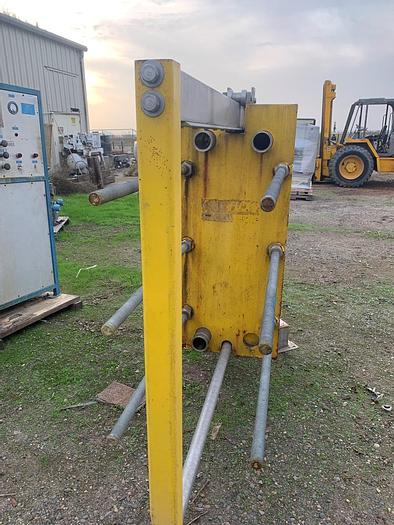

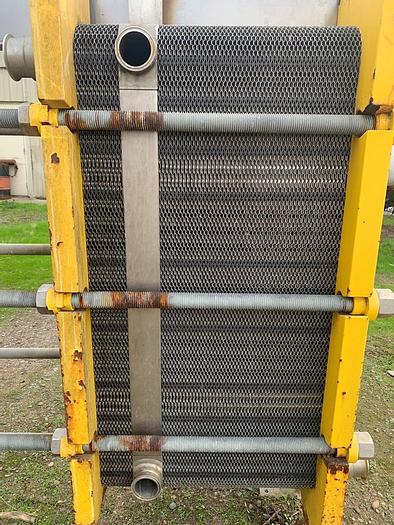

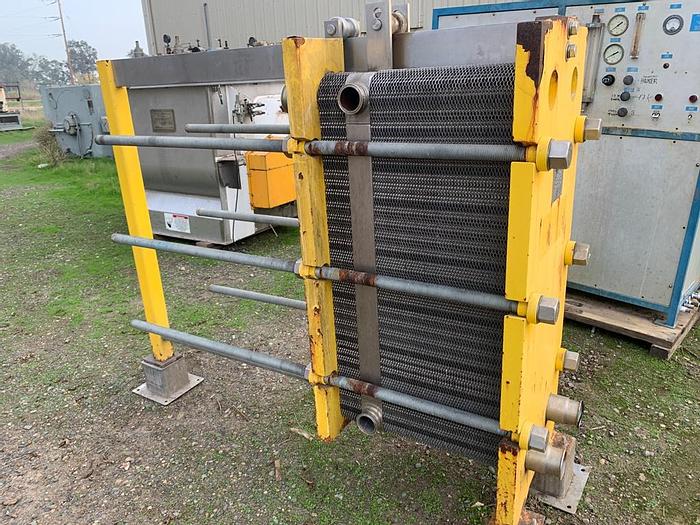

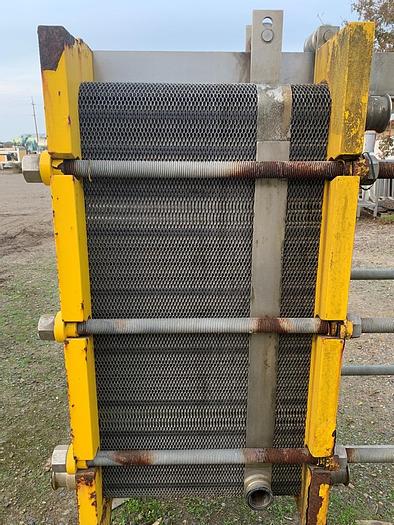

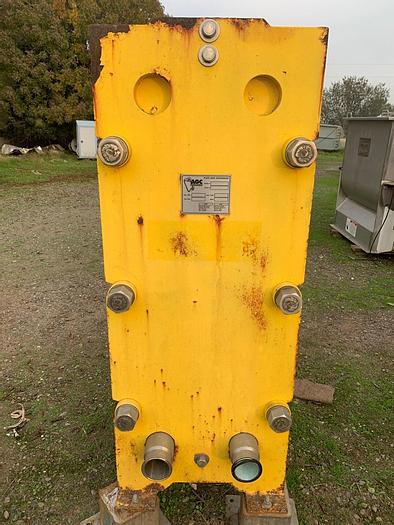

AGC Plate-Type Heat Exchanger, rated for 150 PSI at 250 degrees Fahrenheit (Test Pressure: 225 PSI). Includes (2) sets of 316 stainless steel plates measuring 16" wide x 45" high, separated by 3" wide divider block with (3) 2-1/2" diameter tri-clamp inlets/outlets; Plate Set # 1 has approximately (21) stainless steel plates and Set # 2 has approximately (96) plates. Set up for 3-eye closed delivery with 3" inlets/outlets. The end plate can be extended another 36" to add plates. End plate and divider block mounted on rail. Previous used at water bottling facility. New in 2003. Model PRO3-1, Serial number 02355.
