Heat Exchanger, Spiral, S/st, Elanco, Mdl M-205-C-V, 75 PSI #S744389

Heat Exchanger, Spiral, S/st, Elanco, Mdl M-205-C-V, 75 PSI #S744389

Location:San Dimas, CA

Available quantity:1

orCall +1 (415) 467-3400

Description

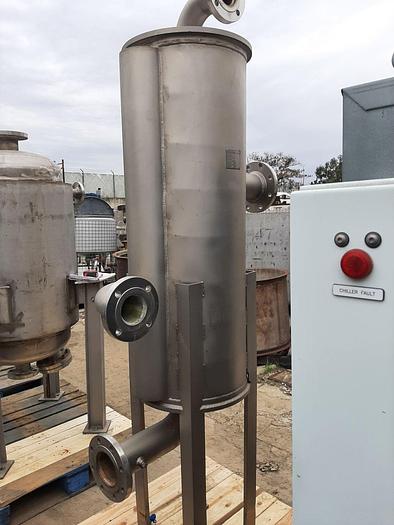

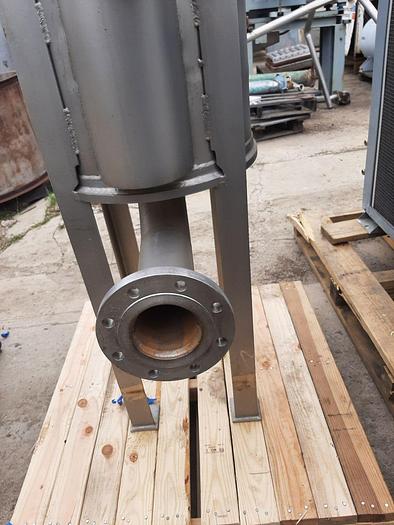

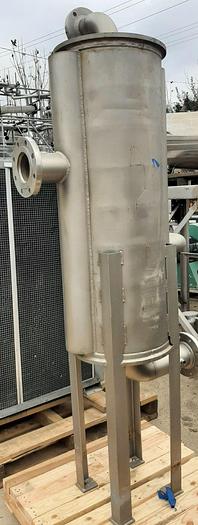

Elanco Spiral Plate Heat Exchanger, Type C, Model M-205-C-V, 304 stainless steel. Shell measures 16"diameter X 48" straight side, rated for 75 PSI at 200 degrees Fahrenheit. Includes 4" diameter cold pass inlet, 3" diameter outlet, 4" diameter hot pass inlet and 3" diameter outlet. Serial number 99270B.


Manufacturer Specification:

  • Spiral flow both circuits all welded on both sides both fluids are in spiral flow, true counter flow
  • Used when the flows are clean, when gasketing is problematic, or when cost must be kept to a minimum. Example (deionized water to tap water).


Specifications

Stock NumberS744389
ManufacturerElanco
ModelM-205-C-V

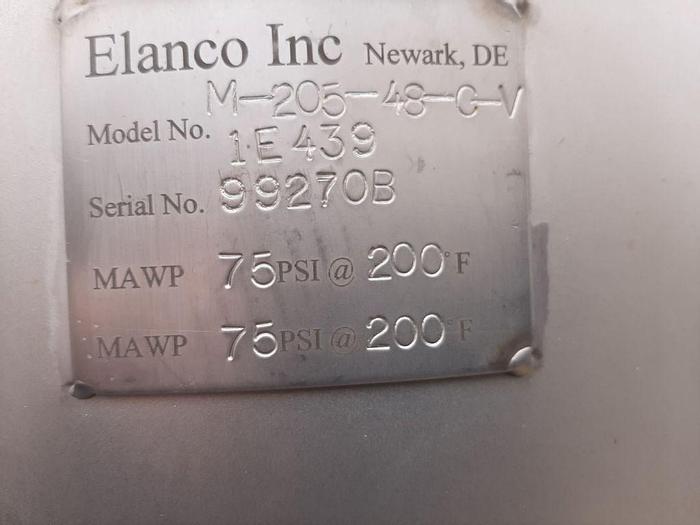

Serial Number99270B
Tube Measurements16" Diameter X 48" High
Number of Tubes75 PSI @ 200º F
Tube Matirials304 Stainless Steel
BasisFOB
