Dust Collector, Bin Vent, 165 SF, Shaker Style Filter Cleaning #S743808
Dust Collector, Bin Vent, 165 SF, Shaker Style Filter Cleaning #S743808
Location:San Dimas, CA
Available quantity:1
or
Call +1 (415) 467-3400
Description

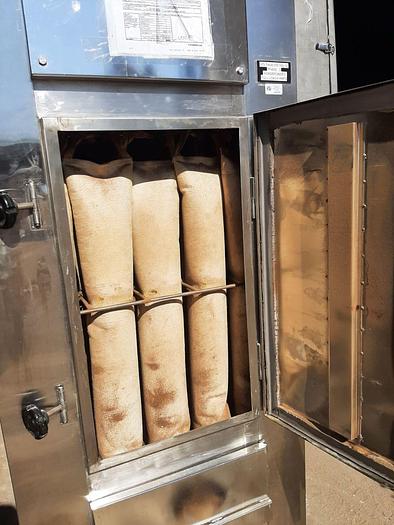

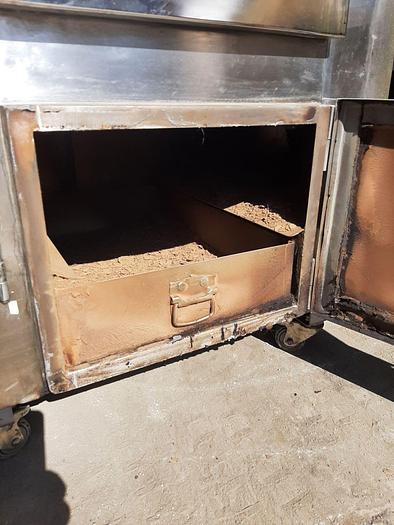

Shaker Style Filter Cleaning, bin vent dust collector, rated at 165 square feet, 20 bags, 4-1/2" diameter x 31" long. Dust Drawer Discharge air inlet 8" diameter, outlet 6"diameter, 2 HP blower mounted on top, all stainless-steel contact parts.
Specifications
| Stock Number | S743808 |
| Square Feet | 165 |
| HP | 2 |
| Inlet and Outlet | 8" diameter Inlet and 6"diameter Outlet |
| Measurements | 4.5" Diameter x 31" Long (Bags) |
| Materials of Construction | Stainless Steel |
| Basis | FOB |
General Information
This bin vent dust collector includes shaker-style filter cleaning with a dust drawer discharge. Constructed with stainless steel contact parts, it features 20 filter bags and a 2 HP blower, making it suitable for industrial venting systems.
