Tank, 550 Gallon, S/st, Agit, 48" x 70", FT/SB #C743304

Tank, 550 Gallon, S/st, Agit, 48" x 70", FT/SB #C743304

Location:San Dimas, CA

Available quantity:1

Description

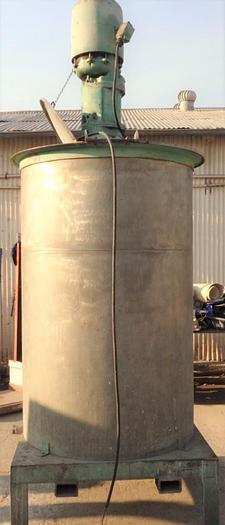

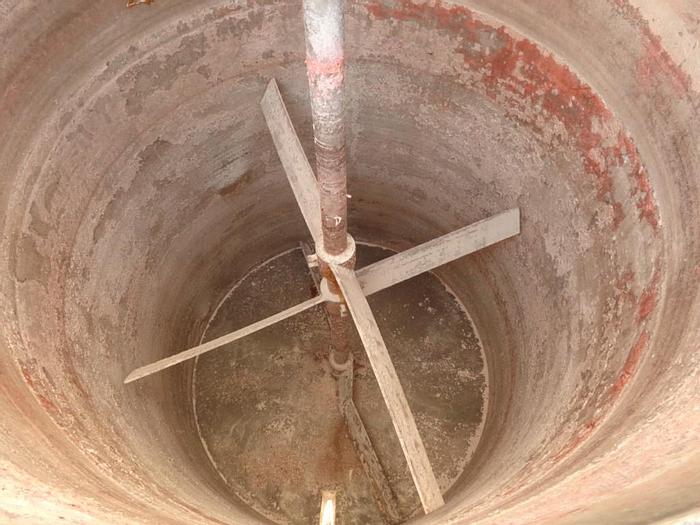

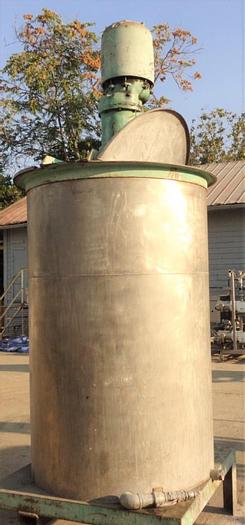

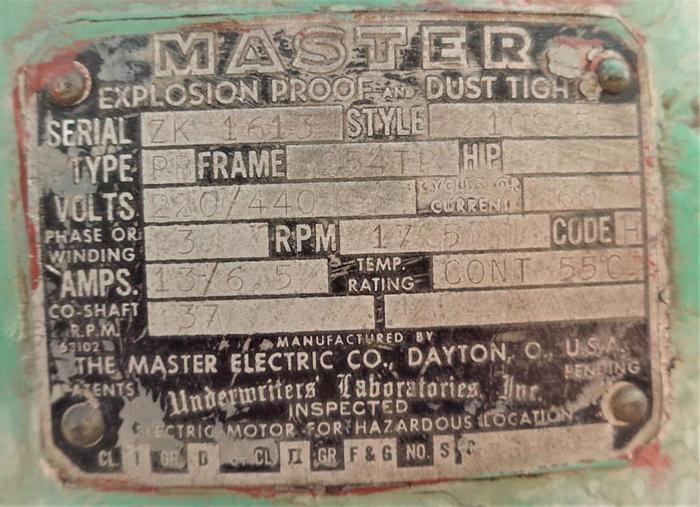

Stainless steel tank, approximately 550-gallon capacity, measures 48" diameter x 70" straight side with sloped bottom leading to 2" diameter bottom-side discharge. Includes flat top with lids and bridge mounted center top entering agitation, driven by 5 HP motor thru gearbox, 5 HP, 220/440V, 1725 RPM, 3/60 Hz. Agitation includes 2" diameter x 72" long shaft with (3) 2-blade, 4" wide, pitched paddle blades along shaft, 46" diameter swing. Mounted on mild steel frame with (4) legs.

Specifications

Stock NumberC743304
Gallons550
Materials of ConstructionStainless Steel
Previous UsePaints
BasisFOB

General Information

Constructed from stainless steel, this 550-gallon agitated tank is suitable for chemical, food, or pharmaceutical blending. Mounted on a mild steel frame, it includes bridge-mounted center top agitation with dual-paddle blades. Ideal for mixing slurries, liquids, or viscous materials in mid-scale production environments.
