Reactor, 200 Gallon, Glass Lined, Jkt, Agit, Pfaudler, #C742758
Reactor, 200 Gallon, Glass Lined, Jkt, Agit, Pfaudler, #C742758
Location:San Dimas, CA
Available quantity:1
or
Call +1 (415) 467-3400
Description

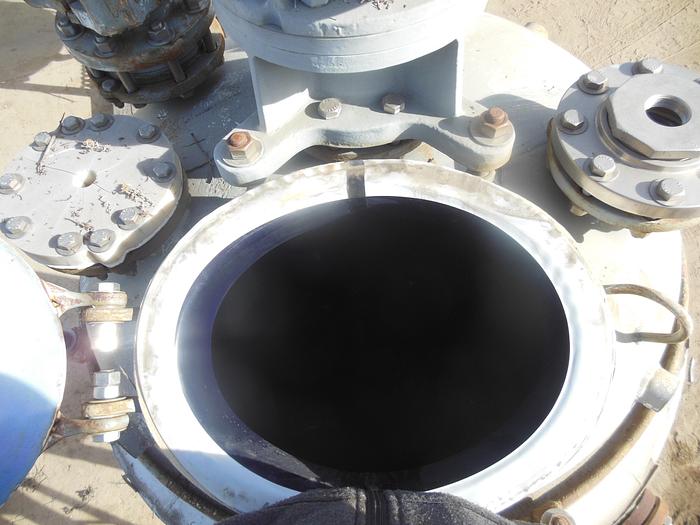

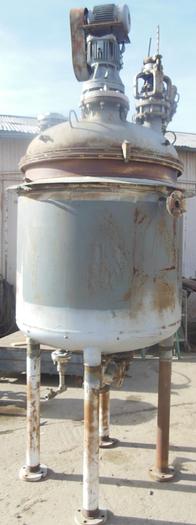

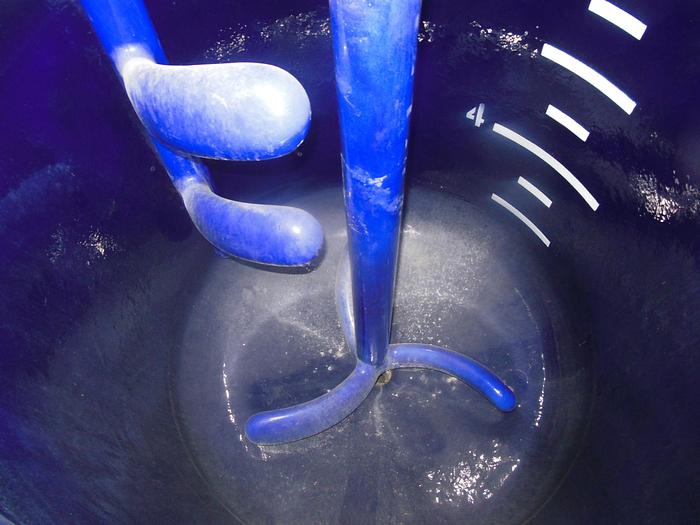

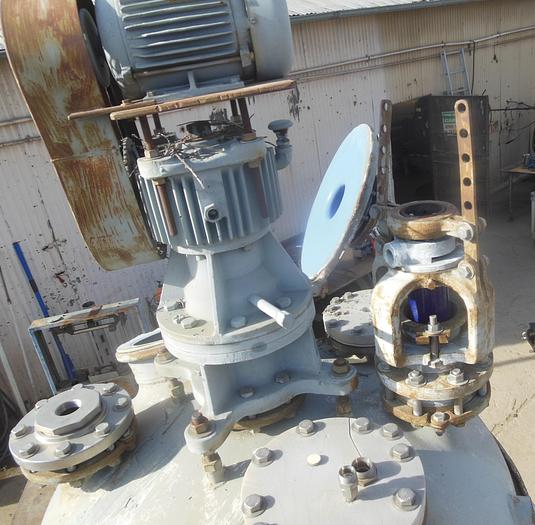

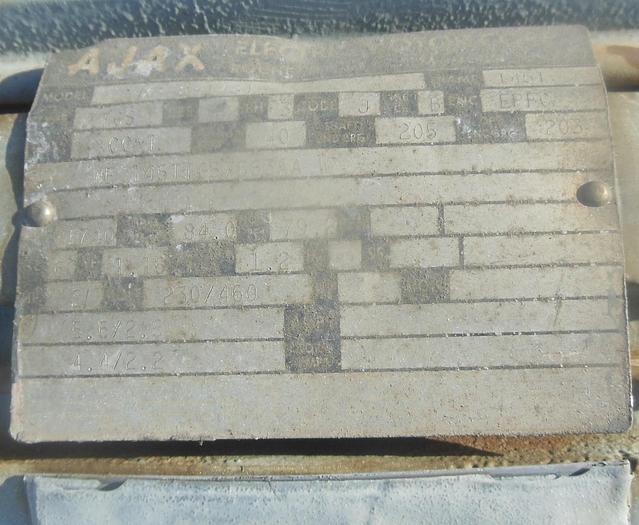

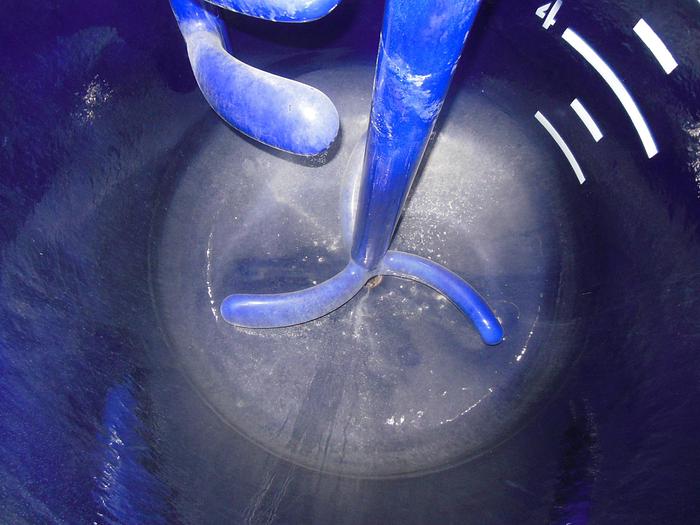

Pfaudler glass-lined 200-gallon jacketed reactor. Measures 39" diameter x 39" straight side, dished top and bottom, complete with 3-blade retreating impeller agitation and a finger baffle. Driven by 2 Hp, 3-phase, 60 cycle, 230/460-Volt motor with reducer. Top openings include 16" x 11" oval manway and (2) 4" (1) 6" inlets, 3" diameter center bottom outlet, stands on (4) 3-1/2" pipe legs. No data plate available, and no pressure rating for the jacket.
Specifications
| Stock Number | C742758 |
| Manufacturer | Pfaudler |
| Gallons | 200 |
| Materials of Construction | Glass-Lined |
| Internal Pressure | Not Available |
| Jacket Pressure | Not available |
| HP | 2 |
| Basis | FOB |
General Information
Pfaudler's reactor is designed for corrosive fluid processing. Common applications include herbicide or pesticide formulation, specialty coatings, and regulated batch chemical production.
