Pump, Centrif., C/st, 700 HP, 18" In/14" Out, CPC,A #C743768

Available quantity

1

Location

Alberta, Canada

orCall +1 (415) 467-3400

Specifications

Stock NumberC743768
ManufacturerCPC Pumps
ModelHDR
HP700
SizeD14x18x27
Contact PartsCarbon Steel
Inlet and Outlet18" Inlet x Outlet 14"
BasisAs Is, Where Is

Description

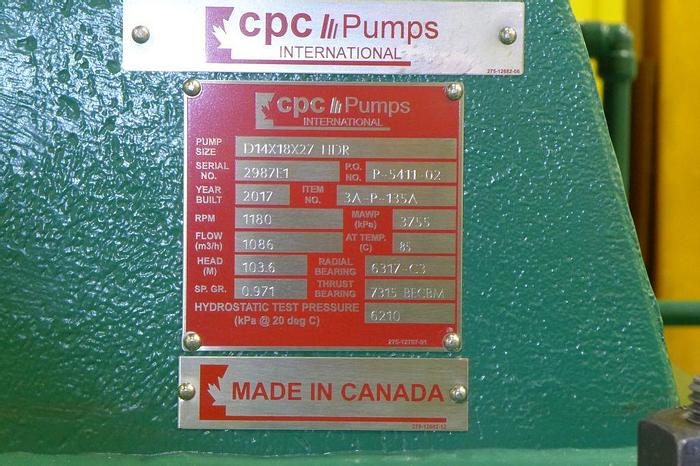

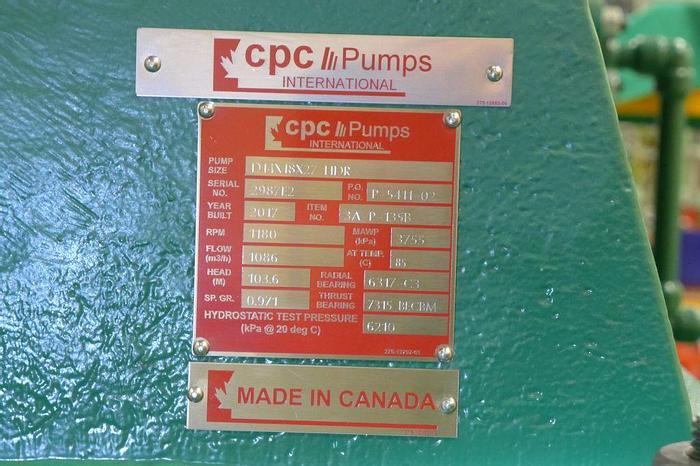

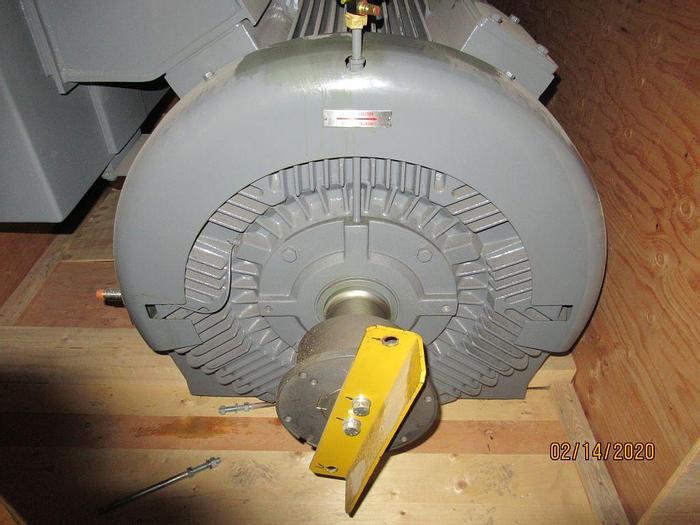

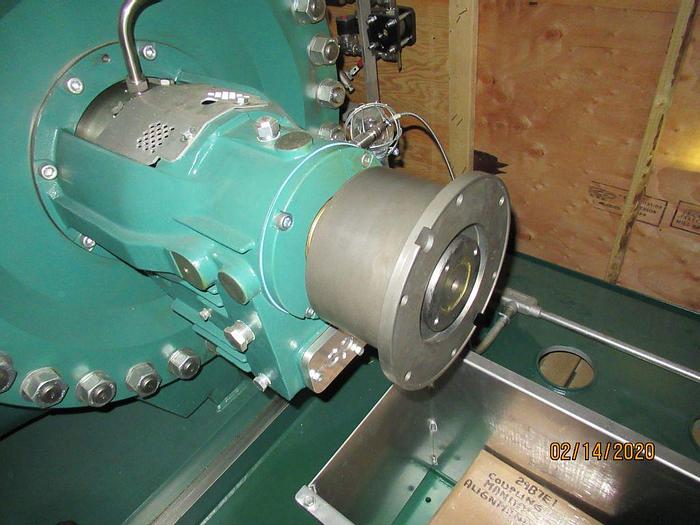

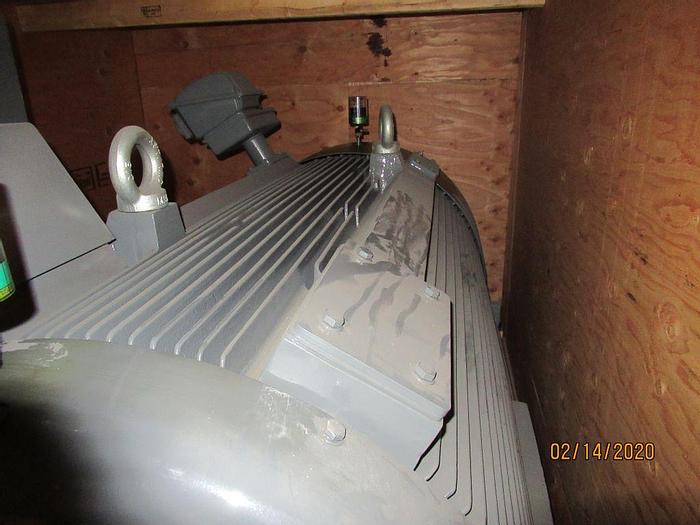

Heavy Oil Feed Pump, manufactured by CPC Pumps, Model HDR, Size D14x18x27. Carbon steel alloy construction, with A216 Gr WCB 12% CR casing material and A487 Gr CA6NM 12% CR impeller material. Rated for flow of 1086 m3/h (4780 gallons per minute), 103.6m (340 feet) head, 3755 MAWP Kpa, 85 degrees Celsius, 0.971 specific gravity, 610 API. Features 14", 300 pounds RF discharge, with 18" 300 pounds RF suction connection. Complete with 700 HP Teco motor, 1180 RPM, 3-phase, 4000 V, 60 Hz, with 450CB frame. Unit is unused, never installed.
