Mill, Hammer, Jeffrey, 20" X 24", C/st, 2 Roller Type, #Z475060

Mill, Hammer, Jeffrey, 20" X 24", C/st, 2 Roller Type, #Z475060

Available quantity: 1

San Dimas, CA

Get Financing orCall +1 (415) 467-3400

Description

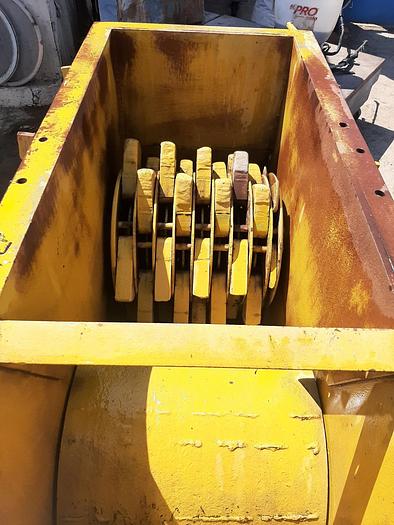

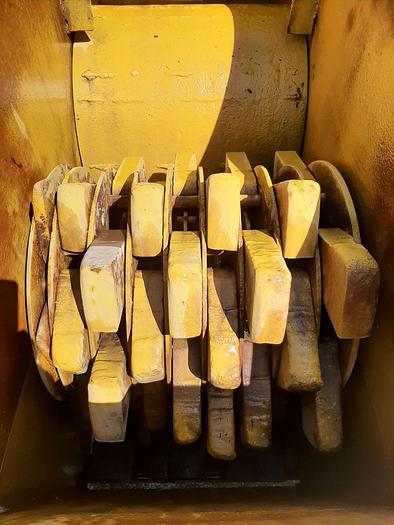

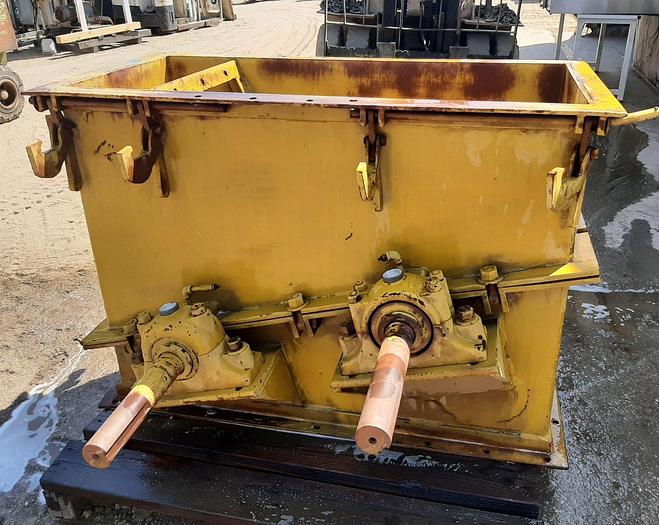

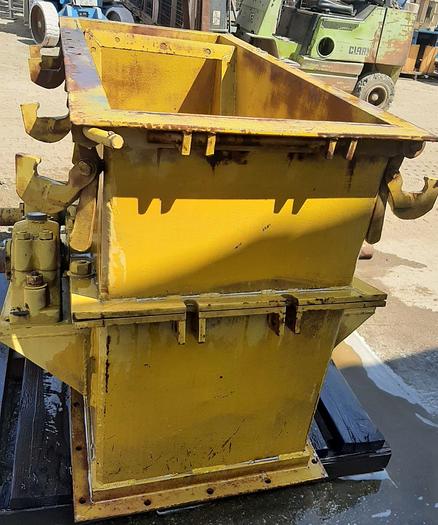

Jeffrey hammer mill/lump breaker. Unit features twin rolls, the first with 20" x 24" solid roll, 2nd roller 24" diameter hammer mill rotor. Hammers on second roll measures 1-1/2" thick x 3-1/2" wide x 10-1/2" long. Unit designed to have the two rolls rotating towards each other. Unit enclosed in a 24" x 48" carbon steel housing with angle iron flange top and bottom. Independent drive shafts are approx 1-3/4" diameter last used in mining operation, offered less drive.

Specifications

Stock NumberZ475060
ManufacturerJeffrey
Chamber Dimensions24" Diameter X 20" High
Materials of ConstructionCarbon Steel
TypeRoller Type
BasisFOB
