Labeler, Pressure Sensitive, Quadrel, Front & Back, (2) #D740893

Available quantity

2

Location

Southeast

orCall +1 (415) 467-3400

Specifications

Stock NumberD740893
ManufacturerQuadrel
ModelQ65
ConditionUsed
BasisEach, FOB

Description

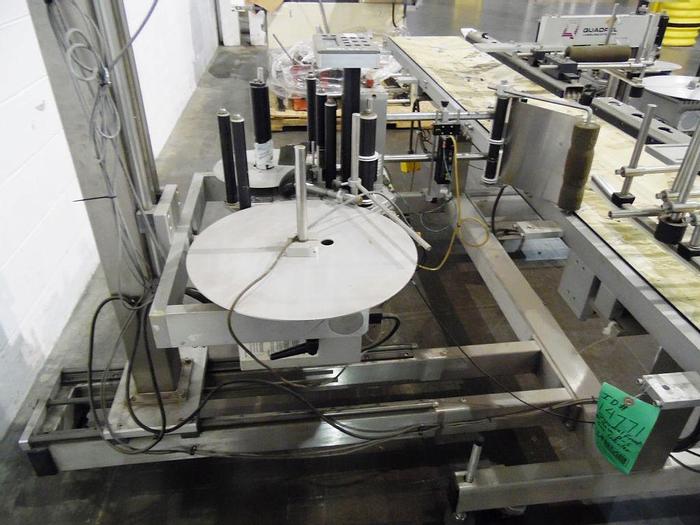

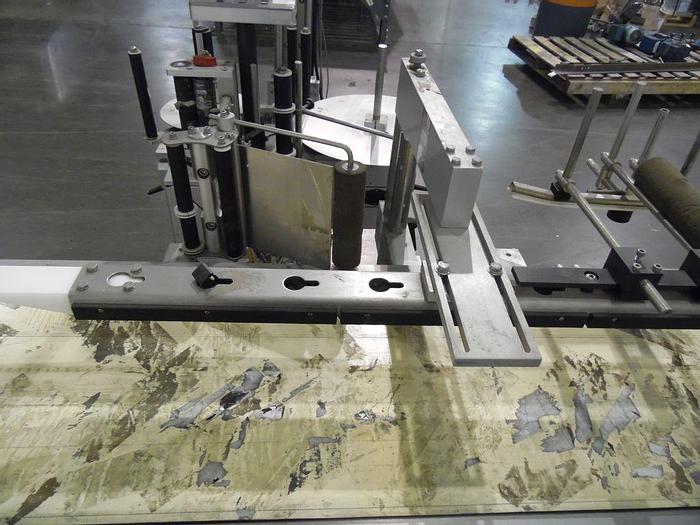

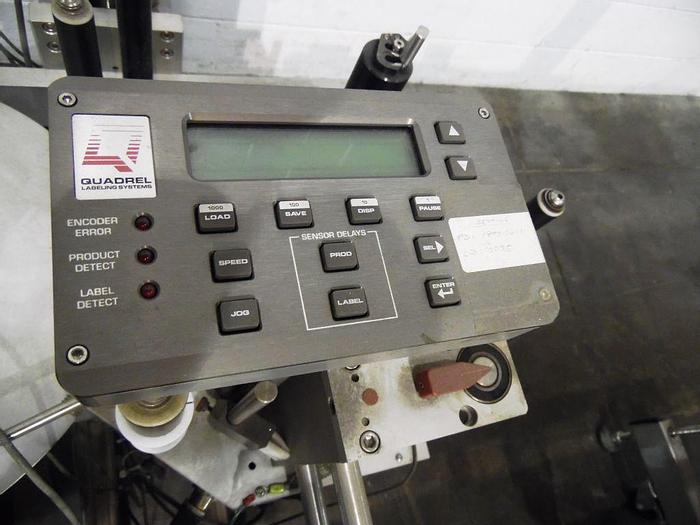

(2) Pressure sensitive labeler, manufactured by Quadrel, model # Q65 Flat Belt. Front and back labeler mounted with Dorner style 16" wide x 123" long conveyor section at 32"elevation driven by 1/4hp DC motor. Dispensing speed is up to 2200" per minute, but variable depending upon applications. Dispensing accuracy: up to +/-1/32". Label size ranges: 1/2" to 6-7/8" wide, 1/2" to required length. Maximum web width: 7". Label format: die cut, waste removed (minimum 1/8"between labels). 16"diameter unwind with 3"diameter core and 10" diameter rewind with 2"core. Encoder error, label detect and product detect. Right to left box flow with respect to the small control panel. Rugged stainless steel & aluminum construction. Tubular base and mounted on casters. Electrical: 120V/1ph/9.6 amps.
