Hopper, 9 CF, S/St, 36" x 32", Conical, Air Lock Valve #S744141
Hopper, 9 CF, S/St, 36" x 32", Conical, Air Lock Valve #S744141
Location:San Dimas, CA
Available quantity:1
or
Call +1 (415) 467-3400
Description

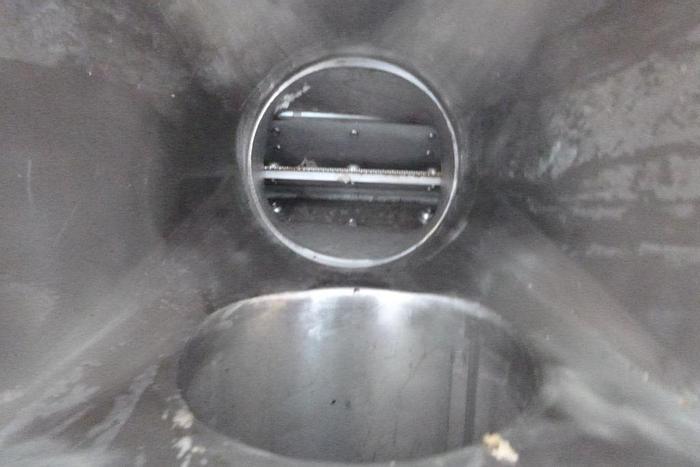

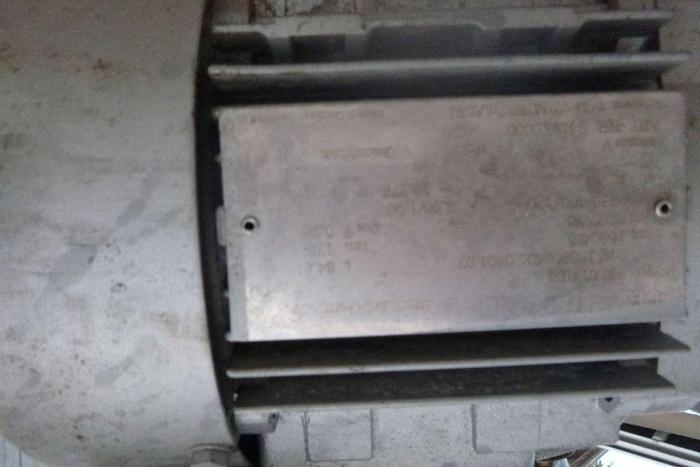

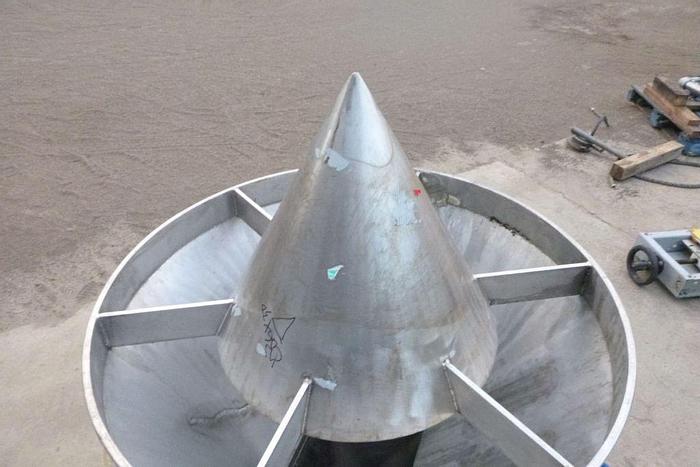

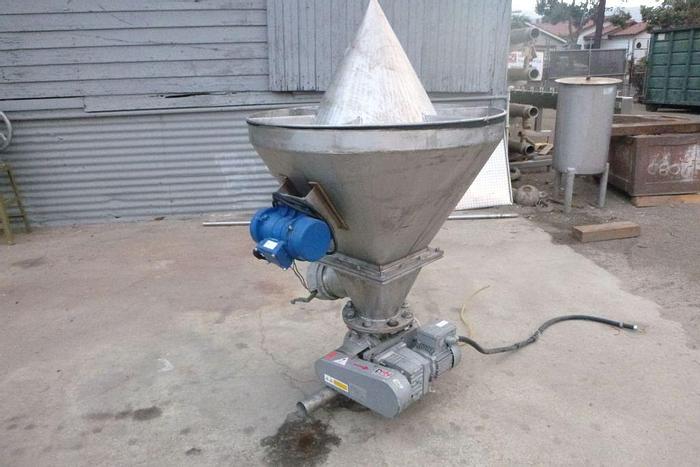

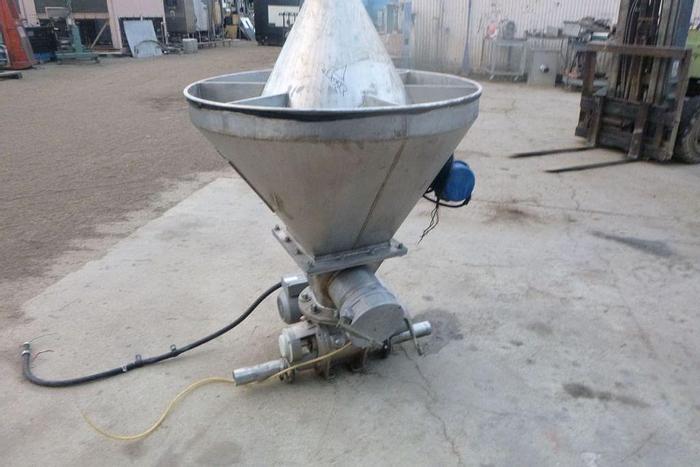

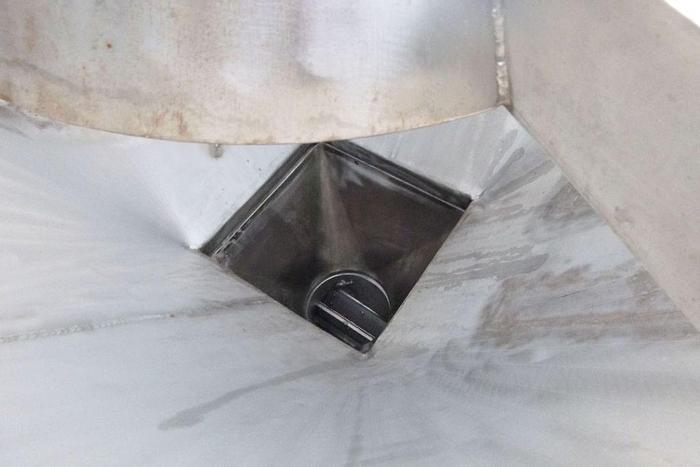

Conical Hopper, Stainless steel with cone insert flow easy spread, air lock and hopper tamper volume 70-gallon, size 36" x 32" high with DMN sanitary air lock type BL150, 6" inlet, (2) 2" bottom side discharge driven by 1/2 HP, 0.37kW, 230/460 V, 3-phase, 60 Hz, 1680 RPM, includes VE3 3,600 RPM electric vibratory, force: 655 pounds, motor 0.4 HP, 0.3 kW, 230/460 V, 3-phase, 60 Hz.
Specifications
| Stock Number | S744141 |
| Cubic Feet | 9 |
| Materials of Construction | Stainless Steel |
| Discharge Type | Bottom Discharge |
| Basis | FOB |
General Information
Conical stainless steel hopper designed for smooth material flow, includes airlock for controlled discharge. Reliable for sanitary bulk material transfer.
