Heat Exchanger, Shell & Tube, 475 SF, C/st And Copper, #S735586

Heat Exchanger, Shell & Tube, 475 SF, C/st And Copper, #S735586

Available quantity: 1

San Dimas, CA

Get Financing orCall +1 (415) 467-3400

Description

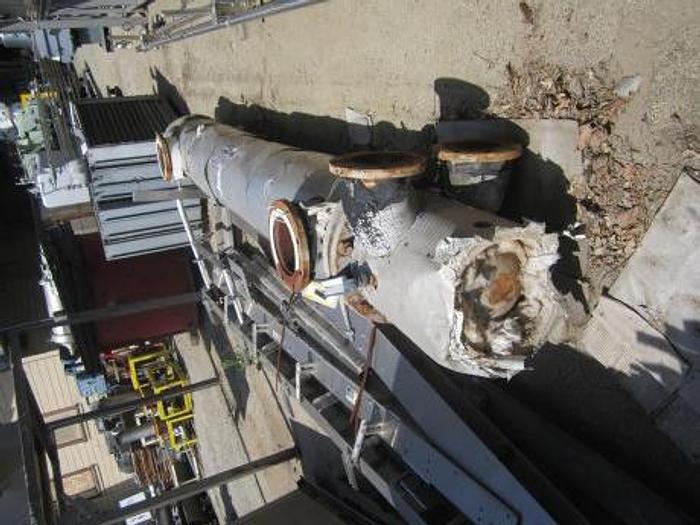

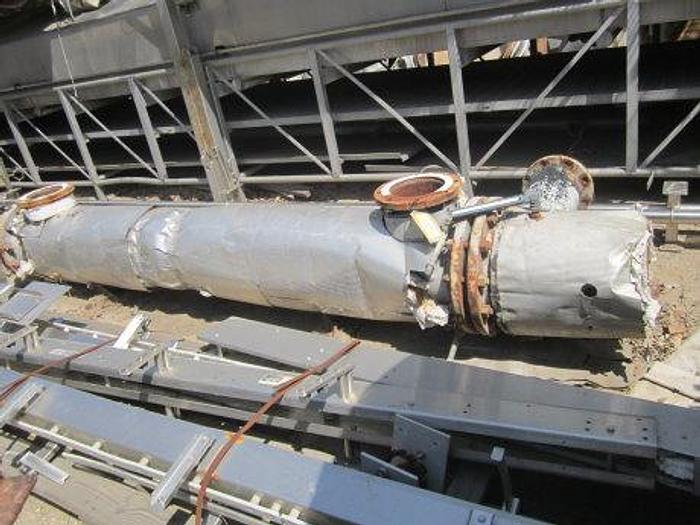

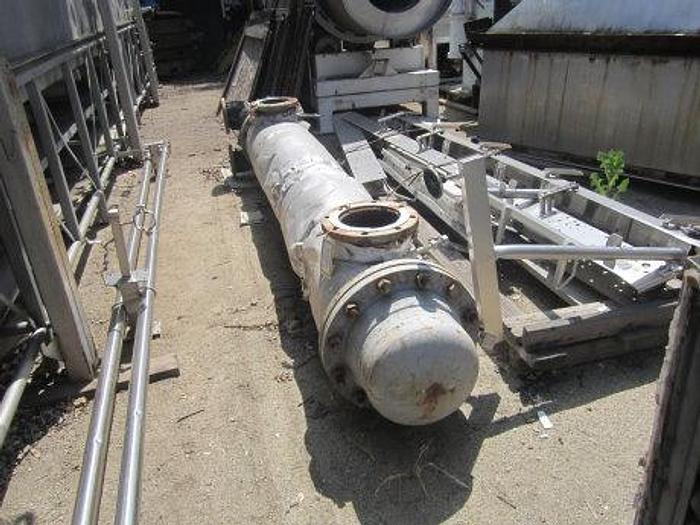

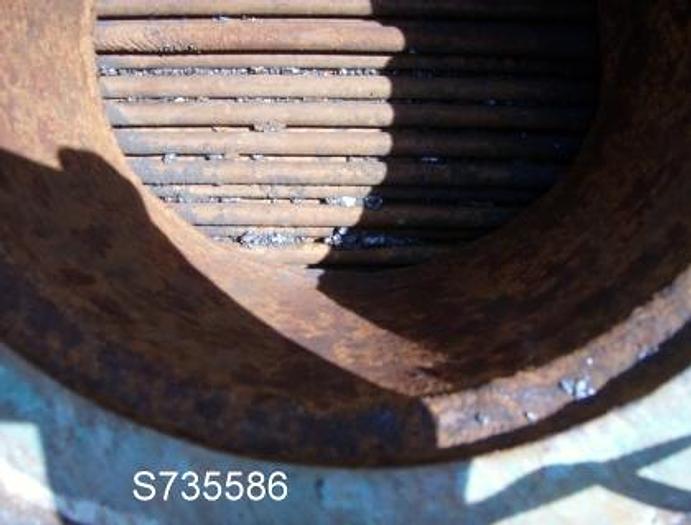

Philadelphia Pipe Bending Company carbon steel shell heat exchanger, 475 sq. ft. Unit has 582 copper tubes, 5/16" diameter x 10' long. Shell side rated at 150 PSI @ 300 deg. F., tube side rated at 75 PSI @ 300 deg. F. Unit has bolt on heads on both ends, (2) 8" and (2) 6" flange type ports. Unit manufactured new 1995, NB# 414, serial number 12596.

Specifications

Stock NumberS735586
ManufacturerPhiladelphia
Year1995
Serial Number12596
BasisFOB
