Heat Exchanger, Shell & Tube, 3800 SF, S/st, #Z419500

Available quantity



Brisbane, CA

orCall +1 (415) 467-3400


Stock NumberZ419500
ManufacturerPatterson Kelley
Serial Number17733
Square Feet3,800
Number of Tubes1,613
Tube Size0.75" Diameter X 12' Long
Shell Ratings150 PSI
Tube Ratings15 PSI
Tube Measurements0.75" Diameter X 12' Long
Tube MatirialsStainless Steel

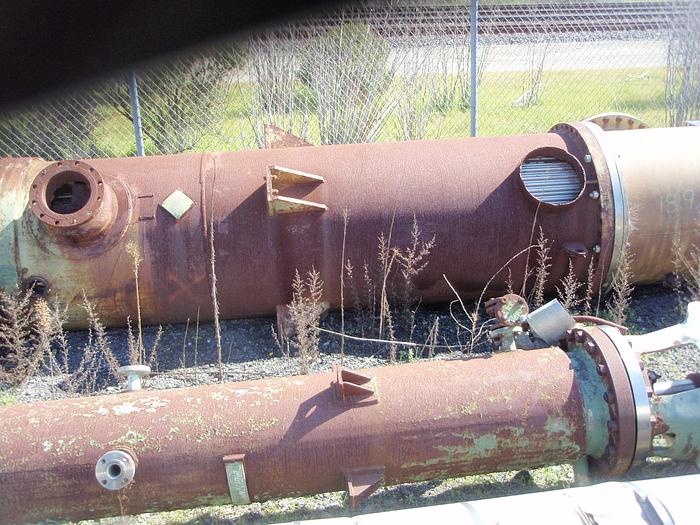

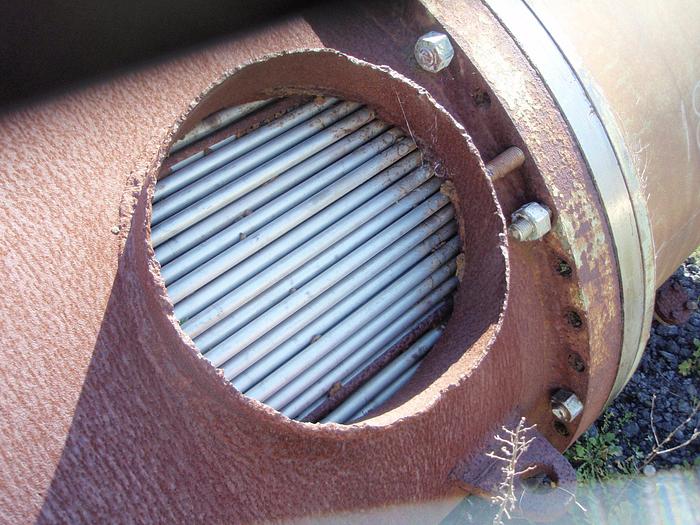

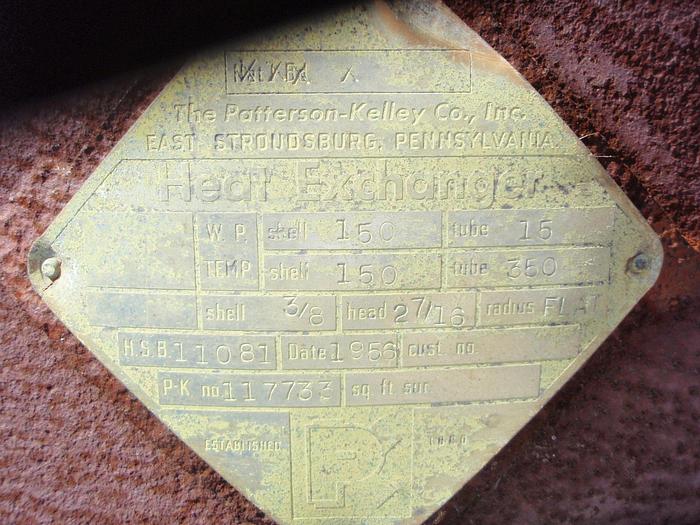

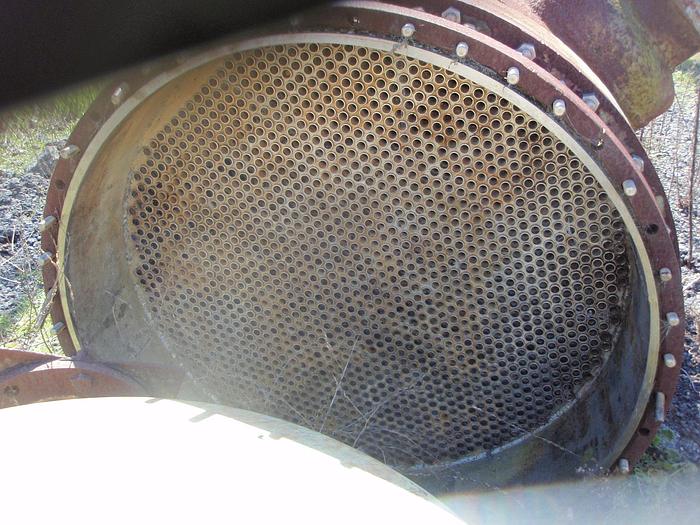

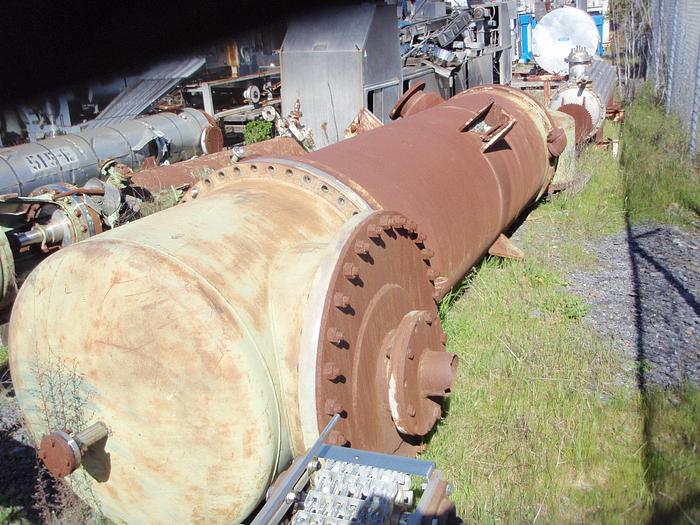

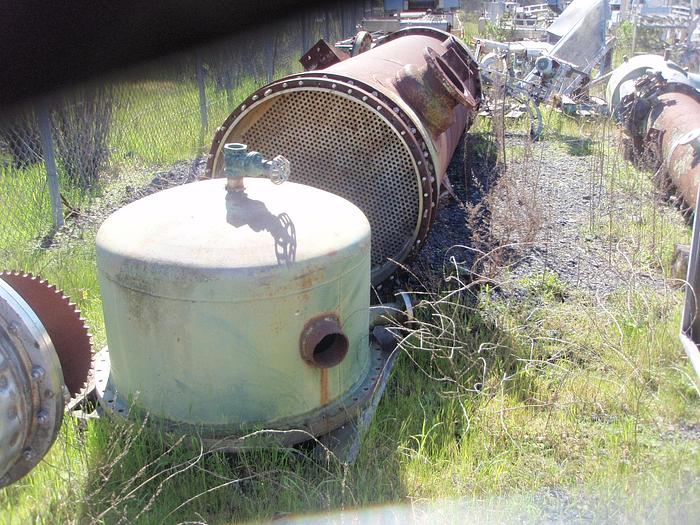

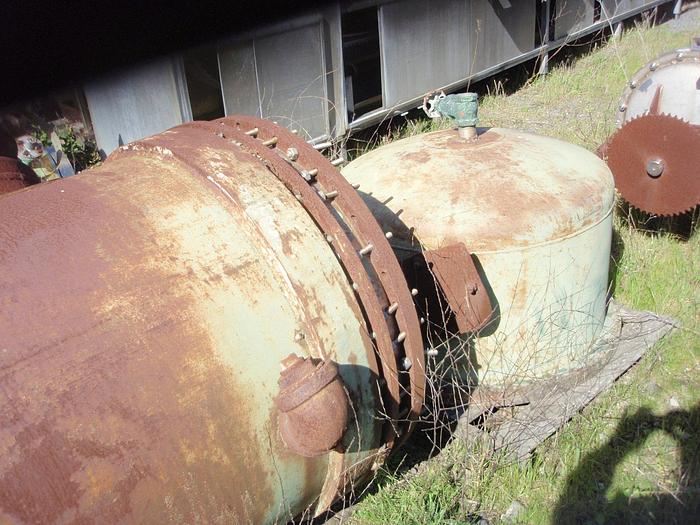

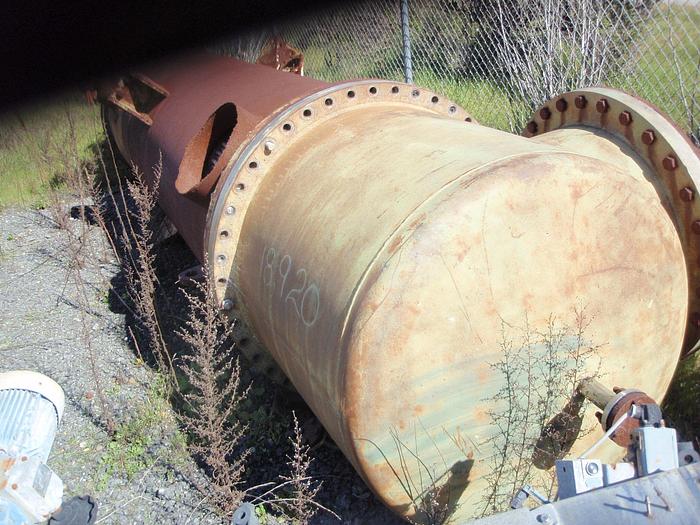

Patterson-Kelley shell & tube heat exchanger, 3800 square feet, with (1613) 3/4" od T304 stainless steel tubes, 12' long, single pass, vertical condenser. Overall dimensions 42" inside diameter carbon steel shell x 20' long. 150 PSI shell side, 15 PSI tube side, 1" triangular pitch. Serial number 17733, National Board Number 11081.
